前言

本项为gluoncv官方源码解析

---

一、训练集预处理

训练集预处理在YOLO3DefaultTrainTransform类中实现，关于图像的预处理操作在__call__函数中，
方便直接调用。__init__初始化函数中的YOLOV3PrefetchTargetGenerator类主要是为了标注训练集中的标签，生成符合yolo格式的标签（objectness，bounding_box，cls)。

class YOLO3DefaultTrainTransform(object):
    def __init__(self, width, height, net=None, mean=(0.485, 0.456, 0.406),
                 std=(0.229, 0.224, 0.225), mixup=False, **kwargs):
        self._width = width
        self._height = height
        self._mean = mean
        self._std = std
        self._mixup = mixup
        self._target_generator = None
        if net is None:
            return

        # in case network has reset_ctx to gpu
        self._fake_x = mx.nd.zeros((1, 3, height, width))
        net = copy.deepcopy(net)
        net.collect_params().reset_ctx(None)
        with autograd.train_mode():
            _, self._anchors, self._offsets, self._feat_maps, _, _, _, _ = net(self._fake_x)
        from ....model_zoo.yolo.yolo_target import YOLOV3PrefetchTargetGenerator
        self._target_generator = YOLOV3PrefetchTargetGenerator(
            num_class=len(net.classes), **kwargs)

    def __call__(self, src, label):
        """Apply transform to training image/label."""
        # random color jittering
        img = experimental.image.random_color_distort(src)

        # random expansion with prob 0.5
        if np.random.uniform(0, 1) > 0.5:
            img, expand = timage.random_expand(img, fill=[m * 255 for m in self._mean])
            bbox = tbbox.translate(label, x_offset=expand[0], y_offset=expand[1])
        else:
            img, bbox = img, label

        # random cropping
        h, w, _ = img.shape
        bbox, crop = experimental.bbox.random_crop_with_constraints(bbox, (w, h))
        x0, y0, w, h = crop
        img = mx.image.fixed_crop(img, x0, y0, w, h)	# 按照裁剪后的box裁剪图像

        # resize with random interpolation
        h, w, _ = img.shape
        interp = np.random.randint(0, 5)	 # 插值
        img = timage.imresize(img, self._width, self._height, interp=interp)
        bbox = tbbox.resize(bbox, (w, h), (self._width, self._height))

        # random horizontal flip
        h, w, _ = img.shape
        img, flips = timage.random_flip(img, px=0.5)
        bbox = tbbox.flip(bbox, (w, h), flip_x=flips[0])

        # to tensor
        img = mx.nd.image.to_tensor(img)	# 转换为ndarray格式，数值分布在0-1之间的矩阵
        img = mx.nd.image.normalize(img, mean=self._mean, std=self._std)	# 标准化

        if self._target_generator is None:
            return img, bbox.astype(img.dtype)

        # generate training target so cpu workers can help reduce the workload on gpu
        # 下面的为bbox的标注程序
        gt_bboxes = mx.nd.array(bbox[np.newaxis, :, :4])
        gt_ids = mx.nd.array(bbox[np.newaxis, :, 4:5])
        if self._mixup:
            gt_mixratio = mx.nd.array(bbox[np.newaxis, :, -1:])
        else:
            gt_mixratio = None
        objectness, center_targets, scale_targets, weights, class_targets = self._target_generator(
            self._fake_x, self._feat_maps, self._anchors, self._offsets,
            gt_bboxes, gt_ids, gt_mixratio)
        return (img, objectness[0], center_targets[0], scale_targets[0], weights[0],
                class_targets[0], gt_bboxes[0])

1.random_color_distort函数

其实就是对图像的亮度、对比度、饱和度、色度进行调整。

2.random_expand函数

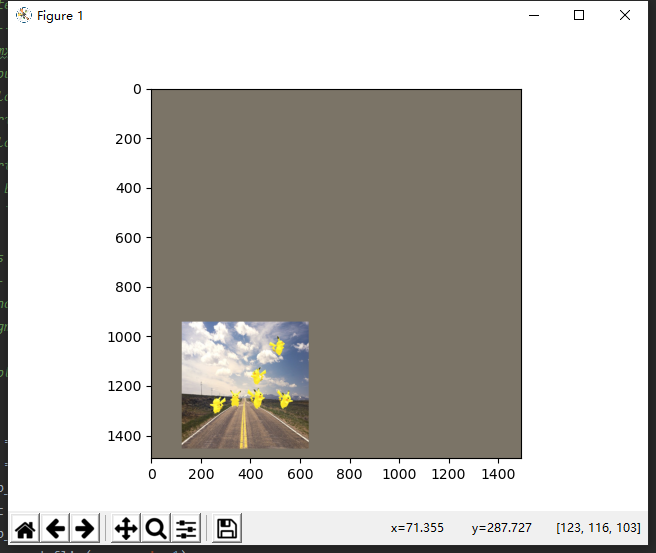

先贴一张图片

就是简单的生成一张类似于画布的背景，然后将原始图片随机的放在上面。

3.random_crop_with_constraints函数

生成裁剪之后的边界框，然后根据生成的边界框来裁剪图像。这里的裁剪方法是参考了Single Shot Multibox Detector，也就是SSD。

def random_crop_with_constraints(bbox, size, min_scale=0.3, max_scale=1,
                                 max_aspect_ratio=2, constraints=None,
                                 max_trial=50):
    # default params in paper
    if constraints is None:
        constraints = (
            (0.1, None),
            (0.3, None),
            (0.5, None),
            (0.7, None),
            (0.9, None),
            (None, 1),
        )

    w, h = size

    candidates = [(0, 0, w, h)]
    for min_iou, max_iou in constraints:
        min_iou = -np.inf if min_iou is None else min_iou
        max_iou = np.inf if max_iou is None else max_iou

        for _ in range(max_trial):      # 最大循环max_trial次，满足条件则退出循环
            scale = random.uniform(min_scale, max_scale)
            aspect_ratio = random.uniform(
                max(1 / max_aspect_ratio, scale * scale),
                min(max_aspect_ratio, 1 / (scale * scale)))
            # 参考SSD中的生成锚框计算公式
            crop_h = int(h * scale / np.sqrt(aspect_ratio))     # 裁剪后的bbox高
            crop_w = int(w * scale * np.sqrt(aspect_ratio))     # 裁剪后的bbox高

            crop_t = random.randrange(h - crop_h)
            crop_l = random.randrange(w - crop_w)
            crop_bb = np.array((crop_l, crop_t, crop_l + crop_w, crop_t + crop_h))

            if len(bbox) == 0:
                top, bottom = crop_t, crop_t + crop_h
                left, right = crop_l, crop_l + crop_w
                return bbox, (left, top, right-left, bottom-top)

            iou = tbbox.bbox_iou(bbox, crop_bb[np.newaxis])     # 计算bbox和裁剪后的bbox的iou
            if min_iou <= iou.min() and iou.max() <= max_iou:   # 大于最小iou，小于最大iou则满足条件
                top, bottom = crop_t, crop_t + crop_h   # 左上角坐标
                left, right = crop_l, crop_l + crop_w   # 右下角坐标
                candidates.append((left, top, right-left, bottom-top))  # [x,y,w,h]形式存储，(x,y)为左上角坐标
                break

    # random select one
    while candidates:
        crop = candidates.pop(np.random.randint(0, len(candidates)))    # 随机返回一个bbox框
        new_bbox = tbbox.crop(bbox, crop, allow_outside_center=False)	# 筛序正确的bbox
        if new_bbox.size < 1:
            continue
        new_crop = (crop[0], crop[1], crop[2], crop[3])
        return new_bbox, new_crop
    return bbox, (0, 0, w, h)

4.imresize函数

简单调用opencv的resize函数，iterp为插值选项

4.random_flip函数

随机翻转，可以选择水平，垂直翻转，主要调用mxnet.nd.flip函数。

5.to_tensor，normalize函数

to_tensor 主要是转换为ndarray格式，数值分布在0-1之间的矩阵
normalize 再进行进行标准化处理

二、验证集预处理

验证集预处理实现在YOLO3DefaultValTransform类中，
只是简单地resize和标准化，原理同上。

class YOLO3DefaultValTransform(object):
    def __init__(self, width, height, mean=(0.485, 0.456, 0.406), std=(0.229, 0.224, 0.225)):
        self._width = width
        self._height = height
        self._mean = mean
        self._std = std

    def __call__(self, src, label):
        """Apply transform to validation image/label."""
        # resize
        h, w, _ = src.shape
        img = image.imresize(src, self._width, self._height, interp=_get_interp(9, (h, w, self._height, self._width)))
        bbox = tbbox.resize(label, in_size=(w, h), out_size=(self._width, self._height))

        img = mx.nd.image.to_tensor(img)
        img = mx.nd.image.normalize(img, mean=self._mean, std=self._std)
        return img, bbox.astype(img.dtype)
