前言
本章学习使用Spring整合ActiveMQ
方法
1.概念
我们知道,在实际的项目开发中,通常是结合框架的,例如结合我们熟悉的Spring。
那ActiveMQ也是如此,我们的spring提供了对ActiveMQ的相关支持。
2.准备工作
我们需要准备一系列的jar包,推荐使用maven:
本次讲解需要用到如下的jar包,请进行如下的配置:
3.编写Spring配置文件
我们配置spring的全局配置文件applicationContext.xml如下:
<?xml version="1.0" encoding="UTF-8" ?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:aop="http://www.springframework.org/schema/aop"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:tx="http://www.springframework.org/schema/tx"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/aop
http://www.springframework.org/schema/aop/spring-aop.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context.xsd
http://www.springframework.org/schema/tx
http://www.springframework.org/schema/tx/spring-tx.xsd">
<!-- 配置组件扫描,以便于告诉Spring哪里有注解 -->
<context:component-scan base-package="cn.edu.ccut"></context:component-scan>
<!-- 配置ActiveMQ的工厂,由于安全认证的原因需要配置三个参数,这里要注意用户名和密码的属性值写法很讲究 -->
<bean id="factory" class="org.apache.activemq.ActiveMQConnectionFactory">
<property name="brokerURL" value="tcp://192.168.1.103:61616" />
<property name="userName" value="admin" />
<property name="password" value="admin" />
</bean>
<!-- 配置ActiveMQ的连接池 -->
<bean id="jmsFactory" class="org.apache.activemq.pool.PooledConnectionFactory"
destroy-method="stop">
<property name="connectionFactory" ref="factory"/>
<property name="maxConnections" value="100"/>
</bean>
<!-- 配置缓存 -->
<bean id="cachingConnectionFactory" class="org.springframework.jms.connection.CachingConnectionFactory">
<property name="targetConnectionFactory" ref="jmsFactory"/>
<property name="sessionCacheSize" value="1"/>
</bean>
<!-- 配置最为重要的模板类,后面的代码开发需要使用该类 -->
<bean id="jmsTemplate" class="org.springframework.jms.core.JmsTemplate">
<property name="connectionFactory" ref="cachingConnectionFactory"/>
<property name="messageConverter">
<bean class="org.springframework.jms.support.converter.SimpleMessageConverter"/>
</property>
</bean>
<!--测试Queue,队列的名字是spring-queue-->
<bean id="destinationQueue" class="org.apache.activemq.command.ActiveMQQueue">
<!--<constructor-arg index="0" value="spring-queue"/>-->
<constructor-arg name="name" value="spring-queue"/>
</bean>
<!--测试Topic-->
<!-- <bean id="destinationTopic" class="org.apache.activemq.command.ActiveMQTopic">
<constructor-arg index="0" value="spring-topic"/>
</bean> -->
<!-- 配置jms容器,用于监听生产者发送的消息 -->
<bean id="jmsContainer"
class="org.springframework.jms.listener.DefaultMessageListenerContainer">
<property name="connectionFactory" ref="cachingConnectionFactory"/>
<property name="destination" ref="destinationQueue"/>
<property name="messageListener" ref="messageListener"/>
</bean>
<!--消息监听器-->
<bean id="messageListener" class="cn.edu.ccut.test.MyMessageListener">
</bean>
</beans>
4.编写生产者代码
package cn.edu.ccut.test;
import javax.annotation.Resource;
import javax.jms.Destination;
import javax.jms.JMSException;
import javax.jms.Message;
import javax.jms.Session;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.jms.core.JmsTemplate;
import org.springframework.jms.core.MessageCreator;
import org.springframework.test.context.ContextConfiguration;
import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;
@RunWith(SpringJUnit4ClassRunner.class)
@ContextConfiguration({"classpath:applicationContext.xml"})
public class SpringTest {
@Resource(name = "jmsTemplate")
private JmsTemplate jmsTemplate;
@Resource(name = "destinationQueue")
private Destination destination;
@Test
public void testActiveMQ(){
//通常消息都是JSON串,由项目的实际对象转化而来
String msg = "spring-activeMQ";
try {
jmsTemplate.send(destination, new MessageCreator() {
@Override
public Message createMessage(Session session) throws JMSException {
return session.createTextMessage(msg);
}
});
} catch (Exception ex) {
ex.printStackTrace();
}
}
}
5.编写消费者监听器
package cn.edu.ccut.test;
import javax.jms.JMSException;
import javax.jms.Message;
import javax.jms.MessageListener;
import javax.jms.TextMessage;
public class MyMessageListener implements MessageListener {
@Override
public void onMessage(Message msg) {
if (msg instanceof TextMessage) {
try {
TextMessage txtMsg = (TextMessage) msg;
String message = txtMsg.getText();
//实际项目中拿到String类型的message(通常是JSON字符串)之后,
//会进行反序列化成对象,做进一步的处理
System.out.println("receive txt msg===" + message);
} catch (JMSException e) {
throw new RuntimeException(e);
}
} else {
throw new IllegalArgumentException("Message must be of type TextMessage");
}
}
}
6.执行生产者代码观察效果
执行生产者代码发送消息,由于监听器的原因,消费者会立刻收到消息的内容:

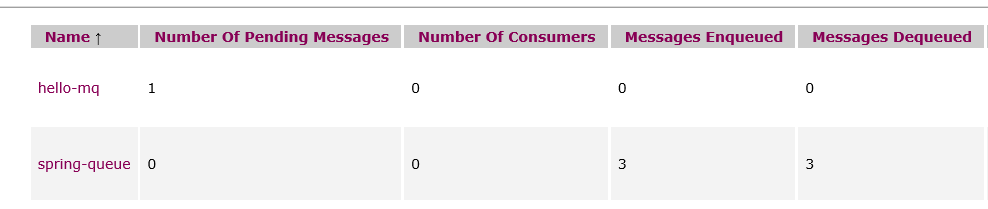

图片显示我发送了三次消息:
PTP模式即使如此,那么Topic也是一样多的,请大家自己去尝试使用!!
