IOS IKEv2 IPSec配置(SVTI)

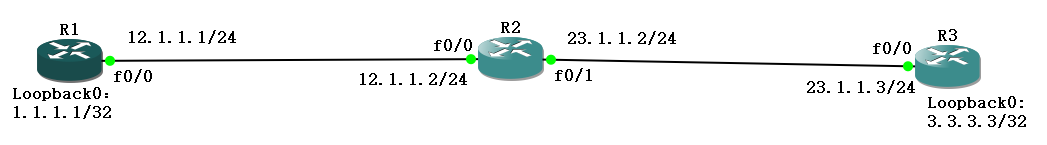

1、拓扑

 2、目标

通过在R1和R3建立IPSEC，让R1的Lo0和R3的Lo0互通

3、配置步骤

IP地址配置忽略。

3.1、打通路由器连通性

为了实现R1和R3物理接口网段互通，通过R1和R3的静态路由配置。

R1(config)#ip route 23.1.1.0 255.255.255.0 12.1.1.2
R1(config)#

R3(config)#ip route 12.1.1.0 255.255.255.0 23.1.1.2
R3(config)#
R1(config)#do ping 23.1.1.3
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 23.1.1.3, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 56/64/76 ms
R1(config)#

3.2、配置IPSec

第一阶段：

R1

R3

R1#configureConfiguring from terminal, memory, or network [terminal]?Enter configuration commands, one per line.  End with CNTL/Z.R1(config)#R1(config)#crypto ikev2 proposal Ikev2-PolicyIKEv2 proposal MUST have atleast an encryption algorithm, an integrity algorithm and a dh group configuredR1(config-ikev2-proposal)#  encryption aes-cbc-256R1(config-ikev2-proposal)#  integrity sha1R1(config-ikev2-proposal)#  group 2R1(config-ikev2-proposal)#  exitR1(config)#R1(config)#crypto ikev2 policy Ikev2-PolicyIKEv2 policy MUST have atleast one complete proposal attachedR1(config-ikev2-policy)#  proposal Ikev2-PolicyR1(config-ikev2-policy)#  match address local 12.1.1.1R1(config-ikev2-policy)#  exitR1(config)#R1(config)#crypto ikev2 keyring ipsec2-keyringR1(config-ikev2-keyring)#  peer 23.1.1.3R1(config-ikev2-keyring-peer)#    address 23.1.1.3R1(config-ikev2-keyring-peer)#    pre-shared-key ciscoR1(config-ikev2-keyring-peer)#    exitR1(config-ikev2-keyring)#  exitR1(config)#R1(config)#crypto ikev2 profile Ikev2-ProfileIKEv2 profile MUST have:   1. A local and a remote authentication method.   2. A match identity or a match certificate or match any statement.R1(config-ikev2-profile)#  match address local 12.1.1.1R1(config-ikev2-profile)#$ntity remote address 23.1.1.3 255.255.255.255R1(config-ikev2-profile)#  authentication remote pre-shareR1(config-ikev2-profile)#  authentication local pre-shareR1(config-ikev2-profile)#  lifetime 28800R1(config-ikev2-profile)#  dpd 10 5 on-demandR1(config-ikev2-profile)#  keyring local ipsec2-keyringR1(config-ikev2-profile)#  exitR1(config)#

R3(config)#crypto ikev2 proposal Ikev2-PolicyIKEv2 proposal MUST have atleast an encryption algorithm, an integrity algorithm and a dh group configuredR3(config-ikev2-proposal)#  encryption aes-cbc-256R3(config-ikev2-proposal)#  integrity sha1R3(config-ikev2-proposal)#  group 2R3(config-ikev2-proposal)#  exitR3(config)#R3(config)#crypto ikev2 policy Ikev2-PolicyIKEv2 policy MUST have atleast one complete proposal attachedR3(config-ikev2-policy)#  proposal Ikev2-PolicyR3(config-ikev2-policy)#  match address local 23.1.1.3R3(config-ikev2-policy)#  exitR3(config)#R3(config)#crypto ikev2 keyring ipsec2-keyringR3(config-ikev2-keyring)#  peer 12.1.1.1R3(config-ikev2-keyring-peer)#    address 12.1.1.1R3(config-ikev2-keyring-peer)#    pre-shared-key ciscoR3(config-ikev2-keyring-peer)#    exitR3(config-ikev2-keyring)#  exitR3(config)#R3(config)#crypto ikev2 profile Ikev2-ProfileIKEv2 profile MUST have:   1. A local and a remote authentication method.   2. A match identity or a match certificate or match any statement.R3(config-ikev2-profile)#  match address local 23.1.1.3R3(config-ikev2-profile)#$ntity remote address 12.1.1.2 255.255.255.255R3(config-ikev2-profile)#  authentication remote pre-shareR3(config-ikev2-profile)#  authentication local pre-shareR3(config-ikev2-profile)#  lifetime 28800R3(config-ikev2-profile)#  dpd 10 5 on-demandR3(config-ikev2-profile)#  keyring local ipsec2-keyringR3(config-ikev2-profile)#  exitR3(config)#

第二阶段：

R1

R2

R1(config)# crypto ipsec transform-set  TransformSet esp-aes 256 esp-sha256-hmacR1(cfg-crypto-trans)#  mode tunnelR1(cfg-crypto-trans)#  exitR1(config)#R1(config)#crypto ipsec profile  IPsecProfileR1(ipsec-profile)#  set transform-set  TransformSetR1(ipsec-profile)#  set ikev2-profile  Ikev2-ProfileR1(ipsec-profile)#  set security-association lifetime seconds 3600R1(ipsec-profile)#  exitR1(config)#

R3(config)# crypto ipsec transform-set  TransformSet esp-aes 256 esp-sha256-hmacR3(cfg-crypto-trans)#  mode tunnelR3(cfg-crypto-trans)#  exitR3(config)#R3(config)#crypto ipsec profile  IPsecProfileR3(ipsec-profile)#  set transform-set  TransformSetR3(ipsec-profile)#  set ikev2-profile  Ikev2-ProfileR3(ipsec-profile)#  set security-association lifetime seconds 3600R3(ipsec-profile)#  exitR3(config)#

接口调用：

R1

R2

R1(config)# int Tunnel11R1(config-if)#  ip address 169.254.0.1 255.255.255.255R1(config-if)#  tunnel mode ipsec ipv4R1(config-if)#  ip tcp adjust-mss 1350R1(config-if)#  tunnel source 12.1.1.1R1(config-if)#  tunnel destination 23.1.1.3R1(config-if)#  tunnel protection ipsec profile IPsecProfileR1(config-if)#  exitR1(config)#*Sep 13 02:42:34.823: %CRYPTO-6-ISAKMP_ON_OFF: ISAKMP is ONR1(config)#*Sep 13 02:42:35.806: %LINEPROTO-5-UPDOWN: Line protocol on Interface Tunnel11, changed state to down

R3(config)# int Tunnel11R3(config-if)#  ip address 169.254.0.2 255.255.255.255R3(config-if)#  tunnel mode ipsec ipv4R3(config-if)#  ip tcp adjust-mss 1350R3(config-if)#  tunnel source 23.1.1.3R3(config-if)#  tunnel destination 12.1.1.1R3(config-if)#  tunnel protection ipsec profile IPsecProfileR3(config-if)#  exitR3(config)#*Sep 13 02:43:21.723: %CRYPTO-6-ISAKMP_ON_OFF: ISAKMP is ONR3(config)#*Sep 13 02:43:22.709: %LINEPROTO-5-UPDOWN: Line protocol on Interface Tunnel11, changed state to down

4、状态检查

检查Tunnel建立情况

R1#sho ip int br
Interface                  IP-Address      OK? Method Status                Protocol
Ethernet0/0                12.1.1.1        YES manual up                    up
Ethernet0/1                unassigned      YES unset  administratively down down
Ethernet0/2                unassigned      YES unset  administratively down down
Ethernet0/3                unassigned      YES unset  administratively down down
Ethernet1/0                unassigned      YES unset  administratively down down
Ethernet1/1                unassigned      YES unset  administratively down down
Ethernet1/2                unassigned      YES unset  administratively down down
Ethernet1/3                unassigned      YES unset  administratively down down
Loopback0                  1.1.1.1         YES manual up                    up
Tunnel11                   169.254.0.1     YES manual up                    up
R1#

为了让1.1.1.1和3.3.3.3之间通过Tunnel之间互通；需要将目标网段出接口指向到Tunnel11

R3(config)#ip route 1.1.1.1 255.255.255.255 Tunnel11
R3(config)#

R1(config)#ip route 3.3.3.3 255.255.255.255 Tunnel11
R1(config)#do ping 3.3.3.3 so 1.1.1.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 3.3.3.3, timeout is 2 seconds:
Packet sent with a source address of 1.1.1.1
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 2/4/6 ms
R1(config)#

如果需要Tunnel的169.254.0.x的接口互通，也可以指定路由通过Tunnel。

查看IPsec状态：

R1#sho crypto session brief
Status: A- Active, U - Up, D - Down, I - Idle, S - Standby, N - Negotiating
        K - No IKE
ivrf = (none)
           Peer     I/F        Username          Group/Phase1_id   Uptime Status
       23.1.1.3    Tu11                                 23.1.1.3 00:05:09    UA

R1#show crypto ikev2 sa
 IPv4 Crypto IKEv2  SA

Tunnel-id Local                 Remote                fvrf/ivrf            Status
1         12.1.1.1/500          23.1.1.3/500          none/none            READY
      Encr: AES-CBC, keysize: 256, Hash: SHA96, DH Grp:2, Auth sign: PSK, Auth verify: PSK
      Life/Active Time: 28800/317 sec

 IPv6 Crypto IKEv2  SA


R1#show crypto ipsec sa | i encap|decap
    #pkts encaps: 15, #pkts encrypt: 15, #pkts digest: 15
    #pkts decaps: 15, #pkts decrypt: 15, #pkts verify: 15
R1#

Refer to:

https://www.cisco.com/c/en/us/support/docs/security-vpn/ipsec-architecture-implementation/214938-configuring-ikev2-vrf-aware-svti.html
