[WIFI7] MediaTek Filogic 860

摘抄自mediatek官网。

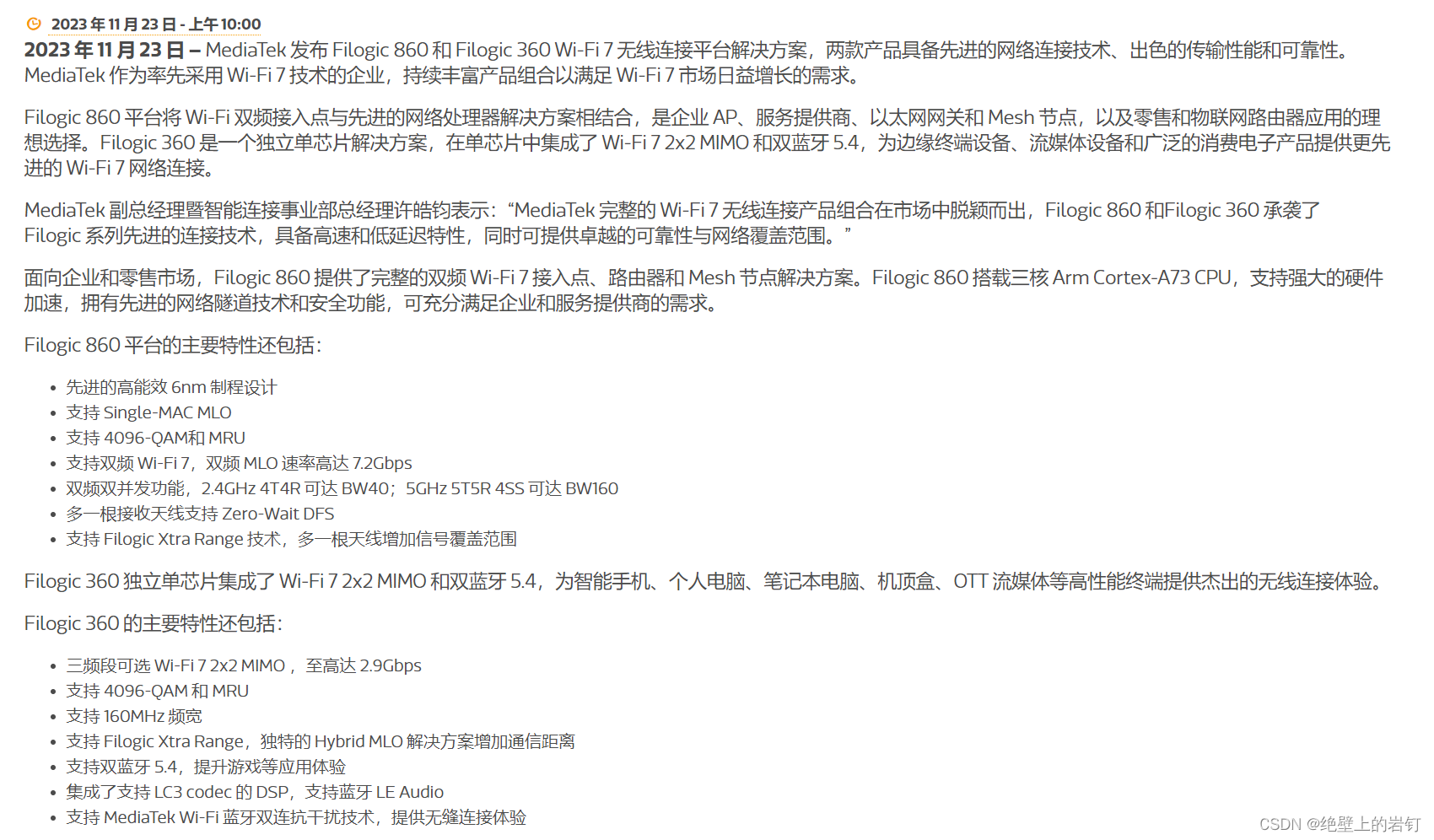

Filogic 860+Filogic 360

Mainstream dual-band BE7200 Wi-Fi 7 AP, router, repeater, gateway platform for a reliably fast and low-latency connectivity experience

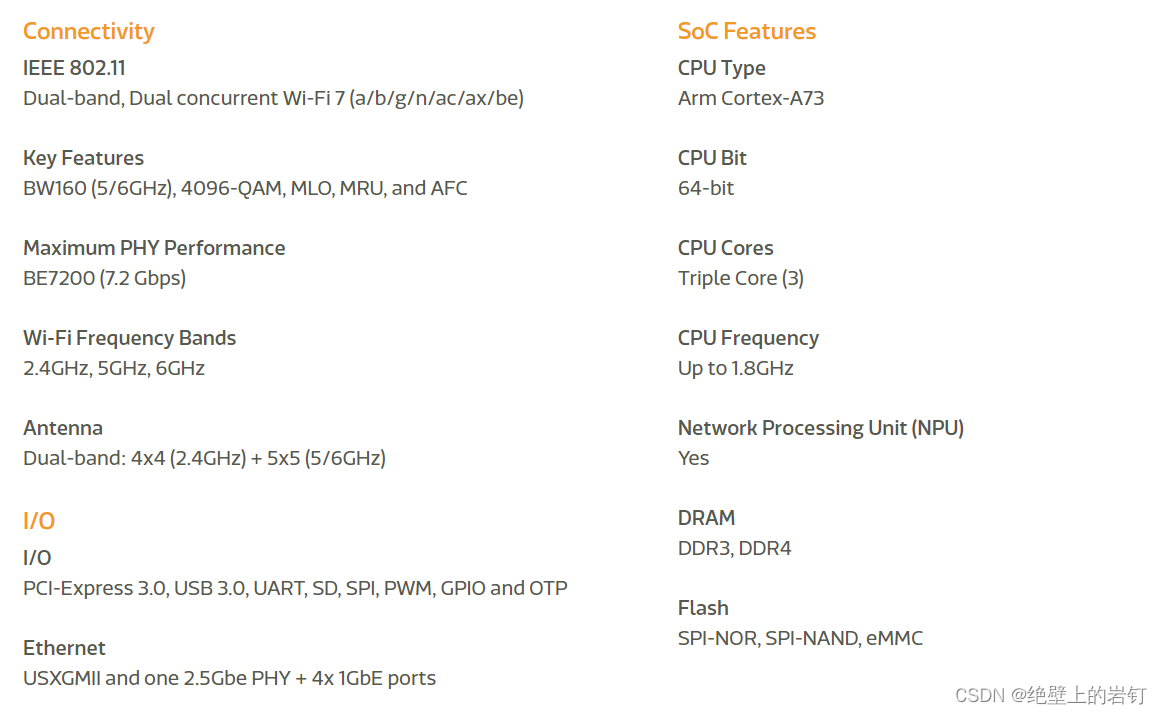

Specifications

Unique 5x5 Antenna Design

The MediaTek Filogic 860 platform offers flagship Wi-Fi 7 performance up to 7.2Gbps PHY. The dual-band solution includes a 4x4 2.4GHz antenna array, plus a novel 5x5 5/6GHz antenna including a dedicated Rx for 0-DFS detection. The platform supports comprehensive Wi-Fi 7 features including 4096-QAM, MLO, MRU, and AFC.

• Highly efficient 6nm chip, Single-MAC MLO
• Dedicated-DSP for Tx memory DPD (EVM +5db)
• OFDMA RU (8+16), MU-MIMO (4+4)
• MAC Entries (Flexible shared 512 HW)
• MBSSID (16+16)

MediaTek Xtra Range Maximizes 5/6GHz Reach

MediaTek’s unique 5T5R 5/6GHz band allows for improved Receive Diversity and supports MRC (Multiple Receive Combining), boosting 5/6GHz range and throughput in typical indoor scenarios by +3dB with 4T5R, and an additional +4dB with iDPD RF improvement. It overcomes the limitations of the 5/6GHz to give mesh networking backhaul setups greater performance, reach and reliability.

Single-chip MAC MLO Assures Lowest Latency & Best Power Efficiency

Single-chip MAC MLO (Multi-link operation) is a unique architecture that allows optimal MLO performance in Wi-Fi 7 networks. This technology lowers latency by up to 100x versus competing Wi-Fi 7 solutions. Multi-link aggregation performed from a single chip ensures the fastest, smoothest, and most efficient band switching performance.

Powerful Triple-core CPU & MediaTek Network Processing Unit (NPU)

Filogic 860’s embedded CPU features a triple-core Arm Cortex-A73 with large internal cache and speeds of up to 1.8GHz for a class-leading performance of over 20K DMIPS. With the NPU offloading networking tasks, the CPE is free for device makers to offer OS customization, in-built services, and apps for extended functionality.

The in-chip, MediaTek-designed Network Processing Unit (NPU) provides hardware QoS acceleration and Tunneling Offload Engine for VLAN / PPTP / L2TP / GRE. It works with both Wi-Fi and Ethernet, ensuring full speed performance even when passing data between wireless and wired connections.

The MediaTek Filogic 860 platform is highly extensible, with high-speed internal and external interfaces including 10Gbps PCI-Express, USB 3.2 Gen-1 (5 Gbps), UART, SD, SPI, PWM, GPIO and OTP for rich platform customization opportunities.

Premium Wired Connectivity

One USXGMII provides 10Gbps Ethernet ensures full speed from wireless to wired is available, making the most of the latest 10G+ Fiber connections. In addition, a 2.5Gbps Ethernet port and four Gigabit Ethernet ports are available from the platform, ensuring an array of Ethernet connectivity speeds with great flexibility for device makers to customize designs.

Ultra-high Speed Networking Crypto Engine

Hardware-based Networking Crypto engine (EIP-197) for IPv4 NATP / IPv6 / DS-Lite / 6RD acceleration.
