支持WIFI7网卡MTK官方合作开源路由板BPI-R4

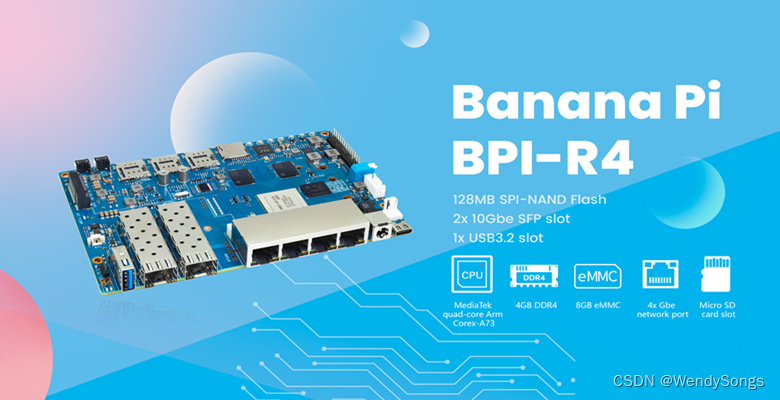

Banana Pi BPI-R4 Router board with MediaTek MT7988A (Filogic 880) quad-core ARM Corex-A73 design , 4GB DDR4 RAM, 8GB eMMC, 128MB SPI-NAND flash onboard, also have 2x 10Gbe SFP, 4x Gbe network port,with USB3.2 port, M.2 support 4G/5G/NVME SSD.2x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi 7 NIC (Network Interface Card).

Key Features

• MediaTek MT7988A (Filogic 880) quad-core Arm Corex-A73,1.8GHz processor

• 4GB DDR4

• 8GB eMMC flash

• 128MB SPI-NAND Flash

• Micro SD card slot

• 2x 10Gbe SFP slot (option 1x 10Gbe SFP and 1x SOC embedded 2.5Gbe PHY. NOTE: Need to modify hardware)

• 4x Gbe network port

• 1x USB3.2 slot

• 1x M.2 KEY-B slot with USB3.2/PCIe3.0 interface for 5G

  <
