Hadoop生态各组件搭建的环境配置记录汇总【超详细+Flink】

test用户：

node40:主节点

node37，node38，node39是数据节点。

python3.6.4，jdk1.8都是在/usr/local下。

zookeeper3.4.12在node37--node39节点上。

node40：安装的hive，mysql【root】，Sqoop1.99，Kafka。node40设置的HMaster，node38设置的HMaster-back，

node38，node37，node39是Hbase的slaves。

node40-node37:Python3.6,scala2.12.7

node37：Redis

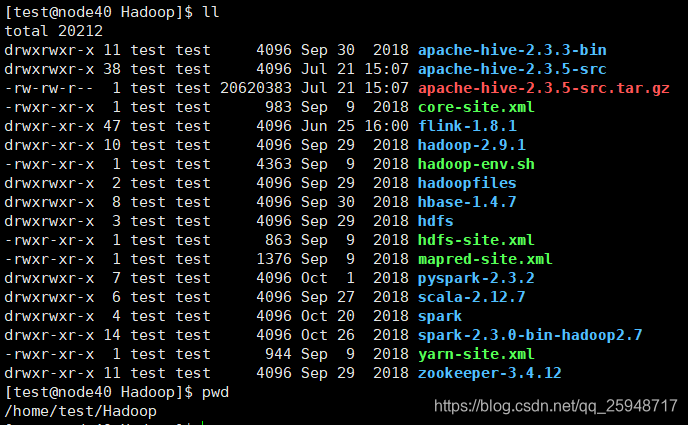

其他所有的生态组件都安装在各节点的/home/test/Hadoop下



-----------------------------------------

========Hadoop集群搭建============

~/bash_profile：各个节点的环境变量的配置文件

-------------------------------------------

PATH=$PATH:$HOME/bin
#Java
export JAVA_HOME=/usr/local/jdk1.8.0_172 #这里路径为自己解压的JDK的路径
export JRE_HOME=${JAVA_HOME}/jre
export CLASSPATH=.:$JAVA_HOME/lib:$JRE_HOME/lib:$JAVA_HOME/jre/lib/rt.jar:$JAVA_HOME/lib/dt.jar:$JAVA_HOME/lib/tools.jar
export PATH=${JAVA_HOME}/bin:$PATH

# Hadoop Environment Variables
export HADOOP_HOME=/home/test/Hadoop/hadoop-2.9.1
export HADOOP_INSTALL=$HADOOP_HOME
export HADOOP_MAPRED_HOME=$HADOOP_HOME
export HADOOP_COMMON_HOME=$HADOOP_HOME
export HADOOP_HDFS_HOME=$HADOOP_HOME
export YARN_HOME=$HADOOP_HOME
export HADOOP_CONF_DIR=$HADOOP_HOME/etc/hadoop
export YARN_CONF_DIR=$HADOOP_HOME/etc/hadoop
export HADOOP_COMMON_LIB_NATIVE_DIR=$HADOOP_HOME/lib/native
export HADOOP_OPTS="-Djava.library.path=$HADOOP_HOME/lib"
export PATH=$PATH:$HADOOP_HOME/sbin:$HADOOP_HOME/bin
export LD_LIBRARY_PATH=$HADOOP_HOME/lib/native
export CLASSPATH=$CLASSPATH:$HADOOP_HOME/lib
#Maven
export M2_HOME=/public/users/test/Softwares/apache-maven-3.5.4
export PATH=$PATH:$JAVA_HOME/bin:$M2_HOME/bin
#SCALA
export SCALA_HOME=/home/test/Hadoop/scala-2.12.7
export PATH=$PATH:$SCALA_HOME/bin
#SPARK
export SPARK_HOME=/home/test/Hadoop/spark-2.3.0-bin-hadoop2.7
export PATH=$PATH:$SPARK_HOME/bin
#Zookeeper
export ZOOKEEPER_HOME=/home/test/Hadoop/zookeeper-3.4.12
export PATH=$PATH:$ZOOKEEPER_HOME/bin
export CLASSPATH=$CLASSPATH:$ZOOKEEPER_HOME/lib
#Hbase
export HBASE_HOME=/home/test/Hadoop/hbase-1.4.7
export PATH=$PATH:$HBASE_HOME/bin

export CLASSPATH=$CLASSPATH:$HBASE_HOME/lib
#Hive
export HIVE_HOME=/home/test/Hadoop/apache-hive-2.3.3-bin
export HIVE_CONF_DIR=/home/test/Hadoop/apache-hive-2.3.3-bin/conf
export PATH=$PATH:$HIVE_HOME/bin

=====================================================

Hadoop文件配置：hadoop-2.9.1/etc/hadoop/

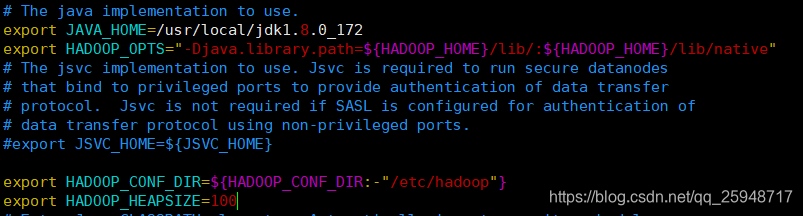

---------hadoop-env.sh----------

# The java implementation to use.
export JAVA_HOME=/usr/local/jdk1.8.0_172
export HADOOP_OPTS="-Djava.library.path=${HADOOP_HOME}/lib/:${HADOOP_HOME}/lib/native"
# The jsvc implementation to use. Jsvc is required to run secure datanodes
# that bind to privileged ports to provide authentication of data transfer
# protocol.  Jsvc is not required if SASL is configured for authentication of
# data transfer protocol using non-privileged ports.
#export JSVC_HOME=${JSVC_HOME}

export HADOOP_CONF_DIR=${HADOOP_CONF_DIR:-"/etc/hadoop"}
export HADOOP_HEAPSIZE=100

------mapred-env.sh-------

 export HADOOP_MAPRED_ROOT_LOGGER=INFO,RFA
 export JAVA_HOME=${JAVA_HOME}



 -------core-site.xml--------



<configuration>

        <property>
                <name>fs.defaultFS</name>
                <value>hdfs://node40:9000</value>
        </property>

        <property>
                <name>hadoop.tmp.dir</name>
                <value>file:/home/test/Hadoop/tmp</value>
        </property>

        <property>
                <name>hadoop.native.lib</name>
                <value>false</value>
        </property>
</configuration>

hadf://表示采用hdfs的文件系统，file：/表示采用本机的实际目录，需要手动创建

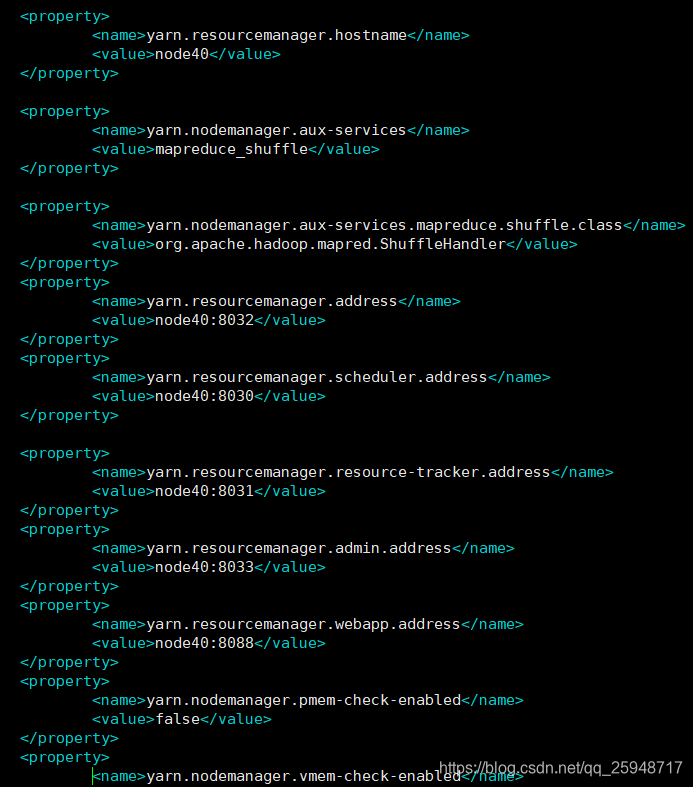

-----yarn-site.xml---------

<configuration>

    <property>
        <name>yarn.resourcemanager.hostname</name>
        <value>node40</value>
    </property>

    <property>
        <name>yarn.nodemanager.aux-services</name>
        <value>mapreduce_shuffle</value>
    </property>

    <property>
        <name>yarn.nodemanager.aux-services.mapreduce.shuffle.class</name>
        <value>org.apache.hadoop.mapred.ShuffleHandler</value>
    </property>
    <property>
        <name>yarn.resourcemanager.address</name>
        <value>node40:8032</value>
    </property>
    <property>
        <name>yarn.resourcemanager.scheduler.address</name>
        <value>node40:8030</value>
    </property>

    <property>
        <name>yarn.resourcemanager.resource-tracker.address</name>
        <value>node40:8031</value>
    </property>
    <property>
        <name>yarn.resourcemanager.admin.address</name>
        <value>node40:8033</value>
    </property>
    <property>
        <name>yarn.resourcemanager.webapp.address</name>
        <value>node40:8088</value>
    </property>
    <property>
            <name>yarn.nodemanager.pmem-check-enabled</name>
            <value>false</value>
    </property>
    <property>
            <name>yarn.nodemanager.vmem-check-enabled</name>
            <value>false</value>
    </property>
<!-- Site specific YARN configuration properties -->

</configuration>

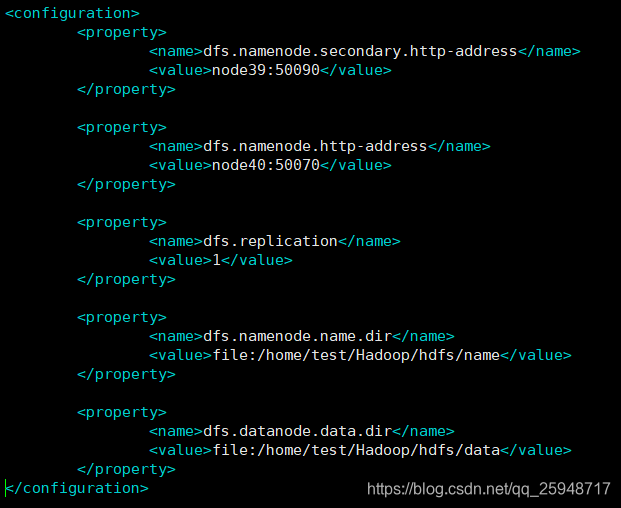

-------hdfs-site.xml------

<configuration>
        <property>
                <name>dfs.namenode.secondary.http-address</name>
                <value>node39:50090</value>
        </property>

        <property>
                <name>dfs.namenode.http-address</name>
                <value>node40:50070</value>
        </property>

        <property>
                <name>dfs.replication</name>
                <value>1</value>
        </property>

        <property>
                <name>dfs.namenode.name.dir</name>
                <value>file:/home/test/Hadoop/hdfs/name</value>
        </property>

        <property>
                <name>dfs.datanode.data.dir</name>
                <value>file:/home/test/Hadoop/hdfs/data</value>
        </property>
</configuration>

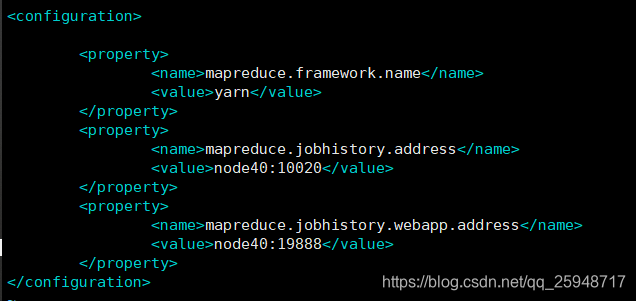

-----mapred-site.xml-----

<configuration>

        <property>
                <name>mapreduce.framework.name</name>
                <value>yarn</value>
        </property>
        <property>
                <name>mapreduce.jobhistory.address</name>
                <value>node40:10020</value>
        </property>
        <property>
                <name>mapreduce.jobhistory.webapp.address</name>
                <value>node40:19888</value>
        </property>
</configuration>

-------------------------------------------------------------------------------------------------

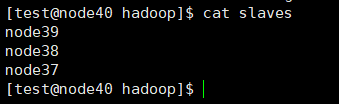

基本配置已完，配置slaves

--------------------------------------------------------------------

依次输入来启动：[我这里把node39设置为secondarynamenode]

hadoop namenode -format

start-dfs.sh

start-yarn.sh

=========Zookeeper集群搭建========

这里将node39，node37，node38搭建zookper集群，奇数个节点。

其中某个是leader，

通过节点之间的投票获得谁是leader。



用途：1.hadoop集群的高可用

           2.服务的注册中心

           3.分布式锁

-------------------------------------------------------------------------------

先上传解压缩包zookeeper

-----zoo.cfg--------

# The number of milliseconds of each tick
tickTime=2000
# The number of ticks that the initial
# synchronization phase can take
initLimit=10
# The number of ticks that can pass between
# sending a request and getting an acknowledgement
syncLimit=5
# the directory where the snapshot is stored.
# do not use /tmp for storage, /tmp here is just
# example sakes.
dataDir=/home/test/Hadoop/zookeeper-3.4.12/data
dataLogDir=/home/test/Hadoop/zookeeper-3.4.12/logs
# the port at which the clients will connect
clientPort=2181
# the maximum number of client connections.
# increase this if you need to handle more clients
#maxClientCnxns=60
#
# Be sure to read the maintenance section of the
# administrator guide before turning on autopurge.
#
# http://zookeeper.apache.org/doc/current/zookeeperAdmin.html#sc_maintenance
#
# The number of snapshots to retain in dataDir
#autopurge.snapRetainCount=3
# Purge task interval in hours
# Set to "0" to disable auto purge feature
#autopurge.purgeInterval=1
server.1=node39:2222:2223
server.2=node38:3333:3334
server.3=node37:4444:4445

-------------------------------------------------------------------------------

每个节点创建：

dataDir=/home/test/Hadoop/zookeeper-3.4.12/data
dataLogDir=/home/test/Hadoop/zookeeper-3.4.12/logs

目录

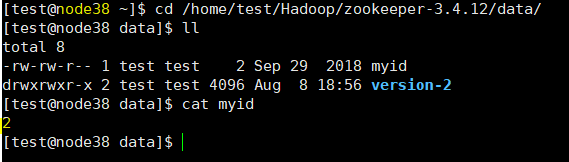

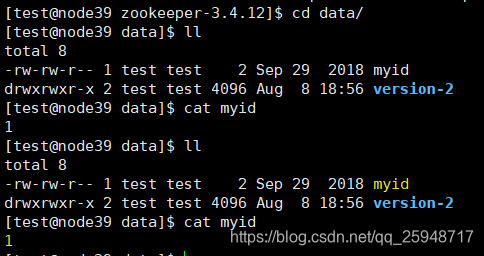

--------------------myid-------------------

在每个节点的/home/test/Hadoop/zookeeper-3.4.12/data创建文件myid。根据zoo.cfg中

server.1=node39:2222:2223
server.2=node38:3333:3334
server.3=node37:4444:4445

在各节点下的myid中输入相应的数值。

环境变量的配置：如上，每台节点都是这样配置

----------------开启-------------------

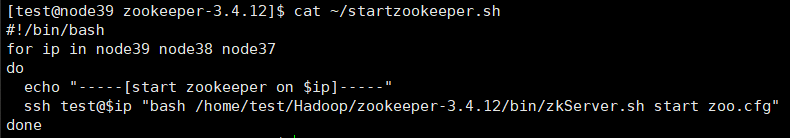

为了避免一台台挨着开启，我写一个脚本，可以启动多个几点下的zookeeper：

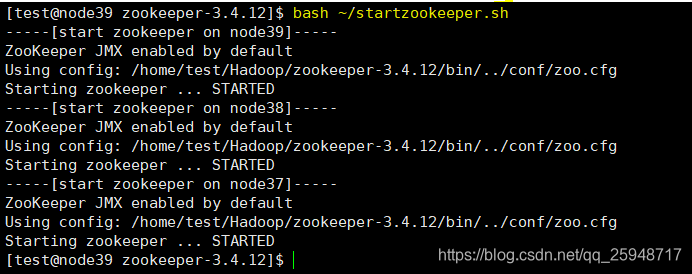

执行startzookeeper.sh即可：

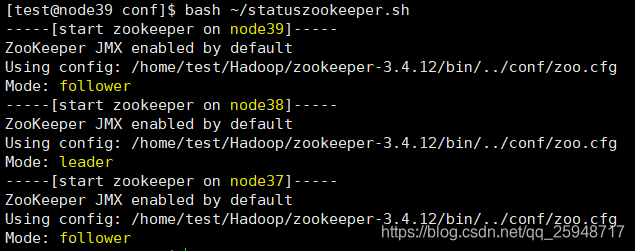

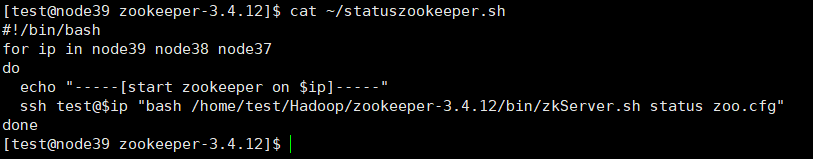

同理写了一个查看状态的脚本：

查看状态：node38是leader。

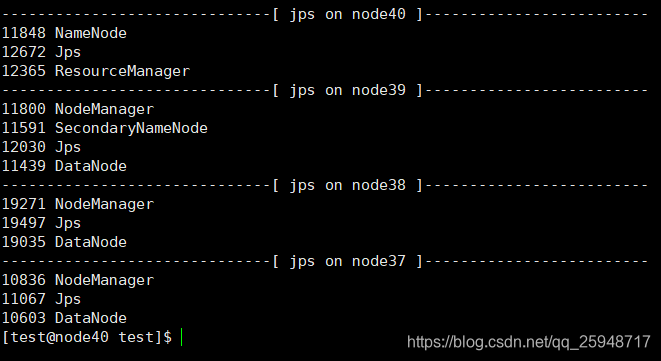

------也可以通过jps----------

==============Hbase集群架构==============

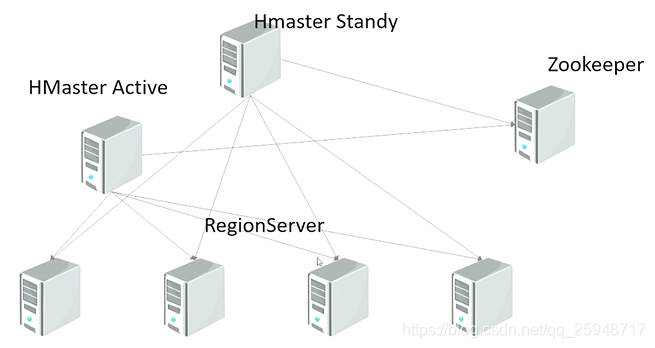

HMaster宕机了，系统可以自动切换到Hmaster上，保证hbase集群24小时服务。

两个Hmaster都要注册到Zookeeper服务器上。



我的方案设计是：node40是HMaster，node38是Hmaster-back，node37-node39都是slaves。

-----------上传解压-------------

其他节点操作一样，可在一个节点下配好再拷贝整个文件到其他节点。

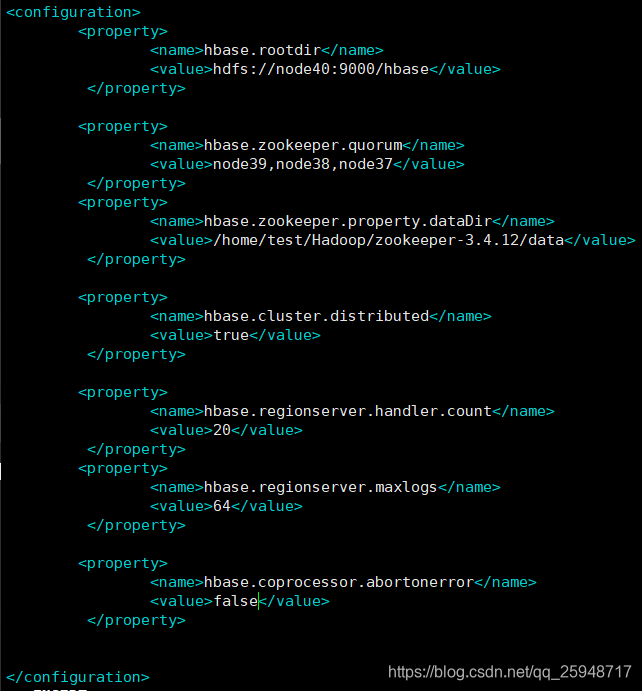

-----hbase-site.xml-------

<configuration>
        <property>
                <name>hbase.rootdir</name>
                <value>hdfs://node40:9000/hbase</value>
         </property>

        <property>
                <name>hbase.zookeeper.quorum</name>
                <value>node39,node38,node37</value>
         </property>
        <property>
                <name>hbase.zookeeper.property.dataDir</name>
                <value>/home/test/Hadoop/zookeeper-3.4.12/data</value>
         </property>

        <property>
                <name>hbase.cluster.distributed</name>
                <value>true</value>
         </property>

        <property>
                <name>hbase.regionserver.handler.count</name>
                <value>20</value>
         </property>
        <property>
                <name>hbase.regionserver.maxlogs</name>
                <value>64</value>
         </property>

        <property>
                <name>hbase.coprocessor.abortonerror</name>
                <value>false</value>
         </property>
</configuration>

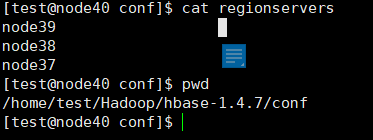

-----regionservers-------

-------配置HMaster-back--------node38是back Hmaster

-------环境变量配置------

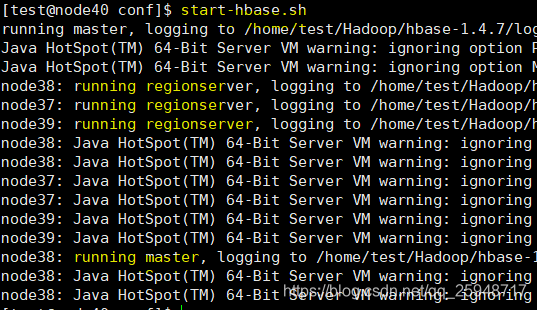

-------------启动Hbase-----------

查看：

---------端口访问---------

手动杀死node40下的HMaster后，node38会自动接管Hbase集群。

=============Sqoop搭建=================

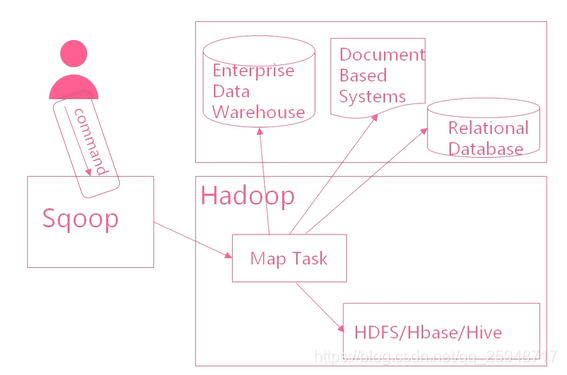

快速实现Hadoop和传统数据库之间的数据传递

核心技术：1.生成MR作业  2.数据映射  3.作业创建  4.并行控制

下载解压，配置环境变量：

#Sqoop
export SQOOP_HOME=/home/test/Hadoop/sqoop-1.99.7-bin-hadoop200
export PATH=$PATH:$SQOOP_HOME/bin

---------------------------------------------------------------------------------------

===========Hive==================

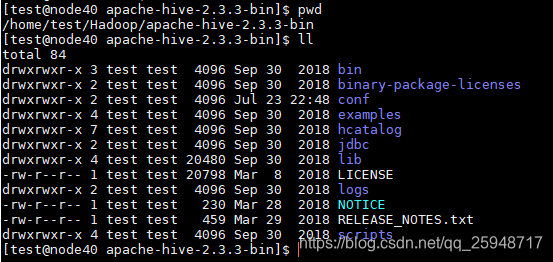

node40安装hive：下载解压

配置conf里面的hive-site.xml

 <property>
                <name>hive.metastore.warehouse.dir</name>
                <value>/hive/warehouse</value>
        </property>
        <property>
               <name>datanucleus.schema.autoCreateAll</name>
               <value>true</value>
        </property>

        <property>
                <name>hive.metastore.uris</name>
                <value>thrift://node40:9083</value>
        </property>
        <property>
                <name>hive.querylog.location</name>
                <value>/home/test/Hadoop/apache-hive-2.3.3-bin/logs</value>
        </property>
        <property>
                <name>javax.jdo.option.ConnectionUserName</name>
                <value>test</value>
        </property>
        <property>
                <name>javax.jdo.option.ConnectionPassword</name>
                <value>12345</value>
        </property>
        <property>
                <name>javax.jdo.option.ConnectionURL</name>
                <value>jdbc:mysql://node40:3306/hive?createDatabaseIfNotExist=true&amp;useSSL=false</value>
        </property>

        <property>
                <name>javax.jdo.option.ConnectionDriverName</name>
                <value>com.mysql.jdbc.Driver</value>
        </property>
        <property>
                <name>hive.server2.webui.host</name>
                <value>node40</value>
        </property>

        <property>
                <name>hive.zookeeper.quorum</name>
                <value>node39,node38,node37</value>
        </property>
        <property>
                <name>hive.server2.webui.host.port</name>
                <value>10002</value>
        </property>

记住现在node40上安装mysql，然后创建test用户。

将数据库驱动下载拷贝到lib目录下：

确保mysql启动，输入hive即可启动。

==========Flink1.7.2======

node40，node37是master，node37--node39是slaves

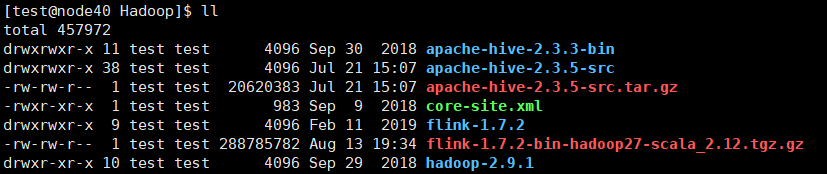

下载解压：

进入到conf配置文件【我这里使用zookeeper集群，搭建高可用的flink集群】：

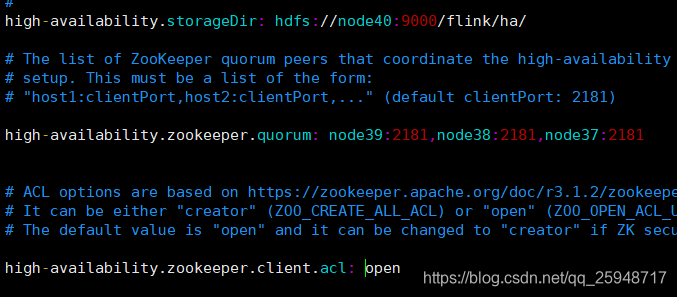

------flink-conf.yaml-----

high-availability: zookeeper

high-availability.storageDir: hdfs://node40:9000/flink/ha/

high-availability.zookeeper.quorum: node39:2181,node38:2181,node37:2181

high-availability.zookeeper.client.acl: open

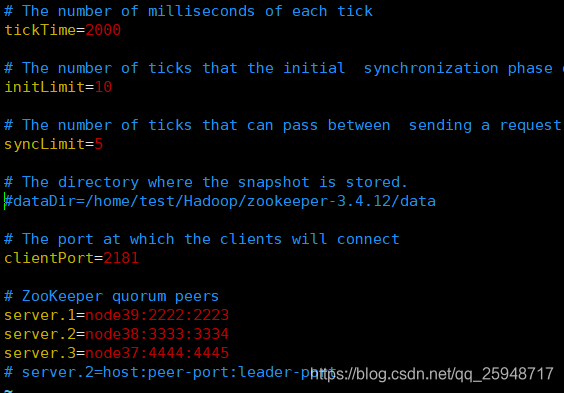

-------zoo.cfg--------

# ZooKeeper quorum peers
server.1=node39:2222:2223
server.2=node38:3333:3334
server.3=node37:4444:4445

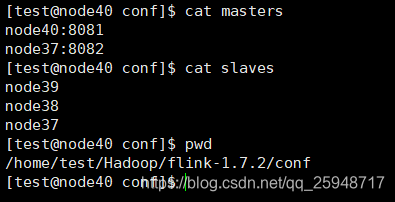

-------masters,slaves-------

------启动flink到yarn上--------

第一步是必须的：在bin下执行：./yarn-session.sh -n 2 -s 6 -km 1024 -tm 1024 -nm test -d

jps：

提交任务算例测试：在bin目录下：

   ./flink run -m yarn-cluster ../examples/batch/WordCount.jar
