ZKFinger Live20R 版对接java - B/S（ZKFinger SDK 5.0.0.32 ）

中控指纹采集器java版本

具体实现官网已经给了demo，可以自行看下。接下来是我在此基础上将demo改成接口的形式，供页面调用。

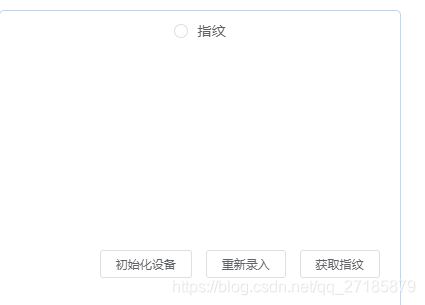

指纹采集页面：

​

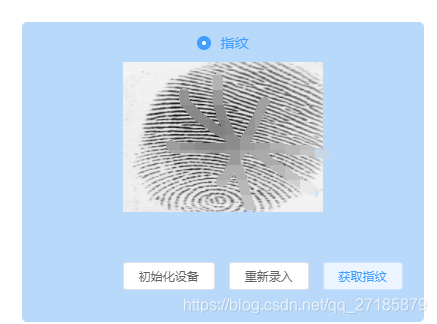

效果图：

​

代码概述：

1、去除原demo线程中的sleep,采用手动录入重新获取指纹图片的模式。

2、提供三个接口，初始化设备，重新录入（关闭设备，然后开启设备），获取指纹（获取指纹采集生成的图片）

3、生成指纹图片到本地

4、finger文件夹下目前只保存一个，每次生成新图片之前删除已存在的图片

注：下方代码仅供参考，具体实现请以自身开发环境而定（3、4步请根据自身情况而定。由于我暂时不做电子存档，所以没有存指纹图片以及关联业务）

package com.jinmdz.fmis.api.api.controller;

import com.zkteco.biometric.FingerprintSensorErrorCode;
import com.zkteco.biometric.FingerprintSensorEx;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import javax.servlet.http.HttpServletRequest;
import javax.swing.*;
import java.io.File;
import java.io.IOException;
import java.util.HashMap;
import java.util.Map;

/**
 * @author lvyq
 * @version 1.0 指纹采集
 * @description: TODO
 * @date 2020/11/24 17:50
 */
@RestController
@RequestMapping("/zk")
public class ZKFingerController {
    int fpWidth = 0;
    int fpHeight = 0;
    private byte[] lastRegTemp = new byte[2048];
    private int cbRegTemp = 0;
    private byte[][] regtemparray = new byte[3][2048];
    private boolean bRegister = false;
    private boolean bIdentify = true;
    private int iFid = 1;
    private int nFakeFunOn = 1;
    private int enroll_idx = 0;
    private byte[] imgbuf = null;
    private byte[] template = new byte[2048];
    private int[] templateLen = new int[1];
    private boolean mbStop = true;
    private long mhDevice = 0;
    private long mhDB = 0;
    private WorkThread workThread = null;
    private JTextArea textArea;

    /**
     * @description: 打开指纹采集
     * @author: lvyq
     * @date: 2020/11/24 17:52
     * @version 1.0
     */
    @RequestMapping("/fingerInit")
    private Object ZKFingerInit() {
        Map<String, Object> map = new HashMap<>();
        String msg = initFinger();
        map.put("state", true);
        map.put("msg", msg);
        return map;
    }


    /**
     * @description: 重新录入
     * @author: lvyq
     * @date: 2020/11/25 17:50
     * @version 1.0
     */
    @RequestMapping("/reFinger")
    public Object reFinger() {
        Map<String, Object> map = new HashMap<>();
        //关闭
        FreeSensor();
        //开启
        String msg = initFinger();
        map.put("state", true);
        map.put("msg", msg);
        return map;
    }


    /**
     * @description: 获取指纹图片
     * @author: lvyq
     * @date: 2020/11/25 17:51
     * @version 1.0
     */
    @RequestMapping("/getFingerImg")
    public Object getFingerImg(HttpServletRequest request) {
        Map<String, Object> map = new HashMap<>();
        String path = "E:\\finger\\";
        File file = new File(path);
        try {
            String newPath = path + file.listFiles()[0].getName();
            File newFile = new File(newPath);
            String fingerName = newFile.getName();
            map.put("state", true);
            //文件网络路径，供前端回显，此处仅供参考
            map.put("imgUrl", "http://127.0.0.1:80/finger/fingerName");
            //文件相对地址,前端使用-保存数据库
            map.put("imgPath", "/finger/fingerName");
        } catch (Exception e) {
            map.put("code", 0);
            map.put("data", null);
            map.put("msg", "暂无图片");
            return map;
        }
        return map;
    }



    private String OnExtractOK(byte[] template, int len) {
        String text = "";
        if (bRegister) {
            int[] fid = new int[1];
            int[] score = new int[1];
            int ret = FingerprintSensorEx.DBIdentify(mhDB, template, fid, score);
            if (ret == 0) {
                bRegister = false;
                enroll_idx = 0;
                return "手指已经注册" + fid[0] + ",取消注册";
            }
            if (enroll_idx > 0 && FingerprintSensorEx.DBMatch(mhDB, regtemparray[enroll_idx - 1], template) <= 0) {
                return "请按同一个手指三次报名";
            }
            System.arraycopy(template, 0, regtemparray[enroll_idx], 0, 2048);
            enroll_idx++;
            if (enroll_idx == 3) {
                int[] _retLen = new int[1];
                _retLen[0] = 2048;
                byte[] regTemp = new byte[_retLen[0]];

                if (0 == (ret = FingerprintSensorEx.DBMerge(mhDB, regtemparray[0], regtemparray[1], regtemparray[2], regTemp, _retLen)) &&
                        0 == (ret = FingerprintSensorEx.DBAdd(mhDB, iFid, regTemp))) {
                    iFid++;
                    cbRegTemp = _retLen[0];
                    System.arraycopy(regTemp, 0, lastRegTemp, 0, cbRegTemp);
                    //String strBase64 = FingerprintSensorEx.BlobToBase64(regTemp, cbRegTemp);
                    return "注册成功";
                } else {
                    return "注册失败，错误码" + ret;
                }
            } else {
                text = "你需要按" + (3 - enroll_idx) + "次指纹";
            }
        } else {
            if (bIdentify) {
                int[] fid = new int[1];
                int[] score = new int[1];
                int ret = FingerprintSensorEx.DBIdentify(mhDB, template, fid, score);
                if (ret == 0) {
                    text = "识别成功, fid=" + fid[0] + ",score=" + score[0];
                } else {
                    text = "识别失败, errcode=" + ret;
                }

            } else {
                if (cbRegTemp <= 0) {
                    text = "请先注册！";
                } else {
                    int ret = FingerprintSensorEx.DBMatch(mhDB, lastRegTemp, template);
                    if (ret > 0) {
                        text = "验证成功, score=" + ret;
                    } else {
                        text = "验证失败,ret=" + ret;
                    }
                }
            }
        }
        return text;
    }

    private void FreeSensor() {
        mbStop = true;
        if (0 != mhDB) {
            FingerprintSensorEx.DBFree(mhDB);
            mhDB = 0;
        }
        if (0 != mhDevice) {
            FingerprintSensorEx.CloseDevice(mhDevice);
            mhDevice = 0;
        }
        FingerprintSensorEx.Terminate();
    }

    public static byte[] changeByte(int data) {
        return intToByteArray(data);
    }

    public static byte[] intToByteArray(final int number) {
        byte[] abyte = new byte[4];
        abyte[0] = (byte) (0xff & number);
        abyte[1] = (byte) ((0xff00 & number) >> 8);
        abyte[2] = (byte) ((0xff0000 & number) >> 16);
        abyte[3] = (byte) ((0xff000000 & number) >> 24);
        return abyte;
    }

    public static int byteArrayToInt(byte[] bytes) {
        int number = bytes[0] & 0xFF;
        number |= ((bytes[1] << 8) & 0xFF00);
        number |= ((bytes[2] << 16) & 0xFF0000);
        number |= ((bytes[3] << 24) & 0xFF000000);
        return number;
    }

    public static void writeBitmap(byte[] imageBuf, int nWidth, int nHeight, String path) throws IOException {
        java.io.FileOutputStream fos = new java.io.FileOutputStream(path);
        java.io.DataOutputStream dos = new java.io.DataOutputStream(fos);
        /**
         *。。。具体代码见demo。此处代码直接引用。无需修改。。
         */
        fos.close();
    }

    private class WorkThread extends Thread {
        @Override
        public void run() {
            super.run();
            int ret = 0;
            while (!mbStop) {
                templateLen[0] = 2048;
                if (0 == (ret = FingerprintSensorEx.AcquireFingerprint(mhDevice, imgbuf, template, templateLen))) {
                    if (nFakeFunOn == 1) {
                        byte[] paramValue = new byte[4];
                        int[] size = new int[1];
                        size[0] = 4;
                        int nFakeStatus = 0;
                        //GetFakeStatus
                        ret = FingerprintSensorEx.GetParameters(mhDevice, 2004, paramValue, size);
                        nFakeStatus = byteArrayToInt(paramValue);
                        System.out.println("ret = " + ret + ",nFakeStatus=" + nFakeStatus);
                        if (0 == ret && (byte) (nFakeStatus & 31) != 31) {
                            textArea.setText("Is a fake-finer?");
                            return;
                        }
                    }
                    OnCatpureOK(imgbuf);
                    OnExtractOK(template, templateLen[0]);
                    String strBase64 = FingerprintSensorEx.BlobToBase64(template, templateLen[0]);
                    System.out.println("strBase64=" + strBase64);
                }
            }
        }

    }

    private void OnCatpureOK(byte[] imgBuf) {
        try {

            long dateTime = System.currentTimeMillis();
            //删除图片文件
            try {
                String path = "E:\\finger\\";
                File file = new File(path);
                String newPath = path + file.listFiles()[0].getName();
                File newFile = new File(newPath);
                System.out.println("删除图片==" + file.getName() + "" + newFile.delete());
            } catch (Exception e) {
                e.printStackTrace();
            } finally {
                writeBitmap(imgBuf, fpWidth, fpHeight, "E:\\finger\\" + dateTime + ".bmp");
            }
        } catch (IOException e) {
            e.printStackTrace();
        }
    }


    public String initFinger() {
        if (0 != mhDevice) {
            return "请先关闭设备";
        }
        int ret = FingerprintSensorErrorCode.ZKFP_ERR_OK;
        cbRegTemp = 0;
        bRegister = false;
        bIdentify = false;
        iFid = 1;
        enroll_idx = 0;
        if (FingerprintSensorErrorCode.ZKFP_ERR_OK != FingerprintSensorEx.Init()) {
            return "初始化失败！";
        }
        ret = FingerprintSensorEx.GetDeviceCount();
        if (ret < 0) {
            FreeSensor();
            return "没有设备连接！";
        }
        if (0 == (mhDevice = FingerprintSensorEx.OpenDevice(0))) {
            FreeSensor();
            return "打开设备失败,ret=" + ret + "!";
        }
        if (0 == (mhDB = FingerprintSensorEx.DBInit())) {
            FreeSensor();
            return "初始化数据库失败,ret=" + ret + "!";
        }
        //set fakefun off
        FingerprintSensorEx.SetParameters(mhDevice, 2002, changeByte(nFakeFunOn), 4);
        byte[] paramValue = new byte[4];
        int[] size = new int[1];
        //GetFakeOn
        size[0] = 4;
        FingerprintSensorEx.GetParameters(mhDevice, 2002, paramValue, size);
        nFakeFunOn = byteArrayToInt(paramValue);
        size[0] = 4;
        FingerprintSensorEx.GetParameters(mhDevice, 1, paramValue, size);
        fpWidth = byteArrayToInt(paramValue);
        size[0] = 4;
        FingerprintSensorEx.GetParameters(mhDevice, 2, paramValue, size);
        fpHeight = byteArrayToInt(paramValue);
        imgbuf = new byte[fpWidth * fpHeight];
        mbStop = false;
        workThread = new WorkThread();
        workThread.start();// 启动线程*/
        return "打开成功";
    }
}


该示例仅为提供实现思路，且该示例为单击版，不支持联网，如需联网版，可自行修改，或换其它型号

ZKFinger Live20R 版对接java - B/S（联机版）https://blog.csdn.net/qq_27185879/article/details/125637890
