前端实现拖拽的方案

1. 三方类库实现拖拽 PixiJS Examples
2. H5设置元素 draggable 属性
   每个元素都有draggable 属性，不过默认是false，我们把需要拖放的元素 draggable 属性设置为 true，可实现拖拽功能

   <div draggable="true"></div>

   此时，元素已经可以拖动了，但会显示一个禁止的图标，这是因为没有可放置的区域。
   创建一个区域 只需要在标签上添加 ondragover 和 ondrop 方法即可，表示这个区域可放置并进行处理。

   <div @drop.prevent="drop" @dragover.prevent="dragover"></div>

   还需要在需要拖动的元素上添加 ondragstart 方法。

   <div draggable="true" @dragstart="dragstart()"></div>


   vue中demo代码如下：

   <template>
     <div class="body flex">
       <div draggable="true"></div>
       <ul>
         <li
           draggable="true"
           :ref="'li' + index + 1"
           v-for="(item, index) in list"
           :key="index"
           @dragstart="dragstart(index)"
         >
           {{ item }}
         </li>
       </ul>
       <div class="box center" @drop.prevent="drop" @dragover.prevent="dragover">
         <div class="delete" @click="deleteBox()">删除</div>
         <p v-show="content">{{ text }}</p>
       </div>
     </div>
   </template>

   <script>
   export default {
     name: "",
     components: {},
     data() {
       return {
         list: [
           "拖放内容1",
           "拖放内容2",
           "拖放内容3",
           "拖放内容4",
           "拖放内容5",
           "拖放内容6"
         ],
         text: "",
         content: false
       };
     },
     computed: {},
     watch: {},
     mounted() {},
     methods: {
       deleteBox() {
         this.content = false;
       },
       // 拖动开始
       dragstart(index) {
         this.text = "您已成功拖放元素" + (index + 1);
       },
       // 进行放置
       drop(event) {
         this.content = true;
         console.log("drop", event);
       },
       // 放置位置 - 阻止默认事件
       dragover(event) {
         event.preventDefault();
       }
     }
   };
   </script>
   <style lang="scss" scoped>
   .body {
     user-select: none; // 禁止选中文字
     margin: 20px;
     font-size: 16px;
     ul {
       li {
         border-radius: 5px;
         cursor: pointer;
         margin-bottom: 10px;
         padding: 5px 10px;
         line-height: 26px;
         background-color: rgb(221, 221, 221);
       }
     }
     .box {
       position: relative;
       margin-left: 100px;
       width: 500px;
       height: 500px;
       border: 1px solid #999;
       .delete {
         cursor: pointer;
         position: absolute;
         top: 0;
         right: 0;
         padding: 5px 10px;
         background-color: rgba(243, 89, 84, 0.3);
         border-radius: 5px 0px 5px 5px;
       }
       .delete:hover {
         color: #fff;
         background-color: rgb(243, 89, 84);
       }
       p {
         font-size: 26px;
         font-weight: bold;
         animation: light 1s linear 1;
       }
     }
     @keyframes light {
       0% {
         transform: rotate(0deg);
       }
       50% {
         transform: rotate(180deg);
       }
       100% {
         transform: rotate(360deg);
       }
     }
   }
   </style>

   效果如下：


3. canvas 实现拖拽功能
   先创建一个canvas元素

   <canvas id="canvas" width="400" height="300"></canvas>

   生成canvas对象并绑定鼠标事件

   window.onload = function () {
       canvas = document.getElementById('canvas')
       context = canvas.getContext('2d')

       canvas.onmousedown = mouseDown
       canvas.onmousemove = mouseMove
       canvas.onmouseup = mouseUp
   }

   实现一个绘制矩形方法

   function Rect(startX, startY, endX, endY, color) {
       this.startX = startX
       this.startY = startY
       this.endX = endX
       this.endY = endY
       this.color = color
       this.isSelected = false
   }


   function drawRects() {
       clearCanvas()
       for (let i = 0; i < rectList.length; i++) {
           let rect = rectList[i]
           context.globalAlpha = 0.3
           context.beginPath()
           context.moveTo(rect.startX, rect.startY)
           context.lineTo(rect.endX, rect.startY)
           context.lineTo(rect.endX, rect.endY)
           context.lineTo(rect.startX, rect.endY)
           context.lineTo(rect.startX, rect.startY)
           context.fillStyle = rect.color
           context.fill()
           if (rect.isSelected) {
               context.strokeStyle = 'black'
               context.stroke()
           }
       }
   }


   function clearCanvas() {
       // 去除所有圆圈
       // rectList = []

       context.clearRect(0, 0, canvas.width, canvas.height)
   }

   鼠标按下时获取基准点，并判断此处位置是否已经存在一个绘制完成的图形，若不存在则标记为 isDrawing = true，若存在则标记为 isDragging = true，


   let startX
   let startY
   let width = 0
   let height = 0
   let isDrawing = false
   let isDragging = false

   function mouseDown(e) {
       startX = e.offsetX
       startY = e.offsetY
       rectIndex = rectList.findIndex(item => {
           if (item.startX < item.endX) {
               if (item.startY < item.endY) {
                   return startX > item.startX && startX < item.endX && startY > item.startY && startY < item.endY
               } else {
                   return startX > item.startX && startX < item.endX && startY > item.endY && startY < item.startY
               }
           } else {
               if (item.startY < item.endY) {
                   return startX > item.endY && startX < item.startY && startY > item.startY && startY < item.endY
               } else {
                   return startX > item.startX && startX < item.endX && startY > item.endY && startY < item.startY
               }
           }
       })
       if (rectIndex !== -1) {
           currentRect = rectList[rectIndex]
           isDragging = true
           currentRect.isSelected = true
           undoArray.pop()
           const tempRectList = rectList.slice()
           const tempCurrentRect = Object.assign({}, currentRect)
           tempRectList.splice(rectIndex, 1, tempCurrentRect)
           undoArray.push(tempRectList)
       } else {
           isDrawing = true
       }
       color = colors[randomFromTo(0, 8)]
   }


   鼠标拖动实时获取所在坐标值，isDrawing 为true 时调用drewRects​​​​​() 方法实时绘制图形，isDragging 为true 时获取新的位差绘制新图形。

   function mouseMove(e) {
       endX = e.offsetX
       endY = e.offsetY
       if (isDrawing) {
           // context.clearRect(0, 0, canvas.width, canvas.height)
           drawRects()
           context.globalAlpha = 0.3
           context.beginPath()
           context.moveTo(startX, startY)
           context.lineTo(endX, startY)
           context.lineTo(endX, endY)
           context.lineTo(startX, endY)
           context.lineTo(startX, startY)
           context.fillStyle = color
           context.strokeStyle = 'black'
           context.fill()
           context.stroke()
       } else if (isDragging) {
           const w = Math.abs(startX - endX)
           const h = Math.abs(startY - endY)
           if (endX < startX) {
               startX -= w
               endX -= w
               currentRect.startX -= w
               currentRect.endX -= w
           }
           if (endX >= startX) {
               startX += w
               endX += w
               currentRect.startX += w
               currentRect.endX += w
           }
           if (endY < startY) {
               startY -= h
               endY -= h
               currentRect.startY -= h
               currentRect.endY -= h
           }
           if (endY >= startY) {
               startY += h
               endY += h
               currentRect.startY += h
               currentRect.endY += h
           }
           // context.clearRect(0, 0, canvas.width, canvas.height)
           drawRects()
       }
   }




   鼠标抬起时生成一个 Rect()实例完成一个图像绘制，放入图形列表。

   function mouseUp(e) {
       if (isDrawing) {
           rectList.unshift(new Rect(startX, startY, endX, endY, color))
       }
       if (isDragging) {
           rectList.forEach(item => {
               item.isSelected = false
           })
       }
       undoArray.push(rectList.slice())
       redoArray = []
       isDrawing = false
       isDragging = false
   }

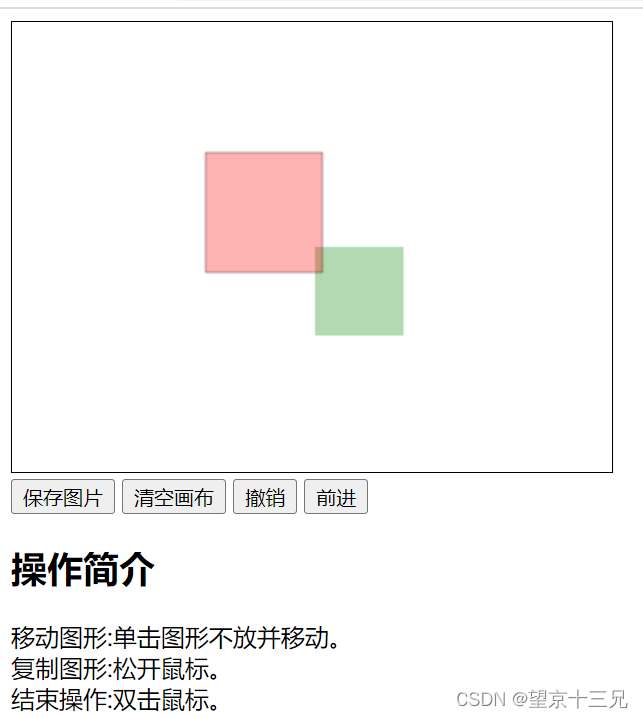

效果图如下：
