1.HDFS 的 API 操作
1.1 配置Windows下Hadoop环境
在windows系统需要配置hadoop运行环境,否则直接运行代码会出现以下问题:
缺少winutils.exe
Could not locate executable null \bin\winutils.exe in the hadoop binaries
缺少hadoop.dl
Unable to load native-hadoop library for your platform… using builtin-Java classes where applicable
步骤:
第一步:将hadoop2.7.5文件夹拷贝到一个没有中文没有空格的路径下面
第二步:在windows上面配置hadoop的环境变量: HADOOP_HOME,并将%HADOOP_HOME%\bin添加到path中
第三步:把hadoop2.7.5文件夹中bin目录下的hadoop.dll文件放到系统盘: C:\Windows\System32 目录
第四步:关闭windows重启
1.2 导入 Maven 依赖
<dependencies>
<dependency>
<groupId>org.apache.hadoop</groupId>
<artifactId>hadoop-common</artifactId>
<version>2.7.5</version>
</dependency>
<dependency>
<groupId>org.apache.hadoop</groupId>
<artifactId>hadoop-client</artifactId>
<version>2.7.5</version>
</dependency>
<dependency>
<groupId>org.apache.hadoop</groupId>
<artifactId>hadoop-hdfs</artifactId>
<version>2.7.5</version>
</dependency>
<dependency>
<groupId>org.apache.hadoop</groupId>
<artifactId>hadoop-mapreduce-client-core</artifactId>
<version>2.7.5</version>
</dependency>
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>RELEASE</version>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<version>3.1</version>
<configuration>
<source>1.8</source>
<target>1.8</target>
<encoding>UTF-8</encoding>
<!-- <verbal>true</verbal>-->
</configuration>
</plugin>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-shade-plugin</artifactId>
<version>2.4.3</version>
<executions>
<execution>
<phase>package</phase>
<goals>
<goal>shade</goal>
</goals>
<configuration>
<minimizeJar>true</minimizeJar>
</configuration>
</execution>
</executions>
</plugin>
</plugins>
</build>
1.3 使用url方式访问数据(了解)
import org.apache.commons.io.IOUtils;
import org.apache.hadoop.fs.FsUrlStreamHandlerFactory;
import org.junit.Test;
import java.io.File;
import java.io.FileOutputStream;
import java.io.InputStream;
import java.net.URL;
public class HDFSTest {
@Test
public void demo01() throws Exception {
//注册URL 注册hdfs://协议
URL.setURLStreamHandlerFactory(new FsUrlStreamHandlerFactory());
//获取hdfs文件输入流
InputStream inputStream = new URL("hdfs://node01:8020/a.txt").openStream();
//获取本地文件输出流
FileOutputStream fileOutputStream = new FileOutputStream(new File("D:\\hello.txt"));
//文件copy
IOUtils.copy(inputStream, fileOutputStream);
//关闭流
IOUtils.closeQuietly(inputStream);
IOUtils.closeQuietly(fileOutputStream);
}
}
1.4 使用文件系统方式访问数据(掌握)
1.4.1 涉及的主要类
在 Java 中操作 HDFS, 主要涉及以下 Class:
-
Configuration
- 该类的对象封转了客户端或者服务器的配置
-
FileSystem
- 该类的对象是一个文件系统对象, 可以用该对象的一些方法来对文件进行操作, 通过 FileSystem 的静态方法 get 获得该对象
FileSystem fs = FileSystem.get(conf)
get
方法从conf
中的一个参数fs.defaultFS
的配置值判断具体是什么类型的文件系统- 如果我们的代码中没有指定
fs.defaultFS
, 并且工程 ClassPath 下也没有给定相应的配置,conf
中的默认值就来自于 Hadoop 的 Jar 包中的core-default.xml
- 默认值为
file:///
, 则获取的不是一个 DistributedFileSystem 的实例, 而是一个本地文件系统的客户端对象
- 该类的对象是一个文件系统对象, 可以用该对象的一些方法来对文件进行操作, 通过 FileSystem 的静态方法 get 获得该对象
1.4.2 获取 FileSystem 的几种方式
- 第一种方式
@Test
public void getFileSystem1() throws IOException {
Configuration configuration = new Configuration();
//设置文件系统类型
configuration.set("fs.defaultFS", "hdfs://node01:8020/");
//node01需要在本机的hosts文件中配置映射,如果没有配置直接使用ip地址
//获取指定的文件系统
FileSystem fileSystem = FileSystem.get(configuration);
//打印
System.out.println(fileSystem.toString());
}
输出结果: DFS[DFSClient[clientName=DFSClient_NONMAPREDUCE_739457348_1, ugi=dashuaibi (auth:SIMPLE)]]
- 第二种方式
@Test
public void getFileSystem2() throws Exception{
FileSystem fileSystem = FileSystem.get(new URI("hdfs://node01:8020"), new Configuration());
System.out.println("fileSystem:"+fileSystem);
}
- 第三种方式
@Test
public void getFileSystem3() throws Exception{
Configuration configuration = new Configuration();
configuration.set("fs.defaultFS", "hdfs://node01:8020");
FileSystem fileSystem = FileSystem.newInstance(configuration);
System.out.println(fileSystem.toString());
}
- 第四种方式
//@Test
public void getFileSystem4() throws Exception{
FileSystem fileSystem = FileSystem.newInstance(new URI("hdfs://node01:8020") ,new Configuration());
System.out.println(fileSystem.toString());
}
1.4.3 遍历 HDFS 中所有文件
- 使用 API 遍历
@Test
public void listMyfiles() throws Exception {
//获取文件系统累
FileSystem fileSystem = FileSystem.get(new URI("hdfs://node01:8020"), new Configuration());
//遍历
RemoteIterator<LocatedFileStatus> locatedFileStatusRemoteIterator = fileSystem.listFiles(new Path("/"), true);
while (locatedFileStatusRemoteIterator.hasNext()) {
LocatedFileStatus next = locatedFileStatusRemoteIterator.next();
System.out.println(next.getPath().toString()+"---"+next.getPath().getName());
//块信息
BlockLocation[] blockLocations = next.getBlockLocations();
for (BlockLocation blockLocation : blockLocations) {
//块拓扑
String[] topologyPaths = blockLocation.getTopologyPaths();
}
}
//释放资源
fileSystem.close();
}
1.4.4 HDFS 上创建文件夹
@Test
public void mkdirs() throws Exception{
FileSystem fileSystem = FileSystem.get(new URI("hdfs://node01:8020"), new Configuration());
boolean mkdirs = fileSystem.mkdirs(new Path("/hello/mydir/test"));
fileSystem.close();
}
1.4.5 下载文件
//方式一
@Test
public void getFileToLocal()throws Exception{
//获取FileSystem
FileSystem fileSystem = FileSystem.get(new URI("hdfs://node01:8020"), new Configuration());
//获取hdfs的输入流
FSDataInputStream inputStream = fileSystem.open(new Path("/a.txt"));
//获取本地路径的输出流
FileOutputStream fileOutputStream = new FileOutputStream(new File("d://hello.txt"));
//文件拷贝
IOUtils.copy(inputStream, fileOutputStream);
//释放资源
IOUtils.closeQuietly(inputStream);
IOUtils.closeQuietly(fileOutputStream);
IOUtils.closeQuietly(fileSystem);
}
//方式二
@Test
public void downloadFileTest2() throws Exception {
//获取FileSystem
FileSystem fileSystem = FileSystem.get(new URI("hdfs://node01:8020"), new Configuration());
//调用方法实现文件下载
fileSystem.copyToLocalFile(new Path("/a.txt"), new Path("d://hello.txt"));
//释放资源
IOUtils.closeQuietly(fileSystem);
}

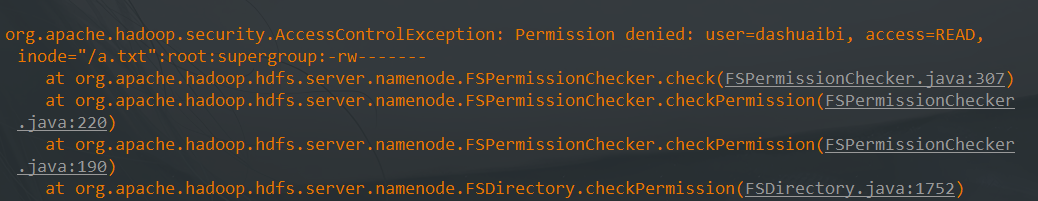

可能出现的报错:
解决方案:查看 1.4.7 hdfs访问权限控制
1.4.6 HDFS 文件上传
@Test
public void putData() throws Exception{
//获取FileSystem
FileSystem fileSystem = FileSystem.get(new URI("hdfs://node01:8020"), new Configuration());
//调用方法实现文件上传
fileSystem.copyFromLocalFile(new Path("d://hello.txt"), new Path("/"));
//释放资源
IOUtils.closeQuietly(fileSystem);
}
1.4.7 hdfs访问权限控制
- 停止hdfs集群,在node01机器上执行以下命令
cd /export/servers/hadoop-2.7.5
sbin/stop-dfs.sh
- 修改node01机器上的hdfs-site.xml当中的配置文件
cd /export/servers/hadoop-2.7.5/etc/hadoop
vim hdfs-site.xml
<property>
<name>dfs.permissions.enabled</name>
<value>true</value>
</property>
- 修改完成之后配置文件发送到其他机器上面去
scp hdfs-site.xml node02:$PWD
scp hdfs-site.xml node03:$PWD
- 重启hdfs集群
cd /export/servers/hadoop-2.7.5
sbin/start-dfs.sh
- 随意上传一些文件到我们hadoop集群当中准备测试使用
cd /export/servers/hadoop-2.7.5/etc/hadoop
hdfs dfs -mkdir /config
hdfs dfs -put *.xml /config
hdfs dfs -chmod 600 /config/core-site.xml
- 使用代码准备下载文件
@Test
public void getConfig()throws Exception{
FileSystem fileSystem = FileSystem.get(new URI("hdfs://node01:8020"), new Configuration(),"hadoop");
fileSystem.copyToLocalFile(new Path("/config/core-site.xml"),new Path("file:///c:/core-site.xml"));
fileSystem.close();
}
1.4.8 小文件合并
由于 Hadoop 擅长存储大文件,因为大文件的元数据信息比较少,如果 Hadoop 集群当中有大量的小文件,那么每个小文件都需要维护一份元数据信息,会大大的增加集群管理元数据的内存压力,所以在实际工作当中,如果有必要一定要将小文件合并成大文件进行一起处理
在HDFS 的 Shell 命令模式下,可以通过命令行将很多的 hdfs 文件合并成一个大文件下载到本地
cd /export/servers
hdfs dfs -getmerge /config/*.xml ./hello.xml
既然可以在下载的时候将这些小文件合并成一个大文件一起下载,那么肯定就可以在上传的时候将小文件合并到一个大文件里面去
格式: hdfs dfs -appendToFile <localsrc> ... <dst>
hdfs dfs -appendToFile a.xml b.xml /big.xml
[外链图片转存失败(img-vG6Mda9s-1566098933352)(assets/1565930494406.png)]
@Test
public void uploadMegeFile() throws Exception {
//获取文件系统(HDFS)
FileSystem fileSystem = FileSystem.get(new URI("hdfs://node01:8020"), new Configuration(),"root");
//获取hdfs大文件的输出流
FSDataOutputStream outputStream = fileSystem.create(new Path("/big.txt"));
//获取本地文件系统
LocalFileSystem localFileSystem = FileSystem.getLocal(new Configuration());
//获取本地文件夹下所有文件的详情
FileStatus[] fileStatuses = localFileSystem.listStatus(new Path("D://input"));
//遍历文件,获取每个文件输入流
for (FileStatus fileStatus : fileStatuses) {
FSDataInputStream inputStream = localFileSystem.open(fileStatus.getPath());
IOUtils.copy(inputStream, outputStream);
IOUtils.closeQuietly(inputStream);
}
//将小文件的数据复制到大文件中
//释放资源
IOUtils.closeQuietly(outputStream);
localFileSystem.close();
fileSystem.close();
}
