经过一番折腾后，终于实现了想要的效果。经过一番的测试，发现运行的表现还不错，因此这里记录一下。
sherpa-ncnn相关动态库编译
首先是下载sherpa-ncnn这个工程进行编译，我们可以直接从这个github的地址下载：sherpa-ncnn；如果无法访问github或无法下载的，我已将相关资源及编译好的动态库放在文章的开头。
下载完成后，按照k2-fsa.github上文档的步骤，使用ndk进行编译。实际这里在文档中写得已经比较清楚了，只需要按照上面的步骤进行即可。当然这里我也记录下我的编译过程：

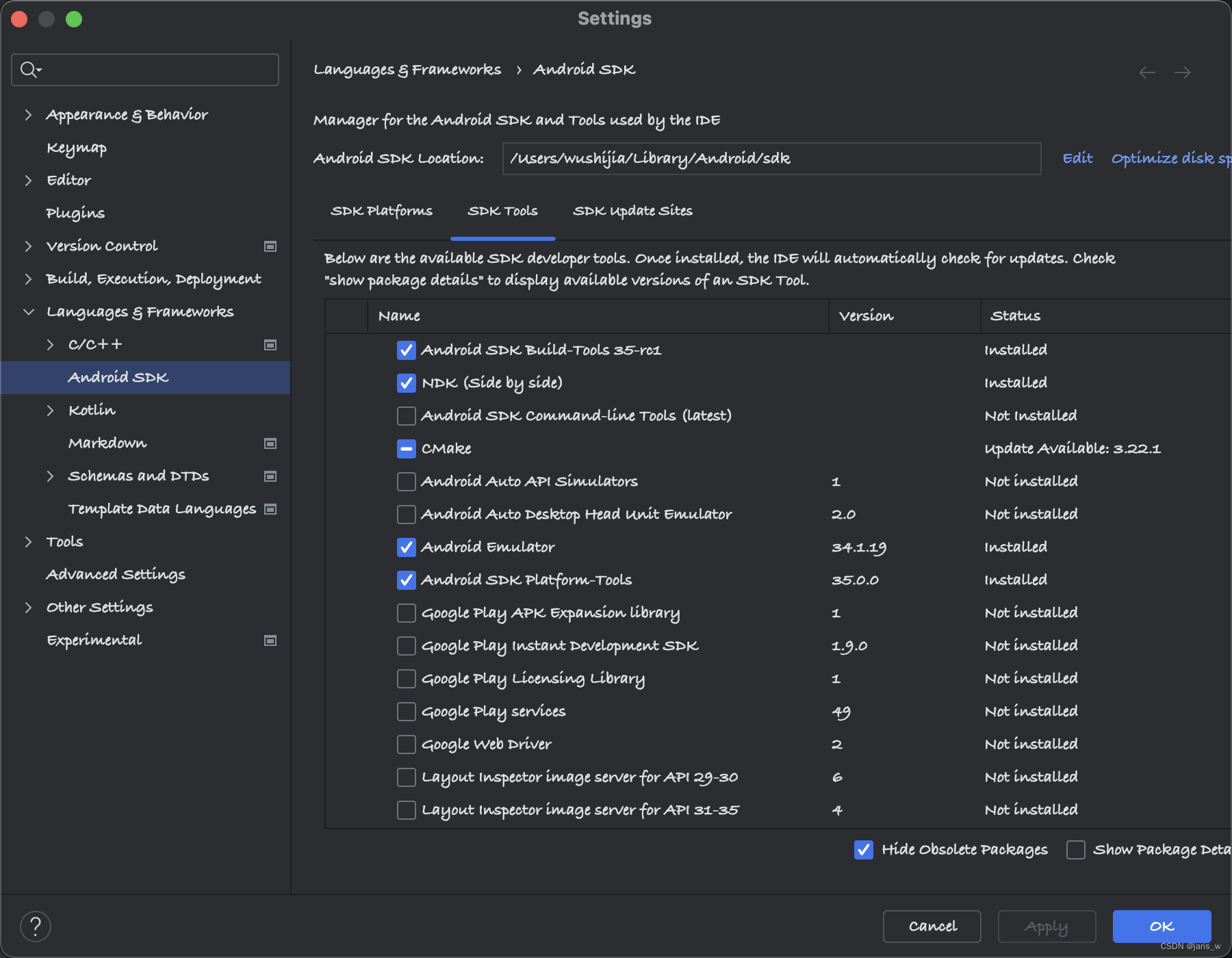

首先在Android Studio中安装ndk，下面是我已经安装好的截图：

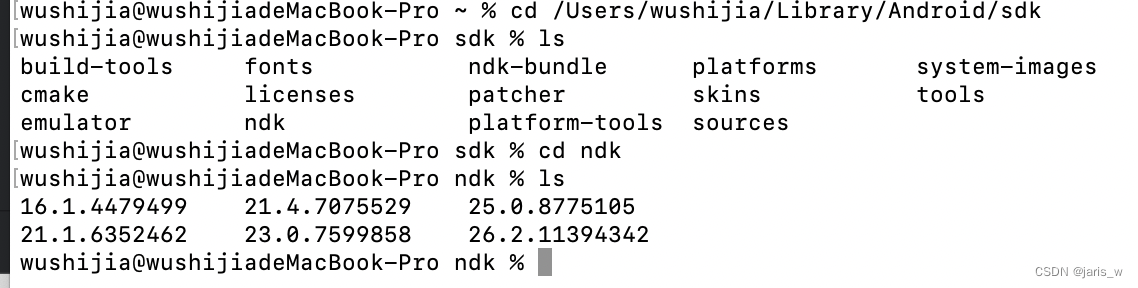

从上图可以看到安装完成后ndk所在的路径，我这里就是/Users/wushijia/Library/Android/sdk/ndk，在该路径中可以看到我们已经安装的内容；这里也给出我的文件夹截图，当然我已经安装过多个ndk版本，所以效果如下：
接着就是按照文档的步骤，对动态库进行编译。我们可以现在命令行中，进入sherpa-ncnn-master工程目录，然后设置ndk环境变量。根据我的ndk路径，这里我选用版本最高的一个ndk路径，执行下面的命令：
export ANDROID_NDK=/Users/wushijia/Library/Android/sdk/ndk/26.2.11394342
上面的命令只是对当前命令行临时的设置环境变量，当然我就不去修改系统文件了；可能退出后就失效了，所以只是在编译动态库的时候设置一下，这里要注意。
设置好环境变量后，我们就可以在sherpa-ncnn-master工程路径中分别执行如下几个命令文件：
./build-android-arm64-v8a.sh
./build-android-armv7-eabi.sh
./build-android-x86-64.sh
./build-android-x86.sh

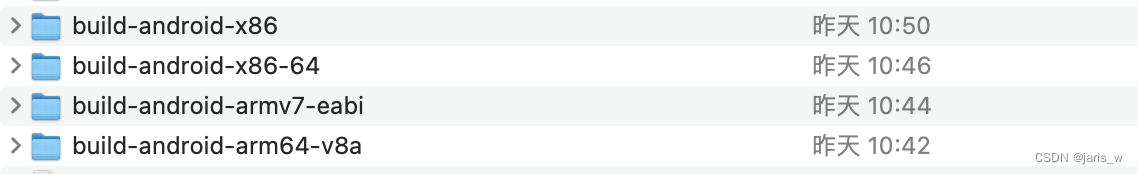

命令执行成功后，我们会在脚本的同级目录下得到如下几个文件夹：
在每个文件夹中都会包含相应的install/lib/*.so文件，这就是Android中所需的动态库了。
Android工程整合

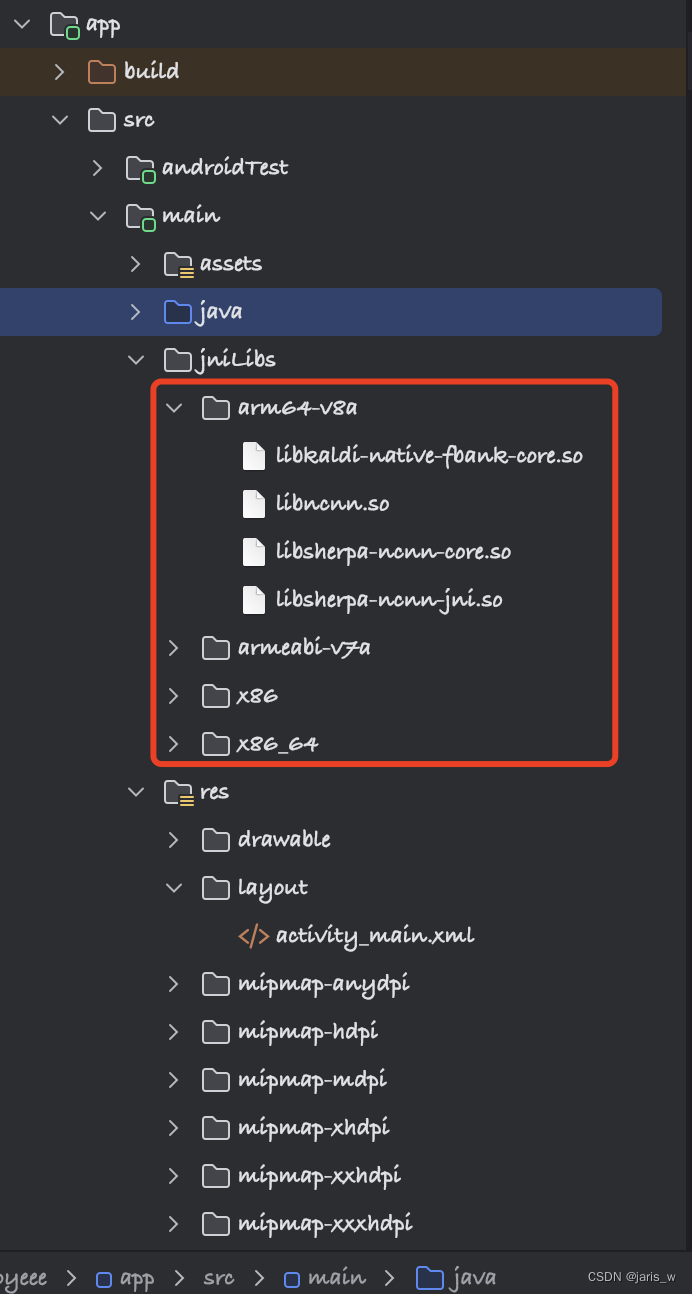

接下来将对应的动态库复制到Android Studio工程jniLibs中对应的目录，效果如下：

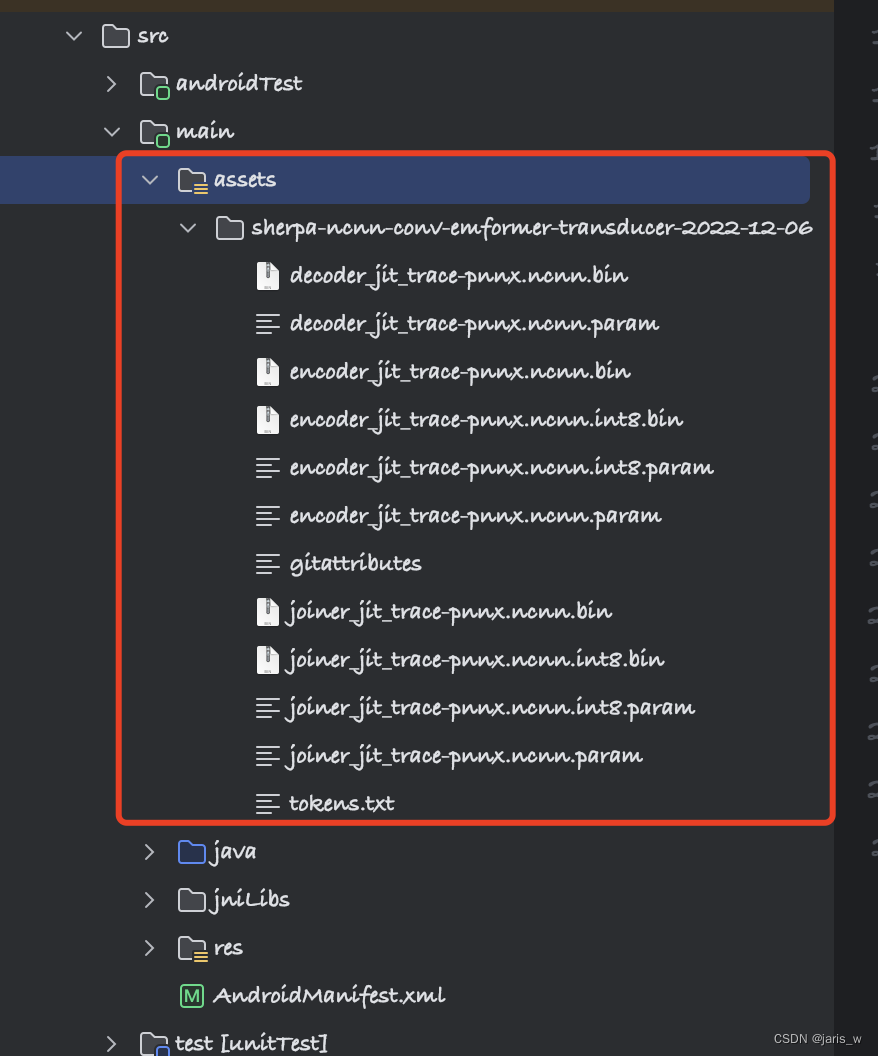

在上一步完成之后，我们还要将预训练模型拷贝到Android工程中，效果如下：
在完成上一步之后，我们就可以开始调用了。
这里读取文件的方式，我引用了一个别人的kotlin代码来读取模型文件。所以在我的工程中实现的方式变成了java代码调用kotlin代码，虽然有些混乱，但也勉强能用。我的java文件夹如下：

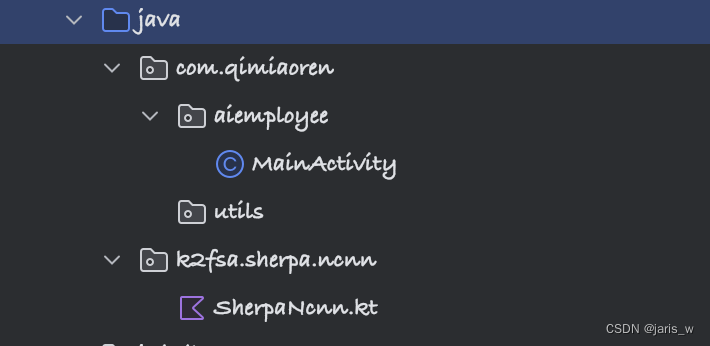

这里需要注意的是，由于Android中动态库的调用是需要和java包名关联的，所以我们引用别人的动态库，包名也必须按照别人的规则来。所以SherpaNcnn.kt文件所在的包名必须是k2fsa.sherpa.ncnn，否则运行时会提示动态库里找不到相应函数。这里总不能去修改动态库的内容吧，又要修改C++源码，直接按照别人的包名来是最方便的。
接着给出SherpaNcnn.kt的完整文件代码，当然大家也可以从文章开头的资源文件中下载：
package com.k2fsa.sherpa.ncnn
import android.content.res.AssetManager
data class FeatureExtractorConfig(
var sampleRate: Float,
var featureDim: Int,
)
data class ModelConfig(
var encoderParam: String,
var encoderBin: String,
var decoderParam: String,
var decoderBin: String,
var joinerParam: String,
var joinerBin: String,
var tokens: String,
var numThreads: Int = 1,
var useGPU: Boolean = true, // If there is a GPU and useGPU true, we will use GPU
)
data class DecoderConfig(
var method: String = "modified_beam_search", // valid values: greedy_search, modified_beam_search
var numActivePaths: Int = 4, // used only by modified_beam_search
)
data class RecognizerConfig(
var featConfig: FeatureExtractorConfig,
var modelConfig: ModelConfig,
var decoderConfig: DecoderConfig,
var enableEndpoint: Boolean = true,
var rule1MinTrailingSilence: Float = 2.4f,
var rule2MinTrailingSilence: Float = 1.0f,
var rule3MinUtteranceLength: Float = 30.0f,
var hotwordsFile: String = "",
var hotwordsScore: Float = 1.5f,
)
class SherpaNcnn(
var config: RecognizerConfig,
assetManager: AssetManager? = null,
) {
private val ptr: Long
init {
if (assetManager != null) {
ptr = newFromAsset(assetManager, config)
} else {
ptr = newFromFile(config)
}
}
protected fun finalize() {
delete(ptr)
}
fun acceptSamples(samples: FloatArray) =
acceptWaveform(ptr, samples = samples, sampleRate = config.featConfig.sampleRate)
fun isReady() = isReady(ptr)
fun decode() = decode(ptr)
fun inputFinished() = inputFinished(ptr)
fun isEndpoint(): Boolean = isEndpoint(ptr)
fun reset(recreate: Boolean = false) = reset(ptr, recreate = recreate)
val text: String
get() = getText(ptr)
private external fun newFromAsset(
assetManager: AssetManager,
config: RecognizerConfig,
): Long
private external fun newFromFile(
config: RecognizerConfig,
): Long
private external fun delete(ptr: Long)
private external fun acceptWaveform(ptr: Long, samples: FloatArray, sampleRate: Float)
private external fun inputFinished(ptr: Long)
private external fun isReady(ptr: Long): Boolean
private external fun decode(ptr: Long)
private external fun isEndpoint(ptr: Long): Boolean
private external fun reset(ptr: Long, recreate: Boolean)
private external fun getText(ptr: Long): String
companion object {
init {
System.loadLibrary("sherpa-ncnn-jni")
}
}
}
fun getFeatureExtractorConfig(
sampleRate: Float,
featureDim: Int
): FeatureExtractorConfig {
return FeatureExtractorConfig(
sampleRate = sampleRate,
featureDim = featureDim,
)
}
fun getDecoderConfig(method: String, numActivePaths: Int): DecoderConfig {
return DecoderConfig(method = method, numActivePaths = numActivePaths)
}
/*
@param type
0 - https://huggingface.co/csukuangfj/sherpa-ncnn-2022-09-30
This model supports only Chinese
1 - https://huggingface.co/csukuangfj/sherpa-ncnn-conv-emformer-transducer-2022-12-06
This model supports both English and Chinese
2 - https://huggingface.co/csukuangfj/sherpa-ncnn-streaming-zipformer-bilingual-zh-en-2023-02-13
This model supports both English and Chinese
3 - https://huggingface.co/csukuangfj/sherpa-ncnn-streaming-zipformer-en-2023-02-13
This model supports only English
4 - https://huggingface.co/shaojieli/sherpa-ncnn-streaming-zipformer-fr-2023-04-14
This model supports only French
5 - https://github.com/k2-fsa/sherpa-ncnn/releases/download/models/sherpa-ncnn-streaming-zipformer-zh-14M-2023-02-23.tar.bz2
This is a small model and supports only Chinese
6 - https://github.com/k2-fsa/sherpa-ncnn/releases/download/models/sherpa-ncnn-streaming-zipformer-small-bilingual-zh-en-2023-02-16.tar.bz2
This is a medium model and supports only Chinese
Please follow
https://k2-fsa.github.io/sherpa/ncnn/pretrained_models/index.html
to add more pre-trained models
*/
fun getModelConfig(type: Int, useGPU: Boolean): ModelConfig? {
when (type) {
0 -> {
val modelDir = "sherpa-ncnn-2022-09-30"
return ModelConfig(
encoderParam = "$modelDir/encoder_jit_trace-pnnx.ncnn.param",
encoderBin = "$modelDir/encoder_jit_trace-pnnx.ncnn.bin",
decoderParam = "$modelDir/decoder_jit_trace-pnnx.ncnn.param",
decoderBin = "$modelDir/decoder_jit_trace-pnnx.ncnn.bin",
joinerParam = "$modelDir/joiner_jit_trace-pnnx.ncnn.param",
joinerBin = "$modelDir/joiner_jit_trace-pnnx.ncnn.bin",
tokens = "$modelDir/tokens.txt",
numThreads = 1,
useGPU = useGPU,
)
}
1 -> {
val modelDir = "sherpa-ncnn-conv-emformer-transducer-2022-12-06"
return ModelConfig(
encoderParam = "$modelDir/encoder_jit_trace-pnnx.ncnn.int8.param",
encoderBin = "$modelDir/encoder_jit_trace-pnnx.ncnn.int8.bin",
decoderParam = "$modelDir/decoder_jit_trace-pnnx.ncnn.param",
decoderBin = "$modelDir/decoder_jit_trace-pnnx.ncnn.bin",
joinerParam = "$modelDir/joiner_jit_trace-pnnx.ncnn.int8.param",
joinerBin = "$modelDir/joiner_jit_trace-pnnx.ncnn.int8.bin",
tokens = "$modelDir/tokens.txt",
numThreads = 1,
useGPU = useGPU,
)
}
2 -> {
val modelDir = "sherpa-ncnn-streaming-zipformer-bilingual-zh-en-2023-02-13"
return ModelConfig(
encoderParam = "$modelDir/encoder_jit_trace-pnnx.ncnn.param",
encoderBin = "$modelDir/encoder_jit_trace-pnnx.ncnn.bin",
decoderParam = "$modelDir/decoder_jit_trace-pnnx.ncnn.param",
decoderBin = "$modelDir/decoder_jit_trace-pnnx.ncnn.bin",
joinerParam = "$modelDir/joiner_jit_trace-pnnx.ncnn.param",
joinerBin = "$modelDir/joiner_jit_trace-pnnx.ncnn.bin",
tokens = "$modelDir/tokens.txt",
numThreads = 1,
useGPU = useGPU,
)
}
3 -> {
val modelDir = "sherpa-ncnn-streaming-zipformer-en-2023-02-13"
return ModelConfig(
encoderParam = "$modelDir/encoder_jit_trace-pnnx.ncnn.param",
encoderBin = "$modelDir/encoder_jit_trace-pnnx.ncnn.bin",
decoderParam = "$modelDir/decoder_jit_trace-pnnx.ncnn.param",
decoderBin = "$modelDir/decoder_jit_trace-pnnx.ncnn.bin",
joinerParam = "$modelDir/joiner_jit_trace-pnnx.ncnn.param",
joinerBin = "$modelDir/joiner_jit_trace-pnnx.ncnn.bin",
tokens = "$modelDir/tokens.txt",
numThreads = 1,
useGPU = useGPU,
)
}
4 -> {
val modelDir = "sherpa-ncnn-streaming-zipformer-fr-2023-04-14"
return ModelConfig(
encoderParam = "$modelDir/encoder_jit_trace-pnnx.ncnn.param",
encoderBin = "$modelDir/encoder_jit_trace-pnnx.ncnn.bin",
decoderParam = "$modelDir/decoder_jit_trace-pnnx.ncnn.param",
decoderBin = "$modelDir/decoder_jit_trace-pnnx.ncnn.bin",
joinerParam = "$modelDir/joiner_jit_trace-pnnx.ncnn.param",
joinerBin = "$modelDir/joiner_jit_trace-pnnx.ncnn.bin",
tokens = "$modelDir/tokens.txt",
numThreads = 1,
useGPU = useGPU,
)
}
5 -> {
val modelDir = "sherpa-ncnn-streaming-zipformer-zh-14M-2023-02-23"
return ModelConfig(
encoderParam = "$modelDir/encoder_jit_trace-pnnx.ncnn.param",
encoderBin = "$modelDir/encoder_jit_trace-pnnx.ncnn.bin",
decoderParam = "$modelDir/decoder_jit_trace-pnnx.ncnn.param",
decoderBin = "$modelDir/decoder_jit_trace-pnnx.ncnn.bin",
joinerParam = "$modelDir/joiner_jit_trace-pnnx.ncnn.param",
joinerBin = "$modelDir/joiner_jit_trace-pnnx.ncnn.bin",
tokens = "$modelDir/tokens.txt",
numThreads = 2,
useGPU = useGPU,
)
}
6 -> {
val modelDir = "sherpa-ncnn-streaming-zipformer-small-bilingual-zh-en-2023-02-16/96"
return ModelConfig(
encoderParam = "$modelDir/encoder_jit_trace-pnnx.ncnn.param",
encoderBin = "$modelDir/encoder_jit_trace-pnnx.ncnn.bin",
decoderParam = "$modelDir/decoder_jit_trace-pnnx.ncnn.param",
decoderBin = "$modelDir/decoder_jit_trace-pnnx.ncnn.bin",
joinerParam = "$modelDir/joiner_jit_trace-pnnx.ncnn.param",
joinerBin = "$modelDir/joiner_jit_trace-pnnx.ncnn.bin",
tokens = "$modelDir/tokens.txt",
numThreads = 2,
useGPU = useGPU,
)
}
}
return null
}
完成上面所有的步骤之后，可以说外部所需的条件我们都已经准备完毕了。胜利就在前方，哈哈。接下来是在我自己的MainActivity中调用：
package com.qimiaoren.aiemployee;
import android.Manifest;
import android.app.Activity;
import android.app.AlertDialog;
import android.content.DialogInterface;
import android.content.Intent;
import android.content.pm.PackageManager;
import android.content.res.AssetManager;
import android.media.AudioFormat;
import android.media.AudioRecord;
import android.media.MediaRecorder;
import android.net.Uri;
import android.os.Bundle;
import android.provider.Settings;
import android.util.Log;
import android.view.View;
import android.widget.Button;
import android.widget.Toast;
import androidx.annotation.NonNull;
import androidx.core.app.ActivityCompat;
import androidx.core.content.ContextCompat;
import com.k2fsa.sherpa.ncnn.DecoderConfig;
import com.k2fsa.sherpa.ncnn.FeatureExtractorConfig;
import com.k2fsa.sherpa.ncnn.ModelConfig;
import com.k2fsa.sherpa.ncnn.RecognizerConfig;
import com.k2fsa.sherpa.ncnn.SherpaNcnn;
import com.k2fsa.sherpa.ncnn.SherpaNcnnKt;
import net.jaris.aiemployeee.R;
import java.util.Arrays;
public class MainActivity extends Activity {
private static final String TAG = "AITag";
private static final int MY_PERMISSIONS_REQUEST = 1;
Button start;
private AudioRecord audioRecord = null;
private int audioSource = MediaRecorder.AudioSource.MIC;
private int sampleRateInHz = 16000;
private int channelConfig = AudioFormat.CHANNEL_IN_MONO;
private int audioFormat = AudioFormat.ENCODING_PCM_16BIT;
private boolean isRecording = false;
boolean useGPU = true;
private SherpaNcnn model;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
initView();
checkPermission();
initModel();
}
private void initView() {
start = findViewById(R.id.start);
start.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View view) {
Toast.makeText(MainActivity.this, "开始说话", Toast.LENGTH_SHORT).show();
if (!isRecording){
if (initMicrophone()){
Log.d(TAG, "onClick: 麦克风初始化完成");
isRecording = true;
audioRecord.startRecording();
new Thread(new Runnable() {
@Override
public void run() {
double interval = 0.1;
int bufferSize = (int) (interval * sampleRateInHz);
short[] buffer = new short[bufferSize];
int silenceDuration = 0;
while (isRecording){
int ret = audioRecord.read(buffer,0,buffer.length);
if (ret > 0) {
int energy = 0;
int zeroCrossing = 0;
for (int i = 0; i < ret; i++) {
energy += buffer[i] * buffer[i];
if (i > 0 && buffer[i] * buffer[i - 1] > 0){
zeroCrossing ++;
}
}
if (energy < 100 && zeroCrossing < 3){
silenceDuration += bufferSize;
}else {
silenceDuration = 0;
}
if (silenceDuration >= 500){
Log.d(TAG, "run: 说话停顿");
continue;
}
float[] samples = new float[ret];
for (int i = 0; i < ret; i++){
samples[i] = buffer[i] / 32768.0f;
}
model.acceptSamples(samples);
while (model.isReady()){
model.decode();
}
boolean isEndpoint = model.isEndpoint();
String text = model.getText();
if (!"".equals(text)){
Log.d(TAG, "run: " + text);
}
if (isEndpoint){
Log.d(TAG, "isEndpoint: " + text);
model.reset(false);
}
}
}
}
}).start();
}
}
}
});
}
private void checkPermission() {
if (ContextCompat.checkSelfPermission(MainActivity.this,
Manifest.permission.MODIFY_AUDIO_SETTINGS) != PackageManager.PERMISSION_GRANTED
|| ContextCompat.checkSelfPermission(MainActivity.this, Manifest.permission.RECORD_AUDIO) != PackageManager.PERMISSION_GRANTED
|| ContextCompat.checkSelfPermission(MainActivity.this, Manifest.permission.READ_EXTERNAL_STORAGE) != PackageManager.PERMISSION_GRANTED
|| ContextCompat.checkSelfPermission(MainActivity.this, Manifest.permission.WRITE_EXTERNAL_STORAGE) != PackageManager.PERMISSION_GRANTED
) {
ActivityCompat.requestPermissions(MainActivity.this, new String[]{
Manifest.permission.MODIFY_AUDIO_SETTINGS,
Manifest.permission.RECORD_AUDIO,
Manifest.permission.READ_EXTERNAL_STORAGE,
Manifest.permission.WRITE_EXTERNAL_STORAGE
}, MY_PERMISSIONS_REQUEST);
Log.d(TAG, "checkPermission: 请求权限");
} else {
Log.d(TAG, "checkPermission: 权限已授权");
}
}
private void initModel() {
FeatureExtractorConfig featConfig = SherpaNcnnKt.getFeatureExtractorConfig(16000.0f,80);
ModelConfig modelConfig = SherpaNcnnKt.getModelConfig(1, useGPU);
DecoderConfig decoderConfig = SherpaNcnnKt.getDecoderConfig("greedy_search", 4);
RecognizerConfig config = new RecognizerConfig(featConfig, modelConfig, decoderConfig, true, 2.0f, 0.8f, 20.0f, "", 1.5f);
AssetManager assetManager = getAssets();
model = new SherpaNcnn(config, assetManager);
Log.d(TAG, "model初始化成功");
}
private void permissionDialog(String title, String content) {
AlertDialog alertDialog = new AlertDialog.Builder(this)
.setTitle(title)
.setMessage(content)
.setPositiveButton("确定", new DialogInterface.OnClickListener() {
@Override
public void onClick(DialogInterface dialog, int which) {
Intent permissionIntent = new Intent();
permissionIntent.setAction(Settings.ACTION_APPLICATION_DETAILS_SETTINGS);
Uri uri = Uri.fromParts("package", getPackageName(), null);
permissionIntent.setData(uri);
startActivity(permissionIntent);
}
})
.create();
alertDialog.show();
}
@Override
public void onRequestPermissionsResult(int requestCode, @NonNull String[] permissions, @NonNull int[] grantResults) {
if (requestCode == MY_PERMISSIONS_REQUEST) {
if (grantResults[0] == PackageManager.PERMISSION_GRANTED
&& grantResults[1] == PackageManager.PERMISSION_GRANTED
&& grantResults[2] == PackageManager.PERMISSION_GRANTED
&& grantResults[3] == PackageManager.PERMISSION_GRANTED
) {
Log.d(TAG, "onRequestPermissionsResult: 授权成功");
} else {
permissionDialog("当前应用权限不足", "请先检查所有权限可用");
}
}
super.onRequestPermissionsResult(requestCode, permissions, grantResults);
}
private boolean initMicrophone() {
if (ActivityCompat.checkSelfPermission(this, Manifest.permission.RECORD_AUDIO) != PackageManager.PERMISSION_GRANTED) {
return false;
}
int numBytes = AudioRecord.getMinBufferSize(sampleRateInHz, channelConfig, audioFormat);
audioRecord = new AudioRecord(audioSource, sampleRateInHz, channelConfig, audioFormat, numBytes * 2);
return true;
}
}
要注意上面导入包时，部分引用是从“com.k2fsa.sherpa.ncnn”中导入的。
上面调用的核心代码就是点击start按钮，new Thread线程中的内容了。通过while循环不断读取麦克风的声音数据，并经过计算后传入模型的acceptSamples函数中获取识别文本的结果。
在线程里面我自己写了一些方法来判断说话的停顿时机，大家可以根据自己的需求来参考。
线程中最后的两个log打印日志一个是实时识别的文本内容，第二个是一句话停顿后，返回的一句完整的文本内容。一般使用isEndpoint判断中的text即可。
3741
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
