黑猴子的家：Eclipse创建Maven Web项目方式一

1、Maven Project

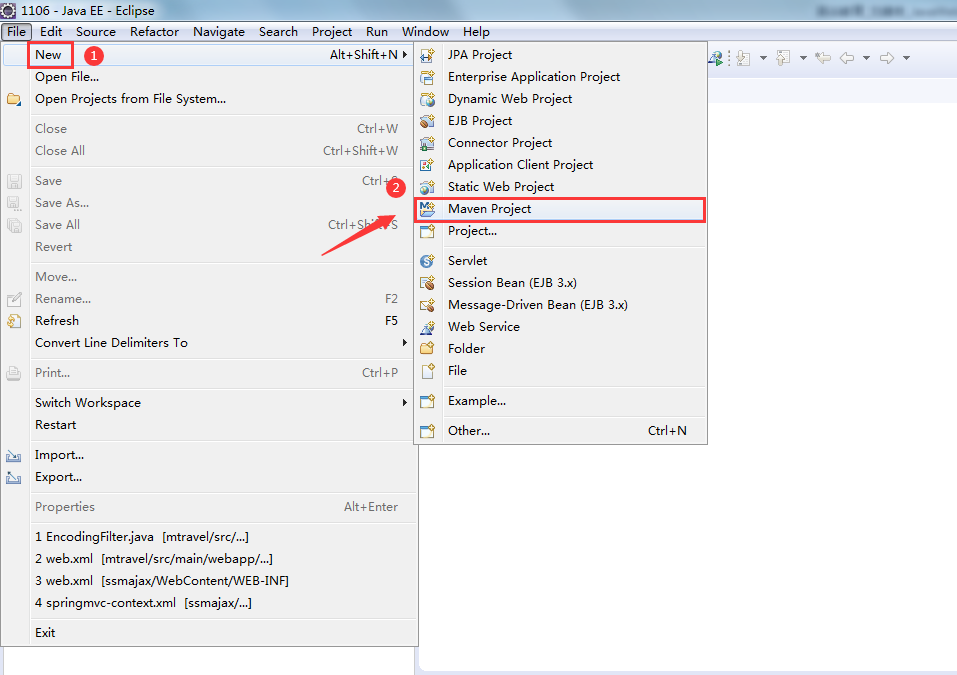

File -> New -> Maven Project

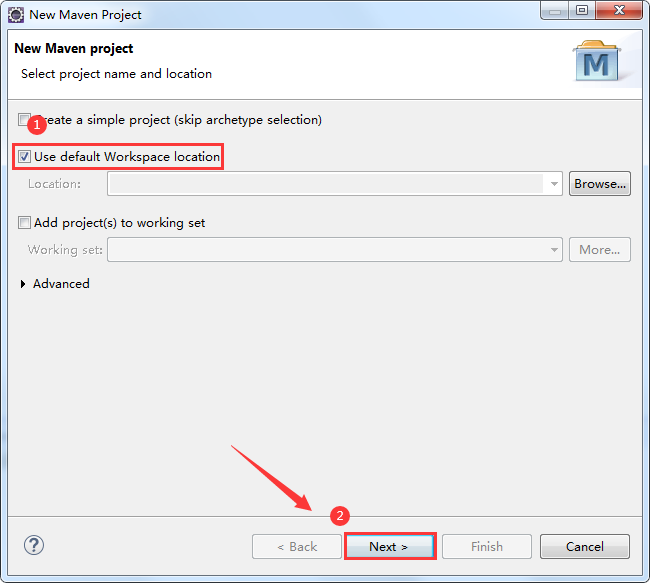

2、Next

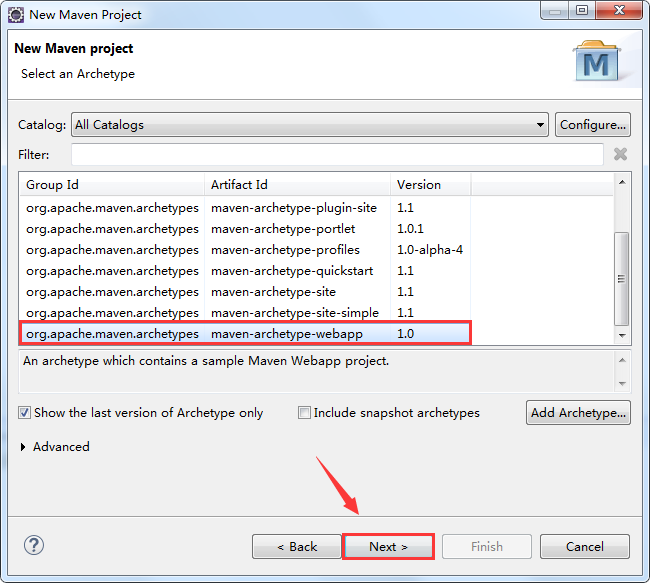

3、webapp -> Next

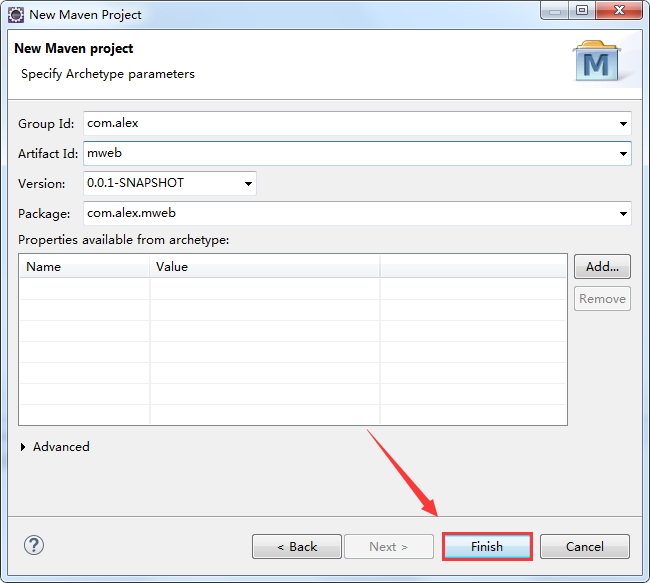

4、Finish

5、添加tomcat

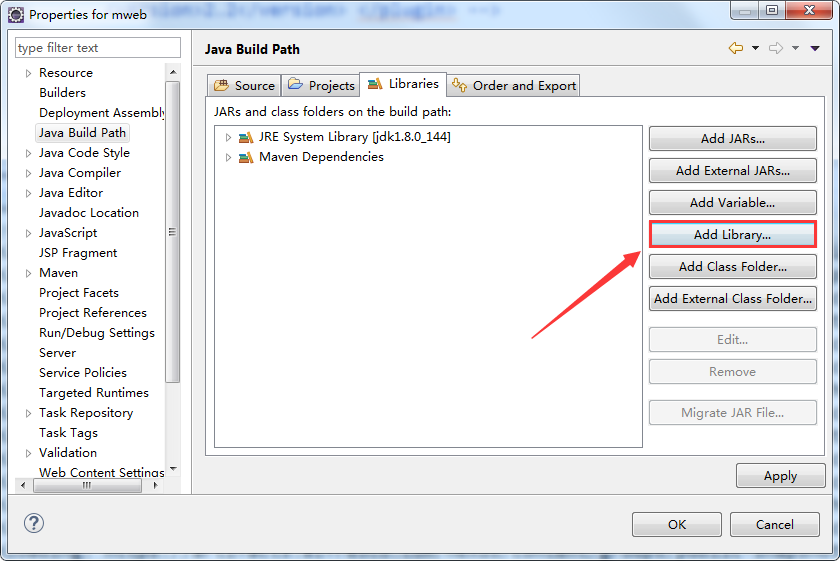

1)Java Build Path -> Add Library

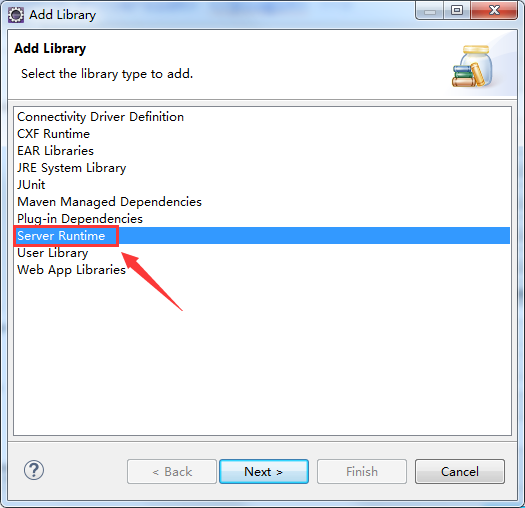

2)Server Runtime

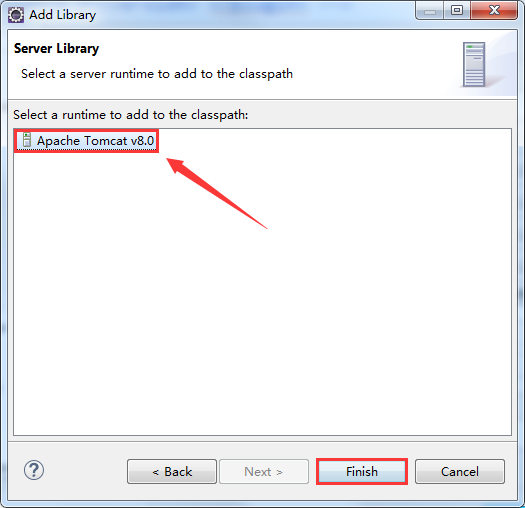

3)Tomcat8 -> Finish

4)打完收工

6、修改web.xml

1)修改前

<!DOCTYPE web-app PUBLIC
 "-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN"
 "http://java.sun.com/dtd/web-app_2_3.dtd" >

<web-app>
  <display-name>Archetype Created Web Application</display-name>
</web-app>

2)修改后

<?xml version="1.0" encoding="UTF-8"?>
<web-app version="3.0" xmlns="http://java.sun.com/xml/ns/javaee"
  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd">

  <display-name>Archetype Created Web Application</display-name>

  <welcome-file-list>
    <welcome-file>index.jsp</welcome-file>
  </welcome-file-list>

</web-app>

7、修改org.eclipse.wst.common.project.facet.core.xml

1)修改前

<?xml version="1.0" encoding="UTF-8"?>
<faceted-project>
  <fixed facet="wst.jsdt.web"/>
  <installed facet="java" version="1.8"/>
  <installed facet="jst.web" version="2.3"/>
  <installed facet="wst.jsdt.web" version="1.0"/>
</faceted-project>

2)修改后

<?xml version="1.0" encoding="UTF-8"?>
<faceted-project>
  <fixed facet="wst.jsdt.web"/>
  <installed facet="java" version="1.8"/>
  <installed facet="jst.web" version="3.0"/>
  <installed facet="wst.jsdt.web" version="1.0"/>
</faceted-project>

8、org.eclipse.jdt.core.prefs

1)修改前

eclipse.preferences.version=1
org.eclipse.jdt.core.compiler.codegen.inlineJsrBytecode=enabled
org.eclipse.jdt.core.compiler.codegen.targetPlatform=1.5
org.eclipse.jdt.core.compiler.compliance=1.5
org.eclipse.jdt.core.compiler.problem.assertIdentifier=error
org.eclipse.jdt.core.compiler.problem.enumIdentifier=error
org.eclipse.jdt.core.compiler.problem.forbiddenReference=warning
org.eclipse.jdt.core.compiler.source=1.5

2)修改后

eclipse.preferences.version=1
org.eclipse.jdt.core.compiler.codegen.inlineJsrBytecode=enabled
org.eclipse.jdt.core.compiler.codegen.targetPlatform=1.8
org.eclipse.jdt.core.compiler.compliance=1.8
org.eclipse.jdt.core.compiler.problem.assertIdentifier=error
org.eclipse.jdt.core.compiler.problem.enumIdentifier=error
org.eclipse.jdt.core.compiler.problem.forbiddenReference=warning
org.eclipse.jdt.core.compiler.source=1.8

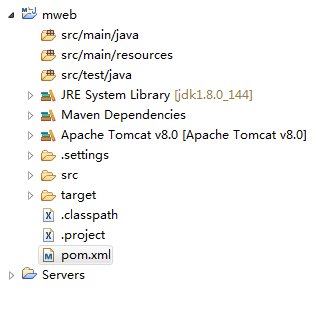

9、项目结构

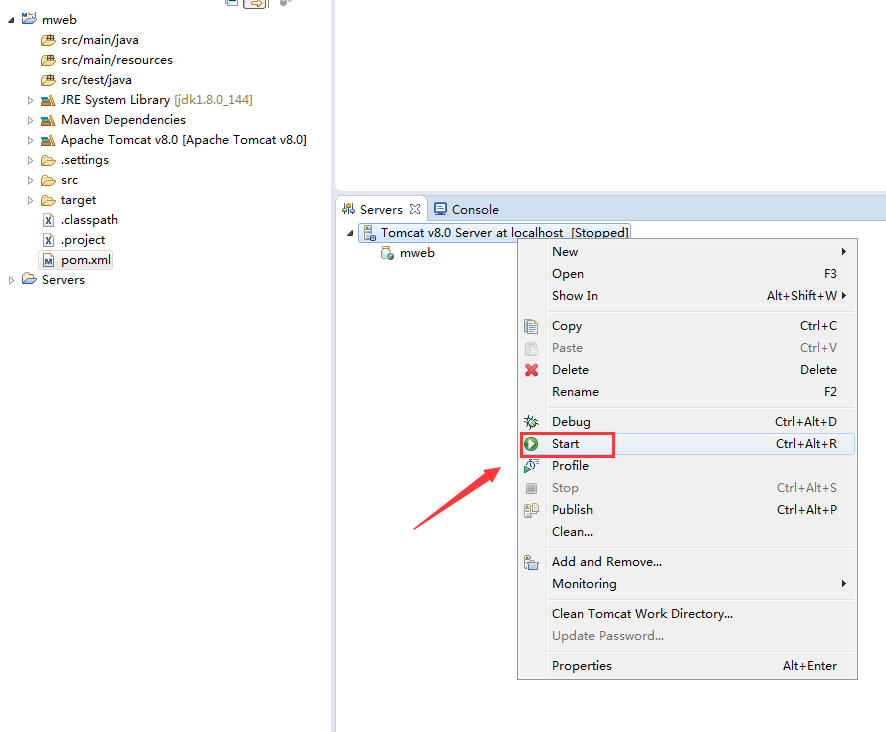

10、tomcat -> start

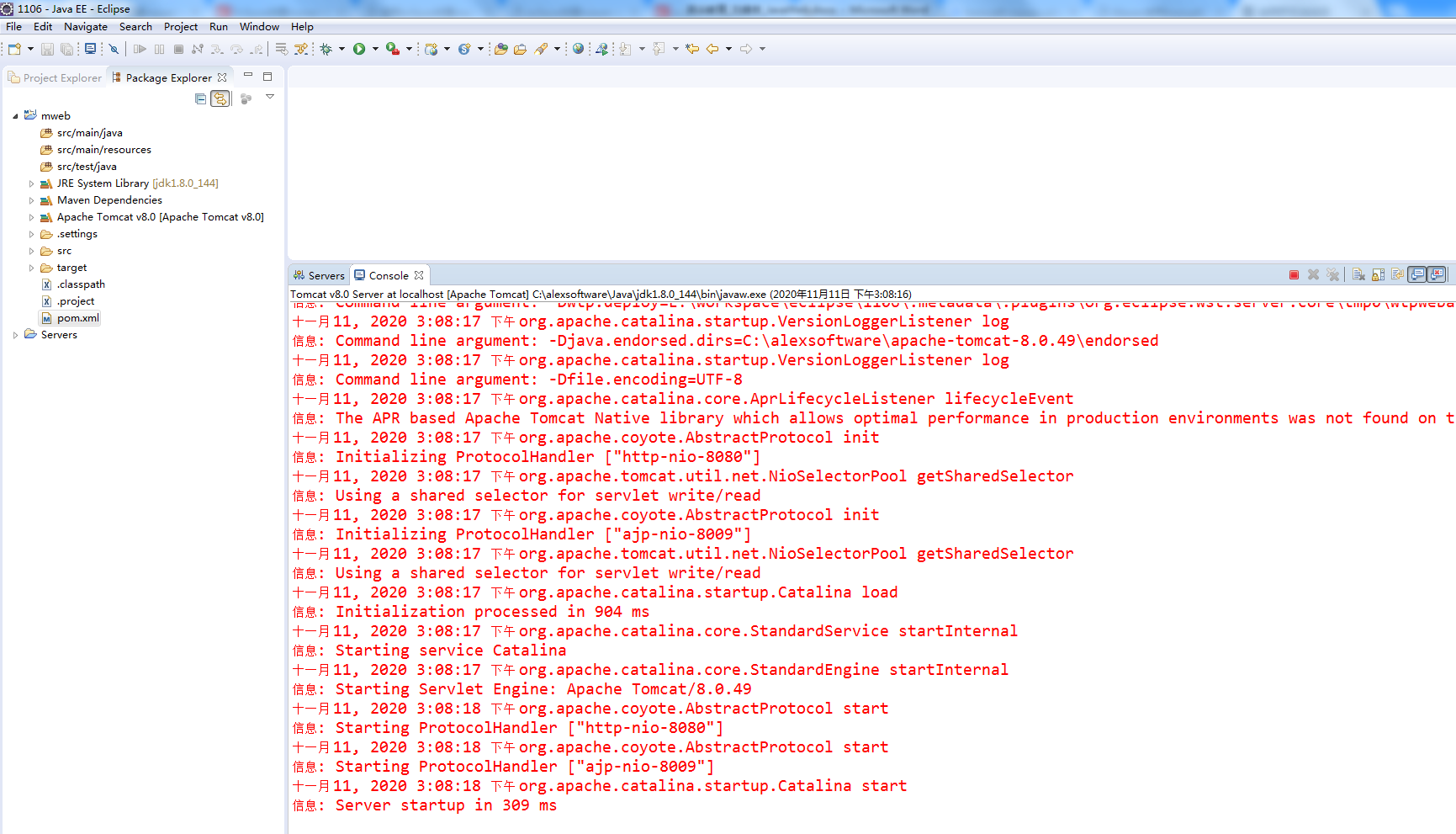

11、启动成功

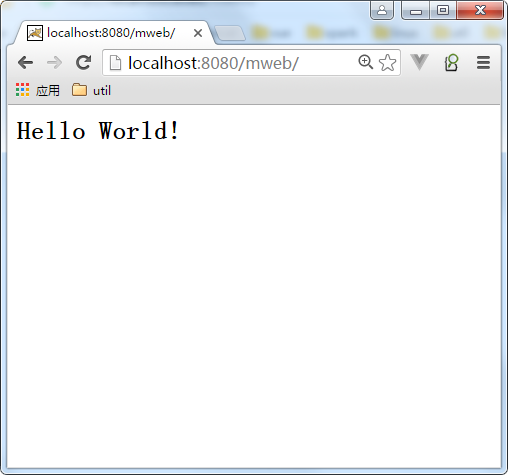

12、浏览器访问

13、使用tomcat 插件

1)pom.xml

<build>
        <finalName>mweb</finalName>
        <plugins>
            <!-- Run As → Maven Build → tomcat7:run -Dmaven.tomcat.port=8080 -->
            <plugin>
                <groupId>org.apache.tomcat.maven</groupId>
                <artifactId>tomcat7-maven-plugin</artifactId>
                <version>2.2</version>
                <configuration>
                    <!-- 指定端口 -->
                    <port>8080</port>
                    <!-- 请求路径 -->
                    <path>/mweb</path>
                    <ignorePackaging>true</ignorePackaging>
                </configuration>
            </plugin>
        </plugins>
    </build>

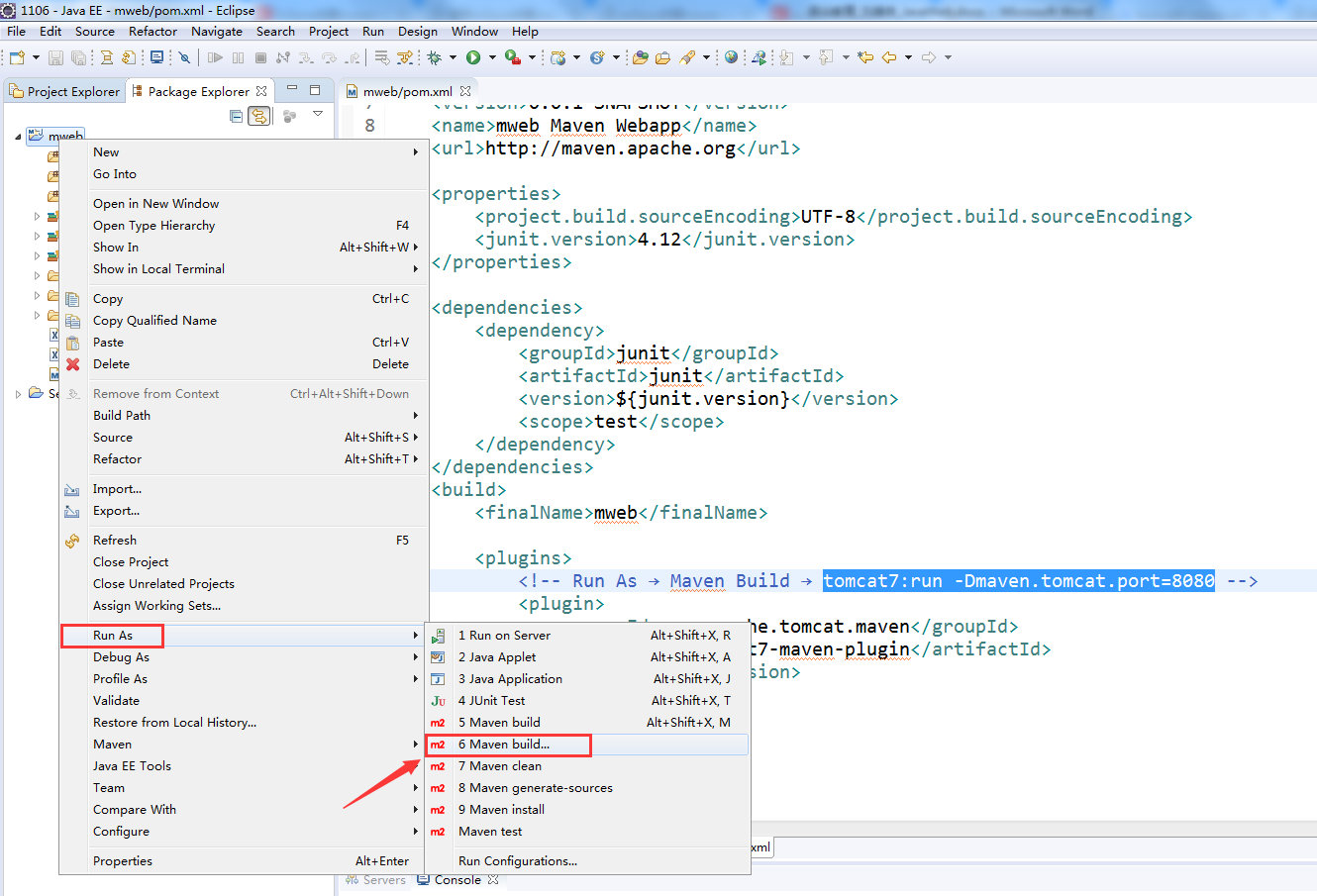

2)Run As

Run As -> Maven Build -> tomcat7:run -Dmaven.tomcat.port=8080

3)Run

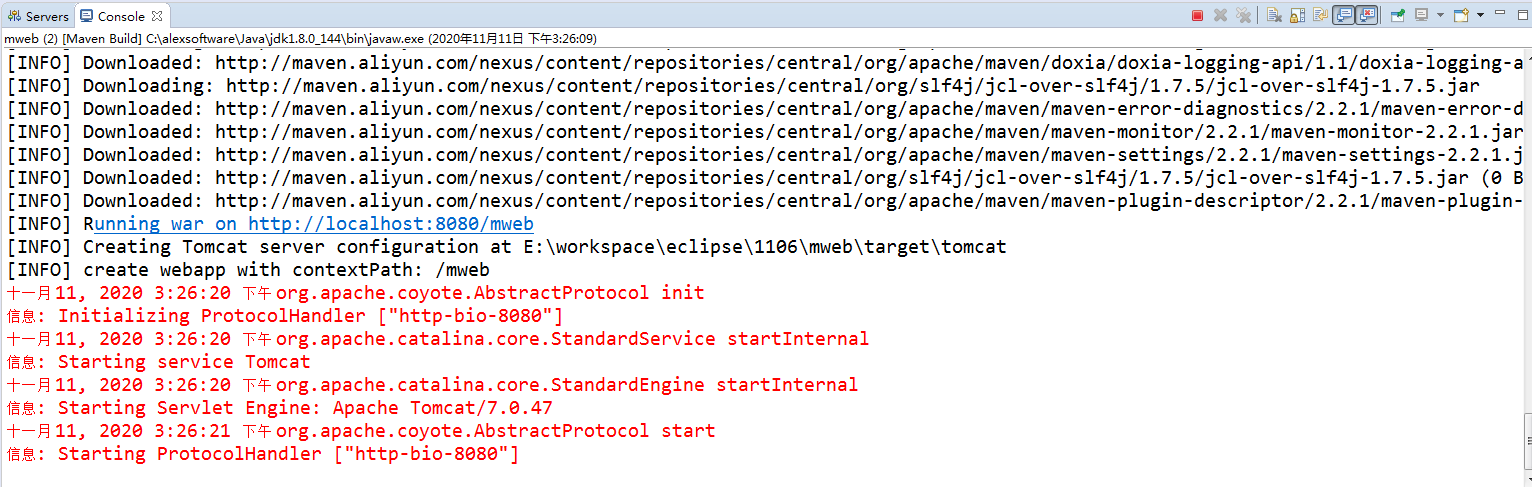

4)启动成功

5)浏览器访问
