PackageInstaller （tv 修改安装app界面按钮及自动获取焦点）附源码分析

\packages\apps\PackageInstaller

一、一条真实的修改记录

TVOS基于的是一套板卡厂商原有的源码(mstar android8.0版本）原生的这个app安装界面，存在俩个比较严重的用户体验问题，

1’、下面那俩按钮太小了，而且都在右下角干嘛，这么大的屏幕往中间来啊

2、每次安装的时候遥控器的焦点不在安装按钮和完成按钮上，而是在权限列表上，用户还要自己点下去



很好解决，找到布局然后修改布局就可，

install_installing

install_staging

install_failed

install_confirm_perm

install_confirm_perm_update

install_success

install_confirm

然后我就把按钮改大一点，这几个布局都要改哦

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:orientation="vertical">

    <LinearLayout android:id="@+id/app_snippet"
            android:background="?android:attr/colorPrimary"
            android:layout_width="match_parent"
            android:layout_height="?android:attr/actionBarSize"
            android:orientation="horizontal"
            android:elevation="@dimen/headerElevation"
            android:gravity="center_vertical">

        <ImageView
                android:id="@+id/app_icon"
                android:layout_width="24dp"
                android:layout_height="24dp"
                android:layout_marginStart="16dp"
                android:scaleType="fitCenter" />

        <TextView
                android:id="@+id/app_name"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_marginStart="32dp"
                android:layout_marginEnd="16dp"
                android:ellipsize="end"
                android:singleLine="true"
                android:textAppearance="?android:attr/titleTextStyle" />

    </LinearLayout>

    <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_weight="1"
            android:gravity="center"
            android:orientation="vertical"
            android:paddingLeft="16dip"
            android:paddingRight="16dip">

        <ImageView
                android:layout_width="92dp"
                android:layout_height="92dp"
                android:layout_marginBottom="12dp"
                android:contentDescription="@null"
                android:tint="@color/bigIconColor"
                android:src="@drawable/ic_file_download" />

        <ProgressBar
                android:id="@+id/progress_bar"
                style="?android:attr/progressBarStyleHorizontal"
                android:layout_width="250dp"
                android:layout_height="wrap_content"
                android:indeterminate="false" />

        <TextView
                android:id="@+id/center_text"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:gravity="center_horizontal"
                android:text="@string/installing"
                android:textAppearance="?android:attr/textAppearanceMedium" />

    </LinearLayout>

    <LinearLayout
            android:id="@+id/buttons_panel"
            style="?android:attr/buttonBarStyle"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:measureWithLargestChild="true"
            android:orientation="horizontal"
			android:gravity="center"
            android:padding="8dip">

         <!-- <View
                android:layout_width="0dp"
                android:layout_height="0dp"
                android:layout_weight="1" />-->

        <Button
                android:id="@+id/cancel_button"
                style="?android:attr/buttonBarButtonStyle"
                android:layout_width="320dp"
                android:layout_height="wrap_content"
                android:maxLines="2"
                android:text="@string/cancel" />

    </LinearLayout>

</LinearLayout>

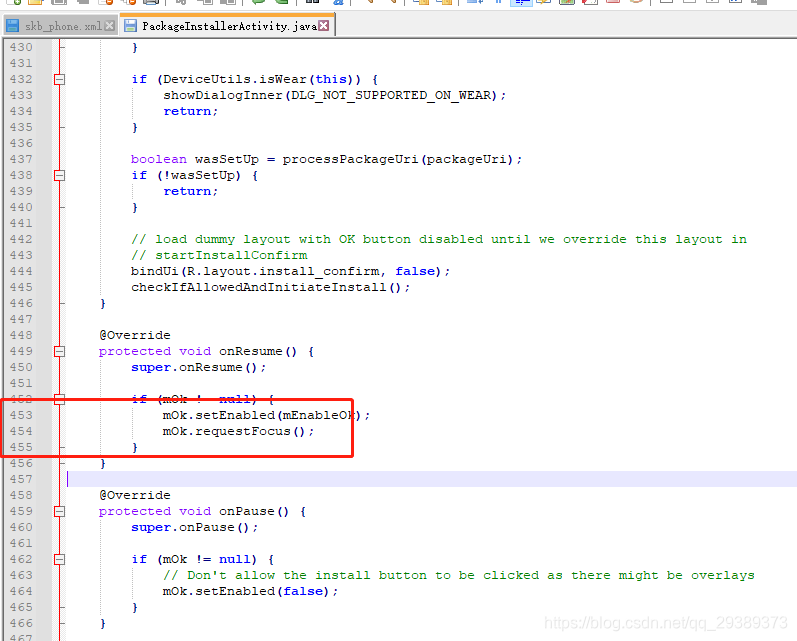

\packages\apps\PackageInstaller\src\com\android\packageinstaller\PackageInstallerActivity.java

让他每次进入都获取焦点，完事

---

---

二、然后呢！不妨一起来看一下PackageInstaller

调用安装界面

Intent intent = new Intent(Intent.ACTION_VIEW);
intent.setDataAndType(xx, "application/vnd.android.package-archive");

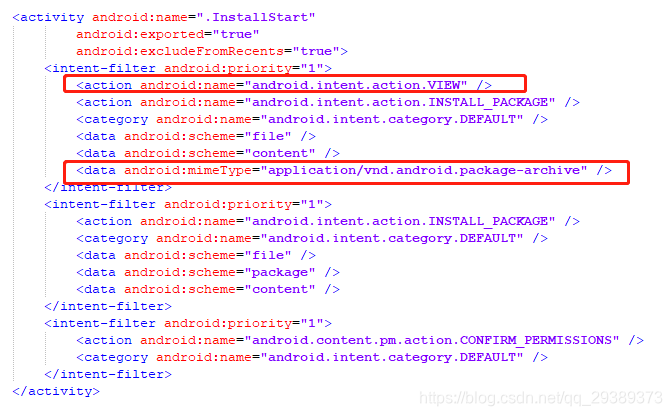

没错，就是type--》"application/vnd.android.package-archive"

packages\apps\PackageInstaller\src\com\android\packageinstaller\InstallStart

   Intent nextActivity = new Intent(intent);
        nextActivity.setFlags(Intent.FLAG_ACTIVITY_FORWARD_RESULT);

        // The the installation source as the nextActivity thinks this activity is the source, hence
        // set the originating UID and sourceInfo explicitly
        nextActivity.putExtra(PackageInstallerActivity.EXTRA_CALLING_PACKAGE, callingPackage);
        nextActivity.putExtra(PackageInstallerActivity.EXTRA_ORIGINAL_SOURCE_INFO, sourceInfo);
        nextActivity.putExtra(Intent.EXTRA_ORIGINATING_UID, originatingUid);

        if (PackageInstaller.ACTION_CONFIRM_PERMISSIONS.equals(intent.getAction())) {
            nextActivity.setClass(this, PackageInstallerActivity.class);
        } else {
            Uri packageUri = intent.getData();

            if (packageUri == null) {
                //uri是空的就退出了
                // if there's nothing to do, quietly slip into the ether
                Intent result = new Intent();
                result.putExtra(Intent.EXTRA_INSTALL_RESULT,
                        PackageManager.INSTALL_FAILED_INVALID_URI);
                setResult(RESULT_FIRST_USER, result);

                nextActivity = null;
            } else {
                //判断Uri的Scheme，如果是就跳转到InstallStaging
                if (packageUri.getScheme().equals(SCHEME_CONTENT)) {
                    nextActivity.setClass(this, InstallStaging.class);
                } else {
                    nextActivity.setClass(this, PackageInstallerActivity.class);
                }
            }
        }

        if (nextActivity != null) {
            startActivity(nextActivity);
        }
        finish();

跳转根据uri的类型跳转吧，InstallStaging与PackageInstallerActivity

7.0及以后的系统，file://ur就会报FileUriException异常，所以需要使用FileContentProvider来将file://uri替换成content://uri,

packageUri.getScheme().equals(ContentResolver.SCHEME_CONTENT))就是这样的一个判断条件，7.0以上走InstallStaging。

看看InstallStaging ，来看下onresume

 @Override
    protected void onResume() {
        super.onResume();

        // This is the first onResume in a single life of the activity
        if (mStagingTask == null) {
            // File does not exist, or became invalid
            if (mStagedFile == null) {
                // Create file delayed to be able to show error
                try {
                    mStagedFile = TemporaryFileManager.getStagedFile(this);
                } catch (IOException e) {
                    showError();
                    return;
                }
            }

            mStagingTask = new StagingAsyncTask();
            mStagingTask.execute(getIntent().getData());
        }
    }

哦吼，你会发现起了个stagintask，把uri直接传进去了

    private final class StagingAsyncTask extends AsyncTask<Uri, Void, Boolean> {
        @Override
        protected Boolean doInBackground(Uri... params) {

              //取，存-----缓存安装包文件----到mStagedFile
            if (params == null || params.length <= 0) {
                return false;
            }
            Uri packageUri = params[0];
            try (InputStream in = getContentResolver().openInputStream(packageUri)) {
                // Despite the comments in ContentResolver#openInputStream the returned stream can
                // be null.
                if (in == null) {
                    return false;
                }

                try (OutputStream out = new FileOutputStream(mStagedFile)) {
                    byte[] buffer = new byte[4096];
                    int bytesRead;
                    while ((bytesRead = in.read(buffer)) >= 0) {
                        // Be nice and respond to a cancellation
                        if (isCancelled()) {
                            return false;
                        }
                        out.write(buffer, 0, bytesRead);
                    }
                }
            } catch (IOException | SecurityException e) {
                Log.w(LOG_TAG, "Error staging apk from content URI", e);
                return false;
            }
            return true;
        }

        @Override
        protected void onPostExecute(Boolean success) {
            if (success) {
                // Now start the installation again from a file
//哦吼，又跳转了！！！！！！！还是PackageInstallerActivity
                Intent installIntent = new Intent(getIntent());
                installIntent.setClass(InstallStaging.this, PackageInstallerActivity.class);
                installIntent.setData(Uri.fromFile(mStagedFile));
                installIntent
                        .setFlags(installIntent.getFlags() & ~Intent.FLAG_ACTIVITY_FORWARD_RESULT);
                installIntent.addFlags(Intent.FLAG_ACTIVITY_NO_ANIMATION);
                startActivityForResult(installIntent, 0);
            } else {
                showError();
            }
        }
    }

将content://uri 转成了file://uri，又跳转了PackageInstallerActivity

PackageInstallerActivity oncrate

  bindUi(R.layout.install_confirm, false);
  checkIfAllowedAndInitiateInstall();

checkIfAllowedAndInitiateInstall检查是不是已经允许了安装位置源应用

然后initiateInstall

然后startInstallConfirm

  private void startInstallConfirm() {
        // We might need to show permissions, load layout with permissions

        if (mAppInfo != null) {
        //加载app更新布局
            bindUi(R.layout.install_confirm_perm_update, true);
        } else {
        //加载确认安装布局
            bindUi(R.layout.install_confirm_perm, true);
        }
        ((TextView) findViewById(R.id.install_confirm_question))
                .setText(R.string.install_confirm_question);
        TabHost tabHost = (TabHost)findViewById(android.R.id.tabhost);
        tabHost.setup();
        ViewPager viewPager = (ViewPager)findViewById(R.id.pager);
        TabsAdapter adapter = new TabsAdapter(this, tabHost, viewPager);
        // If the app supports runtime permissions the new permissions will
        // be requested at runtime, hence we do not show them at install.
        boolean supportsRuntimePermissions = mPkgInfo.applicationInfo.targetSdkVersion
                >= Build.VERSION_CODES.M;
        boolean permVisible = false;
        mScrollView = null;
        mOkCanInstall = false;
        int msg = 0;

        //加载需要的权限，显示到布局中mScrollView
        AppSecurityPermissions perms = new AppSecurityPermissions(this, mPkgInfo);
        final int N = perms.getPermissionCount(AppSecurityPermissions.WHICH_ALL);
        if (mAppInfo != null) {
            msg = (mAppInfo.flags & ApplicationInfo.FLAG_SYSTEM) != 0
                    ? R.string.install_confirm_question_update_system
                    : R.string.install_confirm_question_update;
            mScrollView = new CaffeinatedScrollView(this);
            mScrollView.setFillViewport(true);
            boolean newPermissionsFound = false;
            if (!supportsRuntimePermissions) {
                newPermissionsFound =
                        (perms.getPermissionCount(AppSecurityPermissions.WHICH_NEW) > 0);
                if (newPermissionsFound) {
                    permVisible = true;
                    mScrollView.addView(perms.getPermissionsView(
                            AppSecurityPermissions.WHICH_NEW));
                }
            }
            if (!supportsRuntimePermissions && !newPermissionsFound) {
                LayoutInflater inflater = (LayoutInflater)getSystemService(
                        Context.LAYOUT_INFLATER_SERVICE);
                TextView label = (TextView)inflater.inflate(R.layout.label, null);
                label.setText(R.string.no_new_perms);
                mScrollView.addView(label);
            }
            adapter.addTab(tabHost.newTabSpec(TAB_ID_NEW).setIndicator(
                    getText(R.string.newPerms)), mScrollView);
        }
        if (!supportsRuntimePermissions && N > 0) {
            permVisible = true;
            LayoutInflater inflater = (LayoutInflater)getSystemService(
                    Context.LAYOUT_INFLATER_SERVICE);
            View root = inflater.inflate(R.layout.permissions_list, null);
            if (mScrollView == null) {
                mScrollView = (CaffeinatedScrollView)root.findViewById(R.id.scrollview);
            }
            ((ViewGroup)root.findViewById(R.id.permission_list)).addView(
                        perms.getPermissionsView(AppSecurityPermissions.WHICH_ALL));
            adapter.addTab(tabHost.newTabSpec(TAB_ID_ALL).setIndicator(
                    getText(R.string.allPerms)), root);
        }
        if (!permVisible) {
            if (mAppInfo != null) {
                // This is an update to an application, but there are no
                // permissions at all.
                msg = (mAppInfo.flags & ApplicationInfo.FLAG_SYSTEM) != 0
                        ? R.string.install_confirm_question_update_system_no_perms
                        : R.string.install_confirm_question_update_no_perms;
            } else {
                // This is a new application with no permissions.
                msg = R.string.install_confirm_question_no_perms;
            }

            // We do not need to show any permissions, load layout without permissions
            bindUi(R.layout.install_confirm, true);
            mScrollView = null;
        }
        if (msg != 0) {
            ((TextView)findViewById(R.id.install_confirm_question)).setText(msg);
        }
        if (mScrollView == null) {
            // There is nothing to scroll view, so the ok button is immediately
            // set to install.
            mOk.setText(R.string.install);
            mOkCanInstall = true;
        } else {
            mScrollView.setFullScrollAction(new Runnable() {
                @Override
                public void run() {
                    mOk.setText(R.string.install);
                    mOkCanInstall = true;
                }
            });
        }
    }


  public void onClick(View v) {
        if (v == mOk) {
      //ok被点击，开始安装
            if (mOk.isEnabled()) {
                if (mOkCanInstall || mScrollView == null) {
                    if (mSessionId != -1) {
                        mInstaller.setPermissionsResult(mSessionId, true);
                        finish();
                    } else {
                        startInstall();
                    }
                } else {
                    mScrollView.pageScroll(View.FOCUS_DOWN);
                }
            }
        } else if (v == mCancel) {
            // Cancel and finish
            setResult(RESULT_CANCELED);
            if (mSessionId != -1) {
                mInstaller.setPermissionsResult(mSessionId, false);
            }
            finish();
        }
    }

startInstall();跳转到InstallInstalling

InstallInstalling    onresunme启动InstallingAsyncTask

 InstallingAsyncTask的doInBackground方法中会根据包的Uri，将APK的信息通过IO流的形式写入到PackageInstaller.Session中

  /**
     * Send the package to the package installer and then register a event result observer that
     * will call {@link #launchFinishBasedOnResult(int, int, String)}
     */
    private final class InstallingAsyncTask extends AsyncTask<Void, Void,
            PackageInstaller.Session> {
        volatile boolean isDone;

        @Override
        protected PackageInstaller.Session doInBackground(Void... params) {
            PackageInstaller.Session session;
            try {
                session = getPackageManager().getPackageInstaller().openSession(mSessionId);
            } catch (IOException e) {
                return null;
            }

            session.setStagingProgress(0);

            try {
                File file = new File(mPackageURI.getPath());

                try (InputStream in = new FileInputStream(file)) {
                    long sizeBytes = file.length();
                    try (OutputStream out = session
                            .openWrite("PackageInstaller", 0, sizeBytes)) {
                        byte[] buffer = new byte[4096];
                        while (true) {
                            int numRead = in.read(buffer);

                            if (numRead == -1) {
                                session.fsync(out);
                                break;
                            }

                            if (isCancelled()) {
                                session.close();
                                break;
                            }

                            out.write(buffer, 0, numRead);
                            if (sizeBytes > 0) {
                                float fraction = ((float) numRead / (float) sizeBytes);
                                session.addProgress(fraction);
                            }
                        }
                    }
                }

                return session;
            } catch (IOException | SecurityException e) {
                Log.e(LOG_TAG, "Could not write package", e);

                session.close();

                return null;
            } finally {
                synchronized (this) {
                    isDone = true;
                    notifyAll();
                }
            }
        }

        @Override
        protected void onPostExecute(PackageInstaller.Session session) {
            if (session != null) {
                Intent broadcastIntent = new Intent(BROADCAST_ACTION);
                broadcastIntent.setPackage(
                        getPackageManager().getPermissionControllerPackageName());
                broadcastIntent.putExtra(EventResultPersister.EXTRA_ID, mInstallId);

                PendingIntent pendingIntent = PendingIntent.getBroadcast(
                        InstallInstalling.this,
                        mInstallId,
                        broadcastIntent,
                        PendingIntent.FLAG_UPDATE_CURRENT);

                session.commit(pendingIntent.getIntentSender());
                mCancelButton.setEnabled(false);
                setFinishOnTouchOutside(false);
            } else {
                getPackageManager().getPackageInstaller().abandonSession(mSessionId);

                if (!isCancelled()) {
                    launchFailure(PackageManager.INSTALL_FAILED_INVALID_APK, null);
                }
            }
        }
    }

这里出现了一个   session = getPackageManager().getPackageInstaller().openSession(mSessionId);调用PackageInstaller.Session的commit方法，将APK的信息交由PMS处理。

也就是说安装的逻辑就跑到PM那里去咯  frameworks/base/core/java/android/content/pm/PackageInstaller.java

然后呢结果通过InstallEventReceiver监听安装结果，这样基本上就完成了。所以PackageInstaller想要知道是如何安装的，还要去看pm。
