【gis插件】arcgis插件界址点编号工具、C#实现思路(附插件下载链接)

数据：界址点图层、宗地图层

要求：找出宗地对应的所有界址点号，对这些界址点号以J1开始按顺序排列

---

        要找出宗地所对应的所有界址点号，这里只要执行一个标识 即可得到这样得到的结果。

难点在于对界址点的编号，经过检查，这些界址点存在明显的乱序，比如这样：132564

 图形复杂，太复杂了，这种图形，用arcgis无论怎么排序、编号，它编号都得乱哇。

不得已只能动用C#的神秘力量

第一步做一个标识的操作，让所有的界址点有了归属，标记了每一个界址点属于哪一个宗地。

接下来的任务就是对宗地的界址点进行编号，每个宗地的界址点都从J1 开始编号。

宗地内遍历每一个界址点，找到距离这个界址点最近的宗地点，然后给这个界址点赋予这个宗地点的这个序号。遍历完界址点之后，对这个界址点进行排序就会得到我们想要的结果了。

    public void aaaa222(IFeatureClass fc_jzd, IFeatureClass fc_zd,string fieldname)
        {
            string txtfile = "";
            SaveFileDialog save = new SaveFileDialog();
            save.Filter = "文本|*.txt";
            if (save.ShowDialog() != DialogResult.OK) return;
            txtfile = save.FileName;

            int jaindex = fc_jzd.FindField(fieldname);
            if (jaindex < 0)
            {
                MessageBox.Show("界址点图层不包含"+ fieldname+"字段，请先做标识操作。");
                return;
            }
            jaindex = fc_zd.FindField(fieldname);
            if (jaindex < 0)
            {
                MessageBox.Show("宗地图层不包含" + fieldname + "字段，修改输入字段名称。");
                return;
            }


            List<string> vsdata = GetUniqueValue(fc_jzd, fieldname);
            ISpatialFilter spatialFilter = new SpatialFilterClass();
            List<string> dataitem_result = new List<string>();
            dataitem_result.Add("序号,"+fieldname+",界址点编号,X,Y");//+ "\r\n";
            int index = 1;
            //spatialFilter.WhereClause = fieldname + " = ";
            foreach (string str in vsdata)
            {
                spatialFilter = new SpatialFilterClass();
                spatialFilter.WhereClause = fieldname + " = '" + str + "'";

                IFeatureCursor fcur_zd = fc_zd.Search(spatialFilter, false);

                IFeatureCursor fcur_jzd = fc_jzd.Search(spatialFilter, false);
                List<mPoint> jzd_ps = new List<mPoint>();
                List<mPoint> presult = new List<mPoint>();
                IFeature feature_zd = null;
                IFeature feature_jzd = null;
                mPoint mp = null;
                List<mPoint> zd_points = new List<mPoint>();
                while ((feature_zd = fcur_zd.NextFeature()) != null)
                {
                    IGeometryCollection geoCol = feature_zd.Shape as IGeometryCollection;
                    while ((feature_jzd = fcur_jzd.NextFeature()) != null)
                    {
                        mp = new mPoint();
                        mp.X = (feature_jzd.Shape as IPoint).X;
                        mp.Y = (feature_jzd.Shape as IPoint).Y;
                        jzd_ps.Add(mp);
                    }
                    IPoint pp = null;
                    IPointCollection h1 = geoCol.Geometry[0] as IPointCollection;
                    for (int a = 0; a < h1.PointCount; a++)
                    {
                        pp = h1.get_Point(a);
                        mp = new mPoint();
                        mp.X = pp.X;
                        mp.Y = pp.Y;
                        mp.index = a;
                        zd_points.Add(mp);
                    }

                    IPolygon4 p4 = feature_zd.Shape as IPolygon4;
                    IGeometryBag interbag = p4.get_InteriorRingBag(geoCol.Geometry[0] as IRing);
                    IGeometryCollection interCol = interbag as IGeometryCollection;
                    int neihuan = 1;
                    for (int c = 0; c < interCol.GeometryCount; c++)
                    {
                        IPointCollection inth = interCol.get_Geometry(c) as IPointCollection;
                        for (int a = 0; a < inth.PointCount; a++)
                        {
                            pp = inth.get_Point(a);
                            mp = new mPoint();
                            mp.X = pp.X;
                            mp.Y = pp.Y;
                            mp.index = h1.PointCount+ neihuan;
                            zd_points.Add(mp);
                            neihuan++;
                        }
                    }

                    List<mPoint> temppp = new List<mPoint>();
                    foreach(mPoint ppitem in jzd_ps)
                    {
                        mPoint pi = GetDirect2(ppitem, zd_points);
                        //zd_points.Where(x => GetDirect(ppitem, x));
                        //mPoint pi= zd_points.FirstOrDefault(x => GetDirect(ppitem, x) == true);
                        if(pi!=null)
                        temppp.Add(pi);
                    }
                    temppp = temppp.OrderBy(x=>x.index).ToList();
                    int reallyjzd = 1;
                    temppp.ForEach(x=>
                    {
                        if(x!=null)
                        dataitem_result.Add((index++) + "," + str + ",J" +( reallyjzd++) + "," + x.X + "," + x.Y);//+ "\r\n";
                    });

                }
            }
            File.WriteAllLines(txtfile, dataitem_result);

            MessageBox.Show("执行完成！");
        }

这一个方法需要界址点、宗地图层有一个相同的字段，也就是先必须进行标识操作。

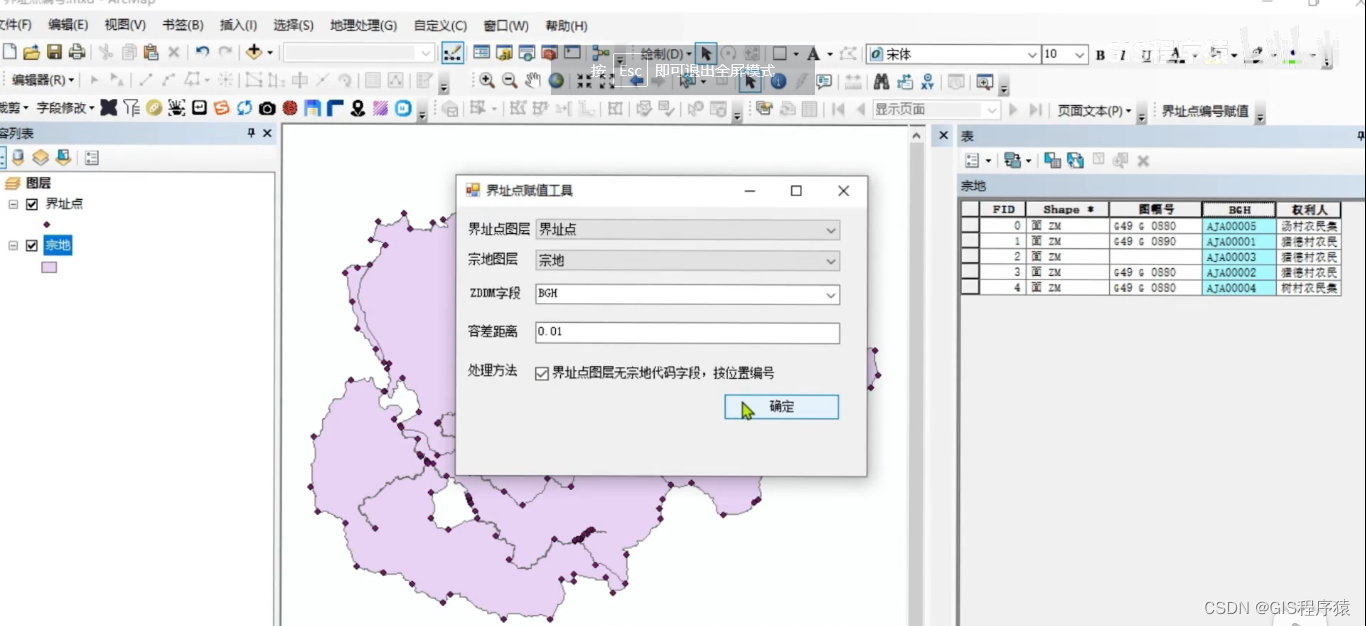

后来想了想，如果直接用代码执行按位置进行选择，也能得到和宗地对应的界址点。于是就能把标识这一个步骤省略掉了。 勾选上 “按位置进行编号” 即可。

   public void aaaa_position(IFeatureClass fc_jzd, IFeatureClass fc_zd, string fieldname)
        {
            string txtfile = "";
            SaveFileDialog save = new SaveFileDialog();
            save.Filter = "文本|*.txt";
            if (save.ShowDialog() != DialogResult.OK) return;
            txtfile = save.FileName;

            int jaindex = fc_zd.FindField(fieldname);
            if (jaindex < 0)
            {
                MessageBox.Show("宗地图层不包含" + fieldname + "字段，修改输入字段名称。");
                return;
            }
            List<string> dataitem_result = new List<string>();
            dataitem_result.Add("序号," + fieldname + ",界址点编号,X,Y");
            int index = 1;
            IFeature feature_zd = null;
            IFeatureCursor fcur = fc_zd.Search(null,false);
            while ((feature_zd = fcur.NextFeature())!=null)
            {
                IGeometryCollection geoCol = feature_zd.Shape as IGeometryCollection;

                string strJAvalue = feature_zd.get_Value(jaindex).ToString();
                ISpatialFilter spatialFilter2 = new SpatialFilterClass
                {
                    Geometry = feature_zd.Shape as IGeometry,   //
                    SpatialRel = esriSpatialRelEnum.esriSpatialRelIntersects,   //相接
                };
                IPoint point1 = (feature_zd.Shape as IArea).LabelPoint;
                IFeatureCursor featureCursor2 = fc_jzd.Search(spatialFilter2, true);
                IFeature feature_jzd = null;//
                List<mPoint> jzd_ps = new List<mPoint>();//界址点点集存放
                List<mPoint> zd_ps = new List<mPoint>();//宗地点集存放
                mPoint mp = new mPoint();
                while ((feature_jzd = featureCursor2.NextFeature()) != null)
                {
                    mp = new mPoint();
                    mp.X = (feature_jzd.Shape as IPoint).X;
                    mp.Y = (feature_jzd.Shape as IPoint).Y;
                    jzd_ps.Add(mp);
                }
                #region 获取宗地的点集

                IPoint pp = null;
                IPointCollection h1 = geoCol.Geometry[0] as IPointCollection;
                for (int a = 0; a < h1.PointCount; a++)
                {
                    pp = h1.get_Point(a);
                    mp = new mPoint();
                    mp.X = pp.X;
                    mp.Y = pp.Y;
                    mp.index = a;
                    zd_ps.Add(mp);
                }

                IPolygon4 p4 = feature_zd.Shape as IPolygon4;
                IGeometryBag interbag = p4.get_InteriorRingBag(geoCol.Geometry[0] as IRing);
                IGeometryCollection interCol = interbag as IGeometryCollection;
                int neihuan = 1;
                for (int c = 0; c < interCol.GeometryCount; c++)
                {
                    IPointCollection inth = interCol.get_Geometry(c) as IPointCollection;
                    for (int a = 0; a < inth.PointCount; a++)
                    {
                        pp = inth.get_Point(a);
                        mp = new mPoint();
                        mp.X = pp.X;
                        mp.Y = pp.Y;
                        mp.index = h1.PointCount + neihuan;
                        zd_ps.Add(mp);
                        neihuan++;
                    }
                }

                #endregion

                List<mPoint> temppp = new List<mPoint>();
                foreach (mPoint ppitem in jzd_ps)//遍历每一个界址点
                {
                    mPoint pi = GetDirect2(ppitem, zd_ps);
                    //zd_points.Where(x => GetDirect(ppitem, x));
                    //mPoint pi= zd_points.FirstOrDefault(x => GetDirect(ppitem, x) == true);
                    if (pi != null)
                        temppp.Add(pi);
                }
                temppp = temppp.OrderBy(x => x.index).ToList();//从新排序
                int reallyjzd = 1;

                temppp.ForEach(x =>
                {
                    if (x != null)
                        dataitem_result.Add((index++) + "," + strJAvalue + ",J" + (reallyjzd++) + "," + x.X + "," + x.Y);//+ "\r\n";
                });

            }
            File.WriteAllLines(txtfile, dataitem_result);//输出TXT文件

            MessageBox.Show("执行完成！");


        }

---

结果

为了程序执行的效率以及稳定性，不生成图层、不存储字段信息，插件把处理的结果按

"序号,宗地代码,界址点编号,X,Y"

把所有信息输出到TXT。

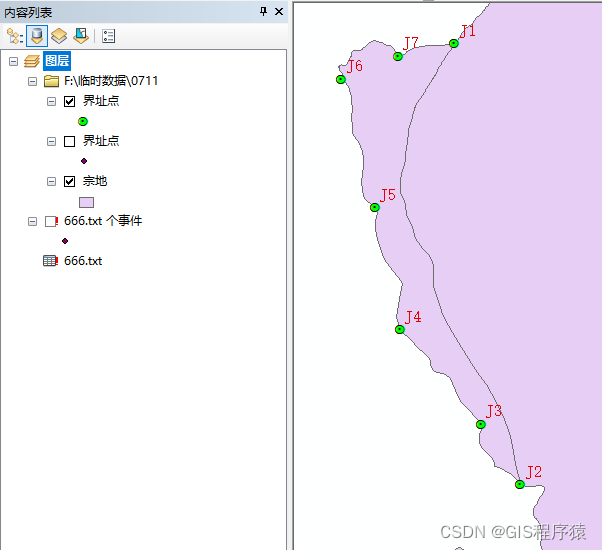

直接把TXT文件拖到arcgis里边，展点，就是我们想要的结果了。
