PDF 转长图工具

Convert PDF to Long Image(JPG)

PDF转换成长图工具（JPG/JPEG）

最近在进行报销的时候财务要求将PDF格式的消费账单以图片格式上传，本来很简单的事情。但整个PDF文件有3页，所以常规的屏幕截图工具（QQ的Ctrl+Alt+A）已经无法满足，为了达到将整个pdf转换成图片的目的在网上搜索一番之后发现已经有人用Python实现，只不过是命令行的。为了使用方便这里用tkinter封装了一下，特分享出来

forked from Convert PDF to Long Image(JPG), source project is a

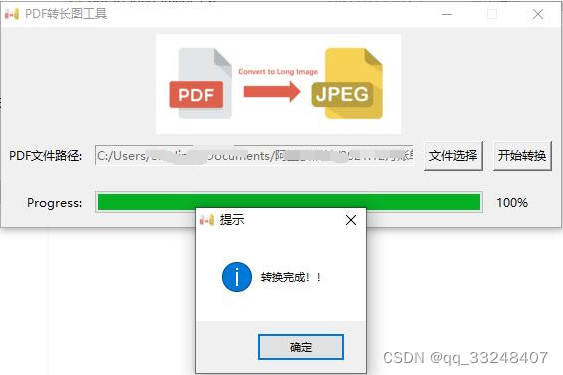

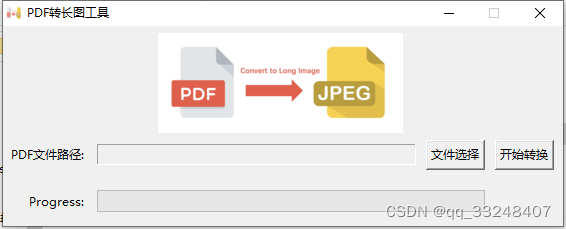

command-line tool. I modified to gui, it look like below:

How to use

Needed Python 3.9+

1. git clone https://github.com/shojinto/pdf-to-long-image.git
2. cd pdf-to-long-image
3. pip install -r requirements.txt
4. python convert.py

build to exe

1. pip install pyinstaller
2. generate spec file and modify it.

> cd pdf-to-long-image
> pyinstaller -w -F -i pdf-to-image.ico
> ls .
...
> 2022/01/14  17:39             1,115 convert.spec # tkinter编写的gui程序通过pyinstaller打包后的exe运行
                                                 # 会发生自定义的icon和背景图片等资源not found，因此需要对内容进行修改
...
> cat convert.spec
...
a = Analysis(['convert.py'],
             pathex=[],
             binaries=[],
             datas=[("pdf-to-image.ico","."),("pdf-to-image.gif",".")], # 此处便是修改后的内容，这里的格式为：[(resource_file,resource_path)]
             hiddenimports=[],
             hookspath=[],
...

3. modify converty.py, Add redundant processing for resource file lookup

   基本原理：Pyinstaller 可以将资源文件一起bundle到exe中，当exe在运行时，会生成一个临时文件夹，程序可通过sys._MEIPASS访问临时文件夹中的资源

   官方说明：https://pythonhosted.org/PyInstaller/spec-files.html#spec-file-operation

> cat convert.py
...
# 生成exe资源文件目录访问路径
def resource_path(relative_path):
    if getattr(sys, 'frozen', False):
        base_path = sys._MEIPASS #
    else:
        base_path = os.path.abspath('.')
    return os.path.join(base_path, relative_path)
...
# 设置窗口图标、窗口title、设置背景图 (资源文件查找添加冗余)
try:
    window.iconbitmap('pdf-to-image.ico')
    bg_image = tk.PhotoImage(file='pdf-to-image.gif')
except tk.TclError:
    bg_image = tk.PhotoImage(file=resource_path('pdf-to-image.gif'))
    window.iconbitmap(resource_path('pdf-to-image.ico'))
...

4. use pyinstaller generate exe file.

> pyinstaller -w -F -i pdf-to-image.ico convert.spec
...
10023 INFO: Updating resource type 24 name 1 language 0
10026 INFO: Appending PKG archive to EXE
13704 INFO: Building EXE from EXE-00.toc completed successfully.
...

附上编译好的exe下载地址：
https://download.csdn.net/download/qq_33248407/78370173
