ffmpeg从MP3/AAC中抽取PCM 数据

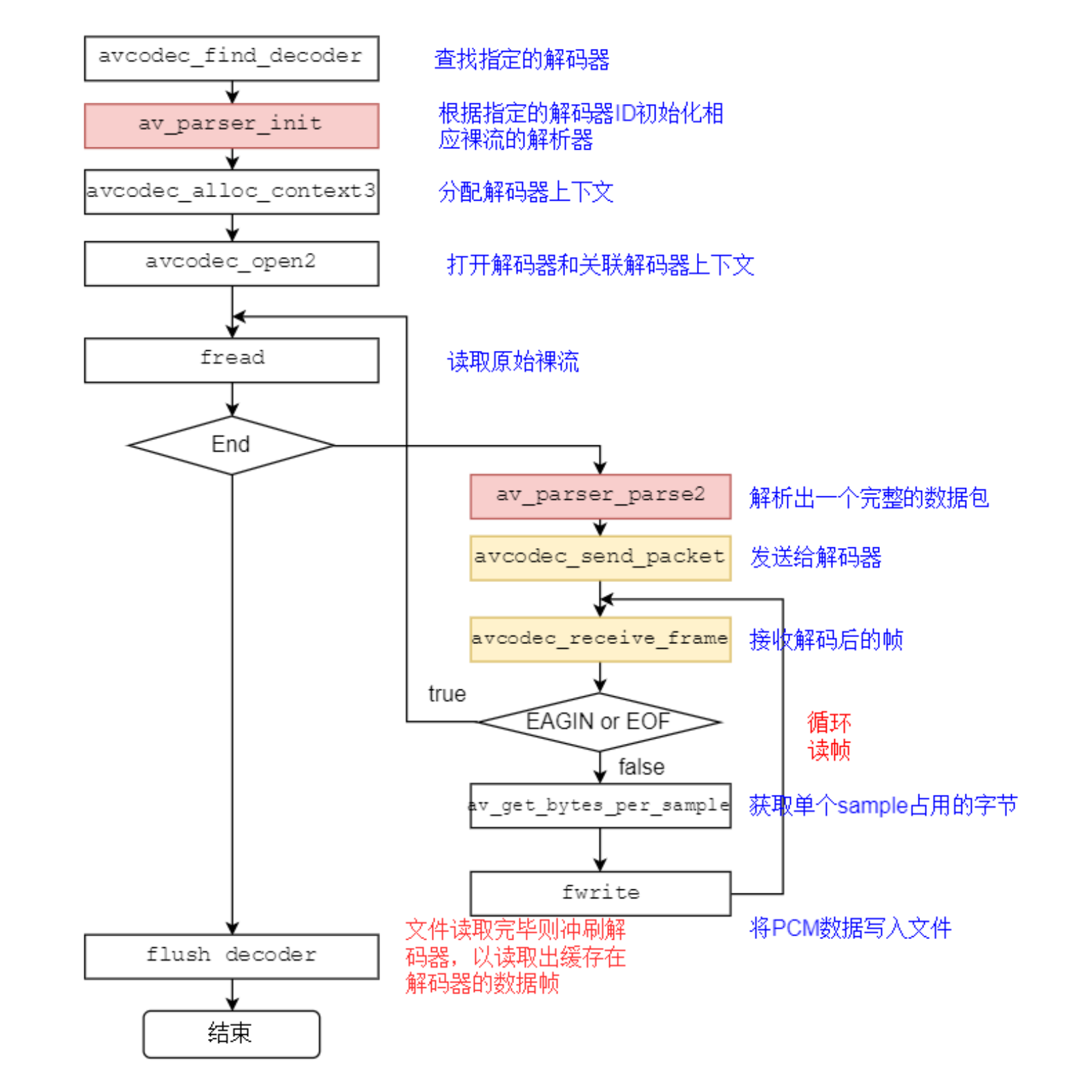

流程如下

代码逻辑

    const char *outfilename;
    const char *filename;
    const AVCodec *codec;

    AVCodecContext *codec_ctx = NULL;
    AVCodecParserContext *parser_ctx = NULL;

    int len = 0;
    int ret = 0;
    FILE  *infile = NULL;
    FILE  *outfile = NULL;
    uint8_t inbuf[AUDIO_INBUF_SIZE + AV_INPUT_BUFFER_PADDING_SIZE];
    uint8_t *data = NULL;
    size_t data_size = 0;
    AVPacket *pkt = NULL;
    AVFrame *decoded_frame = NULL;

初始化变量 inbuf 是缓冲区 AV_INPUT_BUFFER_PADDING_SIZE是buf的最小容量如果不够继续读取

解码步骤就是
通过文件查询需要的编码器id
enum AVCodecID audio_codec_id = AV_CODEC_ID_AAC;
if (strstr(filename,“aac”)!=NULL){
audio_codec_id = AV_CODEC_ID_AAC;
}else if(strstr(filename, “mp3”) != NULL)
{
audio_codec_id = AV_CODEC_ID_MP3;
}
通过其获得编码器 codec = avcodec_find_decoder(audio_codec_id);
通过编码器id 获得对应的流解析器 parser_ctx = av_parser_init(codec->id);
通过编码器创建编码器上下文 codec_ctx = avcodec_alloc_context3(codec);
打开编码器
avcodec_open2(codec_ctx, codec, NULL)；
给packer 中读取ret的数据
ret = av_parser_parse2(parser_ctx,codec_ctx,&pkt->data,&pkt->size,data,data_size,AV_NOPTS_VALUE, AV_NOPTS_VALUE, 0);
如果
开始解码
decode(codec_ctx, pkt, decoded_frame, outfile)
avcodec_send_packet：将AVPacket压缩数据给解码器。 avcodec_receive_frame：获取到解码后的AVFrame数据 循环读取 在⼀个循环体内去接收codec的输出，即周期性地调⽤avcodec_receive_*()来接收codec 输出的数据。

#include <stdio.h>
#include <stdlib.h>
#include <string.h>

#include <libavutil/frame.h>
#include <libavutil/mem.h>

#include <libavcodec/avcodec.h>
#define AUDIO_INBUF_SIZE 20480
#define AUDIO_REFILL_THRESH 4096
static char err_buf[128] = {0};
static void print_sample_format(const AVFrame *frame)
{
    printf("ar-samplerate: %uHz\n", frame->sample_rate);
    printf("ac-channel: %u\n", frame->channels);
    printf("f-format: %u\n", frame->format);// 格式需要注意，实际存储到本地文件时已经改成交错模式
}

static char* av_get_err(int errnum)
{
    av_strerror(errnum, err_buf, 128);
    return err_buf;
}
static  void decode(AVCodecContext *context,AVPacket *packet,AVFrame *frame,FILE *file){
    int i,ch;
    int ret,data_size;

    ret = avcodec_send_packet(context,packet);
    if(ret == AVERROR(EAGAIN))
    {
        fprintf(stderr, "Receive_frame and send_packet both returned EAGAIN, which is an API violation.\n");
    }
    else if (ret < 0)
    {
        fprintf(stderr, "Error submitting the packet to the decoder, err:%s, pkt_size:%d\n",
                av_get_err(ret), packet->size);
//        exit(1);
        return;
    }
    while (ret>0){
        ret = avcodec_receive_frame(context,frame);
        if (ret == AVERROR(EAGAIN) || ret == AVERROR_EOF)
            return;
        else if (ret < 0)
    {
        fprintf(stderr, "Error during decoding\n");
        exit(1);
    }
        data_size = av_get_bytes_per_sample(context->sample_fmt);
        if (data_size < 0)
        {
            /* This should not occur, checking just for paranoia */
            fprintf(stderr, "Failed to calculate data size\n");
            exit(1);
        }
        static  int s_print_format = 0;
        if(s_print_format == 0){
            s_print_format = 1;
            print_sample_format(frame);
        }

        for (int i = 0; i < frame->nb_samples; ++i) {
            for (int j = 0; j < context->channels; ++j) {
                fwrite(frame->data[ch]+data_size*i,1,data_size,file);

            }
        }

    }

}
int main(int argc,char **argv){
    const char *outfilename;
    const char *filename;
    const AVCodec *codec;

    AVCodecContext *codec_ctx = NULL;
    AVCodecParserContext *parser_ctx = NULL;

    int len = 0;
    int ret = 0;
    FILE  *infile = NULL;
    FILE  *outfile = NULL;
    uint8_t inbuf[AUDIO_INBUF_SIZE + AV_INPUT_BUFFER_PADDING_SIZE];
    uint8_t *data = NULL;
    size_t data_size = 0;
    AVPacket *pkt = NULL;
    AVFrame *decoded_frame = NULL;


    if (argc <= 2)
    {
        fprintf(stderr, "Usage: %s <input file> <output file>\n", argv[0]);
        exit(0);
    }

    filename = argv[1];
    outfilename = argv[2];

    pkt = av_packet_alloc();
    enum AVCodecID audio_codec_id = AV_CODEC_ID_AAC;
    if (strstr(filename,"aac")!=NULL){
        audio_codec_id = AV_CODEC_ID_AAC;
    }else if(strstr(filename, "mp3") != NULL)
    {
        audio_codec_id = AV_CODEC_ID_MP3;
    }
    else
    {
        printf("default codec id:%d\n", audio_codec_id);
    }
    codec = avcodec_find_decoder(audio_codec_id);
    if (!codec) {
        fprintf(stderr, "Codec not found\n");
        exit(1);
    }

    // 获取裸流的解析器 AVCodecParserContext(数据)  +  AVCodecParser(方法)
    parser_ctx = av_parser_init(codec->id);
    if (!parser_ctx) {
        fprintf(stderr, "Parser not found\n");
        exit(1);
    }
    codec_ctx = avcodec_alloc_context3(codec);

    if (!codec_ctx) {
        fprintf(stderr, "Could not allocate audio codec context\n");
        exit(1);
    }

    if (avcodec_open2(codec_ctx, codec, NULL) < 0) {
        fprintf(stderr, "Could not open codec\n");
        exit(1);
    }

    infile = fopen(filename, "rb");
    if (!infile) {
        fprintf(stderr, "Could not open %s\n", filename);
        exit(1);
    }
    // 打开输出文件
    outfile = fopen(outfilename, "wb");
    if (!outfile) {
        av_free(codec_ctx);
        exit(1);
    }

    data = inbuf;
    data_size = fread(inbuf,1,AUDIO_INBUF_SIZE,infile);

    while (data_size > 0){
        if (!decoded_frame){
            if (!(decoded_frame = av_frame_alloc())){
                fprintf(stderr, "Could not allocate audio frame\n");
                exit(1);
            }
            ret = av_parser_parse2(parser_ctx,codec_ctx,&pkt->data,&pkt->size,data,data_size,AV_NOPTS_VALUE, AV_NOPTS_VALUE, 0);
            if (ret < 0)
            {
                fprintf(stderr, "Error while parsing\n");
                exit(1);
            }
            data +=ret;
            data_size+=ret;

            if (pkt->size)
                decode(codec_ctx, pkt, decoded_frame, outfile);

            if (data_size < AUDIO_INBUF_SIZE){
                memmove(inbuf, data, data_size);    // 把之前剩的数据拷贝到buffer的起始位置
                data = inbuf;
                len = fread(data + data_size, 1, AUDIO_INBUF_SIZE - data_size, infile);
                if (len > 0)
                    data_size += len;
            }

        }
        pkt->data =NULL;
        pkt->size = 0;
        decode(codec_ctx, pkt, decoded_frame, outfile);

        fclose(outfile);
        fclose(infile);

        avcodec_free_context(&codec_ctx);
        av_parser_close(parser_ctx);
        av_frame_free(&decoded_frame);
        av_packet_free(&pkt);
        printf("main finish, please enter Enter and exit\n");
        return 0;
    }


}
