pika主从同步
主要为了分析探索一下pika是如何实现主从同步的，pika的主从同步的原理与redis的同步方案还不相同，本文主要是为了分析其主从同步的相关流程（pika基于3.4版本）。
pika主从同步原理
主从同步的原理，主要是通过在启动的时候启动了两部分的线程来进行的。
- auxiliary_thread线程
- pika_rm中的pika_repl_client线程池和pika_repl_server线程池
先逐个分析一下两个部分线程的工作的流程。

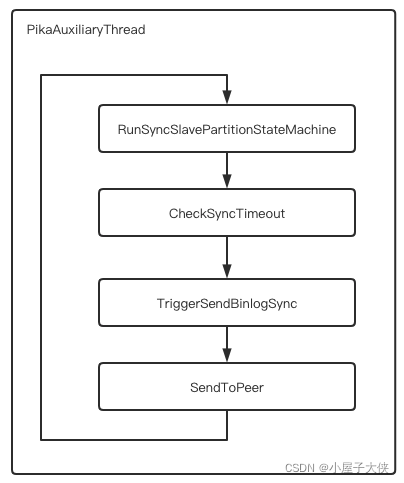

auxiliary_thread线程
在pika的pika_server的Start函数中启动了auxiliary_thread线程。
ret = pika_auxiliary_thread_->StartThread();
if (ret != pink::kSuccess) {
tables_.clear();
LOG(FATAL) << "Start Auxiliary Thread Error: " << ret << (ret == pink::kCreateThreadError ? ": create thread error " : ": other error");
}
此时启动的线程就是位于pika_auxiliary_thread.cc中的线程函数。
void* PikaAuxiliaryThread::ThreadMain() {
while (!should_stop()) { // 是否停止线程
if (g_pika_conf->classic_mode()) { // 判断当前运行的模式是分布式模式还是经典模式
if (g_pika_server->ShouldMetaSync()) {
g_pika_rm->SendMetaSyncRequest();
} else if (g_pika_server->MetaSyncDone()) {
g_pika_rm->RunSyncSlavePartitionStateMachine();
}
} else {
g_pika_rm->RunSyncSlavePartitionStateMachine(); // 分布式模式则直接启动状态机的同步
}
Status s = g_pika_rm->CheckSyncTimeout(slash::NowMicros()); // 检查超时的节点
if (!s.ok()) {
LOG(WARNING) << s.ToString();
}
// TODO(whoiami) timeout
s = g_pika_server->TriggerSendBinlogSync(); // 触发binlog的主从同步
if (!s.ok()) {
LOG(WARNING) << s.ToString();
}
// send to peer
int res = g_pika_server->SendToPeer(); // 将待发送的任务加入到工作线程队列中
if (!res) {
// sleep 100 ms
mu_.Lock();
cv_.TimedWait(100);
mu_.Unlock();
} else {
//LOG_EVERY_N(INFO, 1000) << "Consume binlog number " << res;
}
}
return NULL;
}
RunSyncSlavePartitionStateMachine-状态机
该函数就是处理主从同步过程中的状态机，根据不同的状态去进行不同的操作。
Status PikaReplicaManager::RunSyncSlavePartitionStateMachine() {
slash::RWLock l(&partitions_rw_, false);
for (const auto& item : sync_slave_partitions_) { // 获取所有的从节点同步信息
PartitionInfo p_info = item.first;
std::shared_ptr<SyncSlavePartition> s_partition = item.second;
if (s_partition->State() == ReplState::kTryConnect) { // 如果同步的信息是kTryConnect则发送TrySync的同步请求
LOG(WARNING) << "Partition start, Table Name: "
<< p_info.table_name_ << " Partition Id: " << p_info.partition_id_;
SendPartitionTrySyncRequest(p_info.table_name_, p_info.partition_id_);
} else if (s_partition->State() == ReplState::kTryDBSync) { // 如果是kTryDB的状态则发送DB同步的请求
SendPartitionDBSyncRequest(p_info.table_name_, p_info.partition_id_);
} else if (s_partition->State() == ReplState::kWaitReply) { // 如果是wait状态则什么都不做
continue;
} else if (s_partition->State() == ReplState::kWaitDBSync) { // 如果是waitdb状态则等待
std::shared_ptr<Partition> partition =
g_pika_server->GetTablePartitionById(
p_info.table_name_, p_info.partition_id_);
if (partition) {
partition->TryUpdateMasterOffset(); // 更新和主之间的offset
} else {
LOG(WARNING) << "Partition not found, Table Name: "
<< p_info.table_name_ << " Partition Id: " << p_info.partition_id_;
}
} else if (s_partition->State() == ReplState::kConnected
|| s_partition->State() == ReplState::kNoConnect
|| s_partition->State() == ReplState::kDBNoConnect) { // 如果是已连接或者失联则什么都不处理
continue;
}
}
return Status::OK();
}
从状态机的运行来看，所有的步骤都是依赖于该函数通过状态来驱动进行不同的操作。
CheckSyncTimeout-检查连接的超时时间
Status PikaReplicaManager::CheckSyncTimeout(uint64_t now) {
slash::RWLock l(&partitions_rw_, false);
for (auto& iter : sync_master_partitions_) {
std::shared_ptr<SyncMasterPartition> partition = iter.second;
Status s = partition->CheckSyncTimeout(now); // 获取所有的master的同步节点检查是否超时
if (!s.ok()) {
LOG(WARNING) << "CheckSyncTimeout Failed " << s.ToString();
}
}
for (auto& iter : sync_slave_partitions_) {
std::shared_ptr<SyncSlavePartition> partition = iter.second;
Status s = partition->CheckSyncTimeout(now); // 获取所有slave的同步节点信息检查是否超时
if (!s.ok()) {
LOG(WARNING) << "CheckSyncTimeout Failed " << s.ToString();
}
}
return Status::OK();
}
主要是检查master和slave的同步连接信息是否超时。
Status SyncMasterPartition::CheckSyncTimeout(uint64_t now) {
std::unordered_map<std::string, std::shared_ptr<SlaveNode>> slaves = GetAllSlaveNodes();
std::vector<Node> to_del;
for (auto& slave_iter : slaves) {
std::shared_ptr<SlaveNode> slave_ptr = slave_iter.second; // 获取所有slave的连接信息
slash::MutexLock l(&slave_ptr->slave_mu);
if (slave_ptr->LastRecvTime() + kRecvKeepAliveTimeout < now) { // 如果最后的时间超时则删除该连接
to_del.push_back(Node(slave_ptr->Ip(), slave_ptr->Port()));
} else if (slave_ptr->LastSendTime() + kSendKeepAliveTimeout < now && slave_ptr->sent_offset == slave_ptr->acked_offset) { // 如果最后的发送时间未超时 并且主从同步的偏移量发送的与回复的相同则发送binlogchips请求并且更新当前的最后发送时间
std::vector<WriteTask> task;
RmNode rm_node(slave_ptr->Ip(), slave_ptr->Port(), slave_ptr->TableName(), slave_ptr->PartitionId(), slave_ptr->SessionId());
WriteTask empty_task(rm_node, BinlogChip(LogOffset(), ""), LogOffset());
task.push_back(empty_task);
Status s = g_pika_rm->SendSlaveBinlogChipsRequest(slave_ptr->Ip(), slave_ptr->Port(), task); // 同步当前的主从同步的信息
slave_ptr->SetLastSendTime(now);
if (!s.ok()) {
LOG(INFO)<< "Send ping failed: " << s.ToString();
return Status::Corruption("Send ping failed: " + slave_ptr->Ip() + ":" + std::to_string(slave_ptr->Port()));
}
}
}
for (auto& node : to_del) { // 将超时的连接信息都删除掉
coordinator_.SyncPros().RemoveSlaveNode(node.Ip(), node.Port());
g_pika_rm->DropItemInWriteQueue(node.Ip(), node.Port());
LOG(WARNING) << SyncPartitionInfo().ToString() << " Master del Recv Timeout slave success " << node.ToString();
}
return Status::OK();
}
主节点主要维护了当前的一些主从连接的信息维护。
Status SyncSlavePartition::CheckSyncTimeout(uint64_t now) {
slash::MutexLock l(&partition_mu_);
// no need to do session keepalive return ok
if (repl_state_ != ReplState::kWaitDBSync && repl_state_ != ReplState::kConnected) {
return Status::OK(); // 如果从节点的信息不是waitdb或者连接状态则返回ok
}
if (m_info_.LastRecvTime() + kRecvKeepAliveTimeout < now) {
// update slave state to kTryConnect, and try reconnect to master node
repl_state_ = ReplState::kTryConnect;
g_pika_server->SetLoopPartitionStateMachine(true); // 否则就设置成tryconnect状态去尝试连接主节点
}
return Status::OK();
}
TriggerSendBinlogSync-生成每个节点待发送的binlog数据任务
Status PikaServer::TriggerSendBinlogSync() {
return g_pika_rm->WakeUpBinlogSync();
}
...
Status PikaReplicaManager::WakeUpBinlogSync() {
slash::RWLock l(&partitions_rw_, false);
for (auto& iter : sync_master_partitions_) {
std::shared_ptr<SyncMasterPartition> partition = iter.second;
Status s = partition->WakeUpSlaveBinlogSync(); // 检查每个节点是否需要生成binlog同步任务
if (!s.ok()) {
return s;
}
}
return Status::OK();
}
主要是检查每个连接的从节点信息是否需要生成同步binlog任务。
Status SyncMasterPartition::WakeUpSlaveBinlogSync() {
std::unordered_map<std::string, std::shared_ptr<SlaveNode>> slaves = GetAllSlaveNodes();
std::vector<std::shared_ptr<SlaveNode>> to_del;
for (auto& slave_iter : slaves) {
std::shared_ptr<SlaveNode> slave_ptr = slave_iter.second;
slash::MutexLock l(&slave_ptr->slave_mu);
if (slave_ptr->sent_offset == slave_ptr->acked_offset) { // 检查当前同步的数据信息是否跟回复的数据偏移相同
Status s = ReadBinlogFileToWq(slave_ptr); // 写binlog任务到该从节点连接上面
if (!s.ok()) {
to_del.push_back(slave_ptr);
LOG(WARNING) << "WakeUpSlaveBinlogSync falied, Delete from RM, slave: " <<
slave_ptr->ToStringStatus() << " " << s.ToString();
}
}
}
for (auto& to_del_slave : to_del) { // 如果同步失败则删除该node
RemoveSlaveNode(to_del_slave->Ip(), to_del_slave->Port());
}
return Status::OK();
}
其中ReadBinlogFileToWq就是根据当前的连接来生成binlog同步任务。
Status SyncMasterPartition::ReadBinlogFileToWq(const std::shared_ptr<SlaveNode>& slave_ptr) {
int cnt = slave_ptr->sync_win.Remaining();
std::shared_ptr<PikaBinlogReader> reader = slave_ptr->binlog_reader; //获取当前binlogreader
if (reader == nullptr) {
return Status::OK();
}
std::vector<WriteTask> tasks;
for (int i = 0; i < cnt; ++i) {
std::string msg;
uint32_t filenum;
uint64_t offset;
if (slave_ptr->sync_win.GetTotalBinlogSize() > PIKA_MAX_CONN_RBUF_HB * 2) {
LOG(INFO) << slave_ptr->ToString() << " total binlog size in sync window is :"
<< slave_ptr->sync_win.GetTotalBinlogSize();
break; //检查当前同步窗口的大小
}
Status s = reader->Get(&msg, &filenum, &offset); //获取对应的偏移数据
if (s.IsEndFile()) {
break;
} else if (s.IsCorruption() || s.IsIOError()) {
LOG(WARNING) << SyncPartitionInfo().ToString()
<< " Read Binlog error : " << s.ToString();
return s;
}
BinlogItem item;
if (!PikaBinlogTransverter::BinlogItemWithoutContentDecode(
TypeFirst, msg, &item)) {
LOG(WARNING) << "Binlog item decode failed";
return Status::Corruption("Binlog item decode failed");
}
BinlogOffset sent_b_offset = BinlogOffset(filenum, offset); // 生成发送的偏移量
LogicOffset sent_l_offset = LogicOffset(item.term_id(), item.logic_id());
LogOffset sent_offset(sent_b_offset, sent_l_offset);
slave_ptr->sync_win.Push(SyncWinItem(sent_offset, msg.size())); //设置同步窗口的大小
slave_ptr->SetLastSendTime(slash::NowMicros()); //设置最后的发送时间
RmNode rm_node(slave_ptr->Ip(), slave_ptr->Port(), slave_ptr->TableName(), slave_ptr->PartitionId(), slave_ptr->SessionId());
WriteTask task(rm_node, BinlogChip(sent_offset, msg), slave_ptr->sent_offset);
tasks.push_back(task); // 包装成任务
slave_ptr->sent_offset = sent_offset; // 设置当前的发送偏移量
}
if (!tasks.empty()) {
g_pika_rm->ProduceWriteQueue(slave_ptr->Ip(), slave_ptr->Port(), partition_info_.partition_id_, tasks); // 将任务放入队列中等待处理
}
return Status::OK();
}
主要就是通过获取偏移量，然后生成任务并放入发送队列中等待处理。
SendToPeer-将待发送的binlog同步任务发送给从节点
int PikaServer::SendToPeer() {
return g_pika_rm->ConsumeWriteQueue();
}
...
int PikaReplicaManager::ConsumeWriteQueue() {
std::unordered_map<std::string, std::vector<std::vector<WriteTask>>> to_send_map;
int counter = 0;
{
slash::MutexLock l(&write_queue_mu_);
for (auto& iter : write_queues_) {
const std::string& ip_port = iter.first;
std::unordered_map<uint32_t, std::queue<WriteTask>>& p_map = iter.second; //获取队列
for (auto& partition_queue : p_map) {
std::queue<WriteTask>& queue = partition_queue.second;
for (int i = 0; i < kBinlogSendPacketNum; ++i) {
if (queue.empty()) {
break;
}
size_t batch_index = queue.size() > kBinlogSendBatchNum ? kBinlogSendBatchNum : queue.size(); // 检查当前可发送的大小
std::vector<WriteTask> to_send;
int batch_size = 0;
for (size_t i = 0; i < batch_index; ++i) {
WriteTask& task = queue.front();
batch_size += task.binlog_chip_.binlog_.size();
// make sure SerializeToString will not over 2G
if (batch_size > PIKA_MAX_CONN_RBUF_HB) {
break;
}
to_send.push_back(task); // 放入可发送的队列中
queue.pop();
counter++;
}
if (!to_send.empty()) {
to_send_map[ip_port].push_back(std::move(to_send));
}
}
}
}
}
std::vector<std::string> to_delete;
for (auto& iter : to_send_map) {
std::string ip;
int port = 0;
if (!slash::ParseIpPortString(iter.first, ip, port)) {
LOG(WARNING) << "Parse ip_port error " << iter.first;
continue;
}
for (auto& to_send : iter.second) {
Status s = pika_repl_server_->SendSlaveBinlogChips(ip, port, to_send); // 发送Binglog任务
if (!s.ok()) {
LOG(WARNING) << "send binlog to " << ip << ":" << port << " failed, " << s.ToString();
to_delete.push_back(iter.first); // 如果发送失败则放入失败队列中
continue;
}
}
}
if (!to_delete.empty()) {
{
slash::MutexLock l(&write_queue_mu_);
for (auto& del_queue : to_delete) {
write_queues_.erase(del_queue); //删除发送失败的任务
}
}
}
return counter;
}
最终通过pika_repl_server_的SendSlaveBinlogChips函数将当前待发送的任务发送出去。

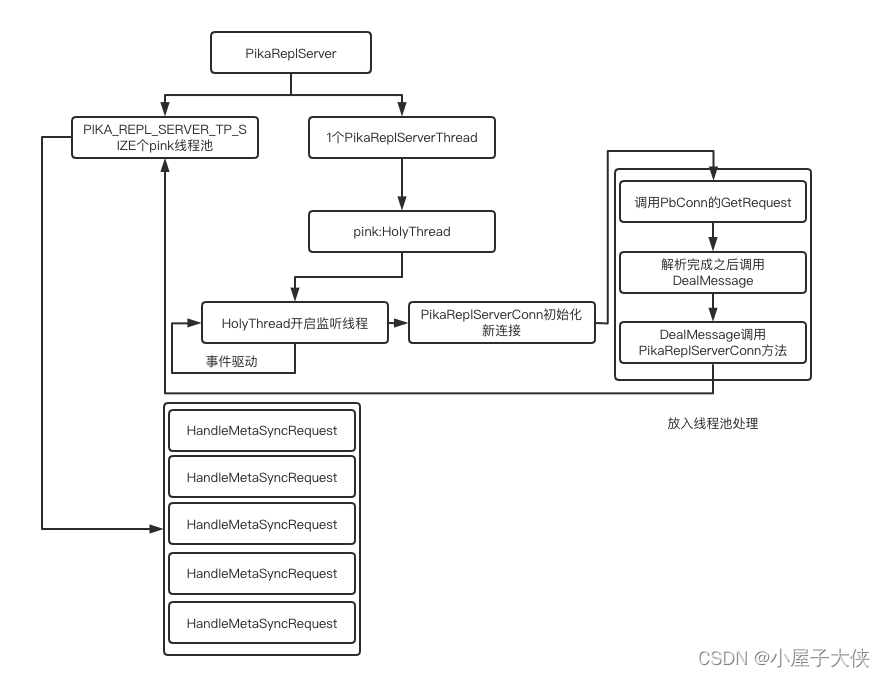

pika_repl_client和pika_repl_server_线程
这两个线程就是维护了主从连接的client和server端的交互功能，auxiliary_thread中状态机触发的连接状态就是依赖于这两个线程来完成交互。

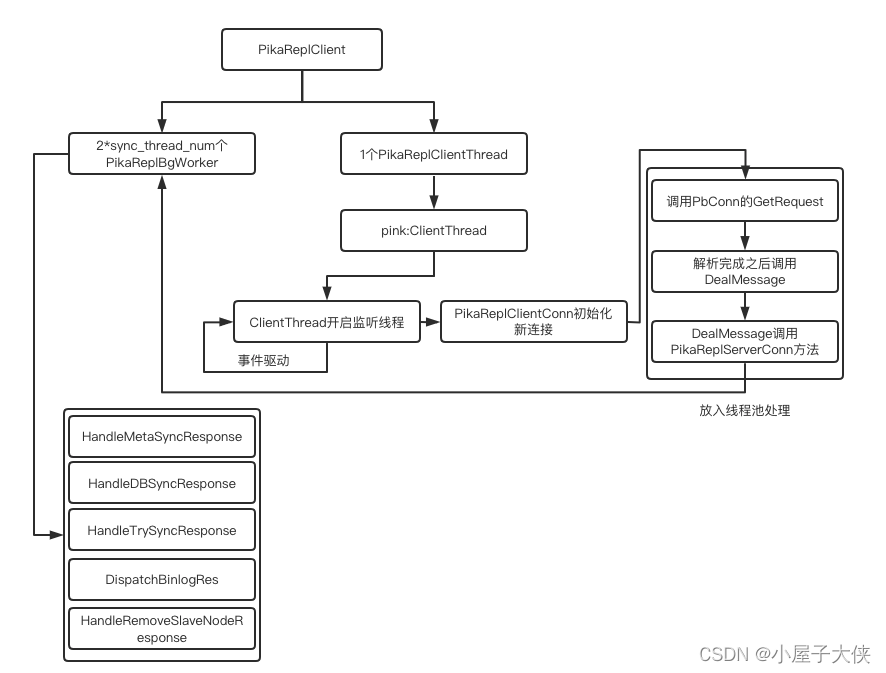

pika_repl_client客户端连接管理线程
pika_reple_client的最核心的原理就是通过一个基于epoll（linux平台）的事件驱动，去完成多个连接的事件驱动，并通过加入线程池来提供epoll的处理性能。接下来就大致了解一下pika_repl_client完成的交互的相关功能。
在主从同步过程中，无论是pika_repl_client还是pika_repl_server_底层都利用了pink库的PbConn模式来进行的数据交互。
通过client_thread的逻辑流程来简单分析一下PbConn的执行流程。
在PikaReplClient的Start流程中，启动了如下线程。
int PikaReplClient::Start() {
int res = client_thread_->StartThread(); // 启动一个epoll的事件驱动
if (res != pink::kSuccess) {
LOG(FATAL) << "Start ReplClient ClientThread Error: " << res << (res == pink::kCreateThreadError ? ": create thread error " : ": other error");
}
for (size_t i = 0; i < bg_workers_.size(); ++i) { // 通过将epoll事件驱动的执行分发到线程池中执行
res = bg_workers_[i]->StartThread();
if (res != pink::kSuccess) {
LOG(FATAL) << "Start Pika Repl Worker Thread Error: " << res
<< (res == pink::kCreateThreadError ? ": create thread error " : ": other error");
}
}
return res;
}
此时client_thread启动的就是位于pink的client_thread.c中的ClientThread线程。
void *ClientThread::ThreadMain() {
int nfds = 0;
PinkFiredEvent *pfe = NULL;
struct timeval when;
gettimeofday(&when, NULL);
struct timeval now = when;
when.tv_sec += (cron_interval_ / 1000);
when.tv_usec += ((cron_interval_ % 1000) * 1000);
int timeout = cron_interval_;
if (timeout <= 0) {
timeout = PINK_CRON_INTERVAL;
}
std::string ip_port;
while (!should_stop()) {
if (cron_interval_ > 0) {
gettimeofday(&now, nullptr);
if (when.tv_sec > now.tv_sec ||
(when.tv_sec == now.tv_sec && when.tv_usec > now.tv_usec)) {
timeout = (when.tv_sec - now.tv_sec) * 1000 +
(when.tv_usec - now.tv_usec) / 1000;
} else {
// do user defined cron
handle_->CronHandle(); // 执行定时任务
DoCronTask();
when.tv_sec = now.tv_sec + (cron_interval_ / 1000);
when.tv_usec = now.tv_usec + ((cron_interval_ % 1000) * 1000);
timeout = cron_interval_;
}
}
//{
//InternalDebugPrint();
//}
nfds = pink_epoll_->PinkPoll(timeout); //事件驱动
for (int i = 0; i < nfds; i++) {
pfe = (pink_epoll_->firedevent()) + i;
if (pfe == NULL) {
continue;
}
if (pfe->fd == pink_epoll_->notify_receive_fd()) { // 处理驱动
ProcessNotifyEvents(pfe);
continue;
}
int should_close = 0;
std::map<int, std::shared_ptr<PinkConn>>::iterator iter = fd_conns_.find(pfe->fd);
if (iter == fd_conns_.end()) {
log_info("fd %d not found in fd_conns\n", pfe->fd);
pink_epoll_->PinkDelEvent(pfe->fd);
continue;
}
std::shared_ptr<PinkConn> conn = iter->second;
if (connecting_fds_.count(pfe->fd)) {
Status s = ProcessConnectStatus(pfe, &should_close);
if (!s.ok()) {
handle_->DestConnectFailedHandle(conn->ip_port(), s.ToString());
}
connecting_fds_.erase(pfe->fd);
}
if (!should_close && (pfe->mask & EPOLLOUT) && conn->is_reply()) {
WriteStatus write_status = conn->SendReply(); // 如果当前是可以写数据则调用SendReply
conn->set_last_interaction(now);
if (write_status == kWriteAll) {
pink_epoll_->PinkModEvent(pfe->fd, 0, EPOLLIN);
conn->set_is_reply(false);
} else if (write_status == kWriteHalf) {
continue;
} else {
log_info("send reply error %d\n", write_status);
should_close = 1;
}
}
if (!should_close && (pfe->mask & EPOLLIN)) {
ReadStatus read_status = conn->GetRequest(); // 如果是接受数据则调用GetRequest来解析
conn->set_last_interaction(now);
if (read_status == kReadAll) {
// pink_epoll_->PinkModEvent(pfe->fd, 0, EPOLLOUT);
} else if (read_status == kReadHalf) {
continue;
} else {
log_info("Get request error %d\n", read_status);
should_close = 1;
}
}
if ((pfe->mask & EPOLLERR) || (pfe->mask & EPOLLHUP) || should_close) {
{
log_info("close connection %d reason %d %d\n", pfe->fd, pfe->mask, should_close);
pink_epoll_->PinkDelEvent(pfe->fd); // 如果关闭则删除该事件
CloseFd(conn);
fd_conns_.erase(pfe->fd);
if (ipport_conns_.count(conn->ip_port())) {
ipport_conns_.erase(conn->ip_port());
}
if (connecting_fds_.count(conn->fd())) {
connecting_fds_.erase(conn->fd());
}
}
}
}
}
return nullptr;
}
通过client_thread的执行函数可知，这是一个标准的事件驱动模型。如果可写入则调用conn的SendReply函数，如果是接受事情则调用conn的GetRequest函数。此时的conn就是PbConn。
// Msg is [ length(COMMAND_HEADER_LENGTH) | body(length bytes) ]
// step 1. kHeader, we read COMMAND_HEADER_LENGTH bytes;
// step 2. kPacket, we read header_len bytes;
ReadStatus PbConn::GetRequest() {
while (true) {
switch (connStatus_) {
case kHeader: {
ssize_t nread = read(
fd(), rbuf_ + cur_pos_, COMMAND_HEADER_LENGTH - cur_pos_); // 解析头部信息
if (nread == -1) {
if (errno == EAGAIN) {
return kReadHalf;
} else {
return kReadError;
}
} else if (nread == 0) {
return kReadClose;
} else {
cur_pos_ += nread;
if (cur_pos_ == COMMAND_HEADER_LENGTH) {
uint32_t integer = 0;
memcpy(reinterpret_cast<char*>(&integer),
rbuf_, sizeof(uint32_t));
header_len_ = ntohl(integer);
remain_packet_len_ = header_len_;
connStatus_ = kPacket;
continue;
}
return kReadHalf;
}
}
case kPacket: {
if (header_len_ > rbuf_len_ - COMMAND_HEADER_LENGTH) { //解析packet
uint32_t new_size = header_len_ + COMMAND_HEADER_LENGTH;
if (new_size < kProtoMaxMessage) {
rbuf_ = reinterpret_cast<char *>(realloc(rbuf_, sizeof(char) * new_size));
if (rbuf_ == NULL) {
return kFullError;
}
rbuf_len_ = new_size;
log_info("Thread_id %ld Expand rbuf to %u, cur_pos_ %u\n", pthread_self(), new_size, cur_pos_);
} else {
return kFullError;
}
}
// read msg body
ssize_t nread = read(fd(), rbuf_ + cur_pos_, remain_packet_len_);
if (nread == -1) {
if (errno == EAGAIN) {
return kReadHalf;
} else {
return kReadError;
}
} else if (nread == 0) {
return kReadClose;
}
cur_pos_ += nread;
remain_packet_len_ -= nread;
if (remain_packet_len_ == 0) {
connStatus_ = kComplete;
continue;
}
return kReadHalf;
}
case kComplete: { //解析完成之后调用DealMessage函数来处理
if (DealMessage() != 0) {
return kDealError;
}
connStatus_ = kHeader;
cur_pos_ = 0;
return kReadAll;
}
// Add this switch case just for delete compile warning
case kBuildObuf:
break;
case kWriteObuf:
break;
}
}
return kReadHalf;
}
WriteStatus PbConn::SendReply() {
ssize_t nwritten = 0;
size_t item_len;
slash::MutexLock l(&resp_mu_);
while (!write_buf_.queue_.empty()) { //写入的队列是否为空
std::string item = write_buf_.queue_.front();
item_len = item.size();
while (item_len - write_buf_.item_pos_ > 0) {
nwritten = write(fd(), item.data() + write_buf_.item_pos_, item_len - write_buf_.item_pos_); // 将数据写入对应的文件描述符
if (nwritten <= 0) {
break;
}
write_buf_.item_pos_ += nwritten;
if (write_buf_.item_pos_ == item_len) {
write_buf_.queue_.pop();
write_buf_.item_pos_ = 0;
item_len = 0;
}
}
if (nwritten == -1) {
if (errno == EAGAIN) {
return kWriteHalf;
} else {
// Here we should close the connection
return kWriteError;
}
}
if (item_len - write_buf_.item_pos_ != 0) {
return kWriteHalf;
}
}
return kWriteAll;
}
从client的事件驱动可知，处理的主要的逻辑函数就是自定义的DealMessage()函数。
我们继续分析PikaReplClientConn类。
在pika_repl_client_thread.h的定义中。
class PikaReplClientThread : public pink::ClientThread {
public:
PikaReplClientThread(int cron_interval, int keepalive_timeout);
virtual ~PikaReplClientThread() = default;
int Start();
private:
class ReplClientConnFactory : public pink::ConnFactory {
public:
virtual std::shared_ptr<pink::PinkConn> NewPinkConn(
int connfd,
const std::string &ip_port,
pink::Thread *thread,
void* worker_specific_data,
pink::PinkEpoll* pink_epoll) const override {
return std::static_pointer_cast<pink::PinkConn>
(std::make_shared<PikaReplClientConn>(connfd, ip_port, thread, worker_specific_data, pink_epoll)); // 新连接进来的时候通过初始化成PikaReplClientConn
}
};
class ReplClientHandle : public pink::ClientHandle {
public:
void CronHandle() const override {
}
void FdTimeoutHandle(int fd, const std::string& ip_port) const override;
void FdClosedHandle(int fd, const std::string& ip_port) const override;
bool AccessHandle(std::string& ip) const override {
// ban 127.0.0.1 if you want to test this routine
// if (ip.find("127.0.0.2") != std::string::npos) {
// std::cout << "AccessHandle " << ip << std::endl;
// return false;
// }
return true;
}
int CreateWorkerSpecificData(void** data) const override {
return 0;
}
int DeleteWorkerSpecificData(void* data) const override {
return 0;
}
void DestConnectFailedHandle(std::string ip_port, std::string reason) const override {
}
};
ReplClientConnFactory conn_factory_;
ReplClientHandle handle_;
};
由于每次client_thread都会将新连接通过PikaReplClientConn来初始化，故每次有事件驱动的时候就调用该PikaReplClientConn的Dealmessage函数，来处理解析的数据。
int PikaReplClientConn::DealMessage() {
std::shared_ptr<InnerMessage::InnerResponse> response = std::make_shared<InnerMessage::InnerResponse>();
::google::protobuf::io::ArrayInputStream input(rbuf_ + cur_pos_ - header_len_, header_len_);
::google::protobuf::io::CodedInputStream decoder(&input);
decoder.SetTotalBytesLimit(g_pika_conf->max_conn_rbuf_size(), g_pika_conf->max_conn_rbuf_size());
bool success = response->ParseFromCodedStream(&decoder) && decoder.ConsumedEntireMessage();
if (!success) {
LOG(WARNING) << "ParseFromArray FAILED! " << " msg_len: " << header_len_;
g_pika_server->SyncError();
return -1;
}
switch (response->type()) { // 根据协议解析的类型来判断执行什么操作
case InnerMessage::kMetaSync:
{
ReplClientTaskArg* task_arg = new ReplClientTaskArg(response, std::dynamic_pointer_cast<PikaReplClientConn>(shared_from_this()));
g_pika_rm->ScheduleReplClientBGTask(&PikaReplClientConn::HandleMetaSyncResponse, static_cast<void*>(task_arg)); // 如果是元数据同步，将该事件放入到处理线程池中执行
break;
}
case InnerMessage::kDBSync:
{
ReplClientTaskArg* task_arg = new ReplClientTaskArg(response, std::dynamic_pointer_cast<PikaReplClientConn>(shared_from_this()));
g_pika_rm->ScheduleReplClientBGTask(&PikaReplClientConn::HandleDBSyncResponse, static_cast<void*>(task_arg));
break;
}
case InnerMessage::kTrySync:
{
ReplClientTaskArg* task_arg = new ReplClientTaskArg(response, std::dynamic_pointer_cast<PikaReplClientConn>(shared_from_this()));
g_pika_rm->ScheduleReplClientBGTask(&PikaReplClientConn::HandleTrySyncResponse, static_cast<void*>(task_arg)); // 如果是同步则放入线程池中去执行HandleTrySyncResponse函数
break;
}
case InnerMessage::kBinlogSync:
{
DispatchBinlogRes(response); // binlog同步处理
break;
}
case InnerMessage::kRemoveSlaveNode:
{
ReplClientTaskArg* task_arg = new ReplClientTaskArg(response, std::dynamic_pointer_cast<PikaReplClientConn>(shared_from_this()));
g_pika_rm->ScheduleReplClientBGTask(&PikaReplClientConn::HandleRemoveSlaveNodeResponse, static_cast<void*>(task_arg));
break;
}
default:
break;
}
return 0;
}
至此，一个pika_repl_client的整个的处理流程就清晰，即每次都会根据协议调用PikaReplClientConn的DealMessage函数，将每个执行任务放入线程池中去处理。
pika_repl_server线程
该线程的核心思想与pika_repl_client的处理流程差不多，只不过在pink中对应的是HolyThread，处理流程大同小异，最终调用的就是PikaReplServerConn的DealMessage方法。
int PikaReplServerConn::DealMessage() {
std::shared_ptr<InnerMessage::InnerRequest> req = std::make_shared<InnerMessage::InnerRequest>();
bool parse_res = req->ParseFromArray(rbuf_ + cur_pos_ - header_len_, header_len_);
if (!parse_res) {
LOG(WARNING) << "Pika repl server connection pb parse error.";
return -1;
}
switch (req->type()) {
case InnerMessage::kMetaSync:
{
ReplServerTaskArg* task_arg = new ReplServerTaskArg(req, std::dynamic_pointer_cast<PikaReplServerConn>(shared_from_this()));
g_pika_rm->ScheduleReplServerBGTask(&PikaReplServerConn::HandleMetaSyncRequest, task_arg);
break;
}
case InnerMessage::kTrySync:
{
ReplServerTaskArg* task_arg = new ReplServerTaskArg(req, std::dynamic_pointer_cast<PikaReplServerConn>(shared_from_this()));
g_pika_rm->ScheduleReplServerBGTask(&PikaReplServerConn::HandleTrySyncRequest, task_arg);
break;
}
case InnerMessage::kDBSync:
{
ReplServerTaskArg* task_arg = new ReplServerTaskArg(req, std::dynamic_pointer_cast<PikaReplServerConn>(shared_from_this()));
g_pika_rm->ScheduleReplServerBGTask(&PikaReplServerConn::HandleDBSyncRequest, task_arg);
break;
}
case InnerMessage::kBinlogSync:
{
ReplServerTaskArg* task_arg = new ReplServerTaskArg(req, std::dynamic_pointer_cast<PikaReplServerConn>(shared_from_this()));
g_pika_rm->ScheduleReplServerBGTask(&PikaReplServerConn::HandleBinlogSyncRequest, task_arg);
break;
}
case InnerMessage::kRemoveSlaveNode:
{
ReplServerTaskArg* task_arg = new ReplServerTaskArg(req, std::dynamic_pointer_cast<PikaReplServerConn>(shared_from_this()));
g_pika_rm->ScheduleReplServerBGTask(&PikaReplServerConn::HandleRemoveSlaveNodeRequest, task_arg);
break;
}
default:
break;
}
return 0;
}
主从同步的流程
pika_repl_server的流程可用如图描述。
pika_repl_client的流程可用如图描述。
主从的状态机流程如下。
通过如上三个图就可以能够明白pika官网描述的主从同步的流程图。
总结
本文根据pika官网的流程，分析了一下pika主从的一个大致流程，其中还包含了很多的技术细节限于本文篇幅并没有详尽分析，主要通过原理流程的一个分析来查看了主从同步的状态机线程，和主从同步的线程模型的基本原理。由于本人才疏学浅，如有错误请批评指正。
641
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
