LUCEDA IPKISS Tutorial 79：修改器件端口名（二）

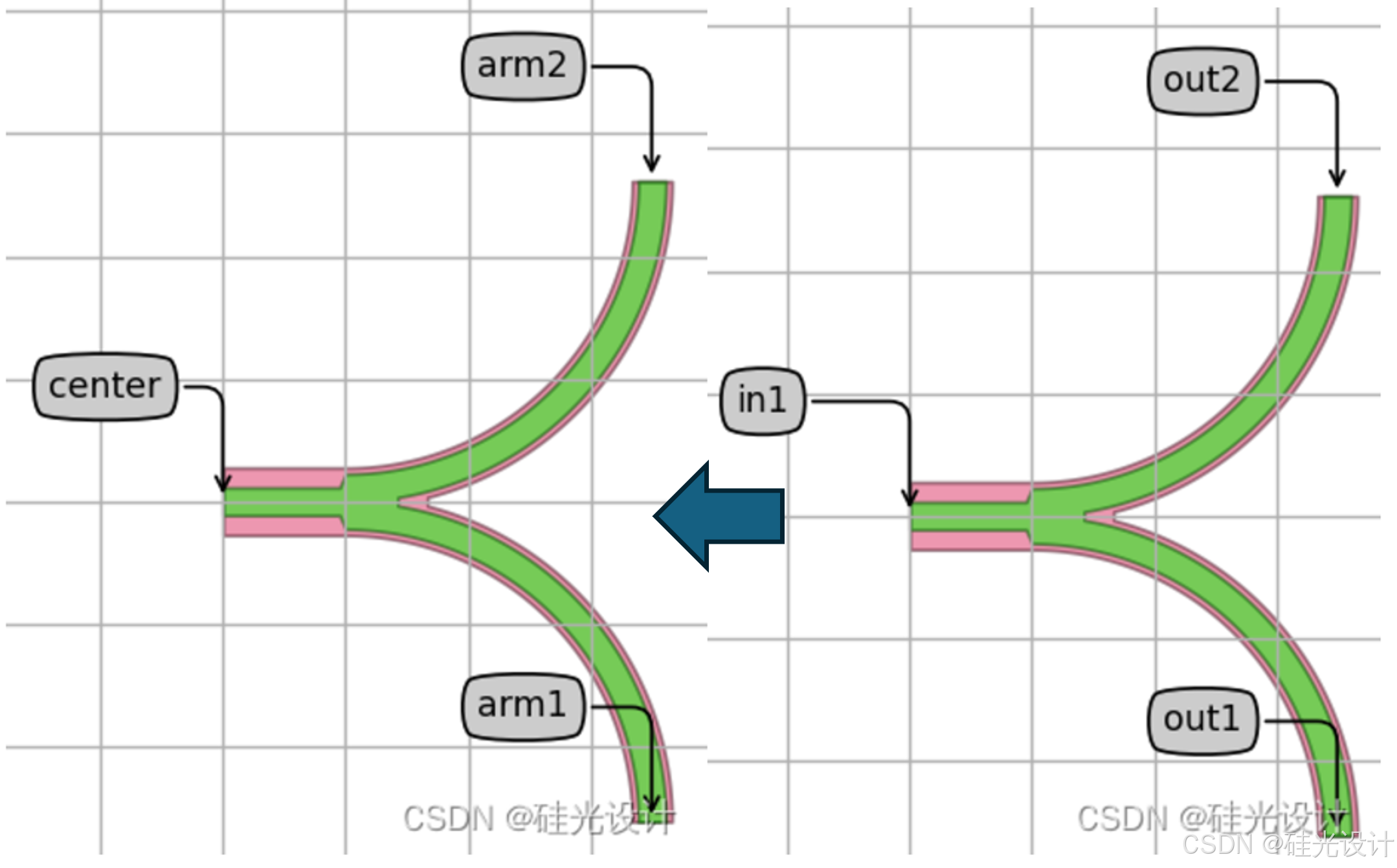

案例分享：修改器件端口名

代码如下：

from si_fab import all as pdk
class YBranch_New(pdk.YBranch):
    class Layout(pdk.YBranch.Layout):
        def _generate_ports(self, ports):
            ports = super()._generate_ports(ports)
            ports["in1"].name = "center"
            ports["out1"].name = "arm1"
            ports["out2"].name = "arm2"
            return ports

if __name__ == "__main__":
    YBranch_New().Layout().visualize(annotate=True)
