Eureka安全详解 （第四天）

一、概述

       Eureka本身不具备安全认证的能力，Spring Cloud使用Spring Security为Eureka Server进行了增强。

1.1 加依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <!--<parent>
        <artifactId>cloud-study</artifactId>
        <groupId>com.qhr.cloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>-->
    <groupId>com.qhr.cloud</groupId>
    <version>1.0-SNAPSHOT</version>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>microservice-discovery-eureka-authenticating</artifactId>

    <packaging>jar</packaging>

    <!-- 引入spring boot的依赖 -->
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.0.4.RELEASE</version>
    </parent>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>
    </dependencies>

    <!-- 引入spring cloud的依赖 -->
    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>Finchley.SR1</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <!-- 添加spring-boot的maven插件 -->
    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

1.2 添加WebSecurityConfig类用于限制Spring Security的部分CSRF保护功能，否则应用无法正常注册！

package com.qhr.cloud.study;

import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;

/**
 * @Author : qhr
 * @Description ：pring Cloud Finchley及更高版本，必须添加如下代码，部分关闭掉Spring Security
 *                 的CSRF保护功能，否则应用无法正常注册！
 * @Date ： Created in 18:35 2020/7/6
 * @Modified By :
 */
@EnableWebSecurity
public class WebSecurityConfig extends WebSecurityConfigurerAdapter {
    @Override
    protected void configure(HttpSecurity http) throws Exception {
        http.csrf().ignoringAntMatchers("/eureka/**");
        super.configure(http);
    }
}

1.3 修改配置文件application.yml

server:
  port: 8761
eureka:
  client:
    # 是否要注册到其他Eureka Server实例
    register-with-eureka: false
    # 是否要从其他Eureka Server实例获取数据
    fetch-registry: false
    service-url:
      defaultZone: http://user:password123@localhost:8761/eureka/​
spring:
  security:
    user:
      name: user                # 配置登录的账号是user
      password: password123     # 配置登录的密码是password123

1.4 添加启动类

package com.qhr.cloud.study;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.server.EnableEurekaServer;

/**
 * @Author : qhr
 * @Description ：
 * @Date ： Created in 18:34 2020/7/6
 * @Modified By :
 */
@SpringBootApplication
@EnableEurekaServer
public class EurekaApplication {
    public static void main(String[] args) {
        SpringApplication.run(EurekaApplication.class, args);
    }
}

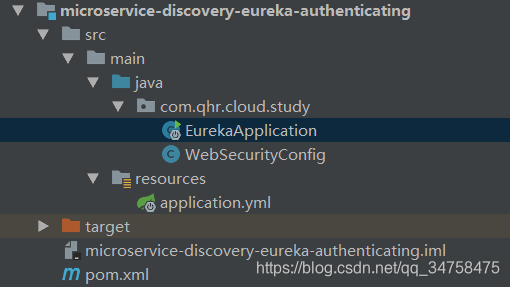

1.5 项目目录结构

二、Eureka Client 客户端配置

在microservice-provider-user微服务中，修改配置文件application.yml

eureka:
  client:
    service-url:
      # 指定eureka server通信地址，注意/eureka/小尾巴不能少
      defaultZone: http://user:password123@localhost:8761/eureka/

三、服务启动

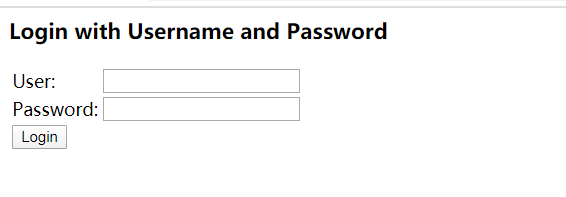

3.1 访问：http://localhost:8761/

输入用户：user,密码：password123，就可正常访问Eureka Server首页。

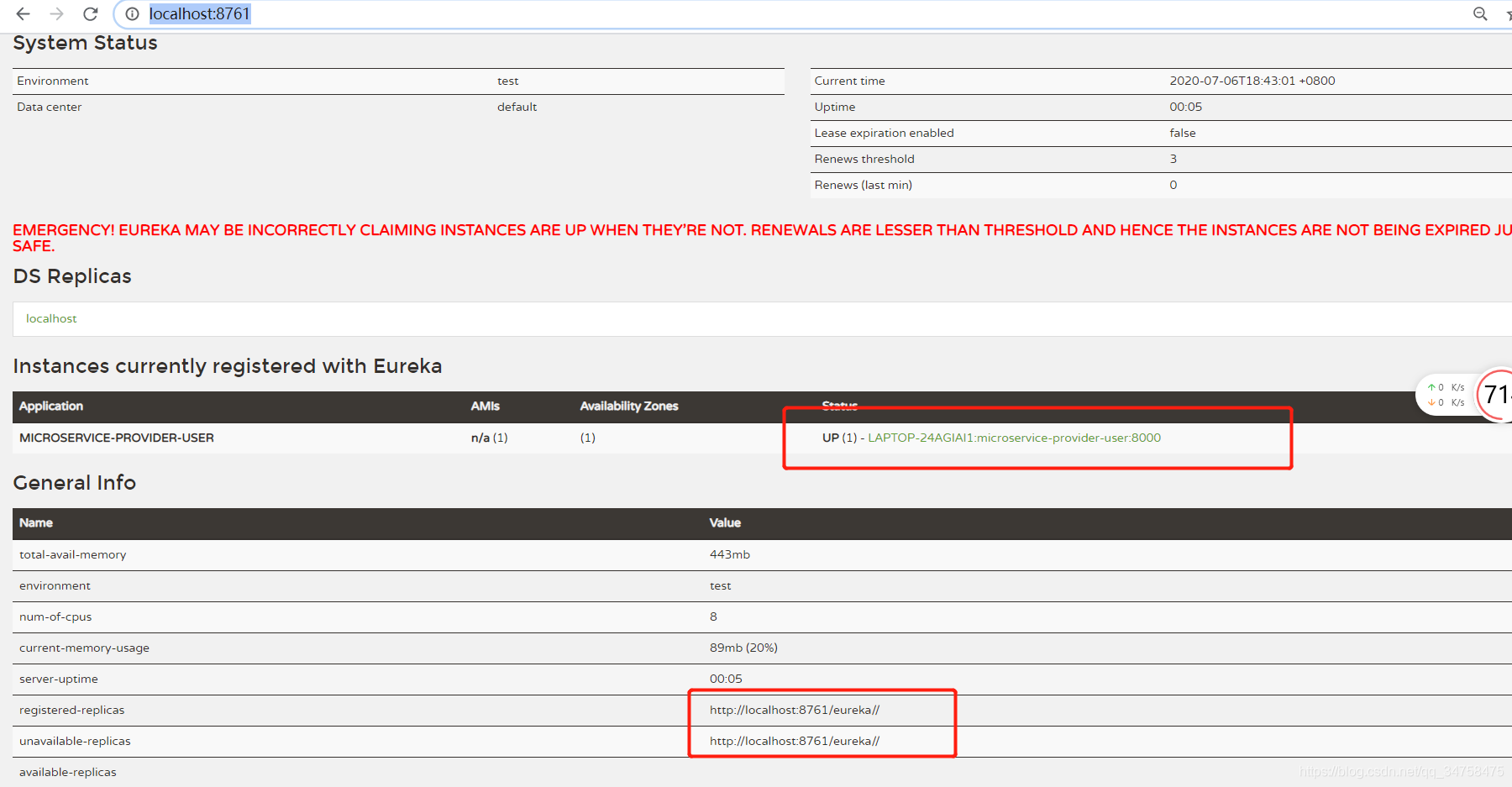

3.2 启动微服务microservice-provider-user

可以发现微服务microservice-provider-user已经注册到Eureka的服务器上了。
