本文介绍了NAT的三种模式：静态地址转换、动态地址转换和端口多路复用，并通过实例探讨了在NAT和路由并存时，NAT与路由的优先级问题。在路由器收到数据包时，会先查FIB表，根据路由信息决定转发，如果接口配置有NAT，则执行NAT转换后再转发。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

NAT模式常见有三种

1. 类型一：静态地址转换
2. 类型二：动态地址转换
3. 类型三：端口多路复用

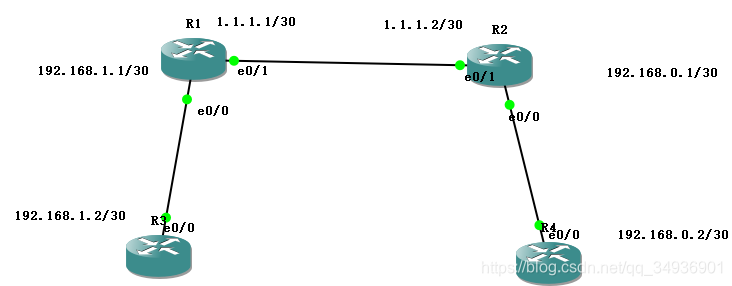

在这里插入图片描述

静态地址转换

interface Ethernet0/0
 ip address 192.168.1.1 255.255.255.252
 ip nat inside
 ip virtual-reassembly
 half-duplex
!
interface Ethernet0/1
 ip address 1.1.1.1 255.255.255.252
 ip nat outside
 ip virtual-reassembly
 half-duplex
!
 static 192.168.1.1 1.1.1.1


R1#

接口配置完毕，NAT配置完毕，指定内外口。
测试联通

R1#ping  1.1.1.2  source  192.168.1.1

Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 1.1.1.2, timeout is 2 seconds:
Packet sent with a source address of 192.168.1.1
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 8/14/20 ms
R1#

静态端口映射

R1(config)#do show run | s   nat
 ip nat inside
 ip nat outside
ip nat inside source static tcp 192.168.1.1 1921 interface Ethernet0/0 1921
ip nat inside source static 192.168.1.1 1.1.1.1
R1(config)#

动态地址转换

interface Ethernet0/0
 ip address 192.168.1.1 255.255.255.252
 ip nat inside
 ip virtual-reassembly
 half-duplex
!
interface Ethernet0/1
 ip address 1.1.1.1 255.255.255.252
 ip nat outside
 ip virtual-reassembly
 half-duplex
!
ip nat pool NATPOOL 1.1.1.1 1.1.1.1 netmask 255.255.255.252
!
access-list 1 permit 0.0.0.0 255.255.255.252

查看NAT session

R1#ping 1.1.1.2 source   e 0/1

Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 1.1.1.2, timeout is 2 seconds:
Packet sent with a source address of 1.1.1.1
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 16/19/24 ms
R1#show ip nat s
R1#show ip nat statistics
Total active translations: 0 (0 static, 0 dynamic; 0 extended)
Outside interfaces:
  Ethernet0/1
Inside interfaces:
  Ethernet0/0
Hits: 30  Misses: 0
CEF Translated packets: 15, CEF Punted packets: 0
Expired translations: 3
Dynamic mappings:
Appl doors: 0
Normal doors: 0
Queued Packets: 0
R1#

端口多路复用

interface Ethernet0/0
 ip address 192.168.1.1 255.255.255.252
 ip nat inside
 ip virtual-reassembly
 half-duplex
!
interface Ethernet0/1
 ip address 1.1.1.1 255.255.255.252
 ip nat outside
 ip virtual-reassembly
 half-duplex
!
ip nat inside source list 10 interface Ethernet0/1 overload
!

access-list 10 permit any

测试一下

R1(config)#
R1(config)#do ping  1.1.1.2 sou e 0/1

Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 1.1.1.2, timeout is 2 seconds:
Packet sent with a source address of 1.1.1.1
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 8/14/24 ms
R1(config)#do show ip nat s
Total active translations: 1 (0 static, 1 dynamic; 1 extended)
Outside interfaces:
  Ethernet0/1
Inside interfaces:
  Ethernet0/0
Hits: 40  Misses: 0
CEF Translated packets: 20, CEF Punted packets: 0
Expired translations: 3
Dynamic mappings:
-- Inside Source
[Id: 2] access-list 10 interface Ethernet0/0 refcount 1
Appl doors: 0
Normal doors: 0
Queued Packets: 0
R1(config)#
