快应用原生组件搭建室内地图

最近开发快应用的时候，我现快应用没有自带的相关室内地图构建功能，有的只是调用百度地图的室外地图功能。
（不过这可能是个共有的盲点，其他前端也都得用原生组件搭建室内地图吧）

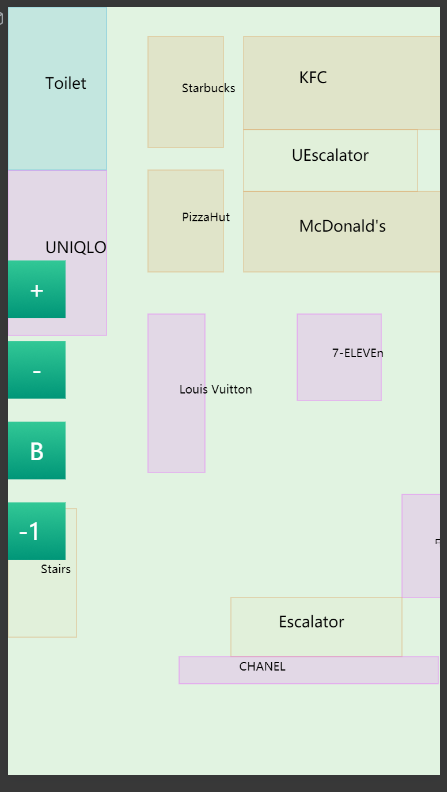

进入正题，先给大家看搭建的效果：

其中“+”“-”实现缩放，“B”实现复位功能，“-1”处是选择楼层

下面我将一步一步地讲解如何构建室内地图。

1.图片缩放、平移、复位、切换

这些是地图的基本构建元素，我们先从这个问题做起。
快应用可能由于生态还不健全，这一块还找不到直接的学习资料。不过快应用是基于H5，JS的，咱们可以从这些地方找。
这里参考了这篇博客：使用HTML5 canvas做地图（3）图片加载平移放大缩小
但从H5转化到快应用还是有很多工作要做的，这里当做大家有canvas的经验了，直接贴代码了

<template>
  <div class="main">
    <div class="footer-container">

      <input class="button" type="button" value="+" onclick="largeScale"></input>
      <input class="button" type="button" value="-" onclick="smallScale"></input>
      <input class="button" type="button" value="B" onclick="middleScale"></input>

      <select class="button" onchange="pickMap" >
        <option for="{{floor}}"   selected={{$item.selected}}>{{$item.id}}</option>
      </select>
    </div>
    <div class="content">
       <canvas id="indoormap" ontouchstart ='onMouseDown' ontouchmove='onMouseMove'></canvas>
    </div>

  </div>
</template>

<script>

export default{
  data:{
    x1:'', //平移用的坐标
    x2:'',
    y1:'',
    y2:'',
    context2D:'',
    img:'',
    imgX:0,
    imgY:0,
    imgScale:1,
    floor:[
      {'id':-1,'selected':'true',pic:'../Common/1.jpg'},//粘贴你自己的图片地址
      {'id':2,'selected':'false',pic:'../Common/a.jpg'},
      {'id':3,'selected':'false',pic:'../Common/3.jpg'}
    ],
  },
  pickMap(e){
    for(var i=0;i<this.floor.length;i++){
      if(this.floor[i].id==e.newValue){
        this.img.src=this.floor[i].pic
      }
    }
    this.img.width=1000
    this.img.height=1500
    this.clearImage()
    this.img.onload = () => {
      this.drawImage(this.img,this.imgX,this.imgY,this.imgScale)
    }
  },
  onShow() {
    const canvas = this.$element('indoormap') //获取 canvas 组件
    this.context2D = canvas.getContext('2d') //获取 canvas 绘图上下文
    this.img = new Image()
    for(var i=0;i<this.floor.length;i++){
      if(this.floor[i].selected=='true'){
        this.img.src=this.floor[i].pic
      }
    }
    this.img.onload = () => {
      this.drawImage(this.img,this.imgX,this.imgY,this.imgScale)
    }
  },

  onMouseDown(event){
    const data=event.touches[0]
    this.x1=data.clientX
    this.y1=data.clientY
    //
  },
  onMouseMove(event){
    //擦除原来的图片
    this.clearImage()

    const data=event.touches[0]
    this.x2=data.clientX
    this.y2=data.clientY
    this.imgX+=this.x2-this.x1
    this.imgY+=this.y2-this.y1
    console.log(this.imgY)
    //console.log(event.touches[0])
    this.drawImage(this.img,this.imgX,this.imgY,this.imgScale)

    this.x1=this.x2
    this.y1=this.y2

  },
  largeScale(){
    this.clearImage()
    if(this.imgScale<2.4){this.imgScale+=0.2}
    this.drawImage(this.img,this.imgX,this.imgY,this.imgScale)
  },
  smallScale(){
    this.clearImage()

    if(this.imgScale>0.6)this.imgScale-=0.2

    this.drawImage(this.img,this.imgX,this.imgY,this.imgScale)
  },
  middleScale(){
    this.clearImage()

    this.imgScale=1
    this.imgX=0
    this.imgY=0
    this.drawImage(this.img,this.imgX,this.imgY,this.imgScale)
  },
  drawImage(img,imgX,imgY,imgScale){
    this.context2D.drawImage(img,0,0,img.width,img.height,
      imgX,imgY,img.width*imgScale,img.height*imgScale)
  },
  clearImage(){
    this.context2D.clearRect(this.imgX,this.imgY,this.img.width*this.imgScale,this.img.height*this.imgScale)
  }
}
</script>

<style>
  .main{
    flex-direction:column;
    flex-wrap:wrap;
    align-content:flex-start;
  }
  .content{
    width:100%;
    height:1500px;
  }
  .footer-container {
      position: fixed;
      flex-direction:column;
      width:100px;
      height: 600px;
      top:400px;
      left:0;
      background-color: transparent;
  }
  .button{
    text-align: center;
    font-size: 40px;
    font-family: '微软雅黑';
    margin-top:40px;
    width:100px;
    height:100px;
    color:white;
    background: linear-gradient(rgb(50, 200, 150),rgb(0, 150, 120));
  }

</style>

2.地图元素构建

从上面一步，大家应该发现一个问题:图片放大就会失真（模糊）！这是因为我们采用的是位图，而地图不应该因放大而模糊，所以我们应该用矢量图。

普通图片在PS下设置路径转成ai文件到Adobe Illustrator，进行颜色填充，可以转化为矢量图。但这个过程不仅复杂，最关键的是快应用不支持打开这种矢量图。

那么，我们只能自己用canvas画出矢量图了，canvas画出的矩阵等图形都是矢量化的。
这里我又参考了一篇博客：基于HTML5 Canvas绘制的支持手势缩放的室内地图
该文章的思路都是基于H5和JS的，后面关于缩放的内容都是不能照搬的。所以才有了第一步工作。

2.1地图数据构建

其中构建地图数据可以通过以下JSON格式,变量名非常明了，这里就不赘述了。

[
{
  "title": "Toilet",
  "x": 0,
  "y": 0,
  "width": 171,
  "height": 283,
  "color": "rgba(76, 181, 216, 0.2)",
  "textcolor": "black",
  "bordercolor": "rgba(76, 181, 216, 1)",
  "imageurl": "http://192.168.1.106:8000/static/images/Toilet.png"
}
,
{
  "title": "UNIQLO",
  "x": 0,
  "y": 284,
  "width": 171,
  "height": 286,
  "color": "rgba(230, 110, 250, 0.2)",
  "textcolor": "black",
  "bordercolor": "rgba(230, 110, 250, 1)",
  "imageurl": "http://192.168.1.106:8000/static/images/UNIQLO.png"
}
]

这样的数据就可以构造出一层楼的地图。多个这样的文件就是一栋建筑的地图数据。

最终实现

最后贴出完整的实现代码

<template>
<div class="main">
    <div class="footer-container">

      <input class="button" type="button" value="+" onclick="largeScale"></input>
      <input class="button" type="button" value="-" onclick="smallScale"></input>
      <input class="button" type="button" value="B" onclick="middleScale"></input>

      <select class="button" onchange="pickMap" >
        <option for="{{floor}}"   selected={{$item.selected}}>{{$item.id}}</option>
      </select>
    </div>
    <div class="content" >
       <canvas id="indoormap" ontouchstart ='onMouseDown' ontouchmove='onMouseMove'></canvas>
    </div>

  </div>
</template>

<script>
import fetch from '@system.fetch'

export default{
  data:{
    MAPINFO:[],
    floor:[
      {'owner':'building1','id':-1,'selected':'true','mapUrl':'http://192.168.1.106:8000/static/building1/map1.txt'},//这里mapUrl请替换为你的地图数据访问地址
      {'owner':'building1','id':2,'selected':'false','mapUrl':'http://192.168.1.106:8000/static/building1/map2.txt'},
      {'owner':'building1','id':3,'selected':'false','mapUrl':'http://192.168.1.106:8000/static/building1/map3.txt'}
    ],
    x1:'', //平移用的坐标
    x2:'',
    y1:'',
    y2:'',
    devX:0,
    devY:0,
    mapUrl:'',//地图信息url
    canvas:'',
    context2D:'',
    imgScale:1,
  },
  onInit() {
    for(var i=0;i<this.floor.length;i++){
      if(this.floor[i].selected=='true'){
        this.mapUrl=this.floor[i].mapUrl
      }
    }
    fetch.fetch({
      url:this.mapUrl,
      success: res=>{
        this.MAPINFO=JSON.parse(res.data)

        this.canvas = this.$element('indoormap') //获取 canvas 组件
        this.context2D = this.canvas.getContext('2d') //获取 canvas

        this.DrawMapInfo()
      }
    })

  },
  pickMap(e){
    for(var i=0;i<this.floor.length;i++){
      if(this.floor[i].id==e.newValue){
        this.mapUrl=this.floor[i].mapUrl
      }
    }
    fetch.fetch({
      url:this.mapUrl,
      success: res=>{
        this.MAPINFO=JSON.parse(res.data)
        this.DrawMapInfo()
      }
    })
    this.DrawMapInfo()
  },
  onMouseDown(event){
    const data=event.touches[0]
    this.x1=data.clientX
    this.y1=data.clientY
  },
  onMouseMove(event){
    //擦除原来的图片
    this.clearImage()

    const data=event.touches[0]
    this.x2=data.clientX
    this.y2=data.clientY
    this.devX+=this.x2-this.x1
    this.devY+=this.y2-this.y1
    //console.log(event.touches[0])
    this.DrawMapInfo()

    this.x1=this.x2
    this.y1=this.y2

  },
  clearImage(){
    this.context2D.clearRect(0,0,1500,1500)
  },
  largeScale(){

    if(this.imgScale<1.6){this.imgScale+=0.2}
    this.DrawMapInfo()
  },
  smallScale(){

    if(this.imgScale>0.6)this.imgScale-=0.2

    this.DrawMapInfo()
  },
  middleScale(){
    this.imgScale=1
    this.devX=0
    this.devY=0
    this.DrawMapInfo()
  },
  DrawMapInfo:function(){
    this.clearImage()
    for (var i = 0; i < this.MAPINFO.length; i++) {
      this.DrawBlock(this.context2D,this.MAPINFO[i].x*this.imgScale+this.devX,
        this.MAPINFO[i].y*this.imgScale+this.devY,
        this.MAPINFO[i].width*this.imgScale, this.MAPINFO[i].height*this.imgScale,
        this.MAPINFO[i].title,  this.MAPINFO[i].color,  this.MAPINFO[i].textcolor,
        this.MAPINFO[i].bordercolor, this.MAPINFO[i].imageurl)
    }
  },
  DrawBlock:function(context2D,x, y, width, height, text, backgroudcolor, textcolor, bordercolor, imageurl) {

    //画框图
    context2D.fillStyle = backgroudcolor
    context2D.fillRect(x, y, width, height)

    //画边界
    context2D.strokeStyle = bordercolor
    context2D.lineWidth = 0.8
    context2D.strokeRect(x, y, width, height)
    //画文字和图标，文字小则不画图
    context2D.fillStyle = textcolor
    const textsize = width * height / 2000
    //console.log(textsize)
    if (textsize > 15) {
      context2D.font = 20 + 'pt Microsoft YaHei'
      if (imageurl != "") {  //画图标
        const image = new Image()
        image.src = imageurl
        //image.onload = () => {
        context2D.drawImage(image, x + width / 7, y + height / 2 - 25 , 30, 30)
        //}
      }
    }
    else {
      context2D.font = 15 + 'pt Microsoft YaHei'
    }
    context2D.fillText(text, x + width / 7 + 40, y + height / 2)
  },
}
</script>

<style>
  .main{
    background-color: rgba(220, 241, 220, 0.856);
    flex-direction:column;
    flex-wrap:wrap;
    align-content:flex-start;
  }
  .indoormap{
    width:100px;
    height:100px;
  }
  .content{
    width:100%;
    height:1500px;
  }
  .footer-container {
      position: fixed;
      flex-direction:column;
      width:100px;
      height: 600px;
      top:400px;
      left:0;
      background-color: transparent;
  }
  .button{
    text-align: center;
    font-size: 40px;
    font-family: '微软雅黑';
    margin-top:40px;
    width:100px;
    height:100px;
    color:white;
    background: linear-gradient(rgb(50, 200, 150),rgb(0, 150, 120));
  }

</style>

其中floor数据可以存入后台的数据库，事先做一次查询的话，就实现了选择建筑物。
事实上，canvas还有三维的表现形式，理论上我们可以做出三维的动态地图。这个我们以后再说吧。
