工作笔记:linphone-sip视频通话使用说明

linphone-sip通话使用说明

aar版本:liblinphone-sdk-v4.aar

官方Demo:Files · master · BC / public / linphone-android · GitLab:

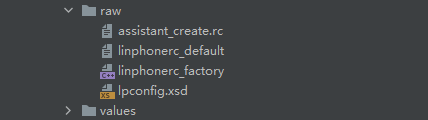

注:记得把资源文件一起拷贝进去

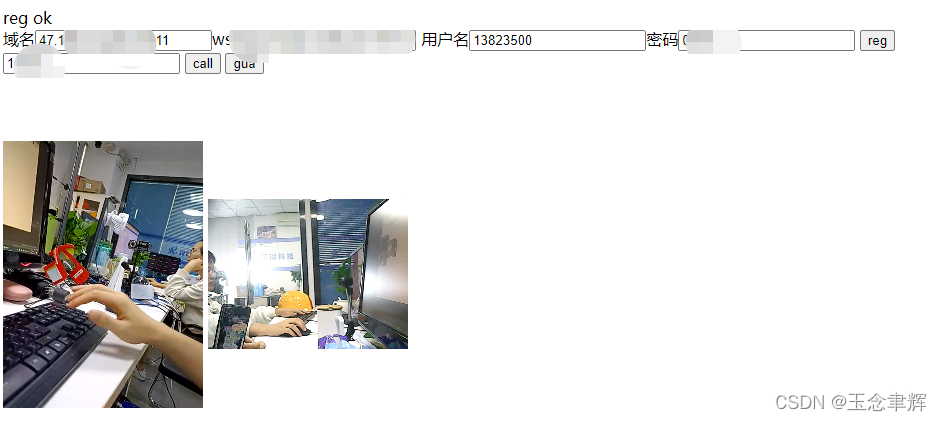

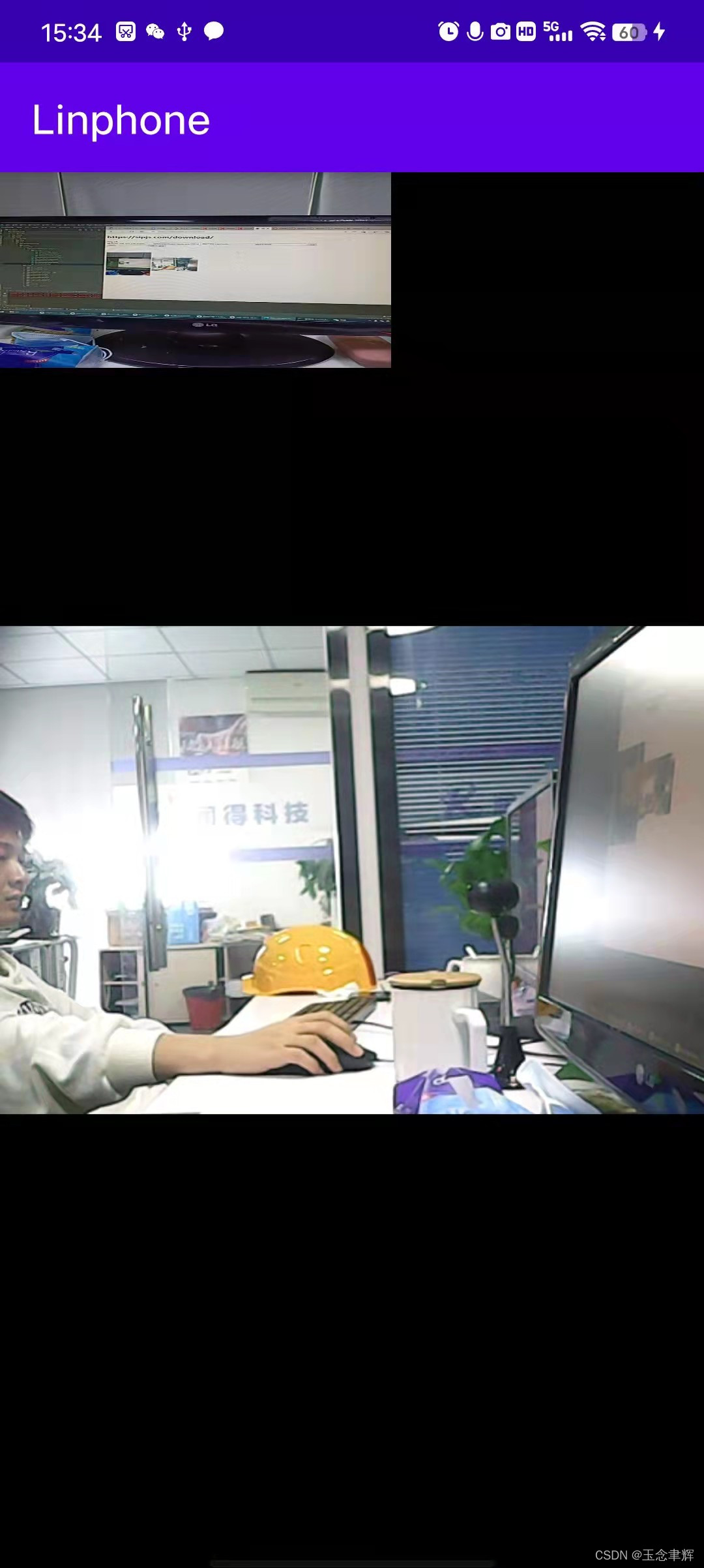

运行效果

添加依赖

repositories {
    flatDir {
        dirs 'libs' // aar用到
    }
}
dependencies {
    api fileTree(dir: 'libs', include: '*.jar')
    implementation(name: 'liblinphone-sdk-v4', ext: 'aar')
}

添加权限

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.example.linphone">

    <uses-permission android:name="android.permission.INTERNET" />
    <uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
    <uses-permission android:name="android.permission.ACCESS_WIFI_STATE" />
    <uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
    <uses-permission android:name="android.permission.READ_EXTERNAL_STORAGE" />
    <uses-permission android:name="android.permission.RECORD_AUDIO" />
    <uses-permission android:name="android.permission.CAMERA" />
    <!--悬浮窗权限-->
    <uses-permission android:name="android.permission.SYSTEM_ALERT_WINDOW" />
    <!--唤醒权限-->
    <uses-permission android:name="android.permission.WAKE_LOCK"/>
    <!--免提权限-->
    <uses-permission android:name="android.permission.MODIFY_AUDIO_SETTINGS" />

    <application
        android:allowBackup="true"
        android:icon="@mipmap/ic_launcher"
        android:label="@string/app_name"
        android:roundIcon="@mipmap/ic_launcher_round"
        android:supportsRtl="true"
        android:theme="@style/Theme.Linphone">

        <activity android:name=".SipMainActivity"
            android:exported="true">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />
                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
        <activity android:name=".VideoActivity"/>
        <service android:name=".LinphoneMiniManager"/>
    </application>

</manifest>

使用示例

SipMainActivity

package com.example.linphone;

import android.content.Intent;
import android.os.Bundle;
import android.os.Handler;
import android.util.Log;
import android.view.View;
import android.widget.EditText;
import android.widget.TextView;
import android.widget.Toast;

import androidx.appcompat.app.AppCompatActivity;

import com.example.linphone.tools.ActivityInterface;

import org.linphone.core.Call;
import org.linphone.core.TransportType;

/**
 * author : 吴明辉
 * e-mail : 1412378121@qq.com
 * date   : 2022/3/2611:23
 * git    : https://gitee.com/yunianvh
 * desc   : AccountBuilder接电话时用到
 */
public class SipMainActivity extends AppCompatActivity {
    private static final String TAG = SipMainActivity.class.getSimpleName();
    private TextView id_text_status, id_text_code, id_call_stateinfo, id_text_version;
    private EditText id_etext_regtext, id_etext_dail, id_etext_regpwd, id_etext_ipport, id_etext_type;

    @Override
    protected void onCreate(Bundle savedInstanceState) {

        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_sipmain);
        id_etext_regtext = (EditText) this.findViewById(R.id.id_etext_regtext);
        id_etext_dail = (EditText) this.findViewById(R.id.id_etext_dail);
        id_etext_regpwd = (EditText) this.findViewById(R.id.id_etext_regpwd);
        id_text_status = (TextView) this.findViewById(R.id.id_text_status);
        id_call_stateinfo = (TextView) this.findViewById(R.id.id_call_stateinfo);
        id_etext_ipport = (EditText) this.findViewById(R.id.id_etext_ipport);
        id_text_version = (TextView) this.findViewById(R.id.id_text_version);
        id_text_code = (TextView) findViewById(R.id.id_text_code);
        id_etext_type = (EditText) findViewById(R.id.id_etext_type);
        //权限

        //开始启动linphone服务
        startService(new Intent(this, LinphoneMiniManager.class));

        //延时2秒启动监听,避免服务未启动设置监听方法出现异常
        new Handler().postDelayed(new Runnable() {
            @Override
            public void run() {
                LinphoneMiniManager.getInstance().setActivityInterfaceListener(new ActivityInterface() {
                    @Override
                    public void onLinphone(String cmd, String msg) {
                        Log.e(TAG, "onLinphone监听返回 cmd-->" + cmd + " msg-->" + msg);
                        switch (cmd) {
                            case "reg_state":
                                id_text_status.setText(msg);
                                break;
                            case "show_code":
                                id_text_code.setText(msg);
                                break;
                            case "show_callinfo":
                                id_call_stateinfo.setText(msg);
                                if (msg.startsWith("Incoming CallSession"))
                                    LinphoneMiniManager.getInstance().liLinJie();
                                break;
                            case "show_version":
                                id_text_version.setText(msg);
                                break;
                            default:
                                break;
                        }
                    }
                });
            }
        }, 2000);
    }

    /**
     * 注册
     *
     * @param view
     */
    public void reg(View view) {
        if (!LinphoneMiniManager.isReady()) {
            Toast.makeText(SipMainActivity.this, "Service没准备好", Toast.LENGTH_SHORT).show();
            return;
        }
        LinphoneMiniManager instance = LinphoneMiniManager.getInstance();
        String[] split = id_etext_ipport.getText().toString().split(":");
        String host = split[0], port = split[1];
        try {
            String password = id_etext_regpwd.getText().toString();
            String type = id_etext_type.getText().toString();
            TransportType transport = TransportType.Udp;
            if (type.indexOf("tcp") != -1) {
                transport = TransportType.Tcp;
                Toast.makeText(SipMainActivity.this, "tcp注册", Toast.LENGTH_SHORT).show();
            } else if (type.indexOf("tls") != -1) {
                transport = TransportType.Tls;
                Toast.makeText(SipMainActivity.this, "tls注册", Toast.LENGTH_SHORT).show();
            } else {
                Toast.makeText(SipMainActivity.this, "udp注册", Toast.LENGTH_SHORT).show();
            }
            instance.lilin_reg(host + ":" + port, id_etext_regtext.getText().toString(), password, transport);
            // instance.lilin_reg("192.168.10.146","1004","12345","5090");
        } catch (Exception e) {
            e.printStackTrace();
        }
    }

    /**
     * 语音拨打
     *
     * @param view
     */
    public void boda(View view) {
        String[] split = id_etext_ipport.getText().toString().split(":");
        String host = split[0], port = split[1];
        Log.e(TAG, "语音拨打");
        if (!LinphoneMiniManager.isReady()) {
            Toast.makeText(SipMainActivity.this, "Service没准备好", Toast.LENGTH_SHORT).show();
            return;
        }
        LinphoneMiniManager instance = LinphoneMiniManager.getInstance();
        instance.lilin_call(id_etext_dail.getText().toString(), id_etext_ipport.getText().toString(), false);
    }

    /**
     * 挂断电话
     *
     * @param view
     */
    public void guaduan(View view) {
        if (!LinphoneMiniManager.isReady()) {
            Toast.makeText(SipMainActivity.this, "Service没准备好", Toast.LENGTH_SHORT).show();
            return;
        }
        LinphoneMiniManager instance = LinphoneMiniManager.getInstance();
        instance.hangUp();
    }

    /**
     * 接电话
     *
     * @param view
     */
    public void jie(View view) {
        if (!LinphoneMiniManager.isReady()) {
            Toast.makeText(SipMainActivity.this, "Service没准备好", Toast.LENGTH_SHORT).show();
            return;
        }
        LinphoneMiniManager instance = LinphoneMiniManager.getInstance();
        instance.liLinJie();
        Call ccall = instance.getLC().getCurrentCall();
        if (ccall != null && ccall.getRemoteParams().videoEnabled()) {
            startActivity(new Intent(SipMainActivity.this, VideoActivity.class));
        }
    }

    /**
     * 视频拨打
     *
     * @param view
     */
    public void videoda(View view) {
        // Toast.makeText(SipMainActivity.this,"无视频",Toast.LENGTH_SHORT    ).show();
        if (!LinphoneMiniManager.isReady()) {
            Toast.makeText(SipMainActivity.this, "Service没准备好", Toast.LENGTH_SHORT).show();
            return;
        }
        LinphoneMiniManager instance = LinphoneMiniManager.getInstance();
        instance.lilin_call(id_etext_dail.getText().toString(), id_etext_ipport.getText().toString(), true);
        startActivity(new Intent(SipMainActivity.this, VideoActivity.class));
    }

    /**
     * 是否扩音
     *
     * @param view
     */
    public void kuoyin(View view) {
        if (!LinphoneMiniManager.isReady()) {
            Toast.makeText(SipMainActivity.this, "Service没准备好", Toast.LENGTH_SHORT).show();
            return;
        }
        LinphoneMiniManager instance = LinphoneMiniManager.getInstance();
        instance.lilin_enkuo();

    }

    public void senddtmf(View view) {
        LinphoneMiniManager instance = LinphoneMiniManager.getInstance();
        instance.getLC().setUseInfoForDtmf(true);
        Call currentCall = instance.getLC().getCurrentCall();
        if (currentCall != null) {
            char a = 2;
            currentCall.sendDtmf(a);
            Toast.makeText(SipMainActivity.this, "senddtmf", Toast.LENGTH_SHORT).show();
        }
    }

}

VideoActivity

package com.example.linphone;

import android.os.Bundle;
import android.util.DisplayMetrics;
import android.util.Log;
import android.view.SurfaceView;

import androidx.appcompat.app.AppCompatActivity;

import org.linphone.core.Call;
import org.linphone.core.Core;
import org.linphone.core.VideoDefinition;
import org.linphone.mediastream.video.AndroidVideoWindowImpl;

/**
 * author : 吴明辉
 * e-mail : 1412378121@qq.com
 * date   : 2022/3/2611:23
 * git    : https://gitee.com/yunianvh
 * desc   : AccountBuilder接电话时用到
 */
public class VideoActivity extends AppCompatActivity {

    private static final String TAG = VideoActivity.class.getSimpleName();
    private SurfaceView mVideoView, mCaptureView;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.layout_sip_video);

        init();

        new AndroidVideoWindowImpl(mVideoView, mCaptureView, new AndroidVideoWindowImpl.VideoWindowListener() {
            @Override
            public void onVideoRenderingSurfaceReady(AndroidVideoWindowImpl vw, SurfaceView surface) {
                Log.e(TAG, "onVideoRenderingSurfaceReady---video_ready");
                mVideoView = surface;
                LinphoneMiniManager.getInstance().getLC().setNativeVideoWindowId(vw);
            }

            @Override
            public void onVideoRenderingSurfaceDestroyed(AndroidVideoWindowImpl vw) {

            }

            @Override
            public void onVideoPreviewSurfaceReady(AndroidVideoWindowImpl vw, SurfaceView surface) {
                Log.e(TAG, "onVideoPreviewSurfaceReady-----");
                mCaptureView = surface;
                LinphoneMiniManager.getInstance().getLC().setNativePreviewWindowId(mCaptureView);
                //resizePreview();
            }

            @Override
            public void onVideoPreviewSurfaceDestroyed(AndroidVideoWindowImpl vw) {

            }
        });

        resizePreview();
    }

    private void resizePreview() {
        Core lc = LinphoneMiniManager.getInstance().getLC();
        if (lc.getCallsNb() > 0) {
            Call call = lc.getCurrentCall();
            if (call == null) {
                call = lc.getCalls()[0];
            }
            if (call == null) {
                return;
            }

            DisplayMetrics metrics = new DisplayMetrics();
            getWindowManager().getDefaultDisplay().getMetrics(metrics);
            int screenHeight = metrics.heightPixels;
            int maxHeight = screenHeight / 4; // Let's take at most 1/4 of the screen for the camera preview

            VideoDefinition videoSize = call.getCurrentParams().getSentVideoDefinition(); // It already takes care of rotation
            if (videoSize.getWidth() == 0 || videoSize.getHeight() == 0) {
                Log.w(TAG, "Couldn't get sent video definition, using default video definition");
                videoSize = lc.getPreferredVideoDefinition();
            }
            int width = videoSize.getWidth();
            int height = videoSize.getHeight();
            Log.d(TAG, "Video height is " + height + ", width is " + width);
            width = width * maxHeight / height;
            height = maxHeight;
            if (mVideoView == null) {
                Log.e(TAG, "mCaptureView is null !");
                return;
            }
            mVideoView.getHolder().setFixedSize(metrics.widthPixels, metrics.heightPixels);
            Log.d(TAG, "Video preview size set to " + width + "x" + height);
        }
    }

    private void init() {
        mVideoView = (SurfaceView) findViewById(R.id.videoSurface);
        mCaptureView = (SurfaceView) findViewById(R.id.videoCaptureSurface);
    }
}

核心代码

package com.example.linphone;

import android.app.Service;
import android.content.Context;
import android.content.Intent;
import android.media.AudioManager;
import android.os.HandlerThread;
import android.os.IBinder;
import android.text.TextUtils;
import android.util.Log;

import androidx.annotation.Nullable;
import androidx.localbroadcastmanager.content.LocalBroadcastManager;

import com.example.linphone.tools.AccountBuilder;
import com.example.linphone.tools.ActivityInterface;
import com.example.linphone.tools.LinphoneMiniUtils;

import org.linphone.core.AVPFMode;
import org.linphone.core.Address;
import org.linphone.core.AuthInfo;
import org.linphone.core.AuthMethod;
import org.linphone.core.Call;
import org.linphone.core.CallLog;
import org.linphone.core.CallParams;
import org.linphone.core.CallStats;
import org.linphone.core.ChatMessage;
import org.linphone.core.ChatRoom;
import org.linphone.core.Config;
import org.linphone.core.ConfiguringState;
import org.linphone.core.Content;
import org.linphone.core.Core;
import org.linphone.core.CoreException;
import org.linphone.core.CoreListener;
import org.linphone.core.EcCalibratorStatus;
import org.linphone.core.Event;
import org.linphone.core.Factory;
import org.linphone.core.Friend;
import org.linphone.core.FriendList;
import org.linphone.core.GlobalState;
import org.linphone.core.InfoMessage;
import org.linphone.core.NatPolicy;
import org.linphone.core.PayloadType;
import org.linphone.core.PresenceModel;
import org.linphone.core.ProxyConfig;
import org.linphone.core.PublishState;
import org.linphone.core.RegistrationState;
import org.linphone.core.SubscriptionState;
import org.linphone.core.TransportType;
import org.linphone.core.Transports;
import org.linphone.core.VersionUpdateCheckResult;
import org.linphone.core.VideoDefinition;

import java.io.BufferedReader;
import java.io.File;
import java.io.IOException;
import java.io.InputStream;
import java.io.InputStreamReader;
import java.util.concurrent.LinkedBlockingQueue;
import java.util.concurrent.ScheduledFuture;
import java.util.concurrent.ScheduledThreadPoolExecutor;
import java.util.concurrent.ThreadFactory;
import java.util.concurrent.ThreadPoolExecutor;
import java.util.concurrent.TimeUnit;
/**
 * author : 吴明辉
 * e-mail : 1412378121@qq.com
 * date   : 2022/3/2611:23
 * git    : https://gitee.com/yunianvh
 * desc   : AccountBuilder接电话时用到
 */
public class LinphoneMiniManager extends Service implements CoreListener {
    public static final String TAG = LinphoneMiniManager.class.getSimpleName();
    private static LinphoneMiniManager mInstance;
    private Context mContext;
    private Core mLinPhoneCore;
    private ScheduledThreadPoolExecutor poolExecutor;
    private ScheduledFuture<?> future;
    private Factory lcFactory;
    private AudioManager mAudioManager;
    private ActivityInterface listener;

    public static boolean isReady() {
        return mInstance != null;
    }

    public static LinphoneMiniManager getInstance() {
        return mInstance;
    }

    public Core getLC() {
        return mLinPhoneCore;
    }

    /**
     * 设置回调监听,把注册,童话等状态回调出去
     *
     * @param listener
     */
    public void setActivityInterfaceListener(ActivityInterface listener) {
        this.listener = listener;
    }

    @Nullable
    @Override
    public IBinder onBind(Intent intent) {
        return null;
    }

    @Override
    public void onCreate() {
        super.onCreate();
        mContext = this;
        lcFactory = Factory.instance();
        lcFactory.setDebugMode(true, "lilinaini 34>>");
        try {
            String basePath = mContext.getFilesDir().getAbsolutePath();
            copyAssetsFromPackage(basePath);
            mLinPhoneCore = lcFactory.createCore(basePath + "/.linphonerc", basePath + "/linphonerc", mContext);
            mLinPhoneCore.addListener(this);
          /*  getLC().setPreferredFramerate(15);
            getLC().setVideoPreset("custom");
            getLC().setUploadBandwidth(0);
            getLC().setDownloadBandwidth(0);*/
            startIterate();
            setUserAgent();
            mInstance = this;
            mLinPhoneCore.setNetworkReachable(true); // Let's assume it's true
            mAudioManager = ((AudioManager) mContext.getSystemService(Context.AUDIO_SERVICE));
            mAudioManager.setSpeakerphoneOn(true);
            String[] dnsServer = new String[]{"8.8.8.8"};
            mLinPhoneCore.setDnsServers(dnsServer);
            mLinPhoneCore.enableAdaptiveRateControl(false);
            mLinPhoneCore.start();
            setSipPort(-1);

            String preferredVideoSize = getPreferredVideoSize();
            Log.e(TAG, preferredVideoSize);
            //getConfig().setString("video", "size", "qcif");
            //setPreferredVideoSize("cif");

            //初始化完成把linphone版本通过回调接口返回回去
            if (listener != null) listener.onLinphone("show_version", mLinPhoneCore.getVersion());
        } catch (Exception e) {
            e.printStackTrace();
            Log.e(TAG, "LinphoneMiniManager创建错误");
        }
    }

    /**
     * 设置sip端口号
     *
     * @param port
     */
    public void setSipPort(int port) {
        Transports transports = getLC().getTransports();
        transports.setUdpPort(port);
        transports.setTcpPort(port);
        transports.setTlsPort(-1);
        getLC().setTransports(transports);
    }

    /**
     * 注册删除时候调用
     *
     * @param host
     * @param username
     * @param password
     */
    public void setTurn(String host, String username, String password) {
        if (getLC() == null) {
            return;
        }
        NatPolicy nat = getOrCreateNatPolicy();
        nat.setStunServer(host);
        nat.enableIce(true);
        nat.enableTurn(true);
        AuthInfo authInfo = getLC().findAuthInfo(null, nat.getStunServerUsername(), null);

        if (authInfo != null) {
            Log.e(TAG, "方式1");
            AuthInfo cloneAuthInfo = authInfo.clone();
            getLC().removeAuthInfo(authInfo);
            cloneAuthInfo.setUsername(username);
            cloneAuthInfo.setUserid(username);
            cloneAuthInfo.setPassword(password);
            getLC().addAuthInfo(cloneAuthInfo);
        } else {
            Log.e(TAG, "方式2");
            authInfo = Factory.instance().createAuthInfo(username, username, password, null, null, null);
            getLC().addAuthInfo(authInfo);
        }
        nat.setStunServerUsername(username);
        getLC().setNatPolicy(nat);
    }


    private NatPolicy getOrCreateNatPolicy() {
        if (mLinPhoneCore == null) {
            return null;
        }
        NatPolicy nat = mLinPhoneCore.getNatPolicy();
        if (nat == null) {
            nat = mLinPhoneCore.createNatPolicy();
        }
        return nat;
    }

    @Override
    public void onDestroy() {
        super.onDestroy();
        endIterate();
    }

    private int iterateCount = 0;

    private final int iterateTime = 20;

    /**
     * 循环检查linphone状态
     */
    private void startIterate() {
        poolExecutor = new ScheduledThreadPoolExecutor(1, r -> {
            Thread thread = new Thread(r);
            thread.setName("linPhone保活线程" + System.currentTimeMillis());
            return thread;
        });
        future = poolExecutor.scheduleAtFixedRate(() -> {
            try {
                if (mLinPhoneCore != null) {
                    iterateCount++;
                    if (iterateCount % (10 * 1000 / iterateTime) == 0) {
                        iterateCount = 0;
                        ProxyConfig defaultProxyConfig = mLinPhoneCore.getDefaultProxyConfig();
                        if (defaultProxyConfig != null) {
                            RegistrationState state = defaultProxyConfig.getState();
                            if (state != null) {
                                Log.e(TAG, Thread.currentThread().getName() + "状态:" + state.toString() + ">>" + state.toInt());
                            }
                        }
                    }
                    mLinPhoneCore.iterate();
                }
            } catch (Exception e) {
                Log.e(TAG, Thread.currentThread().getName() + "异常,重启线程");
                endIterate();
                startIterate();
            }
        }, 0, iterateTime, TimeUnit.MILLISECONDS);
    }

    /**
     * 销毁循环检查linphone状态的线程
     */
    private void endIterate() {
        if (future != null) {
            future.cancel(true);
            future = null;
        }
        if (poolExecutor != null) {
            poolExecutor.shutdown();
            poolExecutor = null;
        }
    }

    /**
     * 把资源文件复制到指定目录
     *
     * @param basePath
     */
    private void copyAssetsFromPackage(final String basePath) {
        threadPool.execute(() -> {
            try {
                LinphoneMiniUtils.copyIfNotExist(mContext, R.raw.linphonerc_default, basePath + "/.linphonerc");
                LinphoneMiniUtils.copyFromPackage(mContext, R.raw.linphonerc_factory, new File(basePath + "/linphonerc").getName());
                LinphoneMiniUtils.copyIfNotExist(mContext, R.raw.lpconfig, basePath + "/lpconfig.xsd");
                LinphoneMiniUtils.copyFromPackage(mContext, R.raw.assistant_create, new File(basePath + "/assistant_create.rc").getName());
            } catch (Exception e) {
                e.printStackTrace();
            }
        });
    }

    /**
     * 设置用户代理
     */
    private void setUserAgent() {
        try {
            String versionName = mContext.getPackageManager().getPackageInfo(mContext.getPackageName(), 0).versionName;
            if (versionName == null) {
                versionName = String.valueOf(mContext.getPackageManager().getPackageInfo(mContext.getPackageName(), 0).versionCode);
            }
            mLinPhoneCore.setUserAgent("LinphoneMiniAndroid", versionName);
        } catch (Exception e) {
            e.printStackTrace();
        }
    }


    /**
     * -------------------------------------------linphone监听 开始----------------------------------------------------------------------------------------------
     *
     * @param core
     * @param globalState
     * @param s
     */
    @Override
    public void onGlobalStateChanged(Core core, GlobalState globalState, String s) {
        Log.e(TAG, ">onGlobalStateChanged " + s);
    }

    @Override
    public void onRegistrationStateChanged(Core core, ProxyConfig proxyConfig, RegistrationState registrationState, String smessage) {
        Log.e(TAG, "注册状态 onRegistrationStateChanged-->" + smessage);

        //把注册状态通过回调接口返回回去
        if (listener != null) listener.onLinphone("reg_state", smessage);

        if (smessage.contains("successful")) {
            String str = "音频:\n";
            PayloadType[] audioCodecs = mLinPhoneCore.getAudioPayloadTypes();
            for (PayloadType payloadType : audioCodecs) {
                str += payloadType.getMimeType() + "-" + payloadType.getNormalBitrate() + "-" + payloadType.enabled() + "\n";
            }
            str += "\n视频:";
            for (PayloadType payloadType1 : mLinPhoneCore.getVideoPayloadTypes()) {
                // if(payloadType1.getMimeType().equalsIgnoreCase("VP8")) {payloadType1.enable(false);}
                str += payloadType1.getMimeType() + "" + payloadType1.enabled() + "\n";
            }

            //把注册成功后音视频信息返回回去
            if (listener != null) listener.onLinphone("show_code", str);
        }
    }

    @Override
    public void onCallStateChanged(Core core, Call call, Call.State state, String s) {
        Log.e(TAG, "呼叫状态 onCallStateChanged-->" + call.getRemoteAddress().getUsername() + "  >" + call.getRemoteAddressAsString() + "  >" + s);
        //过滤呼叫状态
        if (s.startsWith("Incoming CallSession") || s.startsWith("Call released") || "Connected".equals(s)) {
            //把呼叫状态返回回去
            if (listener != null) listener.onLinphone("show_callinfo", s);
        }
    }

    @Override
    public void onNotifyPresenceReceived(Core core, Friend friend) {

    }

    @Override
    public void onNotifyPresenceReceivedForUriOrTel(Core core, Friend friend, String s, PresenceModel presenceModel) {

    }

    @Override
    public void onNewSubscriptionRequested(Core core, Friend friend, String s) {

    }

    @Override
    public void onAuthenticationRequested(Core core, AuthInfo authInfo, AuthMethod authMethod) {

    }

    @Override
    public void onCallLogUpdated(Core core, CallLog callLog) {

    }

    @Override
    public void onMessageReceived(Core core, ChatRoom chatRoom, ChatMessage chatMessage) {

    }

    @Override
    public void onMessageReceivedUnableDecrypt(Core core, ChatRoom chatRoom, ChatMessage chatMessage) {

    }

    @Override
    public void onIsComposingReceived(Core core, ChatRoom chatRoom) {
        Log.e(TAG, ">onIsComposingReceived " + chatRoom.getSubject());
    }

    @Override
    public void onDtmfReceived(Core core, Call call, int i) {
        Log.e(TAG, ">onDtmfReceived " + i + "收到");
    }

    @Override
    public void onReferReceived(Core core, String s) {
        Log.e(TAG, ">onReferReceived " + s);
    }

    @Override
    public void onCallEncryptionChanged(Core core, Call call, boolean b, String s) {

    }

    @Override
    public void onTransferStateChanged(Core core, Call call, Call.State state) {

    }

    @Override
    public void onBuddyInfoUpdated(Core core, Friend friend) {

    }

    @Override
    public void onCallStatsUpdated(Core core, Call call, CallStats callStats) {
    }

    @Override
    public void onInfoReceived(Core core, Call call, InfoMessage infoMessage) {
        Log.e(TAG, ">onInfoReceived " + infoMessage.getContent().toString());
    }

    @Override
    public void onSubscriptionStateChanged(Core core, Event event, SubscriptionState subscriptionState) {

    }

    @Override
    public void onNotifyReceived(Core core, Event event, String s, Content content) {

    }

    @Override
    public void onSubscribeReceived(Core core, Event event, String s, Content content) {

    }

    @Override
    public void onPublishStateChanged(Core core, Event event, PublishState publishState) {
        Log.e(TAG, ">onInfoReceived " + publishState);
    }

    @Override
    public void onConfiguringStatus(Core core, ConfiguringState configuringState, String s) {
    }

    @Override
    public void onNetworkReachable(Core core, boolean b) {

    }

    @Override
    public void onLogCollectionUploadStateChanged(Core core, Core.LogCollectionUploadState logCollectionUploadState, String s) {

    }

    @Override
    public void onLogCollectionUploadProgressIndication(Core core, int i, int i1) {

    }

    @Override
    public void onFriendListCreated(Core core, FriendList friendList) {

    }

    @Override
    public void onFriendListRemoved(Core core, FriendList friendList) {

    }

    @Override
    public void onCallCreated(Core core, Call call) {
        Log.e(TAG, ">onCallCreated " + call + "" + call.getRemoteAddressAsString());
    }

    @Override
    public void onVersionUpdateCheckResultReceived(Core core, VersionUpdateCheckResult versionUpdateCheckResult, String s, String s1) {

    }

    @Override
    public void onChatRoomStateChanged(Core core, ChatRoom chatRoom, ChatRoom.State state) {

    }

    @Override
    public void onQrcodeFound(Core core, String s) {

    }

    @Override
    public void onEcCalibrationResult(Core core, EcCalibratorStatus ecCalibratorStatus, int i) {

    }

    @Override
    public void onEcCalibrationAudioInit(Core core) {

    }

    @Override
    public void onEcCalibrationAudioUninit(Core core) {

    }
    /**
     * -------------------------------------------linphone监听 结束----------------------------------------------------------------------------------------------
     */

    /**
     * -------------------------------------------linphone公开方法 开始----------------------------------------------------------------------------------------------
     * 注册
     *
     * @param host
     * @param username
     * @param password
     * @param transport
     * @throws Exception
     */
    public void lilin_reg(String host, String username, String password, TransportType transport) throws Exception {
        if (mLinPhoneCore == null) {
            return;
        }
        Log.e(TAG, "lilin_reg 开始注册-->host: " + host + " username-->" + username + " password-->" + password + " transport-->" + transport);
        for (ProxyConfig linphoneProxyConfig : mLinPhoneCore.getProxyConfigList()) {
            mLinPhoneCore.removeProxyConfig(linphoneProxyConfig);
        }
        for (AuthInfo x : mLinPhoneCore.getAuthInfoList()) {
            mLinPhoneCore.removeAuthInfo(x);
        }

        AccountBuilder builder = new AccountBuilder(mLinPhoneCore)
                .setUsername(username)
                .setDomain(host)
                .setHa1(null)
                .setUserid(username)
                .setDisplayName("")//显示名
                .setPassword(password);

        builder.setAvpfEnabled(false);

        String prefix = null;
        if (prefix != null) {
            builder.setPrefix(prefix);
        }
        String forcedProxy = "";//"39.108.0.211:11889";
        if (!TextUtils.isEmpty(forcedProxy)) {
            builder.setServerAddr(forcedProxy).setOutboundProxyEnabled(true);// .setAvpfRrInterval(5);
        }

        if (transport != null) {
            builder.setTransport(transport);
        }

        try {
            builder.saveNewAccount();
        } catch (CoreException e) {
            Log.e(TAG, ">tishi >>>>" + e.getMessage());
        }
    }

    /**
     * 初始化sip电话线程池
     */
    private final ThreadPoolExecutor threadPool = new ThreadPoolExecutor(2, 10, 10, TimeUnit.SECONDS, new LinkedBlockingQueue<Runnable>(1), new ThreadFactory() {
        @Override
        public Thread newThread(Runnable runnable) {
            Thread thread = new Thread(runnable);
            thread.setName("sip电话线程池");
            return thread;
        }
    });

    /**
     * 打电话
     *
     * @param username
     * @param host
     * @param isVideoCall
     */
    public void lilin_call(final String username, final String host, final boolean isVideoCall) {
        threadPool.execute(() -> {
            if (mLinPhoneCore == null) {
                return;
            }
            Log.e(TAG, "lilin_call打电话  username-->" + username + " host-->" + host + " isVideoCall-->" + isVideoCall);
            Address address = mLinPhoneCore.interpretUrl(username + "@" + host);
            address.setDisplayName(username);
            CallParams params = mLinPhoneCore.createCallParams(null);
            //params.enableLowBandwidth(true);
            //params.setAudioBandwidthLimit(0);
            params.enableVideo(isVideoCall);
            Call call = mLinPhoneCore.inviteAddressWithParams(address, params);
            if (call == null) {
                Log.e(TAG, "lilin error  Could not place call to " + username);
            }
        });
    }

    /**
     * 终止所有Calls
     */
    public void hangUp() {
        if (mLinPhoneCore == null) {
            return;
        }
        mLinPhoneCore.terminateAllCalls();
    }

    /**
     * 开启扩音或关闭
     */
    public void lilin_enkuo() {
        if (mAudioManager == null) {
            return;
        }
        mAudioManager.setSpeakerphoneOn(mAudioManager.isSpeakerphoneOn() ? false : true);
    }

    /**
     * 接电话
     */
    public void liLinJie() {
        threadPool.execute(() -> {
            if (mLinPhoneCore == null) return;
            Log.e(TAG, "liLinJie: 接电话");
            Call currentCall = mLinPhoneCore.getCurrentCall();
            if (currentCall != null) {
                CallParams params = mLinPhoneCore.createCallParams(currentCall);
                CallParams remoteParams = currentCall.getRemoteParams();
                if (remoteParams != null && remoteParams.videoEnabled()) {
                    params.enableVideo(false);
                    Log.e(Thread.currentThread().getName(), "视频通话  模式" + getLC().getVideoPreset() + "fps" + getLC().getPreferredFramerate() + "带宽" + getLC().getUploadBandwidth() + "分辨率" + getLC().getPreferredVideoDefinition().getHeight());
                } else {
                    Log.e(Thread.currentThread().getName(), "音频通话通话");
                }
                currentCall.acceptWithParams(params);
            }
        });
    }

    /**
     * 获取Config配置
     *
     * @return
     */
    public Config getConfig() {
        Core core = getLC();
        if (core != null) {
            return core.getConfig();
        }

        if (!LinphoneMiniManager.isReady()) {
            File linphonerc = new File(mContext.getFilesDir().getAbsolutePath() + "/.linphonerc");
            if (linphonerc.exists()) {
                return Factory.instance().createConfig(linphonerc.getAbsolutePath());
            } else if (mContext != null) {
                InputStream inputStream = mContext.getResources().openRawResource(R.raw.linphonerc_default);
                InputStreamReader inputreader = new InputStreamReader(inputStream);
                BufferedReader buffreader = new BufferedReader(inputreader);
                StringBuilder text = new StringBuilder();
                String line;
                try {
                    while ((line = buffreader.readLine()) != null) {
                        text.append(line);
                        text.append('\n');
                    }
                } catch (IOException ioe) {
                    ioe.printStackTrace();
                }
                return Factory.instance().createConfigFromString(text.toString());
            }
        } else {
            return Factory.instance().createConfig(mContext.getFilesDir().getAbsolutePath() + "/.linphonerc");
        }
        return null;
    }

    public String getPreferredVideoSize() {
        return getConfig().getString("video", "size", "qvga");
    }

    public void setPreferredVideoSize(String preferredVideoSize) {
        if (getLC() == null) {
            return;
        }
        VideoDefinition preferredVideoDefinition = Factory.instance().createVideoDefinitionFromName(preferredVideoSize);
        getLC().setPreferredVideoDefinition(preferredVideoDefinition);
    }
    /**
     * -------------------------------------------linphone公开方法 结束----------------------------------------------------------------------------------------------
     */
}
