javaswing+geotools实现shp格式文件转换geojson格式文件的界面小工具

前言
由于是第一次接触swing和geotools，而且是奔着完成任务目标去接触的，所以了解得比较片面。

Javaswing简介：https://www.runoob.com/w3cnote/java-swing-demo-intro.html
Geotools简介：https://blog.csdn.net/qq_21225505/article/details/86181817

功能说明

• 将制定目录下的shp文件转换成geojson格式的文件，后缀可以自定义，可以是.txt、.json、.geojson等。
• 本项目是要求在转换过程中，需要指定name和describe两个字段作为转换后的字段，而这两个字段对应SHP文件里的字段需要人为选择映射。
• 代码中只对点和线的SHP文件转换做了判断处理。

1.新建maven工程

• 建项目过程此处省略。。。

2.pom配置

• 为了这个geotools的jar我真是抓破了头，maven库里找不到，需要另外配库。

<!-- 需要另外配置geotools工具包的下载地址 -->
<repositories>
	    <repository>
	        <id>osgeo</id>
	        <name>Open Source Geospatial Foundation Repository</name>
	        <url>http://download.osgeo.org/webdav/geotools/</url>
	    </repository>
	    <repository>
	        <snapshots>
	            <enabled>true</enabled>
	        </snapshots>
	        <id>opengeo</id>
	        <name>OpenGeo Maven Repository</name>
	        <url>http://repo.opengeo.org</url>
	    </repository>
	</repositories>

<!-- 工具包引入 -->
 <dependencies>
    <dependency>
      <groupId>org.geotools</groupId>
      <artifactId>gt-shapefile</artifactId>
      <version>18.4</version>
    </dependency>
    <dependency>
      <groupId>org.geotools</groupId>
      <artifactId>gt-geojson</artifactId>
      <version>18.4</version>
    </dependency>
  </dependencies>

3.shp文件转geojson文件功能实现

import java.io.File;
import java.io.FileWriter;
import java.io.IOException;
import java.nio.charset.Charset;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.Iterator;
import java.util.List;
import java.util.Map;
import org.geotools.data.shapefile.ShapefileDataStore;
import org.geotools.data.shapefile.ShapefileDataStoreFactory;
import org.geotools.data.simple.SimpleFeatureCollection;
import org.geotools.data.simple.SimpleFeatureIterator;
import org.geotools.data.simple.SimpleFeatureSource;
import org.geotools.geojson.feature.FeatureJSON;
import org.opengis.feature.Property;
import org.opengis.feature.simple.SimpleFeature;

public class ShapeFileServer {

	/*public static void main(String[] args) {
		ShapeFileServer sfs = new ShapeFileServer();
		sfs.reaferShp("D:/ShapeFile/states/states.shp");
		//sfs.reaferShp("D:/ShapeFile/Data/USA/states.shp");
	}*/
	/**
	 * 获取元素的名称
	 * @param shpPath 文件路径
	 * @return 元素名称的集合
	 */
	public String[] getFeatureName(String shpPath){
		List<String> list = new ArrayList<>();
		ShapefileDataStoreFactory dataStoreFactory = new ShapefileDataStoreFactory();
        try {
            ShapefileDataStore sds = (ShapefileDataStore)dataStoreFactory.createDataStore(new File(shpPath).toURI().toURL());
            sds.setCharset(Charset.forName("utf-8"));
            SimpleFeatureSource featureSource = sds.getFeatureSource();
            SimpleFeatureCollection simpleFeatureCollection = featureSource.getFeatures();
            SimpleFeatureIterator itertor = simpleFeatureCollection.features();
            //SimpleFeatureIterator itertor = featureSource.getFeatures().features();
            while(itertor.hasNext()) {
                SimpleFeature feature = itertor.next();
                Iterator<Property> iterator = feature.getProperties().iterator();
                if(list.size()==0) {
                	 while(iterator.hasNext()) {
                    	 Property pro = iterator.next();
                    	 list.add(pro.getName().toString());
                    }
                }
             }
             itertor.close();
        } catch (Exception e) {
            e.printStackTrace();
        }
        String[] str = new String[list.size()+1];
        str[0] = "请选择";
        for (int i = 0; i < list.size(); i++) {
        	str[i+1] = list.get(i);
		}
		return str;
	}

	/**
	 * 获取指定字段的所有不重复的值
	 * @param shpPath 文件路径
	 * @param name 指定字段
	 * @return 指定字段的值数组
	 */
	public String[] getValue(String shpPath , String name){
		List<String> list = new ArrayList<>();
		ShapefileDataStoreFactory dataStoreFactory = new ShapefileDataStoreFactory();
        try {
            ShapefileDataStore sds = (ShapefileDataStore)dataStoreFactory.createDataStore(new File(shpPath).toURI().toURL());
            sds.setCharset(Charset.forName("utf-8"));
            SimpleFeatureSource featureSource = sds.getFeatureSource();
            SimpleFeatureCollection simpleFeatureCollection = featureSource.getFeatures();
            SimpleFeatureIterator itertor = simpleFeatureCollection.features();
            //SimpleFeatureIterator itertor = featureSource.getFeatures().features();
            while(itertor.hasNext()) {
                SimpleFeature feature = itertor.next();
                Iterator<Property> iterator = feature.getProperties().iterator();
            	 while(iterator.hasNext()) {
                	 Property pro = iterator.next();
                	 if(name.equals(pro.getName().toString())) {
                		 if(!list.contains(pro.getValue().toString()) && !"".equals(pro.getValue().toString())) {
                    		 list.add(pro.getValue().toString());
                    	 }
                	 }
            	 }
             }
             itertor.close();
        } catch (Exception e) {
            e.printStackTrace();
        }
        String[] str = new String[list.size()+1];
        str[0] = "请选择";
        for (int i = 0; i < list.size(); i++) {
        	str[i+1] = list.get(i);
		}
		return str;
	}

	/**
	 * 读SHP文件，
	 * @param shpPath shp文件路径
	 * @return List<Map<String ,String>>（feature集合）
	 */
	public List<Map<String ,String>> reaferShp(String shpPath){
		List<Map<String ,String>> list = new ArrayList<>();
		ShapefileDataStoreFactory dataStoreFactory = new ShapefileDataStoreFactory();
        try {
            ShapefileDataStore sds = (ShapefileDataStore)dataStoreFactory.createDataStore(new File(shpPath).toURI().toURL());
            sds.setCharset(Charset.forName("utf-8"));
            SimpleFeatureSource featureSource = sds.getFeatureSource();
            SimpleFeatureIterator itertor = featureSource.getFeatures().features();
            while(itertor.hasNext()) {
            	Map<String ,String> map = new HashMap<>();
                SimpleFeature feature = itertor.next();
                Iterator<Property> iterator = feature.getProperties().iterator();
                while(iterator.hasNext()) {
                	 Property pro = iterator.next();
                	 map.put(pro.getName().toString(), pro.getValue().toString());
                }
                list.add(map);
             }
             itertor.close();
        } catch (Exception e) {
            e.printStackTrace();
        }
		return list;
	}

	/**
	 * 将geojson格式字符串保存进文件中
	 * @param content geojson格式字符串
	 * @throws IOException
	 */
	public void writeToGeojson(List<Map<String ,String>> list , String geoJsonPath) throws IOException {
			FileWriter fileWriter=new FileWriter(geoJsonPath,true);//".json"
			fileWriter.append("{\"type\":\"FeatureCollection\",\"features\":[");
			for (int i = 0; i < list.size(); i++) {
				Map<String,String> item = list.get(i);
				fileWriter.append("{\"type\":\"Feature\",\"properties\":{");
				String properties = "";
				for (String key : item.keySet()) {
					if(!"the_geom".equals(key)) {
						properties+="\""+key+"\":\""+item.get(key)+"\",";
					}
				}
				fileWriter.append(properties.subSequence(0, properties.length()-1));
				fileWriter.append("},");
				Map<String,String> map = parseCoordinate(list.get(i).get("the_geom"));
				String geometryType = map.get("type");
				fileWriter.append("\"geometry\":{\"type\":\""+geometryType+"\",\"coordinates\":");
				String coordinate = map.get("value");
				fileWriter.append(coordinate);
				if(i==list.size()-1) {
					fileWriter.append("}}");
				}else {
					fileWriter.append("}},");
				}
				fileWriter.flush();
			}
			fileWriter.append("]}");
			fileWriter.flush();
			fileWriter.close();
	}

	/**
	 *  按要求转换SHP文件成geojson格式--映射name、describe
	 * @param list 结果集
	 * @param mapping 映射name和describe
	 * @param geoJsonPath 转换后文件的保存路径
	 * @throws IOException
	 */
	public void appendToFile(List<Map<String ,String>> list ,Map<String ,String> mapping, String geoJsonPath) throws IOException{
		//所选的条件名及选定的值
		String conditionName = mapping.get("conditionName");
		String conditionValue = mapping.get("conditionValue");
		//放入需要写入的内容
		List<Map<String ,String>> subList = new ArrayList<>();
		FileWriter fileWriter = new FileWriter(geoJsonPath,true);
		//geojson前缀
		fileWriter.append("{\"type\":\"FeatureCollection\",\"features\":[");
		//判断是否选择了过滤条件
		if(null != conditionName && !"".equals(conditionName) && null != conditionValue && !"".equals(conditionValue)) {
			for (int i = 0; i < list.size(); i++) {
				Map<String,String> item = list.get(i);
				if(item.get(conditionName).equals(conditionValue)) {
					subList.add(item);
				}
			}
		}else {
			subList = list;
		}
		//写入筛选后的需要写入的内容
		for (int i = 0; i < subList.size(); i++) {
			Map<String,String> item = list.get(i);
			fileWriter.append("{\"type\":\"Feature\",\"properties\":{");
			String nameItem = (null != item.get(mapping.get("name")) ? item.get(mapping.get("name")) : "name_"+i);
			fileWriter.append("\"name\":"+"\""+nameItem+"\",");
			fileWriter.append("\"describe\":"+"\""+item.get(mapping.get("describe"))+"\"");
			fileWriter.append("},");
			Map<String,String> map = parseCoordinate(list.get(i).get("the_geom"));
			String geometryType = map.get("type");
			fileWriter.append("\"geometry\":{\"type\":\""+geometryType+"\",\"coordinates\":");
			String coordinate = map.get("value");
			fileWriter.append(coordinate);
			if(i==subList.size()-1) {
				fileWriter.append("}}");
			}else {
				fileWriter.append("}},");
			}
		}
		fileWriter.append("]}");
		fileWriter.flush();
		fileWriter.close();
	}

	 /**
	 * 将坐标转换成geojson格式，并标注坐标类型：Polygon-面；LineString-线；Point-点
	 * @param polygon 获取到的the_geom坐标字符串
	 * @return Map<String,String> type:坐标类型；value:转换后的geojson格式坐标
	 */
	 public Map<String,String> parseCoordinate(String polygon){
		  Map<String,String> param = new HashMap<>();
		  String value="";
		  if(polygon.indexOf("(((")>0 && polygon.lastIndexOf(")))")>0) {//面
			  int beginIndex=polygon.indexOf("(((")+3;
			  int endIndex=polygon.lastIndexOf(")))");
			  String s=polygon.substring(beginIndex,endIndex).replace('(', ' ').replace(')', ' ');
			  value = geojsonWrapper(s);
			  param.put("type", "Polygon");
			  param.put("value", value);
		  }else if(polygon.indexOf("((")>0 && polygon.lastIndexOf("))")>0 && polygon.indexOf("(((")==-1) {//线
			  int beginIndex=polygon.indexOf("((")+2;
			  int endIndex=polygon.lastIndexOf("))");
			  String s=polygon.substring(beginIndex,endIndex).replace('(', ' ').replace(')', ' ');
			  value = geojsonWrapperLine(s);
			  param.put("type", "LineString");
			  param.put("value", value);
		  }else if(polygon.indexOf("(")>0 && polygon.lastIndexOf(")")>0 && polygon.indexOf("((")==-1){//点
			  int beginIndex=polygon.indexOf("(")+1;
			  int endIndex=polygon.lastIndexOf(")");
			  String s=polygon.substring(beginIndex,endIndex).replace('(', ' ').replace(')', ' ');
			  value = geojsonWrapperPoint(s);
			  param.put("type", "Point");
			  param.put("value", value);
		  }
		  return param;
	 }

	 //点
	 private String geojsonWrapperPoint(String point){
		  StringBuilder sber=new StringBuilder(point.length()+30);
		  String tmp[]=point.split(",");
		  sber.append("[");
		  for(int i=0;i<tmp.length;i++){
		   sber.append(tmp[i].trim().replace(" ", ","));
		   if(i != tmp.length-1)
		    sber.append(",");
		  }
		  sber.append("]");
		  return sber.toString();
	}

	 //线
	 private String geojsonWrapperLine(String polygon){
		  StringBuilder sber=new StringBuilder(polygon.length()+30);
		  String tmp[]=polygon.split(",");
		  sber.append("[");
		  for(int i=0;i<tmp.length;i++){
		   sber.append("[");
		   sber.append(tmp[i].trim().replace(" ", ","));
		   sber.append("]");
		   if(i != tmp.length-1)
		    sber.append(",");
		  }
		  sber.append("]");
		  return sber.toString();
	}

	 //面
	 private String geojsonWrapper(String polygon){
		  StringBuilder sber=new StringBuilder(polygon.length()+30);
		  String tmp[]=polygon.split(",");
		  sber.append("[[");
		  for(int i=0;i<tmp.length;i++){
		   sber.append("[");
		   sber.append(tmp[i].trim().replace(" ", ","));
		   sber.append("]");
		   if(i != tmp.length-1)
		    sber.append(",");
		  }
		  sber.append("]]");
		  return sber.toString();
	}
}

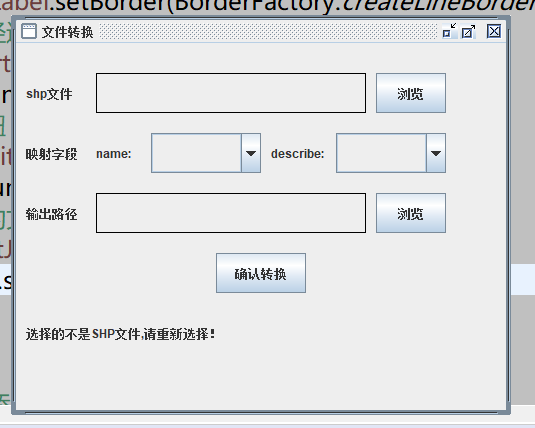

4.swing界面实现

private ShapeFileServer shapefileServer = new ShapeFileServer();
	private String shpPath = "";
	private String fileName = "";
	private String nameStr="";
	private String describeStr="";
	private String savePath = "";

	public void swingShow() {
		//Font font= new Font("隶书",Font.PLAIN,15);
		//UIManager.put("Button.font",font);
		 // 确保一个漂亮的外观风格
        JFrame.setDefaultLookAndFeelDecorated(true);
        // 创建及设置窗口
        JFrame frame = new JFrame("Cellsys数据转换工具");
        //设置窗体风格
        //frame.getRootPane().setWindowDecorationStyle(JRootPane.FRAME);
        //设置窗口大小
        frame.setSize(500, 400);
        frame.setResizable(false);
        frame.setLocationRelativeTo(null);
        //关闭窗口即退出程序
        frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        //布局对象
        JPanel panel = new JPanel();
        // 添加面板
        frame.add(panel);
        panel.setLayout(null);
        panel.setBounds(400, 200, 200, 200);

        /*
         * 创建组件对象
         */

        //文件名称显示框
        JLabel shp = new JLabel("shp文件");
        shp.setBounds(10,30,60,40);
        //文件名称显示框
        JLabel jl = new JLabel();
        jl.setBorder(BorderFactory.createLineBorder(Color.BLACK));
        jl.setBounds(80,30,270,40);
        //文件选择按钮
        JButton jb = new JButton("浏览");
        jb.setBounds(360,30,70,40);
        //mapping文本框
        JLabel mapping = new JLabel("映射字段");
        mapping.setBounds(10, 90,60,40);
        //name文本框
        JLabel nameJLabel = new JLabel("name:");
        nameJLabel.setBounds(80, 90,50,40);
        //字段name下拉框
        JComboBox<String> nameComboBox=new JComboBox<String>();
        nameComboBox.setBounds(135, 90, 110, 40);
        //describe文本框
        JLabel describeJLabel = new JLabel("describe:");
        describeJLabel.setBounds(255, 90,60,40);
        //字段describe下拉框
        JComboBox<String> describeComboBox=new JComboBox<String>();
        describeComboBox.setBounds(320, 90, 110, 40);
        //保存路径文本框
        JLabel exportJLabel = new JLabel("输出路径");
        exportJLabel.setBounds(10, 150,60,40);
        //输出路径显示
        JLabel exportShowJLabel = new JLabel();
        exportShowJLabel.setBounds(80, 150,270,40);
        exportShowJLabel.setBorder(BorderFactory.createLineBorder(Color.BLACK));
        //文件存放路径选择
        JButton export = new JButton("浏览");
        export.setBounds(360,150,70,40);
        //确认转换按钮
        JButton submit = new JButton("确认转换");
        submit.setBounds(200,210,90,40);
        //显示转换后的文件存储的路径，或者提示选错文件
        JLabel promptJLabel = new JLabel();
        promptJLabel.setBounds(10, 260,300,60);
        /*
         * 将组件对象添加进布局对象panel
         */
        panel.add(shp);
        panel.add(jb);
        panel.add(jl);
        panel.add(mapping);
        panel.add(nameJLabel);
        panel.add(nameComboBox);
        panel.add(describeJLabel);
        panel.add(describeComboBox);
        panel.add(exportJLabel);
        panel.add(exportShowJLabel);
        panel.add(export);
        panel.add(submit);
        panel.add(promptJLabel);
        /*
         * 各种事件监听器
         */
        //名称下拉框，选中点击事件
        nameComboBox.addActionListener(new ActionListener() {
			@Override
			public void actionPerformed(ActionEvent e) {
				nameStr = nameComboBox.getSelectedItem().toString();
			}
		});

        //描述下拉框，选中点击事件
        describeComboBox.addActionListener(new ActionListener() {
			@Override
			public void actionPerformed(ActionEvent e) {
				describeStr = describeComboBox.getSelectedItem().toString();
			}
		});

        //监听文件选择按钮的事件
        jb.addActionListener(new ActionListener() {
            @Override
             public void actionPerformed(ActionEvent e) {
            	JFileChooser jfc=new JFileChooser();
                jfc.setFileSelectionMode(JFileChooser.FILES_AND_DIRECTORIES );
                jfc.showDialog(new JLabel(), "选择");
                File file=jfc.getSelectedFile();
                if(file.isFile()){
                    //将选中的文件路径赋值全局
                    shpPath = file.getAbsolutePath();
                    String name = jfc.getSelectedFile().getName();
                    //判断选中的是否是SHP格式文件
                    String[] items = name.split("\\.");
                    if("shp".equals(items[items.length-1]) || "SHP".equals(items[items.length-1])) {
                    	//获取不带拓展名的文件名称
                        fileName = name.substring(0, name.length()-4);
                    	 //替换选择文件的文件名显示框内容
                        jl.setText(shpPath);
                        //替换下拉框的内容
                        String[] model = shapefileServer.getFeatureName(shpPath);
                        nameComboBox.setModel(new DefaultComboBoxModel<>(model));
                        describeComboBox.setModel(new DefaultComboBoxModel<>(model));
                    }else {
                    	//提示选择的不是shp类型文件
                    	promptJLabel.setText("选择的不是SHP文件,请重新选择！");
                    }
                }else {
                	promptJLabel.setText("选择的不是SHP文件,请重新选择！");
                }

             }
        });

        //选择文件保存路径按钮的事件监听
        export.addActionListener(new ActionListener() {
            @Override
             public void actionPerformed(ActionEvent e) {
            	JFileChooser jfc=new JFileChooser();
                jfc.setFileSelectionMode(JFileChooser.FILES_AND_DIRECTORIES );
                jfc.showDialog(new JLabel(), "选择");
                File file=jfc.getSelectedFile();
                if(file.isDirectory()){
                    //将选中的文件夹路径赋值全局
                	savePath = file.getAbsolutePath();
                	exportShowJLabel.setText(savePath);
                }else {
                	promptJLabel.setText("请选择文件夹作为存储路径");
                }

             }
         });

        //确认转换的按钮事件监听
        submit.addActionListener(new ActionListener() {
            @Override
             public void actionPerformed(ActionEvent e) {
            	List<Map<String, String>> contentList = shapefileServer.reaferShp(shpPath);
            	Map<String,String> mapping = new HashMap<>();
            	mapping.put("name", nameStr);
            	mapping.put("describe", describeStr);
            	try {
					shapefileServer.appendToFile(contentList, mapping, savePath+"/"+fileName+".geojson");
					promptJLabel.setText("转换成功，转换后的文件路径："+savePath);
				} catch (IOException e1) {
					e1.printStackTrace();
					promptJLabel.setText("转换失败！");
				}
            }
        });
        // 设置界面可见
        frame.setVisible(true);
	}

5.打包运行

• 启动类

 public static void main( String[] args ){
    	SwingServer swingServer = new SwingServer();
		swingServer.swingShow();
}

• 通过runnable jar file方式打成jar包，可以将第三方jar导入其中。打包好双击就可以运行。

6.问题

以上代码在转换多组件的SHP文件时，会出现图层混杂问题。目前没有作出处理，欢迎各位码友告知处理办法。
