KRM安装

创建基础数据


kubectl create ns krm
kubectl create sa krm-backend -n krm
kubectl create rolebinding krm-backend --clusterrole=edit --serviceaccount=krm:krm-backend --namespace=krm
kubectl create clusterrole namespace-creater --verb=create --resource=namespaces
kubectl create clusterrolebinding krm-backend-ns-creater --clusterrole=namespace-creater --serviceaccount=krm:krm-backend --namespace=krm

部署后端服务

KRM部署后，默认的用户名密码是admin/admin，如果需要更改密码，请更改部署文件的USERNAME/PASSWORD变量为用户名密码的MD5值（32位大写，可以使用MD5值在线生成工具进行生成）


cat<<EOF | kubectl -n krm apply -f -
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: krm-backend
  name: krm-backend
spec:
  ports:
  - name: http
    port: 8080
    protocol: TCP
    targetPort: 8080
  selector:
    app: krm-backend
  sessionAffinity: None
  type: ClusterIP
---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: krm-backend
  name: krm-backend
spec:
  replicas: 1
  selector:
    matchLabels:
      app: krm-backend
  strategy:
    rollingUpdate:
      maxSurge: 1
      maxUnavailable: 0
    type: RollingUpdate
  template:
    metadata:
      labels:
        app: krm-backend
    spec:
      serviceAccountName: krm-backend
      containers:
      - env:
        - name: TZ
          value: Asia/Shanghai
        - name: LANG
          value: C.UTF-8
        - name: GIN_MODE
          value: release
        - name: LOG_LEVEL
          value: info
        - name: USERNAME
          value: 21232F297A57A5A743894A0E4A801FC3
        - name: PASSWORD
          value: 21232F297A57A5A743894A0E4A801FC3
        - name: "IN_CLUSTER"
          value: "true"
        image: registry.cn-beijing.aliyuncs.com/dotbalo/krm-backend:latest
        lifecycle: {}
        livenessProbe:
          failureThreshold: 2
          initialDelaySeconds: 10
          periodSeconds: 10
          successThreshold: 1
          tcpSocket:
            port: 8080
          timeoutSeconds: 2
        name: krm-backend
        ports:
        - containerPort: 8080
          name: web
          protocol: TCP
        readinessProbe:
          failureThreshold: 2
          initialDelaySeconds: 10
          periodSeconds: 10
          successThreshold: 1
          tcpSocket:
            port: 8080
          timeoutSeconds: 2
        resources:
          limits:
            cpu: 1
            memory: 1024Mi
          requests:
            cpu: 200m
            memory: 256Mi
      restartPolicy: Always
EOF

部署前端服务

前端服务的Service采用NodePort形式，可以直接使用节点IP+端口号即可访问，如果集群当中有Ingress Controller，可以自行配置Ingress



cat<<EOF | kubectl -n krm apply -f -
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: krm-frontend
  name: krm-frontend
spec:
  ports:
  - name: http
    port: 80
    protocol: TCP
    targetPort: 80
  selector:
    app: krm-frontend
  sessionAffinity: None
  type: NodePort
---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: krm-frontend
  name: krm-frontend
spec:
  replicas: 1
  selector:
    matchLabels:
      app: krm-frontend
  strategy:
    rollingUpdate:
      maxSurge: 1
      maxUnavailable: 0
    type: RollingUpdate
  template:
    metadata:
      labels:
        app: krm-frontend
    spec:
      containers:
      - env:
        - name: TZ
          value: Asia/Shanghai
        - name: LANG
          value: C.UTF-8
        image: registry.cn-beijing.aliyuncs.com/dotbalo/krm-frontend:latest
        lifecycle: {}
        livenessProbe:
          failureThreshold: 2
          initialDelaySeconds: 10
          periodSeconds: 10
          successThreshold: 1
          tcpSocket:
            port: 80
          timeoutSeconds: 2
        name: krm-backend
        ports:
        - containerPort: 80
          name: web
          protocol: TCP
        readinessProbe:
          failureThreshold: 2
          initialDelaySeconds: 10
          periodSeconds: 10
          successThreshold: 1
          tcpSocket:
            port: 80
          timeoutSeconds: 2
        resources:
          limits:
            cpu: 1
            memory: 512Mi
          requests:
            cpu: 100m
            memory: 256Mi
      restartPolicy: Always
EOF

访问服务

查看服务

[root@k8s11 ~]# kubectl get po -n krm -o wide
NAME                           READY   STATUS    RESTARTS   AGE     IP               NODE    NOMINATED NODE   READINESS GATES
krm-backend-85558d847f-97sf2   1/1     Running   0          2m18s   10.244.228.174   k8s15   <none>           <none>
krm-frontend-c86d9f5c4-lc7km   1/1     Running   0          40s     10.244.175.204   k8s14   <none>           <none>

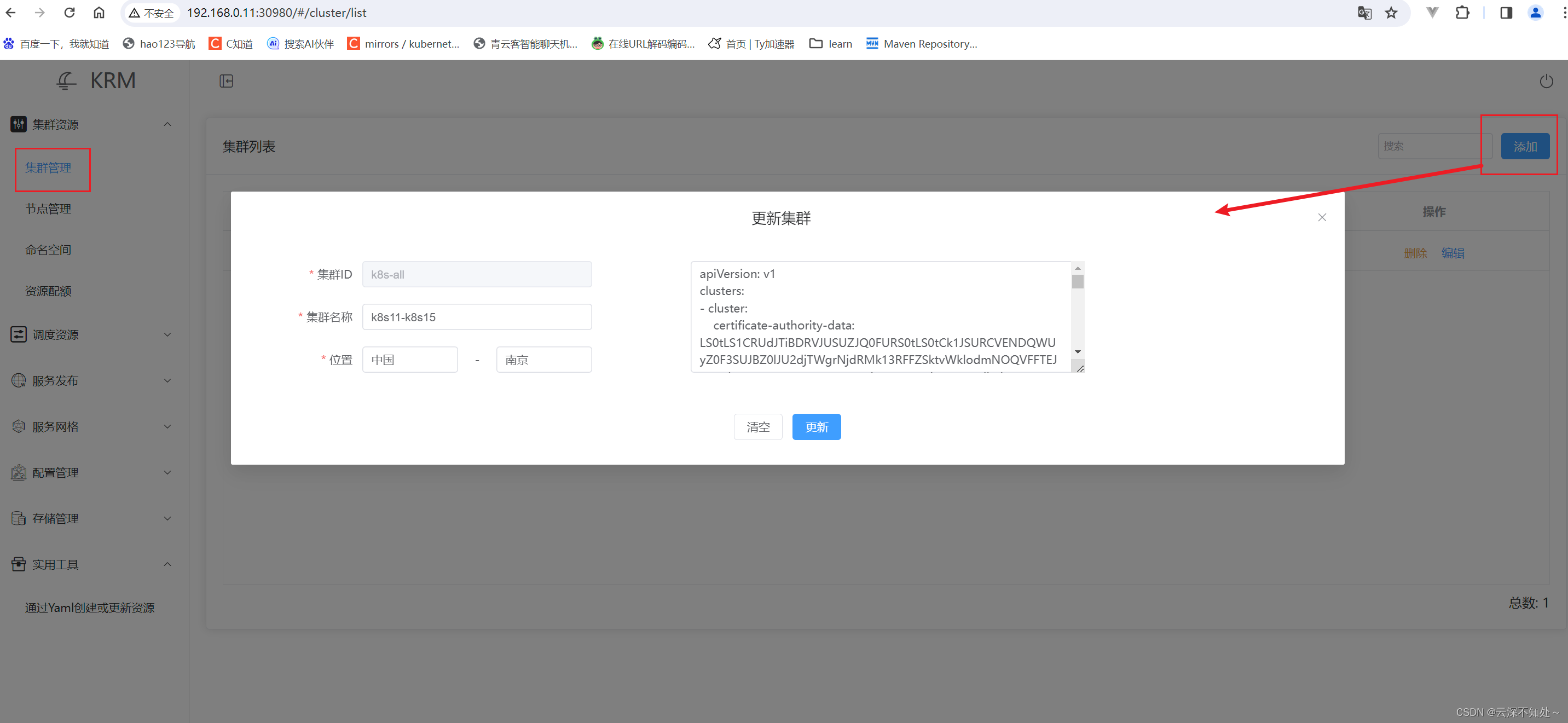

在这里插入图片描述

查看 Service

[root@k8s11 ~]# kubectl get svc -n krm -o wide
NAME           TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)        AGE     SELECTOR
krm-backend    ClusterIP   10.104.185.134   <none>        8080/TCP       4m14s   app=krm-backend
krm-frontend   NodePort    10.108.223.46    <none>        80:30980/TCP   2m36s   app=krm-frontend
