使用多点触控 实现图片的缩放和移动

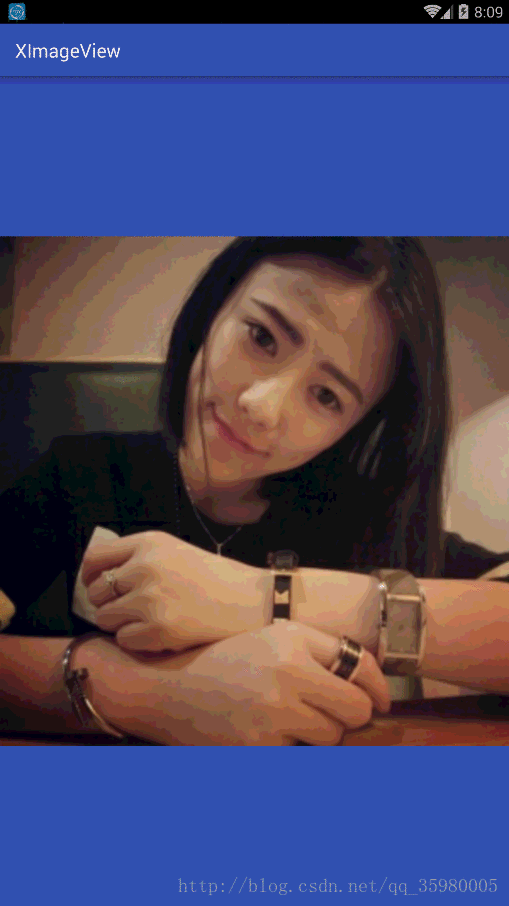

实现的效果如图：

代码如下

public class XImageView extends ImageView {
    public XImageView(Context context) {
        super(context);
        init();
    }

    public XImageView(Context context, @Nullable AttributeSet attrs) {
        super(context, attrs);
        init();
    }

    //拖动
    private static final int MODE_DRAG = 1;
    //缩放
    private static final int MODE_ZOOM = 2;
    private int mode;

    //图像状态矩阵
    private Matrix matrix;
    //记录拖动的一个点
    private Point lastPoint;
    //缩放的上一个参考点距离
    private float lastDis;
    //缩放中心点
    private Point center;

    private void init() {
        lastPoint = new Point();
        center = new Point();
    }

    @Override
    public boolean onTouchEvent(MotionEvent event) {
        int action = event.getAction();
        switch (action & MotionEvent.ACTION_MASK) {
            case MotionEvent.ACTION_DOWN:
                //单个触控点按下
                //记录当前的状态
                matrix = getImageMatrix();
                lastPoint.set((int) event.getX(), (int) event.getY());
                mode = MODE_DRAG;
                break;
            case MotionEvent.ACTION_POINTER_DOWN:
                //得到触控点的个数（触控点的下标从0开始）
                //int count = event.getPointerCount();
                //记录缩放中心点
                lastDis = getDistance(event);
                if (lastDis > 10) {
                    mode = MODE_ZOOM;
                    getCenter(event);
                }
                break;
            case MotionEvent.ACTION_MOVE:
                //触控在屏幕上的过程
                switch (mode) {
                    case MODE_DRAG:
                        //得到当前的点
                        int x = (int) event.getX();
                        int y = (int) event.getY();
                        //计算偏移
                        matrix.postTranslate(x - lastPoint.x, y - lastPoint.y);
                        //记录当前点为下一个移动的参考点
                        lastPoint.set(x, y);
                        break;
                    case MODE_ZOOM:
                        //处理缩放
                        float newDis = getDistance(event);
                        if (Math.abs(newDis - lastDis) <= 10) {
                            //旋转

                        } else if (newDis > 20) {
                            // 计算缩放比例
                            float sc = newDis / lastDis;
                            matrix.postScale(sc, sc, center.x, center.y);
                            lastDis = newDis;
                        }
                        break;
                }

                //改变状态
                //setImageMatrix(matrix);
                //刷新
                invalidate();
                break;
            case MotionEvent.ACTION_POINTER_UP:

                break;
            case MotionEvent.ACTION_UP:
                //单个触控点离开

                break;
        }
        return true;
    }

    /**
     * 获取两个触控点之间的距离
     *
     * @param event
     * @return
     */
    private float getDistance(MotionEvent event) {
        return (float) Math.sqrt(Math.pow(event.getX(0) - event.getX(1), 2) + Math.pow(event.getY(0) - event.getY(1), 2));
    }

    /**
     * 获取缩放中心点
     *
     * @param event
     */
    private void getCenter(MotionEvent event) {
        int x = (int) ((event.getX(0) + event.getX(1)) / 2);
        int y = (int) ((event.getY(0) + event.getY(1)) / 2);
        center.set(x, y);
    }
}
