钉钉 dingding dingtalk prometheus报警模板template

效果图

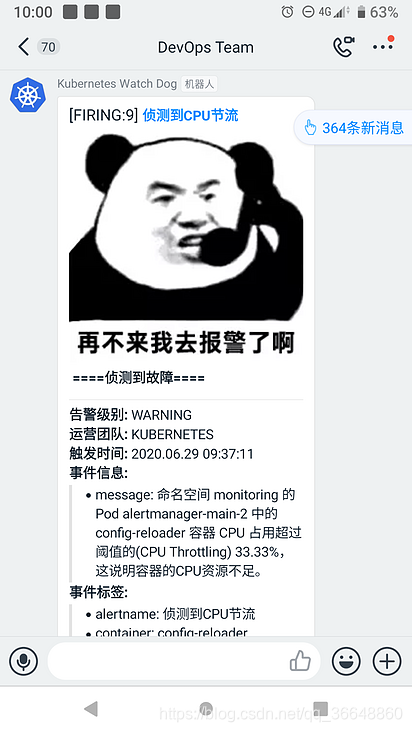

触发警报

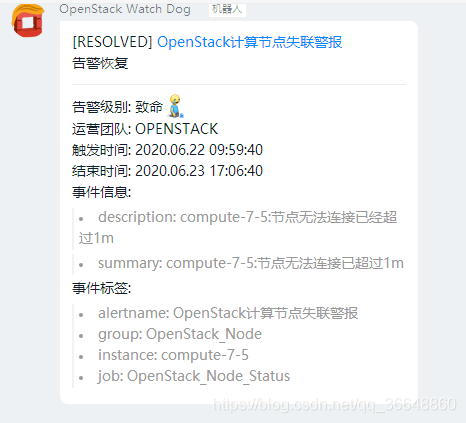

警报恢复

prometheus-webhook-dingtalk

config.yml

## Request timeout
timeout: 5s

## Customizable templates path
templates:
  - /etc/prometheus/template/cn.tmpl
#  - /usr/local/prometheus-webhook-dingtalk-1.4.0.linux-amd64/contrib/templates/legacy/template.tmpl

## You can also override default template using `default_message`
## The following example to use the 'legacy' template from v0.3.0
# default_message:
#   title: '{{ template "legacy.title" . }}'
#   text: '{{ template "legacy.content" . }}'

## Targets, previously was known as "profiles"
targets:
  webhook1:
    url: https://oapi.dingtalk.com/robot/send?access_token=xxxxxxxxxxxx
    # secret for signature
    secret: SEC000000000000000000000
  webhook2:
    url: https://oapi.dingtalk.com/robot/send?access_token=*************************
    message:
      title: '{{ template "ding.link.title" . }}'
      text: '{{ template "ding.link.content" . }}'
  webhook_legacy:
    url: https://oapi.dingtalk.com/robot/send?access_token=*************************
    # Customize template content
    message:
      title: '{{ template "ding.link.title" . }}'
      text: '{{ template "ding.link.content" . }}'
  webhook_mention_all:
    url: https://oapi.dingtalk.com/robot/send?access_token=xxxxxxxxxxxx
    mention:
      all: true
  webhook_mention_users:
    url: https://oapi.dingtalk.com/robot/send?access_token=xxxxxxxxxxxx
    mention:
      mobiles: ['156xxxx8827', '189xxxx8325']

Alertmanager

alertmanager.yml

global:
  resolve_timeout: 2m
receivers:
- name: 'dingding.webhook1'
  webhook_configs:
  - url: 'http://172.16.100.71:8060/dingtalk/webhook_legacy/send'
    send_resolved: true
- name: 'dingding.webhook2'
  webhook_configs:
  - url: 'http://172.16.100.71:8060/dingtalk/webhook2/send'
    send_resolved: true
route:
  group_by: ['alertname', 'severity', 'namespace']
  group_wait: 30s
  group_interval: 1m
  repeat_interval: 3h
  receiver: 'dingding.webhook1'
  routes:
  - receiver: 'dingding.webhook1'
    match:
      team: OpenStack
    group_wait: 10s
    group_interval: 15s
    repeat_interval: 3h
  - receiver: 'dingding.webhook2'
    match:
      team: Kubernetes
    group_wait: 10s
    group_interval: 15s
    repeat_interval: 3h

Template模板

{{ define "__subject" }}[{{ .Status | toUpper }}{{ if eq .Status "firing" }}:{{ .Alerts.Firing | len }}{{ end }}] {{ .GroupLabels.SortedPairs.Values | join " " }} {{ if gt (len .CommonLabels) (len .GroupLabels) }}({{ with .CommonLabels.Remove .GroupLabels.Names }}{{ .Values | join " " }}{{ end }}){{ end }}{{ end }}
{{ define "__alertmanagerURL" }}{{ .ExternalURL }}/#/alerts?receiver={{ .Receiver }}{{ end }}

{{ define "__text_alert_list" }}{{ range . }}
**Labels**
{{ range .Labels.SortedPairs }}> - {{ .Name }}: {{ .Value | markdown | html }}
{{ end }}
**Annotations**
{{ range .Annotations.SortedPairs }}> - {{ .Name }}: {{ .Value | markdown | html }}
{{ end }}
**Source:** [{{ .GeneratorURL }}]({{ .GeneratorURL }})
{{ end }}{{ end }}

{{ define "default.__text_alert_list" }}{{ range . }}
---
**告警级别:** {{ .Labels.severity | upper }}

**运营团队:** {{ .Labels.team | upper }}

**触发时间:** {{ dateInZone "2006.01.02 15:04:05" (.StartsAt) "Asia/Shanghai" }}

**事件信息:**
{{ range .Annotations.SortedPairs }}> - {{ .Name }}: {{ .Value | markdown | html }}


{{ end }}

**事件标签:**
{{ range .Labels.SortedPairs }}{{ if and (ne (.Name) "severity") (ne (.Name) "summary") (ne (.Name) "team") }}> - {{ .Name }}: {{ .Value | markdown | html }}
{{ end }}{{ end }}
{{ end }}
{{ end }}
{{ define "default.__text_alertresovle_list" }}{{ range . }}
---
**告警级别:** {{ .Labels.severity | upper }}

**运营团队:** {{ .Labels.team | upper }}

**触发时间:** {{ dateInZone "2006.01.02 15:04:05" (.StartsAt) "Asia/Shanghai" }}

**结束时间:** {{ dateInZone "2006.01.02 15:04:05" (.EndsAt) "Asia/Shanghai" }}

**事件信息:**
{{ range .Annotations.SortedPairs }}> - {{ .Name }}: {{ .Value | markdown | html }}


{{ end }}

**事件标签:**
{{ range .Labels.SortedPairs }}{{ if and (ne (.Name) "severity") (ne (.Name) "summary") (ne (.Name) "team") }}> - {{ .Name }}: {{ .Value | markdown | html }}
{{ end }}{{ end }}
{{ end }}
{{ end }}

{{/* Default */}}
{{ define "default.title" }}{{ template "__subject" . }}{{ end }}
{{ define "default.content" }}#### \[{{ .Status | toUpper }}{{ if eq .Status "firing" }}:{{ .Alerts.Firing | len }}{{ end }}\] **[{{ index .GroupLabels "alertname" }}]({{ template "__alertmanagerURL" . }})**
{{ if gt (len .Alerts.Firing) 0 -}}

![警报 图标](https://ss0.bdstatic.com/70cFuHSh_Q1YnxGkpoWK1HF6hhy/it/u=3626076420,1196179712&fm=15&gp=0.jpg)
**====侦测到故障====**
{{ template "default.__text_alert_list" .Alerts.Firing }}


{{- end }}

{{ if gt (len .Alerts.Resolved) 0 -}}
{{ template "default.__text_alertresovle_list" .Alerts.Resolved }}


{{- end }}
{{- end }}

{{/* Legacy */}}
{{ define "legacy.title" }}{{ template "__subject" . }}{{ end }}
{{ define "legacy.content" }}#### \[{{ .Status | toUpper }}{{ if eq .Status "firing" }}:{{ .Alerts.Firing | len }}{{ end }}\] **[{{ index .GroupLabels "alertname" }}]({{ template "__alertmanagerURL" . }})**
{{ template "__text_alert_list" .Alerts.Firing }}
{{- end }}

{{/* Following names for compatibility */}}
{{ define "ding.link.title" }}{{ template "default.title" . }}{{ end }}
{{ define "ding.link.content" }}{{ template "default.content" . }}{{ end }}
