1、芯片转移到面包板上：

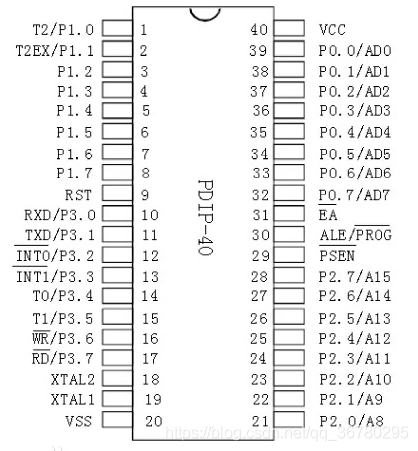

stc89c52引脚图：
在这里插入图片描述

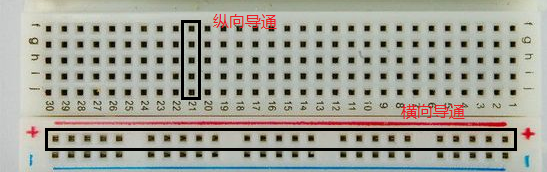

面包板的导通：

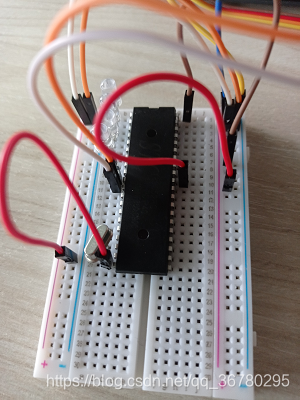

将stc89c52芯片接在插在面包板上，每一排引脚在面包板的一边。

按照芯片的引脚图，需要接线的有，VCC接高电平，VSS接低电平，XTAL1和XTAL2接晶振，脱离了C51的最小系统板，需要将EA接上高电平，模块才能运作。其余的就是下载器的5V和GND接在面包板两侧，下载器的RXD接芯片的TXD，下载器的TXD接芯片的RXD，然后顺着之前的流水灯程序，在p10~p17接四个二极管。
在这里插入图片描述

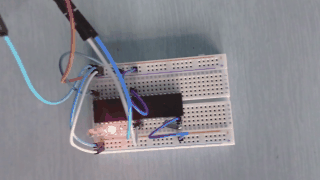

下载程序和之前C51一样，使用stc下载器下载：

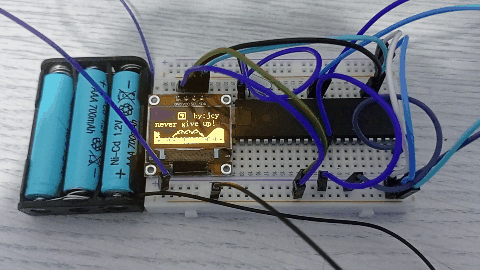

5V和接地可以使用三节7号电池替换下载器的供电：

2、oled屏：

（1）接线：

我买的是4针脚的oled屏，7针脚的也买了，后面再捣鼓一下。

oled屏资料：https://pan.baidu.com/s/1mH0SXCwlmXdry7x5uQJhZQ
提取码：elq8

里面有一些现成的源码和生成好的hex文件。

两种接线方式对应的程序驱动也不同：

`SPI`接口：

分3、4线SPI，通过背后的电阻来选择。

GND：电源地
VCC：2.2V~5.5V
SCL（D0）：CLK 时钟（高电平2.2V~5.5V）
SDA(D1)：MOSI 数据（高电平2.2V~5.5V）
RST：复位（高电平2.2V~5.5V）
D/C：数据/命令（高电平2.2V~5.5V）
CS：接地

例程中指示的接线是：

GND 电源地
VCC 接5V或3.3v电源
SCL P1^0
SDA P1^1
RES 接P12
DC 接P13
CS 接地

IIC 接口：

GND：电源地
VCC： 2.2V~5.5V
SCL： CLK 时钟（高电平 2.2V~5.5V）
SDA： MOSI 数据（高电平 2.2V~5.5V）

如果使用例程的代码或者hex文件，就是：（4针）
SCL接P1^3
SDA接P1^2

下面的实验以IIC模式为例。

（2）取字模：

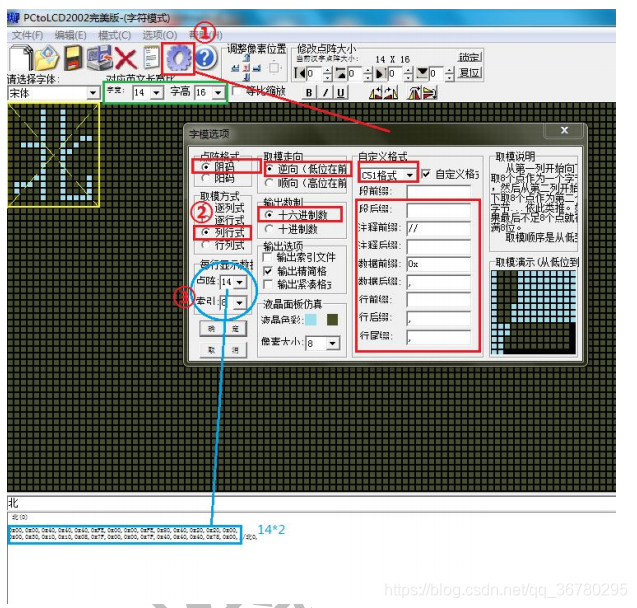

资料中有生成字模软件，配置直接按照文档中的来，像下面这样配置导出的字模才能用到程序中：
在这里插入图片描述

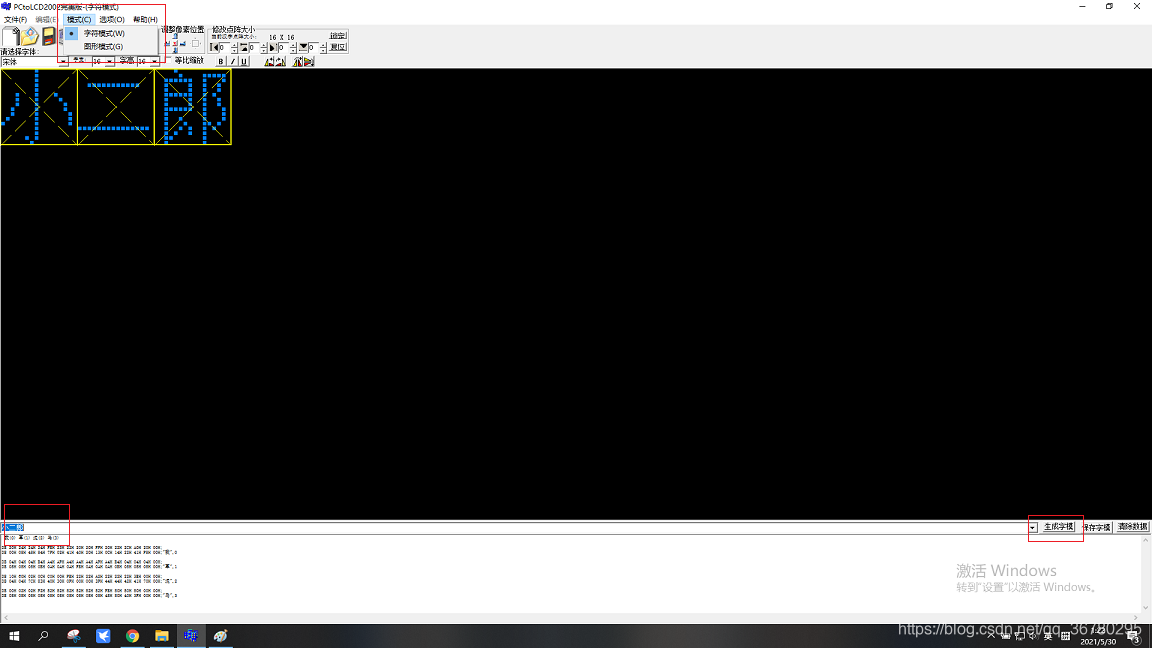

生成文字时，在模式中选择字符模式，然后可以在下面的框框中输入文字，点击生成字模，生成的字模是放到程序里面的，也可以点击上面的文本按钮导入文本，还可以设置字体等：（导出的字模可以看到是一个一个的16进制数，转为16位的二进制的0、1后，应该就是每16个像素点的状态是亮还是暗）
在这里插入图片描述

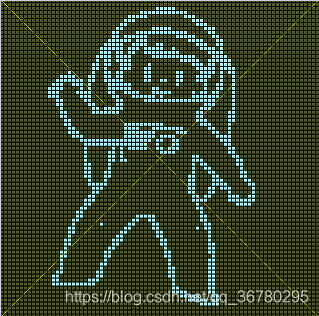

使用图片时，就选择图形模式，然后点击最左边的白色文本按钮创建bmp，然后输入屏幕大小，比如我的oled屏是128*64，然后可以左键画图，右键擦除图案。第二个按钮可以用来导入bmp图像。完成后一样到处字模：
在这里插入图片描述
导入图片生成字模有限制条件，首先图片必须是bmp格式，其次图片只能有黑色和白色两种颜色，还有一点，图片不能太大，不然打开图片软件会卡住，支持的最大图片尺寸是128*64。

一张图片想要导入进去可以进行以下操作：

使用画图工具打开图片。

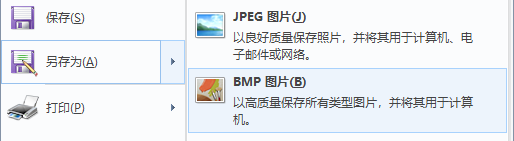

文件->另存为，选择bmp图片，保存类型选择单色位图。
打开另存后的图片，选择重新调整大小，图片设多大自定义，不要超过128*64就行了。（不要先调整大小再另存，那样像素太低，再另存线条会很少）

在这里插入图片描述

（3）字模添加到程序：

这里以iic接线方式进行烧写程序。

使用keil5，打开项目，项目地址为资料中V6.0_S13-IIC->例程->（03）C51例程(STC89C52)，项目中就有一个已经生成的hex文件，仅做实验的话可以拿这个烧录。初次打开用到的头文件可能会显示感叹号，编译一下.c文件后就会消失。构建时可能会提示程序代码太长了，那是因为正版keil5就限制了你的代码长度，该怎么做就不用我说了吧，解决以后，project->clean target然后重新进行构建。

显示图片：

显示图片的方法是：Draw_BMP(unsigned char x0, y0,x1, y1,unsigned char BMP[])。(x0,y0)表示图片的左上角在屏幕上的坐标，(x1,y1)表示图片右下角在屏幕上的坐标，屏幕的划分为128*8（不是128*64，将纵长度除以8），等于竖直方向切成8块。看到主程序中的使用的方法为Draw_BMP(0,0,128,8,BMP2)，即表示图片显示区域为整个屏幕，(0,0)是左上角，(128,8)是右下角，显示图片为字模BMP2。

打开codeTab.h，里面里面就是已经添加好的字模，在这里添加一个新的图片字模，比如我刚刚添加的图片，就添加一个字模BMP3，为了适配屏幕，把生成字模的图片尺寸调整为128*64，这样就只要在（0，0）位置显示，就不需要去调整位置了：

unsigned char code BMP3[] =
{
//code C:\Users\jcy\Desktop\1.bmp(0)
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0xC0,0x60,
0xB0,0x98,0xC8,0xCC,0xCC,0x44,0x44,0x44,0x44,0x44,0xC4,0xC4,0xCC,0x98,
0x30,0x30,0x60,0xC0,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x80,0x80,0xC0,0x00,0x00,0x00,0xE0,0x78,0x0C,0xFE,0xFF,
0xDF,0xFF,0x79,0x7F,0x07,0x03,0xC7,0xEC,0x0E,0x0E,0x0C,0x0C,0xCC,0xD8,
0x18,0x39,0xF3,0xE7,0xC6,0xFC,0x1F,0xFF,0x78,0xF0,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x0E,0x3F,0xF7,0xC1,0x03,0x07,0x0F,0x1C,0x7F,0x40,0x40,
0x41,0x4F,0x7F,0x77,0x06,0x0E,0x0C,0x08,0x19,0x1D,0x14,0x1D,0x15,0x14,
0x13,0x11,0x10,0x1C,0xD9,0xDD,0x7F,0x7C,0x0E,0x07,0x00,0xFF,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x0F,0x0C,0x18,0xF0,0x30,
0x30,0x30,0x30,0xF0,0x30,0xF0,0x3E,0x7E,0x7E,0x7E,0x7E,0x1E,0x76,0x5E,
0x4C,0x7C,0x74,0x04,0x04,0x80,0x81,0x03,0x03,0x06,0x0C,0x18,0x38,0xFF,
0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x0F,0xFE,0x60,0x60,0x3C,0x0F,0x00,0x01,0x01,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x81,0x03,0x86,0xFC,0x38,0x70,
0x60,0xC0,0x83,0x0F,0x1C,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF0,
0x1C,0x0C,0x07,0x03,0x00,0x20,0x00,0x00,0x80,0xC0,0x40,0x70,0x18,0x08,
0x08,0x78,0xE0,0xC0,0x00,0x00,0x00,0x00,0x00,0x01,0x47,0x1D,0x79,0xE0,
0x00,0x00,0x00,0x01,0x03,0x03,0x03,0x03,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xC0,0x7C,
0x0F,0x03,0x00,0x00,0x00,0x00,0xC0,0xE0,0x3C,0x0F,0x03,0x01,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x03,0x0F,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,
0x03,0x02,0x02,0x02,0x02,0x02,0x02,0x03,0x01,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0x04,0x0C,0x0C,0x18,
0x18,0x30,0x30,0x3F,0x38,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,//C:\Users\jcy\Desktop\1.bmp0,

};

修改OLED12864.c中的代码,注释掉原来的显示两张图片的代码,并添加BMP3:

Draw_BMP(0,0,128,8,BMP2);
delay(8000);

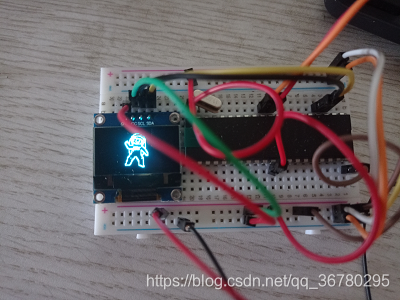

编译构建完以后,将hex文件下载到芯片中,然后就可以刚刚这张图片看到已经显示在oled屏幕上面了：

在这里插入图片描述

显示文字：

例程中的代码使用的字模的字宽是16的，再去字模软件上模拟一下确实16是显示效果比较好的，就不要去纠结改字宽了。

显示16*16点阵字符的代码在LQ12864.h中，方法为OLED_P16x16Ch(x,y,n)，默认读取的F16x16数组。F16x16定义在codetab.h中，可以将生成的字模放到F16x16中，或者自建创建一个数组。

x和y表示显示文字的横坐标和纵坐标，范围也是128*8。N表示F16*16数组中的第几个字符（根据代码，每30个数组元素表示了一个字符，即表示显示哪30个数组元素，导出的字模一定要配置对了符合30一字符）：
在这里插入图片描述
比如我将字符点阵改为：

unsigned char code F16x16[] =
{
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//空格0，

0x00,0xFE,0x02,0x22,0xDA,0x06,0x00,0xFC,0x04,0x04,0x04,0x04,0x04,0xFC,0x00,0x00,
0x00,0xFF,0x08,0x10,0x08,0x07,0x00,0xFF,0x41,0x41,0x41,0x41,0x41,0xFF,0x00,0x00,//阳1,

0x00,0xF8,0x08,0x08,0x0C,0xCA,0x49,0x48,0x48,0xC8,0x08,0x08,0x08,0xF8,0x00,0x00,
0x00,0xFF,0x00,0x00,0x00,0x1F,0x08,0x08,0x08,0x1F,0x00,0x40,0x80,0x7F,0x00,0x00,//向2,

0x08,0x08,0xE8,0x29,0x2E,0x28,0xE8,0x08,0x08,0xC8,0x0C,0x0B,0xE8,0x08,0x08,0x00,
0x00,0x00,0xFF,0x09,0x49,0x89,0x7F,0x00,0x00,0x0F,0x40,0x80,0x7F,0x00,0x00,0x00,//前3,

0x00,0x02,0x0C,0xC0,0x00,0xF0,0x10,0x10,0x10,0xFF,0x10,0x10,0x10,0xF0,0x00,0x00,
0x02,0x02,0x7F,0x00,0x00,0x0F,0x04,0x04,0x04,0xFF,0x04,0x04,0x04,0x0F,0x00,0x00,//冲4,
};

主程序中添加：

//水平方向连在一起的两个字符横坐标差值为`16`，竖直方向连在一起的两个字符纵坐标差值为`2`
OLED_P16x16Ch(0,0,1); //阳
OLED_P16x16Ch(16,2,2); //向
OLED_P16x16Ch(32,4,3); //前
OLED_P16x16Ch(48,6,4); //冲
OLED_P16x16Ch(64,6,0);  //空格

注意，如果两个文字坐标一样，由于重写的是16*16点阵，而非字符的像素，所以后面的会把前面的覆盖。不用记字符的次序，实际就是告诉程序，哪一个区域去显示哪一个字。

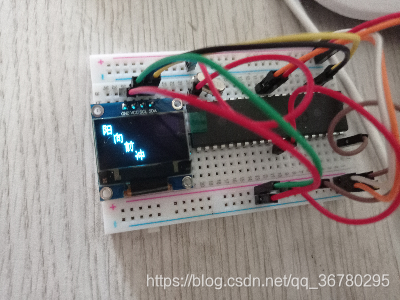

下载完程序就可以显示了：
在这里插入图片描述

显示英文：

显示英文字母时，由于自宽占不到16，长度只有中文的一半，只能占到8*16，所以不能使用OLED_P16x16Ch来显示了。例程中就有代码，直接通过OLED_P8x16Str(0,2,"OLED Display")就行。

图片和文字同时显示：

其实很简单，就是先显示一张图片，然后不要清屏，把图片当作背景，再在某个区域显示文字即可。

我生成了一张超级马里奥兄弟的图片的字模作为背景：

unsigned char code BMP3[] =
{
 //C:\Users\jcy\Desktop\3.bmp(0)
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x34,
0xFC,0x0A,0x0A,0xE2,0xF2,0xF2,0x32,0xF2,0xF2,0xE2,0xE2,0x0A,0x02,0xFC,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0xEF,0xFF,0xE0,0xE0,0xC0,0xC1,0xC1,0xFF,0xFF,0xF7,0xC3,0xC1,0xE0,
0xC0,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0xE0,0xE0,0x60,0x60,0xE0,
0x40,0x40,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0xC0,0x60,0x60,0x60,
0xE0,0xC0,0x80,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0xC0,0xE0,0x60,0x60,
0x60,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0xC0,0x60,0x60,0x60,
0xE0,0xC0,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x80,0xC0,0xE0,0xF0,0xF0,0xF8,0xF8,0xFC,0xFC,0xFC,0xFC,
0xFC,0xFC,0xF8,0xF8,0xF8,0xF0,0xF0,0xE0,0x80,0x80,0x77,0xFB,0xFA,0xF8,
0xF8,0xFF,0xF6,0x74,0x24,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0xC0,0x60,0x30,0x30,0x38,0x18,0x0F,0x07,0x19,0x08,0x08,
0x00,0x04,0x0C,0x09,0x03,0x03,0x02,0x1C,0x18,0x0F,0x07,0x11,0x18,0x08,
0x00,0x00,0x04,0x09,0x02,0x01,0x1E,0x1C,0x18,0x0F,0x07,0x11,0x08,0x08,
0x00,0x04,0x0C,0x09,0x03,0x03,0x02,0x1C,0xF0,0xE0,0x70,0xF0,0xE0,0x80,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xC0,0xE0,
0xF0,0xF8,0xFC,0xFE,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xEF,0xEF,
0xE3,0xE1,0xE1,0xF3,0x1F,0xEF,0xEC,0xE0,0xF0,0xF0,0xE0,0xE0,0xE0,0xE0,
0xE0,0xE0,0xE0,0xF0,0xF0,0xE0,0xE0,0xE0,0xE0,0xF0,0x10,0xE0,0xE0,0xE0,
0xE0,0xE0,0xE6,0xFF,0x9B,0xE1,0xE0,0xE0,0xF0,0xF0,0xF0,0xE0,0xE0,0xE0,
0xE0,0xE0,0xE0,0xF0,0xF0,0xE0,0xE0,0xE0,0xE0,0xF0,0x10,0xE0,0xE0,0xE0,
0xE0,0xE0,0xE0,0xE0,0xF0,0xF0,0xE0,0xE0,0xE0,0xF0,0xF0,0xE0,0xE0,0xE0,
0xE0,0xE0,0xE0,0xF0,0xF0,0xF0,0xE0,0xE0,0xE0,0xF0,0x10,0xE0,0xE0,0xE1,
0xE3,0xEB,0xEF,0xE0,0xF0,0x10,0xE0,0xE0,0xE0,0xF8,0x1C,0xEE,0xEF,0xEF,
0xEF,0xEF,0xEF,0xFF,0xFF,0xDF,0xEF,0xEF,0xEF,0xFF,0x1F,0xEF,0xEF,0xEF,
0xEF,0xEF,0xEF,0xEF,0xFF,0x1F,0xEF,0xEF,0xEF,0xFF,0xFF,0xEF,0xEF,0xEF,
0xFF,0xFF,0xFF,0xFF,0xFF,0xDF,0xE1,0xFD,0xFD,0xFD,0xFF,0xFF,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFD,0xFD,0xFD,0xFD,0xFF,0x30,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xF1,0xFD,0xFD,0xFD,0xFF,0xFF,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFD,0xFD,0xFD,0xFD,0xFF,0x30,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0x7F,0xDF,0xFD,0xFD,0xFD,0xFF,0xFF,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0x7F,0xFF,0xFD,0xFD,0xFD,0xFD,0xFF,0x30,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0x7F,0xDF,0xF1,0xFD,0xFD,0xFD,0xFF,0x30,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0x7F,0xDF,0xF9,0xFD,0xFD,0xFD,0xFF,0x30,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0x7F,0xDF,0xF1,0xFD,0xFD,0xFD,0xFF,0xFE,0xFF,
0xFF,0xFF,//C:\Users\jcy\Desktop\3.bmp0,
}

添加中文字模：

unsigned char code F16x16[] =
{
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//空格0，
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,

 //今(0) 天(1) 也(2) 要(3) 加(4) 油(5) 啊(6)

0x80,0x80,0x40,0x20,0x10,0x08,0x24,0xC3,0x04,0x08,0x10,0x20,0x40,0x80,
0x80,0x00,0x00,0x00,0x00,0x02,0x02,0x02,0x02,0x82,0x42,0x22,0x1A,0x06,
0x00,0x00,0x00,0x00,//今1,

0x40,0x40,0x42,0x42,0x42,0x42,0x42,0xFE,0x42,0x42,0x42,0x42,0x42,0x40,
0x40,0x00,0x80,0x80,0x40,0x20,0x10,0x0C,0x03,0x00,0x03,0x0C,0x10,0x20,
0x40,0x80,0x80,0x00,//天2,

0x80,0x80,0x40,0xFC,0x40,0x20,0x20,0xFF,0x10,0x10,0x08,0xF8,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x3F,0x40,0x40,0x40,0x4F,0x40,0x42,0x44,0x43,
0x40,0x40,0x78,0x00,//也3,

0x00,0x02,0xF2,0x92,0x92,0xFE,0x92,0x92,0x92,0xFE,0x92,0x92,0xF2,0x02,
0x00,0x00,0x00,0x02,0x82,0x92,0x9A,0x56,0x63,0x22,0x32,0x4A,0x46,0x42,
0x82,0x02,0x00,0x00,//要4,

0x10,0x10,0x10,0xFF,0x10,0x10,0xF0,0x00,0x00,0xF8,0x08,0x08,0x08,0xF8,
0x00,0x00,0x80,0x40,0x30,0x0F,0x40,0x80,0x7F,0x00,0x00,0x7F,0x20,0x20,
0x20,0x7F,0x00,0x00,//加5,

0x10,0x60,0x02,0x8C,0x00,0xF0,0x10,0x10,0x10,0xFF,0x10,0x10,0x10,0xF0,
0x00,0x00,0x04,0x04,0x7E,0x01,0x00,0xFF,0x42,0x42,0x42,0x7F,0x42,0x42,
0x42,0xFF,0x00,0x00,//油6,

0xFC,0x04,0xFC,0x00,0xFE,0x42,0xBE,0x00,0xF2,0x12,0xF2,0x02,0xFE,0x02,
0x00,0x00,0x0F,0x04,0x0F,0x00,0xFF,0x10,0x0F,0x00,0x0F,0x04,0x4F,0x80,
0x7F,0x00,0x00,0x00,//啊7,
}

在主程序中添加代码：

#include "intrins.h"
#include "codetab.h"
#include "LQ12864.h"

void main(void)
{
	OLED_Init(); //OLED初始化
	//显示图片
	Draw_BMP(0,0,128,8,BMP2);
	OLED_P8x16Str(70,0,"by:jcy");

	while(1)
	{
        OLED_P16x16Ch(0,2,1); //今
		OLED_P16x16Ch(16,2,2); //天
		OLED_P16x16Ch(32,2,3); //也
		OLED_P16x16Ch(48,2,4); //要
		OLED_P16x16Ch(64,2,5); //加
		OLED_P16x16Ch(80,2,6); //油
		OLED_P16x16Ch(96,2,7); //啊
		OLED_P8x16Str(112,2,"!");
		delay(1000);
		//把前面的内容清除掉
		OLED_P8x16Str(0,2,"                 ");
        OLED_P8x16Str(0,2,"never give up!");
		delay(1000);
		OLED_P8x16Str(0,2,"                 ");
}
}
