1运行效果图

微信

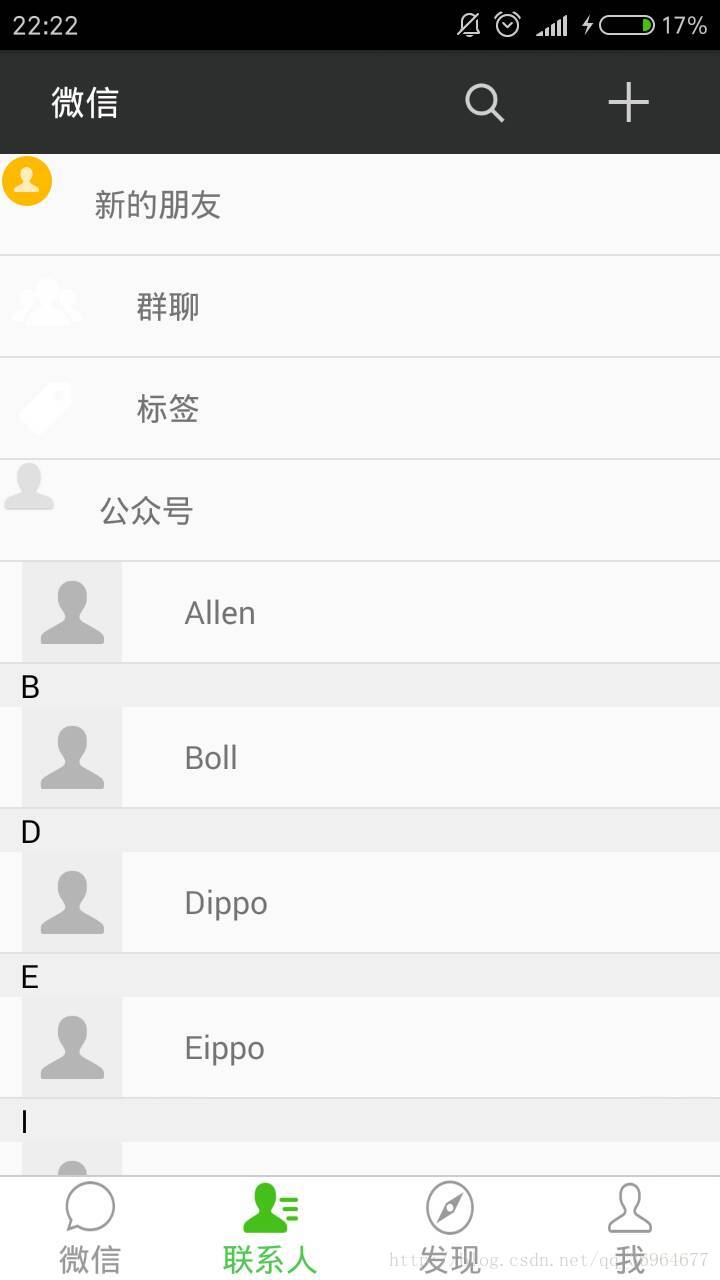

联系人

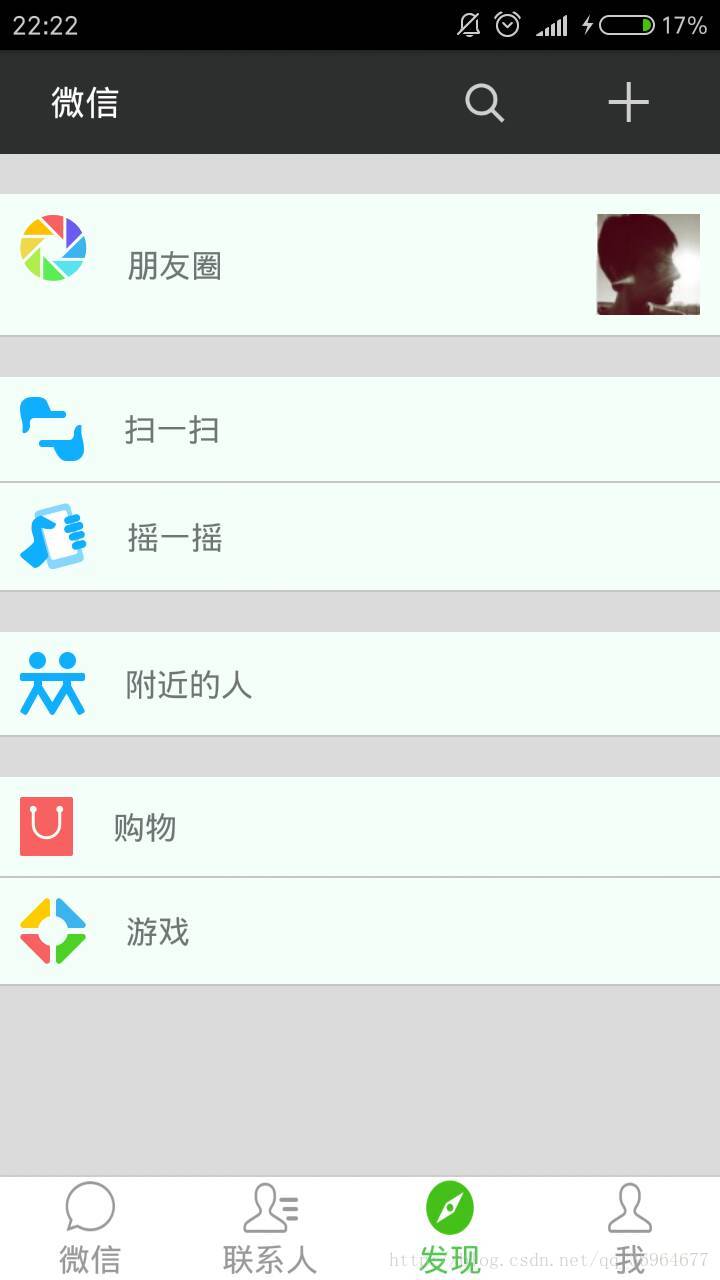

发现

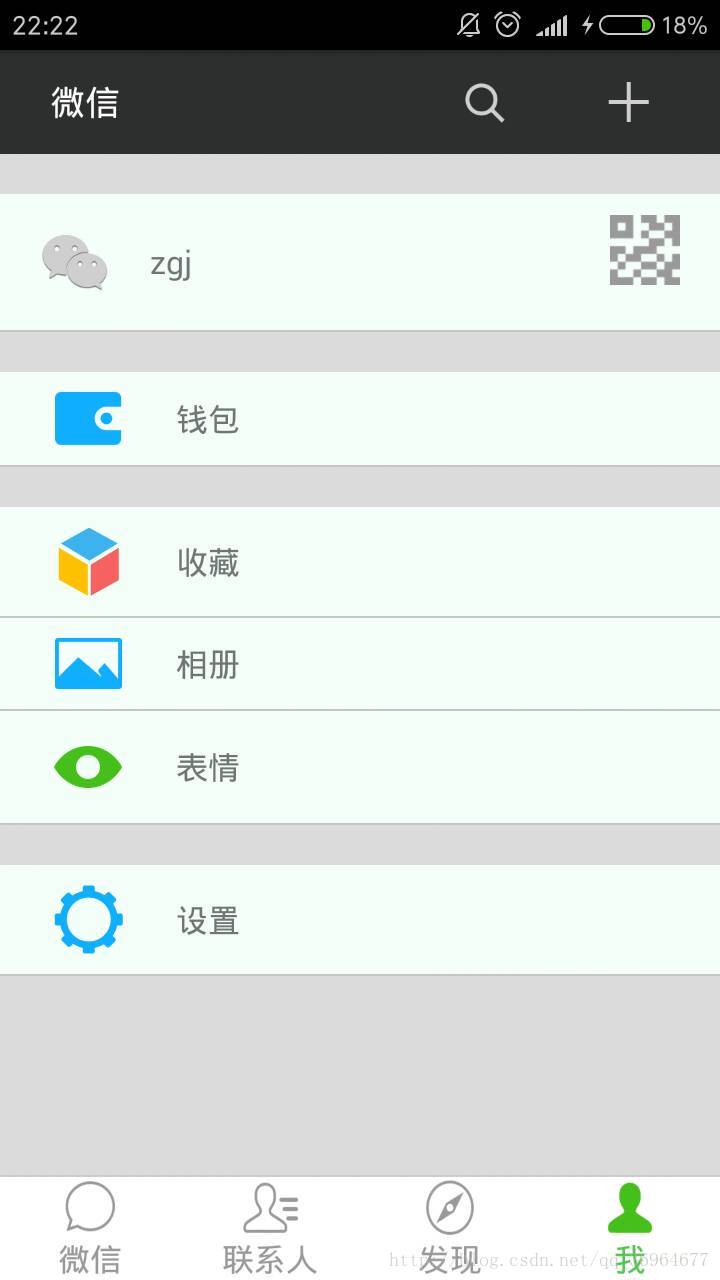

我

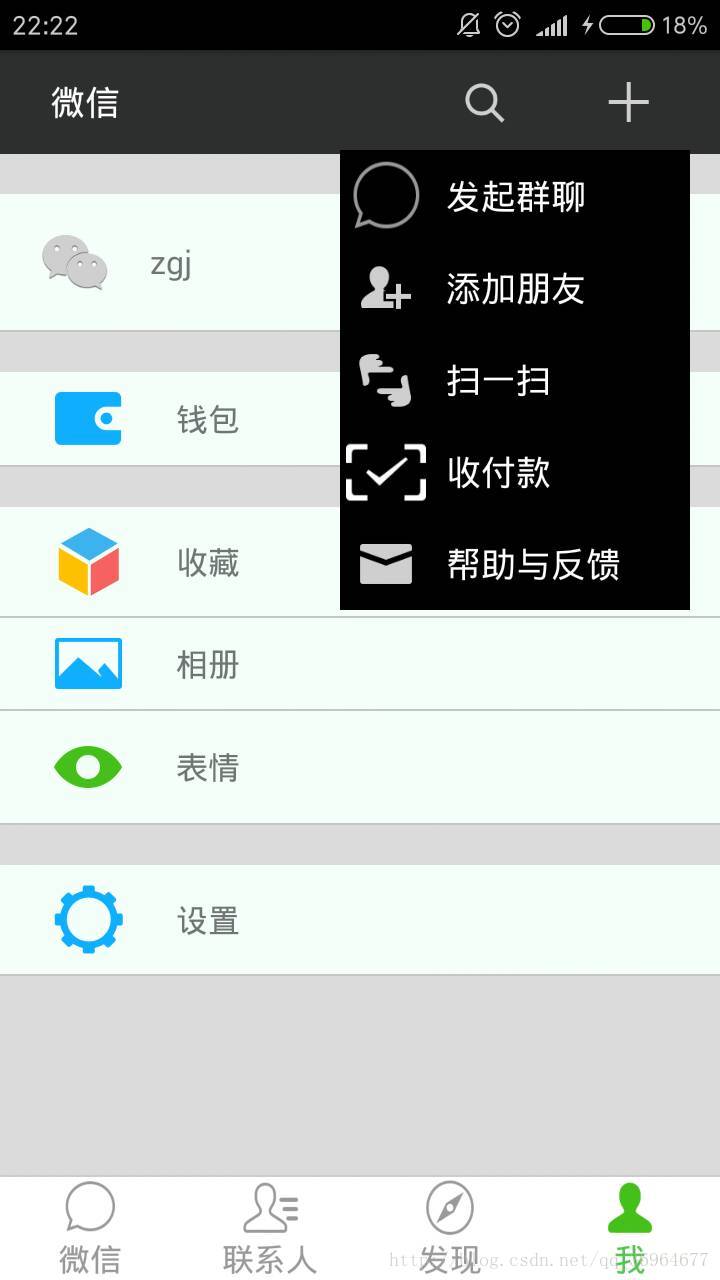

加好按钮

2建立top.xml显示头工具条的布局

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:orientation="horizontal"
    android:padding="10dp"
    android:background="#2D2E2E"
    android:layout_height="wrap_content">

    <TextView
        android:text="微信"
        android:textSize="15sp"
        android:paddingLeft="15dp"
        android:layout_gravity="center"
        android:textColor="@android:color/white"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content" />
    <TextView
        android:layout_weight="1"
        android:layout_width="match_parent"
        android:layout_height="wrap_content" />
    <ImageView
        android:id="@+id/iv_search"
        android:onClick="searchClick"
        android:paddingRight="40dp"
        android:layout_gravity="center"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:src="@mipmap/actionbar_search_icon"/>
    <ImageView
        android:onClick="addClick"
        android:id="@+id/iv_add"
        android:layout_gravity="center"
        android:paddingRight="20dp"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:src="@mipmap/actionbar_add_icon"/>
</LinearLayout>

3建立Activity_main布局显示上下工具条和每个工具条对应的内容布局

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

    android:orientation="vertical"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

    <include
        android:id="@+id/include"
        layout="@layout/top"/>
    <android.support.v4.view.ViewPager
        android:layout_weight="1"
        android:id="@+id/pager"
        android:layout_width="match_parent"
        android:layout_height="match_parent"></android.support.v4.view.ViewPager>

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:background="#fff"
        android:orientation="vertical"
        android:layout_alignParentBottom="true"
        android:layout_alignParentLeft="true"
        android:layout_alignParentStart="true">
        <View
            android:layout_width="match_parent"
            android:layout_height="1dp"
            android:background="#ccc"/>
        <LinearLayout
            android:baselineAligned="false"
            android:layout_width="match_parent"
            android:layout_height="match_parent">
            <LinearLayout
                android:layout_weight="1"
                android:gravity="center"
                android:orientation="vertical"
                android:onClick="wechatClick"
                android:layout_width="0dp"
                android:layout_height="match_parent">
                <RelativeLayout
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content">
                    <ImageView
                        android:id="@+id/wechat_icon_select"
                        android:layout_width="30dp"
                        android:layout_height="30dp"
                        android:background="@mipmap/wechat_select"/>
                    <ImageView
                        android:id="@+id/wechat_icon_normal"
                        android:layout_width="30dp"
                        android:layout_height="30dp"
                        android:background="@mipmap/wechat_normal"/>
                </RelativeLayout>
                <RelativeLayout
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content">
                    <TextView
                        android:id="@+id/wechat_text_select"
                        android:text="微信"
                        android:textColor="#51c650"
                        android:layout_width="wrap_content"
                        android:layout_height="wrap_content" />
                    <TextView
                        android:id="@+id/wechat_text_normal"
                        android:text="微信"
                        android:textColor="#999999"
                        android:layout_width="wrap_content"
                        android:layout_height="wrap_content" />
                </RelativeLayout>
            </LinearLayout>
            <LinearLayout
                android:layout_width="0dp"
                android:layout_height="match_parent"
                android:layout_weight="1"
                android:layout_gravity="center"
                android:orientation="vertical"
                android:onClick="contactClick">
                <RelativeLayout
                    android:layout_gravity="center"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content">
                    <ImageView
                        android:id="@+id/contact_icon_select"
                        android:layout_width="30dp"
                        android:background="@mipmap/contact_select"
                        android:layout_height="30dp" />
                    <ImageView
                        android:id="@+id/contact_icon_normal"
                        android:layout_width="30dp"
                        android:background="@mipmap/contact_normal"
                        android:layout_height="30dp" />
                </RelativeLayout>
                <RelativeLayout
                    android:layout_gravity="center"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content">
                    <TextView
                        android:id="@+id/contact_text_select"
                        android:text="联系人"
                        android:textColor="#51c650"
                        android:layout_width="wrap_content"
                        android:layout_height="wrap_content" />
                    <TextView
                        android:id="@+id/contact_text_normal"
                        android:text="联系人"
                        android:textColor="#999999"
                        android:layout_width="wrap_content"
                        android:layout_height="wrap_content" />
                </RelativeLayout>
            </LinearLayout>
            <LinearLayout
                android:layout_width="0dp"
                android:layout_height="match_parent"
                android:layout_weight="1"
                android:gravity="center"
                android:orientation="vertical"
                android:onClick="findClick">
                <RelativeLayout
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content" >

                    <ImageView
                        android:id="@+id/find_icon_select"
                        android:layout_width="30dp"
                        android:layout_height="30dp"
                        android:background="@mipmap/find_select" />

                    <ImageView
                        android:id="@+id/find_icon_normal"
                        android:layout_width="30dp"
                        android:layout_height="30dp"
                        android:background="@mipmap/find_normal" />
                </RelativeLayout>

                <RelativeLayout
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content" >
                <TextView
                    android:id="@+id/find_text_select"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content"
                    android:text="发现"
                    android:textColor="#51C650"
                    />

                <TextView
                    android:id="@+id/find_text_normal"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content"
                    android:text="发现"
                    android:textColor="#999999"/>
                </RelativeLayout>
            </LinearLayout>
            <LinearLayout
                android:layout_width="0dp"
                android:layout_height="match_parent"
                android:layout_weight="1"
                android:gravity="center"
                android:orientation="vertical"
                android:onClick="meClick">

                <RelativeLayout
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content" >

                    <ImageView
                        android:id="@+id/me_icon_select"
                        android:layout_width="30dp"
                        android:layout_height="30dp"
                        android:background="@mipmap/me_select" />

                    <ImageView
                        android:id="@+id/me_icon_normal"
                        android:layout_width="30dp"
                        android:layout_height="30dp"
                        android:background="@mipmap/me_normal" />
                </RelativeLayout>

                <RelativeLayout
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content" >

                    <TextView
                        android:id="@+id/me_text_select"
                        android:layout_width="wrap_content"
                        android:layout_height="wrap_content"
                        android:text="我"
                        android:textColor="#51C650"/>

                    <TextView
                        android:id="@+id/me_text_normal"
                        android:layout_width="wrap_content"
                        android:layout_height="wrap_content"
                        android:text="我"
                        android:textColor="#999999"/>
                </RelativeLayout>
            </LinearLayout>
        </LinearLayout>
    </LinearLayout>
</LinearLayout>

4建立微信框布局fragment_1.xml用来显示微信里的内容的布局

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:orientation="vertical"
    android:layout_height="match_parent">

    <ListView
        android:id="@+id/myListView"
        android:layout_width="match_parent"
        android:layout_height="match_parent"></ListView>
</LinearLayout>

5建立item_chat.xml布局用显示微信框里的每条内容的布局

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:orientation="horizontal"
    android:layout_height="match_parent">
    <ImageView
        android:id="@+id/item_img"
        android:src="@mipmap/default_useravatar"
        android:layout_width="64dp"
        android:layout_height="64dp" />
    <LinearLayout
        android:id="@+id/item_layout"
        android:layout_marginLeft="5dp"
        android:layout_weight="4"
        android:orientation="vertical"
        android:layout_width="0dp"
        android:layout_height="wrap_content">
        <TextView
            android:id="@+id/item_title"
            android:layout_width="match_parent"
            android:layout_marginTop="12dp"
            android:singleLine="true"
            android:textColor="#353535"
            android:textSize="16sp"
            android:layout_height="wrap_content" />
        <TextView
            android:id="@+id/item_content"
            android:layout_marginTop="5dp"
            android:singleLine="true"
            android:ellipsize="end"
            android:textColor="#AAAAAA"
            android:textSize="14sp"
            android:layout_width="match_parent"
            android:layout_height="wrap_content" />
    </LinearLayout>
    <TextView
        android:id="@+id/item_time"
        android:layout_weight="1"
        android:layout_marginTop="12dp"
        android:layout_gravity="center"
        android:textColor="#AAAAAA"
        android:textSize="12sp"
        android:layout_width="0dp"
        android:layout_height="wrap_content" />
</LinearLayout>

6建立微信框布局fragment_2.xml用来显示联系人里的内容的布局

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:orientation="vertical"
    android:layout_height="match_parent">
    <LinearLayout
        android:id="@+id/title_layout"
        android:layout_alignParentTop="true"
        android:fadingEdge="none"
        android:background="#f0f0f0"
        android:layout_width="match_parent"
        android:layout_height="wrap_content">
        <TextView
            android:id="@+id/title"
            android:layout_marginLeft="10dip"
            android:textColor="@android:color/black"
            android:layout_width="match_parent"
            android:layout_height="wrap_content" />
    </LinearLayout>
    <ListView
        android:id="@+id/contectListView"
        android:fadingEdge="none"
        android:layout_alignParentTop="true"
        android:layout_width="match_parent"
        android:layout_height="wrap_content">
    </ListView>
    <ImageButton
        android:id="@+id/az"
        android:background="@mipmap/a_z"
        android:layout_width="wrap_content"
        android:layout_height="match_parent" />
    <RelativeLayout
        android:id="@+id/az_toast_layout"
        android:layout_width="50dip"
        android:layout_height="50dip"
        android:layout_centerInParent="true"
        android:background="@mipmap/section_toast"
        android:visibility="gone">
        <TextView
            android:id="@+id/az_toast"
            android:layout_centerInParent="true"
            android:textColor="@android:color/white"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content" />
    </RelativeLayout>
</LinearLayout>

7建立item_connect.xml布局用显示联系人框里的每条内容的布局

?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:orientation="vertical"
    android:layout_height="match_parent">

    <LinearLayout
        android:background="#F0F0F0"
        android:orientation="vertical"
        android:id="@+id/key_layout"
        android:layout_width="match_parent"
        android:layout_height="wrap_content">
        <TextView
            android:id="@+id/key"
            android:layout_marginLeft="10dip"
            android:textColor="@android:color/black"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content" />
    </LinearLayout>
    <LinearLayout
        android:id="@+id/value_layout"
        android:orientation="horizontal"
        android:layout_width="match_parent"
        android:layout_height="50dip">
        <ImageView
            android:id="@+id/valueImg"
            android:layout_marginRight="20dip"
            android:src="@mipmap/default_useravatar"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content" />
        <TextView
            android:id="@+id/value"
            android:layout_gravity="center_vertical"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content" />
    </LinearLayout>
</LinearLayout>

8建立微信框布局fragment_3.xml用来显示发现里的内容的布局

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:background="#DBDBDB"
    android:orientation="vertical"
    android:layout_height="match_parent">
    <ListView
        android:id="@+id/find_listview"
        android:background="#DBDBDB"
        android:orientation="vertical"
        android:layout_width="match_parent"
        android:layout_height="match_parent"></ListView>
</LinearLayout>

9建立item_find.xml布局用显示发现框里的每条内容的布局

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:orientation="vertical"
    android:layout_height="match_parent">

    <LinearLayout
        android:id="@+id/find_distance"
        android:background="#DBDBDB"
        android:orientation="vertical"
        android:visibility="gone"
        android:layout_width="match_parent"
        android:layout_height="20dp"/>
        <LinearLayout
            android:background="#F5FFFA"
            android:orientation="horizontal"
            android:layout_width="match_parent"
            android:layout_height="wrap_content">
            <ImageView
                android:id="@+id/find_left_icon"
                android:layout_marginLeft="0dp"
                android:padding="10dp"
                android:scaleType="fitCenter"
                android:src="@mipmap/default_useravatar"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content" />
            <TextView
                android:id="@+id/find_text"
                android:layout_weight="1"
                android:layout_gravity="center_vertical"
                android:layout_marginLeft="10dp"
                android:text="朋友圈"
                android:layout_width="0dp"
                android:layout_height="wrap_content" />
            <ImageView
                android:id="@+id/find_right_icon"
                android:layout_marginRight="0dp"
                android:scaleType="fitCenter"
                android:padding="10dp"
                android:src="@mipmap/default_useravatar"
                android:visibility="gone"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content" />
        </LinearLayout>
</LinearLayout>

10建立微信框布局fragment_4.xml用来显示我里的内容的布局

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:background="#DBDBDB"
    android:orientation="vertical"
    android:layout_height="match_parent">
    <ListView
        android:id="@+id/me_listview"
        android:background="#DBDBDB"
        android:layout_width="match_parent"
        android:layout_height="match_parent"></ListView>
</LinearLayout>

11建立item_me.xml布局用显示我框里的每条内容的布局

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:orientation="vertical"
    android:layout_height="match_parent">

    <LinearLayout
    android:id="@+id/me_distance"
    android:layout_width="match_parent"
    android:layout_height="20dp"
    android:background="#DBDBDB"
    android:orientation="vertical"
    android:visibility="gone"
    />

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:background="#F5FFFA"
        android:orientation="horizontal"
        >
        <ImageView android:id="@+id/me_left_icon"
            android:layout_weight="1"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_marginLeft="10dp"
            android:padding="10dp"
            android:scaleType="fitCenter"
            android:src="@mipmap/default_useravatar"></ImageView>

        <TextView android:id="@+id/me_text"
            android:layout_weight="4"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_gravity="center_vertical"
            android:layout_marginLeft="10dp" />

        <ImageView android:id="@+id/me_right_icon"
            android:layout_weight="1"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_marginRight="10dp"
            android:scaleType="fitCenter"
            android:padding="10dp"
            android:src="@mipmap/default_useravatar"
            android:visibility="gone"></ImageView>"
    </LinearLayout>
</LinearLayout>

12加号图片按钮响应布局item.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:gravity="center_vertical"
    android:padding="3dp"
    android:descendantFocusability="blocksDescendants"
    android:orientation="horizontal"
    android:layout_height="match_parent"
    android:background="@android:color/black">
    /*
    不加点击无响应
    android:descendantFocusability="blocksDescendants"
    */
    <ImageView
        android:id="@+id/iv_tb"
        android:layout_width="40dp"
        android:layout_height="40dp"
        android:src="@mipmap/user"/>
    <TextView
        android:id="@+id/tv_number"
        android:layout_width="0dp"
        android:layout_weight="1"
        android:layout_marginLeft="10dp"
        android:layout_height="wrap_content" />

</LinearLayout>

13开始布局activity_start.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:background="@mipmap/welcome"
    android:layout_height="match_parent">

</LinearLayout>

14建立bean文件夹在该目录下建立ChatBean.java


public class ChatBean {
    private int resourceId;

    private String title;

    private String contant;

    private String time;

    public int getResourceId() {
        return resourceId;
    }

    public void setResourceId(int resourceId) {
        this.resourceId = resourceId;
    }

    public String getTitle() {
        return title;
    }

    public void setTitle(String title) {
        this.title = title;
    }

    public String getContant() {
        return contant;
    }

    public void setContant(String contant) {
        this.contant = contant;
    }

    public String getTime() {
        return time;
    }

    public void setTime(String time) {
        this.time = time;
    }
}

15建立文件夹custom建立Fragment1的适配器MyChatAdapter.java

import android.content.Context;
import android.support.annotation.NonNull;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.ArrayAdapter;
import android.widget.ImageView;
import android.widget.TextView;


import java.util.List;

/**
 * Created by Administrator on 2017/9/10.
 */

public class MyChatAdapter extends ArrayAdapter<ChatBean> {
    Context context;

    int resource;

    List<ChatBean> objects;

    public MyChatAdapter(Context context, int resource, List<ChatBean> objects) {
        super(context, resource, objects);
        this.context = context;
        this.resource = resource;
        this.objects = objects;
    }

    @NonNull
    @Override
    public View getView(int position, View convertView, ViewGroup parent) {
        View view;
        ImageView imageView;
        TextView title;
        TextView content;
        TextView time;

        if(convertView != null){
            view = convertView;
        }else {
            view = LayoutInflater.from(context).inflate(resource,null);
        }
        imageView = (ImageView)view.findViewById(R.id.item_img);
        title = (TextView)view.findViewById(R.id.item_title);
        content = (TextView)view.findViewById(R.id.item_content);
        time = (TextView)view.findViewById(R.id.item_time);
        imageView.setImageResource(objects.get(position).getResourceId());
        title.setText(objects.get(position).getTitle());
        content.setText(objects.get(position).getContant());
        time.setText(objects.get(position).getTime());
        return view;
    }
}

16建立Fragment文件夹下建立Fragment1.java显示微信的内容

package com.example.imitatewechat.Fragment;

import android.content.Intent;
import android.os.Bundle;
import android.support.annotation.Nullable;
import android.support.v4.app.Fragment;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.AdapterView;
import android.widget.ArrayAdapter;
import android.widget.ListView;


import java.util.ArrayList;
import java.util.List;



public class Fragment1 extends Fragment {

    private View view;

    ListView mListView;

    private ArrayAdapter<ChatBean> adapter;

    private List<ChatBean> objects;

    @Nullable
    @Override
    public View onCreateView(LayoutInflater inflater, @Nullable ViewGroup container, @Nullable Bundle savedInstanceState) {
        view = inflater.inflate(R.layout.fragment_1,container,false);
        ListView wechat = (ListView)view.findViewById(R.id.myListView);
        wechat.setOnItemClickListener(new AdapterView.OnItemClickListener() {
            @Override
            public void onItemClick(AdapterView<?> adapterView, View view, int i, long l) {
               /*打开聊天界面
                Intent intent = new Intent(getContext(), ChatActivity.class);
                intent.putExtra("name",objects.get(i).getTitle());
                startActivity(intent);*/
                Toast.makeText(getContext(),"第" + i + "条" ,Toast.LENGTH_SHORT).show();
            }
        });

        return view;
    }

    @Override
    public void onActivityCreated(@Nullable Bundle savedInstanceState) {
        super.onActivityCreated(savedInstanceState);
        mListView = (ListView)view.findViewById(R.id.myListView);
        objects = new ArrayList<>();
        ChatBean chatBean = new ChatBean();
        chatBean.setResourceId(R.mipmap.default_useravatar);
        chatBean.setTitle("秦霸先");
        chatBean.setContant("我是怒苍山主");
        chatBean.setTime("昨天");
        objects.add(chatBean);

        chatBean = new ChatBean();
        chatBean.setResourceId(R.mipmap.myicon);
        chatBean.setTitle("影");
        chatBean.setContant("你好！");
        chatBean.setTime("今天");
        objects.add(chatBean);

        chatBean = new ChatBean();
        chatBean.setResourceId(R.mipmap.default_useravatar);
        chatBean.setTitle("石刚");
        chatBean.setContant("我是怒苍山五虎上将气冲塞北石刚");
        chatBean.setTime("昨天");
        objects.add(chatBean);

        chatBean=new ChatBean();
        chatBean.setResourceId(R.mipmap.default_useravatar);
        chatBean.setTitle("韩毅");
        chatBean.setContant("我是怒苍山五虎上将小吕布韩毅");
        chatBean.setTime("昨天");
        objects.add(chatBean);

        adapter = new MyChatAdapter(getActivity(),R.layout.item_chat,objects);
        mListView.setAdapter(adapter);
    }
}

17在bean文件夹下建立UserBean.java联系人的属性


public class UserBean {
    private String user;

    private String sort;

    private int imageId;

    private String locatino;

    public String getLocatino() {
        return locatino;
    }

    public void setLocatino(String locatino) {
        this.locatino = locatino;
    }

    public String getUser() {
        return user;
    }

    public void setUser(String user) {
        this.user = user;
    }

    public String getSort() {
        return sort;
    }

    public void setSort(String sort) {
        this.sort = sort;
    }

    public int getImageId() {
        return imageId;
    }

    public void setImageId(int imageId) {
        this.imageId = imageId;
    }
}

18在custom文件夹下建立联系人适配器MyConnectAdapter.java

import android.content.Context;
import android.support.annotation.NonNull;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.ArrayAdapter;
import android.widget.ImageView;
import android.widget.LinearLayout;
import android.widget.SectionIndexer;
import android.widget.TextView;


import java.util.List;

/**
 * Created by Administrator on 2017/9/10.
 */

public class MyConnectAdapter extends ArrayAdapter<UserBean> {

    Context context;

    int resource;

    List<UserBean> objects;

    SectionIndexer sectionIndexer;


    public MyConnectAdapter(Context context, int resource, List<UserBean> objects,SectionIndexer sectionIndexer) {
        super(context, resource, objects);
        this.context = context;
        this.resource = resource;
        this.objects = objects;
        this.sectionIndexer = sectionIndexer;
    }

    @NonNull
    @Override
    public View getView(int position, View convertView, ViewGroup parent) {
        View view;
        LinearLayout keyLayout;
        TextView keyTextView;
        ImageView valueImageView;
        TextView valueTextView;
        if(convertView != null){
            view = convertView;
        }else{
            view = LayoutInflater.from(context).inflate(R.layout.item_connect,null);
        }
        keyLayout = (LinearLayout)view.findViewById(R.id.key_layout);
        keyTextView = (TextView)view.findViewById(R.id.key);
        valueImageView = (ImageView)view.findViewById(R.id.valueImg);
        valueTextView = (TextView)view.findViewById(R.id.value);

        valueImageView.setImageResource(objects.get(position).getImageId());
        valueTextView.setText(objects.get(position).getUser());

        int secIndex = sectionIndexer.getSectionForPosition(position);
        if(position == sectionIndexer.getPositionForSection(secIndex)){
            if(objects.get(position).getSort().equals("#")){
                keyLayout.setVisibility(View.GONE);
            }else
                keyLayout.setVisibility(View.VISIBLE);
            keyTextView.setText(objects.get(position).getSort());
        }else {
            keyLayout.setVisibility(View.GONE);
        }

        return view;
    }
}

19在custom下建立MyCursor.java

import android.content.ContentResolver;
import android.database.CharArrayBuffer;
import android.database.ContentObserver;
import android.database.Cursor;
import android.database.DataSetObserver;
import android.net.Uri;
import android.os.Bundle;

import java.util.List;

/**
 * Created by Administrator on 2017/9/10.
 */

public class MyCursor implements Cursor {

    List<UserBean> list;

    int position;

    public MyCursor(List<UserBean> list){
        this.list = list;
    }

    @Override
    public int getCount() {
        return list.size();
    }

    @Override
    public int getPosition() {
        return 0;
    }

    @Override
    public boolean move(int i) {
        return false;
    }

    @Override
    public boolean moveToPosition(int i) {
        if(i<-1||i>getCount()){
            return false;
        }

        this.position = i;
        return true;
    }

    @Override
    public boolean moveToFirst() {
        return false;
    }

    @Override
    public boolean moveToLast() {
        return false;
    }

    @Override
    public boolean moveToNext() {
        return false;
    }



    @Override
    public boolean moveToPrevious() {

        return false;
    }

    @Override
    public boolean isFirst() {
        return false;
    }

    @Override
    public boolean isLast() {
        return false;
    }

    @Override
    public boolean isBeforeFirst() {
        return false;
    }

    @Override
    public boolean isAfterLast() {
        return false;
    }

    @Override
    public int getColumnIndex(String s) {
        return 0;
    }

    @Override
    public int getColumnIndexOrThrow(String s) throws IllegalArgumentException {
        return 0;
    }

    @Override
    public String getColumnName(int i) {
        return null;
    }

    @Override
    public String[] getColumnNames() {
        return new String[0];
    }

    @Override
    public int getColumnCount() {
        return 0;
    }

    @Override
    public byte[] getBlob(int i) {
        return new byte[0];
    }

    @Override
    public String getString(int i) {
        return list.get(position).getSort();
    }

    @Override
    public void copyStringToBuffer(int i, CharArrayBuffer charArrayBuffer) {

    }

    @Override
    public short getShort(int i) {
        return 0;
    }

    @Override
    public int getInt(int i) {
        return 0;
    }

    @Override
    public long getLong(int i) {
        return 0;
    }

    @Override
    public float getFloat(int i) {
        return 0;
    }

    @Override
    public double getDouble(int i) {
        return 0;
    }

    @Override
    public int getType(int i) {
        return 0;
    }

    @Override
    public boolean isNull(int i) {
        return false;
    }

    @Override
    public void deactivate() {

    }

    @Override
    public boolean requery() {
        return false;
    }

    @Override
    public void close() {

    }

    @Override
    public boolean isClosed() {
        return false;
    }

    @Override
    public void registerContentObserver(ContentObserver contentObserver) {

    }

    @Override
    public void unregisterContentObserver(ContentObserver contentObserver) {

    }

    @Override
    public void registerDataSetObserver(DataSetObserver dataSetObserver) {

    }

    @Override
    public void unregisterDataSetObserver(DataSetObserver dataSetObserver) {

    }

    @Override
    public void setNotificationUri(ContentResolver contentResolver, Uri uri) {

    }

    @Override
    public Uri getNotificationUri() {
        return null;
    }

    @Override
    public boolean getWantsAllOnMoveCalls() {
        return false;
    }

    @Override
    public void setExtras(Bundle bundle) {

    }

    @Override
    public Bundle getExtras() {
        return null;
    }

    @Override
    public Bundle respond(Bundle bundle) {
        return null;
    }
}

20在custom下建立MyActionProvider.java

import android.content.Context;
import android.view.ActionProvider;
import android.view.MenuItem;
import android.view.SubMenu;
import android.view.View;


/**
 * Created by Administrator on 2017/9/10.
 */

public class MyActionProvider extends ActionProvider {

    Context context;

    public MyActionProvider(Context context) {
        super(context);
        this.context = context;
    }

    @Override
    public View onCreateActionView() {
        return null;
    }

    @Override
    public boolean hasSubMenu() {
        return true;
    }

    @Override
    public void onPrepareSubMenu(SubMenu subMenu) {
        subMenu.clear();
        subMenu.add(context.getString(R.string.plus_group_chat))
                .setIcon(R.mipmap.ofm_group_chat_icon)
                .setOnMenuItemClickListener(new MenuItem.OnMenuItemClickListener() {
                    @Override
                    public boolean onMenuItemClick(MenuItem menuItem) {
                        return true;
                    }
                });
        subMenu.add(context.getString(R.string.plus_add_friend))
                .setIcon(R.mipmap.ofm_add_icon)
                .setOnMenuItemClickListener(new MenuItem.OnMenuItemClickListener() {
                    @Override
                    public boolean onMenuItemClick(MenuItem menuItem) {
                        return false;
                    }
                });
        subMenu.add(context.getString(R.string.plus_video_chat))
                .setIcon(R.mipmap.ofm_video_icon)
                .setOnMenuItemClickListener(new MenuItem.OnMenuItemClickListener() {
                    @Override
                    public boolean onMenuItemClick(MenuItem menuItem) {
                        return false;
                    }
                });
        subMenu.add(context.getString(R.string.plus_scan))
                .setIcon(R.mipmap.ofm_qrcode_icon)
                .setOnMenuItemClickListener(new MenuItem.OnMenuItemClickListener() {
                    @Override
                    public boolean onMenuItemClick(MenuItem menuItem) {
                        return false;
                    }
                });
        subMenu.add(context.getString(R.string.plus_take_photo))
                .setIcon(R.mipmap.ofm_camera_icon)
                .setOnMenuItemClickListener(new MenuItem.OnMenuItemClickListener() {
                    @Override
                    public boolean onMenuItemClick(MenuItem menuItem) {
                        return false;
                    }
                });
        super.onPrepareSubMenu(subMenu);
    }
}

21在Fragment文件夹下Fragment2.java显示联系人



import android.content.Intent;
import android.os.Bundle;
import android.support.annotation.Nullable;
import android.support.v4.app.Fragment;
import android.view.LayoutInflater;
import android.view.MotionEvent;
import android.view.View;
import android.view.ViewGroup;
import android.widget.AbsListView;
import android.widget.AdapterView;
import android.widget.AlphabetIndexer;
import android.widget.ArrayAdapter;
import android.widget.ImageButton;
import android.widget.LinearLayout;
import android.widget.ListView;
import android.widget.RelativeLayout;
import android.widget.TextView;
import android.widget.Toast;


import java.util.ArrayList;
import java.util.Collections;
import java.util.Comparator;
import java.util.List;

/**
 * Created by Administrator on 2017/9/10.
 */

public class Fragment2 extends Fragment {

    LinearLayout titleLayout;

    TextView title;

    ListView mListView;

    RelativeLayout sectionToastLayout;

    TextView sectionToastText;

    ImageButton alphabetButton;

    AlphabetIndexer alphabetIndexer;

    ArrayAdapter<UserBean> mAdapter;

    int lastFirstVisibleItem = -1;

    List<UserBean> listUserBeans;

    String alphabet = "ABCDEFGHIJKLMNOPQRSTUVWXYZ#";

    @Nullable
    @Override
    public View onCreateView(LayoutInflater inflater, @Nullable ViewGroup container, @Nullable Bundle savedInstanceState) {
        View view = getLayoutInflater(savedInstanceState).inflate(R.layout.fragment_2,container,false);
        titleLayout = (LinearLayout)view.findViewById(R.id.title_layout);
        titleLayout.bringToFront();
        title = (TextView)view.findViewById(R.id.title);
        mListView = (ListView)view.findViewById(R.id.contectListView);
        alphabetButton = (ImageButton)view.findViewById(R.id.az);
        sectionToastLayout = (RelativeLayout)view.findViewById(R.id.az_toast_layout);
        sectionToastText = (TextView)view.findViewById(R.id.az_toast);
        ListView connect = (ListView)view.findViewById(R.id.contectListView);
        connect.setOnItemClickListener(new AdapterView.OnItemClickListener() {
            @Override
            public void onItemClick(AdapterView<?> adapterView, View view, int i, long l) {
                if(i<=3){
                    Toast.makeText(getContext(),"我是: " + listUserBeans.get(i).getUser() , Toast.LENGTH_SHORT).show();
                }else {
                 /*打开联系人详情界面
                 Intent intent = new Intent(getContext(), UserActivity.class);
                    intent.putExtra("name", listUserBeans.get(i).getUser());
                    intent.putExtra("location", listUserBeans.get(i).getLocatino());
                    intent.putExtra("imageId",listUserBeans.get(i).getImageId()+"");
                    startActivity(intent);*/
                    Toast.makeText(getContext(),"第" + i + "条" ,Toast.LENGTH_SHORT).show();
                }
            }
        });
        return view;
    }

    @Override
    public void onActivityCreated(@Nullable Bundle savedInstanceState) {
        super.onActivityCreated(savedInstanceState);
        listUserBeans = new ArrayList<>();

        UserBean userBean = new UserBean();
        userBean.setImageId(R.mipmap.default_useravatar);
        userBean.setSort("B");
        userBean.setUser("Boll");
        userBean.setLocatino("西安");
        listUserBeans.add(userBean);

        userBean=new UserBean();
        userBean.setImageId(R.mipmap.myicon);
        userBean.setSort("Y");
        userBean.setUser("影");
        userBean.setLocatino("西安");
        listUserBeans.add(userBean);

        userBean=new UserBean();
        userBean.setImageId(R.mipmap.newfriend);
        userBean.setSort("#");
        userBean.setUser("新的朋友");
        userBean.setLocatino("");
        listUserBeans.add(userBean);

        userBean=new UserBean();
        userBean.setImageId(R.mipmap.ofm_group_chat_icon);
        userBean.setSort("#");
        userBean.setLocatino("");
        userBean.setUser("群聊");
        listUserBeans.add(userBean);

        userBean=new UserBean();
        userBean.setImageId(R.mipmap.aap);
        userBean.setSort("#");
        userBean.setLocatino("");
        userBean.setUser("标签");
        listUserBeans.add(userBean);

        userBean=new UserBean();
        userBean.setImageId(R.mipmap.a68);
        userBean.setSort("#");
        userBean.setLocatino("");
        userBean.setUser("公众号");
        listUserBeans.add(userBean);

        userBean=new UserBean();
        userBean.setImageId(R.mipmap.default_useravatar);
        userBean.setSort("A");
        userBean.setLocatino("西安");
        userBean.setUser("Allen");
        listUserBeans.add(userBean);

        userBean=new UserBean();
        userBean.setImageId(R.mipmap.default_useravatar);
        userBean.setSort("Z");
        userBean.setLocatino("西安");
        userBean.setUser("Zippo");
        listUserBeans.add(userBean);
        userBean=new UserBean();
        userBean.setImageId(R.mipmap.default_useravatar);

        userBean.setSort("D");
        userBean.setLocatino("西安");
        userBean.setUser("Dippo");
        listUserBeans.add(userBean);

        userBean=new UserBean();
        userBean.setImageId(R.mipmap.default_useravatar);
        userBean.setSort("E");
        userBean.setLocatino("西安");
        userBean.setUser("Eippo");
        listUserBeans.add(userBean);

        userBean=new UserBean();
        userBean.setImageId(R.mipmap.default_useravatar);
        userBean.setSort("O");
        userBean.setLocatino("西安");
        userBean.setUser("Oippo");
        listUserBeans.add(userBean);

        userBean=new UserBean();
        userBean.setImageId(R.mipmap.default_useravatar);
        userBean.setSort("I");
        userBean.setLocatino("西安");
        userBean.setUser("Iippo");
        listUserBeans.add(userBean);

        userBean=new UserBean();
        userBean.setImageId(R.mipmap.default_useravatar);
        userBean.setSort("X");
        userBean.setLocatino("西安");
        userBean.setUser("Xippo");
        listUserBeans.add(userBean);

        userBean=new UserBean();
        userBean.setImageId(R.mipmap.default_useravatar);
        userBean.setSort("X");
        userBean.setLocatino("西安");
        userBean.setUser("Xypo");
        listUserBeans.add(userBean);

        userBean=new UserBean();
        userBean.setImageId(R.mipmap.default_useravatar);
        userBean.setSort("Z");
        userBean.setLocatino("西安");
        userBean.setUser("Zippt");
        listUserBeans.add(userBean);

        Collections.sort(listUserBeans, new Comparator<UserBean>() {
            @Override
            public int compare(UserBean userBean, UserBean t1) {
                return userBean.getSort().compareTo(t1.getSort());
            }
        });

        alphabetIndexer = new AlphabetIndexer(new MyCursor(listUserBeans),1,alphabet);

        mAdapter = new MyConnectAdapter(getActivity(),R.layout.item_connect,listUserBeans,alphabetIndexer);
        mListView.setAdapter(mAdapter);
        setAlpabetListener();
        mListView.setOnScrollListener(new AbsListView.OnScrollListener() {
            @Override
            public void onScrollStateChanged(AbsListView absListView, int i) {

            }

            @Override
            public void onScroll(AbsListView absListView, int i, int i1, int i2) {
                int section = alphabetIndexer.getSectionForPosition(i);
                int nextSecPosition = alphabetIndexer.getPositionForSection(section + 1);
                if(i != lastFirstVisibleItem){
                    ViewGroup.MarginLayoutParams params = (ViewGroup.MarginLayoutParams)
                            titleLayout.getLayoutParams();
                    params.topMargin = 0;
                    titleLayout.setLayoutParams(params);
                    title.setText(String.valueOf(alphabet.charAt(section)));
                }
                if(nextSecPosition == i +1){
                    View childView = absListView.getChildAt(0);
                    if(childView != null){
                        int titleHeight = titleLayout.getHeight();
                        int bottom = childView.getBottom();
                        ViewGroup.MarginLayoutParams params = (ViewGroup.MarginLayoutParams)
                                titleLayout.getLayoutParams();
                        if(bottom < titleHeight){
                            float pushedDistance = bottom - titleHeight;
                            params.topMargin = (int) pushedDistance;
                            titleLayout.setLayoutParams(params);
                        }else{
                            if(params.topMargin != 0){
                                params.topMargin = 0;
                                titleLayout.setLayoutParams(params);
                            }
                        }
                    }
                }
                lastFirstVisibleItem = i;
            }
        });
    }
    private void setAlpabetListener() {
        alphabetButton.setOnTouchListener(new View.OnTouchListener() {
            @Override
            public boolean onTouch(View view, MotionEvent motionEvent) {
                float alphabetHeight = alphabetButton.getHeight();
                float y = motionEvent.getY();
                int sectionPoistion = (int) ((y / alphabetHeight)/(1f /27f));
                if(sectionPoistion < 0){
                    sectionPoistion = 0;
                }else if(sectionPoistion >26){
                    sectionPoistion = 26;
                }
                String sectionLetter = String.valueOf(alphabet.charAt(sectionPoistion));
                int position = alphabetIndexer.getPositionForSection(sectionPoistion);
                switch (motionEvent.getAction()){
                    case MotionEvent.ACTION_DOWN :
                        alphabetButton.setBackgroundResource(R.mipmap.a_z_click);
                        sectionToastLayout.setVisibility(View.VISIBLE);
                        sectionToastText.setText(sectionLetter);
                        mListView.setSelection(position);
                        break;
                    case MotionEvent.ACTION_MOVE :
                        sectionToastText.setText(sectionLetter);
                        mListView.setSelection(position);
                        break;
                    default:
                        alphabetButton.setBackgroundResource(R.mipmap.a_z);
                        sectionToastLayout.setVisibility(View.GONE);
                }
                return true;
            }
        });
    }
}

22在bean文件夹下建立FindBean.java临时存储发现的属性


public class FindBean {

    private boolean isDistanceShow;

    private int leftImgId;

    private String title;

    private boolean isrightImgShow;

    private int rightImgId;

    public boolean isDistanceShow(){
        return isDistanceShow;
    }

    public void setDistanceShow(boolean distanceShow) {
        isDistanceShow = distanceShow;
    }

    public int getLeftImgId() {
        return leftImgId;
    }

    public void setLeftImgId(int leftImgId) {
        this.leftImgId = leftImgId;
    }

    public String getTitle() {
        return title;
    }

    public void setTitle(String title) {
        this.title = title;
    }

    public int getRightImgId() {
        return rightImgId;
    }

    public void setRightImgId(int rightImgId) {
        this.rightImgId = rightImgId;
    }

    public void setIsrightImgShow(boolean isrightImgShow) {
        this.isrightImgShow = isrightImgShow;
    }

    public boolean isIsrightImgShow(){
        return isrightImgShow;
    }
}

23在custom文件夹下建立发现适配器MyFindAdapter.java


import android.content.Context;
import android.support.annotation.NonNull;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.ArrayAdapter;
import android.widget.ImageView;
import android.widget.LinearLayout;
import android.widget.TextView;

import java.util.List;

/**
 * Created by Administrator on 2017/9/10.
 */

public class MyFindAdapter extends ArrayAdapter {

    Context context;

    int resource;

    List<FindBean> objects;

    public MyFindAdapter(Context context, int resource, List objects) {
        super(context, resource, objects);
        this.context = context;
        this.resource = resource;
        this.objects = objects;
    }

    @NonNull
    @Override
    public View getView(int position, View convertView, ViewGroup parent) {
        View view;
        LinearLayout topView;
        ImageView leftImageView;
        ImageView rightImageView;
        TextView title;
        if(convertView != null){
            view = convertView;
        }else {
            view = LayoutInflater.from(context).inflate(resource,null);
        }

        topView = (LinearLayout) view.findViewById(R.id.find_distance);
        leftImageView = (ImageView)view.findViewById(R.id.find_left_icon);
        rightImageView = (ImageView)view.findViewById(R.id.find_right_icon);
        title = (TextView)view.findViewById(R.id.find_text);

        if(objects.get(position).getLeftImgId() != 0){
            leftImageView.setImageResource(objects.get(position).getLeftImgId());
        }
        if(objects.get(position).isIsrightImgShow()){
            rightImageView.setImageResource(objects.get(position).getRightImgId());
            rightImageView.setVisibility(View.VISIBLE);
        }else {
            rightImageView.setVisibility(View.GONE);
        }
        if (objects.get(position).isDistanceShow()){
            topView.setVisibility(View.VISIBLE);
        }else {
            topView.setVisibility(View.GONE);
        }
        title.setText(objects.get(position).getTitle());

        return view;
    }
}

24在Fragment文件夹下Fragment3.java显示发现

import android.os.Bundle;
import android.support.annotation.Nullable;
import android.support.v4.app.Fragment;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.AdapterView;
import android.widget.ArrayAdapter;
import android.widget.ListView;
import android.widget.Toast;

import java.util.ArrayList;
import java.util.List;

/**
 * Created by Administrator on 2017/9/10.
 */

public class Fragment3 extends Fragment {
    ListView findListView;
    ArrayAdapter<FindBean> adapter;

    @Nullable
    @Override
    public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) {
        View view = getLayoutInflater(savedInstanceState).inflate(R.layout.fragment_3,container,false);
        findListView = (ListView)view.findViewById(R.id.find_listview);
        findListView.setOnItemClickListener(new AdapterView.OnItemClickListener() {
            @Override
            public void onItemClick(AdapterView<?> adapterView, View view, int i, long l) {
                Toast.makeText(getContext(),"第" + i + "条" ,Toast.LENGTH_SHORT).show();
            }
        });
        return view;
    }

    @Override
    public void onActivityCreated( Bundle savedInstanceState) {
        super.onActivityCreated(savedInstanceState);
        List<FindBean> lists = new ArrayList<>();
        FindBean findBean = new FindBean();
        findBean.setDistanceShow(true);
        findBean.setIsrightImgShow(true);
        findBean.setLeftImgId(R.mipmap.find_friends);
        findBean.setRightImgId(R.mipmap.find_right);
        findBean.setTitle("朋友圈");
        lists.add(findBean);
        findBean=new FindBean();
        findBean.setDistanceShow(true);
        findBean.setIsrightImgShow(false);
        findBean.setLeftImgId(R.mipmap.find_erweima);
        findBean.setTitle("扫一扫");
        lists.add(findBean);

        findBean=new FindBean();
        findBean.setDistanceShow(false);
        findBean.setIsrightImgShow(false);
        findBean.setLeftImgId(R.mipmap.find_yaoyiyao);
        findBean.setTitle("摇一摇");
        lists.add(findBean);

        findBean=new FindBean();
        findBean.setDistanceShow(true);
        findBean.setIsrightImgShow(false);
        findBean.setLeftImgId(R.mipmap.find_fujin);
        findBean.setTitle("附近的人");
        lists.add(findBean);

        findBean=new FindBean();
        findBean.setDistanceShow(true);
        findBean.setIsrightImgShow(false);
        findBean.setLeftImgId(R.mipmap.find_gouwu);
        findBean.setTitle("购物");
        lists.add(findBean);

        findBean=new FindBean();
        findBean.setDistanceShow(false);
        findBean.setIsrightImgShow(false);
        findBean.setLeftImgId(R.mipmap.find_youxi);
        findBean.setTitle("游戏");
        lists.add(findBean);

        adapter = new MyFindAdapter(getActivity(),R.layout.item_find,lists);
        findListView.setAdapter(adapter);
    }
}

25在bean文件夹下建立MeBean.java临时存储发现的属性

public class MeBean {

    private boolean isDistanceShow;

    private int leftImgId;

    private String title;

    private boolean isrightImgShow;

    private int rightImgId;

    public boolean isDistanceShow() {
        return isDistanceShow;
    }

    public void setDistanceShow(boolean isDistanceShow) {
        this.isDistanceShow = isDistanceShow;
    }

    public int getLeftImgId() {
        return leftImgId;
    }

    public void setLeftImgId(int leftImgId) {
        this.leftImgId = leftImgId;
    }

    public String getTitle() {
        return title;
    }

    public void setTitle(String title) {
        this.title = title;
    }

    public int getRightImgId() {
        return rightImgId;
    }

    public void setRightImgId(int rightImgId) {
        this.rightImgId = rightImgId;
    }

    public boolean isIsrightImgShow() {
        return isrightImgShow;
    }

    public void setIsrightImgShow(boolean isrightImgShow) {
        this.isrightImgShow = isrightImgShow;
    }
}

26在custom文件夹下建立我的适配器MyMeAdapter.java

import android.content.Context;
import android.support.annotation.NonNull;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.ArrayAdapter;
import android.widget.ImageView;
import android.widget.LinearLayout;
import android.widget.TextView;

import java.util.List;

/**
 * Created by Administrator on 2017/9/10.
 */

public class MyMeAdapter extends ArrayAdapter {

    Context context;

    int resource;

    List<MeBean> objects;

    public MyMeAdapter(Context context, int resource, List objects) {
        super(context, resource, objects);
        this.context = context;
        this.resource = resource;
        this.objects = objects;
    }

    @NonNull
    @Override
    public View getView(int position, View convertView, ViewGroup parent) {

        View view;

        LinearLayout topView;

        ImageView leftImageView;

        ImageView rightImageView;

        TextView title;

        if(convertView != null){
            view = convertView;
        }else {
            view = LayoutInflater.from(context).inflate(resource,null);
        }
        topView = (LinearLayout)view.findViewById(R.id.me_distance);
        leftImageView=(ImageView)view.findViewById(R.id.me_left_icon);
        rightImageView=(ImageView)view.findViewById(R.id.me_right_icon);
        title=(TextView)view.findViewById(R.id.me_text);

        if(objects.get(position).getLeftImgId()!=0){
            leftImageView.setImageResource(objects.get(position).getLeftImgId());
        }

        if(objects.get(position).isIsrightImgShow()){
            rightImageView.setImageResource(objects.get(position).getRightImgId());
            rightImageView.setVisibility(View.VISIBLE);
        }
        else {
            rightImageView.setVisibility(View.GONE);
        }
        if(objects.get(position).isDistanceShow()){
            topView.setVisibility(View.VISIBLE);
        }else {
            topView.setVisibility(View.GONE);
        }
        title.setText(objects.get(position).getTitle());

        return view;
    }
}

27在Fragment文件夹下Fragment4.java显示我的内容

import android.os.Bundle;
import android.support.annotation.Nullable;
import android.support.v4.app.Fragment;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.AdapterView;
import android.widget.ArrayAdapter;
import android.widget.ListView;
import android.widget.Toast;

import java.util.ArrayList;
import java.util.List;

/**
 * Created by Administrator on 2017/9/10.
 */

public class Fragment4 extends Fragment {

    ListView meListView;

    ArrayAdapter<MeBean> adapter;

    @Nullable
    @Override
    public View onCreateView(LayoutInflater inflater, @Nullable ViewGroup container, @Nullable Bundle savedInstanceState) {
        View view = getLayoutInflater(savedInstanceState).inflate(R.layout.fragment_4,container,false);
        meListView = (ListView)view.findViewById(R.id.me_listview);
        meListView.setOnItemClickListener(new AdapterView.OnItemClickListener() {
            @Override
            public void onItemClick(AdapterView<?> adapterView, View view, int i, long l) {
                Toast.makeText(getContext(),"第" + i + "条" ,Toast.LENGTH_SHORT).show();
            }
        });
        return view;
    }

    @Override
    public void onActivityCreated(@Nullable Bundle savedInstanceState) {
        super.onActivityCreated(savedInstanceState);
        List<MeBean> lists = new ArrayList<>();
        MeBean meBean = new MeBean();
        meBean.setDistanceShow(true);
        meBean.setIsrightImgShow(true);
        meBean.setLeftImgId(R.mipmap.logo);
        meBean.setRightImgId(R.mipmap.qrcode);
        meBean.setTitle("zgj");
        lists.add(meBean);

        meBean=new MeBean();
        meBean.setDistanceShow(true);
        meBean.setIsrightImgShow(false);
        meBean.setLeftImgId(R.mipmap.akc);
        meBean.setTitle("钱包");
        lists.add(meBean);

        meBean=new MeBean();
        meBean.setDistanceShow(true);
        meBean.setIsrightImgShow(false);
        meBean.setLeftImgId(R.mipmap.ake);
        meBean.setTitle("收藏");
        lists.add(meBean);

        meBean=new MeBean();
        meBean.setDistanceShow(false);
        meBean.setIsrightImgShow(false);
        meBean.setLeftImgId(R.mipmap.akb);
        lists.add(meBean);
        meBean.setTitle("相册");

        meBean=new MeBean();
        meBean.setDistanceShow(false);
        meBean.setIsrightImgShow(false);
        meBean.setLeftImgId(R.mipmap.agu);
        meBean.setTitle("表情");
        lists.add(meBean);

        meBean=new MeBean();
        meBean.setDistanceShow(true);
        meBean.setIsrightImgShow(false);
        meBean.setLeftImgId(R.mipmap.akf);
        meBean.setTitle("设置");
        lists.add(meBean);

        adapter = new MyMeAdapter(getActivity(),R.layout.item_me,lists);
        meListView.setAdapter(adapter);

    }
}

28建立activity文件夹将MainActivity拖进activity文件夹中

import android.graphics.Color;
import android.graphics.drawable.BitmapDrawable;
import android.os.Bundle;
import android.support.v4.app.Fragment;
import android.support.v4.app.FragmentActivity;
import android.support.v4.app.FragmentManager;
import android.support.v4.app.FragmentPagerAdapter;
import android.support.v4.view.ViewPager;
import android.util.Log;
import android.view.View;
import android.view.ViewConfiguration;
import android.view.ViewGroup;
import android.widget.AdapterView;
import android.widget.BaseAdapter;
import android.widget.ImageView;
import android.widget.ListView;
import android.widget.PopupWindow;
import android.widget.TextView;
import android.widget.Toast;

import java.lang.reflect.Field;
import java.util.ArrayList;
import java.util.List;

public class MainActivity extends FragmentActivity  {

    private ImageView wechatIconSelect;
    private ImageView wechatIconNormal;
    private ImageView contactIconSelect;
    private ImageView contactIconNormal;
    private ImageView findIconSelect;
    private ImageView findIconNormal;
    private ImageView meIconSelect;
    private ImageView meIconNormal;

    private List<ImageView> mListImageViews;
    private List<TextView> mListTextViews;
    private List<Fragment> mList;


    private FragmentPagerAdapter adapter;

    private TextView wechatTextSelect;
    private TextView wechatTextNormal;
    private TextView contactTextSelect;
    private TextView contactTextNormal;
    private TextView findTextSelect;
    private TextView findTextNormal;
    private TextView meTextSelect;
    private TextView meTextNormal;

    private ViewPager pager;

    private int curIndex;

    private final int WECHAT_INDEX = 0; // 微信菜单索引
    private final int CONTACT_INDEX = 1; // 联系人菜单索引
    private final int FIND_INDEX = 2; // 发现菜单索引
    private final int ME_INDEX = 3; // 我菜单索引

    private int[] imgIds = {R.mipmap.am6,R.mipmap.am2,
            R.mipmap.am3, R.mipmap.am4,R.mipmap.an5};

    private final int ICON_LIST_DIALOG = 1;

    private ListView listView;

    private List<String> datas;
    private List<Integer> imageId;

    private PopupWindow popupWindow;

    private ImageView iv_add;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);

        setContentView(R.layout.activity_main);
        iv_add = (ImageView) findViewById(R.id.iv_add);
        setOverflowShowingAlways();
        initView();
    }

    private void initView(){
        wechatIconSelect = (ImageView)findViewById(R.id.wechat_icon_select);
        wechatIconNormal = (ImageView)findViewById(R.id.wechat_icon_normal);
        contactIconSelect = (ImageView)findViewById(R.id.contact_icon_select);
        contactIconNormal = (ImageView)findViewById(R.id.contact_icon_normal);
        findIconSelect = (ImageView)findViewById(R.id.find_icon_select);
        findIconNormal = (ImageView)findViewById(R.id.find_icon_normal);
        meIconSelect = (ImageView)findViewById(R.id.me_icon_select);
        meIconNormal = (ImageView)findViewById(R.id.me_icon_normal);

        mListImageViews = new ArrayList<>();

        mListImageViews.add(wechatIconSelect);
        mListImageViews.add(wechatIconNormal);
        mListImageViews.add(contactIconSelect);
        mListImageViews.add(contactIconNormal);
        mListImageViews.add(findIconSelect);
        mListImageViews.add(findIconNormal);
        mListImageViews.add(meIconSelect);
        mListImageViews.add(meIconNormal);

        wechatTextSelect = (TextView)findViewById(R.id.wechat_text_select);
        wechatTextNormal = (TextView)findViewById(R.id.wechat_text_normal);
        contactTextSelect = (TextView)findViewById(R.id.contact_text_select);
        contactTextNormal = (TextView)findViewById(R.id.contact_text_normal);
        findTextSelect = (TextView)findViewById(R.id.find_text_select);
        findTextNormal = (TextView)findViewById(R.id.find_text_normal);
        meTextSelect = (TextView)findViewById(R.id.me_text_select);
        meTextNormal = (TextView)findViewById(R.id.me_text_normal);

        mListTextViews = new ArrayList<>();

        mListTextViews.add(wechatTextSelect);
        mListTextViews.add(wechatTextNormal);
        mListTextViews.add(contactTextSelect);
        mListTextViews.add(contactTextNormal);
        mListTextViews.add(findTextSelect);
        mListTextViews.add(findTextNormal);
        mListTextViews.add(meTextSelect);
        mListTextViews.add(meTextNormal);

        pager = (ViewPager)findViewById(R.id.pager);

        mList = new ArrayList<>();

        mList.add(new Fragment1());
        mList.add(new Fragment2());
        mList.add(new Fragment3());
        mList.add(new Fragment4());

        adapter = new MyFragmentPagerAdapter(getSupportFragmentManager());
        pager.setAdapter(adapter);
        pager.setOnPageChangeListener(new MyOnPageChangeListener());


        wechatTextNormal.setAlpha(0f);
        wechatIconNormal.setAlpha(0f);
        contactIconSelect.setAlpha(0f);
        contactTextSelect.setAlpha(0f);
        findIconSelect.setAlpha(0f);
        findTextSelect.setAlpha(0f);
        meTextSelect.setAlpha(0f);
        meIconSelect.setAlpha(0f);

    }
    protected void setOverflowShowingAlways(){
        try {
            ViewConfiguration config = ViewConfiguration.get(this);
            Field menuKeyField = ViewConfiguration.class.
                    getDeclaredField("sHasPermanentMenuKey");
            menuKeyField.setAccessible(true);
            menuKeyField.setBoolean(config,false);
        } catch (Exception e) {
            e.printStackTrace();

        }
    }
    public void searchClick(View view){
        Toast.makeText(getApplicationContext(),"search",Toast.LENGTH_SHORT).show();
    }


    public void addClick(View view){
        //showDialog(ICON_LIST_DIALOG);
        showPopupWindow();
    }


    private void showPopupWindow(){
        initListView();
        //外部可触摸
        popupWindow = new PopupWindow(listView,350,460);
        popupWindow.setOutsideTouchable(true);
        //设置空的背景色
        popupWindow.setBackgroundDrawable(new BitmapDrawable());
        popupWindow.setFocusable(true);
        popupWindow.showAtLocation(iv_add,0,340,150);
        //popupWindow.showAsDropDown(iv_add,0,20);
    }
    private void initListView(){
        listView = new ListView(this);
        listView.setDividerHeight(0);
        listView.setBackgroundResource(R.mipmap.listview_background);
        listView.setOnItemClickListener(new AdapterView.OnItemClickListener() {
            @Override
            public void onItemClick(AdapterView<?> adapterView, View view, int i, long l) {
                String s = datas.get(i);
                Toast.makeText(getApplicationContext(),s,Toast.LENGTH_SHORT).show();
                popupWindow.dismiss();
            }
        });
        imageId = new ArrayList<>();
        imageId.add(R.mipmap.am6);
        imageId.add(R.mipmap.am2);
        imageId.add(R.mipmap.am3);
        imageId.add(R.mipmap.am4);
        imageId.add(R.mipmap.an5);

        datas = new ArrayList<>();
        datas.add("发起群聊");
        datas.add("添加朋友");
        datas.add("扫一扫");
        datas.add("收付款");
        datas.add("帮助与反馈");
        listView.setAdapter(new MyAdapter());
    }


    class MyAdapter extends BaseAdapter {

        @Override
        public int getCount() {
            return datas.size();
        }

        @Override
        public Object getItem(int i) {
            return datas.get(i);
        }

        @Override
        public long getItemId(int i) {
            return i;
        }

        @Override
        public View getView(final int i, View view, ViewGroup viewGroup) {
            View v;
            if(view == null){
                v = View.inflate(viewGroup.getContext(),R.layout.item,null);
            }else v = view;
            ImageView iv_tb = (ImageView)v.findViewById(R.id.iv_tb);
            iv_tb.setImageResource(imageId.get(i));
            TextView tv_number = (TextView) v.findViewById(R.id.tv_number);
            tv_number.setTextSize(15);
            tv_number.setTextColor(Color.WHITE);
            tv_number.setText(datas.get(i));

            return v;
        }
    }


    public void wechatClick(View view){
        if(curIndex != WECHAT_INDEX){
            colorChange(curIndex,WECHAT_INDEX);
            pager.setCurrentItem(WECHAT_INDEX,false);
        }
    }
    public void contactClick(View view){
        if(curIndex != CONTACT_INDEX){
            colorChange(curIndex,CONTACT_INDEX);
            pager.setCurrentItem(CONTACT_INDEX,false);
        }
    }
    public void findClick(View view){
        if(curIndex != FIND_INDEX){
            colorChange(curIndex,FIND_INDEX);
            pager.setCurrentItem(FIND_INDEX,false);
            Log.d("debug1","ok");
        }
    }
    public void meClick(View view){
        if(curIndex != ME_INDEX){
            colorChange(curIndex,ME_INDEX);
            pager.setCurrentItem(ME_INDEX,false);
        }
    }

    class MyFragmentPagerAdapter extends FragmentPagerAdapter{

        public MyFragmentPagerAdapter(FragmentManager fm) {
            super(fm);
        }

        @Override
        public Fragment getItem(int position) {
            return mList.get(position);
        }

        @Override
        public int getCount() {
            return mList.size();
        }
    }
    class MyOnPageChangeListener implements ViewPager.OnPageChangeListener{

        @Override
        public void onPageScrolled(int position, float positionOffset, int positionOffsetPixels) {
            //Log.d("debug1","position: " + position + ", positionOffset: " + positionOffset + ",  positionOffsetPixels: " + positionOffsetPixels);
            if( positionOffset > 0){
                Log.d("debug1"," position: " + position + " curIndex : "+ curIndex);
                if(position == curIndex){
                    //colorChange(position,position - 1);
                }
                else
                    colorChange(position,curIndex);
                Log.d("debug1"," position1: " + position + " curIndex1 : "+ curIndex);
            }
        }

        @Override
        public void onPageSelected(int position) {
            //Log.d("debug1"," position: " + position + " curIndex : "+ curIndex);
            curIndex = position;
        }

        @Override
        public void onPageScrollStateChanged(int state) {

        }

    }


    private void colorChange(int srcIndex, int destIndex){

        mListImageViews.get(srcIndex *2 + 1).setAlpha(1f);
        mListImageViews.get(srcIndex *2 ).setAlpha(0f);

        mListImageViews.get(destIndex * 2 +1 ).setAlpha(0f);
        mListImageViews.get(destIndex * 2 ).setAlpha(1f);

        mListTextViews.get(srcIndex * 2 + 1).setAlpha(1f);
        mListTextViews.get(srcIndex * 2).setAlpha(0f);

        mListTextViews.get(destIndex * 2 + 1).setAlpha(0f);
        mListTextViews.get(destIndex * 2 ).setAlpha(1f);
    }

}

29在activity下建立StartActivity.java

import android.app.Activity;
import android.content.Intent;
import android.os.Bundle;
import android.os.Handler;


/**
 * Created by Administrator on 2017/9/14.
 */

public class StartActivity extends Activity {
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_start);
        new Handler().postDelayed(new Runnable() {
            @Override
            public void run() {
                Intent intent = new Intent(StartActivity.this,MainActivity.class);
                startActivity(intent);
                finish();
            }
        },500);
    }
}

30更改配置文件AndroidManifest.xml

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.example.imitatewechat">

    <application
        android:allowBackup="true"
        android:icon="@mipmap/logo"
        android:label="@string/app_name"
        android:supportsRtl="true"
        android:theme="@style/AppTheme">
        <activity android:name=".activity.StartActivity">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
        <activity android:name=".activity.MainActivity"/>
    </application>

</manifest>

源码下载

Android仿照微信界面开发
11-22
按照慕课网上的老师设计要求，自己动手写的，用的是AS集成开发环境
模仿微信登录
05-16
登录界面，键盘挡住编辑框。让键盘向上顶。模仿微信，QQ登录界面效果。
仿制微信6.0界面<1>
weixin_33824363的博客
03-31 265
【前言】 微信的界面简洁大方，最近搜到了一篇关于仿制微信界面的视频。视频连接在这里。但是这个视频讲解速度很快，为了方便后来人（也是方便自己），我将会将这个视频的基本要点记录一下。 【开发环境】 Eclipse +Android Developer Tools+小米note调试 【ActionBar的绘制】 1. 取消微信标题栏图标的显示 2. 改...
uniapp精仿微信源码，基于SumerUI和Uniapp前端框架的一款仿微信APP应用，界面漂亮颜值高，视频商城小工具等，朋友圈视频号即时聊天 用于视频，商城，直播，聊天，等等场景，源码分享
最新发布
我的ID：sumer-work（全网同名）昵称：程序员SUMER（全网同名）
10-08 998
uniapp精仿微信源码，基于SumerUI和Uniapp前端框架的一款仿微信APP应用，界面漂亮颜值高，视频商城小工具等，朋友圈视频号即时聊天 用于视频，商城，直播，聊天，等等场景，源码分享
微信App模仿
05-17
一个模仿微信APP的移动端APP，由mui框架编写
仿微信个人设置界面
06-19
仿微信个人设置界面，简单易懂，你值得拥有
android studio模仿微信界面图片包
07-10
在Android Studio中模仿微信界面是一项常见的开发任务，它涉及到对用户界面（UI）的设计和实现，以及对Android原生组件的深入理解。本资源包包含了多个与这一主题相关的图片素材，如wxdl.jpg、jd.jpg、door.jpg等，...
Android 使用Fragment模仿微信界面的实例代码
08-30
在模仿微信界面的实例中，Fragment的应用体现在上半部分内容的动态切换。例如，当用户点击下方的按钮时，如"发现"、"聊天"等，Fragment会相应地更新，显示对应的内容。这种方式避免了频繁地启动和销毁Activity，提高...
Android-模仿微信主界面
05-28
Android模仿新版微信主界面，应该来说模仿的很相似。
模仿微信的初级UI界面
weixin_44900700的博客
10-20 616
模仿微信的初级UI界面 作者：黑衣侠客 1.前言 首先，应该先了解微信UI界面的构造，以及你想要达到的效果，那么，下面我来介绍我初步制作的UI界面。 2.步骤 1.首先，建立一个项目Demo_project2 2.修改activity_main.xml的代码： <RelativeLayout xmlns:android="http://schemas.android.com/apk/re...
html模仿微信支付页面
04-05
html css jquery 模仿微信支付页面，用于微信公众号支付，展示微信支付页面。jquery微信支付代码
模仿微信官网页面布局
01-07
使用div ul 等标签以及使用定位position和float浮动模仿微信官网页面布局，只有静态页面没有动态效果。
android 自定义listview实现仿微信/QQ设置界面demo
06-21
android自定义listview实现仿微信/QQ设置界面的开发
基于Vue20模仿微信APP
08-12
基于Vue Vuex Vue-router Webpack 2.0 打造微信界面，实现了微信聊天、搜索、点赞、通讯录（快速导航）、个人中心、模拟对话、朋友圈、设置等功能。
仿微信的小程序.zip
06-26
此微信小程序模仿的是社交软件微信app，可以显示聊天界面，发图片定位，查看朋友圈，当然这些朋友圈的数据都可以在server.js文件中编写，用npm打开服务器引用数据。里面还包含结果演示图，功能备注，甚至是我的课程设计报告，是关于这个demo的，报告有四千字以上哦~代表着里面是有打开服务器操作方法的。不会打开的也可问我~
模仿微信录制小视频
zzf0521的博客
08-07 341
https://github.com/junerver/VideoRecorder
Android Studio开发（一）模拟微信页面
Louloo的博客
03-19 4146
Android Studio开发（一）模拟微信页面微信页面的简单模拟一、任务需求二、遇到的问题与解决方案合理的创建标题，有助于目录的生成如何改变文本的样式插入链接与图片如何插入一段漂亮的代码片生成一个适合你的列表二、遇到的问题与解决方案1. AndroidX引发出的错误2. ImageButtion运行后无法显示图片创建一个自定义列表如何创建一个注脚注释也是必不可少的KaTeX数学公式新的甘特图功...
模拟微信聊天-课后程序(JAVA基础案例教程-黑马程序员编著-第八章-课后作业)
芝麻的博客
02-28 1223
在如今，微信聊天已经人们生活中必不可少的重要组成部分，人们的交流很多都是通过微信来进行的。本案例要求：将多线程与UDP通信相关知识结合，模拟实现微信聊天小程序。通过监听指定的端口号、目标IP地址和目标端口号，实现消息的发送和接收功能，并显示聊天的内容。
微信小程序源码：模仿微信界面的设计与实现
本资源提供了一套模仿微信聊天界面的微信小程序源码，这对于希望学习和掌握微信界面设计的开发者来说是非常有价值的。仿微信界面设计涉及到消息展示、输入框、表情选择等多个元素的设计和布局。 知识点三：消息交互...
评论 3
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
