前提：

           <1> 需要搭建vgpu license服务器

           <2> 安装完显卡驱动

一、windows 下激活

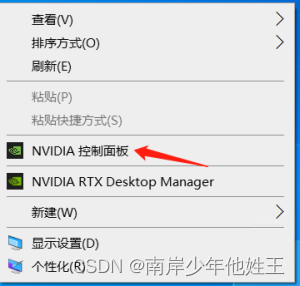

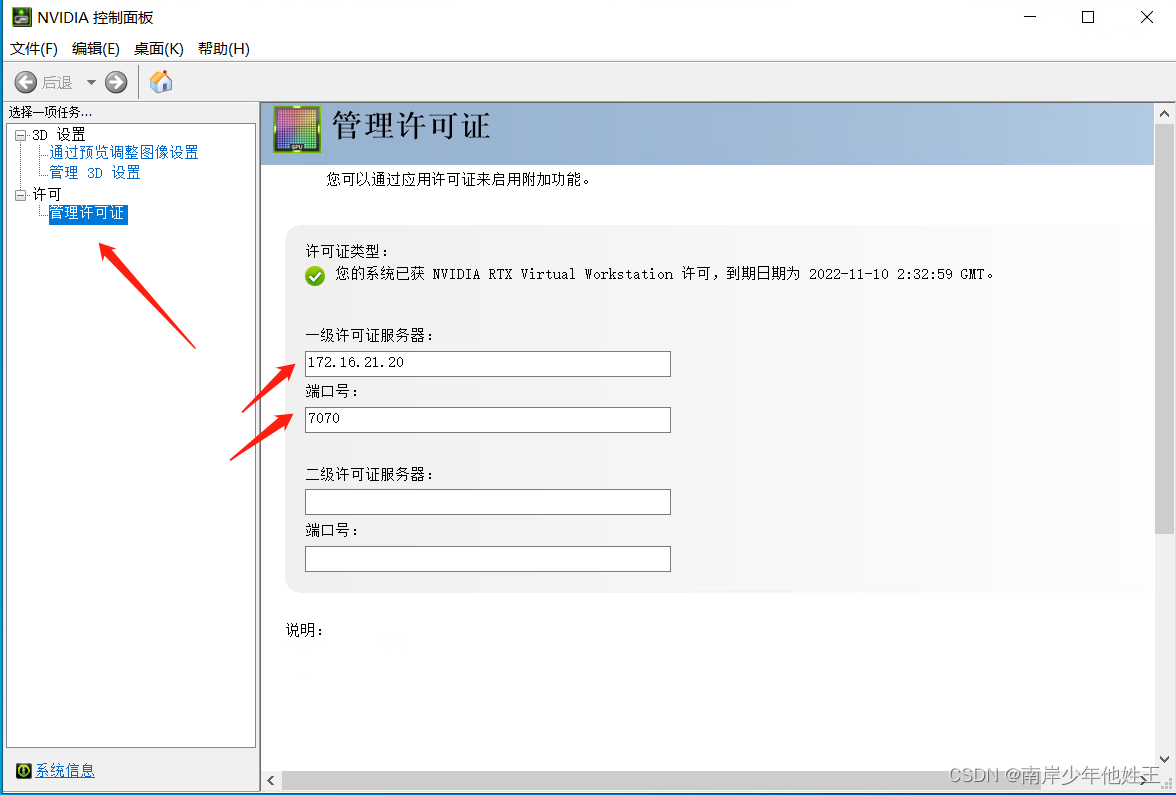

windows进NVIDIA 控制面板，找到管理许可证，输入license 服务器的ip地址和端口号（端口默认是7070），保存即可

在这里插入图片描述

二、linux激活（以ubuntu20.04为例）

1、linux安装完显卡驱动之后，找到gridd.conf文件，默认在/etc/nvidia/下
# 进入/etc/nvidia/文件夹
cd /etc/nvidia/

# 找到gridd.conf配置文件，或者为gridd.conf.templat这个文件。如果是gridd.conf.template重命名下
cp gridd.conf.template gridd.conf

2、编辑gridd.conf文件

# 设置vgpu license服务器IP地址
ServerAddress=license服务器ip

# 设置vgpu license服务器端口号
ServerPort=端口号

# 设置vgpu类型，默认设置为1，自动检测
# 0 =>表示未授权状态
# 1 =>用于NVIDIA vGPU(可选，根据vGPU类型自动检测)
# 2 =>为NVIDIA RTX虚拟工作站
# 4 =>为NVIDIA虚拟计算服务器

FeatureType=1

 #重启nvidia-gridd服务
systemctl restart nvidia-gridd.service

 #查看服务状态，看到License acquired successfully代表成功
root@demo-test05:~# systemctl status nvidia-gridd.service

● nvidia-gridd.service - NVIDIA Grid Daemon
     Loaded: loaded (/lib/systemd/system/nvidia-gridd.service; enabled; vendor preset: enabled)
     Active: active (running) since Wed 2022-11-09 10:42:30 CST; 14min ago
    Process: 1655 ExecStart=/usr/bin/nvidia-gridd (code=exited, status=0/SUCCESS)
   Main PID: 1666 (nvidia-gridd)
      Tasks: 3 (limit: 19099)
     Memory: 77.3M
     CGroup: /system.slice/nvidia-gridd.service
             └─1666 /usr/bin/nvidia-gridd

Nov 09 10:42:30 demo-test05 nvidia-gridd[1666]: Started (1666)
Nov 09 10:42:30 demo-test05 systemd[1]: Started NVIDIA Grid Daemon.
Nov 09 10:42:31 demo-test05 nvidia-gridd[1666]: vGPU Software package (0)
Nov 09 10:42:31 demo-test05 nvidia-gridd[1666]: Ignore service provider licensing
Nov 09 10:42:31 demo-test05 nvidia-gridd[1666]: Unable to fetch the client configuration token file
Nov 09 10:42:32 demo-test05 nvidia-gridd[1666]: Service provider detection complete.
Nov 09 10:42:32 demo-test05 nvidia-gridd[1666]: Calling load_byte_array(tra)
Nov 09 10:42:32 demo-test05 nvidia-gridd[1666]: Acquiring license. (Info: http://172.16.21.20:7070/request; NVIDIA RTX Virtual Workstation)
Nov 09 10:42:32 demo-test05 nvidia-gridd[1666]: Calling load_byte_array(tra)
Nov 09 10:42:33 demo-test05 nvidia-gridd[1666]: License acquired successfully. (Info: http://172.16.21.20:7070/request, NVIDIA RTX Virtual Workstation; Expiry: 2022-11-10 2:42:59 GM>

4、查看显卡激活时间状态

root@demo-test05:~# nvidia-smi -q

==============NVSMI LOG==============

Timestamp                                 : Wed Nov  9 10:58:58 2022
Driver Version                            : 510.85.02
CUDA Version                              : 11.6

Attached GPUs                             : 1
GPU 00000000:06:00.0
    Product Name                          : GRID T4-1Q
    Product Brand                         : NVIDIA RTX Virtual Workstation
    Product Architecture                  : Turing
    Display Mode                          : Enabled
    Display Active                        : Disabled
    Persistence Mode                      : Enabled
    MIG Mode
        Current                           : N/A
        Pending                           : N/A
    Accounting Mode                       : Disabled
    Accounting Mode Buffer Size           : 4000
    Driver Model
        Current                           : N/A
        Pending                           : N/A
    Serial Number                         : N/A
    GPU UUID                              : GPU-0798f1a3-5fd8-11ed-ac0d-c264a78c3127
    Minor Number                          : 0
    VBIOS Version                         : 00.00.00.00.00
    MultiGPU Board                        : No
    Board ID                              : 0x600
    GPU Part Number                       : N/A
    Module ID                             : N/A
    Inforom Version
        Image Version                     : N/A
        OEM Object                        : N/A
        ECC Object                        : N/A
        Power Management Object           : N/A
    GPU Operation Mode
        Current                           : N/A
        Pending                           : N/A
    GSP Firmware Version                  : N/A
    GPU Virtualization Mode
        Virtualization Mode               : VGPU
        Host VGPU Mode                    : N/A
    vGPU Software Licensed Product
        Product Name                      : NVIDIA RTX Virtual Workstation
        License Status                    : Licensed (Expiry: 2022-11-10 2:42:59 GMT)                             # vgpu状态
    IBMNPU
        Relaxed Ordering Mode             : N/A
    PCI
        Bus                               : 0x06
        Device                            : 0x00
        Domain                            : 0x0000
        Device Id                         : 0x1EB810DE
        Bus Id                            : 00000000:06:00.0
        Sub System Id                     : 0x130C10DE
        GPU Link Info
            PCIe Generation
                Max                       : N/A
                Current                   : N/A
            Link Width
                Max                       : N/A
                Current                   : N/A
        Bridge Chip
            Type                          : N/A
            Firmware                      : N/A
        Replays Since Reset               : N/A
        Replay Number Rollovers           : N/A
        Tx Throughput                     : N/A
        Rx Throughput                     : N/A
    Fan Speed                             : N/A
    Performance State                     : P8
    Clocks Throttle Reasons               : N/A
    FB Memory Usage
        Total                             : 1024 MiB
        Reserved                          : 152 MiB
        Used                              : 0 MiB
        Free                              : 871 MiB
    BAR1 Memory Usage
        Total                             : 256 MiB
        Used                              : 0 MiB
        Free                              : 256 MiB
    Compute Mode                          : Default
    Utilization
        Gpu                               : 0 %
        Memory                            : 0 %
        Encoder                           : 0 %
        Decoder                           : 0 %
    Encoder Stats
        Active Sessions                   : 0
        Average FPS                       : 0
        Average Latency                   : 0
    FBC Stats
        Active Sessions                   : 0
        Average FPS                       : 0
        Average Latency                   : 0
    Ecc Mode
        Current                           : Enabled
        Pending                           : Enabled
    ECC Errors
        Volatile
            SRAM Correctable              : 0
            SRAM Uncorrectable            : 0
            DRAM Correctable              : 0
            DRAM Uncorrectable            : 0
        Aggregate
            SRAM Correctable              : 0
            SRAM Uncorrectable            : 0
            DRAM Correctable              : 0
            DRAM Uncorrectable            : 0
    Retired Pages
        Single Bit ECC                    : 0
        Double Bit ECC                    : 0
        Pending Page Blacklist            : No
    Remapped Rows                         : N/A
    Temperature
        GPU Current Temp                  : N/A
        GPU Shutdown Temp                 : N/A
        GPU Slowdown Temp                 : N/A
        GPU Max Operating Temp            : N/A
        GPU Target Temperature            : N/A
        Memory Current Temp               : N/A
        Memory Max Operating Temp         : N/A
    Power Readings
        Power Management                  : N/A
        Power Draw                        : N/A
        Power Limit                       : N/A
        Default Power Limit               : N/A
        Enforced Power Limit              : N/A
        Min Power Limit                   : N/A
        Max Power Limit                   : N/A
    Clocks
        Graphics                          : 300 MHz
        SM                                : 300 MHz
        Memory                            : 405 MHz
        Video                             : 540 MHz
    Applications Clocks
        Graphics                          : N/A
        Memory                            : N/A
    Default Applications Clocks
        Graphics                          : N/A
        Memory                            : N/A
    Max Clocks
        Graphics                          : N/A
        SM                                : N/A
        Memory                            : N/A
        Video                             : N/A
    Max Customer Boost Clocks
        Graphics                          : N/A
    Clock Policy
        Auto Boost                        : N/A
        Auto Boost Default                : N/A
    Voltage
        Graphics                          : N/A
    Processes                             : None
