1、架构原理

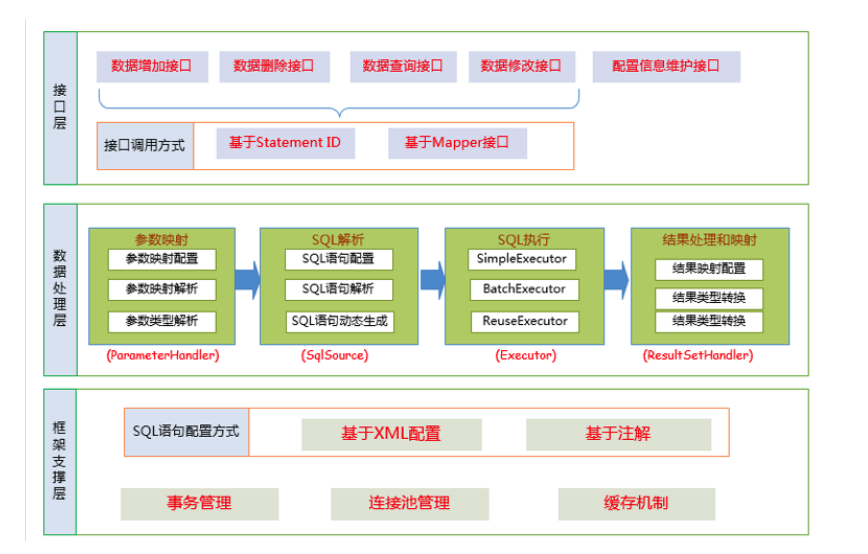

1.1、架构设计
我们把Mybatis的功能架构分为三层：
(1)、 API接⼝层：提供给外部使⽤的接口 API，开发⼈员通过这些本地API来操纵数据库。接⼝层⼀接收到调⽤请求就会调⽤数据处理层来完成具体的数据处理。
MyBatis和数据库的交互有两种⽅式：
a、使⽤传统的MyBati s提供的API ；
b、 使⽤Mapper代理的⽅式
(2) 、数据处理层：负责具体的SQL查找、SQL解析、SQL执⾏和执⾏结果映射处理等。它主要的⽬的是根据调⽤的请求完成⼀次数据库操作。
(3) 、基础⽀撑层：负责最基础的功能⽀撑，包括连接管理、事务管理、配置加载和缓存处理，这些都是共⽤的东⻄，将他们抽取出来作为最基础的组件。为上层的数据处理层提供最基础的⽀撑。

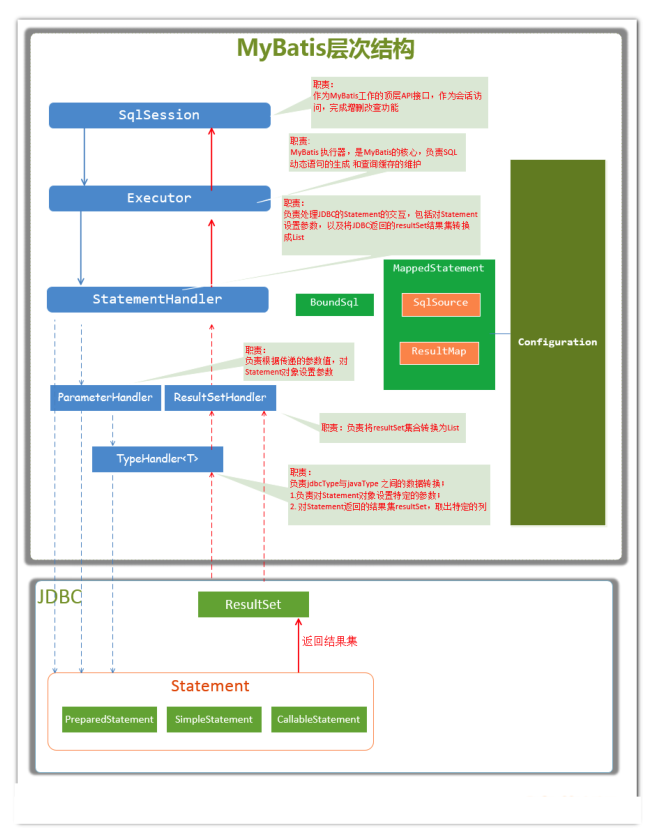

1.2、主要构件及其相互关系
| 构件 | 描述 |
|---|---|
| SqlSession | 作为MyBatis⼯作的主要顶层API，表示和数据库交互的会话，完成必要数据库增删改查功能 |
| Executor | MyBatis执⾏器，是MyBatis调度的核⼼，负责SQL语句的⽣成和查询缓存的维护 |
| StatementHandler | 封装了JDBC Statement操作，负责对JDBC statement的操作，如设置参数、将Statement结果集转换成List集合。 |
| ParameterHandler | 负责对⽤户传递的参数转换成JDBC Statement所需要的参数， |
| ResultSetHandler | 负责将JDBC返回的ResultSet结果集对象转换成List类型的集合； |
| TypeHandler | 负责java数据类型和jdbc数据类型之间的映射和转换 |
| MappedStatement | MappedStatement维护了⼀条＜select | update | delete | insert> 节点的封装 |
| SqlSource | 负责根据⽤户传递的parameterObject，动态地⽣成SQL语句，将信息封装到BoundSql对象中，并返回 |
| BoundSql | 表示动态⽣成的SQL语句以及相应的参数信息 |
1.3、总体流程
1.3.1、加载配置并初始化
触发条件：加载配置⽂件
配置来源于两个地⽅，⼀个是配置⽂件(主配置⽂件conf.xml,mapper⽂件*.xml),—个是java代码中的注解，将主配置⽂件内容解析封装到Configuration,将sql的配置信息加载成为⼀个mappedstatement对象，存储在内存之中。
1.3.2、接收调用请求
触发条件：调⽤Mybatis提供的API
传⼊参数：为SQL的ID和传⼊参数对象
处理过程：将请求传递给下层的请求处理层进⾏处理。
1.3.3、处理操作请求
触发条件：API接⼝层传递请求过来
传⼊参数：为SQL的ID和传⼊参数对象
处理过程：
(A) 根据SQL的ID查找对应的MappedStatement对象。
(B) 根据传⼊参数对象解析MappedStatement对象，得到最终要执⾏的SQL和执⾏传⼊参数。
(C) 获取数据库连接，根据得到的最终SQL语句和执⾏传⼊参数到数据库执⾏，并得到执⾏结果。
(D) 根据MappedStatement对象中的结果映射配置对得到的执⾏结果进⾏转换处理，并得到最终的处理结果。
(E) 释放连接资源。
1.3.4、返回处理结果
将最终的处理结果返回。
2、源码剖析
2.1、传统方式源码剖析

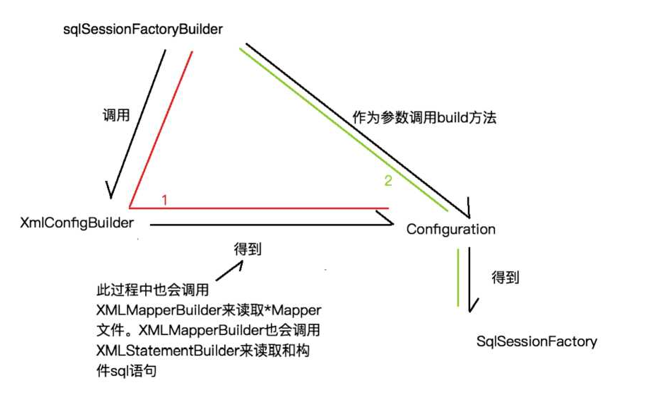

2.1.1、初始化
//1.Resources工具类，配置文件的加载，把配置文件加载成字节输入流
InputStream resourceAsStream = Resources.getResourceAsStream("sqlMapConfig.xml");
//2.解析了配置文件，并创建了sqlSessionFactory工厂
SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(resourceAsStream);进入源码分析：

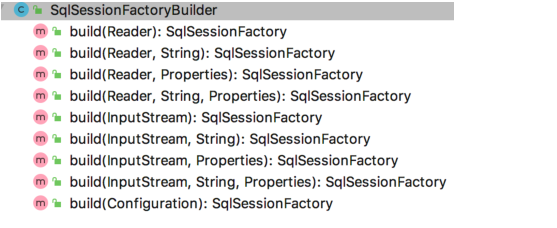

//1、外层调用的解析方法
public SqlSessionFactory build(InputStream inputStream) {
//调用重载方法
return build(inputStream, null, null);
}
//2、重载方法
public SqlSessionFactory build(InputStream inputStream, String environment, Properties properties) {
try {
// XMLConfigBuilder是专⻔解析mybatis的配置⽂件的类
XMLConfigBuilder parser = new XMLConfigBuilder(inputStream, environment, properties);
//这⾥⼜调⽤了⼀个重载⽅法。parser.parse()的返回值是Configuration对象
return build(parser.parse());
} catch (Exception e) {
throw ExceptionFactory.wrapException("Error building SqlSession.", e);
} finally {
ErrorContext.instance().reset();
try {
inputStream.close();
} catch (IOException e) {
// Intentionally ignore. Prefer previous error.
}
}
}
//3、构建工厂对象
public SqlSessionFactory build(Configuration config) {
return new DefaultSqlSessionFactory(config);
}MyBatis在初始化的时候，会将MyBatis的配置信息全部加载到内存中，使⽤ org.apache.ibatis.session.Configuration 实例来维护。下⾯进⼊对配置⽂件解析部分：
关于Configuration对象：
Configuration对象的结构和xml配置⽂件的对象⼏乎相同。回顾⼀下xml中的配置标签有哪些：
properties (属性)，settings (设置)，typeAliases (类型别名)，typeHandlers (类型处理器)，objectFactory (对象⼯⼚)，mappers (映射器)等 Configuration也有对应的对象属性来封装它们。也就是说，初始化配置⽂件信息的本质就是创建Configuration对象，将解析的xml数据封装到Configuration内部属性中。
//解析 XML 成 Configuration 对象。
public Configuration parse() {
//若已解析，抛出BuilderException异常
if (parsed) {
throw new BuilderException("Each XMLConfigBuilder can only be used once.");
}
//标记已解析
parsed = true;
// 解析 XML configuration 节点
parseConfiguration(parser.evalNode("/configuration"));
return configuration;
}
//解析XML
private void parseConfiguration(XNode root) {
try {
//issue #117 read properties first
// 解析 <properties /> 标签
propertiesElement(root.evalNode("properties"));
// 解析〈settings /> 标签
Properties settings = settingsAsProperties(root.evalNode("settings"));
//加载⾃定义的VFS实现类
loadCustomVfs(settings);
// 解析 <typeAliases /> 标签
typeAliasesElement(root.evalNode("typeAliases"));
//解析<plugins />标签
pluginElement(root.evalNode("plugins"));
// 解析 <objectFactory /> 标签
objectFactoryElement(root.evalNode("objectFactory"));
// 解析 <objectWrapperFactory /> 标签
objectWrapperFactoryElement(root.evalNode("objectWrapperFactory"));
// 解析 <reflectorFactory /> 标签
reflectorFactoryElement(root.evalNode("reflectorFactory"));
// 赋值 <settings /> ⾄ Configuration 属性
settingsElement(settings);
// read it after objectFactory and objectWrapperFactory issue #631
// 解析〈environments /> 标签
environmentsElement(root.evalNode("environments"));
// 解析 <databaseIdProvider /> 标签
databaseIdProviderElement(root.evalNode("databaseIdProvider"));
// 解析 <typeHandlers /> 标签
typeHandlerElement(root.evalNode("typeHandlers"));
//解析<mappers />标签
mapperElement(root.evalNode("mappers"));
} catch (Exception e) {
throw new BuilderException("Error parsing SQL Mapper Configuration. Cause: " + e, e);
}
}关于MappedStatement：
MappedStatement 与Mapper配置⽂件中的⼀个select/update/insert/delete节点相对应。mapper中配置的标签都被封装到了此对象中，主要⽤途是描述⼀条SQL语句。
回顾刚开始介绍的加载配置⽂件的过程中，会对mybatis-config.xml中的各个标签都进⾏解析，其中有mappers 标签⽤来引⼊mapper.xml⽂件或者配置mapper接⼝的⽬录。
<select id="getUser" resultType="user" >
select * from user where id=#{id}
</select>这样的⼀个select标签会在初始化配置⽂件时被解析封装成⼀个MappedStatement对象，然后存储在Configuration对象的mappedStatements属性中，mappedStatements 是⼀个HashMap，存储时key=全限定类名+⽅法名，value =对应的MappedStatement对象。
Map<String, MappedStatement> mappedStatements = new StrictMap<MappedStatement>
("Mapped Statements collection")在 XMLConfigBuilder 中的处理：
private void parseConfiguration(XNode root) {
try {
//省略其他标签的处理
mapperElement(root.evalNode("mappers"));
} catch (Exception e) {
throw new BuilderException("Error parsing SQL Mapper Configuration. Cause:" + e, e);
}
}到此对xml配置⽂件的解析就结束了，回到步骤2.中调⽤的重载build⽅法：
// 5.调⽤的重载⽅法
public SqlSessionFactory build(Configuration config) {
//创建了 DefaultSqlSessionFactory 对象，传⼊ Configuration 对象。
return new DefaultSqlSessionFactory(config);
}2.1.2、执行SQL流程
关于SqlSession：
SqlSession是⼀个接⼝，它有两个实现类：DefaultSqlSession (默认)和SqlSessionManager (弃⽤，不做介绍)。
SqlSession是MyBatis中⽤于和数据库交互的顶层类，通常将它与ThreadLocal绑定，⼀个会话使⽤⼀个SqlSession,并且在使⽤完毕后需要close。
public class DefaultSqlSession implements SqlSession {
private final Configuration configuration;
private final Executor executor;
}SqlSession中的两个最重要的参数，configuration与初始化时的相同，Executor为执⾏器。
关于Executor：
Executor也是⼀个接⼝，他有三个常⽤的实现类：
- BatchExecutor (重⽤语句并执⾏批量更新)
- ReuseExecutor (重⽤预处理语句 prepared statements)
- SimpleExecutor (普通的执⾏器，默认)
继续分析，初始化完毕后，我们就要执⾏SQL 了：
SqlSession sqlSession = factory.openSession();
List<User> list = sqlSession.selectList("com.blnp.net.mapper.UserMapper.getUserByName");获得 sqlSession：

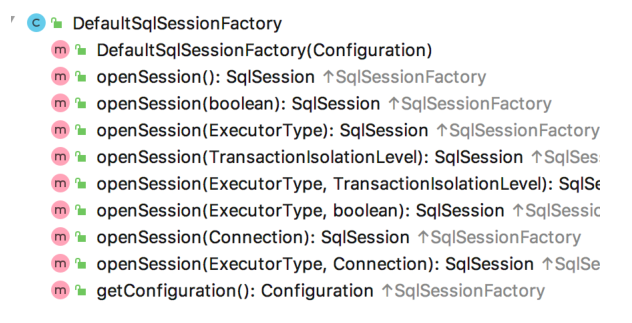

//6. 进⼊ openSession ⽅法。
public SqlSession openSession() {
//getDefaultExecutorType()传递的是SimpleExecutor
return openSessionFromDataSource(configuration.getDefaultExecutorType(), null,
false);
}
//7. 进⼊penSessionFromDataSource。
//ExecutorType 为Executor的类型，TransactionIsolationLevel为事务隔离级别，autoCommit是否开启事务
//openSession的多个重载⽅法可以指定获得的SeqSession的Executor类型和事务的处理
private SqlSession openSessionFromDataSource(ExecutorType execType,
TransactionIsolationLevel level, boolean autoCommit) {
Transaction tx = null;
try{
final Environment environment = configuration.getEnvironment();
final TransactionFactory transactionFactory =
getTransactionFactoryFromEnvironment(environment);
tx = transactionFactory.newTransaction(environment.getDataSource(),level, autoCommit);
//根据参数创建指定类型的Executor
final Executor executor = configuration.newExecutor(tx, execType);
//返回的是 DefaultSqlSession
return new DefaultSqlSession(configuration, executor, autoCommit);
} catch(Exception e){
closeTransaction(tx); // may have fetched a connection so lets call close()
}
}执⾏ sqlsession 中的 api：
//8.进⼊selectList⽅法，多个重载⽅法。
@Override
public < E > List < E > selectList(String statement)
{
return this.selectList(statement, null);
}
@Override
public < E > List < E > selectList(String statement, Object parameter)
{
return this.selectList(statement, parameter, RowBounds.DEFAULT);
}
@Override
public < E > List < E > selectList(String statement, Object parameter, RowBounds rowBounds)
{
try
{
//根据传⼊的全限定名+⽅法名从映射的Map中取出MappedStatement对象
MappedStatement ms = configuration.getMappedStatement(statement);
//调⽤Executor中的⽅法处理
//RowBounds是⽤来逻辑分⻚
// wrapCollection(parameter)是⽤来装饰集合或者数组参数
return executor.query(ms, wrapCollection(parameter), rowBounds, Executor.NO_RESULT_HANDLER);
}
catch (Exception e)
{
throw ExceptionFactory.wrapException("Error querying database. Cause: " + e, e);
}
finally
{
ErrorContext.instance().reset();
}
}2.1.3、executor
从代码 executor.query 进入查看：
//org.apache.ibatis.executor.BaseExecutor
//此⽅法在SimpleExecutor的⽗类BaseExecutor中实现
@Override
public <E> List<E> query(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler) throws SQLException {
//根据传⼊的参数动态获得SQL语句，最后返回⽤BoundSql对象表示
BoundSql boundSql = ms.getBoundSql(parameter);
//为本次查询创建缓存的Key
CacheKey key = createCacheKey(ms, parameter, rowBounds, boundSql);
//执行具体的查询
return query(ms, parameter, rowBounds, resultHandler, key, boundSql);
}
//进⼊query的重载⽅法中
@SuppressWarnings("unchecked")
@Override
public <E> List<E> query(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, CacheKey key, BoundSql boundSql) throws SQLException {
ErrorContext.instance().resource(ms.getResource()).activity("executing a query").object(ms.getId());
if (closed) {
throw new ExecutorException("Executor was closed.");
}
if (queryStack == 0 && ms.isFlushCacheRequired()) {
clearLocalCache();
}
List<E> list;
try {
queryStack++;
list = resultHandler == null ? (List<E>) localCache.getObject(key) : null;
if (list != null) {
handleLocallyCachedOutputParameters(ms, key, parameter, boundSql);
} else {
//如果缓存中没有本次查找的值，那么从数据库中查询
list = queryFromDatabase(ms, parameter, rowBounds, resultHandler, key, boundSql);
}
} finally {
queryStack--;
}
if (queryStack == 0) {
for (DeferredLoad deferredLoad : deferredLoads) {
deferredLoad.load();
}
// issue #601
deferredLoads.clear();
if (configuration.getLocalCacheScope() == LocalCacheScope.STATEMENT) {
// issue #482
clearLocalCache();
}
}
return list;
}
//从数据库查询
private <E> List<E> queryFromDatabase(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, CacheKey key, BoundSql boundSql) throws SQLException {
List<E> list;
localCache.putObject(key, EXECUTION_PLACEHOLDER);
try {
//查询的⽅法
list = doQuery(ms, parameter, rowBounds, resultHandler, boundSql);
} finally {
localCache.removeObject(key);
}
//将查询结果放⼊缓存
localCache.putObject(key, list);
if (ms.getStatementType() == StatementType.CALLABLE) {
localOutputParameterCache.putObject(key, parameter);
}
return list;
}
// SimpleExecutor中实现⽗类的doQuery抽象⽅法
@Override
public <E> List<E> doQuery(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, BoundSql boundSql) throws SQLException {
Statement stmt = null;
try {
Configuration configuration = ms.getConfiguration();
//传⼊参数创建StatementHanlder对象来执⾏查询
StatementHandler handler = configuration.newStatementHandler(wrapper, ms, parameter, rowBounds, resultHandler, boundSql);
//创建jdbc中的statement对象
stmt = prepareStatement(handler, ms.getStatementLog());
// StatementHandler 进⾏处理
return handler.<E>query(stmt, resultHandler);
} finally {
closeStatement(stmt);
}
}
//创建Statement的⽅法
private Statement prepareStatement(StatementHandler handler, Log statementLog) throws SQLException {
Statement stmt;
//这条代码中的getConnection⽅法经过重重调⽤最后会调⽤openConnection⽅法，从连接池
中获 得连接。
Connection connection = getConnection(statementLog);
stmt = handler.prepare(connection, transaction.getTimeout());
handler.parameterize(stmt);
return stmt;
}
//从连接池获得连接的⽅法
protected void openConnection() throws SQLException {
if (log.isDebugEnabled()) {
log.debug("Opening JDBC Connection");
}
//从连接池获得连接
connection = dataSource.getConnection();
if (level != null) {
connection.setTransactionIsolation(level.getLevel());
}
setDesiredAutoCommit(autoCommmit);
}上述的Executor.query()⽅法⼏经转折，最后会创建⼀个StatementHandler对象，然后将必要的参数传递给StatementHandler，使⽤StatementHandler来完成对数据库的查询，最终返回List结果集。从上⾯的代码中我们可以看出，Executor的功能和作⽤是：
(1、根据传递的参数，完成SQL语句的动态解析，⽣成BoundSql对象，供StatementHandler使⽤；
(2、为查询创建缓存，以提⾼性能
(3、创建JDBC的Statement连接对象，传递给*StatementHandler*对象，返回List查询结果。
2.1.4、StatementHandler
StatementHandler对象主要完成两个⼯作：
- 对于JDBC的PreparedStatement类型的对象，创建的过程中，我们使⽤的是SQL语句字符串会包含若⼲个？占位符，我们其后再对占位符进⾏设值。StatementHandler通过 parameterize(statement)⽅法对 Statement 进⾏设值；
- StatementHandler 通过 List query(Statement statement, ResultHandler resultHandler)⽅法来完成执⾏Statement，和将Statement对象返回的resultSet封装成List；
进⼊到 StatementHandler 的 parameterize(statement)⽅法的实现：
//org.apache.ibatis.executor.statement.PreparedStatementHandler
@Override
public void parameterize(Statement statement) throws SQLException {
//使⽤ParameterHandler对象来完成对Statement的设值
parameterHandler.setParameters((PreparedStatement) statement);
}
//org.apache.ibatis.scripting.defaults.DefaultParameterHandler
//对某⼀个Statement进⾏设置参数
@Override
public void setParameters(PreparedStatement ps) {
ErrorContext.instance().activity("setting parameters").object(mappedStatement.getParameterMap().getId());
List<ParameterMapping> parameterMappings = boundSql.getParameterMappings();
if (parameterMappings != null) {
for (int i = 0; i < parameterMappings.size(); i++) {
ParameterMapping parameterMapping = parameterMappings.get(i);
if (parameterMapping.getMode() != ParameterMode.OUT) {
Object value;
String propertyName = parameterMapping.getProperty();
if (boundSql.hasAdditionalParameter(propertyName)) { // issue #448 ask first for additional params
value = boundSql.getAdditionalParameter(propertyName);
} else if (parameterObject == null) {
value = null;
} else if (typeHandlerRegistry.hasTypeHandler(parameterObject.getClass())) {
value = parameterObject;
} else {
MetaObject metaObject = configuration.newMetaObject(parameterObject);
value = metaObject.getValue(propertyName);
}
// 每⼀个 Mapping都有⼀个 TypeHandler，根据 TypeHandler 来对preparedStatement 进 ⾏设置参数
TypeHandler typeHandler = parameterMapping.getTypeHandler();
JdbcType jdbcType = parameterMapping.getJdbcType();
if (value == null && jdbcType == null) {
jdbcType = configuration.getJdbcTypeForNull();
}
try {
//设置参数
typeHandler.setParameter(ps, i + 1, value, jdbcType);
} catch (TypeException e) {
throw new TypeException("Could not set parameters for mapping: " + parameterMapping + ". Cause: " + e, e);
} catch (SQLException e) {
throw new TypeException("Could not set parameters for mapping: " + parameterMapping + ". Cause: " + e, e);
}
}
}
}
}从上述的代码可以看到,StatementHandler的parameterize(Statement)⽅法调⽤了ParameterHandler的setParameters(statement)⽅法，ParameterHandler的setParameters(Statement )⽅法负责根据我们输⼊的参数，对statement对象的?占位符处进⾏赋值。
进⼊到StatementHandler 的 List query(Statement statement, ResultHandler resultHandler)⽅法的实现：
@Override
public <E> List<E> query(Statement statement, ResultHandler resultHandler) throws SQLException {
//1、取得SQL进行执行
String sql = boundSql.getSql();
//2、使⽤ ResultHandler 来处理 ResultSet
statement.execute(sql);
return resultSetHandler.<E>handleResultSets(statement);
}从上述代码我们可以看出，StatementHandler 的List query(Statement statement, ResultHandler resultHandler)⽅法的实现，是调⽤了 ResultSetHandler 的 handleResultSets(Statement)⽅法。
ResultSetHandler 的 handleResultSets(Statement)⽅法会将 Statement 语句执⾏后⽣成的 resultSet结果集转换成List结果集。
@Override
public List<Object> handleResultSets(Statement stmt) throws SQLException {
ErrorContext.instance().activity("handling results").object(mappedStatement.getId());
//多ResultSet的结果集合，每个ResultSet对应⼀个Object对象。⽽实际上，每个 Object 是List<Object> 对象。
//在不考虑存储过程的多ResultSet的情况，普通的查询，实际就⼀个ResultSet，也就是说，multipleResults最多就⼀个元素。
final List<Object> multipleResults = new ArrayList<Object>();
int resultSetCount = 0;
//获得⾸个ResultSet对象，并封装成ResultSetWrapper对象
ResultSetWrapper rsw = getFirstResultSet(stmt);
//获得ResultMap数组
//在不考虑存储过程的多ResultSet的情况，普通的查询，实际就⼀个ResultSet，也就是说，resultMaps就⼀个元素。
List<ResultMap> resultMaps = mappedStatement.getResultMaps();
int resultMapCount = resultMaps.size();
// 校验
validateResultMapsCount(rsw, resultMapCount);
while (rsw != null && resultMapCount > resultSetCount) {
//获得ResultMap对象
ResultMap resultMap = resultMaps.get(resultSetCount);
//处理ResultSet，将结果添加到multipleResults中
handleResultSet(rsw, resultMap, multipleResults, null);
//获得下⼀个ResultSet对象，并封装成ResultSetWrapper对象
rsw = getNextResultSet(stmt);
//清理
cleanUpAfterHandlingResultSet();
resultSetCount++;
}
//因为'mappedStatement.resultSets'只在存储过程中使⽤，本系列暂时不考虑，忽略即可
String[] resultSets = mappedStatement.getResultSets();
if (resultSets != null) {
while (rsw != null && resultSetCount < resultSets.length) {
ResultMapping parentMapping = nextResultMaps.get(resultSets[resultSetCount]);
if (parentMapping != null) {
String nestedResultMapId = parentMapping.getNestedResultMapId();
ResultMap resultMap = configuration.getResultMap(nestedResultMapId);
handleResultSet(rsw, resultMap, null, parentMapping);
}
rsw = getNextResultSet(stmt);
cleanUpAfterHandlingResultSet();
resultSetCount++;
}
}
//如果是multipleResults单元素，则取⾸元素返回
return collapseSingleResultList(multipleResults);
}2.2、Mapper代理方式
2.2.1、getmapper()
进⼊ sqlSession.getMapper(PlayerEntityMapper.class )中：
//1、DefaultSqlSession 中的 getMapper
@Override
public <T> T getMapper(Class<T> type) {
return configuration.<T>getMapper(type, this);
}
//2、configuration 中的给 getMapper
public <T> T getMapper(Class<T> type, SqlSession sqlSession) {
return mapperRegistry.getMapper(type, sqlSession);
}
//3、MapperRegistry 中的 getMapper
public <T> T getMapper(Class<T> type, SqlSession sqlSession) {
//从 MapperRegistry 中的 HashMap 中拿 MapperProxyFactory
final MapperProxyFactory<T> mapperProxyFactory = (MapperProxyFactory<T>) knownMappers.get(type);
if (mapperProxyFactory == null) {
throw new BindingException("Type " + type + " is not known to the MapperRegistry.");
}
try {
//通过动态代理⼯⼚⽣成实例。
return mapperProxyFactory.newInstance(sqlSession);
} catch (Exception e) {
throw new BindingException("Error getting mapper instance. Cause: " + e, e);
}
}
//4、MapperProxyFactory 类中的 newInstance ⽅法
public T newInstance(SqlSession sqlSession) {
//创建了 JDK动态代理的Handler类
final MapperProxy<T> mapperProxy = new MapperProxy<T>(sqlSession, mapperInterface, methodCache);
//调⽤了重载⽅法
return newInstance(mapperProxy);
}
//5、MapperProxy 类，实现了 InvocationHandler 接⼝
public class MapperProxy<T> implements InvocationHandler, Serializable {
private static final long serialVersionUID = -6424540398559729838L;
private final SqlSession sqlSession;
private final Class<T> mapperInterface;
private final Map<Method, MapperMethod> methodCache;
//构造，传⼊了 SqlSession，说明每个session中的代理对象的不同的！
public MapperProxy(SqlSession sqlSession, Class<T> mapperInterface, Map<Method, MapperMethod> methodCache) {
this.sqlSession = sqlSession;
this.mapperInterface = mapperInterface;
this.methodCache = methodCache;
}
@Override
public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
try {
if (Object.class.equals(method.getDeclaringClass())) {
return method.invoke(this, args);
} else if (isDefaultMethod(method)) {
return invokeDefaultMethod(proxy, method, args);
}
} catch (Throwable t) {
throw ExceptionUtil.unwrapThrowable(t);
}
final MapperMethod mapperMethod = cachedMapperMethod(method);
return mapperMethod.execute(sqlSession, args);
}
private MapperMethod cachedMapperMethod(Method method) {
MapperMethod mapperMethod = methodCache.get(method);
if (mapperMethod == null) {
mapperMethod = new MapperMethod(mapperInterface, method, sqlSession.getConfiguration());
methodCache.put(method, mapperMethod);
}
return mapperMethod;
}
@UsesJava7
private Object invokeDefaultMethod(Object proxy, Method method, Object[] args)
throws Throwable {
final Constructor<MethodHandles.Lookup> constructor = MethodHandles.Lookup.class
.getDeclaredConstructor(Class.class, int.class);
if (!constructor.isAccessible()) {
constructor.setAccessible(true);
}
final Class<?> declaringClass = method.getDeclaringClass();
return constructor
.newInstance(declaringClass,
MethodHandles.Lookup.PRIVATE | MethodHandles.Lookup.PROTECTED
| MethodHandles.Lookup.PACKAGE | MethodHandles.Lookup.PUBLIC)
.unreflectSpecial(method, declaringClass).bindTo(proxy).invokeWithArguments(args);
}
/**
* Backport of java.lang.reflect.Method#isDefault()
*/
private boolean isDefaultMethod(Method method) {
return ((method.getModifiers()
& (Modifier.ABSTRACT | Modifier.PUBLIC | Modifier.STATIC)) == Modifier.PUBLIC)
&& method.getDeclaringClass().isInterface();
}
}2.2.2、invoke()
在动态代理返回了实例后，我们就可以直接调⽤mapper类中的⽅法了，但代理对象调⽤⽅法，执⾏是在MapperProxy中的invoke⽅法中：
@Override
public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
try {
//如果是Object定义的⽅法，直接调⽤
if (Object.class.equals(method.getDeclaringClass())) {
return method.invoke(this, args);
} else if (isDefaultMethod(method)) {
return invokeDefaultMethod(proxy, method, args);
}
} catch (Throwable t) {
throw ExceptionUtil.unwrapThrowable(t);
}
// 获得 MapperMethod 对象
final MapperMethod mapperMethod = cachedMapperMethod(method);
//重点在这：MapperMethod最终调⽤了执⾏的⽅法
return mapperMethod.execute(sqlSession, args);
}
//代理执行方法
public Object execute(SqlSession sqlSession, Object[] args) {
Object result;
//判断mapper中的⽅法类型，最终调⽤的还是SqlSession中的⽅法
switch (command.getType()) {
case INSERT: {
//转换参数
Object param = method.convertArgsToSqlCommandParam(args);
//执⾏INSERT操作，转换 rowCount
result = rowCountResult(sqlSession.insert(command.getName(), param));
break;
}
case UPDATE: {
Object param = method.convertArgsToSqlCommandParam(args);
result = rowCountResult(sqlSession.update(command.getName(), param));
break;
}
case DELETE: {
Object param = method.convertArgsToSqlCommandParam(args);
result = rowCountResult(sqlSession.delete(command.getName(), param));
break;
}
case SELECT:
//⽆返回，并且有ResultHandler⽅法参数，则将查询的结果，提交给 ResultHandler 进⾏处理
if (method.returnsVoid() && method.hasResultHandler()) {
executeWithResultHandler(sqlSession, args);
result = null;
}
//执⾏查询，返回列表
else if (method.returnsMany()) {
result = executeForMany(sqlSession, args);
}
//执⾏查询，返回Map
else if (method.returnsMap()) {
result = executeForMap(sqlSession, args);
}
//执⾏查询，返回Cursor
else if (method.returnsCursor()) {
result = executeForCursor(sqlSession, args);
}
//执⾏查询，返回单个对象
else {
//转换参数
Object param = method.convertArgsToSqlCommandParam(args);
//查询单条
result = sqlSession.selectOne(command.getName(), param);
}
break;
case FLUSH:
result = sqlSession.flushStatements();
break;
default:
throw new BindingException("Unknown execution method for: " + command.getName());
}
//返回结果为null，并且返回类型为基本类型，则抛出BindingException异常
if (result == null && method.getReturnType().isPrimitive() && !method.returnsVoid()) {
throw new BindingException("Mapper method '" + command.getName()
+ " attempted to return null from a method with a primitive return type (" + method.getReturnType() + ").");
}
return result;
}2.3、二级缓存源码剖析
⼆级缓存构建在⼀级缓存之上，在收到查询请求时，MyBatis ⾸先会查询⼆级缓存，若⼆级缓存未命中，再去查询⼀级缓存，⼀级缓存没有，再查询数据库。
与⼀级缓存不同，⼆级缓存和具体的命名空间绑定，⼀个Mapper中有⼀个Cache，相同Mapper中的MappedStatement共⽤⼀个Cache，⼀级缓存则是和 SqlSession 绑定。
2.3.1、启用二级缓存
1、开启全局缓存配置
<settings>
<setting name="cacheEnabled" value="true"/>
</settings>2、Mapper文件配置标签
<cache></cache>3、具体CURD配置
<select id="findById" resultType="com.blnp.net.pojo.User" useCache="true">
select * from user where id = #{id}
</select>2.3.2、标签 cache 解析
根据之前的mybatis源码剖析，xml的解析⼯作主要交给XMLConfigBuilder.parse()⽅法来实现：
//org.apache.ibatis.builder.xml.XMLConfigBuilder
private void parseConfiguration(XNode root) {
try {
//issue #117 read properties first
propertiesElement(root.evalNode("properties"));
Properties settings = settingsAsProperties(root.evalNode("settings"));
loadCustomVfs(settings);
typeAliasesElement(root.evalNode("typeAliases"));
pluginElement(root.evalNode("plugins"));
objectFactoryElement(root.evalNode("objectFactory"));
objectWrapperFactoryElement(root.evalNode("objectWrapperFactory"));
reflectorFactoryElement(root.evalNode("reflectorFactory"));
settingsElement(settings);
// read it after objectFactory and objectWrapperFactory issue #631
environmentsElement(root.evalNode("environments"));
databaseIdProviderElement(root.evalNode("databaseIdProvider"));
typeHandlerElement(root.evalNode("typeHandlers"));
mapperElement(root.evalNode("mappers"));
} catch (Exception e) {
throw new BuilderException("Error parsing SQL Mapper Configuration. Cause: " + e, e);
}
}
private void mapperElement(XNode parent) throws Exception {
if (parent != null) {
for (XNode child : parent.getChildren()) {
if ("package".equals(child.getName())) {
String mapperPackage = child.getStringAttribute("name");
configuration.addMappers(mapperPackage);
} else {
String resource = child.getStringAttribute("resource");
String url = child.getStringAttribute("url");
String mapperClass = child.getStringAttribute("class");
// 按照我们本例的配置，则直接⾛该if判断
if (resource != null && url == null && mapperClass == null) {
ErrorContext.instance().resource(resource);
InputStream inputStream = Resources.getResourceAsStream(resource);
XMLMapperBuilder mapperParser = new XMLMapperBuilder(inputStream, configuration, resource, configuration.getSqlFragments());
// ⽣成XMLMapperBuilder，并执⾏其parse⽅法
mapperParser.parse();
} else if (resource == null && url != null && mapperClass == null) {
ErrorContext.instance().resource(url);
InputStream inputStream = Resources.getUrlAsStream(url);
XMLMapperBuilder mapperParser = new XMLMapperBuilder(inputStream, configuration, url, configuration.getSqlFragments());
mapperParser.parse();
} else if (resource == null && url == null && mapperClass != null) {
Class<?> mapperInterface = Resources.classForName(mapperClass);
configuration.addMapper(mapperInterface);
} else {
throw new BuilderException("A mapper element may only specify a url, resource or class, but not more than one.");
}
}
}
}
}
// XMLMapperBuilder.parse()
public void parse() {
if (!configuration.isResourceLoaded(resource)) {
// 解析mapper属性
configurationElement(parser.evalNode("/mapper"));
configuration.addLoadedResource(resource);
bindMapperForNamespace();
}
parsePendingResultMaps();
parsePendingCacheRefs();
parsePendingStatements();
}
private void configurationElement(XNode context) {
try {
String namespace = context.getStringAttribute("namespace");
if (namespace == null || namespace.equals("")) {
throw new BuilderException("Mapper's namespace cannot be empty");
}
builderAssistant.setCurrentNamespace(namespace);
cacheRefElement(context.evalNode("cache-ref"));
// 最终在这⾥看到了关于cache属性的处理
cacheElement(context.evalNode("cache"));
parameterMapElement(context.evalNodes("/mapper/parameterMap"));
resultMapElements(context.evalNodes("/mapper/resultMap"));
sqlElement(context.evalNodes("/mapper/sql"));
// 这⾥会将⽣成的Cache包装到对应的MappedStatement
buildStatementFromContext(context.evalNodes("select|insert|update|delete"));
} catch (Exception e) {
throw new BuilderException("Error parsing Mapper XML. Cause: " + e, e);
}
}
private void cacheElement(XNode context) throws Exception {
if (context != null) {
//解析<cache/>标签的type属性，这⾥我们可以⾃定义cache的实现类，⽐如redisCache，如果没有⾃定义，这⾥使⽤和⼀级缓存相同的PERPETUAL
String type = context.getStringAttribute("type", "PERPETUAL");
Class<? extends Cache> typeClass = typeAliasRegistry.resolveAlias(type);
String eviction = context.getStringAttribute("eviction", "LRU");
Class<? extends Cache> evictionClass = typeAliasRegistry.resolveAlias(eviction);
Long flushInterval = context.getLongAttribute("flushInterval");
Integer size = context.getIntAttribute("size");
boolean readWrite = !context.getBooleanAttribute("readOnly", false);
boolean blocking = context.getBooleanAttribute("blocking", false);
Properties props = context.getChildrenAsProperties();
// 构建Cache对象
builderAssistant.useNewCache(typeClass, evictionClass, flushInterval, size, readWrite, blocking, props);
}
}关于Cache对象的构建：
public Cache useNewCache(Class<? extends Cache> typeClass,
Class<? extends Cache> evictionClass,
Long flushInterval,
Integer size,
boolean readWrite,
boolean blocking,
Properties props) {
// 1.⽣成Cache对象
//这⾥如果我们定义了<cache/>中的type，就使⽤⾃定义的Cache,否则使⽤和⼀级缓存相同的PerpetualCache
Cache cache = new CacheBuilder(currentNamespace)
.implementation(valueOrDefault(typeClass, PerpetualCache.class))
.addDecorator(valueOrDefault(evictionClass, LruCache.class))
.clearInterval(flushInterval)
.size(size)
.readWrite(readWrite)
.blocking(blocking)
.properties(props)
.build();
// 2.添加到Configuration中
configuration.addCache(cache);
// 3.并将cache赋值给MapperBuilderAssistant.currentCache
currentCache = cache;
return cache;
}我们看到⼀个Mapper.xml只会解析⼀次标签，也就是只创建⼀次Cache对象，放进configuration中，并将cache赋值给MapperBuilderAssistant.currentCache
private void configurationElement(XNode context) {
try {
String namespace = context.getStringAttribute("namespace");
if (namespace == null || namespace.equals("")) {
throw new BuilderException("Mapper's namespace cannot be empty");
}
builderAssistant.setCurrentNamespace(namespace);
cacheRefElement(context.evalNode("cache-ref"));
cacheElement(context.evalNode("cache"));
parameterMapElement(context.evalNodes("/mapper/parameterMap"));
resultMapElements(context.evalNodes("/mapper/resultMap"));
sqlElement(context.evalNodes("/mapper/sql"));
buildStatementFromContext(context.evalNodes("select|insert|update|delete"));
} catch (Exception e) {
throw new BuilderException("Error parsing Mapper XML. Cause: " + e, e);
}
}
private void buildStatementFromContext(List<XNode> list) {
if (configuration.getDatabaseId() != null) {
buildStatementFromContext(list, configuration.getDatabaseId());
}
buildStatementFromContext(list, null);
}
private void buildStatementFromContext(List<XNode> list, String requiredDatabaseId) {
for (XNode context : list) {
final XMLStatementBuilder statementParser = new XMLStatementBuilder(configuration, builderAssistant, context, requiredDatabaseId);
try {
// 每⼀条执⾏语句转换成⼀个MappedStatement
statementParser.parseStatementNode();
} catch (IncompleteElementException e) {
configuration.addIncompleteStatement(statementParser);
}
}
}
public void parseStatementNode() {
String id = context.getStringAttribute("id");
String databaseId = context.getStringAttribute("databaseId");
if (!databaseIdMatchesCurrent(id, databaseId, this.requiredDatabaseId)) {
return;
}
Integer fetchSize = context.getIntAttribute("fetchSize");
Integer timeout = context.getIntAttribute("timeout");
String parameterMap = context.getStringAttribute("parameterMap");
String parameterType = context.getStringAttribute("parameterType");
Class<?> parameterTypeClass = resolveClass(parameterType);
String resultMap = context.getStringAttribute("resultMap");
String resultType = context.getStringAttribute("resultType");
String lang = context.getStringAttribute("lang");
LanguageDriver langDriver = getLanguageDriver(lang);
Class<?> resultTypeClass = resolveClass(resultType);
String resultSetType = context.getStringAttribute("resultSetType");
StatementType statementType = StatementType.valueOf(context.getStringAttribute("statementType", StatementType.PREPARED.toString()));
ResultSetType resultSetTypeEnum = resolveResultSetType(resultSetType);
String nodeName = context.getNode().getNodeName();
SqlCommandType sqlCommandType = SqlCommandType.valueOf(nodeName.toUpperCase(Locale.ENGLISH));
boolean isSelect = sqlCommandType == SqlCommandType.SELECT;
boolean flushCache = context.getBooleanAttribute("flushCache", !isSelect);
boolean useCache = context.getBooleanAttribute("useCache", isSelect);
boolean resultOrdered = context.getBooleanAttribute("resultOrdered", false);
// Include Fragments before parsing
XMLIncludeTransformer includeParser = new XMLIncludeTransformer(configuration, builderAssistant);
includeParser.applyIncludes(context.getNode());
// Parse selectKey after includes and remove them.
processSelectKeyNodes(id, parameterTypeClass, langDriver);
// Parse the SQL (pre: <selectKey> and <include> were parsed and removed)
SqlSource sqlSource = langDriver.createSqlSource(configuration, context, parameterTypeClass);
String resultSets = context.getStringAttribute("resultSets");
String keyProperty = context.getStringAttribute("keyProperty");
String keyColumn = context.getStringAttribute("keyColumn");
KeyGenerator keyGenerator;
String keyStatementId = id + SelectKeyGenerator.SELECT_KEY_SUFFIX;
keyStatementId = builderAssistant.applyCurrentNamespace(keyStatementId, true);
if (configuration.hasKeyGenerator(keyStatementId)) {
keyGenerator = configuration.getKeyGenerator(keyStatementId);
} else {
keyGenerator = context.getBooleanAttribute("useGeneratedKeys",
configuration.isUseGeneratedKeys() && SqlCommandType.INSERT.equals(sqlCommandType))
? Jdbc3KeyGenerator.INSTANCE : NoKeyGenerator.INSTANCE;
}
// 创建MappedStatement对象
builderAssistant.addMappedStatement(id, sqlSource, statementType, sqlCommandType,
fetchSize, timeout, parameterMap, parameterTypeClass, resultMap, resultTypeClass,
resultSetTypeEnum, flushCache, useCache, resultOrdered,
keyGenerator, keyProperty, keyColumn, databaseId, langDriver, resultSets);
}
public MappedStatement addMappedStatement(
String id,
SqlSource sqlSource,
StatementType statementType,
SqlCommandType sqlCommandType,
Integer fetchSize,
Integer timeout,
String parameterMap,
Class<?> parameterType,
String resultMap,
Class<?> resultType,
ResultSetType resultSetType,
boolean flushCache,
boolean useCache,
boolean resultOrdered,
KeyGenerator keyGenerator,
String keyProperty,
String keyColumn,
String databaseId,
LanguageDriver lang,
String resultSets) {
if (unresolvedCacheRef) {
throw new IncompleteElementException("Cache-ref not yet resolved");
}
id = applyCurrentNamespace(id, false);
boolean isSelect = sqlCommandType == SqlCommandType.SELECT;
//创建MappedStatement对象
MappedStatement.Builder statementBuilder = new MappedStatement.Builder(configuration, id, sqlSource, sqlCommandType)
.resource(resource)
.fetchSize(fetchSize)
.timeout(timeout)
.statementType(statementType)
.keyGenerator(keyGenerator)
.keyProperty(keyProperty)
.keyColumn(keyColumn)
.databaseId(databaseId)
.lang(lang)
.resultOrdered(resultOrdered)
.resultSets(resultSets)
.resultMaps(getStatementResultMaps(resultMap, resultType, id))
.resultSetType(resultSetType)
.flushCacheRequired(valueOrDefault(flushCache, !isSelect))
.useCache(valueOrDefault(useCache, isSelect))
//在这⾥将之前⽣成的Cache封装到MappedStatement
.cache(currentCache);
ParameterMap statementParameterMap = getStatementParameterMap(parameterMap, parameterType, id);
if (statementParameterMap != null) {
statementBuilder.parameterMap(statementParameterMap);
}
MappedStatement statement = statementBuilder.build();
configuration.addMappedStatement(statement);
return statement;
}我们看到将Mapper中创建的Cache对象，加⼊到了每个MappedStatement对象中，也就是同⼀个Mapper中所有的节点。
2.3.3、源码分析
CachingExecutor：
//org.apache.ibatis.executor.CachingExecutor
@Override
public <E> List<E> query(MappedStatement ms, Object parameterObject, RowBounds rowBounds, ResultHandler resultHandler) throws SQLException {
BoundSql boundSql = ms.getBoundSql(parameterObject);
// 创建 CacheKey
CacheKey key = createCacheKey(ms, parameterObject, rowBounds, boundSql);
return query(ms, parameterObject, rowBounds, resultHandler, key, boundSql);
}
@Override
public <E> List<E> query(MappedStatement ms, Object parameterObject, RowBounds rowBounds, ResultHandler resultHandler, CacheKey key, BoundSql boundSql)
throws SQLException {
// 从 MappedStatement 中获取 Cache，注意这⾥的 Cache 是从MappedStatement中获取的
// 也就是我们上⾯解析Mapper中<cache/>标签中创建的，它保存在Configration中
// 我们在上⾯解析xxx.xml时分析过每⼀个MappedStatement都有⼀个Cache对象，就是这⾥
Cache cache = ms.getCache();
// 如果配置⽂件中没有配置 <cache>，则 cache 为空
if (cache != null) {
//如果需要刷新缓存的话就刷新：flushCache="true"
flushCacheIfRequired(ms);
if (ms.isUseCache() && resultHandler == null) {
ensureNoOutParams(ms, parameterObject, boundSql);
// 访问⼆级缓存
@SuppressWarnings("unchecked")
List<E> list = (List<E>) tcm.getObject(cache, key);
// 缓存未命中
if (list == null) {
// 如果没有值，则执⾏查询，这个查询实际也是先⾛⼀级缓存查询，⼀级缓存也没有的话，则进⾏DB查询
list = delegate.<E> query(ms, parameterObject, rowBounds, resultHandler, key, boundSql);
// 缓存查询结果
tcm.putObject(cache, key, list); // issue #578 and #116
}
return list;
}
}
return delegate.<E> query(ms, parameterObject, rowBounds, resultHandler, key, boundSql);
}如果设置了 flushCache="true"，则每次查询都会刷新缓存
<!-- 执⾏此语句清空缓存 -->
<select id="findbyId" resultType="com.blnp.net.pojo.user" useCache="true"
flushCache="true" >
select * from t_demo
</select>如上，注意⼆级缓存是从 MappedStatement 中获取的。由于 MappedStatement 存在于全局配置中，可以多个 CachingExecutor 获取到，这样就会出现线程安全问题。除此之外，若不加以控制，多个事务共⽤⼀个缓存实例，会导致脏读问题。⾄于脏读问题，需要借助其他类来处理，也就是上⾯代码中tcm 变量对应的类型。下⾯分析⼀下。
TransactionalCacheManager：
/** 事务缓存管理器 */
public class TransactionalCacheManager {
// Cache 与 TransactionalCache 的映射关系表
private final Map<Cache, TransactionalCache> transactionalCaches = new HashMap<Cache, TransactionalCache>();
public void clear(Cache cache) {
// 获取 TransactionalCache 对象，并调⽤该对象的 clear ⽅法，下同
getTransactionalCache(cache).clear();
}
public Object getObject(Cache cache, CacheKey key) {
// 直接从TransactionalCache中获取缓存
return getTransactionalCache(cache).getObject(key);
}
public void putObject(Cache cache, CacheKey key, Object value) {
// 直接存⼊TransactionalCache的缓存中
getTransactionalCache(cache).putObject(key, value);
}
public void commit() {
for (TransactionalCache txCache : transactionalCaches.values()) {
txCache.commit();
}
}
public void rollback() {
for (TransactionalCache txCache : transactionalCaches.values()) {
txCache.rollback();
}
}
private TransactionalCache getTransactionalCache(Cache cache) {
// 从映射表中获取 TransactionalCache
TransactionalCache txCache = transactionalCaches.get(cache);
if (txCache == null) {
// TransactionalCache 也是⼀种装饰类，为 Cache 增加事务功能
// 创建⼀个新的TransactionalCache，并将真正的Cache对象存进去
txCache = new TransactionalCache(cache);
transactionalCaches.put(cache, txCache);
}
return txCache;
}
}TransactionalCacheManager 内部维护了 Cache 实例与 TransactionalCache 实例间的映射关系，该类也仅负责维护两者的映射关系，真正做事的还是 TransactionalCache。TransactionalCache 是⼀种缓存装饰器，可以为 Cache 实例增加事务功能。我在之前提到的脏读问题正是由该类进⾏处理的。下⾯分析⼀下该类的逻辑。
TransactionalCache：
public class TransactionalCache implements Cache {
private static final Log log = LogFactory.getLog(TransactionalCache.class);
//真正的缓存对象，和上⾯的Map<Cache, TransactionalCache>中的Cache是同⼀个
private final Cache delegate;
private boolean clearOnCommit;
// 在事务被提交前，所有从数据库中查询的结果将缓存在此集合中
private final Map<Object, Object> entriesToAddOnCommit;
// 在事务被提交前，当缓存未命中时，CacheKey 将会被存储在此集合中
private final Set<Object> entriesMissedInCache;
public TransactionalCache(Cache delegate) {
this.delegate = delegate;
this.clearOnCommit = false;
this.entriesToAddOnCommit = new HashMap<Object, Object>();
this.entriesMissedInCache = new HashSet<Object>();
}
@Override
public String getId() {
return delegate.getId();
}
@Override
public int getSize() {
return delegate.getSize();
}
@Override
public Object getObject(Object key) {
// 查询的时候是直接从delegate中去查询的，也就是从真正的缓存对象中查询
// issue #116
Object object = delegate.getObject(key);
if (object == null) {
// 缓存未命中，则将 key 存⼊到 entriesMissedInCache 中
entriesMissedInCache.add(key);
}
// issue #146
if (clearOnCommit) {
return null;
} else {
return object;
}
}
@Override
public ReadWriteLock getReadWriteLock() {
return null;
}
@Override
public void putObject(Object key, Object object) {
// 将键值对存⼊到 entriesToAddOnCommit 这个Map中中，⽽⾮真实的缓存对象delegate 中
entriesToAddOnCommit.put(key, object);
}
@Override
public Object removeObject(Object key) {
return null;
}
@Override
public void clear() {
clearOnCommit = true;
// 清空 entriesToAddOnCommit，但不清空 delegate 缓存
entriesToAddOnCommit.clear();
}
public void commit() {
// 根据 clearOnCommit 的值决定是否清空 delegate
if (clearOnCommit) {
delegate.clear();
}
// 刷新未缓存的结果到 delegate 缓存中
flushPendingEntries();
// 重置 entriesToAddOnCommit 和 entriesMissedInCache
reset();
}
public void rollback() {
unlockMissedEntries();
reset();
}
private void reset() {
clearOnCommit = false;
// 清空集合
entriesToAddOnCommit.clear();
entriesMissedInCache.clear();
}
private void flushPendingEntries() {
for (Map.Entry<Object, Object> entry : entriesToAddOnCommit.entrySet()) {
// 将 entriesToAddOnCommit 中的内容转存到 delegate 中
delegate.putObject(entry.getKey(), entry.getValue());
}
for (Object entry : entriesMissedInCache) {
if (!entriesToAddOnCommit.containsKey(entry)) {
// 存⼊空值
delegate.putObject(entry, null);
}
}
}
private void unlockMissedEntries() {
for (Object entry : entriesMissedInCache) {
try {
// 调⽤ removeObject 进⾏解锁
delegate.removeObject(entry);
} catch (Exception e) {
log.warn("Unexpected exception while notifiying a rollback to the cache adapter."
+ "Consider upgrading your cache adapter to the latest version. Cause: " + e);
}
}
}
}存储⼆级缓存对象的时候是放到了TransactionalCache.entriesToAddOnCommit这个map中，但是每次查询的时候是直接从TransactionalCache.delegate中去查询的，所以这个⼆级缓存查询数据库后，设置缓存值是没有⽴刻⽣效的，主要是因为直接存到 delegate 会导致脏数据问题。
2.3.4、什么时候生效
SqlSession：
//org.apache.ibatis.session.defaults.DefaultSqlSession
@Override
public void commit(boolean force) {
try {
// 主要是这句
executor.commit(isCommitOrRollbackRequired(force));
dirty = false;
} catch (Exception e) {
throw ExceptionFactory.wrapException("Error committing transaction. Cause: " + e, e);
} finally {
ErrorContext.instance().reset();
}
}
// CachingExecutor.commit()
@Override
public void commit(boolean required) throws SQLException {
delegate.commit(required);
tcm.commit(); // 在这⾥
}
// TransactionalCacheManager.commit()
public void commit() {
for(TransactionalCache txCache: transactionalCaches.values()) {
txCache.commit(); // 在这⾥
}
}
// TransactionalCache.commit()
public void commit() {
if(clearOnCommit) {
delegate.clear();
}
flushPendingEntries(); //这⼀句
reset();
}
// TransactionalCache.flushPendingEntries()
private void flushPendingEntries() {
for(Map.Entry < Object, Object > entry: entriesToAddOnCommit.entrySet()) {
// 在这⾥真正的将entriesToAddOnCommit的对象逐个添加到delegate中，只有这时，⼆级缓存才真正的⽣效
delegate.putObject(entry.getKey(), entry.getValue());
}
for(Object entry: entriesMissedInCache) {
if(!entriesToAddOnCommit.containsKey(entry)) {
delegate.putObject(entry, null);
}
}
}2.3.5、二级缓存刷新
public int update(String statement, Object parameter) {
int var4;
try {
this.dirty = true;
MappedStatement ms = this.configuration.getMappedStatement(statement);
var4 = this.executor.update(ms, this.wrapCollection(parameter));
} catch (Exception var8) {
throw ExceptionFactory.wrapException("Error updating database. Cause:
" + var8, var8);
} finally {
ErrorContext.instance().reset();
}
return var4;
}
public int update(MappedStatement ms, Object parameterObject) throws
SQLException {
this.flushCacheIfRequired(ms);
return this.delegate.update(ms, parameterObject);
}
private void flushCacheIfRequired(MappedStatement ms) {
//获取MappedStatement对应的Cache，进⾏清空
Cache cache = ms.getCache();
//SQL需设置flushCache="true" 才会执⾏清空
if (cache != null && ms.isFlushCacheRequired()) {
this.tcm.clear(cache);
}
}MyBatis⼆级缓存只适⽤于不常进⾏增、删、改的数据，⽐如国家⾏政区省市区街道数据。⼀但数据变更，MyBatis会清空缓存。因此⼆级缓存不适⽤于经常进⾏更新的数据。
2.3.6、小结
在⼆级缓存的设计上，MyBatis⼤量地运⽤了装饰者模式，如CachingExecutor, 以及各种Cache接⼝的装饰器。
- ⼆级缓存实现了Sqlsession之间的缓存数据共享，属于namespace级别
- ⼆级缓存具有丰富的缓存策略。
- ⼆级缓存可由多个装饰器，与基础缓存组合⽽成
- ⼆级缓存⼯作由 ⼀个缓存装饰执⾏器CachingExecutor和 ⼀个事务型预缓存TransactionalCache完成。
2.4、延迟加载源码分析
2.4.1、什么是延迟加载
问题
在开发过程中很多时候我们并不需要总是在加载⽤户信息时就⼀定要加载他的订单信息。此时就是我们所说的延迟加载。
举例：
在⼀对多中，当我们有⼀个⽤户，它有个100个订单。在查询⽤户的时候，要不要把关联的订单查出来？在查询订单的时候，要不要把关联的⽤户查出来？
在查询⽤户时，⽤户下的订单应该是，什么时候⽤，什么时候查询。在查询订单时，订单所属的⽤户信息应该是随着订单⼀起查询出来。
什么是延迟加载：
就是在需要⽤到数据时才进⾏加载，不需要⽤到数据时就不加载数据。延迟加载也称懒加载。
优点：
先从单表查询，需要时再从关联表去关联查询，⼤⼤提⾼数据库性能，因为查询单表要⽐关联查询多张表速度要快。
缺点：
因为只有当需要⽤到数据时，才会进⾏数据库查询，这样在⼤批量数据查询时，因为查询⼯作也要消耗时间，所以可能造成⽤户等待时间变⻓，造成⽤户体验下降。
多表中：
⼀对多，多对多：通常情况下采⽤延迟加载。⼀对⼀（多对⼀）：通常情况下采⽤⽴即加载。需要注意都是延迟加载是基于嵌套查询来实现的。
2.4.2、如何实现延迟加载
1、局部延迟加载
在association和collection标签中都有⼀个fetchType属性，通过修改它的值，可以修改局部的加载策略。
<!-- 开启⼀对多 延迟加载 -->
<resultMap id="userMap" type="user">
<id column="id" property="id"></id>
<result column="username" property="username"></result>
<result column="password" property="password"></result>
<result column="birthday" property="birthday"></result>
<!--
fetchType="lazy" 懒加载策略
fetchType="eager" ⽴即加载策略
-->
<collection property="orderList" ofType="order" column="id"
select="com.blnp.net.dao.OrderMapper.findByUid" fetchType="lazy">
</collection>
</resultMap>
<select id="findAll" resultMap="userMap">
SELECT * FROM `user`
</select>2、全局延迟加载
在Mybatis的核⼼配置⽂件中可以使⽤setting标签修改全局的加载策略。
<settings>
<!--开启全局延迟加载功能-->
<setting name="lazyLoadingEnabled" value="true"/>
</settings>Mapper 文件的配置：
<!-- 关闭⼀对⼀ 延迟加载 -->
<resultMap id="orderMap" type="order">
<id column="id" property="id"></id>
<result column="ordertime" property="ordertime"></result>
<result column="total" property="total"></result>
<!--
fetchType="lazy" 懒加载策略
fetchType="eager" ⽴即加载策略
-->
<association property="user" column="uid" javaType="user"
select="com.blnp.net.dao.UserMapper.findById" fetchType="eager">
</association>
</resultMap>
<select id="findAll" resultMap="orderMap">
SELECT * from orders
</select>2.4.3、实现原理
它的原理是，使⽤ CGLIB 或 Javassist( 默认 ) 创建⽬标对象的代理对象。当调⽤代理对象的延迟加载属性的 getting ⽅法时，进⼊拦截器⽅法。⽐如调⽤ a.getB().getName() ⽅法，进⼊拦截器的invoke(...) ⽅法，发现 a.getB() 需要延迟加载时，那么就会单独发送事先保存好的查询关联 B对象的 SQL ，把 B 查询上来，然后调⽤a.setB(b) ⽅法，于是 a 对象 b 属性就有值了，接着完成a.getB().getName() ⽅法的调⽤。这就是延迟加载的基本原理
总的来说：延迟加载主要是通过动态代理的形式实现，通过代理拦截到指定⽅法，执⾏数据加载。
2.4.4、源码分析

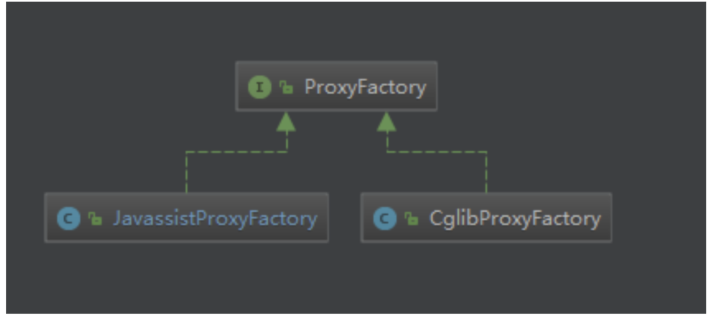

MyBatis延迟加载主要使⽤：Javassist，Cglib实现，类图展示：
1、Setting 配置加载
public class Configuration {
/** aggressiveLazyLoading：
* 当开启时，任何⽅法的调⽤都会加载该对象的所有属性。否则，每个属性会按需加载（参考
lazyLoadTriggerMethods).
* 默认为true
* */
protected boolean aggressiveLazyLoading;
/**
* 延迟加载触发⽅法
*/
protected Set < String > lazyLoadTriggerMethods = new HashSet < String > (Arrays.asList(new String[] {
"equals",
"clone",
"hashCode",
"toString"
}));
/** 是否开启延迟加载 */
protected boolean lazyLoadingEnabled = false;
/**

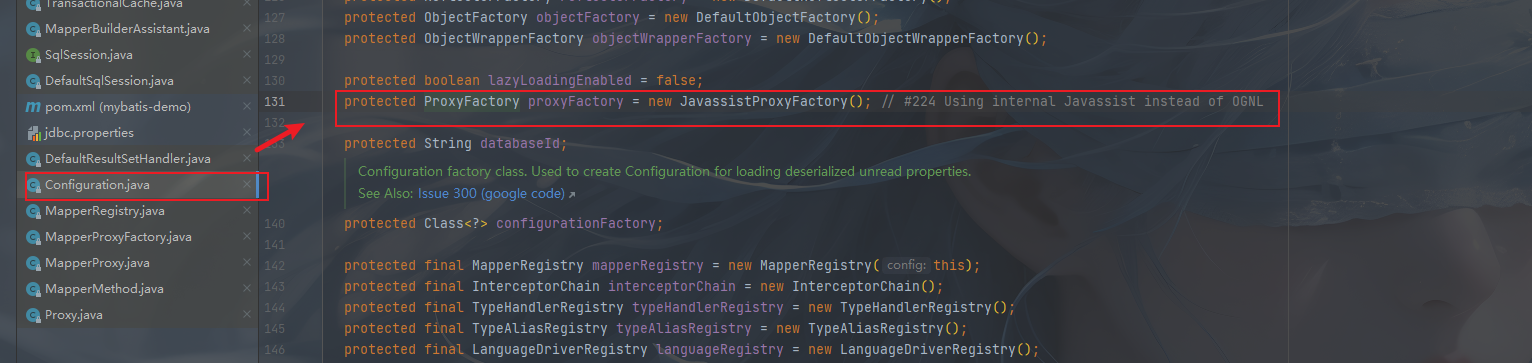

* 默认使⽤Javassist代理⼯⼚
* @param proxyFactory
*/
public void setProxyFactory(ProxyFactory proxyFactory) {
if(proxyFactory == null) {
proxyFactory = new JavassistProxyFactory();
}
this.proxyFactory = proxyFactory;
}
}2、延迟加载代理对象创建
Mybatis的查询结果是由ResultSetHandler接⼝的handleResultSets()⽅法处理的。ResultSetHandler接⼝只有⼀个实现，DefaultResultSetHandler，接下来看下延迟加载相关的⼀个核⼼的⽅法：
private Object createResultObject(ResultSetWrapper rsw, ResultMap resultMap, ResultLoaderMap lazyLoader, String columnPrefix) throws SQLException {
this.useConstructorMappings = false; // reset previous mapping result
final List<Class<?>> constructorArgTypes = new ArrayList<Class<?>>();
final List<Object> constructorArgs = new ArrayList<Object>();
//创建返回的结果映射的真实对象
Object resultObject = createResultObject(rsw, resultMap, constructorArgTypes, constructorArgs, columnPrefix);
if (resultObject != null && !hasTypeHandlerForResultObject(rsw, resultMap.getType())) {
final List<ResultMapping> propertyMappings = resultMap.getPropertyResultMappings();
for (ResultMapping propertyMapping : propertyMappings) {
//判断属性有没有配置嵌套查询，如果有就创建代理对象
if (propertyMapping.getNestedQueryId() != null && propertyMapping.isLazy()) {
//创建延迟加载代理对象
resultObject = configuration.getProxyFactory().createProxy(resultObject, lazyLoader, configuration, objectFactory, constructorArgTypes, constructorArgs);
break;
}
}
}
this.useConstructorMappings = (resultObject != null && !constructorArgTypes.isEmpty()); // set current mapping result
return resultObject;
}默认采⽤javassistProxy进⾏代理对象的创建:
public class JavassistProxyFactory implements org.apache.ibatis.executor.loader.ProxyFactory {
private static final Log log = LogFactory.getLog(JavassistProxyFactory.class);
private static final String FINALIZE_METHOD = "finalize";
private static final String WRITE_REPLACE_METHOD = "writeReplace";
public JavassistProxyFactory() {
try {
Resources.classForName("javassist.util.proxy.ProxyFactory");
} catch (Throwable e) {
throw new IllegalStateException("Cannot enable lazy loading because Javassist is not available. Add Javassist to your classpath.", e);
}
}
/**
* 接⼝实现
* @param target ⽬标结果对象
* @param lazyLoader 延迟加载对象
* @param configuration 配置
* @param objectFactory 对象⼯⼚
* @param constructorArgTypes 构造参数类型
* @param constructorArgs 构造参数值
* @return
*/
@Override
public Object createProxy(Object target, ResultLoaderMap lazyLoader, Configuration configuration, ObjectFactory objectFactory, List<Class<?>> constructorArgTypes, List<Object> constructorArgs) {
return EnhancedResultObjectProxyImpl.createProxy(target, lazyLoader, configuration, objectFactory, constructorArgTypes, constructorArgs);
}
public Object createDeserializationProxy(Object target, Map<String, ResultLoaderMap.LoadPair> unloadedProperties, ObjectFactory objectFactory, List<Class<?>> constructorArgTypes, List<Object> constructorArgs) {
return EnhancedDeserializationProxyImpl.createProxy(target, unloadedProperties, objectFactory, constructorArgTypes, constructorArgs);
}
@Override
public void setProperties(Properties properties) {
// Not Implemented
}
/**
* 创建代理对象
* @param type
* @param callback
* @param constructorArgTypes
* @param constructorArgs
* @return
*/
static Object crateProxy(Class<?> type, MethodHandler callback, List<Class<?>> constructorArgTypes, List<Object> constructorArgs) {
ProxyFactory enhancer = new ProxyFactory();
enhancer.setSuperclass(type);
try {
//通过获取对象⽅法，判断是否存在该⽅法
type.getDeclaredMethod(WRITE_REPLACE_METHOD);
// ObjectOutputStream will call writeReplace of objects returned by writeReplace
if (log.isDebugEnabled()) {
log.debug(WRITE_REPLACE_METHOD + " method was found on bean " + type + ", make sure it returns this");
}
} catch (NoSuchMethodException e) {
//没找到该⽅法，实现接⼝
enhancer.setInterfaces(new Class[]{WriteReplaceInterface.class});
} catch (SecurityException e) {
// nothing to do here
}
Object enhanced;
Class<?>[] typesArray = constructorArgTypes.toArray(new Class[constructorArgTypes.size()]);
Object[] valuesArray = constructorArgs.toArray(new Object[constructorArgs.size()]);
try {
//创建新的代理对象
enhanced = enhancer.create(typesArray, valuesArray);
} catch (Exception e) {
throw new ExecutorException("Error creating lazy proxy. Cause: " + e, e);
}
//设置代理执⾏器
((Proxy) enhanced).setHandler(callback);
return enhanced;
}
/**
* 代理对象实现，核⼼逻辑执⾏
*/
private static class EnhancedResultObjectProxyImpl implements MethodHandler {
private final Class<?> type;
private final ResultLoaderMap lazyLoader;
private final boolean aggressive;
private final Set<String> lazyLoadTriggerMethods;
private final ObjectFactory objectFactory;
private final List<Class<?>> constructorArgTypes;
private final List<Object> constructorArgs;
private EnhancedResultObjectProxyImpl(Class<?> type, ResultLoaderMap lazyLoader, Configuration configuration, ObjectFactory objectFactory, List<Class<?>> constructorArgTypes, List<Object> constructorArgs) {
this.type = type;
this.lazyLoader = lazyLoader;
this.aggressive = configuration.isAggressiveLazyLoading();
this.lazyLoadTriggerMethods = configuration.getLazyLoadTriggerMethods();
this.objectFactory = objectFactory;
this.constructorArgTypes = constructorArgTypes;
this.constructorArgs = constructorArgs;
}
public static Object createProxy(Object target, ResultLoaderMap lazyLoader, Configuration configuration, ObjectFactory objectFactory, List<Class<?>> constructorArgTypes, List<Object> constructorArgs) {
final Class<?> type = target.getClass();
EnhancedResultObjectProxyImpl callback = new EnhancedResultObjectProxyImpl(type, lazyLoader, configuration, objectFactory, constructorArgTypes, constructorArgs);
Object enhanced = crateProxy(type, callback, constructorArgTypes, constructorArgs);
PropertyCopier.copyBeanProperties(type, target, enhanced);
return enhanced;
}
/**
* 代理对象执⾏
* @param enhanced 原对象
* @param method 原对象⽅法
* @param methodProxy 代理⽅法
* @param args ⽅法参数
* @return
* @throws Throwable
*/
@Override
public Object invoke(Object enhanced, Method method, Method methodProxy, Object[] args) throws Throwable {
final String methodName = method.getName();
try {
synchronized (lazyLoader) {
if (WRITE_REPLACE_METHOD.equals(methodName)) {
//忽略暂未找到具体作⽤
Object original;
if (constructorArgTypes.isEmpty()) {
original = objectFactory.create(type);
} else {
original = objectFactory.create(type, constructorArgTypes, constructorArgs);
}
PropertyCopier.copyBeanProperties(type, enhanced, original);
if (lazyLoader.size() > 0) {
return new JavassistSerialStateHolder(original, lazyLoader.getProperties(), objectFactory, constructorArgTypes, constructorArgs);
} else {
return original;
}
} else {
//延迟加载数量⼤于0
if (lazyLoader.size() > 0 && !FINALIZE_METHOD.equals(methodName)) {
//aggressive ⼀次加载性所有需要要延迟加载属性或者包含触发延迟加载⽅法
if (aggressive || lazyLoadTriggerMethods.contains(methodName)) {
//⼀次全部加载
lazyLoader.loadAll();
} else if (PropertyNamer.isSetter(methodName)) {
//判断是否为set⽅法，set⽅法不需要延迟加载
final String property = PropertyNamer.methodToProperty(methodName);
lazyLoader.remove(property);
} else if (PropertyNamer.isGetter(methodName)) {
final String property = PropertyNamer.methodToProperty(methodName);
//延迟加载单个属性
if (lazyLoader.hasLoader(property)) {
lazyLoader.load(property);
}
}
}
}
}
return methodProxy.invoke(enhanced, args);
} catch (Throwable t) {
throw ExceptionUtil.unwrapThrowable(t);
}
}
}
private static class EnhancedDeserializationProxyImpl extends AbstractEnhancedDeserializationProxy implements MethodHandler {
private EnhancedDeserializationProxyImpl(Class<?> type, Map<String, ResultLoaderMap.LoadPair> unloadedProperties, ObjectFactory objectFactory,
List<Class<?>> constructorArgTypes, List<Object> constructorArgs) {
super(type, unloadedProperties, objectFactory, constructorArgTypes, constructorArgs);
}
public static Object createProxy(Object target, Map<String, ResultLoaderMap.LoadPair> unloadedProperties, ObjectFactory objectFactory,
List<Class<?>> constructorArgTypes, List<Object> constructorArgs) {
final Class<?> type = target.getClass();
EnhancedDeserializationProxyImpl callback = new EnhancedDeserializationProxyImpl(type, unloadedProperties, objectFactory, constructorArgTypes, constructorArgs);
Object enhanced = crateProxy(type, callback, constructorArgTypes, constructorArgs);
PropertyCopier.copyBeanProperties(type, target, enhanced);
return enhanced;
}
@Override
public Object invoke(Object enhanced, Method method, Method methodProxy, Object[] args) throws Throwable {
final Object o = super.invoke(enhanced, method, args);
return (o instanceof AbstractSerialStateHolder) ? o : methodProxy.invoke(o, args);
}
@Override
protected AbstractSerialStateHolder newSerialStateHolder(Object userBean, Map<String, ResultLoaderMap.LoadPair> unloadedProperties, ObjectFactory objectFactory,
List<Class<?>> constructorArgTypes, List<Object> constructorArgs) {
return new JavassistSerialStateHolder(userBean, unloadedProperties, objectFactory, constructorArgTypes, constructorArgs);
}
}
}3、注意事项
IDEA调试问题 当配置aggressiveLazyLoading=true，在使⽤IDEA进⾏调试的时候，如果断点打到代理执⾏逻辑当中，你会发现延迟加载的代码永远都不能进⼊，总是会被提前执⾏。 主要产⽣的原因在aggressiveLazyLoading，因为在调试的时候，IDEA的Debuger窗体中已经触发了延迟加载对象的⽅法。
3、设计模式
3.1、Mybatis 设计模式的应用
| 模式 | Mybatis 体现 |
|---|---|
| Builder 模式 | 例如SqlSessionFactoryBuilder、Environment; |
| 工厂方法模式 | 例如SqlSessionFactory、TransactionFactory、LogFactory |
| 单例模式 | 例如 ErrorContext 和 LogFactory； |
| 代理模式 | Mybatis实现的核⼼，⽐如MapperProxy、ConnectionLogger，⽤的jdk的动态代理。还有executor.loader包使⽤了 cglib或者javassist达到延迟加载的效果 |
| 组合模式 | 例如SqlNode和各个⼦类ChooseSqlNode等 |
| 模板方法模式 | 例如 BaseExecutor 和 SimpleExecutor，还有 BaseTypeHandler 和所有的⼦类例如IntegerTypeHandler； |
| 适配器模式 | 例如Log的Mybatis接⼝和它对jdbc、log4j等各种⽇志框架的适配实现； |
| 装饰者模式 | 例如Cache包中的cache.decorators⼦包中等各个装饰者的实现 |
| 迭代器模式 | 例如迭代器模式PropertyTokenizer； |
3.2、Builder 构建者模式
Builder模式的定义是"将⼀个复杂对象的构建与它的表示分离，使得同样的构建过程可以创建不同的表示。”，它属于创建类模式，⼀般来说，如果⼀个对象的构建⽐较复杂，超出了构造函数所能包含的范围，就可以使⽤⼯⼚模式和Builder模式，相对于⼯⼚模式会产出⼀个完整的产品，Builder应⽤于更加复杂的对象的构建，甚⾄只会构建产品的⼀个部分，直⽩来说，就是使⽤多个简单的对象⼀步⼀步构建成⼀个复杂的对象。
3.2.1、使用示例
使用构建者设计模式来生产 Computer，主要步骤如下所示：
- 将需要构建的⽬标类分成多个部件（电脑可以分为主机、显示器、键盘、⾳箱等部件）；
- 创建构建对象；
- 依次构建对象建造者；
- 继续创建构建对象指挥者
- 实际建造者实现
1、定义对象
public class Computer {
private String cpu;
private String mainBoard;
private String graphicsCard;
private String memory;
private String hardDisk;
public String getCpu() {
return cpu;
}
public void setCpu(String cpu) {
this.cpu = cpu;
}
public String getMainBoard() {
return mainBoard;
}
public void setMainBoard(String mainBoard) {
this.mainBoard = mainBoard;
}
public String getGraphicsCard() {
return graphicsCard;
}
public void setGraphicsCard(String graphicsCard) {
this.graphicsCard = graphicsCard;
}
public String getMemory() {
return memory;
}
public void setMemory(String memory) {
this.memory = memory;
}
public String getHardDisk() {
return hardDisk;
}
public void setHardDisk(String hardDisk) {
this.hardDisk = hardDisk;
}
@Override
public String toString() {
return "Computer{" +
"cpu='" + cpu + '\'' +
", mainBoard='" + mainBoard + '\'' +
", graphicsCard='" + graphicsCard + '\'' +
", memory='" + memory + '\'' +
", hardDisk='" + hardDisk + '\'' +
'}';
}
2、定义构建对象建造者
/**
* <p>构建对象建造者</p>
*
* @author lyb 2045165565@qq.com
* @createDate 2024/7/31 14:43
*/
public abstract class AbstractComputerBuilder {
protected Computer computer;
/**
* 组装CPU
**/
public abstract void buildCpu();
/**
* 组装主板
**/
public abstract void buildMainBoard();
/**
* 组装显卡
**/
public abstract void buildGraphicsCard();
/**
* 组装内存
**/
public abstract void buildMemory();
/**
* 组装硬盘
**/
public abstract void buildHardDisk();
/**
* 获取计算机
**/
public Computer getComputerItem(){
return computer;
}
}3、定义构建对象指挥者
public class ComputerDirector {
private AbstractComputerBuilder abstractComputerBuilder;
public ComputerDirector(AbstractComputerBuilder abstractComputerBuilder) {
this.abstractComputerBuilder = abstractComputerBuilder;
}
public void buildComputer() {
abstractComputerBuilder.buildCpu();
abstractComputerBuilder.buildGraphicsCard();
abstractComputerBuilder.buildMemory();
abstractComputerBuilder.buildMainBoard();
abstractComputerBuilder.buildHardDisk();
}
public Computer getComputer() {
return abstractComputerBuilder.getComputerItem();
}
}4、实际建造者创建
public class DellComputerBuilder extends AbstractComputerBuilder {
public DellComputerBuilder() {
computer = new Computer();
}
@Override
public void buildCpu() {
computer.setCpu("Intel 酷睿i5 9代");
}
@Override
public void buildMainBoard() {
computer.setMainBoard("戴尔TUF B360M-PLUS GAMING S");
}
@Override
public void buildGraphicsCard() {
computer.setGraphicsCard("七彩虹iGame GeForce RTX 2080 Ti Advanced OC 全新 NVIDIA Turing");
}
@Override
public void buildMemory() {
computer.setMemory("金士顿骇客神条FURY 8GB DDR4 2400（HX424C15FB/8） 8GB/单条");
}
@Override
public void buildHardDisk() {
computer.setMemory("西部数据1TB 7200转 64MB SATA3 黑盘（WD1003FZEX）");
}
}
public class AsusComputerBuilder extends AbstractComputerBuilder {
public AsusComputerBuilder(){
computer = new Computer();
}
@Override
public void buildCpu() {
computer.setCpu("Intel 酷睿i7 9代");
}
@Override
public void buildMainBoard() {
computer.setMainBoard("华硕TUF B360M-PLUS GAMING S");
}
@Override
public void buildGraphicsCard() {
computer.setGraphicsCard("七彩虹iGame GeForce RTX 2060 Ti Advanced OC 全新 NVIDIA Turing");
}
@Override
public void buildMemory() {
computer.setMemory("金士顿骇客神条FURY 8GB DDR4 2400（HX424C15FB/8） 16GB/单条");
}
@Override
public void buildHardDisk() {
computer.setMemory("西部数据1TB 7200转 64MB SATA3 黑盘（WD1003FZEX）");
}
}
5、构建测试
public class ComputerBuilderTest {
public static void main(String[] args) {
//华硕电脑制造者
AbstractComputerBuilder asusComputerBuilder = new AsusComputerBuilder();
//华硕电脑制造指挥者
ComputerDirector asusComputerDirector = new ComputerDirector(asusComputerBuilder);
//组装华硕电脑
asusComputerDirector.buildComputer();
System.out.println(asusComputerBuilder.getComputerItem());
//戴尔电脑制造者
AbstractComputerBuilder dellComputerBuilder = new DellComputerBuilder();
//戴尔电脑制造指挥者
ComputerDirector dellComputerDirector = new ComputerDirector(dellComputerBuilder);
//组装戴尔电脑
dellComputerDirector.buildComputer();
System.out.println(dellComputerBuilder.getComputerItem());
}
}3.2.2、Mybatis 中的体现
SqlSessionFactory 的构建过程：
Mybatis的初始化⼯作⾮常复杂，不是只⽤⼀个构造函数就能搞定的。所以使⽤了建造者模式，使⽤了⼤量的Builder，进⾏分层构造，核⼼对象Configuration使⽤了 XmlConfigBuilder来进⾏构造。
在Mybatis环境的初始化过程中，SqlSessionFactoryBuilder会调⽤XMLConfigBuilder读取所有的MybatisMapConfig.xml 和所有的 *Mapper.xml ⽂件，构建 Mybatis 运⾏的核⼼对象 Configuration对象，然后将该Configuration对象作为参数构建⼀个SqlSessionFactory对象。
private void parseConfiguration(XNode root) {
try {
//issue #117 read properties first
propertiesElement(root.evalNode("properties"));
Properties settings = settingsAsProperties(root.evalNode("settings"));
loadCustomVfs(settings);
typeAliasesElement(root.evalNode("typeAliases"));
pluginElement(root.evalNode("plugins"));
objectFactoryElement(root.evalNode("objectFactory"));
objectWrapperFactoryElement(root.evalNode("objectWrapperFactory"));
reflectorFactoryElement(root.evalNode("reflectorFactory"));
settingsElement(settings);
// read it after objectFactory and objectWrapperFactory issue #631
environmentsElement(root.evalNode("environments"));
databaseIdProviderElement(root.evalNode("databaseIdProvider"));
typeHandlerElement(root.evalNode("typeHandlers"));
mapperElement(root.evalNode("mappers"));
} catch (Exception e) {
throw new BuilderException("Error parsing SQL Mapper Configuration. Cause: " + e, e);
}
}其中 XMLConfigBuilder 在构建 Configuration 对象时，也会调⽤ XMLMapperBuilder ⽤于读取*Mapper ⽂件，⽽XMLMapperBuilder会使⽤XMLStatementBuilder来读取和build所有的SQL语句。
在这个过程中，有⼀个相似的特点，就是这些Builder会读取⽂件或者配置，然后做⼤量的XpathParser 解析、配置或语法的解析、反射⽣成对象、存⼊结果缓存等步骤，这么多的⼯作都不是⼀个构造函数所能包括的，因此⼤量采⽤了 Builder模式来解决。
3.3、工厂模式
在Mybatis中⽐如SqlSessionFactory使⽤的是⼯⼚模式，该⼯⼚没有那么复杂的逻辑，是⼀个简单⼯⼚模式。
简单⼯⼚模式(Simple Factory Pattern)：⼜称为静态⼯⼚⽅法(Static Factory Method)模式，它属于创建型模式。
在简单⼯⼚模式中，可以根据参数的不同返回不同类的实例。简单⼯⼚模式专⻔定义⼀个类来负责创建其他类的实例，被创建的实例通常都具有共同的⽗类。
例⼦：⽣产电脑
假设有⼀个电脑的代⼯⽣产商，它⽬前已经可以代⼯⽣产联想电脑了，随着业务的拓展，这个代⼯⽣产商还要⽣产惠普的电脑，我们就需要⽤⼀个单独的类来专⻔⽣产电脑，这就⽤到了简单⼯⼚模式。
3.3.1、创建抽象产品类
我们创建⼀个电脑的抽象产品类，他有⼀个抽象⽅法⽤于启动电脑：
public abstract class Computer {
/**
*产品的抽象⽅法，由具体的产品类去实现
*/
public abstract void start();
}3.3.2、创建具体产品类
接着我们创建各个品牌的电脑，他们都继承了他们的⽗类Computer，并实现了⽗类的start⽅法：
public class LenovoComputer extends Computer{
@Override
public void start() {
System.out.println("联想电脑启动");
}
}
public class HpComputer extends Computer{
@Override
public void start() {
System.out.println("惠普电脑启动");
}
}3.3.3、创建工厂类
接下来创建⼀个⼯⼚类，它提供了⼀个静态⽅法createComputer⽤来⽣产电脑。你只需要传⼊你想⽣ 产的电脑的品牌，它就会实例化相应品牌的电脑对象。
public class ComputerFactory {
public static Computer createComputer(String type) {
Computer mComputer = null;
switch(type) {
case "lenovo":
mComputer = new LenovoComputer();
break;
case "hp":
mComputer = new HpComputer();
break;
}
return mComputer;
}
}客户端调⽤⼯⼚类，传⼊“hp”⽣产出惠普电脑并调⽤该电脑对象的start⽅法：
public class CreatComputer {
public static void main(String[] args) {
ComputerFactory.createComputer("hp").start();
}
}3.3.4、Mybatis 体现
Mybatis中执⾏Sql语句、获取Mappers、管理事务的核⼼接⼝SqlSession的创建过程使⽤到了⼯⼚模式。有⼀个 SqlSessionFactory 来负责 SqlSession 的创建：
可以看到，该 SqlSessionFactory 的openSession ()⽅法重载了很多个，分别⽀持autoCommit、Executor、Transaction等参数的输⼊，来构建核⼼的SqlSession对象。在DefaultSqlSessionFactory的默认⼯⼚实现⾥，有⼀个⽅法可以看出⼯⼚怎么产出⼀个产品:
private SqlSession openSessionFromDataSource(ExecutorType execType, TransactionIsolationLevel level, boolean autoCommit) {
Transaction tx = null;
try {
final Environment environment = configuration.getEnvironment();
final TransactionFactory transactionFactory = getTransactionFactoryFromEnvironment(environment);
tx = transactionFactory.newTransaction(environment.getDataSource(), level, autoCo mmit);
//根据参数创建制定类型的Executor
final Executor executor = configuration.newExecutor(tx, execType);
//返回的是 DefaultSqlSession
return new DefaultSqlSession(configuration, executor, autoCommit);
}
catch (Exception e) {
closeTransaction(tx); // may have fetched a connection so lets call
close()
throw ExceptionFactory.wrapException("Error opening session. Cause: " + e, e);
}
finally {
ErrorContext.instance().reset();
}
}这是⼀个openSession调⽤的底层⽅法，该⽅法先从configuration读取对应的环境配置，然后初始化 TransactionFactory 获得⼀个 Transaction 对象，然后通过 Transaction 获取⼀个 Executor 对象，最后通过configuration、Executor、是否autoCommit三个参数构建了 SqlSession。
3.4、代理模式
代理模式(Proxy Pattern):给某⼀个对象提供⼀个代理，并由代理对象控制对原对象的引⽤。代理模式的英⽂叫做Proxy，它是⼀种对象结构型模式，代理模式分为静态代理和动态代理，我们来介绍动态代理。
举例说明：创建⼀个抽象类，Person接⼝，使其拥有⼀个没有返回值的doSomething⽅法。
/**
* 抽象类⼈
*/
public interface Person {
void doSomething();
}创建⼀个名为Bob的Person接⼝的实现类，使其实现doSomething⽅法：
/**
* 创建⼀个名为Bob的⼈的实现类
*/
public class Bob implements Person {
@Override
public void doSomething() {
System.out.println("Bob doing something!");
}
}创建JDK动态代理类，使其实现InvocationHandler接⼝。拥有⼀个名为target的变量，并创建getTarget获取代理对象⽅法：
/**
* JDK动态代理
* 需实现 InvocationHandler 接⼝ */
public class JDKDynamicProxy implements InvocationHandler {
//被代理的对象
Person target;
// JDKDynamicProxy 构造函数
public JDKDynamicProxy(Person person) {
this.target = person;
}
//获取代理对象
public Person getTarget() {
return (Person)Proxy.newProxylnstance(target.getClass().getClassLoader(), target.getClass().getInterfaces(), this);
}
//动态代理invoke⽅法
public Person invoke(Object proxy, Method method, Object[] args) throws
Throwable {
//被代理⽅法前执⾏
System.out.println("JDKDynamicProxy do something before!");
//执⾏被代理的⽅法
Person result = (Person) method.invoke(target, args);
//被代理⽅法后执⾏
System.out.println("JDKDynamicProxy do something after!");
return result;
}创建JDK动态代理测试类J DKDynamicTest：
/**
* JDK动态代理测试
*/
public class JDKDynamicTest {
public static void main(String[] args) {
System.out.println("不使⽤代理类，调⽤doSomething⽅法。");
//不使⽤代理类
Person person = new Bob();
// 调⽤ doSomething ⽅法
person.doSomething();
System.out.println("分割线-----------");
System.out.println("使⽤代理类，调⽤doSomething⽅法。");
//获取代理类
Person proxyPerson = new JDKDynamicProxy(new Bob()).getTarget();
// 调⽤ doSomething ⽅法
proxyPerson.doSomething();
}
}3.4.1、Mybatis 体现
代理模式可以认为是Mybatis的核⼼使⽤的模式，正是由于这个模式，我们只需要编写Mapper.java接⼝，不需要实现，由Mybati s后台帮我们完成具体SQL的执⾏。
当我们使⽤Configuration的getMapper⽅法时，会调⽤mapperRegistry.getMapper⽅法，⽽该⽅法⼜会调⽤ mapperProxyFactory.newInstance(sqlSession)来⽣成⼀个具体的代理：
public class MapperProxyFactory < T > {
private final Class<T> mapperInterface;
private final Map <Method,MapperMethod> methodCache = new ConcurrentHashMap <Method,MapperMethod>();
public MapperProxyFactory(Class<T> mapperInterface) {
this.mapperInterface = mapperInterface;
}
public Class <T> getMapperInterface() {
return mapperInterface;
}
public Map <Method,MapperMethod> getMethodCache() {
return methodCache;
@SuppressWarnings("unchecked")
protected T newInstance(MapperProxy<T> mapperProxy) {
return (T)
Proxy.newProxyInstance(mapperInterface.getClassLoader(), new Class[] {
mapperInterface
}, mapperProxy);
}
public T newInstance(SqlSession sqlSession) {
final MapperProxy <T> mapperProxy = new MapperProxy<T> (sqlSession, mapperInterface, methodCache);
return newInstance(mapperProxy);
}
}在这⾥，先通过T newInstance(SqlSession sqlSession)⽅法会得到⼀个MapperProxy对象，然后调⽤T newInstance(MapperProxy mapperProxy)⽣成代理对象然后返回。⽽查看MapperProxy的代码，可以看到如下内容：
public class MapperProxy < T > implements InvocationHandler, Serializable {
@Override
public Object invoke(Object proxy, Method method, Object[] args) throws
Throwable {
try {
if(Object.class.equals(method.getDeclaringClass())) {
return method.invoke(this, args);
}
else if(isDefaultMethod(method)) {
return invokeDefaultMethod(proxy, method, args);
}
}
catch (Throwable t) {
throw ExceptionUtil.unwrapThrowable(t);
}
final MapperMethod mapperMethod = cachedMapperMethod(method);
return mapperMethod.execute(sqlSession, args);
}
扫一扫
1610
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
