一、前言
本篇文章是分析从客户端上传到hdfs的具体流程
二、从代码具体示例来分析
2.1.Datanode向Namenode发起创建请求

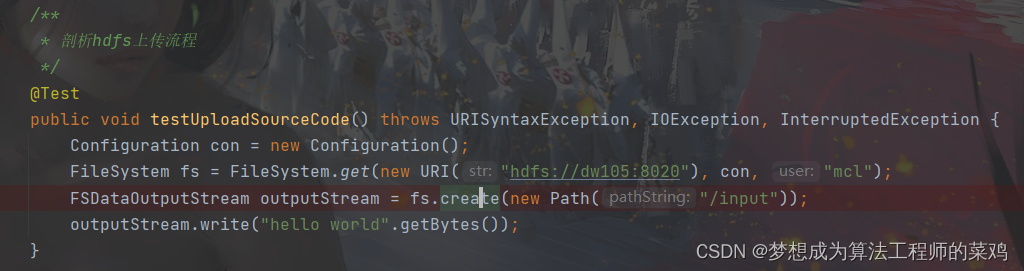

用户自己写的代码
这里我们想要创建一个目录/input，并且向这个目录下写入数据。

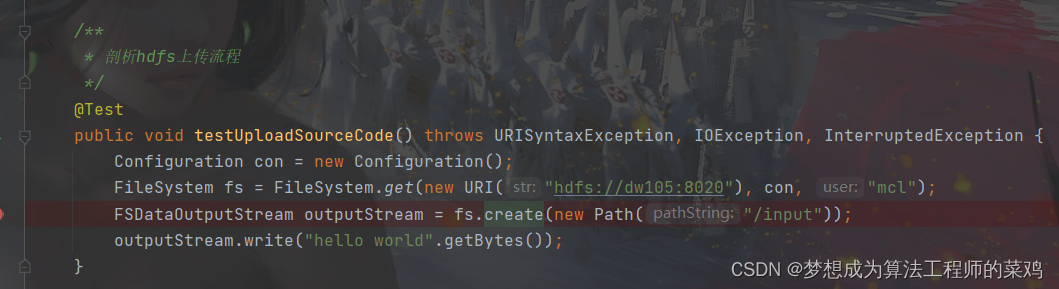

点击create
FileSystem.java
public FSDataOutputStream create(Path f) throws IOException {
return create(f, true);
}
public FSDataOutputStream create(Path f, boolean overwrite)
throws IOException {
return create(f, overwrite,
getConf().getInt(IO_FILE_BUFFER_SIZE_KEY,
IO_FILE_BUFFER_SIZE_DEFAULT),
getDefaultReplication(f),
getDefaultBlockSize(f));
}
public FSDataOutputStream create(Path f,
boolean overwrite,
int bufferSize,
short replication,
long blockSize) throws IOException {
return create(f, overwrite, bufferSize, replication, blockSize, null);
}
public FSDataOutputStream create(Path f,
boolean overwrite,
int bufferSize,
short replication,
long blockSize,
Progressable progress
) throws IOException {
return this.create(f, FsCreateModes.applyUMask(
FsPermission.getFileDefault(), FsPermission.getUMask(getConf())),
overwrite, bufferSize, replication, blockSize, progress);
}
public abstract FSDataOutputStream create(Path f,
FsPermission permission,
boolean overwrite,
int bufferSize,
short replication,
long blockSize,
Progressable progress) throws IOException;然后ctrl+alt+b，找到实现类DistributedFileSystem.java中的create方法
@Override
public FSDataOutputStream create(Path f, FsPermission permission,
boolean overwrite, int bufferSize, short replication, long blockSize,
Progressable progress) throws IOException {
return this.create(f, permission,
overwrite ? EnumSet.of(CreateFlag.CREATE, CreateFlag.OVERWRITE)
: EnumSet.of(CreateFlag.CREATE), bufferSize, replication,
blockSize, progress, null);
}
@Override
public FSDataOutputStream create(final Path f, final FsPermission permission,
final EnumSet<CreateFlag> cflags, final int bufferSize,
final short replication, final long blockSize,
final Progressable progress, final ChecksumOpt checksumOpt)
throws IOException {
statistics.incrementWriteOps(1);
storageStatistics.incrementOpCounter(OpType.CREATE);
Path absF = fixRelativePart(f);
return new FileSystemLinkResolver<FSDataOutputStream>() {
@Override
public FSDataOutputStream doCall(final Path p) throws IOException {
//获取一个输出流
final DFSOutputStream dfsos = dfs.create(getPathName(p), permission,
cflags, replication, blockSize, progress, bufferSize,
checksumOpt);
//并封装这个输出流返回
return dfs.createWrappedOutputStream(dfsos, statistics);
}
@Override
public FSDataOutputStream next(final FileSystem fs, final Path p)
throws IOException {
return fs.create(p, permission, cflags, bufferSize,
replication, blockSize, progress, checksumOpt);
}
}.resolve(this, absF);
}DFSClient.java
public DFSOutputStream create(String src, FsPermission permission,
EnumSet<CreateFlag> flag, short replication, long blockSize,
Progressable progress, int buffersize, ChecksumOpt checksumOpt)
throws IOException {
return create(src, permission, flag, true,
replication, blockSize, progress, buffersize, checksumOpt, null);
}
public DFSOutputStream create(String src, FsPermission permission,
EnumSet<CreateFlag> flag, boolean createParent, short replication,
long blockSize, Progressable progress, int buffersize,
ChecksumOpt checksumOpt, InetSocketAddress[] favoredNodes)
throws IOException {
return create(src, permission, flag, createParent, replication, blockSize,
progress, buffersize, checksumOpt, favoredNodes, null);
}
public DFSOutputStream create(String src, FsPermission permission,
EnumSet<CreateFlag> flag, boolean createParent, short replication,
long blockSize, Progressable progress, int buffersize,
ChecksumOpt checksumOpt, InetSocketAddress[] favoredNodes,
String ecPolicyName) throws IOException {
checkOpen();
final FsPermission masked = applyUMask(permission);
LOG.debug("{}: masked={}", src, masked);
//通过newStreamForCreate返回输出流
final DFSOutputStream result = DFSOutputStream.newStreamForCreate(this,
src, masked, flag, createParent, replication, blockSize, progress,
dfsClientConf.createChecksum(checksumOpt),
getFavoredNodesStr(favoredNodes), ecPolicyName);
beginFileLease(result.getFileId(), result);
return result;
}static DFSOutputStream newStreamForCreate(DFSClient dfsClient, String src,
FsPermission masked, EnumSet<CreateFlag> flag, boolean createParent,
short replication, long blockSize, Progressable progress,
DataChecksum checksum, String[] favoredNodes, String ecPolicyName)
throws IOException {
try (TraceScope ignored =
dfsClient.newPathTraceScope("newStreamForCreate", src)) {
HdfsFileStatus stat = null;
// Retry the create if we get a RetryStartFileException up to a maximum
// number of times
boolean shouldRetry = true;
int retryCount = CREATE_RETRY_COUNT;
while (shouldRetry) {
shouldRetry = false;
try {
//通过namenodeRPC的客户端远程调用RPC方法
stat = dfsClient.namenode.create(src, masked, dfsClient.clientName,
new EnumSetWritable<>(flag), createParent, replication,
blockSize, SUPPORTED_CRYPTO_VERSIONS, ecPolicyName);
break;
} catch (RemoteException re) {
...
if (e instanceof RetryStartFileException) {
if (retryCount > 0) {
shouldRetry = true;
retryCount--;
} else {
throw new IOException("Too many retries because of encryption" +
" zone operations", e);
}
} else {
throw e;
}
}
}
Preconditions.checkNotNull(stat, "HdfsFileStatus should not be null!");
final DFSOutputStream out;
if(stat.getErasureCodingPolicy() != null) {
out = new DFSStripedOutputStream(dfsClient, src, stat,
flag, progress, checksum, favoredNodes);
} else {
out = new DFSOutputStream(dfsClient, src, stat,
flag, progress, checksum, favoredNodes, true);
}
//开启线程 Streamer 用于分配dataQueue内存接收packet
out.start();
return out;
}
}2.2.Namenode处理Client的创建请求
从ClientProtocal.javaRPC协议接口中找到create接口方法
HdfsFileStatus create(String src, FsPermission masked,
String clientName, EnumSetWritable<CreateFlag> flag,
boolean createParent, short replication, long blockSize,
CryptoProtocolVersion[] supportedVersions, String ecPolicyName)
throws IOException;然后找到该接口方法的具体实现，NamenodeRpcServer.java
@Override // ClientProtocol
public HdfsFileStatus create(String src, FsPermission masked,
String clientName, EnumSetWritable<CreateFlag> flag,
boolean createParent, short replication, long blockSize,
CryptoProtocolVersion[] supportedVersions, String ecPolicyName)
throws IOException {
checkNNStartup();
String clientMachine = getClientMachine();
if (stateChangeLog.isDebugEnabled()) {
stateChangeLog.debug("*DIR* NameNode.create: file "
+src+" for "+clientName+" at "+clientMachine);
}
if (!checkPathLength(src)) {
throw new IOException("create: Pathname too long. Limit "
+ MAX_PATH_LENGTH + " characters, " + MAX_PATH_DEPTH + " levels.");
}
namesystem.checkOperation(OperationCategory.WRITE);
CacheEntryWithPayload cacheEntry = RetryCache.waitForCompletion(retryCache, null);
if (cacheEntry != null && cacheEntry.isSuccess()) {
return (HdfsFileStatus) cacheEntry.getPayload();
}
HdfsFileStatus status = null;
try {
PermissionStatus perm = new PermissionStatus(getRemoteUser()
.getShortUserName(), null, masked);
status = namesystem.startFile(src, perm, clientName, clientMachine,
flag.get(), createParent, replication, blockSize, supportedVersions,
ecPolicyName, cacheEntry != null);
} finally {
RetryCache.setState(cacheEntry, status != null, status);
}
metrics.incrFilesCreated();
metrics.incrCreateFileOps();
return status;
}FSNamesystem.java
HdfsFileStatus startFile(String src, PermissionStatus permissions,
String holder, String clientMachine, EnumSet<CreateFlag> flag,
boolean createParent, short replication, long blockSize,
CryptoProtocolVersion[] supportedVersions, String ecPolicyName,
boolean logRetryCache) throws IOException {
HdfsFileStatus status;
try {
status = startFileInt(src, permissions, holder, clientMachine, flag,
createParent, replication, blockSize, supportedVersions, ecPolicyName,
logRetryCache);
} catch (AccessControlException e) {
logAuditEvent(false, "create", src);
throw e;
}
logAuditEvent(true, "create", src, status);
return status;
}private HdfsFileStatus startFileInt(String src,
PermissionStatus permissions, String holder, String clientMachine,
EnumSet<CreateFlag> flag, boolean createParent, short replication,
long blockSize, CryptoProtocolVersion[] supportedVersions,
String ecPolicyName, boolean logRetryCache) throws IOException {
if (NameNode.stateChangeLog.isDebugEnabled()) {
StringBuilder builder = new StringBuilder();
builder.append("DIR* NameSystem.startFile: src=").append(src)
.append(", holder=").append(holder)
.append(", clientMachine=").append(clientMachine)
.append(", createParent=").append(createParent)
.append(", replication=").append(replication)
.append(", createFlag=").append(flag)
.append(", blockSize=").append(blockSize)
.append(", supportedVersions=")
.append(Arrays.toString(supportedVersions));
NameNode.stateChangeLog.debug(builder.toString());
}
if (!DFSUtil.isValidName(src) ||
FSDirectory.isExactReservedName(src) ||
(FSDirectory.isReservedName(src)
&& !FSDirectory.isReservedRawName(src)
&& !FSDirectory.isReservedInodesName(src))) {
throw new InvalidPathException(src);
}
boolean shouldReplicate = flag.contains(CreateFlag.SHOULD_REPLICATE);
if (shouldReplicate &&
(!org.apache.commons.lang.StringUtils.isEmpty(ecPolicyName))) {
throw new HadoopIllegalArgumentException("SHOULD_REPLICATE flag and " +
"ecPolicyName are exclusive parameters. Set both is not allowed!");
}
INodesInPath iip = null;
boolean skipSync = true; // until we do something that might create edits
HdfsFileStatus stat = null;
BlocksMapUpdateInfo toRemoveBlocks = null;
checkOperation(OperationCategory.WRITE);
final FSPermissionChecker pc = getPermissionChecker();
writeLock();
try {
checkOperation(OperationCategory.WRITE);
checkNameNodeSafeMode("Cannot create file" + src);
iip = FSDirWriteFileOp.resolvePathForStartFile(
dir, pc, src, flag, createParent);
if (blockSize < minBlockSize) {
throw new IOException("Specified block size is less than configured" +
" minimum value (" + DFSConfigKeys.DFS_NAMENODE_MIN_BLOCK_SIZE_KEY
+ "): " + blockSize + " < " + minBlockSize);
}
if (shouldReplicate) {
blockManager.verifyReplication(src, replication, clientMachine);
} else {
final ErasureCodingPolicy ecPolicy = FSDirErasureCodingOp
.getErasureCodingPolicy(this, ecPolicyName, iip);
if (ecPolicy != null && (!ecPolicy.isReplicationPolicy())) {
checkErasureCodingSupported("createWithEC");
if (blockSize < ecPolicy.getCellSize()) {
throw new IOException("Specified block size (" + blockSize
+ ") is less than the cell size (" + ecPolicy.getCellSize()
+") of the erasure coding policy (" + ecPolicy + ").");
}
} else {
blockManager.verifyReplication(src, replication, clientMachine);
}
}
FileEncryptionInfo feInfo = null;
if (!iip.isRaw() && provider != null) {
EncryptionKeyInfo ezInfo = FSDirEncryptionZoneOp.getEncryptionKeyInfo(
this, iip, supportedVersions);
// if the path has an encryption zone, the lock was released while
// generating the EDEK. re-resolve the path to ensure the namesystem
// and/or EZ has not mutated
if (ezInfo != null) {
checkOperation(OperationCategory.WRITE);
iip = FSDirWriteFileOp.resolvePathForStartFile(
dir, pc, iip.getPath(), flag, createParent);
feInfo = FSDirEncryptionZoneOp.getFileEncryptionInfo(
dir, iip, ezInfo);
}
}
skipSync = false; // following might generate edits
toRemoveBlocks = new BlocksMapUpdateInfo();
dir.writeLock();
try {
stat = FSDirWriteFileOp.startFile(this, iip, permissions, holder,
clientMachine, flag, createParent, replication, blockSize, feInfo,
toRemoveBlocks, shouldReplicate, ecPolicyName, logRetryCache);
} catch (IOException e) {
skipSync = e instanceof StandbyException;
throw e;
} finally {
dir.writeUnlock();
}
} finally {
writeUnlock("create");
// There might be transactions logged while trying to recover the lease.
// They need to be sync'ed even when an exception was thrown.
if (!skipSync) {
getEditLog().logSync();
if (toRemoveBlocks != null) {
removeBlocks(toRemoveBlocks);
toRemoveBlocks.clear();
}
}
}
return stat;
}static HdfsFileStatus startFile(
FSNamesystem fsn, INodesInPath iip,
PermissionStatus permissions, String holder, String clientMachine,
EnumSet<CreateFlag> flag, boolean createParent,
short replication, long blockSize,
FileEncryptionInfo feInfo, INode.BlocksMapUpdateInfo toRemoveBlocks,
boolean shouldReplicate, String ecPolicyName, boolean logRetryEntry)
throws IOException {
assert fsn.hasWriteLock();
boolean overwrite = flag.contains(CreateFlag.OVERWRITE);
boolean isLazyPersist = flag.contains(CreateFlag.LAZY_PERSIST);
final String src = iip.getPath();
FSDirectory fsd = fsn.getFSDirectory();
if (iip.getLastINode() != null) {
if (overwrite) {
List<INode> toRemoveINodes = new ChunkedArrayList<>();
List<Long> toRemoveUCFiles = new ChunkedArrayList<>();
long ret = FSDirDeleteOp.delete(fsd, iip, toRemoveBlocks,
toRemoveINodes, toRemoveUCFiles, now());
if (ret >= 0) {
iip = INodesInPath.replace(iip, iip.length() - 1, null);
FSDirDeleteOp.incrDeletedFileCount(ret);
fsn.removeLeasesAndINodes(toRemoveUCFiles, toRemoveINodes, true);
}
} else {
// If lease soft limit time is expired, recover the lease
fsn.recoverLeaseInternal(FSNamesystem.RecoverLeaseOp.CREATE_FILE, iip,
src, holder, clientMachine, false);
//校验路径是否存在，如果存在则抛出FileAlreadyExistsException异常
throw new FileAlreadyExistsException(src + " for client " +
clientMachine + " already exists");
}
}
fsn.checkFsObjectLimit();
INodeFile newNode = null;
INodesInPath parent =
FSDirMkdirOp.createAncestorDirectories(fsd, iip, permissions);
if (parent != null) {
//添加到目录树
iip = addFile(fsd, parent, iip.getLastLocalName(), permissions,
replication, blockSize, holder, clientMachine, shouldReplicate,
ecPolicyName);
newNode = iip != null ? iip.getLastINode().asFile() : null;
}
if (newNode == null) {
throw new IOException("Unable to add " + src + " to namespace");
}
fsn.leaseManager.addLease(
newNode.getFileUnderConstructionFeature().getClientName(),
newNode.getId());
if (feInfo != null) {
FSDirEncryptionZoneOp.setFileEncryptionInfo(fsd, iip, feInfo,
XAttrSetFlag.CREATE);
}
setNewINodeStoragePolicy(fsd.getBlockManager(), iip, isLazyPersist);
fsd.getEditLog().logOpenFile(src, newNode, overwrite, logRetryEntry);
if (NameNode.stateChangeLog.isDebugEnabled()) {
NameNode.stateChangeLog.debug("DIR* NameSystem.startFile: added " +
src + " inode " + newNode.getId() + " " + holder);
}
return FSDirStatAndListingOp.getFileInfo(fsd, iip, false, false);
}private static INodesInPath addFile(
FSDirectory fsd, INodesInPath existing, byte[] localName,
PermissionStatus permissions, short replication, long preferredBlockSize,
String clientName, String clientMachine, boolean shouldReplicate,
String ecPolicyName) throws IOException {
Preconditions.checkNotNull(existing);
long modTime = now();
INodesInPath newiip;
fsd.writeLock();
try {
boolean isStriped = false;
ErasureCodingPolicy ecPolicy = null;
if (!shouldReplicate) {
ecPolicy = FSDirErasureCodingOp.getErasureCodingPolicy(
fsd.getFSNamesystem(), ecPolicyName, existing);
if (ecPolicy != null && (!ecPolicy.isReplicationPolicy())) {
isStriped = true;
}
}
final BlockType blockType = isStriped ?
BlockType.STRIPED : BlockType.CONTIGUOUS;
final Short replicationFactor = (!isStriped ? replication : null);
final Byte ecPolicyID = (isStriped ? ecPolicy.getId() : null);
INodeFile newNode = newINodeFile(fsd.allocateNewInodeId(), permissions,
modTime, modTime, replicationFactor, ecPolicyID, preferredBlockSize,
blockType);
newNode.setLocalName(localName);
newNode.toUnderConstruction(clientName, clientMachine);
newiip = fsd.addINode(existing, newNode, permissions.getPermission());
} finally {
fsd.writeUnlock();
}
if (newiip == null) {
NameNode.stateChangeLog.info("DIR* addFile: failed to add " +
existing.getPath() + "/" + DFSUtil.bytes2String(localName));
return null;
}
if(NameNode.stateChangeLog.isDebugEnabled()) {
NameNode.stateChangeLog.debug("DIR* addFile: " +
DFSUtil.bytes2String(localName) + " is added");
}
return newiip;
}INodesInPath addINode(INodesInPath existing, INode child,
FsPermission modes)
throws QuotaExceededException, UnresolvedLinkException {
cacheName(child);
writeLock();
try {
//将数据写入INode的目录树中
return addLastINode(existing, child, modes, true);
} finally {
writeUnlock();
}
}public INodesInPath addLastINode(INodesInPath existing, INode inode,
FsPermission modes, boolean checkQuota) throws QuotaExceededException {
assert existing.getLastINode() != null &&
existing.getLastINode().isDirectory();
final int pos = existing.length();
// Disallow creation of /.reserved. This may be created when loading
// editlog/fsimage during upgrade since /.reserved was a valid name in older
// release. This may also be called when a user tries to create a file
// or directory /.reserved.
if (pos == 1 && existing.getINode(0) == rootDir && isReservedName(inode)) {
throw new HadoopIllegalArgumentException(
"File name \"" + inode.getLocalName() + "\" is reserved and cannot "
+ "be created. If this is during upgrade change the name of the "
+ "existing file or directory to another name before upgrading "
+ "to the new release.");
}
final INodeDirectory parent = existing.getINode(pos - 1).asDirectory();
// The filesystem limits are not really quotas, so this check may appear
// odd. It's because a rename operation deletes the src, tries to add
// to the dest, if that fails, re-adds the src from whence it came.
// The rename code disables the quota when it's restoring to the
// original location because a quota violation would cause the the item
// to go "poof". The fs limits must be bypassed for the same reason.
if (checkQuota) {
final String parentPath = existing.getPath();
verifyMaxComponentLength(inode.getLocalNameBytes(), parentPath);
verifyMaxDirItems(parent, parentPath);
}
// always verify inode name
verifyINodeName(inode.getLocalNameBytes());
final QuotaCounts counts = inode
.computeQuotaUsage(getBlockStoragePolicySuite(),
parent.getStoragePolicyID(), false, Snapshot.CURRENT_STATE_ID);
updateCount(existing, pos, counts, checkQuota);
boolean isRename = (inode.getParent() != null);
final boolean added = parent.addChild(inode, true,
existing.getLatestSnapshotId());
if (!added) {
updateCountNoQuotaCheck(existing, pos, counts.negation());
return null;
} else {
if (!isRename) {
copyINodeDefaultAcl(inode, modes);
}
addToInodeMap(inode);
}
return INodesInPath.append(existing, inode, inode.getLocalNameBytes());
}2.3.DataStreamer启动流程
NameNode处理完Client的创建请求后，回到Client端，启动对应的线程
DataOutputStream.java
static DFSOutputStream newStreamForCreate(DFSClient dfsClient, String src,
FsPermission masked, EnumSet<CreateFlag> flag, boolean createParent,
short replication, long blockSize, Progressable progress,
DataChecksum checksum, String[] favoredNodes, String ecPolicyName)
throws IOException {
...
Preconditions.checkNotNull(stat, "HdfsFileStatus should not be null!");
final DFSOutputStream out;
if(stat.getErasureCodingPolicy() != null) {
out = new DFSStripedOutputStream(dfsClient, src, stat,
flag, progress, checksum, favoredNodes);
} else {
out = new DFSOutputStream(dfsClient, src, stat,
flag, progress, checksum, favoredNodes, true);
}
//启动DataStreamer线程
out.start();
return out;
}
}
protected synchronized void start() {
getStreamer().start();
}
protected DataStreamer getStreamer() {
return streamer;
}
找到streamer任务体，DataStreamer.java
@Override
public void run() {
long lastPacket = Time.monotonicNow();
TraceScope scope = null;
while (!streamerClosed && dfsClient.clientRunning) {
// if the Responder encountered an error, shutdown Responder
if (errorState.hasError()) {
closeResponder();
}
DFSPacket one;
try {
// process datanode IO errors if any
boolean doSleep = processDatanodeOrExternalError();
final int halfSocketTimeout = dfsClient.getConf().getSocketTimeout()/2;
synchronized (dataQueue) {
// wait for a packet to be sent.
long now = Time.monotonicNow();
while ((!shouldStop() && dataQueue.size() == 0 &&
(stage != BlockConstructionStage.DATA_STREAMING ||
now - lastPacket < halfSocketTimeout)) || doSleep) {
long timeout = halfSocketTimeout - (now-lastPacket);
timeout = timeout <= 0 ? 1000 : timeout;
timeout = (stage == BlockConstructionStage.DATA_STREAMING)?
timeout : 1000;
try {
dataQueue.wait(timeout);
} catch (InterruptedException e) {
LOG.warn("Caught exception", e);
}
doSleep = false;
now = Time.monotonicNow();
}
if (shouldStop()) {
continue;
}
// get packet to be sent.
if (dataQueue.isEmpty()) {
one = createHeartbeatPacket();
} else {
try {
backOffIfNecessary();
} catch (InterruptedException e) {
LOG.warn("Caught exception", e);
}
one = dataQueue.getFirst(); // regular data packet
SpanId[] parents = one.getTraceParents();
if (parents.length > 0) {
scope = dfsClient.getTracer().
newScope("dataStreamer", parents[0]);
scope.getSpan().setParents(parents);
}
}
}
// get new block from namenode.
if (LOG.isDebugEnabled()) {
LOG.debug("stage=" + stage + ", " + this);
}
if (stage == BlockConstructionStage.PIPELINE_SETUP_CREATE) {
LOG.debug("Allocating new block: {}", this);
setPipeline(nextBlockOutputStream());
initDataStreaming();
} else if (stage == BlockConstructionStage.PIPELINE_SETUP_APPEND) {
LOG.debug("Append to block {}", block);
setupPipelineForAppendOrRecovery();
if (streamerClosed) {
continue;
}
initDataStreaming();
}
long lastByteOffsetInBlock = one.getLastByteOffsetBlock();
if (lastByteOffsetInBlock > stat.getBlockSize()) {
throw new IOException("BlockSize " + stat.getBlockSize() +
" < lastByteOffsetInBlock, " + this + ", " + one);
}
if (one.isLastPacketInBlock()) {
// wait for all data packets have been successfully acked
synchronized (dataQueue) {
while (!shouldStop() && ackQueue.size() != 0) {
try {
// wait for acks to arrive from datanodes
dataQueue.wait(1000);
} catch (InterruptedException e) {
LOG.warn("Caught exception", e);
}
}
}
if (shouldStop()) {
continue;
}
stage = BlockConstructionStage.PIPELINE_CLOSE;
}
// send the packet
SpanId spanId = SpanId.INVALID;
synchronized (dataQueue) {
// move packet from dataQueue to ackQueue
if (!one.isHeartbeatPacket()) {
if (scope != null) {
spanId = scope.getSpanId();
scope.detach();
one.setTraceScope(scope);
}
scope = null;
dataQueue.removeFirst();
ackQueue.addLast(one);
packetSendTime.put(one.getSeqno(), Time.monotonicNow());
dataQueue.notifyAll();
}
}
LOG.debug("{} sending {}", this, one);
// write out data to remote datanode
try (TraceScope ignored = dfsClient.getTracer().
newScope("DataStreamer#writeTo", spanId)) {
one.writeTo(blockStream);
blockStream.flush();
} catch (IOException e) {
// HDFS-3398 treat primary DN is down since client is unable to
// write to primary DN. If a failed or restarting node has already
// been recorded by the responder, the following call will have no
// effect. Pipeline recovery can handle only one node error at a
// time. If the primary node fails again during the recovery, it
// will be taken out then.
errorState.markFirstNodeIfNotMarked();
throw e;
}
lastPacket = Time.monotonicNow();
// update bytesSent
long tmpBytesSent = one.getLastByteOffsetBlock();
if (bytesSent < tmpBytesSent) {
bytesSent = tmpBytesSent;
}
if (shouldStop()) {
continue;
}
// Is this block full?
if (one.isLastPacketInBlock()) {
// wait for the close packet has been acked
synchronized (dataQueue) {
while (!shouldStop() && ackQueue.size() != 0) {
dataQueue.wait(1000);// wait for acks to arrive from datanodes
}
}
if (shouldStop()) {
continue;
}
endBlock();
}
if (progress != null) { progress.progress(); }
// This is used by unit test to trigger race conditions.
if (artificialSlowdown != 0 && dfsClient.clientRunning) {
Thread.sleep(artificialSlowdown);
}
} catch (Throwable e) {
// Log warning if there was a real error.
if (!errorState.isRestartingNode()) {
// Since their messages are descriptive enough, do not always
// log a verbose stack-trace WARN for quota exceptions.
if (e instanceof QuotaExceededException) {
LOG.debug("DataStreamer Quota Exception", e);
} else {
LOG.warn("DataStreamer Exception", e);
}
}
lastException.set(e);
assert !(e instanceof NullPointerException);
errorState.setInternalError();
if (!errorState.isNodeMarked()) {
// Not a datanode issue
streamerClosed = true;
}
} finally {
if (scope != null) {
scope.close();
scope = null;
}
}
}
closeInternal();
}2.4.write写入数据
向DataStreamer的队列里写入数据
1）用户写的代码
2）点击write
FilterOutputStream.java
public void write(byte b[]) throws IOException {
write(b, 0, b.length);
}
public void write(byte b[], int off, int len) throws IOException {
if ((off | len | (b.length - (len + off)) | (off + len)) < 0)
throw new IndexOutOfBoundsException();
for (int i = 0 ; i < len ; i++) {
write(b[off + i]);
}
}
public void write(int b) throws IOException {
out.write(b);
}再点击write，进入OutputStream.java
public abstract void write(int b) throws IOException;ctrl+alt+b 找到FSOutputSummer.java
public synchronized void write(int b) throws IOException {
buf[count++] = (byte)b;
if(count == buf.length) {
flushBuffer();
}
}
protected synchronized void flushBuffer() throws IOException {
flushBuffer(false, true);
}
protected synchronized int flushBuffer(boolean keep,
boolean flushPartial) throws IOException {
int bufLen = count;
int partialLen = bufLen % sum.getBytesPerChecksum();
int lenToFlush = flushPartial ? bufLen : bufLen - partialLen;
if (lenToFlush != 0) {
//向dataQueue队列中写入数据
// Directory=>File=>Block(128M)=>packet(64K)=>chunk(chunk 512byte + chunkSum 4byte)
writeChecksumChunks(buf, 0, lenToFlush);
if (!flushPartial || keep) {
count = partialLen;
System.arraycopy(buf, bufLen - count, buf, 0, count);
} else {
count = 0;
}
}
// total bytes left minus unflushed bytes left
return count - (bufLen - lenToFlush);
}
private void writeChecksumChunks(byte b[], int off, int len)
throws IOException {
//计算chunk校验和
sum.calculateChunkedSums(b, off, len, checksum, 0);
//按照chunk大小遍历数据
for (int i = 0; i < len; i += sum.getBytesPerChecksum()) {
int chunkLen = Math.min(sum.getBytesPerChecksum(), len - i);
int ckOffset = i / sum.getBytesPerChecksum() * getChecksumSize();
//一个chunk 一个chunk的将数据写入队列
writeChunk(b, off + i, chunkLen, checksum, ckOffset, getChecksumSize());
}
}
protected abstract void writeChunk(byte[] b, int bOffset, int bLen,
byte[] checksum, int checksumOffset, int checksumLen) throws IOException;ctrl+alt+b 找到writeChunk的实现类，DFSOutputStream.java
protected synchronized void writeChunk(byte[] b, int offset, int len,
byte[] checksum, int ckoff, int cklen) throws IOException {
writeChunkPrepare(len, ckoff, cklen);
currentPacket.writeChecksum(checksum, ckoff, cklen);
currentPacket.writeData(b, offset, len);
currentPacket.incNumChunks();
getStreamer().incBytesCurBlock(len);
// If packet is full, enqueue it for transmission
if (currentPacket.getNumChunks() == currentPacket.getMaxChunks() ||
getStreamer().getBytesCurBlock() == blockSize) {
enqueueCurrentPacketFull();
}
}
synchronized void enqueueCurrentPacketFull() throws IOException {
LOG.debug("enqueue full {}, src={}, bytesCurBlock={}, blockSize={},"
+ " appendChunk={}, {}", currentPacket, src, getStreamer()
.getBytesCurBlock(), blockSize, getStreamer().getAppendChunk(),
getStreamer());
enqueueCurrentPacket();
adjustChunkBoundary();
endBlock();
}
void enqueueCurrentPacket() throws IOException {
getStreamer().waitAndQueuePacket(currentPacket);
currentPacket = null;
}DataStreamer.java
void waitAndQueuePacket(DFSPacket packet) throws IOException {
synchronized (dataQueue) {
try {
// If queue is full, then wait till we have enough space
boolean firstWait = true;
try {
while (!streamerClosed && dataQueue.size() + ackQueue.size() >
dfsClient.getConf().getWriteMaxPackets()) {
if (firstWait) {
Span span = Tracer.getCurrentSpan();
if (span != null) {
span.addTimelineAnnotation("dataQueue.wait");
}
firstWait = false;
}
try {
dataQueue.wait();
} catch (InterruptedException e) {
// If we get interrupted while waiting to queue data, we still need to get rid
// of the current packet. This is because we have an invariant that if
// currentPacket gets full, it will get queued before the next writeChunk.
//
// Rather than wait around for space in the queue, we should instead try to
// return to the caller as soon as possible, even though we slightly overrun
// the MAX_PACKETS length.
Thread.currentThread().interrupt();
break;
}
}
} finally {
Span span = Tracer.getCurrentSpan();
if ((span != null) && (!firstWait)) {
span.addTimelineAnnotation("end.wait");
}
}
checkClosed();
queuePacket(packet);
} catch (ClosedChannelException ignored) {
}
}
}void queuePacket(DFSPacket packet) {
synchronized (dataQueue) {
if (packet == null) return;
packet.addTraceParent(Tracer.getCurrentSpanId());
dataQueue.addLast(packet);
lastQueuedSeqno = packet.getSeqno();
LOG.debug("Queued {}, {}", packet, this);
dataQueue.notifyAll();
}
}
1648
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
