VMP3.6的反调试和反虚拟机

背景

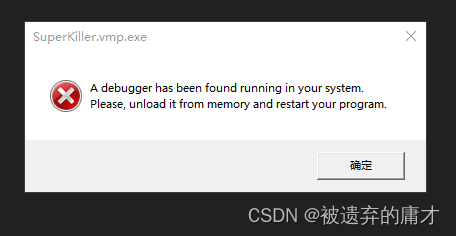

看雪上有人泄露了3.6.0.1406，第一时间先下载下来，然后加壳之后扔进x32dbg，A debugger has been found.......

 还能怎么办？右键回收站。

 分析

正准备放弃的时候，想了想要不在看看，好吧那就在看看，结果一段瞎分析之后定位到了scylla没有处理完善的函数NtQueryInformationThread和QueryInformationProcess

HookNtQueryInformationThread ThreadHideFromDebugger
HookNtQueryInformationProcess ProcessDebugPort
HookNtQueryInformationProcess ProcessDebugObjectHandle
HookNtQueryInformationProcess ProcessDebugPort

你问我怎么定位的，全是某牛姓男子给我说的，还有需要注意的是这些api下执行是不会断下的，因为它自己shadow了一份systemcall。

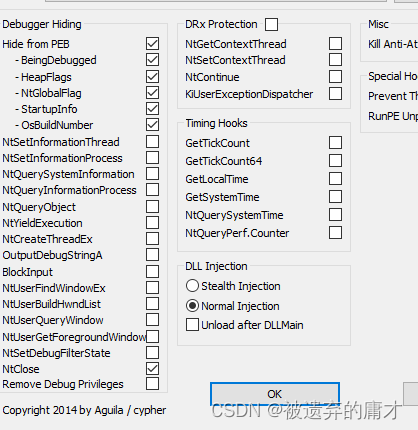

R3的反调试，在scylla配置如下的情况下，添加下面的代码（不管你是inline，vt，ifhook都可以，反正蓝的也不是我的电脑）

在内核的处理逻辑如下（都是最简单的返回，有的情况下返回是错误的）

NTSTATUS HookNtQueryInformationProcess(
	HANDLE           ProcessHandle,
	PROCESSINFOCLASS ProcessInformationClass,
	PVOID            ProcessInformation,
	ULONG            ProcessInformationLength,
	PULONG           ReturnLength
) {

	UCHAR* fileName = PsGetProcessImageFileName(PsGetCurrentProcess());

	if (memcmp((const char*)fileName, "SuperKiller",strlen("SuperKiller")) == 0 && ExGetPreviousMode() == UserMode)//最新的3.6
	{

		if (ProcessInformationLength != 0)
		{
			__try
			{
				ProbeForRead(ProcessInformation, ProcessInformationLength, 4);
				if (ReturnLength != 0)
					ProbeForWrite(ReturnLength, 4, 1);
			}

			__except (EXCEPTION_EXECUTE_HANDLER)
			{
				return GetExceptionCode();
			}
		}


		if (ProcessInformationClass == ProcessDebugObjectHandle)
		{
			DbgPrint("HookNtQueryInformationProcess ProcessDebugObjectHandle \n");
			PEPROCESS TargetProcess;
			NTSTATUS Status = ObReferenceObjectByHandle(ProcessHandle, 0x0400, *PsProcessType, UserMode, (PVOID*)& TargetProcess, NULL);
			if (NT_SUCCESS(Status) == TRUE)
			{
				__try
				{
					*(ULONG64*)ProcessInformation = NULL;
					if (ReturnLength != NULL)* ReturnLength = sizeof(ULONG64);

					Status = STATUS_PORT_NOT_SET;
				}

				__except (EXCEPTION_EXECUTE_HANDLER)
				{
					Status = GetExceptionCode();
				}

				ObDereferenceObject(TargetProcess);
				return Status;
			}
			return Status;
		}


		else if (ProcessInformationClass == ProcessDebugPort)
		{
			DbgPrint("HookNtQueryInformationProcess ProcessDebugPort \n");
			if (ProcessInformationLength != sizeof(ULONG64))
				return STATUS_INFO_LENGTH_MISMATCH;

			PEPROCESS TargetProcess;
			NTSTATUS Status = ObReferenceObjectByHandle(ProcessHandle, 0x0400, *PsProcessType, UserMode, (PVOID*)& TargetProcess, NULL);
			if (NT_SUCCESS(Status) == TRUE)
			{
				__try
				{
					*(ULONG64*)ProcessInformation = 0;
					if (ReturnLength != 0)
						* ReturnLength = sizeof(ULONG64);
				}
				__except (EXCEPTION_EXECUTE_HANDLER)
				{
					Status = GetExceptionCode();
				}

				ObDereferenceObject(TargetProcess);
				return Status;
			}
			return Status;
		}

		else if (ProcessInformationClass == ProcessDebugFlags)
		{
			DbgPrint("HookNtQueryInformationProcess ProcessDebugFlags \n");
			if (ProcessInformationLength != 4)
				return STATUS_INFO_LENGTH_MISMATCH;

			PEPROCESS TargetProcess;
			NTSTATUS Status = ObReferenceObjectByHandle(ProcessHandle, 0x0400, *PsProcessType, UserMode, (PVOID*)& TargetProcess, NULL);
			if (NT_SUCCESS(Status) == TRUE)
			{
				__try
				{
					*(ULONG*)ProcessInformation = 0;
					if (ReturnLength != 0)
						* ReturnLength = sizeof(ULONG);
				}
				__except (EXCEPTION_EXECUTE_HANDLER)
				{
					Status = GetExceptionCode();
				}

				ObDereferenceObject(TargetProcess);
				return Status;
			}

			return Status;
		}

		else if (ProcessInformationClass == ProcessBreakOnTermination)
		{
			DbgPrint("HookNtQueryInformationProcess ProcessBreakOnTermination \n");
			if (ProcessInformationLength != 4)
				return STATUS_INFO_LENGTH_MISMATCH;

			PEPROCESS TargetProcess;
			NTSTATUS Status = ObReferenceObjectByHandle(ProcessHandle, 0x1000, *PsProcessType, UserMode, (PVOID*)& TargetProcess, NULL);
			if (NT_SUCCESS(Status) == TRUE)
			{
				__try
				{
					*(ULONG*)ProcessInformation = 0;
					if (ReturnLength != 0)
						* ReturnLength = sizeof(ULONG);
				}
				__except (EXCEPTION_EXECUTE_HANDLER)
				{
					Status = GetExceptionCode();
				}

				ObDereferenceObject(TargetProcess);
				return Status;
			}

			return Status;
		}
	}

	return ((PNtQueryInformationProcess)g_jmpNtQueryInformationProcess)(ProcessHandle, ProcessInformationClass, ProcessInformation, ProcessInformationLength, ReturnLength);
}


NTSTATUS HookNtQueryInformationThread(
	HANDLE          ThreadHandle,
	THREADINFOCLASS ThreadInformationClass,
	PVOID           ThreadInformation,
	ULONG           ThreadInformationLength,
	PULONG          ReturnLength
) {
	UCHAR* fileName = PsGetProcessImageFileName(PsGetCurrentProcess());

	if (memcmp((const char*)fileName, "SuperKiller", strlen("SuperKiller")) == 0 && ExGetPreviousMode() == UserMode)//最新的3.6
	{
		if (ThreadInformationLength != 0)
		{
			__try
			{
				ProbeForRead(ThreadInformation, ThreadInformationLength, 4);
				if (ReturnLength != 0)
					ProbeForWrite(ReturnLength, 4, 1);

			}
			__except (EXCEPTION_EXECUTE_HANDLER)
			{
				return GetExceptionCode();
			}
		}

		if (ThreadInformationClass == ThreadHideFromDebugger)
		{
			DbgPrint("HookNtQueryInformationThread ThreadHideFromDebugger \n");
			if (ThreadInformationLength != 1)
				return STATUS_INFO_LENGTH_MISMATCH;

			PETHREAD TargetThread;
			NTSTATUS Status = ObReferenceObjectByHandle(ThreadHandle, 0x40, *PsThreadType, UserMode, (PVOID*)& TargetThread, NULL);
			if (NT_SUCCESS(Status) == TRUE)
			{
				__try
				{
					*(BOOLEAN*)ThreadInformation =0;

					if (ReturnLength != 0)* ReturnLength = 1;
				}
				__except (EXCEPTION_EXECUTE_HANDLER)
				{
					Status = GetExceptionCode();
				}

				ObDereferenceObject(TargetThread);
				return Status;
			}

			return Status;
		}

	}
	return ((PNtQueryInformationThread)g_jmpNtQueryInformationThread)(ThreadHandle, ThreadInformationClass, ThreadInformation, ThreadInformationLength, ReturnLength);
}

R0的反调试，都是直接返回失败

NTSTATUS HookNtQuerySystemInformation(
	SYSTEM_INFORMATION_CLASS SystemInformationClass,
	PVOID                    SystemInformation,
	ULONG                    SystemInformationLength,
	PULONG                   ReturnLength
) {
	if(SystemInformationClass ==  SystemKernelDebuggerInformation || SystemInformationClass == SystemKernelDebuggerInformationEx || SystemCodeIntegrityInformation == SystemInformationClass || ProcessDebugObjectHandle == SystemInformationClass)
		return STATUS_UNSUCCESSFUL;

	return ((PNtQuerySystemInformation)g_jmpNtQuerySystemInformation)(SystemInformationClass, SystemInformation, SystemInformationLength, ReturnLength);
}

反虚拟机

1、需要处理的是cpuid，代码是抄的别人写的vt，随便改改

Registers->Rcx = (ULONG_PTR)dwCpuidRegisters.ecx & 0xFFFFFFFF7FFFFFFF;//绕过vmp的虚拟机检测

2、需要注意中断，如果用的vthook，需要判断当前的tf标志位

if (GuestRflag.fields.tf)
{
ULONG64 info = 0;
// 注入一个硬件调试中断
InjectInterruption(kHardwareException, EXCEPTION_VECTOR_DEBUG, false, 0);
info = VmxCsRead(GUEST_INTERRUPTIBILITY_INFO);
info &= ~2;
VmxCsWrite(GUEST_INTERRUPTIBILITY_INFO, info);
}

3、NtQuerySystemInformation的处理，比3.5多了一个BMSR

NTSTATUS HookNtQuerySystemInformation(
	SYSTEM_INFORMATION_CLASS SystemInformationClass,
	PVOID                    SystemInformation,
	ULONG                    SystemInformationLength,
	PULONG                   ReturnLength
) {
	if (SystemInformationClass == SystemFirmwareTableInformation && SystemInformation)
	{
		__try
		{
			if (*(PULONG)SystemInformation == 0x4649524d || *(PULONG)SystemInformation == 0x52534d42)//MRIF BMSR
			{
				return STATUS_UNSUCCESSFUL;
			}
		}
		__except (EXCEPTION_EXECUTE_HANDLER) {}
	}

	return ((PNtQuerySystemInformation)g_jmpNtQuerySystemInformation)(SystemInformationClass, SystemInformation, SystemInformationLength, ReturnLength);
}

结束

做完上面的准备工作，vmp3.6就能在虚拟机正常被调试了，这些都是某牛姓男子教的，我啥也不会！我是真菜啊！
