Tomcat源码剖析——初始化
本文解析源码来自于Tomcat8.5.33
本文引用参考文献为《Tomcat架构解析-刘光瑞》
注:此文为连载文章,可以参考前序文章《类加载器》,以及后续文章《启动》
文章目录
- Tomcat源码剖析——初始化
- 组件介绍
- 源码分析
- 流程图
- 代码剖析
- Bootstrap静态代码块
- 1. Bootstrap.main()
- 2. Bootstrap.init()
- 3.Bootstrap.load()
- 4. Catalina.load()
- 5. StandardServer#LifecycleBase.init()
- 6. StandardServer.initInternal()
- 7. StandardService.initInternal()
- 8. StandardEngine.initInternal()
- 9. StandardThreadExecutor.initInternal()
- 10. Connector.initInternal()
- 11. Http11NioProtocol.init()
- 12. NioEndpoint.init()
- 总结
组件介绍

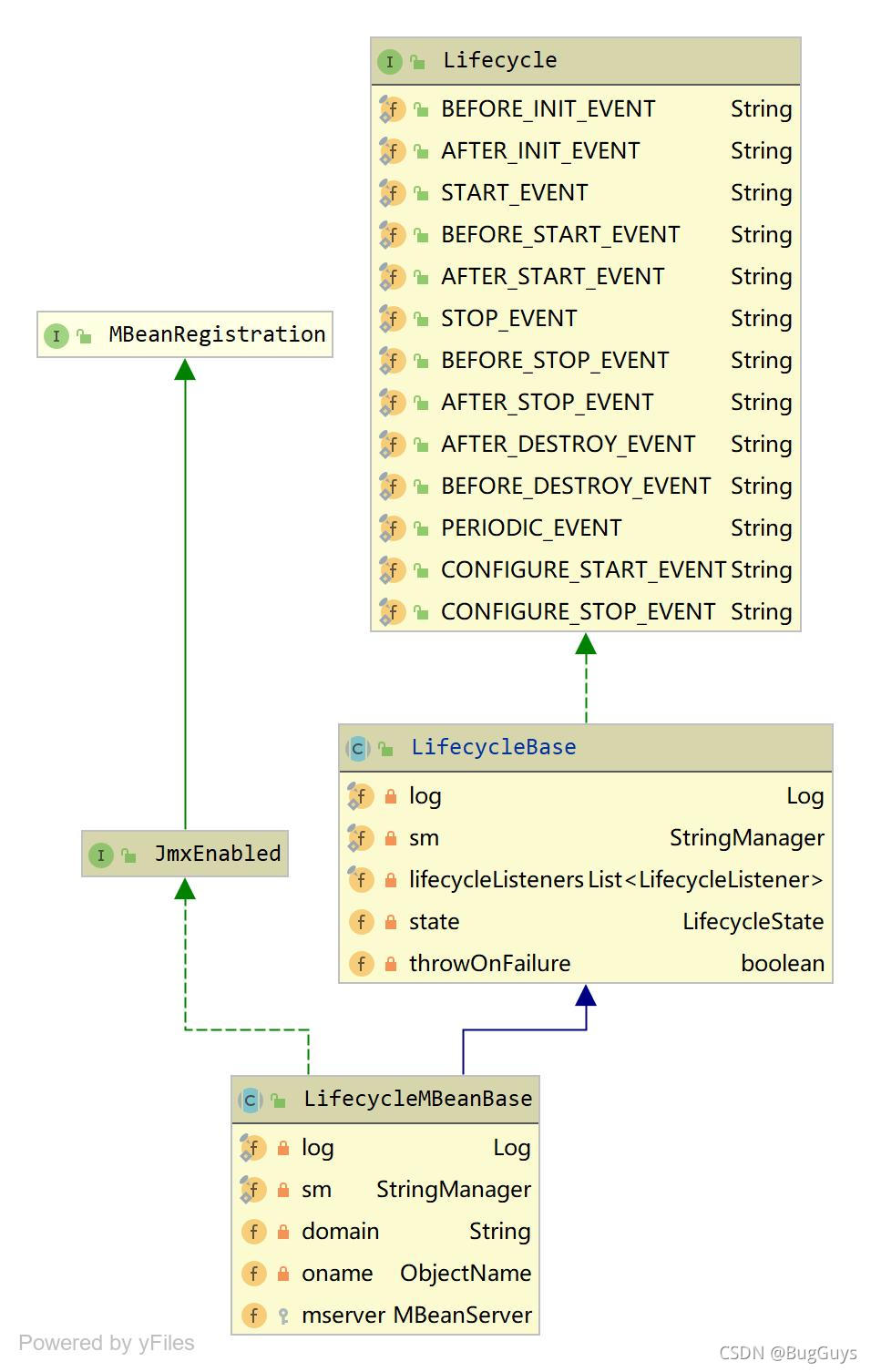

Lifecycle
声明周期的通用接口,所有Tomcat的组件均实现了该接口;
Server
表示整个Servlet容器,在Tomcat运行环境中只有唯一一个Server实例;
Service
表示一个或多个Connector集合,这些Connector共享同一个Container来处理其请求。在同一个Tomcat实例中可以存在任意个Service实例并保持彼此独立;
从Tomcat架构图上可以看出,Service主要包含两部分: Connector和Container;
- Connector用于处理连接相关的事情,并提供Socket与Request请求和Response响应相关的转化;
- Container用于封装和管理Servlet,以及具体处理Request请求;

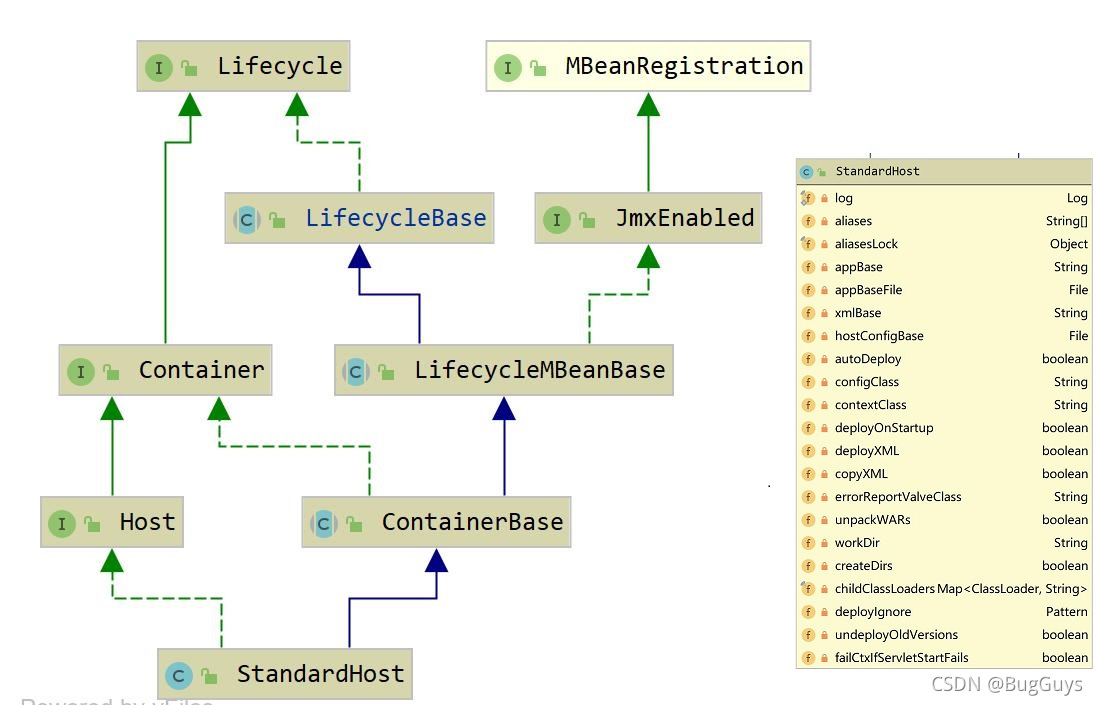

Container
表示能够执行客户端请求并返回响应的一类对象。在Tomcat中存在以下容器:Engine、Host、C哦那text、Wrapper;

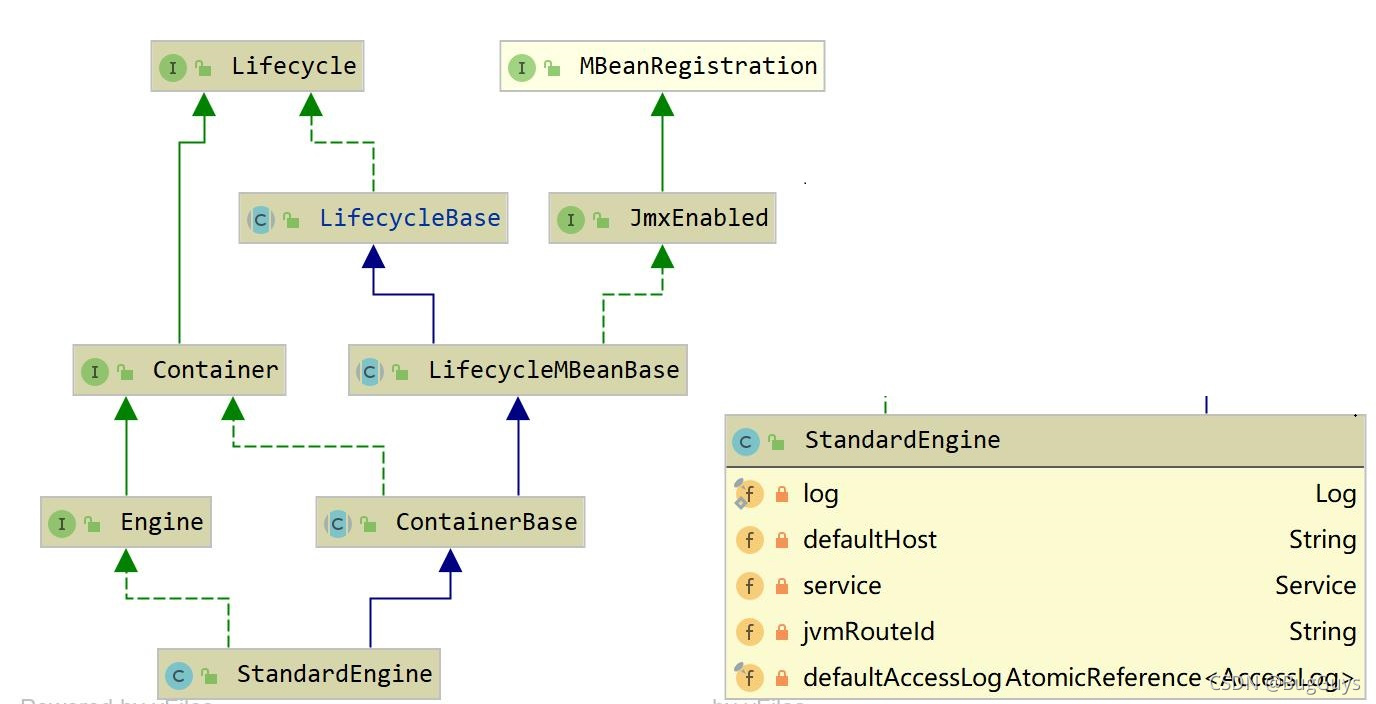

Engine
容器。整个Servelt的引擎。用来管理多个站点,一个Service最多只能有一个Engine; 其为Tomcat中最高级别的容器对象、尽管Engine不是直接处理请求的,却是获取目标容器的入口;
Host
容器。 代表一个站点,也可以叫虚拟主机 ,与服务器的域名等地址有关,客户端可以使用该域名连接服务器,这个名称必须在DNS服务器注册;

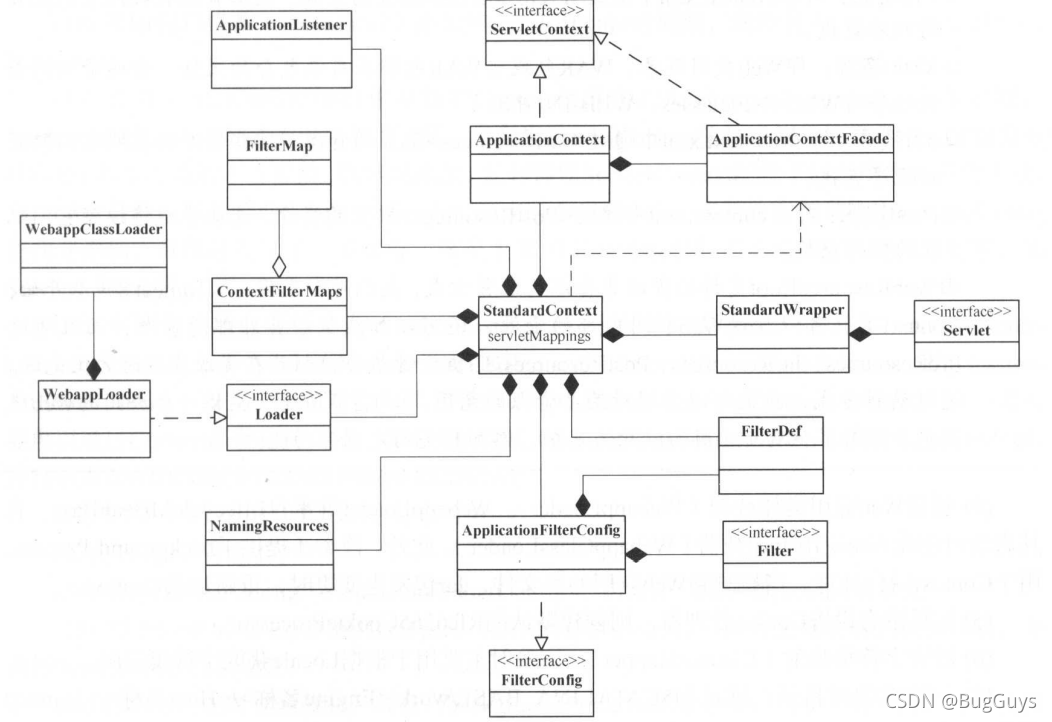

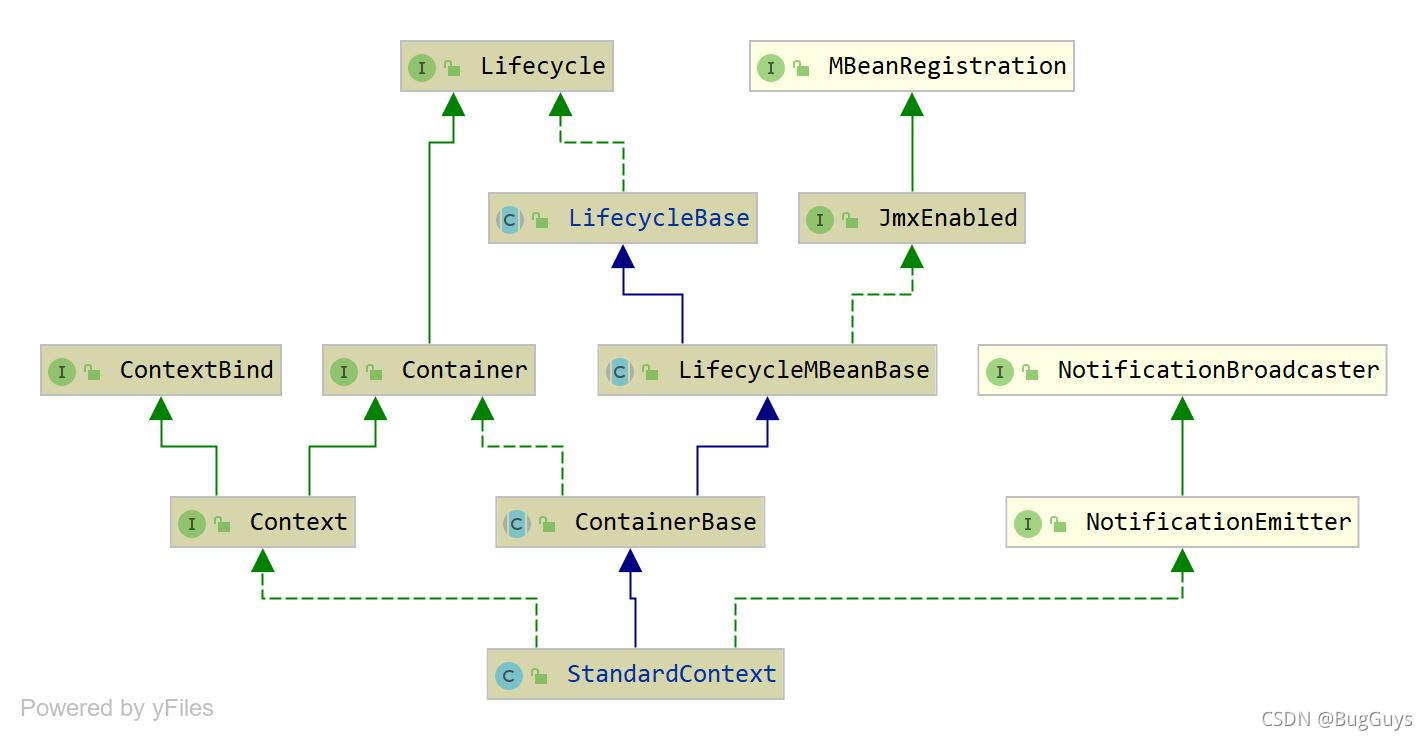

Context
容器。 代表一个应用程序,对应着平时开发的一套程序,或者一个WEB-INF目录以及下面的web.xml文件,用于表示ServletContext;一个ServletContext代表一个独立的Web应用;

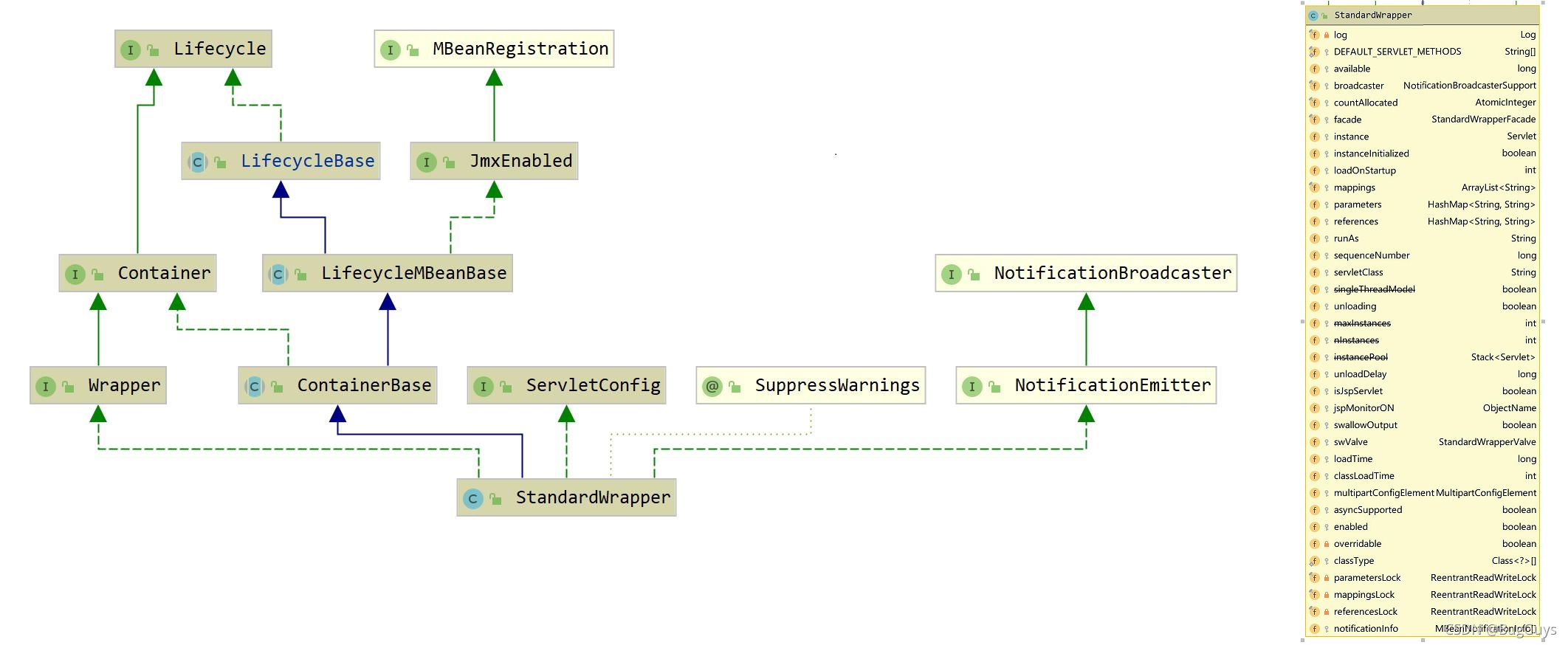

Wrapper
容器。 每一Wrapper封装着一个Servlet,表示Web中定义的Servlet,最底层的容器,用于处理请求数据。

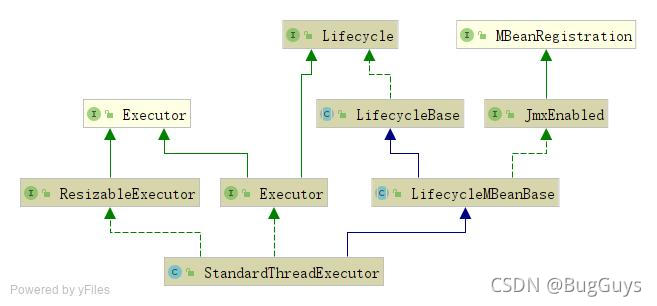

Executor
表示组件间共享的线程池;
源码分析

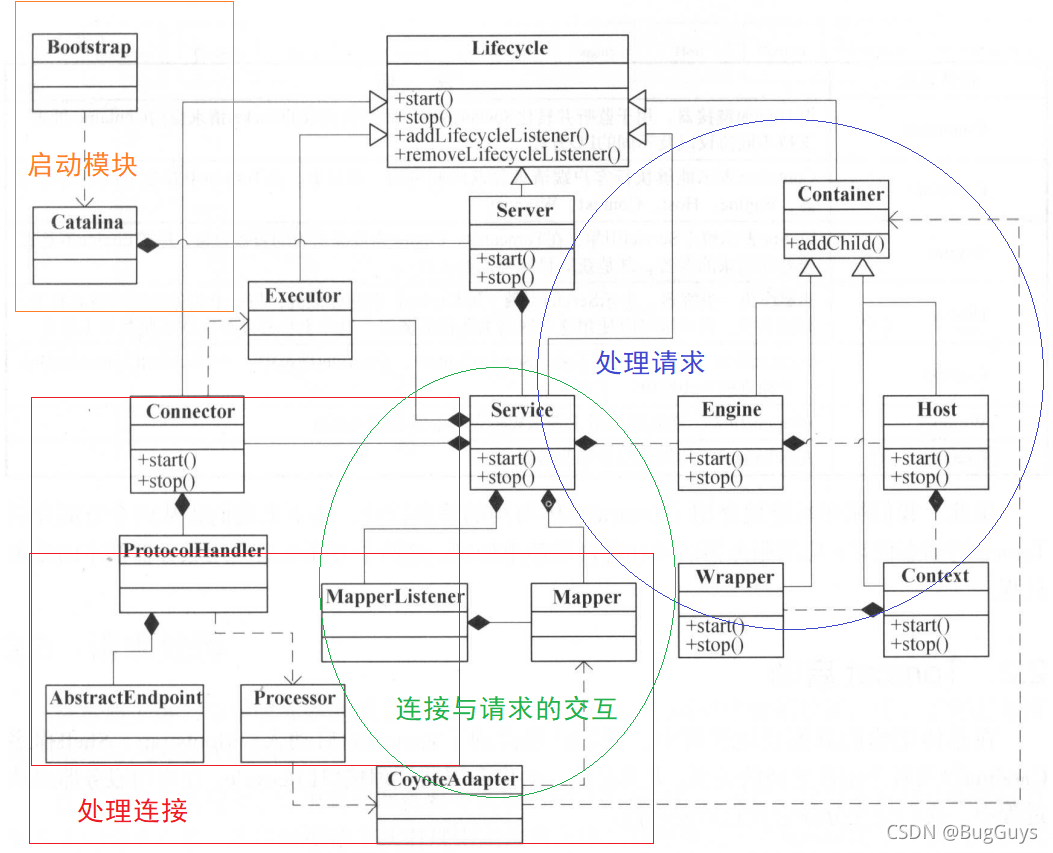

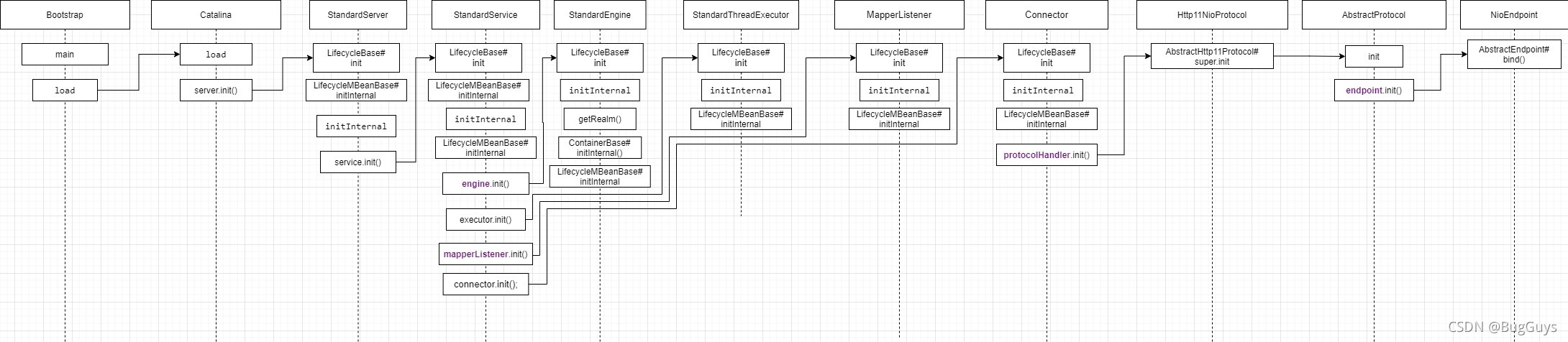

流程图
代码剖析
Bootstrap静态代码块
// Bootstrap.class
static {
// ...
// 设置安装目录和工作目录-未设置的话与安装目录一致
// 就是当前项目目录(eg: D:\person_project\tomcat8.5)
System.setProperty(
Constants.CATALINA_HOME_PROP, catalinaHomeFile.getPath());
System.setProperty(
Constants.CATALINA_BASE_PROP, catalinaBaseFile.getPath());
}
1. Bootstrap.main()
bootstrap去调用初始化方法;见方法2
然后bootstrap调用load方法;见方法3
public static void main(String args[]) {
synchronized (daemonLock) {
// 初始化类加载器,设置线程上下文加载器并用catalinaLoader实例化catalina
bootstrap.init();
// 守护对象
daemon = bootstrap;
// ....
}
try {
// ....
if (command.equals("startd")) {
args[args.length - 1] = "start";
daemon.load(args);
daemon.start();
}
// ....
} catch(e){}
}
2. Bootstrap.init()
- 初始化类加载器(commonLoader, catalinaLoader,sharedLoader ):这里见类加载器的文章;
- 设置线程上下文类加载器——catalinaLoader;
- 通过类加载器创建Catalina;
- 并通过反射调用Catalina的 setParentClassLoader方法;
public void init() throws Exception {
// 初始化类加载器
// commonLoader: 加载catalina.properties配置文件中common.loader=>加载工作/安装目录下的lib文件
// catalinaLoader: server.loader,默认为空,因此是commonLoader
// sharedLoader: shared.loader,默认为空,因此是commonLoader
initClassLoaders();
// 设置线程上下文类加载器——catalinaLoader
Thread.currentThread().setContextClassLoader(catalinaLoader);
// 安全策略,权限相关
SecurityClassLoad.securityClassLoad(catalinaLoader);
// Load our startup class and call its process() method
if (log.isDebugEnabled()) {
log.debug("Loading startup class");
}
// 通过类加载器创建Catalina
Class<?> startupClass = catalinaLoader.loadClass("org.apache.catalina.startup.Catalina");
Object startupInstance = startupClass.getConstructor().newInstance();
// Set the shared extensions class loader
if (log.isDebugEnabled()) {
log.debug("Setting startup class properties");
}
String methodName = "setParentClassLoader";
Class<?> paramTypes[] = new Class[1];
paramTypes[0] = Class.forName("java.lang.ClassLoader");
Object paramValues[] = new Object[1];
paramValues[0] = sharedLoader;
Method method =
startupInstance.getClass().getMethod(methodName, paramTypes);
method.invoke(startupInstance, paramValues);
// 就是Catalina
catalinaDaemon = startupInstance;
}
3.Bootstrap.load()
因为引导类和Tomcat实例是解耦的,这里是bootstrap通过反射调用catalina的load()方法;见方法4
private void load(String[] arguments) throws Exception {
// Call the load() method
String methodName = "load";
Object param[];
Class<?> paramTypes[];
if (arguments==null || arguments.length==0) {
paramTypes = null;
param = null;
} else {
paramTypes = new Class[1];
paramTypes[0] = arguments.getClass();
param = new Object[1];
param[0] = arguments;
}
Method method =
catalinaDaemon.getClass().getMethod(methodName, paramTypes);
if (log.isDebugEnabled()) {
log.debug("Calling startup class " + method);
}
method.invoke(catalinaDaemon, param);
}
4. Catalina.load()
通过Digester去解析conf/server.xml文件;初始化Server的工作目录和安装目录,并调用server的init()方法。见方法5
// Catalina.class
public void load() {
// 空方法
initDirs();
// Before digester - it may be needed
// 初始化一些属性
initNaming();
// 创建解析器Digester-server.xml created
// Create and execute our Digester
Digester digester = createStartDigester();
// standardSever初始化环境
getServer().setCatalina(this);
getServer().setCatalinaHome(Bootstrap.getCatalinaHomeFile());
getServer().setCatalinaBase(Bootstrap.getCatalinaBaseFile());
// Stream redirection
initStreams();
getServer().init();
}
5. StandardServer#LifecycleBase.init()
我们看,上一步 getServer().init();实际上调用的是StandardServer的生命周期LifecycleBase的init方法,这里使用模板设计模式;
我们通过父类的init()方法设置该组件的加载事件,具体启动交由子类去实现initInternal()方法。见方法6
// LifecycleBase.class
@Override
public final synchronized void init() throws LifecycleException {
if (!state.equals(LifecycleState.NEW)) {
invalidTransition(Lifecycle.BEFORE_INIT_EVENT);
}
try {
setStateInternal(LifecycleState.INITIALIZING, null, false);
initInternal();
setStateInternal(LifecycleState.INITIALIZED, null, false);
} catch (Throwable t) {
handleSubClassException(t, "lifecycleBase.initFail", toString());
}
}
6. StandardServer.initInternal()
这里就是初始化环境,加载公共jar包,然后启动Service,见方法7
// StandardServer.class
@Override
protected void initInternal() throws LifecycleException {
// 注册MBean
super.initInternal();
// Register global String cache
// Note although the cache is global, if there are multiple Servers
// present in the JVM (may happen when embedding) then the same cache
// will be registered under multiple names
onameStringCache = register(new StringCache(), "type=StringCache");
// Register the MBeanFactory
MBeanFactory factory = new MBeanFactory();
factory.setContainer(this);
onameMBeanFactory = register(factory, "type=MBeanFactory");
// Register the naming resources
// 初始化命名资源 GlobalNamingResources
globalNamingResources.init();
// Populate the extension validator with JARs from common and shared
// 将lib下的公共jar包加载到系统资源中
if (getCatalina() != null) {
// ...
}
// Initialize our defined Services
for (Service service : services) {
// 启动Service
service.init();
}
}
7. StandardService.initInternal()
这块我就省略LifecycleBase.init()了,毕竟都是一样的逻辑。
Service这里会初始化引擎(见方法8),线程池(见方法9),以及连接器(见方法10);
// StandardService.class
protected void initInternal() throws LifecycleException {
// 注册MBean
super.initInternal();
// 加载引擎
if (engine != null) {
engine.init();
}
// 加载线程池
// Initialize any Executors
for (Executor executor : findExecutors()) {
if (executor instanceof JmxEnabled) {
((JmxEnabled) executor).setDomain(getDomain());
}
executor.init();
}
// Initialize mapper listener
// 加载监听器
mapperListener.init();
// Initialize our defined Connectors
// 加载连接器
synchronized (connectorsLock) {
for (Connector connector : connectors) {
try {
connector.init();
} catch (Exception e) {
// ...
}
}
}
}
8. StandardEngine.initInternal()

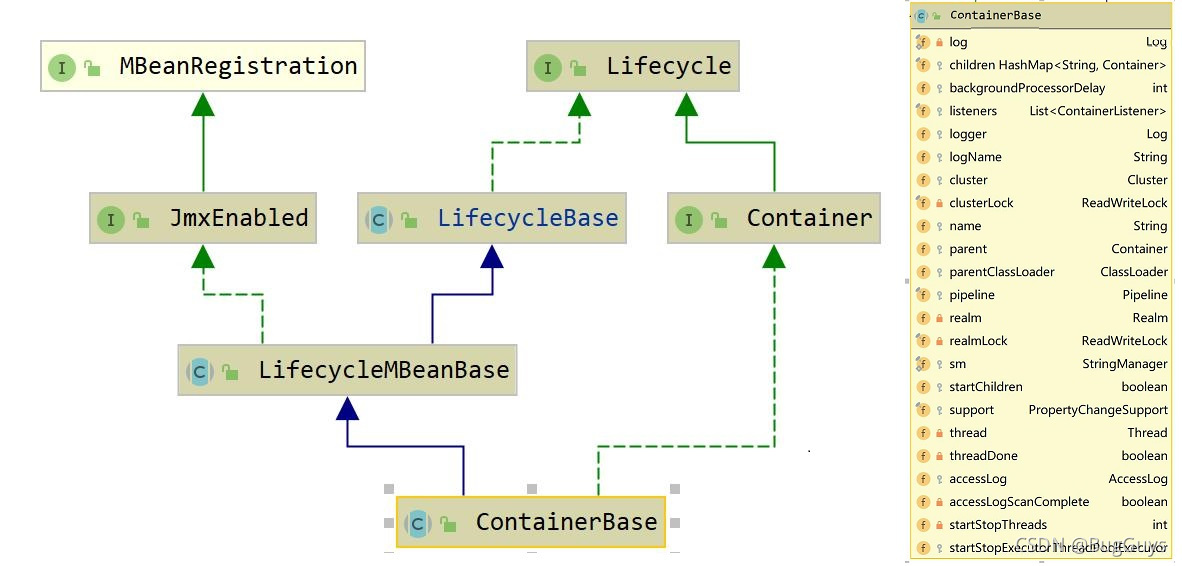

引擎初始化只是做了配置安全模块和调用父类容器ContainerBase.class,去创建单个线程的线程池,最大存活时间10s;
// StandardEngine.class
@Override
protected void initInternal() throws LifecycleException {
// Ensure that a Realm is present before any attempt is made to start
// one. This will create the default NullRealm if necessary.
// 处理获取Realm模块(安全配置)
getRealm();
// 创建了一个启动终止线程池
super.initInternal();
}
// StandardEngine#ContainerBase.class
@Override
protected void initInternal() throws LifecycleException {
BlockingQueue<Runnable> startStopQueue = new LinkedBlockingQueue<>();
// 创建单个线程的线程池,最大存活时间10s,可超时
startStopExecutor = new ThreadPoolExecutor(
getStartStopThreadsInternal(),
getStartStopThreadsInternal(), 10, TimeUnit.SECONDS,
startStopQueue,
new StartStopThreadFactory(getName() + "-startStop-"));
startStopExecutor.allowCoreThreadTimeOut(true);
super.initInternal();
}
9. StandardThreadExecutor.initInternal()
这里就是单纯的注册了MBean;
@Override
protected void initInternal() throws LifecycleException {
// 注册MBean
super.initInternal();
}
10. Connector.initInternal()
连接器中初始化了protocolHandler;那么我们在server.xml配置连接器的时候,是如下配置的:
<Connector port="8080" protocol="HTTP/1.1"
connectionTimeout="20000"
redirectPort="8443" />
因此,这里的protocolHandler实际上就是HTTP1.1对应Http11NioProtocol.class
,见方法11;
// Connector.class
protected final ProtocolHandler protocolHandler;
protected void initInternal() throws LifecycleException {
super.initInternal();
// Initialize adapter
adapter = new CoyoteAdapter(this);
protocolHandler.setAdapter(adapter);
// ......
try {
protocolHandler.init();
} catch (Exception e) {
}
}
11. Http11NioProtocol.init()

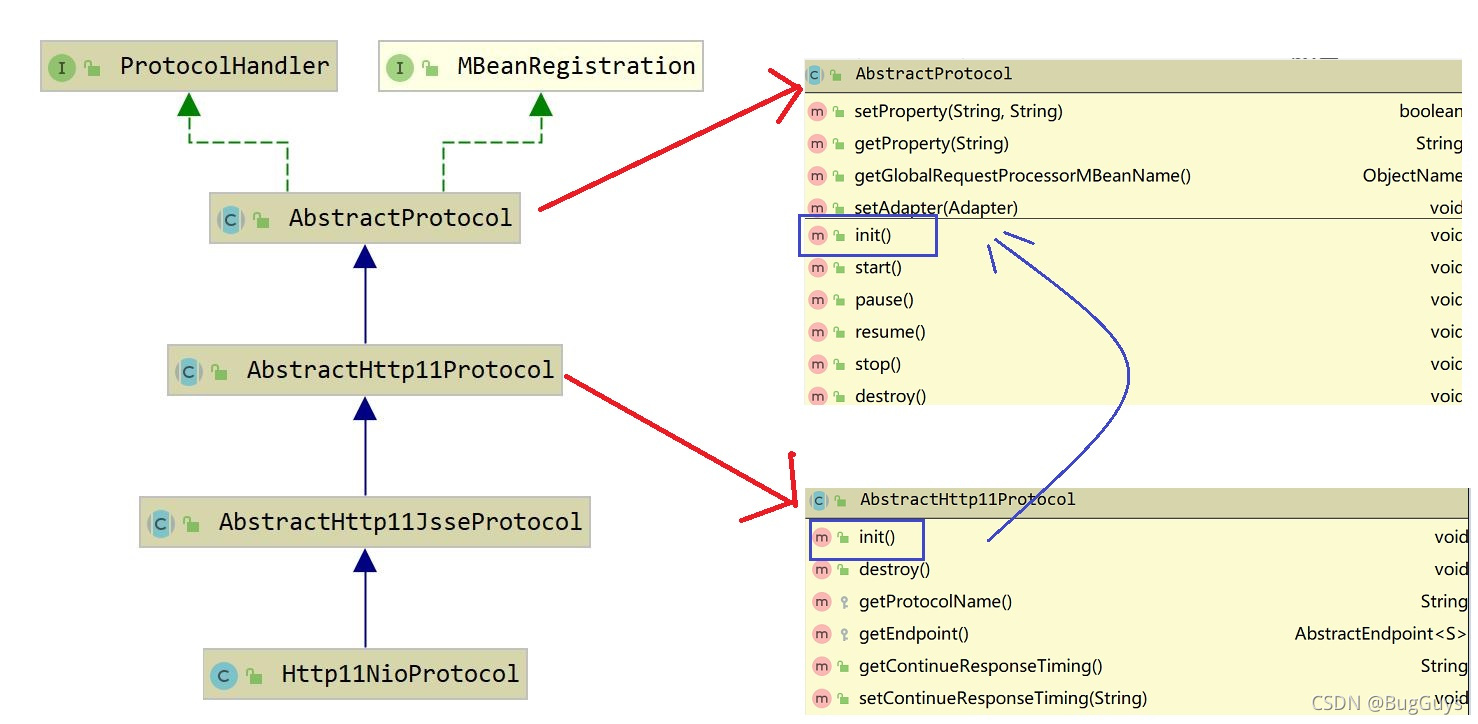

我们先看一下Http11NioProtocol.class
他的继承关系;
这里实际上调用的是父类AbstractHttp11Protocol.init();其中又调用了它自身的父类AbstractProtocol.init();
在AbstractProtocol的init()方法中,我们创建了端点监听器endpoint,并对其初始化,见方法12;
// AbstractHttp11Protocol.class
@Override
public void init() throws Exception {
// Upgrade protocols have to be configured first since the endpoint
// init (triggered via super.init() below) uses this list to configure
// the list of ALPN protocols to advertise
for (UpgradeProtocol upgradeProtocol : upgradeProtocols) {
configureUpgradeProtocol(upgradeProtocol);
}
// 调用父类AbstractProtocol.init()
super.init();
// Set the Http11Protocol (i.e. this) for any upgrade protocols once
// this has completed initialisation as the upgrade protocols may expect this
// to be initialised when the call is made
for (UpgradeProtocol upgradeProtocol : upgradeProtocols) {
if (upgradeProtocol instanceof Http2Protocol) {
((Http2Protocol) upgradeProtocol).setHttp11Protocol(this);
}
}
}
// AbstractProtocol.class
@Override
public void init() throws Exception {
if (getLog().isInfoEnabled()) {
getLog().info(sm.getString("abstractProtocolHandler.init", getName()));
}
if (oname == null) {
// Component not pre-registered so register it
oname = createObjectName();
if (oname != null) {
Registry.getRegistry(null, null).registerComponent(this, oname, null);
}
}
if (this.domain != null) {
ObjectName rgOname = new ObjectName(domain + ":type=GlobalRequestProcessor,name=" + getName());
this.rgOname = rgOname;
Registry.getRegistry(null, null).registerComponent(
getHandler().getGlobal(), rgOname, null);
}
// 创建端点监听器 AbstractEndpoint endpoint
String endpointName = getName();
endpoint.setName(endpointName.substring(1, endpointName.length()-1));
endpoint.setDomain(domain);
endpoint.init();
}
12. NioEndpoint.init()

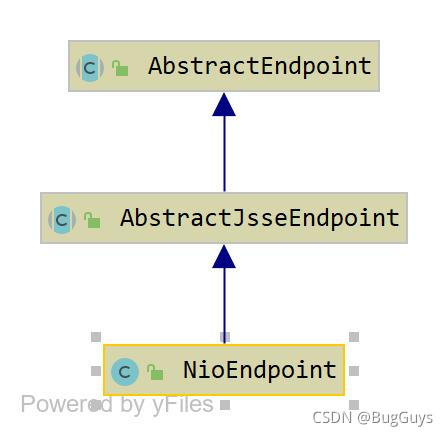

我们来分析一下NioEndpoint:
这里面我们调用的是父类AbstractEndpoint.init();而其中bind()方法是交由NioEndpoint去实现的;
其就是创建socket去等待连接;
// AbstractEndpoint.class
public void init() throws Exception {
if (bindOnInit) {
// 交由子类实现
bind();
bindState = BindState.BOUND_ON_INIT;
}
if (this.domain != null) {
// Register endpoint (as ThreadPool - historical name)
oname = new ObjectName(domain + ":type=ThreadPool,name=\"" + getName() + "\"");
Registry.getRegistry(null, null).registerComponent(this, oname, null);
ObjectName socketPropertiesOname = new ObjectName(domain +
":type=SocketProperties,name=\"" + getName() + "\"");
socketProperties.setObjectName(socketPropertiesOname);
Registry.getRegistry(null, null).registerComponent(socketProperties, socketPropertiesOname, null);
for (SSLHostConfig sslHostConfig : findSslHostConfigs()) {
registerJmx(sslHostConfig);
}
}
}
// NioEndpoint.class
@Override
public void bind() throws Exception {
if (!getUseInheritedChannel()) {
serverSock = ServerSocketChannel.open();
socketProperties.setProperties(serverSock.socket());
InetSocketAddress addr = (getAddress()!=null?new InetSocketAddress(getAddress(),getPort()):new InetSocketAddress(getPort()));
serverSock.socket().bind(addr,getAcceptCount());
} else {
// Retrieve the channel provided by the OS
Channel ic = System.inheritedChannel();
if (ic instanceof ServerSocketChannel) {
serverSock = (ServerSocketChannel) ic;
}
if (serverSock == null) {
throw new IllegalArgumentException(sm.getString("endpoint.init.bind.inherited"));
}
}
serverSock.configureBlocking(true); //mimic APR behavior
// Initialize thread count defaults for acceptor, poller
if (acceptorThreadCount == 0) {
// FIXME: Doesn't seem to work that well with multiple accept threads
acceptorThreadCount = 1;
}
if (pollerThreadCount <= 0) {
//minimum one poller thread
pollerThreadCount = 1;
}
setStopLatch(new CountDownLatch(pollerThreadCount));
// Initialize SSL if needed
initialiseSsl();
selectorPool.open();
}
总结
Connector的运行模式
-
BIO:同步阻塞。一个线程处理一个请求,当请求遇到高峰时,线程数增加导致资源的浪费。8.5后已移除BIO,若安装了APR库,则使用Http11AprProtocol,否则使用的Http11NioProtocol;
主要步骤:
- 服务端监听某个端口是否由链接请求;
- 客户端向服务器发出链接请求;
- 服务端向客户端返回Accept(接收)消息,此时链接成功;
- 客户端和服务器通过Send(),Write()等方法与对方通信;
- 关闭链接;
<Connector protocol="HTTP/1.1" />
-
NIO/NIO2:同步非阻塞。通过多路复用,使用少量线程处理大量请求;NIO2可支持异步IO(AIO);
<Connector protocol="org.apache.coyote.http11.Http11NioProtocol" />
-
APR: 即Apache Portable Runtime(AIO异步非阻塞)。从操作系统层面解决IO阻塞问题; 需在本地服务器安装APR库 ;
<Connector protocol="org.apache.coyote.http11.Http11AprProtocol" />
Tomcat的4种部署方式
-
自动部署
将web应用放置webapps目录。Tomcat启动时会加载目录下的应用,并将编译后的数据放入工作目录下;
-
使用Manager App控制台部署
进入Tomcat主页去指定一个Web应用的路径或war包;
-
修改配置文件
修改conf/server.xml文件;
-
增加自定义的Web部署文件
通过一个独立的Context描述文件来配置并启动Web,其独立的文件由Host的xmlBase属性指定。默认是在$ CATALINA_BASE/conf/<Engine名称>/<Host名称>;即默认是在$ CATALINA_BASE/conf/Catalina/localhost目录下增加 custom.xml文件,内容是Context节点,可以部署应用;
Tomcat如何创建Servlet类实例?
我们在源码分析的时候,看到方法4Catalina.load()方法时,里面有个关键性的地方:
Digester digester = createStartDigester();
我们通过server.xml配置的数据,都是由Digester进行解析处理的。这里我简单介绍一下:
Digester是一款用于将XML转为Java对象的事件驱动型工具,是对SAX的封装。其隐藏了XML节点解析的具体层级细节,他通过流读取XML文件,当识别出特定的XML节点后会做出特定的动作,或者创建Java对象等,其核心是匹配模式和处理规则。Digester是非线程安全的。
Tomcat工作模式
作为Servlet容器有三种工作模式:
- 独立的Servlet容器,是Web服务器的一部分;
- 进程内的servlet容器,是作为web服务器的插件和Java容器的实现。web服务器插件在内部地址空间打开一个JVM使得java容器在内部运行。反应快但扩展不足;
- 进程外的servlet容器,运行于web服务器之外的内存中,并作为web服务器插件和java容器的结合。反应不如进程内,但稳定性更优;
作为请求可以分为两种工作模式:
- 作为应用程序服务器:请求来自于前端的Web服务器,例如IIS,Nginx;
- 作为独立的服务器:请求来自于web浏览器;
