flink 最快掌握广播变量的用法，省时间必看

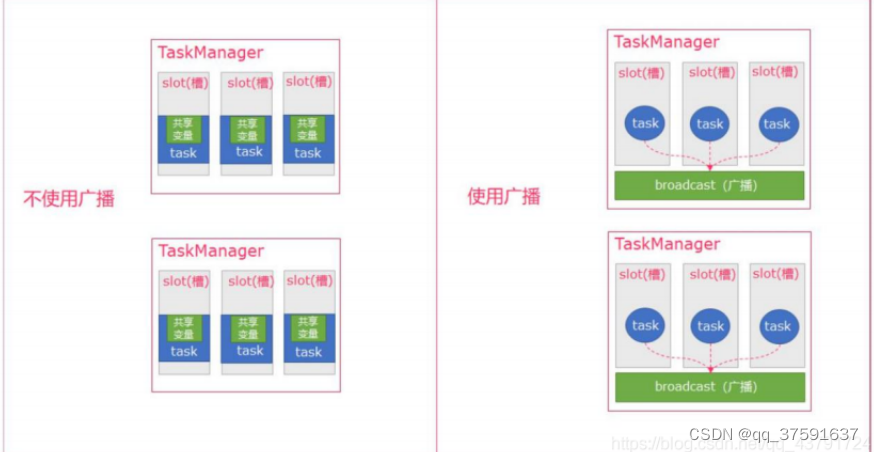

什么是广播变量？为什么要引入这个东西？



就是一个公共变量，作用范围比全局变量要大！

引入这个的目的，节省内存资源。

---

看一个  demo

---

实现的步骤

1、创建数据集，并创建为广播变量

2、重写map方法，获取广播变量，然后数据转换一下得到想要的数据

package day04;

import org.apache.flink.api.java.ExecutionEnvironment;
import org.apache.flink.api.java.operators.DataSource;
import org.apache.flink.api.java.operators.MapOperator;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.api.java.tuple.Tuple3;

import java.util.ArrayList;

public class test {
    /**
     * date 2023-03-28
     *
     * arm: 广播变量的用法
     */
    public static void main(String[] args) {
        ArrayList<Tuple2<Integer,String>> list = new ArrayList<>();
        list.add(new Tuple2<>(1,"张三"));
        list.add(new Tuple2<>(2,"李四"));
        list.add(new Tuple2<>(3,"王五"));
        ArrayList<Tuple3<Integer,String,Integer>> list1 = new ArrayList<>();
        list1.add(new Tuple3<>(1, "语文", 50));
        list1.add(new Tuple3<>(2, "数学", 70));
        list1.add(new Tuple3<>(3, "英文", 86));

        ExecutionEnvironment env = ExecutionEnvironment.getExecutionEnvironment();
        DataSource<Tuple2<Integer, String>> student  = env.fromCollection(list);
        DataSource<Tuple3<Integer,String,Integer>> score = env.fromCollection(list1);
        MapOperator<Tuple3<Integer, String, Integer>, Tuple3<String, String, Integer>> result = score.map(new mapFunction()).withBroadcastSet(student, "student");
        try {
            result.print();
        } catch (Exception e) {
            e.printStackTrace();
        }
    }
}





package day04;

import org.apache.flink.api.common.functions.RichMapFunction;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.api.java.tuple.Tuple3;
import org.apache.flink.configuration.Configuration;
import java.util.HashMap;
import java.util.List;

public class mapFunction extends RichMapFunction<Tuple3<Integer,String,Integer>,Tuple3<String,String,Integer> > {
    static   HashMap<Integer, String> map =new HashMap<Integer, String>();
    @Override
    public void open(Configuration parameters) throws Exception {
        //获取广播变量
        List<Tuple2<Integer, String>> lists = getRuntimeContext().getBroadcastVariable("student");
      for(int i=0;i<lists.size();i++){
          System.out.println(lists.get(i).f0+"--->"+lists.get(i).f1);
          map.put(lists.get(i).f0,lists.get(i).f1);
      }
    }


    @Override
    public void close() throws Exception {
        super.close();
    }

    @Override
    public Tuple3<String, String, Integer> map(Tuple3<Integer, String, Integer> tups) throws Exception {

        return new Tuple3(map.get(tups.f0),tups.f1,tups.f2);
    }
}
