AndServer浅显使用

刚刚接触AndServer，感觉可以做很多事情，简单的梳理一下使用的逻辑，毕竟也是刚刚接触，对AndServer的理解还很浅显。感觉云控群控可以搞一搞，搭配上appium之类的。

1.项目中使用到的依赖

implementation 'com.google.code.gson:gson:2.8.0'
//这两个是AndServer中必须要用到的
implementation 'com.yanzhenjie.andserver:api:2.1.9'
annotationProcessor 'com.yanzhenjie.andserver:processor:2.1.9'

并且需要在项目model中的gradle添加

apply plugin: 'com.android.application'
//加上就行了
apply plugin: 'com.yanzhenjie.andserver'

然后是项目中的gradle

buildscript {
	repositories {
    	...
	    google { url 'https://maven.aliyun.com/repository/google' }
    	jcenter { url 'https://maven.aliyun.com/repository/jcenter' }
	    mavenCentral { url 'https://maven.aliyun.com/repository/central' }
	}
	dependencies {
    	...
	    classpath 'com.yanzhenjie.andserver:plugin:2.1.9'
	}
}

allprojects {
    repositories {
        ...
        google { url 'https://maven.aliyun.com/repository/google' }
        jcenter { url 'https://maven.aliyun.com/repository/jcenter' }
        mavenCentral { url 'https://maven.aliyun.com/repository/central' }
    }
}

然后，编译时遇到个小麻烦，AndServer支持的gradle版本最小应该是5.6.4
自己在 gradle-wrapper.properties文件中修改一个就可以了。

2.两个我用到的工具类。
当然是从人家示例中直接拿来主义的，其中还有不少其他的东西，由于暂时用不到所以，就不贴了。

public class FileUtils {
    /**
     * SD is available.
     *
     * @return true, otherwise is false.
     */
    public static boolean storageAvailable() {
        if (Environment.getExternalStorageState().equals(Environment.MEDIA_MOUNTED)) {
            File sd = new File(Environment.getExternalStorageDirectory().getAbsolutePath());
            return sd.canWrite();
        } else {
            return false;
        }
    }
}

public class NetUtils {

    /**
     * Ipv4 address check.
     */
    private static final Pattern IPV4_PATTERN = Pattern.compile(
        "^(" + "([0-9]|[1-9][0-9]|1[0-9]{2}|2[0-4][0-9]|25[0-5])\\.){3}" +
            "([0-9]|[1-9][0-9]|1[0-9]{2}|2[0-4][0-9]|25[0-5])$");

    /**
     * Check if valid IPV4 address.
     *
     * @param input the address string to check for validity.
     *
     * @return True if the input parameter is a valid IPv4 address.
     */
    public static boolean isIPv4Address(String input) {
        return IPV4_PATTERN.matcher(input).matches();
    }

    /**
     * Get local Ip address.
     */
    public static InetAddress getLocalIPAddress() {
        Enumeration<NetworkInterface> enumeration = null;
        try {
            enumeration = NetworkInterface.getNetworkInterfaces();
        } catch (SocketException e) {
            e.printStackTrace();
        }
        if (enumeration != null) {
            while (enumeration.hasMoreElements()) {
                NetworkInterface nif = enumeration.nextElement();
                Enumeration<InetAddress> inetAddresses = nif.getInetAddresses();
                if (inetAddresses != null) {
                    while (inetAddresses.hasMoreElements()) {
                        InetAddress inetAddress = inetAddresses.nextElement();
                        if (!inetAddress.isLoopbackAddress() && isIPv4Address(inetAddress.getHostAddress())) {
                            return inetAddress;
                        }
                    }
                }
            }
        }
        return null;
    }
}

3.然后是Service用来启动AndServer的

public class CoreService extends Service {

    private Server mServer;

    @Override
    public void onCreate() {
        mServer = AndServer.webServer(this)
                .port(8080)//端口号
                .timeout(10, TimeUnit.SECONDS)//超时时间 单位
                .listener(new Server.ServerListener() {//监听AndServer状态
                    @Override
                    public void onStarted() {
                        InetAddress address = NetUtils.getLocalIPAddress();
                        AndServerManage.onServerStart(CoreService.this, address.getHostAddress());
                    }

                    @Override
                    public void onStopped() {
                        AndServerManage.onServerStop(CoreService.this);
                    }

                    @Override
                    public void onException(Exception e) {
                        e.printStackTrace();
                        AndServerManage.onServerError(CoreService.this, e.getMessage());
                    }
                })
                .build();
    }

    @Override
    public int onStartCommand(Intent intent, int flags, int startId) {
        startServer();
        return START_STICKY;
    }

    @Override
    public void onDestroy() {
        stopServer();
        super.onDestroy();
    }

    private void startServer() {
        mServer.startup();
    }

    private void stopServer() {
        mServer.shutdown();
    }

    @Nullable
    @Override
    public IBinder onBind(Intent intent) {
        return null;
    }
}

4.AndServer管理操作类

public class AndServerManage extends BroadcastReceiver {

    private static final String ACTION = "com.wsy.myapplication.receiver";

    private static final String CMD_KEY = "CMD_KEY";
    private static final String MESSAGE_KEY = "MESSAGE_KEY";

    private static final int CMD_VALUE_START = 1;
    private static final int CMD_VALUE_ERROR = 2;
    private static final int CMD_VALUE_STOP = 4;

    /**
     * Notify serverStart.
     *
     * @param context context.
     */
    public static void onServerStart(Context context, String hostAddress) {
        sendBroadcast(context, CMD_VALUE_START, hostAddress);
    }

    /**
     * Notify serverStop.
     *
     * @param context context.
     */
    public static void onServerError(Context context, String error) {
        sendBroadcast(context, CMD_VALUE_ERROR, error);
    }

    /**
     * Notify serverStop.
     *
     * @param context context.
     */
    public static void onServerStop(Context context) {
        sendBroadcast(context, CMD_VALUE_STOP);
    }

    private static void sendBroadcast(Context context, int cmd) {
        sendBroadcast(context, cmd, null);
    }

    private static void sendBroadcast(Context context, int cmd, String message) {
        Intent broadcast = new Intent(ACTION);
        broadcast.putExtra(CMD_KEY, cmd);
        broadcast.putExtra(MESSAGE_KEY, message);
        context.sendBroadcast(broadcast);
    }

    private MainActivity mActivity;
    private Intent mService;

    public AndServerManage(MainActivity activity) {
        this.mActivity = activity;
        mService = new Intent(activity, CoreService.class);
    }

    /**
     * Register broadcast.
     */
    public void register() {
        IntentFilter filter = new IntentFilter(ACTION);
        mActivity.registerReceiver(this, filter);
    }

    /**
     * UnRegister broadcast.
     */
    public void unRegister() {
        mActivity.unregisterReceiver(this);
    }

    public void startServer() {
        mActivity.startService(mService);
    }

    public void stopServer() {
        mActivity.stopService(mService);
    }

    @Override
    public void onReceive(Context context, Intent intent) {
        String action = intent.getAction();
        if (ACTION.equals(action)) {
            int cmd = intent.getIntExtra(CMD_KEY, 0);
            switch (cmd) {
                case CMD_VALUE_START: {
                    String ip = intent.getStringExtra(MESSAGE_KEY);
                    mActivity.onServerStart(ip);
                    break;
                }
                case CMD_VALUE_ERROR: {
                    String error = intent.getStringExtra(MESSAGE_KEY);
                    mActivity.onServerError(error);
                    break;
                }
                case CMD_VALUE_STOP: {
                    mActivity.onServerStop();
                    break;
                }
            }
        }
    }
}

5.MinaActivity
就是启动一下然后，改变一下布局的文字看看ip之类的没啥好说的

public class MainActivity extends AppCompatActivity {

    AndServerManage andServerManage;
    private TextView tv_ip;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        tv_ip = findViewById(R.id.tv_ip);

        andServerManage = new AndServerManage(this);
        andServerManage.register();

        andServerManage.startServer();
    }

    @Override
    protected void onDestroy() {
        super.onDestroy();
        andServerManage.unRegister();
    }

    public void onServerStart(String ip) {
        tv_ip.setText("onServerStart http://" + ip + ":8080/");
    }

    public void onServerError(String message) {
        tv_ip.setText("onServerError " + message);
    }

    public void onServerStop() {
        tv_ip.setText("onServerStop");
    }
}

6.controller 应该就叫接口了吧
就是注册接口，以及接到请求之后处理的类，具体我是不知道，我是问的好大哥。

@RestController
//@RequestMapping(path = "/wsy") 为请求路径 即完整路径为 ip：port/wsy/各个方法
@RequestMapping(path = "/wsy")
class TestController {

    @RequestMapping(
            path = "/connection",
            method = {RequestMethod.GET},
            produces = MediaType.APPLICATION_JSON_UTF8_VALUE)
    Object getConnection(HttpRequest request) {
        Map<String, Object> map = new HashMap<>();
        map.put("getLocalAddr", request.getLocalAddr());
        map.put("getLocalName", request.getLocalName());
        map.put("getLocalPort", request.getLocalPort());
        map.put("getRemoteAddr", request.getRemoteAddr());
        map.put("getRemoteHost", request.getRemoteHost());
        map.put("getRemotePort", request.getRemotePort());
        Log.e("wsy", new Gson().toJson(map));
        return map;
    }

    @CrossOrigin(methods = {RequestMethod.POST, RequestMethod.GET})

    //上面的 是人家的 好大哥说有点作用我就没删 但是删掉应该没有大病
	//这下面是我研究写的 简单的接口 接俩个参数 加法 之后返回

    //get接口 path = “/gettest”为请求路径
    //@RequestParam("num1")int num1 为声明接收参数
    @GetMapping(path = "/gettest", consumes = {"application/json", "!application/xml"})
    String gettest(@RequestParam("num1")int num1,@RequestParam("num2")int num2) {
        return "successful " + (num1 + num2);
    }
	//post接口
    @PostMapping(path = "/posttest", consumes = {"application/json", "!application/xml"})
    String posttest(@RequestParam("num1")int num1,@RequestParam("num2")int num2) {
        return "successful " + (num1 + num2);
    }
}

7.然后就是测试

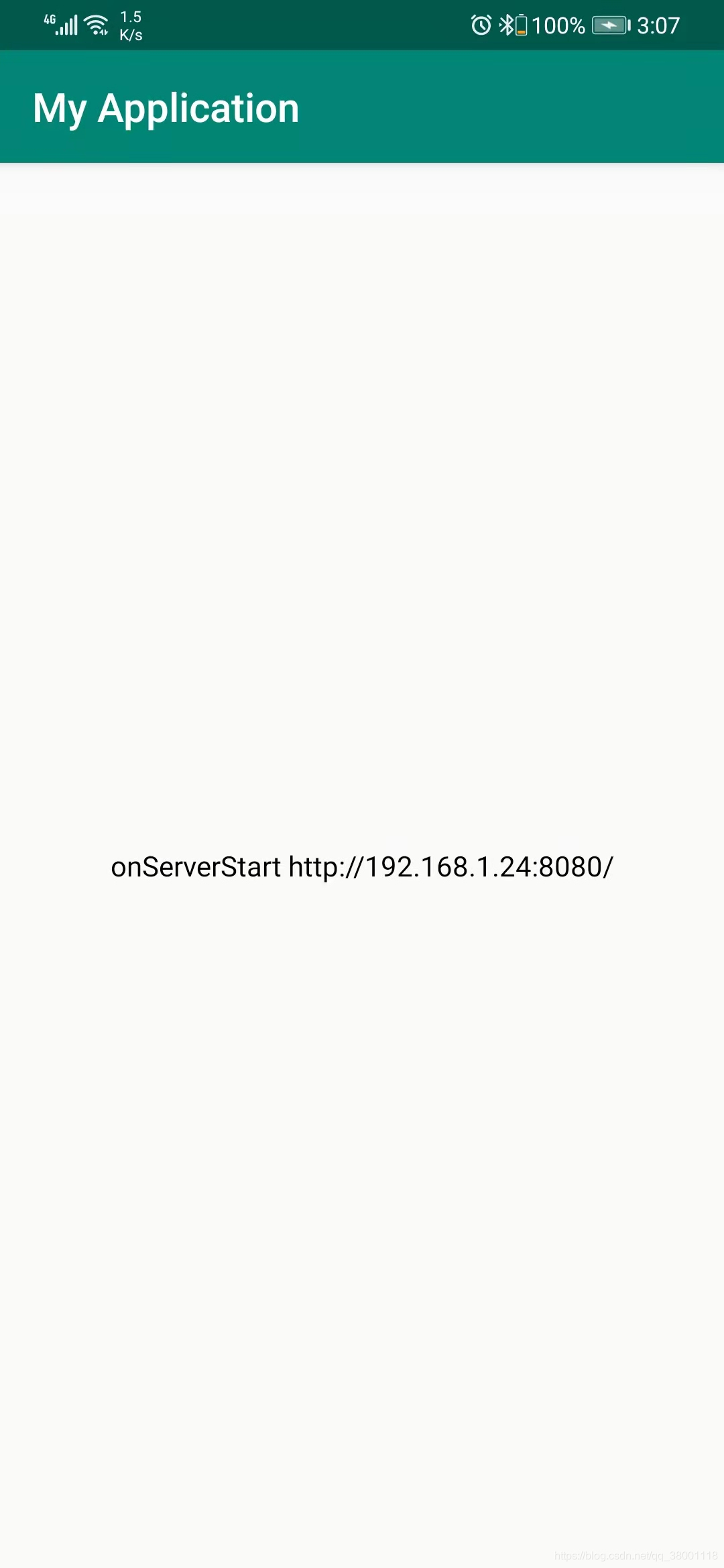

运行真机 知道自己的 ip地址

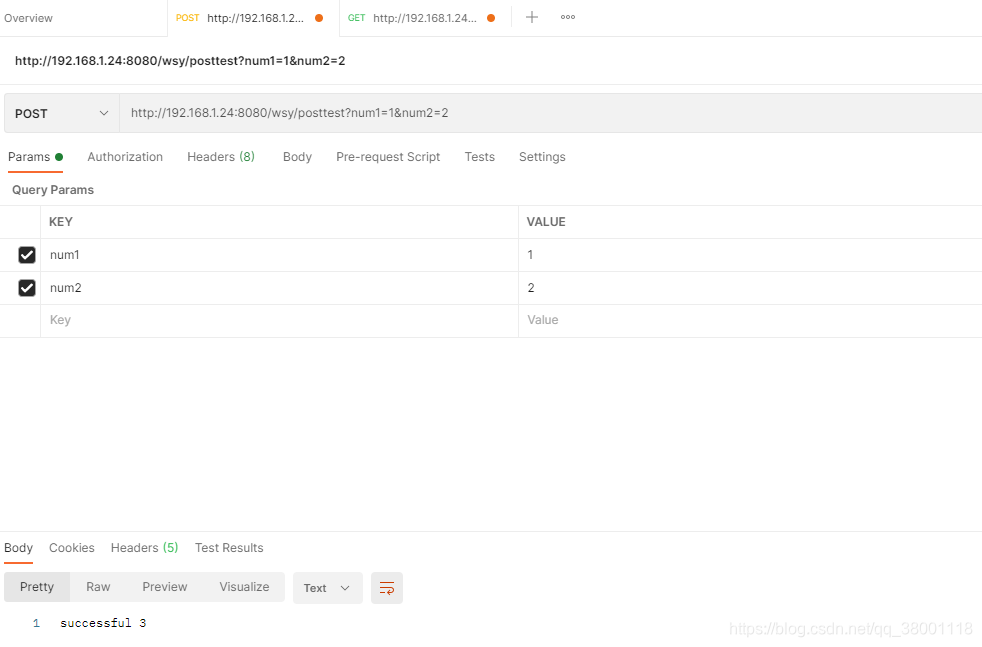

然后用postman测试一手，看看效果

效果出来了，完事，这就满足我目前的需求了，剩下的之后在研究。
