[python]正弦波绘制

参考文章：
音频文件基本处理流程
Python中的音频和数字信号处理（DSP）

代码

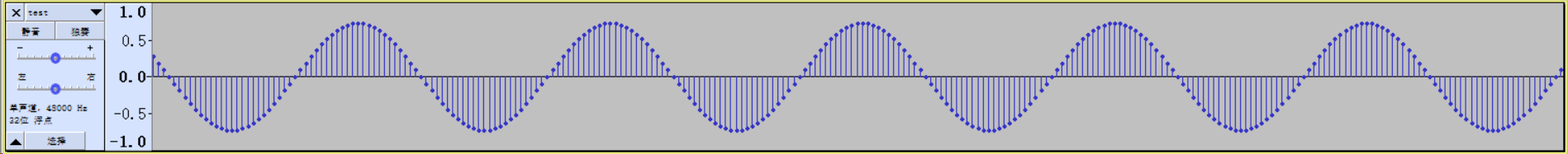

最终生成test.wav文件

import numpy as np

import wave

import struct

import matplotlib.pyplot as plt

# frequency is the number of times a wave repeats a second

# 频率
frequency = 1000

# 音频长度
num_samples = 480000

# The sampling rate of the analog to digital convert

# 采样率
sampling_rate = 48000.0

# 振幅 32000对应1，即0db
amplitude = 24000

file = "test.wav"

sine_wave = [np.sin(2 * np.pi * frequency * x/sampling_rate) for x in range(num_samples)]

nframes=num_samples

comptype="NONE"

compname="not compressed"

# 通道数
nchannels=1

# 采样位宽
sampwidth=2

wav_file=wave.open(file, 'w')

wav_file.setparams((nchannels, sampwidth, int(sampling_rate), nframes, comptype, compname))


for s in sine_wave:
   wav_file.writeframes(struct.pack('h', int(s*amplitude)))

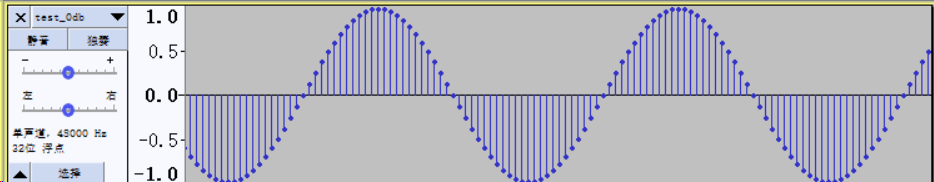

注意amplitude 参数，当它为32000时，显示的波形的纵坐标峰值为1，对应的是1khz0db
