SpringBoot【企业级】Mybatis-plus开发实践

前言

本篇文章介绍博主在公司工作时，如何使用Mybatis-plus。

什么是Mybatis-plus?

它是Mybatis的增强工具，只做增强功能而不改变。Mybatis是一个半ORM框架，内部封装了JDBC。由于博主不喜欢将SQL写在代码中（解耦），故不提供QueryWrapper构造器、注解开发。

快速上手

1. 配置pom.xml文件

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.1.17.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.ucap</groupId>
    <artifactId>demo</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>demo</name>
    <description>这是一个springboot项目</description>
    <properties>
        <java.version>1.8</java.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <!--引入mybatis-plus相关依赖-->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <version>3.3.0</version>
        </dependency>
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-generator</artifactId>
            <version>3.3.0</version>
        </dependency>
        <dependency>
            <groupId>org.apache.velocity</groupId>
            <artifactId>velocity-engine-core</artifactId>
            <version>2.0</version>
        </dependency>
        <!--mysql相关配置-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>8.0.21</version>
        </dependency>
        <!--lombok-->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.12</version>
        </dependency>

    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

2. 一键生成代码器

package com.ucap.demo.utils;

import com.baomidou.mybatisplus.generator.AutoGenerator;
import com.baomidou.mybatisplus.generator.config.DataSourceConfig;
import com.baomidou.mybatisplus.generator.config.GlobalConfig;
import com.baomidou.mybatisplus.generator.config.PackageConfig;
import com.baomidou.mybatisplus.generator.config.StrategyConfig;
import com.baomidou.mybatisplus.generator.config.rules.NamingStrategy;

public class MybatisGenerator {

    public static void main(String[] args) {
        AutoGenerator mpg = new AutoGenerator();
        //1、全局配置
        GlobalConfig gc = new GlobalConfig();
        String projectPath = System.getProperty("user.dir");
        gc.setOutputDir(projectPath + "/src/main/java");  //生成路径(一般都是生成在此项目的src/main/java下面)
        gc.setAuthor("jack deng"); //设置作者
        gc.setOpen(false);
        gc.setFileOverride(true); //第二次生成会把第一次生成的覆盖掉
        gc.setServiceName("%sService"); //生成的service接口名字首字母是否为I，这样设置就没有
     //   gc.setBaseResultMap(true); //生成resultMap
      //  gc.setSwagger2(true);
        mpg.setGlobalConfig(gc);

        //2、数据源配置
        DataSourceConfig dsc = new DataSourceConfig();
        dsc.setUrl("jdbc:mysql://localhost/communication?serverTimezone=Asia/Shanghai");
        dsc.setDriverName("com.mysql.cj.jdbc.Driver");
        dsc.setUsername("root");
        dsc.setPassword("123456");
        //dsc.setSchemaName("dmjk");
        mpg.setDataSource(dsc);

        // 3、包配置
        PackageConfig pc = new PackageConfig();
       // pc.setModuleName("sys");
        pc.setParent("com.ucap.demo");
        mpg.setPackageInfo(pc);


        // 4、策略配置
        StrategyConfig strategy = new StrategyConfig();
        strategy.setNaming(NamingStrategy.underline_to_camel);
        strategy.setColumnNaming(NamingStrategy.underline_to_camel);
       // strategy.setSuperControllerClass("com.lcy.demo.sys.controller.BaseController");
       // strategy.setSuperEntityClass("com.lcy.demo.sys.entity.BaseEntity");
         strategy.setTablePrefix("org_"); // 表名前缀
        strategy.setEntityLombokModel(true); //使用lombok
        strategy.setInclude("org_department");  // 逆向工程使用的表   如果要生成多个,这里可以传入String[]
        mpg.setStrategy(strategy);

        //5、执行
        mpg.execute();
    }

}

3. 配置application.yml文件

##设置端口号
server:
  port: 9000
##设置服务名
spring:
  application:
    name: demo
  ##配置数据库连接信息
  datasource:
    driver-class-name: com.mysql.cj.jdbc.Driver
    url: jdbc:mysql://127.0.0.1/communication?allowMultiQueries=true&serverTimezone=Asia/Shanghai
    username: root
    password: 123456
##设置mapper.xml路径
mybatis-plus:
  mapper-locations: classpath:mapping/*.xml
##打印sql
logging:
  level:
    com.ucap.demo.mapper: debug

4.启动类设置扫描mapper路径

@MapperScan("com.ucap.demo.mapper")
@SpringBootApplication
public class DemoApplication {
    public static void main(String[] args) {
        SpringApplication.run(DemoApplication.class, args);
    }

}

5.在DepartmentMapper接口添加注解

@Repository
public interface DepartmentMapper extends BaseMapper<Department> {
}

6.在DepartmentController替换注解

@RestController
@RequestMapping("department")
public class DepartmentController {}

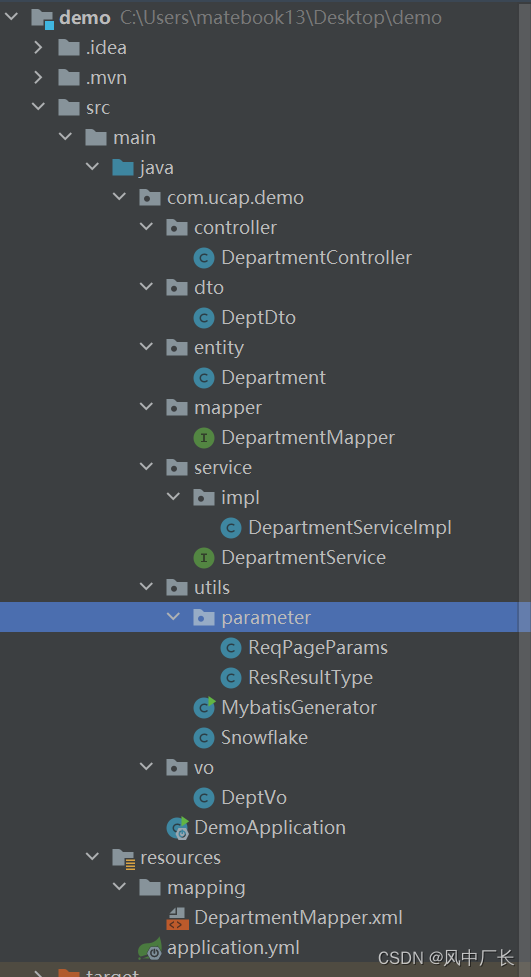

7.springboot服务结构目录

实战

1.CRUD示例，一般使用mybatis-plus提供的方法进行新增，修改，删除，其它接口视情况而定。
（1）、DepartmentController代码示例。

package com.ucap.demo.controller;


import com.ucap.demo.service.DepartmentService;
import com.ucap.demo.utils.parameter.ReqPageParams;
import com.ucap.demo.utils.parameter.ResResultType;
import com.ucap.demo.vo.DeptVo;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RestController;

import java.util.List;

/**
 * <p>
 * 部门表 前端控制器
 * </p>
 *
 * @author jack deng
 * @since 2023-02-27
 */
@RestController
@RequestMapping("department")
public class DepartmentController {
    @Autowired
    private DepartmentService departmentService;

    /**
     * 新增
     * @param deptVo
     * @return
     */
    @RequestMapping("insert")
    public ResResultType insert(@RequestBody DeptVo deptVo) {
        departmentService.insert(deptVo);
        return ResResultType.success();
    }

    /**
     * 修改
     * @param deptVo
     * @return
     */
    @RequestMapping("update")
    public ResResultType update(@RequestBody DeptVo deptVo) {
        departmentService.update(deptVo);
        return ResResultType.success();
    }

    /**
     * 删除
     * @param id
     * @return
     */
    @RequestMapping("delete")
    public ResResultType delete(Long id) {
        departmentService.delete(id);
        return ResResultType.success();
    }

    /**
     * 分页查询
     * @param req
     * @return
     */
    @RequestMapping("pageList")
    public ResResultType pageList(@RequestBody ReqPageParams req) {
        return ResResultType.create(departmentService.pageList(req));
    }

    /**
     * 部门树
     * @return
     */
    @RequestMapping("deptTree")
    public ResResultType deptTree(){
        return ResResultType.create(departmentService.deptTree());
    }

    /**
     * 根据id查询列表
     */
    @RequestMapping("idsPageList")
    public ResResultType idsPageList(@RequestBody  List<Long> ids){
        return ResResultType.create(departmentService.idsPageList(ids));
    }
}

（2）、DepartmentServiceImpl代码示例

package com.ucap.demo.service.impl;

import com.baomidou.mybatisplus.core.metadata.IPage;
import com.baomidou.mybatisplus.extension.plugins.pagination.Page;
import com.ucap.demo.dto.DeptDto;
import com.ucap.demo.dto.DeptTreeDto;
import com.ucap.demo.entity.Department;
import com.ucap.demo.mapper.DepartmentMapper;
import com.ucap.demo.service.DepartmentService;
import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
import com.ucap.demo.utils.Snowflake;
import com.ucap.demo.utils.parameter.ReqPageParams;
import com.ucap.demo.vo.DeptVo;
import org.springframework.beans.BeanUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.time.LocalDateTime;
import java.util.List;

/**
 * <p>
 * 部门表 服务实现类
 * </p>
 *
 * @author jack deng
 * @since 2023-02-27
 */
@Service
public class DepartmentServiceImpl extends ServiceImpl<DepartmentMapper, Department> implements DepartmentService {
    @Autowired
    private DepartmentMapper departmentMapper;

    @Override
    public void insert(DeptVo deptVo) {
        Department department = new Department();
        department.setId(Snowflake.getId());
        BeanUtils.copyProperties(deptVo, department);
        department.setIsDel(0);
        department.setCreateTime(LocalDateTime.now());
        departmentMapper.insert(department);
    }

    @Override
    public void update(DeptVo deptVo) {
        Department department = new Department();
        BeanUtils.copyProperties(deptVo, department);
        department.setIsDel(0);
        department.setUpdateTime(LocalDateTime.now());
        departmentMapper.updateById(department);
    }

    @Override
    public void delete(Long id) {
        Department department = new Department();
        department.setId(id);
        department.setIsDel(1);
        department.setUpdateTime(LocalDateTime.now());
        departmentMapper.updateById(department);
    }

    @Override
    public IPage<DeptDto> pageList(ReqPageParams req) {
        return departmentMapper.pageList(new Page<>(req.getPageNum(), req.getPageSize()), req);
    }

    @Override
    public List<DeptTreeDto> deptTree() {
        return departmentMapper.deptTree();
    }

    @Override
    public List<DeptDto> idsPageList(List<Long> ids) {
        return departmentMapper.idsPageList(ids);
    }
}

（3）、DepartmentMapper代码示例

package com.ucap.demo.mapper;

import com.baomidou.mybatisplus.core.metadata.IPage;
import com.baomidou.mybatisplus.extension.plugins.pagination.Page;
import com.ucap.demo.dto.DeptDto;
import com.ucap.demo.dto.DeptTreeDto;
import com.ucap.demo.entity.Department;
import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.ucap.demo.utils.parameter.ReqPageParams;
import org.apache.ibatis.annotations.Param;
import org.springframework.stereotype.Repository;

import java.util.List;

/**
 * <p>
 * 部门表 Mapper 接口
 * </p>
 *
 * @author jack deng
 * @since 2023-02-27
 */
@Repository
public interface DepartmentMapper extends BaseMapper<Department> {

    IPage<DeptDto> pageList(Page<Object> page, ReqPageParams req);

    List<DeptTreeDto> deptTree();

    List<DeptDto> idsPageList(@Param("ids") List<Long> ids);
}

3.分页查询
（1）、调用接口时，需要传参数。参数包括页码、页码大小、查询条件、排序条件。ReqPageParams为分页查询列表参数类。这个类在DepartmentController、DepartmentServiceImpl 类的pageList方法有介绍。

@Data
public class ReqPageParams {
    /**
     * 页码
     */
    private Integer pageNum;
    /**
     * 大小
     */
    private Integer pageSize;
    /**
     * 排序条件
     */
    private Map<String, String> sorts;
    /**
     * 查询条件
     */
    private Map<String, String> params;


    public Integer getPageNum() {
        return (pageNum == null || pageNum < 1) ? 1 : pageNum;
    }

    public Integer getPageSize() {
        return (pageSize == null || pageSize < 1) ? 10 : pageSize > 1000 ? 1000 : pageSize;
    }

    public Map<String, String> getSorts() {
        return sorts == null ? new HashMap<String, String>() : sorts;
    }


    public Map<String, String> getParams() {
        return params == null ? new HashMap<String, String>() : params;
    }

}

（2）、DepartmentMapper.xml 列表查询SQL

   <select id="pageList" resultType="com.ucap.demo.dto.DeptDto">
       SELECT id,name,description
       FROM org_department
       WHERE is_del=0
       <if test="req.params.name!=null and req.params.name!=''">
           and concat('%',#{req.params.name},'%')
       </if>
       <if test="req.sorts.createTime!=null and req.sorts.createTime!=''">
           <if test="req.sorts.createTime=='desc'">
               order by CREATE_TIME desc
           </if>
           <if test="req.sorts.createTime=='asc'">
               order by CREATE_TIME asc
           </if>
       </if>
   </select>

4、使用mybatis-plus递归，利用延迟加载 一对多实现。
（1）、DepartmentMapper.xml 部门树 DepartmentController、DepartmentServiceImpl 对应deptTree方法

  <resultMap id="childs" type="com.ucap.demo.dto.DeptTreeDto">
        <collection property="childs" column="parent_id=id" select="deptTree"/>
    </resultMap>
    <select id="deptTree" resultMap="childs">
        SELECT id, name as deptName
        FROM org_department
        WHERE is_del = 0
        <if test="parent_id==null or parent_id==''">
            AND parent_id=0
        </if>
        <if test="parent_id!=null and parent_id!=''">
            AND parent_id=#{parent_id}
        </if>
    </select>

（2）、DeptTreeDto类，接收返回数据。

@Data
public class DeptTreeDto {
    /**
     * 部门id
     */
    @JsonSerialize(using = ToStringSerializer.class)
    private Long id;
    /**
     * 部门名字
     */
    private String deptName;
    /**
     * 部门子集
     */
    private List<DeptTreeDto> childs;
}

5、foreach使用，DepartmentController、DepartmentServiceImpl 对应idsPageList方法

 <select id="idsPageList" resultType="com.ucap.demo.dto.DeptDto">
        SELECT id,name,description
        FROM org_department
        WHERE is_del=0
        AND id in
        <foreach collection="ids" item="item" index="index" open="(" separator="," close=")">
            #{item}
        </foreach>
    </select>
