Swagger-PHP v3.x/thinkphp6教程
网上搜了很多关于swagger-PHP的教程,要么就是写的很乱,我完全看不懂,要么就是版本太旧,所以决定自己摸索一遍,顺便写一篇教程,日后好记!!!
准备工作
(要有一点PHP基础,起码要能搭建PHP环境,让PHP程序跑起来):
- 安装Composer,windows下载,如果遇到任何问题或者想更深入地学习 Composer,请参考Composer 文档(英文文档,中文文档)
- 安装thinkphp6,确保能正常运行(不懂得可看 ThinkPHP6.0完全开发手册)
安装zircote/swagger-php依赖
在thinkphp6项目根目录下运行命令:
composer require zircote/swagger-php

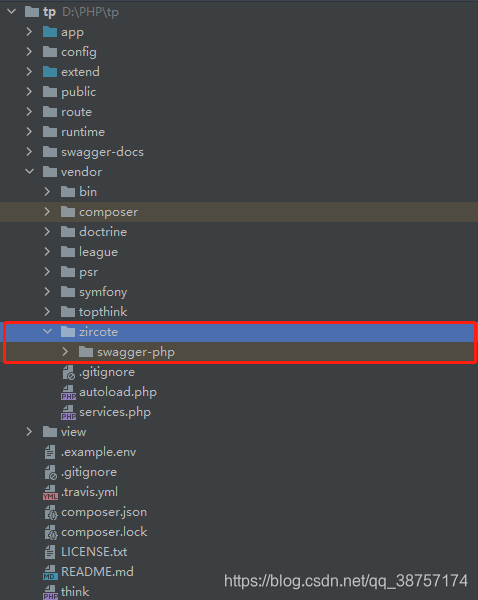

运行完成如下,在vendor目录下出现zircote文件夹:
编写swagger
自学能力强的可以自己看文档Swagger-PHP v3.x,这里我就直接略过文档了
在route文件夹下app.php:
<?php
use think\facade\Route;
Route::get('think', function () {
return 'hello,ThinkPHP6!';
});
Route::get('hello/:name', 'index/hello');
//下面是新加的
Route::get('/swagger', function() {
$openapi = OpenApi\scan(root_path().'app');
//$openapi = OpenApi\scan('../app');//当然,你也可以用这种相对路径的写法,但是我建议还是用上面,避免更换route路径后出现问题
header('Content-Type: application/json');
echo $openapi->toJson();
});
然后再app文件夹下controller\Index.php:
<?php
namespace app\controller;
use app\BaseController;
/**
* @OA\Info(title="thinkphp6接口文档", version="1.0.1")
*/
class Index extends BaseController
{
/**
* @OA\Get(path="/api/article",
* tags={"文章管理"},
* summary="文章列表",
* @OA\Parameter(name="token", in="header", description="token", @OA\Schema(type="string", default="123456")),
* @OA\Parameter(name="page", in="query", description="页码", @OA\Schema(type="int", default="1")),
* @OA\Parameter(name="limit", in="query", description="行数", @OA\Schema(type="int", default="10")),
* @OA\Response(response="200", description="The User")
* )
*/
public function index()
{
return '<style type="text/css">*{ padding: 0; margin: 0; } div{ padding: 4px 48px;} a{color:#2E5CD5;cursor: pointer;text-decoration: none} a:hover{text-decoration:underline; } body{ background: #fff; font-family: "Century Gothic","Microsoft yahei"; color: #333;font-size:18px;} h1{ font-size: 100px; font-weight: normal; margin-bottom: 12px; } p{ line-height: 1.6em; font-size: 42px }</style><div style="padding: 24px 48px;"> <h1>:) </h1><p> ThinkPHP V' . \think\facade\App::version() . '<br/><span style="font-size:30px;">14载初心不改 - 你值得信赖的PHP框架</span></p><span style="font-size:25px;">[ V6.0 版本由 <a href="https://www.yisu.com/" target="yisu">亿速云</a> 独家赞助发布 ]</span></div><script type="text/javascript" src="https://tajs.qq.com/stats?sId=64890268" charset="UTF-8"></script><script type="text/javascript" src="https://e.topthink.com/Public/static/client.js"></script><think id="ee9b1aa918103c4fc"></think>';
}
/**
* @OA\Post(path="/api/article",
* tags={"文章管理"},
* summary="新增文章",
* @OA\Parameter(name="token", in="header", description="token", @OA\Schema(type="string")),
* @OA\RequestBody(
* @OA\MediaType(
* mediaType="multipart/form-data",
* @OA\Schema(
* @OA\Property(description="文章名称", property="title", type="string", default="dd"),
* @OA\Property(description="文章内容", property="content", type="string"),
* required={"title", "content"})
* )
* ),
* @OA\Response(response="200", description="successful operation")
* )
*/
public function save()
{
//save业务代码
}
/**
* @OA\Get(path="/api/article/{id}",
* tags={"文章管理"},
* summary="文章详情",
* @OA\Parameter(name="token", in="header", description="token", @OA\Schema(type="string")),
* @OA\Parameter(name="id", in="path", description="文章id", @OA\Schema(type="int")),
* @OA\Response(response="200", description="The User")
* )
*/
public function read($id)
{
//read业务代码
}
/**
* @OA\Put(path="/api/article/{id}",
* tags={"文章管理"},
* summary="编辑文章",
* @OA\Parameter(name="token", in="header", description="token", @OA\Schema(type="string")),
* @OA\Parameter(name="id", in="path", description="文章id", @OA\Schema(type="int")),
* @OA\RequestBody(
* @OA\MediaType(
* mediaType="content-type/json",
* @OA\Schema(
* @OA\Property(description="文章名称", property="title", type="string"),
* @OA\Property(description="文章内容", property="content", type="string"),
* required={"title", "content"})
* )
* ),
* @OA\Response(response="200", description="successful operation")
* )
*/
public function update($id)
{
//update业务代码
}
/**
* @OA\Delete(path="/api/article/{id}",
* tags={"文章管理"},
* summary="删除文章",
* @OA\Parameter(name="token", in="header", description="token", @OA\Schema(type="string")),
* @OA\Parameter(name="id", in="path", description="文章id", @OA\Schema(type="int")),
* @OA\Response(response="200", description="The User")
* )
*/
public function delete($id)
{
//delete业务代码
}
}
接下来是查看效果:
根目录下执行:
php think run

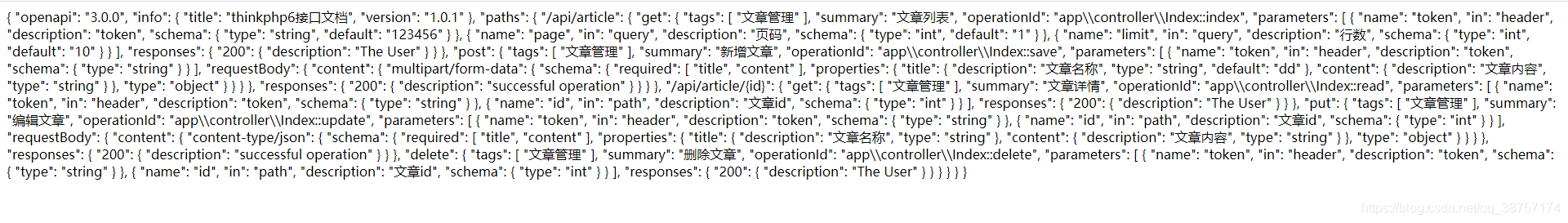

在浏览器输入 http://127.0.0.1:8000/swagger,出现如下json格式的字符串,就算成功了
使用Swagger UI自动生成接口文档
下载前端代码:https://github.com/swagger-api/swagger-ui

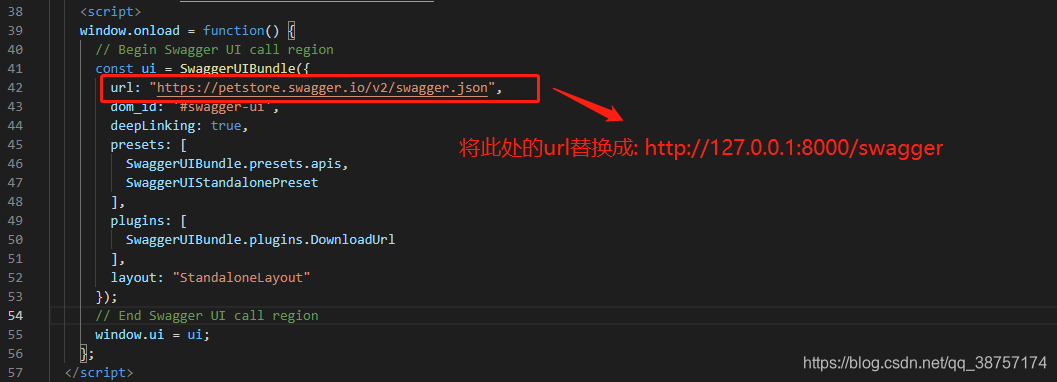

下载好之后找到dist目录下的inedx.html文件,如下图

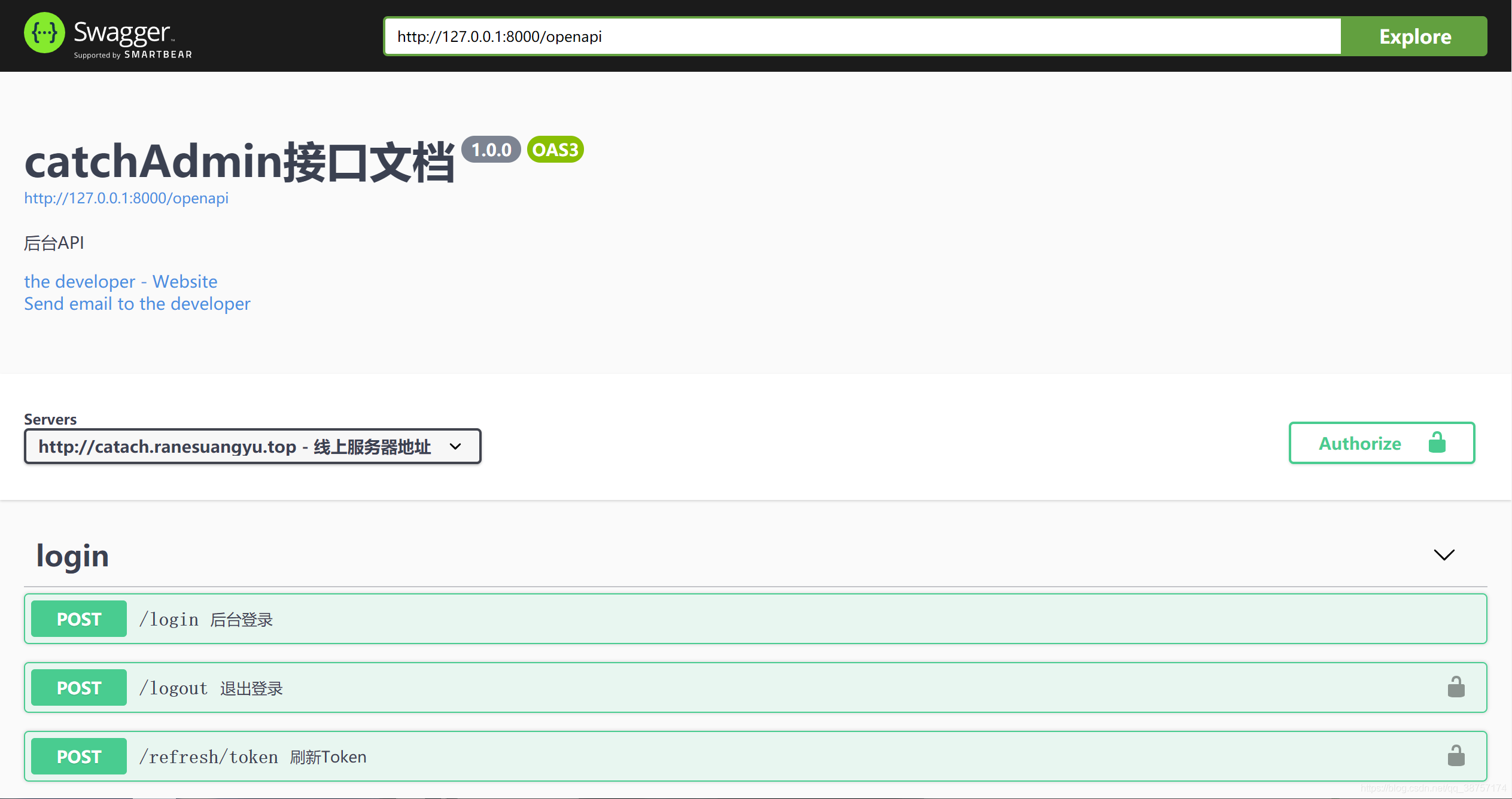

双击打开index.html文件,浏览器如下显示,在这个页面你就可以调试接口了:
其他
导出静态openapi.json文件(在根目录下可以找到openapi.json文件):
./vendor/bin/openapi --output openapi.json ./app
具体用法请 查看链接

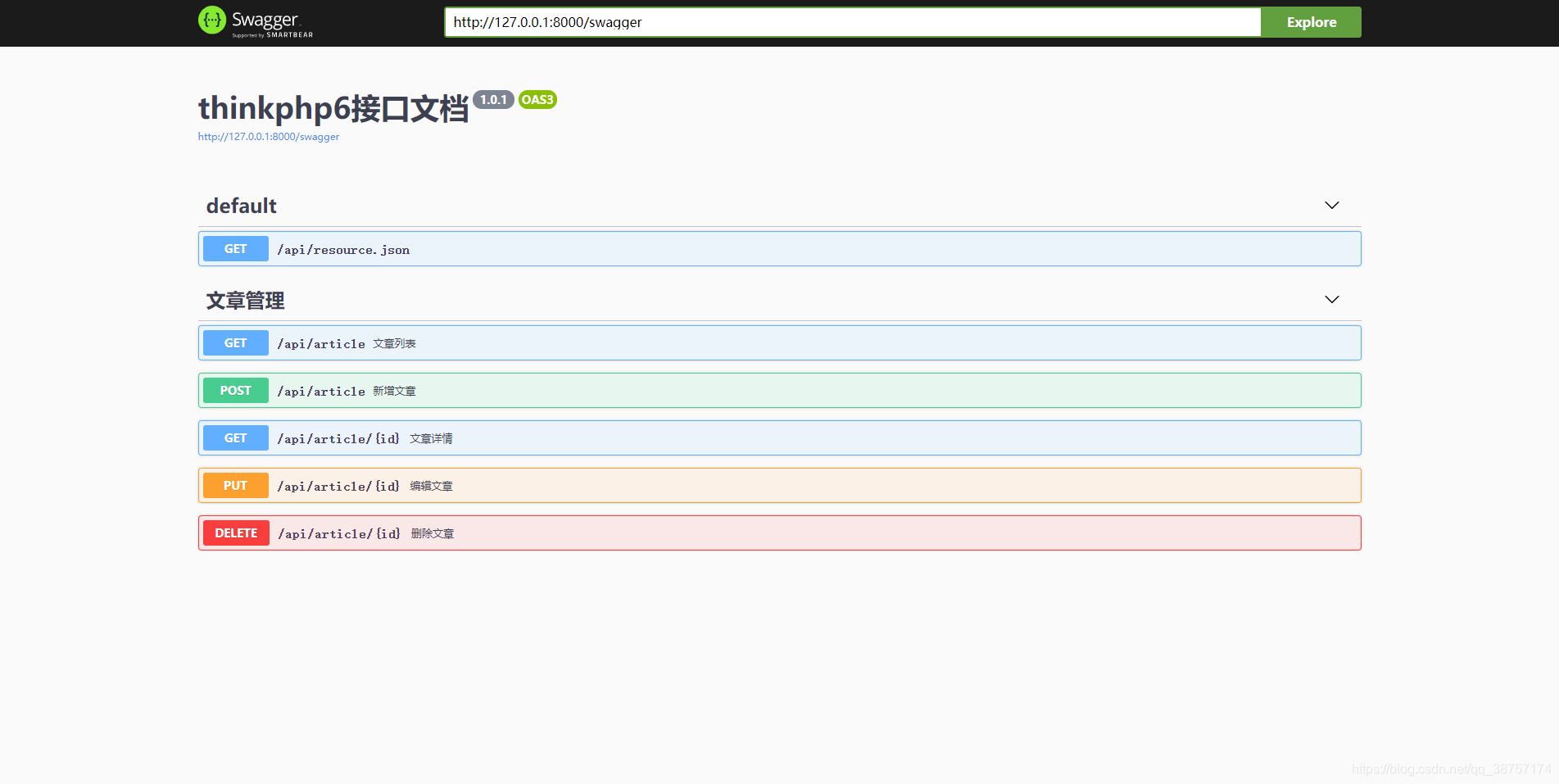

效果:
