Redis Stream消息并发和未ack消息处理

wnfee

已于 2023-05-05 21:40:33 修改

阅读量3.9k

点赞数 3

文章标签： redis java redis stream

于 2023-03-28 20:06:15 首次发布

本文链接：https://blog.csdn.net/qq_38983728/article/details/129823696

版权

文章目录

redis stream文档参考 https://zhuanlan.zhihu.com/p/60501638

1. RedisStreamConfig

package com.tophant.eventdemo.common.config;

import cn.hutool.core.collection.ListUtil;
import com.tophant.eventdemo.common.contstant.RedisStreamConstant;
import com.tophant.eventdemo.listener.MyMessageListener;
import lombok.RequiredArgsConstructor;
import lombok.extern.slf4j.Slf4j;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.data.redis.connection.RedisConnectionFactory;
import org.springframework.data.redis.connection.stream.Consumer;
import org.springframework.data.redis.connection.stream.ObjectRecord;
import org.springframework.data.redis.connection.stream.ReadOffset;
import org.springframework.data.redis.connection.stream.StreamOffset;
import org.springframework.data.redis.stream.StreamListener;
import org.springframework.data.redis.stream.StreamMessageListenerContainer;

import java.util.List;


/**
 * redis stream配置
 *
 * @author wanfei
 * @date 2023/03/28
 */
@Slf4j
@Configuration
@RequiredArgsConstructor
public class RedisStreamConfig {
    private final RedisStreamUtil redisStreamUtil;

    /**
     * 创建 Redis Stream 集群消费的容器（注册一个消费者类作为多个消费者）
     * <p>
     * Redis Stream 的 xreadgroup 命令：https://www.geek-book.com/src/docs/redis/redis/redis.io/commands/xreadgroup.html
     */
    @Bean(initMethod = "start", destroyMethod = "stop")
    public StreamMessageListenerContainer<String, ObjectRecord<String, String>> redisStreamMessageListenerContainer(
            RedisConnectionFactory connectionFactory) {
        // 第一步，创建 StreamMessageListenerContainer 容器
        // 创建 options 配置
        StreamMessageListenerContainer.StreamMessageListenerContainerOptions<String, ObjectRecord<String, String>> containerOptions =
                StreamMessageListenerContainer.StreamMessageListenerContainerOptions.builder()
                        .batchSize(10) // 一次性最多拉取多少条消息
//                        .executor(Executors.newFixedThreadPool(10))  // 线程池          ---没起作用
                        .targetType(String.class) // 目标类型。统一使用 String
                        .build();
        // 创建 container 对象
        StreamMessageListenerContainer<String, ObjectRecord<String, String>> container =
                StreamMessageListenerContainer.create(connectionFactory, containerOptions);

        MyMessageListener myMessageListener1 = new MyMessageListener(redisStreamUtil);
        MyMessageListener myMessageListener2 = new MyMessageListener(redisStreamUtil);
        MyMessageListener myMessageListener3 = new MyMessageListener(redisStreamUtil);
        List<StreamListener> listeners = ListUtil.of(
                myMessageListener1,
                myMessageListener2,
                myMessageListener3
        );

        for (int i = 0; i < listeners.size(); i++) {
            StreamListener listener = listeners.get(i);
            // 消费者名称
            String consumeName = RedisStreamConstant.CONSUMER_NAME + i;
            // 创建 listener 对应的消费者分组
            try {
                // 注意：key是stream的key
                redisStreamUtil.createGroup(RedisStreamConstant.STREAM_NAME, RedisStreamConstant.GROUP_NAME);
            } catch (Exception ignore) {
            }
            // 创建 Consumer 对象
            Consumer consumer = Consumer.from(RedisStreamConstant.GROUP_NAME, consumeName);
            // 设置 Consumer 消费进度，以最小消费进度为准
            StreamOffset<String> streamOffset = StreamOffset.create(RedisStreamConstant.STREAM_NAME, ReadOffset.lastConsumed());
            // 设置 Consumer 监听
            StreamMessageListenerContainer.StreamReadRequestBuilder<String> builder = StreamMessageListenerContainer.StreamReadRequest
                    .builder(streamOffset).consumer(consumer)
                    .autoAcknowledge(false); // 不自动 ack

            container.register(builder.build(), listener);
            log.info("[redisStreamMessageListenerContainer][完成注册 StreamKey({}) 对应的监听器({})]",
                    RedisStreamConstant.STREAM_NAME, listener.getClass().getName());
        }
        return container;
    }

}

.executor()：设置线程池发现没有用，不能一个消费者多线程消费消息，后来试了new 多个消费者，发现可以达到一样的效果

2. 消费者`MyMessageListener`

package com.tophant.eventdemo.listener;

import cn.hutool.core.thread.ThreadUtil;
import com.tophant.eventdemo.common.config.RedisStreamUtil;
import com.tophant.eventdemo.contstant.RedisStreamConstant;
import lombok.RequiredArgsConstructor;
import org.springframework.data.redis.connection.stream.ObjectRecord;
import org.springframework.data.redis.stream.StreamListener;
import org.springframework.stereotype.Component;

import java.util.concurrent.TimeUnit;

/**
 * 我消息监听器
 *
 * @author wanfei
 * @date 2023/03/28
 */
@Component
@RequiredArgsConstructor
public class MyMessageListener implements StreamListener<String, ObjectRecord<String, String>> {
    private final RedisStreamUtil redisStreamUtil;

    @Override
    public void onMessage(ObjectRecord<String, String> message) {
        System.out.println("111 Thread: " + Thread.currentThread().getName() + ", Message: " + message.getValue());
        // 消息执行完毕，没有报错，ack确认
        redisStreamUtil.ack(message.getStream(), RedisStreamConstant.GROUP_NAME, message.getId().getValue());
        // ack之后删除消息
        redisStreamUtil.del(message.getStream(), message.getId().getValue());

        ThreadUtil.sleep(5, TimeUnit.SECONDS);
    }
}

3. RedisStreamUtil

package com.tophant.eventdemo.common.config;

import cn.hutool.core.collection.CollUtil;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.domain.Range;
import org.springframework.data.redis.connection.stream.*;
import org.springframework.data.redis.core.StringRedisTemplate;
import org.springframework.stereotype.Component;

import java.util.Collections;
import java.util.Comparator;
import java.util.List;
import java.util.Set;
import java.util.stream.Collectors;

/**
 * redis stream工具类
 *
 * @author wanfei
 * @date 2023/03/22
 */
@Component
public class RedisStreamUtil {
    @Autowired
    private StringRedisTemplate stringRedisTemplate;

    /**
     * 创建消费者组
     *
     * @param key   关键
     * @param group 集团
     * @return {@link String}
     */
    public String createGroup(String key, String group) {
        return stringRedisTemplate.opsForStream().createGroup(key, group);
    }

    /**
     * 从队列中读取指定范围消息
     *
     * @param key       关键
     * @param recordIds 记录id
     * @return {@link List}<{@link ObjectRecord}<{@link String}, {@link String}>>
     */
    public List<ObjectRecord<String, String>> range(String key, Set<RecordId> recordIds) {
        if (CollUtil.isEmpty(recordIds)) {
            return Collections.emptyList();
        }
        // 消息id排序
        List<String> sortedMessageIds = recordIds.stream().map(RecordId::getValue)
                .sorted(Comparator.comparingLong(messageId -> Long.parseLong(messageId.split("-")[0])))
                .sorted(Comparator.comparingInt(messageId -> Integer.parseInt(messageId.split("-")[1])))
                .collect(Collectors.toList());

        // 消息范围 闭区间
        Range<String> range = Range.closed(sortedMessageIds.get(0), sortedMessageIds.get(sortedMessageIds.size() - 1));
        return stringRedisTemplate.opsForStream().range(String.class, key, range);
    }

    /**
     * 确认已消费
     *
     * @param key       关键
     * @param group     集团
     * @param recordIds 记录id
     * @return {@link Long}
     */
    public Long ack(String key, String group, String... recordIds) {
        return stringRedisTemplate.opsForStream().acknowledge(key, group, recordIds);
    }

    /**
     * 发送消息
     *
     * @param record 记录
     * @return {@link String}
     */
    public String add(Record record) {
        return stringRedisTemplate.opsForStream().add(record).getValue();
    }

    /**
     * 删除消息，这里的删除仅仅是设置了标志位，不影响消息总长度
     * 消息存储在stream的节点下，删除时仅对消息做删除标记，当一个节点下的所有条目都被标记为删除时，销毁节点
     *
     * @param key       关键
     * @param recordIds 记录id
     * @return {@link Long}
     */
    public Long del(String key, String... recordIds) {
        return stringRedisTemplate.opsForStream().delete(key, recordIds);
    }

    /**
     * 查询队列中pending消息(已读取ack未确认)
     *
     * @param key    stream key
     * @param group 消费者组
     * @return {@link List}<{@link PendingMessage}>
     */
    public List<PendingMessage> pending(String key, String group) {
        PendingMessages pending = stringRedisTemplate.opsForStream().pending(key, group, Range.unbounded(), Long.MAX_VALUE);
        return pending.stream().collect(Collectors.toList());
    }

}

4. RedisStreamConstant

package com.tophant.eventdemo.contstant;

/**
 * redis stream常量
 *
 * @author wanfei
 * @date 2023/03/28
 */
public interface RedisStreamConstant {

    /**
     * 消费者名称
     */
    String CONSUMER_NAME = "my-consumer";

    /**
     * 消费者组名称
     */
    String GROUP_NAME = "my-group";

    /**
     * 队列名称
     */
    String STREAM_NAME = "my-stream";
}

5. 测试

package com.tophant.eventdemo.controller;

import cn.hutool.core.lang.Dict;
import com.tophant.eventdemo.common.config.RedisStreamUtil;
import com.tophant.eventdemo.contstant.RedisStreamConstant;
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;
import lombok.RequiredArgsConstructor;
import lombok.extern.slf4j.Slf4j;
import org.springframework.data.redis.connection.stream.StreamRecords;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

/**
 * @author Huhailong
 * @Description
 * @Date 2021/3/10.
 */
@RestController
@RequestMapping("/test")
@Api(tags = "redis-stream测试")
@Slf4j
@RequiredArgsConstructor
public class TestController {

    private final RedisStreamUtil redisStreamUtil;

    @GetMapping("/moreTest/{count}")
    @ApiOperation("发送消息测试 count是循环次数")
    public String moreAddTest(@PathVariable("count") Integer count){
        for(int i=0; i<count; i++) {
            redisStreamUtil.add(StreamRecords.newRecord()
                    .ofObject(new Dict().set("name", "张三" + i))
                    .withStreamKey(RedisStreamConstant.STREAM_NAME));
        }
        return "发送成功";
    }
}

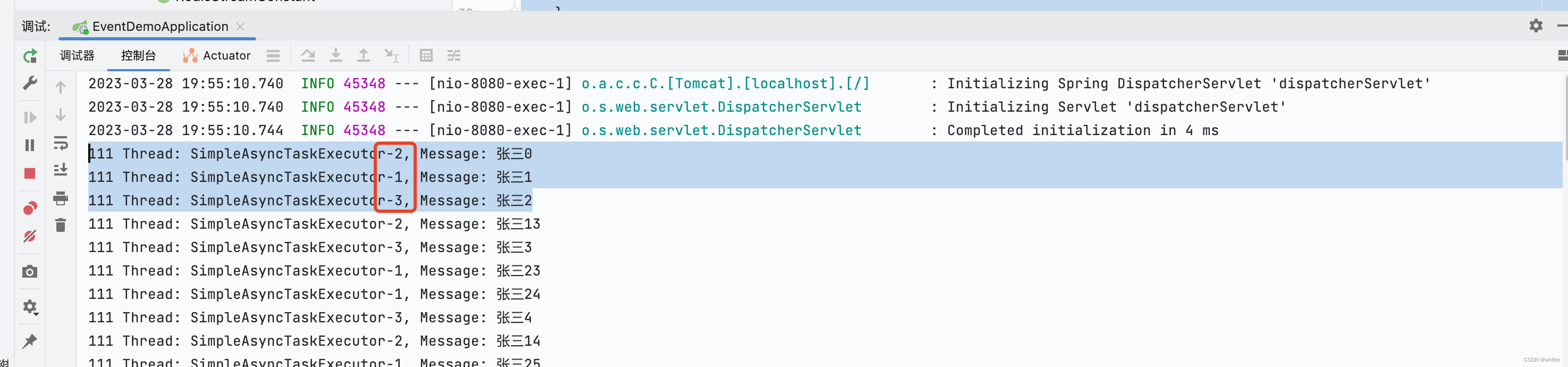

在这里插入图片描述

6. 处理消费者已读取未ack的消息

package com.tophant.eventdemo.common.job;

import com.tophant.eventdemo.common.config.RedisStreamUtil;
import com.tophant.eventdemo.common.contstant.RedisStreamConstant;
import lombok.RequiredArgsConstructor;
import lombok.extern.slf4j.Slf4j;
import org.springframework.data.redis.connection.stream.ObjectRecord;
import org.springframework.data.redis.connection.stream.PendingMessage;
import org.springframework.data.redis.connection.stream.RecordId;
import org.springframework.data.redis.connection.stream.StreamRecords;
import org.springframework.scheduling.annotation.Scheduled;
import org.springframework.stereotype.Component;

import java.util.List;
import java.util.Map;
import java.util.function.Function;
import java.util.stream.Collectors;

/**
 * 这个任务用于处理消费者已读取未ack的消息
 */
@Slf4j
@RequiredArgsConstructor
@Component
public class RedisPendingMessageResendJob {
    private final RedisStreamUtil redisStreamUtil;

    /**
     * 一分钟执行一次,这里选择每分钟的35秒执行，是为了避免整点任务过多的问题
     */
    @Scheduled(cron = "35 * * * * ?")
    public void messageResend() {
        try {
            execute();
        } catch (Exception ex) {
            log.error("[messageResend][执行异常]", ex);
        }
    }

    private void execute() {
        // 直接从消费者组队列中查询未确认消息
        Map<RecordId, PendingMessage> pendingMessageMap = redisStreamUtil.pending(RedisStreamConstant.STREAM_NAME, RedisStreamConstant.GROUP_NAME)
                .stream()
                // 当未确认消息时间超过2分钟才重新投递消息，防止正在处理的消息被更新投递
                .filter(e -> e.getElapsedTimeSinceLastDelivery().getSeconds() > 120)
                .collect(Collectors.toMap(PendingMessage::getId, Function.identity()));

        // 从队列中读取指定范围消息 - 过滤 - 取出pending 消息
        List<ObjectRecord<String, String>> pendingRecords = redisStreamUtil.range(RedisStreamConstant.STREAM_NAME, pendingMessageMap.keySet()).stream()
                // 只取 pending 消息
                .filter(e -> pendingMessageMap.containsKey(e.getId()))
                .collect(Collectors.toList());

        pendingRecords.forEach(record -> {
            // 重新投递消息
            redisStreamUtil.add(StreamRecords.newRecord()
                    // 设置内容
                    .ofObject(record.getValue())
                    // 设置队列
                    .withStreamKey(RedisStreamConstant.STREAM_NAME));

            // 老的消息ack确认
            redisStreamUtil.ack(RedisStreamConstant.STREAM_NAME, RedisStreamConstant.GROUP_NAME, record.getId().getValue());

            // 老的消息删除
            redisStreamUtil.del(RedisStreamConstant.STREAM_NAME, record.getId().getValue());

            // 已读取次数重新投递 次数不会 +1 ,这里都是1
            log.info("【RedisPendingMessageResendJob】 消息 recordId: {} 已读取未ack时间: {} 秒 已读取次数: {} 重新投递", record.getId().getValue(),
                    pendingMessageMap.get(record.getId()).getElapsedTimeSinceLastDelivery().getSeconds(),
                    pendingMessageMap.get(record.getId()).getTotalDeliveryCount());
        });
    }

}
