使用netty自定义协议

资源下载：https://download.csdn.net/download/qq_39246466/15491561

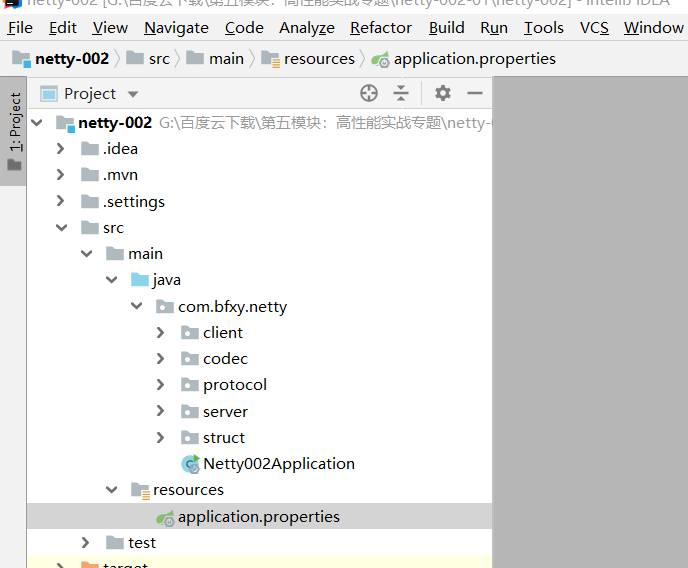

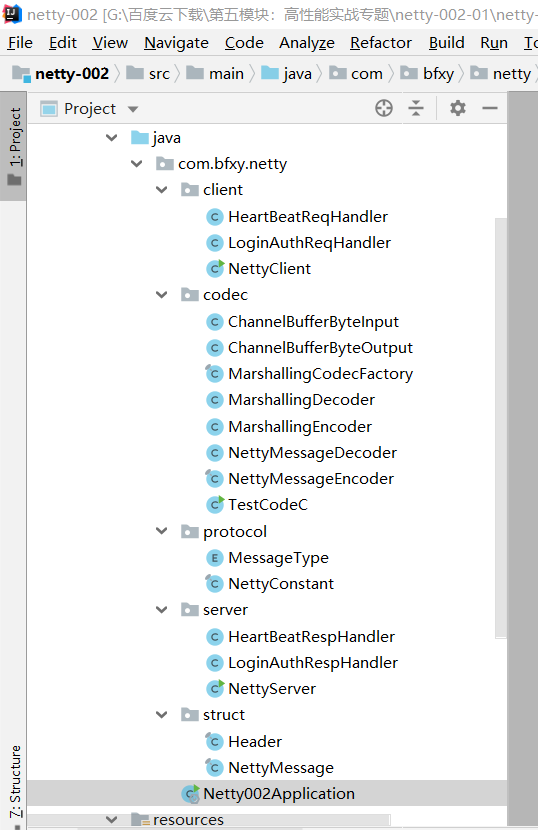

1.目录格式

定义常量

package com.bfxy.netty.protocol;

/**
 * @author Lilinfeng
 * @date 2014年3月15日
 * @version 1.0
 */
public final class NettyConstant {
    public static final String REMOTEIP = "127.0.0.1";//远程
    public static final int PORT = 8080;//远程端口
    public static final int LOCAL_PORT = 12088;//本地端口
    public static final String LOCALIP = "127.0.0.1";//本地
}

定义消息类型

package com.bfxy.netty.protocol;

/**
 * @author Lilinfeng
 * @date 2014年3月15日
 * @version 1.0
 */
public enum MessageType {

    SERVICE_REQ((byte) 0), 		// 	业务请求消息
    SERVICE_RESP((byte) 1),		// 	业务相应消息
    ONE_WAY((byte) 2), 			// 	业务ONE WAY 既是请求又是响应消息
    LOGIN_REQ((byte) 3),		// 	握手请求消息
    LOGIN_RESP((byte) 4),		// 	握手响应消息
    HEARTBEAT_REQ((byte) 5),	// 	心跳请求消息
    HEARTBEAT_RESP((byte) 6);	// 	心跳响应消息

    private byte value;

    private MessageType(byte value) {
    	this.value = value;
    }

    public byte value() {
    	return this.value;
    }
}

实体类定义

package com.bfxy.netty.struct;

/**
 * @author lilinfeng
 * @date 2014年3月14日
 * @version 1.0
 */
public final class NettyMessage {

    private Header header;

    private Object body;

    /**
     * @return the header
     */
    public final Header getHeader() {
    	return header;
    }

    /**
     * @param header
     *            the header to set
     */
    public final void setHeader(Header header) {
    	this.header = header;
    }

    /**
     * @return the body
     */
    public final Object getBody() {
    	return body;
    }

    /**
     * @param body
     *            the body to set
     */
    public final void setBody(Object body) {
    	this.body = body;
    }

    /*
     * (non-Javadoc)
     *
     * @see java.lang.Object#toString()
     */
    @Override
    public String toString() {
    	return "NettyMessage [header=" + header + "]";
    }
}

消息头部：自定义协议解析需要遵循的规则

package com.bfxy.netty.struct;

import java.util.HashMap;
import java.util.Map;

/**
 * @author Lilinfeng
 * @date 2014年3月14日
 * @version 1.0
 */
public final class Header {

    private int crcCode = 0xabef0101;	//crc16: 4

    private int length;// 消息长度  4

    private long sessionID;// 会话ID 8

    private byte type;// 消息类型  1

    private byte priority;// 消息优先级 1

    private Map<String, Object> attachment = new HashMap<String, Object>(); // 附件

    /**
     * @return the crcCode
     */
    public final int getCrcCode() {
    	return crcCode;
    }

    /**
     * @param crcCode
     *            the crcCode to set
     */
    public final void setCrcCode(int crcCode) {
    	this.crcCode = crcCode;
    }

    /**
     * @return the length
     */
    public final int getLength() {
    	return length;
    }

    /**
     * @param length
     *            the length to set
     */
    public final void setLength(int length) {
    	this.length = length;
    }

    /**
     * @return the sessionID
     */
    public final long getSessionID() {
    	return sessionID;
    }

    /**
     * @param sessionID
     *            the sessionID to set
     */
    public final void setSessionID(long sessionID) {
    	this.sessionID = sessionID;
    }

    /**
     * @return the type
     */
    public final byte getType() {
    	return type;
    }

    /**
     * @param type
     *            the type to set
     */
    public final void setType(byte type) {
    	this.type = type;
    }

    /**
     * @return the priority
     */
    public final byte getPriority() {
    	return priority;
    }

    /**
     * @param priority
     *            the priority to set
     */
    public final void setPriority(byte priority) {
    	this.priority = priority;
    }

    /**
     * @return the attachment
     */
    public final Map<String, Object> getAttachment() {
    	return attachment;
    }

    /**
     * @param attachment
     *            the attachment to set
     */
    public final void setAttachment(Map<String, Object> attachment) {
    	this.attachment = attachment;
    }

    /*
     * (non-Javadoc)
     *
     * @see java.lang.Object#toString()
     */
    @Override
    public String toString() {
		return "Header [crcCode=" + crcCode + ", length=" + length
			+ ", sessionID=" + sessionID + ", type=" + type + ", priority="
			+ priority + ", attachment=" + attachment + "]";
    }

}

sever端：

package com.bfxy.netty.server;

import java.io.IOException;

import com.bfxy.netty.codec.NettyMessageDecoder;
import com.bfxy.netty.codec.NettyMessageEncoder;
import com.bfxy.netty.protocol.NettyConstant;

import io.netty.bootstrap.ServerBootstrap;
import io.netty.channel.ChannelFuture;
import io.netty.channel.ChannelInitializer;
import io.netty.channel.ChannelOption;
import io.netty.channel.EventLoopGroup;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.SocketChannel;
import io.netty.channel.socket.nio.NioServerSocketChannel;
import io.netty.handler.logging.LogLevel;
import io.netty.handler.logging.LoggingHandler;
import io.netty.handler.timeout.ReadTimeoutHandler;

/**
 * @author Lilinfeng
 * @date 2014年3月15日
 * @version 1.0
 */
public class NettyServer {

    public void bind() throws Exception {
		// 配置服务端的NIO线程组
		EventLoopGroup bossGroup = new NioEventLoopGroup();
		EventLoopGroup workerGroup = new NioEventLoopGroup();
		ServerBootstrap b = new ServerBootstrap();
		b.group(bossGroup, workerGroup).channel(NioServerSocketChannel.class)
			.option(ChannelOption.SO_BACKLOG, 100)
			.handler(new LoggingHandler(LogLevel.INFO))
			.childHandler(new ChannelInitializer<SocketChannel>() {
			    @Override
			    public void initChannel(SocketChannel ch) throws IOException {
					ch.pipeline().addLast(new NettyMessageDecoder(1024 * 1024, 4, 4));
					ch.pipeline().addLast(new NettyMessageEncoder());
					ch.pipeline().addLast("readTimeoutHandler", new ReadTimeoutHandler(50));
					ch.pipeline().addLast(new LoginAuthRespHandler());
					ch.pipeline().addLast("HeartBeatHandler", new HeartBeatRespHandler());
			    }
			});
		// 绑定端口，同步等待成功
		ChannelFuture cf = b.bind(NettyConstant.REMOTEIP, NettyConstant.PORT).sync();
		System.out.println("Netty server start ok : " + (NettyConstant.REMOTEIP + " : " + NettyConstant.PORT));
		cf.channel().closeFuture().sync();
		bossGroup.shutdownGracefully();
		workerGroup.shutdownGracefully();
    }

    public static void main(String[] args) throws Exception {
    	new NettyServer().bind();
    }
}



Handler：登录验证

package com.bfxy.netty.server;

import java.net.InetSocketAddress;
import java.util.Map;
import java.util.concurrent.ConcurrentHashMap;

import com.bfxy.netty.protocol.MessageType;
import com.bfxy.netty.struct.Header;
import com.bfxy.netty.struct.NettyMessage;

import io.netty.channel.ChannelHandler;
import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.ChannelInboundHandlerAdapter;
import io.netty.channel.ChannelPipeline;

/**
 * @author Lilinfeng
 * @date 2014年3月15日
 * @version 1.0
 */
public class LoginAuthRespHandler extends ChannelInboundHandlerAdapter {

    private Map<String, Boolean> nodeCheck = new ConcurrentHashMap<String, Boolean>();
    private String[] whitekList = { "127.0.0.1", "192.168.1.200" };

    /**
     * Calls {@link ChannelHandlerContext#fireChannelRead(Object)} to forward to
     * the next {@link ChannelHandler} in the {@link ChannelPipeline}.
     *
     * Sub-classes may override this method to change behavior.
     */
    @Override
    public void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {
    	NettyMessage message = (NettyMessage) msg;

		// 如果是握手请求消息，处理，其它消息透传
		if (message.getHeader() != null
			&& message.getHeader().getType() == MessageType.LOGIN_REQ
				.value()) {
		    String nodeIndex = ctx.channel().remoteAddress().toString();
		    NettyMessage loginResp = null;
		    // 重复登陆，拒绝
		    if (nodeCheck.containsKey(nodeIndex)) {
		    	loginResp = buildResponse((byte) -1);
		    } else {
			InetSocketAddress address = (InetSocketAddress) ctx.channel()
				.remoteAddress();
			String ip = address.getAddress().getHostAddress();
			boolean isOK = false;
			for (String WIP : whitekList) {
			    if (WIP.equals(ip)) {
				isOK = true;
				break;
			    }
			}
			loginResp = isOK ? buildResponse((byte) 0)
				: buildResponse((byte) -1);
			if (isOK)
			    nodeCheck.put(nodeIndex, true);
		    }
		    System.out.println("The login response is : " + loginResp
			    + " body [" + loginResp.getBody() + "]");
		    ctx.writeAndFlush(loginResp);
		} else {
		    ctx.fireChannelRead(msg);
		}
    }

    private NettyMessage buildResponse(byte result) {
		NettyMessage message = new NettyMessage();
		Header header = new Header();
		header.setType(MessageType.LOGIN_RESP.value());
		message.setHeader(header);
		message.setBody(result);
		return message;
    }

    public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause)
	    throws Exception {
		cause.printStackTrace();
		nodeCheck.remove(ctx.channel().remoteAddress().toString());// 删除缓存
		ctx.close();
		ctx.fireExceptionCaught(cause);
    }
}

Handler:心跳检测

package com.bfxy.netty.server;

import com.bfxy.netty.protocol.MessageType;
import com.bfxy.netty.struct.Header;
import com.bfxy.netty.struct.NettyMessage;

import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.ChannelInboundHandlerAdapter;

/**
 * @author Lilinfeng
 * @date 2014年3月15日
 * @version 1.0
 */
public class HeartBeatRespHandler extends ChannelInboundHandlerAdapter {
    @Override
    public void channelRead(ChannelHandlerContext ctx, Object msg)
	    throws Exception {
		NettyMessage message = (NettyMessage) msg;
		// 返回心跳应答消息
		if (message.getHeader() != null
			&& message.getHeader().getType() == MessageType.HEARTBEAT_REQ
				.value()) {
		    System.out.println("Receive client heart beat message : ---> "
			    + message);
		    NettyMessage heartBeat = buildHeatBeat();
		    System.out
			    .println("Send heart beat response message to client : ---> "
				    + heartBeat);
		    ctx.writeAndFlush(heartBeat);
		} else
		    ctx.fireChannelRead(msg);
    }

    private NettyMessage buildHeatBeat() {
		NettyMessage message = new NettyMessage();
		Header header = new Header();
		header.setType(MessageType.HEARTBEAT_RESP.value());
		message.setHeader(header);
		return message;
    }

}

Client端：

package com.bfxy.netty.client;

import java.net.InetSocketAddress;
import java.util.concurrent.Executors;
import java.util.concurrent.ScheduledExecutorService;
import java.util.concurrent.TimeUnit;

import com.bfxy.netty.codec.NettyMessageDecoder;
import com.bfxy.netty.codec.NettyMessageEncoder;
import com.bfxy.netty.protocol.NettyConstant;

import io.netty.bootstrap.Bootstrap;
import io.netty.channel.ChannelFuture;
import io.netty.channel.ChannelInitializer;
import io.netty.channel.ChannelOption;
import io.netty.channel.EventLoopGroup;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.SocketChannel;
import io.netty.channel.socket.nio.NioSocketChannel;
import io.netty.handler.timeout.ReadTimeoutHandler;

/**
 * @author Lilinfeng
 * @date 2014年3月15日
 * @version 1.0
 * 查找进程：
 * tasklist | findstr 2000
 * netstat -ano
 * windows 杀掉进程命令： taskkill -PID 进程号
 */
public class NettyClient {

    private ScheduledExecutorService executor = Executors.newScheduledThreadPool(1);
    EventLoopGroup group = new NioEventLoopGroup();

    public void connect(int port, String host) throws Exception {

    	// 配置客户端NIO线程组
		try {
		    Bootstrap b = new Bootstrap();
		    b.group(group).channel(NioSocketChannel.class)
			    .option(ChannelOption.TCP_NODELAY, true)
			    .handler(new ChannelInitializer<SocketChannel>() {
					@Override
					public void initChannel(SocketChannel ch) throws Exception {
					    ch.pipeline().addLast(new NettyMessageDecoder(1024 * 1024, 4, 4));
					    ch.pipeline().addLast("MessageEncoder", new NettyMessageEncoder());
					    ch.pipeline().addLast("readTimeoutHandler", new ReadTimeoutHandler(50));
					    ch.pipeline().addLast("LoginAuthHandler", new LoginAuthReqHandler());
					    ch.pipeline().addLast("HeartBeatHandler", new HeartBeatReqHandler());
					    //ch.pipeline().addLast("HeartBeatHandler", new SeverHander());
					}
			    });
		    // 发起异步连接操作
		    ChannelFuture future = b.connect(
			    new InetSocketAddress(host, port),
			    new InetSocketAddress(NettyConstant.LOCALIP,
				    NettyConstant.LOCAL_PORT)).sync();
		    System.out.println("Client Start.. ");
		    future.channel().closeFuture().sync();
		} finally {
		    // 所有资源释放完成之后，清空资源，再次发起重连操作
		    executor.execute(new Runnable() {
						@Override
						public void run() {
						    try {
								TimeUnit.SECONDS.sleep(1);
								try {
								    connect(NettyConstant.PORT, NettyConstant.REMOTEIP);// 发起重连操作
								} catch (Exception e) {
								    e.printStackTrace();
								}
						    } catch (InterruptedException e) {
						    	e.printStackTrace();
						    }
						}
		    });
		}
	}

    /**
     * @param args
     * @throws Exception
     */
    public static void main(String[] args) throws Exception {
    	new NettyClient().connect(NettyConstant.PORT, NettyConstant.REMOTEIP);
    }

}

HeartBeatReqHandler：

package com.bfxy.netty.client;

import java.util.concurrent.ScheduledFuture;
import java.util.concurrent.TimeUnit;

import com.bfxy.netty.protocol.MessageType;
import com.bfxy.netty.struct.Header;
import com.bfxy.netty.struct.NettyMessage;

import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.ChannelInboundHandlerAdapter;

public class HeartBeatReqHandler extends ChannelInboundHandlerAdapter {

    private volatile ScheduledFuture<?> heartBeat;

    @Override
    public void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {
    	NettyMessage message = (NettyMessage) msg;
		// 握手成功，主动发送心跳消息
		if (message.getHeader() != null
				&& message.getHeader().getType() == MessageType.LOGIN_RESP.value()) {

		    this.heartBeat = ctx.executor().scheduleAtFixedRate(new HeartBeatReqHandler.HeartBeatTask(ctx), 0, 5000, TimeUnit.MILLISECONDS);

		} else if (message.getHeader() != null
				&& message.getHeader().getType() == MessageType.HEARTBEAT_RESP.value()) {

		    System.out.println("Client receive server heart beat message : ---> " + message);

		} else {
			 ctx.fireChannelRead(msg);
		}
	}

    private class HeartBeatTask implements Runnable {
		private final ChannelHandlerContext ctx;

		public HeartBeatTask(final ChannelHandlerContext ctx) {
		    this.ctx = ctx;
		}

		@Override
		public void run() {
		    NettyMessage heatBeat = buildHeatBeat();
		    System.out.println("Client send heart beat messsage to server : ---> " + heatBeat);
		    ctx.writeAndFlush(heatBeat);
		}

		private NettyMessage buildHeatBeat() {
		    NettyMessage message = new NettyMessage();
		    Header header = new Header();
		    header.setType(MessageType.HEARTBEAT_REQ.value());
		    message.setHeader(header);
		    return message;
		}
    }

    @Override
    public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {
		cause.printStackTrace();
		if (heartBeat != null) {
		    heartBeat.cancel(true);
		    heartBeat = null;
		}
		ctx.fireExceptionCaught(cause);
    }

}

LoginAuthReqHandler：

package com.bfxy.netty.client;

import com.bfxy.netty.protocol.MessageType;
import com.bfxy.netty.struct.Header;
import com.bfxy.netty.struct.NettyMessage;

import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.ChannelInboundHandlerAdapter;

public class LoginAuthReqHandler extends ChannelInboundHandlerAdapter {

    @Override
    public void channelActive(ChannelHandlerContext ctx) throws Exception {
    	ctx.writeAndFlush(buildLoginReq());
    }

    /**
     * <B>方法名称：</B>握手请求信息<BR>
     * <B>概要说明：</B>握手请求信息<BR>
     * @return
     */
    private NettyMessage buildLoginReq() {
    	//创建消息对象
		NettyMessage message = new NettyMessage();
		//创建Header
		Header header = new Header();
		//设置Header的握手请求消息
		header.setType(MessageType.LOGIN_REQ.value());
		message.setHeader(header);
		return message;
    }

    @Override
    public void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {
	NettyMessage message = (NettyMessage) msg;
		// 如果是握手应答消息，需要判断是否认证成功
		if(message.getHeader() != null
				&& message.getHeader().getType() == MessageType.LOGIN_RESP.value()) {

			byte loginResult = (byte) message.getBody();
			if (loginResult != (byte) 0) {
				ctx.close();	// 握手失败，关闭连接
		    } else {
		    	System.out.println("Login is ok : " + message);
		    	ctx.fireChannelRead(msg);
		    }

		} else {
			 ctx.fireChannelRead(msg);
		}
    }

    public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {
    	ctx.fireExceptionCaught(cause);
    }

}

编解码协议：

ChannelBufferByteInput
ChannelBufferByteOutput
MarshallingCodecFactory
MarshallingDecoder
MarshallingEncoder
NettyMessageDecoder
NettyMessageEncoder
TestCodeC

NettyMessageEncoder：

package com.bfxy.netty.codec;

import java.io.IOException;
import java.util.Map;

import com.bfxy.netty.struct.NettyMessage;

import io.netty.buffer.ByteBuf;
import io.netty.channel.ChannelHandlerContext;
import io.netty.handler.codec.MessageToByteEncoder;


/**
 * @author Lilinfeng
 * @date 2014年3月14日
 * @version 1.0
 */
public final class NettyMessageEncoder extends MessageToByteEncoder<NettyMessage> {

    MarshallingEncoder marshallingEncoder;

    public NettyMessageEncoder() throws IOException {
    	this.marshallingEncoder = new MarshallingEncoder();
    }

    @Override
    protected void encode(ChannelHandlerContext ctx, NettyMessage msg, ByteBuf sendBuf) throws Exception {
		if(msg == null || msg.getHeader() == null) {
			 throw new Exception("The encode message is null");
		}

		//写入包头，起始位置为4 	==> 占4个字节位置
		sendBuf.writeInt((msg.getHeader().getCrcCode()));
		//数据长度			==> 占4个字节位置
		sendBuf.writeInt((msg.getHeader().getLength()));
		//开始写入数据			==> 占8个字节位置
		sendBuf.writeLong((msg.getHeader().getSessionID()));
		//==> 占1个字节位置
		sendBuf.writeByte((msg.getHeader().getType()));
		//==> 占1个字节位置
		sendBuf.writeByte((msg.getHeader().getPriority()));
		//==> 占4个字节位置
		sendBuf.writeInt((msg.getHeader().getAttachment().size()));

		String key = null;
		byte[] keyArray = null;
		Object value = null;
		for (Map.Entry<String, Object> param : msg.getHeader().getAttachment().entrySet()) {
		    key = param.getKey();
		    keyArray = key.getBytes("UTF-8");
		    sendBuf.writeInt(keyArray.length);
		    sendBuf.writeBytes(keyArray);
		    value = param.getValue();
		    this.marshallingEncoder.encode(value, sendBuf);
		}
		key = null;
		keyArray = null;
		value = null;
		if (msg.getBody() != null) {
		    marshallingEncoder.encode(msg.getBody(), sendBuf);
		} else {
			//如果为空则写四个自己进行补位
			sendBuf.writeInt(0);
		}
		//更新数据长度    ：从第四个字节开始更新（因为第四个字节之后的int类型表示整个数据包长度）
		//总长度 = sendBuf.readableBytes() - 4(包头的起始位置) - 4（body数据长度占位长度）
		// 因为netty认为 frame的长度为所载内容的长度，而不是报文的长度。 报文的长度为 length+lengthOffset+lengthFieldLength
		sendBuf.setInt(4, sendBuf.readableBytes() - 4 - 4);
    }


}

MarshallingEncoder：

package com.bfxy.netty.codec;

import io.netty.buffer.ByteBuf;
import io.netty.channel.ChannelHandler.Sharable;

import java.io.IOException;

import org.jboss.marshalling.Marshaller;

/**
 * @author Lilinfeng
 * @date 2014年3月14日
 * @version 1.0
 */
@Sharable//共享
public class MarshallingEncoder {

    private static final byte[] LENGTH_PLACEHOLDER = new byte[4];	//int

    Marshaller marshaller;

    public MarshallingEncoder() throws IOException {
    	marshaller = MarshallingCodecFactory.buildMarshalling();
    }

    protected void encode(Object msg, ByteBuf out) throws Exception {
		try {
			//起始数据位置
		    int lengthPos = out.writerIndex();
		    System.out.println("----序列化之前的lengthPos: " + lengthPos);
		    out.writeBytes(LENGTH_PLACEHOLDER);	// 4
		    System.out.println("----预留四个字节，用于更新数据长度！执行序列化操作。。----");
		    ChannelBufferByteOutput output = new ChannelBufferByteOutput(out);
		    marshaller.start(output);
		    marshaller.writeObject(msg);
		    marshaller.finish();
		    System.out.println("----序列化完毕后的out.writerIndex(): " + out.writerIndex());
		    System.out.println("最后更新数据长度公式为：总长度-初始化长度-4个预留字节长度 = 数据长度，进行set设置值");
		    //写数据为：总长度-起始位置-4个字节为数据长度
		    out.setInt(lengthPos, out.writerIndex() - lengthPos - 4);

		} finally {
		    marshaller.close();
		}
    }
}

ChannelBufferByteInput：

package com.bfxy.netty.codec;

import io.netty.buffer.ByteBuf;

import java.io.IOException;
import java.io.StreamCorruptedException;

import org.jboss.marshalling.ByteInput;
import org.jboss.marshalling.Unmarshaller;

/**
 * @author Lilinfeng
 * @date 2014年3月14日
 * @version 1.0
 */
public class MarshallingDecoder {

    private final Unmarshaller unmarshaller;

    /**
     * Creates a new decoder whose maximum object size is {@code 1048576} bytes.
     * If the size of the received object is greater than {@code 1048576} bytes,
     * a {@link StreamCorruptedException} will be raised.
     *
     * @throws IOException
     *
     */
    public MarshallingDecoder() throws IOException {
    	this.unmarshaller = MarshallingCodecFactory.buildUnMarshalling();
    }

    protected Object decode(ByteBuf in) throws Exception {
    	//先读取数据包的长度
		int objectSize = in.readInt();
		System.out.println("进行解码操作，首先获取数据总长度为： " + objectSize);
		//进行slice截取从读取位置开始为：in.readerIndex() 读取后objectSize的数据长度
		System.out.println("从in.readerIndex()= "+ in.readerIndex() +" 位置开始, 读取数据长度objectSize=" + objectSize + "的数据！");
		ByteBuf buf = in.slice(in.readerIndex(), objectSize);
		ByteInput input = new ChannelBufferByteInput(buf);
		try {
			//进行解码操作
			this.unmarshaller.start(input);
		    Object obj = this.unmarshaller.readObject();
		    this.unmarshaller.finish();
		    //读取完毕后，更新当前读取起始位置为：in.readerIndex() + objectSize
		    in.readerIndex(in.readerIndex() + objectSize);
		    return obj;
		} finally {
			this.unmarshaller.close();
		}
    }
}

NettyMessageDecoder：解码

package com.bfxy.netty.codec;

import java.io.IOException;
import java.util.HashMap;
import java.util.Map;

import com.bfxy.netty.struct.Header;
import com.bfxy.netty.struct.NettyMessage;

import io.netty.buffer.ByteBuf;
import io.netty.channel.ChannelHandlerContext;
import io.netty.handler.codec.LengthFieldBasedFrameDecoder;


/**
 * @author Lilinfeng
 * @date 2014年3月15日
 * @version 1.0
 */
public class NettyMessageDecoder extends LengthFieldBasedFrameDecoder {

    MarshallingDecoder marshallingDecoder;

    public NettyMessageDecoder(int maxFrameLength, int lengthFieldOffset, int lengthFieldLength) throws IOException {
    	super(maxFrameLength, lengthFieldOffset, lengthFieldLength);
		marshallingDecoder = new MarshallingDecoder();
    }

    @Override
    protected Object decode(ChannelHandlerContext ctx, ByteBuf in) throws Exception {
		ByteBuf frame = (ByteBuf) super.decode(ctx, in);
		if (frame == null) {
		    return null;
		}

		NettyMessage message = new NettyMessage();
		Header header = new Header();
		//获取crcCode			==> 占4个字节位置
		header.setCrcCode(frame.readInt());
		//获取数据包总长度			==> 占4个字节位置
		header.setLength(frame.readInt());
		//获取sessionId			==> 占8个字节位置
		header.setSessionID(frame.readLong());
		//获取消息类型				==> 占1个字节位置
		header.setType(frame.readByte());
		//获取消息优先级			==> 占1个字节位置
		header.setPriority(frame.readByte());
		//获取附件个数				==> 占4个字节位置
		int size = frame.readInt();
		//如果附件个数>0 证明存在附件
		if (size > 0) {
		    Map<String, Object> attch = new HashMap<String, Object>(size);
		    int keySize = 0;
		    byte[] keyArray = null;
		    String key = null;
		    //循环附件个数，取值
		    for (int i = 0; i < size; i++) {
				keySize = frame.readInt();
				keyArray = new byte[keySize];
				frame.readBytes(keyArray);
				key = new String(keyArray, "UTF-8");
				attch.put(key, marshallingDecoder.decode(frame));
		    }
		    keyArray = null;
		    key = null;
		    header.setAttachment(attch);
		}
		//如果最终数据包>4 证明是有数据的，则开始解码
		if (frame.readableBytes() > 4) {
		    message.setBody(marshallingDecoder.decode(frame));
		}
		message.setHeader(header);
		return message;
    }
}

MarshallingDecoder：

package com.bfxy.netty.codec;

import io.netty.buffer.ByteBuf;

import java.io.IOException;
import java.io.StreamCorruptedException;

import org.jboss.marshalling.ByteInput;
import org.jboss.marshalling.Unmarshaller;

/**
 * @author Lilinfeng
 * @date 2014年3月14日
 * @version 1.0
 */
public class MarshallingDecoder {

    private final Unmarshaller unmarshaller;

    /**
     * Creates a new decoder whose maximum object size is {@code 1048576} bytes.
     * If the size of the received object is greater than {@code 1048576} bytes,
     * a {@link StreamCorruptedException} will be raised.
     *
     * @throws IOException
     *
     */
    public MarshallingDecoder() throws IOException {
    	this.unmarshaller = MarshallingCodecFactory.buildUnMarshalling();
    }

    protected Object decode(ByteBuf in) throws Exception {
    	//先读取数据包的长度
		int objectSize = in.readInt();
		System.out.println("进行解码操作，首先获取数据总长度为： " + objectSize);
		//进行slice截取从读取位置开始为：in.readerIndex() 读取后objectSize的数据长度
		System.out.println("从in.readerIndex()= "+ in.readerIndex() +" 位置开始, 读取数据长度objectSize=" + objectSize + "的数据！");
		ByteBuf buf = in.slice(in.readerIndex(), objectSize);
		ByteInput input = new ChannelBufferByteInput(buf);
		try {
			//进行解码操作
			this.unmarshaller.start(input);
		    Object obj = this.unmarshaller.readObject();
		    this.unmarshaller.finish();
		    //读取完毕后，更新当前读取起始位置为：in.readerIndex() + objectSize
		    in.readerIndex(in.readerIndex() + objectSize);
		    return obj;
		} finally {
			this.unmarshaller.close();
		}
    }
}

ChannelBufferByteOutput：

package com.bfxy.netty.codec;

import io.netty.buffer.ByteBuf;
import org.jboss.marshalling.ByteOutput;

import java.io.IOException;

/**
 * {@link ByteOutput} implementation which writes the data to a {@link ByteBuf}
 *
 *
 */
class ChannelBufferByteOutput implements ByteOutput {

    private final ByteBuf buffer;

    /**
     * Create a new instance which use the given {@link ByteBuf}
     */
    public ChannelBufferByteOutput(ByteBuf buffer) {
        this.buffer = buffer;
    }

    @Override
    public void close() throws IOException {
        // Nothing to do
    }

    @Override
    public void flush() throws IOException {
        // nothing to do
    }

    @Override
    public void write(int b) throws IOException {
        buffer.writeByte(b);
    }

    @Override
    public void write(byte[] bytes) throws IOException {
        buffer.writeBytes(bytes);
    }

    @Override
    public void write(byte[] bytes, int srcIndex, int length) throws IOException {
        buffer.writeBytes(bytes, srcIndex, length);
    }

    /**
     * Return the {@link ByteBuf} which contains the written content
     *
     */
    ByteBuf getBuffer() {
        return buffer;
    }
}

TestCodeC：测试

package com.bfxy.netty.codec;

import java.io.IOException;
import java.util.HashMap;
import java.util.Map;

import com.bfxy.netty.struct.Header;
import com.bfxy.netty.struct.NettyMessage;

import io.netty.buffer.ByteBuf;
import io.netty.buffer.Unpooled;

/**
 * @author Administrator
 * @date 2014年3月15日
 * @version 1.0
 */
public class TestCodeC {

    MarshallingEncoder marshallingEncoder;
    MarshallingDecoder marshallingDecoder;

    public TestCodeC() throws IOException {
		marshallingDecoder = new MarshallingDecoder();
		marshallingEncoder = new MarshallingEncoder();
    }

    public NettyMessage getMessage() {
		NettyMessage nettyMessage = new NettyMessage();
		Header header = new Header();
		header.setLength(123);
		header.setSessionID(99999);
		header.setType((byte) 1);
		header.setPriority((byte) 7);
		Map<String, Object> attachment = new HashMap<String, Object>();
		for (int i = 0; i < 10; i++) {
		    attachment.put("ciyt --> " + i, "lilinfeng " + i);
		}
		header.setAttachment(attachment);
		nettyMessage.setHeader(header);
		nettyMessage.setBody("abcdefg-----------------------AAAAAA");
		return nettyMessage;
    }

    public ByteBuf encode(NettyMessage msg) throws Exception {
		ByteBuf sendBuf = Unpooled.buffer();
		//包头
		sendBuf.writeInt((msg.getHeader().getCrcCode()));
		//数据长度：
		sendBuf.writeInt((msg.getHeader().getLength()));
		sendBuf.writeLong((msg.getHeader().getSessionID()));
		sendBuf.writeByte((msg.getHeader().getType()));
		sendBuf.writeByte((msg.getHeader().getPriority()));
		sendBuf.writeInt((msg.getHeader().getAttachment().size()));
		String key = null;
		byte[] keyArray = null;
		Object value = null;

		for (Map.Entry<String, Object> param : msg.getHeader().getAttachment()
			.entrySet()) {
		    key = param.getKey();
		    keyArray = key.getBytes("UTF-8");
		    sendBuf.writeInt(keyArray.length);
		    sendBuf.writeBytes(keyArray);
		    value = param.getValue();
		    marshallingEncoder.encode(value, sendBuf);
		}
		key = null;
		keyArray = null;
		value = null;
		if (msg.getBody() != null) {
		    marshallingEncoder.encode(msg.getBody(), sendBuf);
		} else {
			sendBuf.writeInt(0);
		}
		//更新数据长度
		System.out.println("可读:" + sendBuf.readableBytes());
		sendBuf.setInt(4, sendBuf.readableBytes());
		return sendBuf;
    }

    public NettyMessage decode(ByteBuf in) throws Exception {
		NettyMessage message = new NettyMessage();
		Header header = new Header();
		header.setCrcCode(in.readInt());
		header.setLength(in.readInt());
		header.setSessionID(in.readLong());
		header.setType(in.readByte());
		header.setPriority(in.readByte());

		int size = in.readInt();
		if (size > 0) {
		    Map<String, Object> attch = new HashMap<String, Object>(size);
		    int keySize = 0;
		    byte[] keyArray = null;
		    String key = null;
		    for (int i = 0; i < size; i++) {
				keySize = in.readInt();
				keyArray = new byte[keySize];
				in.readBytes(keyArray);
				key = new String(keyArray, "UTF-8");
				attch.put(key, marshallingDecoder.decode(in));
		    }
		    keyArray = null;
		    key = null;
		    header.setAttachment(attch);
		}
		if (in.readableBytes() > 4) {
		    message.setBody(marshallingDecoder.decode(in));
		}
		message.setHeader(header);
		return message;
    }

    /**
     * @param args
     * @throws Exception
     */
    public static void main(String[] args) throws Exception {
		TestCodeC testC = new TestCodeC();
		NettyMessage message = testC.getMessage();
		System.out.println(message + "[body ] " + message.getBody());

		for (int i = 0; i < 1; i++) {
		    ByteBuf buf = testC.encode(message);
		    NettyMessage decodeMsg = testC.decode(buf);
		    System.out.println(decodeMsg + "[body ] " + decodeMsg.getBody());
		    System.out.println("-------------------------------------------------");
		}
    }

}

pom:

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.0.3.RELEASE</version>
		<relativePath/> <!-- lookup parent from repository -->
	</parent>
	<groupId>com.bfxy</groupId>
	<artifactId>netty-002</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<name>netty-002</name>
	<description>netty-002</description>

	<properties>
		<java.version>1.8</java.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>

		<dependency>
			<groupId>io.netty</groupId>
			<artifactId>netty-all</artifactId>
			<version>4.1.12.Final</version>
		</dependency>

		<!-- 序列化框架marshalling -->
	    <dependency>
			<groupId>org.jboss.marshalling</groupId>
			<artifactId>jboss-marshalling</artifactId>
			<version>1.3.0.CR9</version>
		</dependency>
	   	<dependency>
			<groupId>org.jboss.marshalling</groupId>
			<artifactId>jboss-marshalling-serial</artifactId>
			<version>1.3.0.CR9</version>
		</dependency>
		<!-- 序列化框架protobuf -->
		<dependency>
		    <groupId>com.google.protobuf</groupId>
		    <artifactId>protobuf-java</artifactId>
		    <version>2.5.0</version>
		</dependency>
	</dependencies>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>

</project>
