Hutool生成图片二维码 输出到前端

文档地址

https://hutool.cn/docs/#/extra/%E4%BA%8C%E7%BB%B4%E7%A0%81%E5%B7%A5%E5%85%B7-QrCodeUtil



pom引入



hutool jar
<dependency>
    <groupId>cn.hutool</groupId>
    <artifactId>hutool-all</artifactId>
    <version>5.0.7</version>
</dependency>

考虑到Hutool的非强制依赖性，因此zxing需要用户自行引入
<dependency>
    <groupId>com.google.zxing</groupId>
    <artifactId>core</artifactId>
    <version>3.3.3</version>
</dependency>

编译需要
<build>
    <resources>
        <resource>
            <directory>src/main/resources</directory>
            <includes>
                <include>**/*</include>
            </includes>
        </resource>
    </resources>
</build>

后端代码

 /**
     * 生成二维码
     * @param content 内容
     * @param logourl  logo
     */
    public void createQrCodeN(String content, String logourl, int width, int height,HttpServletResponse response){
        QrConfig config = new QrConfig(width, height);
        File file = null;
        try {
            file = ResourceUtils.getFile(logourl);
        } catch (FileNotFoundException e) {
            e.printStackTrace();
        }
        //附带logo
        config.setImg(file);
        // 设置边距，既二维码和背景之间的边距
        config.setMargin(3);
        // 高纠错级别
        config.setErrorCorrection(ErrorCorrectionLevel.H);
        // 设置前景色，既二维码颜色（青色）
        config.setForeColor(new Color(0,60,130).getRGB());
// 设置背景色（灰色）
        config.setBackColor(new Color(242,242,242).getRGB());
       /* try {
            OutputStream  out = new FileOutputStream("");
        } catch (FileNotFoundException e) {
            e.printStackTrace();
        }*/

        BufferedImage bufferedImage = QrCodeUtil.generate(//
                content, //二维码内容
                config
        );
        try {
            //以JPEG格式向客户端发送
            ServletOutputStream  os = response.getOutputStream();
            ImageIO.write(bufferedImage, "PNG",os);
            os.flush();
            os.close();
        } catch (IOException e) {
            e.printStackTrace();
        }

    }

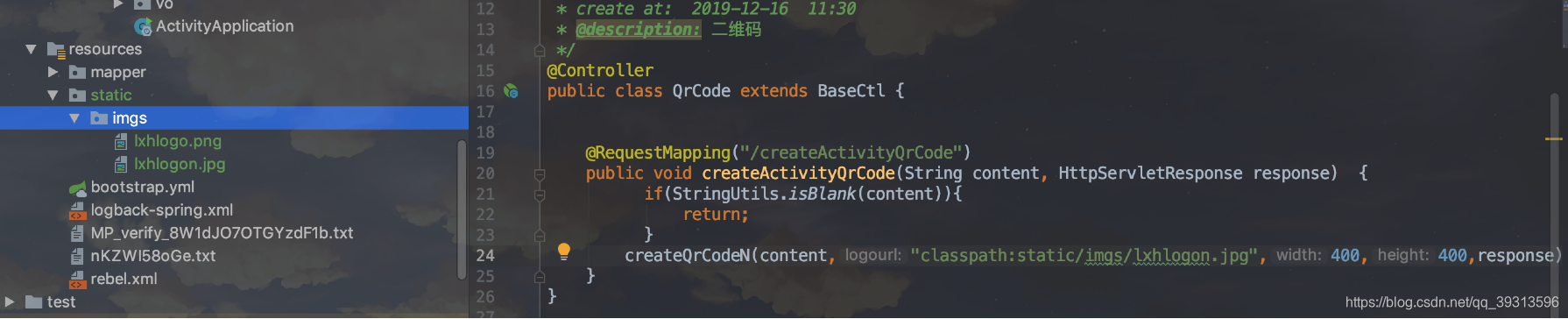

controller

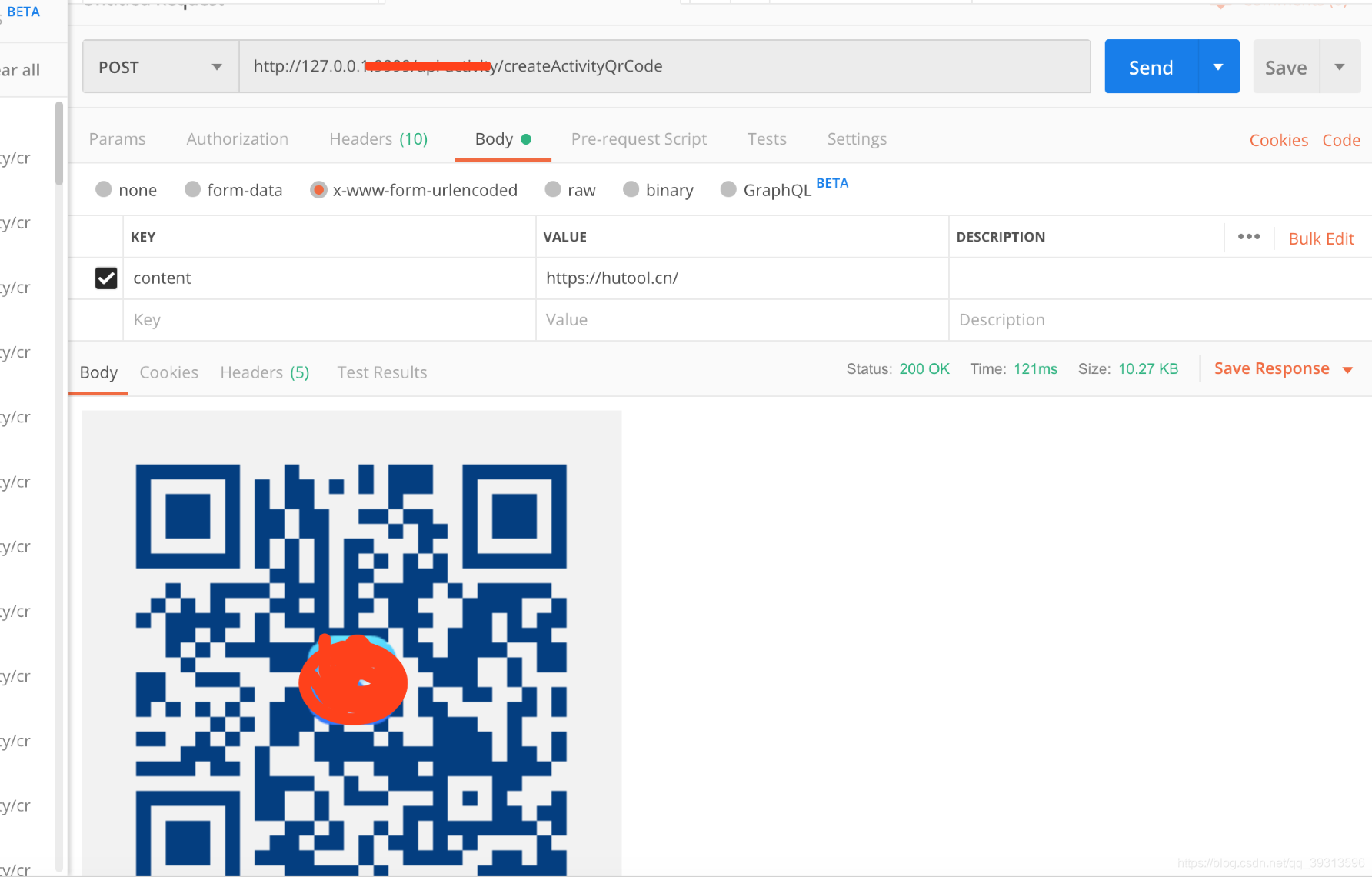

postman测试

 如果打成jar需要这样读取file

InputStream initialStream = Thread.currentThread().getContextClassLoader().getResourceAsStream(logourl);
byte[] buffer = new byte[initialStream.available()];
initialStream.read(buffer);
File file = new File("src/main/resources/targetFile.tmp");
