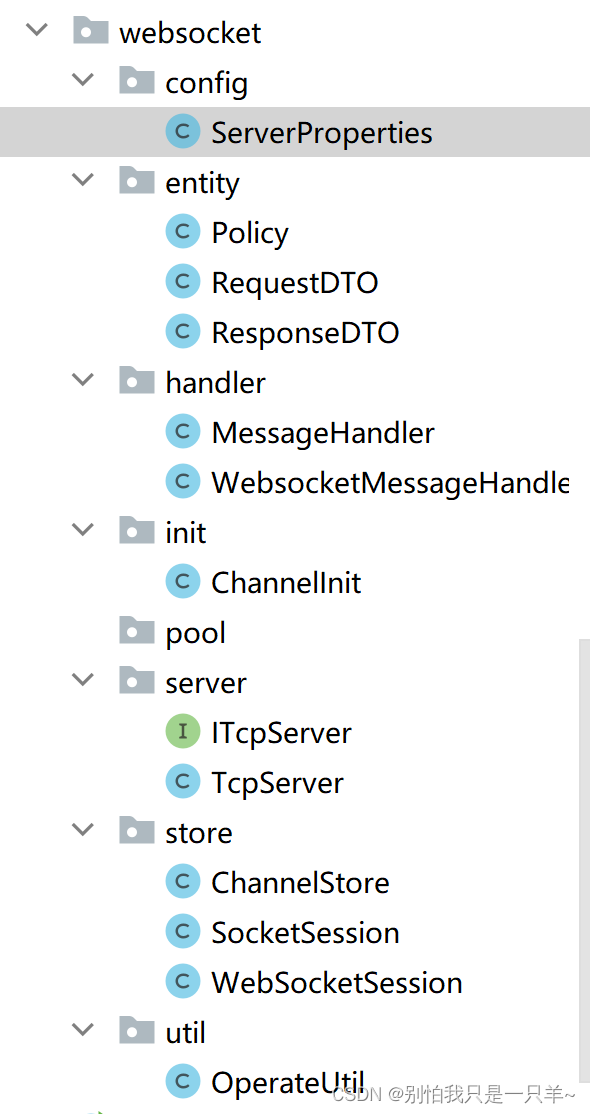

项目结构：

引入jar包：

        <!--        netty-->
        <dependency>
            <groupId>io.netty</groupId>
            <artifactId>netty-all</artifactId>
            <version>4.1.77.Final</version>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-websocket</artifactId>
        </dependency>

application.yml配置

netty:
  server:
    host: 127.0.0.1
    port: 27001
    use-epoll: false

配置类

@Configuration
@ConfigurationProperties(prefix = ServerProperties.PREFIX)
@Data
public class ServerProperties {
    public static final String PREFIX = "netty.server";

    /**
     * 服务器ip
     */
    private String ip;

    /**
     * 服务器端口
     */
    private Integer port;

    /**
     * 传输模式linux上开启会有更高的性能
     */
    private boolean useEpoll;
}

业务类：

@Data
@Accessors(chain = true)
public class Policy implements Serializable {
    private static final long serialVersionUID = 6816331623389002880L;

    private Integer fileLevel;

    private Integer validTime;
}

/**
 * 服务端  到  客户端
 */
@Data
@Accessors(chain = true)
public class RequestDTO implements Serializable {

    private static final long serialVersionUID = 4284674560985442616L;
    /**
     * 标识
     */
    @JsonInclude(JsonInclude.Include.NON_EMPTY)
    private String request;
    @JsonInclude(JsonInclude.Include.NON_EMPTY)
    private String response;

    /**
     * 认证码
     */
    @JsonInclude(JsonInclude.Include.NON_EMPTY)
    private String key;

    /**
     * 返回结果
     */
    @JsonInclude(JsonInclude.Include.NON_EMPTY)
    private String result;

    /**
     * 状态码
     */
    @JsonInclude(JsonInclude.Include.NON_EMPTY)
    private Integer status;

    /**
     * 人员列表
     */
    @JsonInclude(JsonInclude.Include.NON_EMPTY)
    private List<Person> persons;

    /**
     * 发送该命令的账户名
     */
    @JsonInclude(JsonInclude.Include.NON_EMPTY)
    private String handler;

    /**
     * 发送该命令的账户ID
     */
    @JsonInclude(JsonInclude.Include.NON_EMPTY)
    private Integer handlerId;

    /**
     * 舱门下标
     */
    @JsonInclude(JsonInclude.Include.NON_EMPTY)
    private Integer index;

    /**
     * 单位 编号
     */
    @JsonInclude(JsonInclude.Include.NON_EMPTY)
    private Integer departmentId;

    /**
     * 单位名称
     */
    @JsonInclude(JsonInclude.Include.NON_EMPTY)
    private String departmentName;

    /**
     * 修改柜门参数
     */
    @JsonInclude(JsonInclude.Include.NON_EMPTY)
    private List<CabinetInfoVO> data;

    /**
     * 人员对应的开门命令
     */
    @JsonInclude(JsonInclude.Include.NON_EMPTY)
    private List<Command> command;

    /**
     * 根据设备编号查询设备信息
     */
    //  设备编号
    @JsonInclude(JsonInclude.Include.NON_EMPTY)
    private Integer deviceId;
    //  设备编号
    @JsonInclude(JsonInclude.Include.NON_EMPTY)
    private String deviceNumber;

    @JsonInclude(JsonInclude.Include.NON_EMPTY)
    private Integer personId;

    //  人员编号
    @JsonInclude(JsonInclude.Include.NON_EMPTY)
    private String personNumber;

    //  人员姓名
    @JsonInclude(JsonInclude.Include.NON_EMPTY)
    private String personName;

    //  所属单位 ID

    //  所属单位名称

    //  文件列表
    private String[] fileNames;

    /**
     * 删除过期文件
     */
    private Long fileId;

    private String fileName;

    private String localPath;
}

/**
 * 客户端  到  服务端
 */
@Data
@Accessors(chain = true)
public class ResponseDTO implements Serializable {
    private static final long serialVersionUID = -7674457360121804081L;
    /**
     * 标识
     */
    private String request;
    private String response;
    /**
     * 认证结果值
     */
    private Integer value;
    /**
     * 响应状态码
     */
    private Integer status;

    private Integer index;

    /**
     * 客户端ID
     */
    private Long id;

    /**
     * 客户端IP地址
     */
    private String ip;

    /**
     * 客户端版本号
     */
    private String version;

    /**
     * 装备柜行数
     */
    private Integer rows;

    /**
     * 装备柜列数
     */
    private Integer cols;

    /**
     * 各柜门状态
     */
    private String lockStatus;
    /**
     * 柜内物品名称
     */
    private String boxName;

    /**
     * 日志内容
     */
    private String content;

    /**
     * 操作类型
     * 1.人员主动解锁
     * 2.管理员利用账号权限强制解锁
     */
    private Integer handlerType;

    /**
     * type 为1时表示人员编号，为2时表示管理员账号用户名
     */
    private String handler;

    /**
     * 命令所属人员
     */
    private Integer personId;

    /**
     * 命令主键编号
     */
    private Integer commandId;

    /**
     * 设备编号
     */
    private String deviceNumber;

    /**
     * 文件列表
     */
    private String[] fileNames;

    /**
     * insertFile
     */
    private Integer deviceId;
    private String fileName;
    private String size;
    private Integer type;
    private String createTime;
    private String copyTime;

    /**
     * 设备编号（缺省）
     */

    //  人员编号
    private String personNumber;
    private String personName;
    private Integer departmentId;
    private String departmentName;
    private Integer duration;
    private Integer width;
    private Integer height;
    private Boolean autoImportant;
    private String localPath;
    private String devicePath;
    private Integer collectionId;

    /**
     * 删除文件
     */
    private Long fileId;

    private List<Policy> policy;

    public String getRequest() {
        if (ObjectUtils.isEmpty(request)) {
            return null;
        }
        return request;
    }

    public String getResponse() {
        if (ObjectUtils.isEmpty(response)) {
            return null;
        }
        return response;
    }

    public Integer getValue() {
        if (ObjectUtils.isEmpty(value)) {
            return null;
        }
        return value;
    }

    public Integer getStatus() {
        if (ObjectUtils.isEmpty(status)) {
            return null;
        }
        return status;
    }

    public Long getId() {
        if (ObjectUtils.isEmpty(id)) {
            return null;
        }
        return id;
    }

    public String getIp() {
        if (ObjectUtils.isEmpty(ip)) {
            return null;
        }
        return ip;
    }

    public String getVersion() {
        if (ObjectUtils.isEmpty(version)) {
            return null;
        }
        return version;
    }

    public Integer getRows() {
        if (ObjectUtils.isEmpty(rows)) {
            return null;
        }
        return rows;
    }

    public Integer getCols() {
        if (ObjectUtils.isEmpty(cols)) {
            return null;
        }
        return cols;
    }

    public String getLockStatus() {
        if (ObjectUtils.isEmpty(lockStatus)) {
            return null;
        }
        return lockStatus;
    }

    public String getContent() {
        if (ObjectUtils.isEmpty(content)) {
            return null;
        }
        return content;
    }

    public Integer getHandlerType() {
        if (ObjectUtils.isEmpty(handlerType)) {
            return null;
        }
        return handlerType;
    }

    public String getHandler() {
        if (ObjectUtils.isEmpty(handler)) {
            return null;
        }
        return handler;
    }

    public String getBoxName() {
        if (ObjectUtils.isEmpty(boxName)) {
            return null;
        }
        return boxName;
    }

    public Integer getPersonId() {
        if (ObjectUtils.isEmpty(personId)) {
            return null;
        }
        return personId;
    }

    public Integer getCommandId() {
        if (ObjectUtils.isEmpty(commandId)) {
            return null;
        }
        return commandId;
    }

    public String getDeviceNumber() {
        if (ObjectUtils.isEmpty(deviceNumber)) {
            return null;
        }
        return deviceNumber;
    }

    public String[] getFileNames() {
        if (ObjectUtils.isEmpty(fileNames) || fileNames.length == 0) {
            return null;
        }
        return fileNames;
    }

    public String getFileName() {
        if (ObjectUtils.isEmpty(fileName)) {
            return null;
        }
        return fileName;
    }

    public String getSize() {
        if (ObjectUtils.isEmpty(size)) {
            return null;
        }
        return size;
    }

    public Integer getType() {
        if (ObjectUtils.isEmpty(type)) {
            return null;
        }
        return type;
    }

    public String getCreateTime() {
        if (ObjectUtils.isEmpty(createTime)) {
            return null;
        }
        return createTime;
    }

    public String getCopyTime() {
        if (ObjectUtils.isEmpty(copyTime)) {
            return null;
        }
        return copyTime;
    }

    public String getPersonNumber() {
        if (ObjectUtils.isEmpty(personNumber)) {
            return null;
        }
        return personNumber;
    }

    public String getPersonName() {
        if (ObjectUtils.isEmpty(personName)) {
            return null;
        }
        return personName;
    }

    public Integer getDepartmentId() {
        if (ObjectUtils.isEmpty(departmentId)) {
            return null;
        }
        return departmentId;
    }

    public String getDepartmentName() {
        if (ObjectUtils.isEmpty(departmentName)) {
            return null;
        }
        return departmentName;
    }

    public Integer getDuration() {
        if (ObjectUtils.isEmpty(duration)) {
            return null;
        }
        return duration;
    }

    public Integer getWidth() {
        if (ObjectUtils.isEmpty(width)) {
            return null;
        }
        return width;
    }

    public Integer getHeight() {
        if (ObjectUtils.isEmpty(height)) {
            return null;
        }
        return height;
    }

    public Boolean isAutoImportant() {
        if (ObjectUtils.isEmpty(autoImportant)) {
            return null;
        }
        return autoImportant;
    }

    public String getLocalPath() {
        if (ObjectUtils.isEmpty(localPath)) {
            return null;
        }
        return localPath;
    }

    public String getDevicePath() {
        if (ObjectUtils.isEmpty(devicePath)) {
            return null;
        }
        return devicePath;
    }

    public Integer getCollectionId() {
        if (ObjectUtils.isEmpty(collectionId)) {
            return null;
        }
        return collectionId;
    }

    public Boolean getAutoImportant() {
        return autoImportant;
    }
}

客户端信息类：

@Data
@Accessors(chain = true)
public class SocketSession implements Serializable {
    private static final long serialVersionUID = 7585070255615177561L;

    private Channel channel;

    private long cabinetId;     //智能柜唯一ID
    private int rows;
    private int cols;
    private Map<Integer, Boolean> lockStatusMap;//智能柜门锁状态
    private Map<Integer, String> boxNameMap; //智能柜柜内物品名称
    private long authenticationKey; //socket连接认证私有密钥
    private long lastHeartbeatTime;   //最后一次心跳时间
}

管理WebSocket握手会话

/**
 * 管理webSocket 握手会话
 */
public class WebSocketSession {
    private final static HashMap<ChannelId, WebSocketServerHandshaker> CHANNEL_SHAKER = new HashMap<>();

    /**
     * 添加
     */
    public static void setChannelShaker(ChannelId channelId, WebSocketServerHandshaker handShaker) {
        CHANNEL_SHAKER.put(channelId, handShaker);
    }

    /**
     * 获取
     */
    public static WebSocketServerHandshaker getChannelShaker(ChannelId channelId) {
        return CHANNEL_SHAKER.get(channelId);
    }

    /**
     * 释放
     */
    public static void clear(ChannelId channelId) {
        CHANNEL_SHAKER.remove(channelId);
    }
}

客户端连接时认证方法

/**
     * 计算当前请求时间
     *
     * @param key            时间戳
     * @param authentication 根据key计算的结果
     * @return
     */
    public static boolean verify(long key, int authentication) {
        byte[] time_bytes = ByteBuffer.allocate(Long.BYTES / Byte.BYTES).putLong(key).array();
        int count = 0;
        boolean even = time_bytes[time_bytes.length - 1] % 2 == 0;
        for (int i = 0; i < time_bytes.length; i++) {
            int val = time_bytes[i] & 0xFF;
            if (even) {
                count += (val << 1);
            } else {
                count += (val << 2);
            }
        }
        return count == authentication;
    }

客户端发送请求的所有操作工具类：

@Component
@Slf4j
public class OperateUtil {

    private final CollectionService collectionService;

    private final CollectionMapper collectionMapper;

    private final PersonMapper personMapper;

    private final LocklogService locklogService;

    private final CommandMapper commandMapper;

    private final DepartmentMapper departmentMapper;

    private final DeviceMapper deviceMapper;

    private final FileMapper fileMapper;

    private final AllProperties allProperties;

    private final ServerMapper serverMapper;

    public OperateUtil(
            CollectionService collectionService, PersonMapper personMapper,
            LocklogService locklogService,
            CollectionMapper collectionMapper,
            CommandMapper commandMapper,
            DepartmentMapper departmentMapper,
            DeviceMapper deviceMapper,
            FileMapper fileMapper,
            AllProperties allProperties,
            ServerMapper serverMapper
    ) {
        this.collectionService = collectionService;
        this.personMapper = personMapper;
        this.locklogService = locklogService;
        this.collectionMapper = collectionMapper;
        this.commandMapper = commandMapper;
        this.departmentMapper = departmentMapper;
        this.deviceMapper = deviceMapper;
        this.fileMapper = fileMapper;
        this.allProperties = allProperties;
        this.serverMapper = serverMapper;
    }

    public String ManyOperate(ResponseDTO responseDTO, ChannelHandlerContext ctx) {
        log.info("请求对象：{}", responseDTO);
        String msgHandler = "请求标识为空";
        if (!ObjectUtils.isEmpty(responseDTO) &&
                !ObjectUtils.isEmpty(responseDTO.getRequest())) {
            //  客户端请求，服务端响应
            return msgHandler(responseDTO, responseDTO.getRequest(), ctx);
        }
        if (!ObjectUtils.isEmpty(responseDTO) &&
                !ObjectUtils.isEmpty(responseDTO.getResponse())) {
            //  服务端请求，客户端响应
            return msgHandler(responseDTO, responseDTO.getResponse(), ctx);
        }
        return msgHandler;
    }

    /**
     * 操作分发
     * @param responseDTO
     * @param msg
     * @return
     */
    private String msgHandler(ResponseDTO responseDTO, String msg, ChannelHandlerContext ctx) {
        switch (msg) {
            case "authenticate":
                return checkAuthenticate(responseDTO, ctx);
            case "login":
                return getCollectionInfo(responseDTO, ctx);
            case "heartbeat":
                return getHeartbeat(ctx);
            case "lockStatus":
                getLockStatus(responseDTO, ctx);
                return "";
            case "personInfo":
                return getPersonInfo(responseDTO);
            case "unlockLog":
                return addLockLog(responseDTO);
            case "authenticationResult":
                return null;
            case "getOpenDoorCommand":
                return getDoorTask(responseDTO);
            case "completeOpenDoorCommand":
                return reciveDoor(responseDTO);
            case "deviceInfo":
                return getDvinfoByDvno(responseDTO);
            case "fileExist":
                return getFileExist(responseDTO);
            case "insertFile":
                return saveFile(responseDTO);
            case "getOverdueFile":
                return getOverdueFile(responseDTO);
            case "deletedOverdueFile":
                return deleteOverdueFile(responseDTO);
            default:
                return null;
        }
    }

    /**
     * 删除过期文件
     * @param responseDTO
     * @return
     */
    private String deleteOverdueFile(ResponseDTO responseDTO) {
        RequestDTO requestDTO = new RequestDTO();
        if (ObjectUtils.isEmpty(responseDTO)) {
            log.info("删除文件参数为空");
            requestDTO.setResponse("deletedOverdueFile")
                      .setStatus(400);
            return JSON.toJSONString(requestDTO);
        }
        Boolean deleteFile = fileMapper.deleteFile(responseDTO.getFileId());
        if (deleteFile) {
            requestDTO.setResponse("deletedOverdueFile")
                      .setStatus(200);
            return JSON.toJSONString(requestDTO);
        }
        requestDTO.setResponse("deletedOverdueFile")
                  .setStatus(201);
        return JSON.toJSONString(requestDTO);
    }

    /**
     * 查询过期文件
     * @param responseDTO
     * @return
     */
    private String getOverdueFile(ResponseDTO responseDTO) {
        RequestDTO requestDTO = new RequestDTO();
        if (ObjectUtils.isEmpty(responseDTO) || ObjectUtils.isEmpty(responseDTO.getCollectionId())) {
            log.info("查询过期参数为空");
            return null;
        }
        //  当前时间的实例
        Calendar now = Calendar.getInstance();
        now.setTime(new Date());
        for (Policy policy : responseDTO.getPolicy()) {
            //  过期时间
            now.set(Calendar.DATE, now.get(Calendar.DATE) - policy.getValidTime());
            //  查询过期文件
            File overdueFile = fileMapper.getOverdueFile(policy.getFileLevel(), now.getTime());
            if (!ObjectUtils.isEmpty(overdueFile)) {
                //  查询到文件，填充返回，中断循环
                requestDTO.setFileId(overdueFile.getFileId())
                          .setFileName(overdueFile.getFileName())
                          .setLocalPath(overdueFile.getFileLocalPath());
                requestDTO.setResponse("getOverdueFile")
                          .setStatus(200);
                return JSON.toJSONString(requestDTO);
            }
        }
        requestDTO.setResponse("getOverdueFile")
                  .setStatus(201);
        return JSON.toJSONString(requestDTO);
    }

    /**
     * 存储文件
     * @param responseDTO
     * @return
     */
    private String saveFile(ResponseDTO responseDTO) {
        SimpleDateFormat sdf = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss");
        RequestDTO requestDTO = new RequestDTO();
        if (ObjectUtils.isEmpty(responseDTO)) {
            log.info("上报文件参数为空");
            return null;
        }
        Server serverBySerialCode = serverMapper.getServerBySerialCode(allProperties.getSerialCode());

        File file = new File();
        Optional<ResponseDTO> optionalResponseDTO = Optional.ofNullable(responseDTO);
        file.setFileName(optionalResponseDTO.map(ResponseDTO::getFileName).orElseThrow())
            .setFileSize(Long.parseLong(responseDTO.getSize()))
            .setFileType(responseDTO.getType())
            .setFileDeviceId(responseDTO.getDeviceId())
            .setFileDeviceNumber(responseDTO.getDeviceNumber())
            .setFilePersonNumber(responseDTO.getPersonNumber())
            .setFilePersonId(responseDTO.getPersonId())
            .setFilePersonName(responseDTO.getPersonName())
            .setFileDepartmentId(responseDTO.getDepartmentId())
            .setFileDepartmentName(responseDTO.getDepartmentName())
            .setFileDuration(responseDTO.getDuration())
            .setFileWidth(responseDTO.getWidth())
            .setFileHeight(responseDTO.getHeight())
            .setFileAutoImportant(!responseDTO.getAutoImportant() ? 0 : 1)
            .setFileLocalPath(responseDTO.getLocalPath())
            .setFileDevicePath(responseDTO.getDevicePath())
            .setFileCollectionId(responseDTO.getCollectionId())
            .setFileNeedUpload(1)
            .setFileManualImportant(0)
            .setFileServerId(Optional.ofNullable(serverBySerialCode).map(Server::getServerId).orElse(0))
            .setFileDeleteCollection(0)
            .setFileDeleteServer(0)
            .setFileLock(0);


        try {
            file.setFileCreateTime(sdf.parse(responseDTO.getCreateTime()))
                .setFileCopyTime(sdf.parse(responseDTO.getCopyTime()));
        } catch (ParseException e) {
            throw new RuntimeException(e);
        }

        boolean insertFile = fileMapper.insertFile(file);
        if (insertFile) {
            requestDTO.setResponse("insertFile")
                      .setStatus(200)
                      .setIndex(responseDTO.getIndex());
            return JSON.toJSONString(requestDTO);
        }
        requestDTO.setResponse("insertFile")
                  .setStatus(-1)
                  .setIndex(responseDTO.getIndex());
        return JSON.toJSONString(requestDTO);
    }

    /**
     * 查询文件是否存在
     * @param responseDTO
     * @return
     */
    private String getFileExist(ResponseDTO responseDTO) {
        RequestDTO requestDTO = new RequestDTO();
        if (ObjectUtils.isEmpty(responseDTO) || ObjectUtils.isEmpty(responseDTO.getFileNames())) {
            log.info("文件名称列表 参数为空");
            return null;
        }
        //  返回给客户端的文件名集合
        List<String> result = new ArrayList<>();
        //  逐一检查文件名
        for (String fileName : responseDTO.getFileNames()) {
            File fileByName = fileMapper.getFileByName(fileName);
            if (ObjectUtils.isEmpty(fileByName)) {
                //  未查询到数据，将文件名返回给客户端
                result.add(fileName);
            }
        }
        String[] file = result.toArray(new String[result.size()]);
        requestDTO.setResponse("fileExist")
                  .setFileNames(file)
                  .setIndex(responseDTO.getIndex());
        return JSONObject.toJSONString(requestDTO);
    }

    private String getDvinfoByDvno(ResponseDTO responseDTO) {
        RequestDTO requestDTO = new RequestDTO();
        if (ObjectUtils.isEmpty(responseDTO) || ObjectUtils.isEmpty(responseDTO.getDeviceNumber())) {
            log.info("设备编号 参数为空");
            return null;
        }
        //  查询数据库
        Device deviceByDeviceNum = deviceMapper.getDeviceByDeviceNum(responseDTO.getDeviceNumber());
        if (ObjectUtils.isEmpty(deviceByDeviceNum)) {
            requestDTO.setResponse("deviceInfo")
                      .setStatus(201);
            return JSONObject.toJSONString(requestDTO);
        }
        Optional<Device> optionalDevice = Optional.ofNullable(deviceByDeviceNum);
        //  拼接参数
        requestDTO.setResponse("deviceInfo")
                  .setStatus(200)
                  .setIndex(responseDTO.getIndex())
                  .setDeviceId(optionalDevice.map(Device::getDeviceId).orElse(0))
                  .setDeviceNumber(optionalDevice.map(Device::getDeviceNumber).orElse(""))
                  .setPersonId(optionalDevice.map(Device::getPerson).map(Person::getPersonId).orElse(0))
                  .setPersonNumber(
                          optionalDevice.map(Device::getPerson).map(Person::getPersonNumber).orElse(""))
                  .setPersonName(optionalDevice.map(Device::getPerson).map(Person::getPersonName).orElse(""))
                  .setDepartmentId(optionalDevice.map(Device::getDepartment).map(Department::getDepartmentId)
                                                 .orElse(0))
                  .setDepartmentName(
                          optionalDevice.map(Device::getDepartment).map(Department::getDepartmentName)
                                        .orElse(""));

        return JSONObject.toJSONString(requestDTO);
    }

    /**
     * 请求认证方法
     * @param responseDTO
     * @return
     */
    private String checkAuthenticate(ResponseDTO responseDTO, ChannelHandlerContext ctx) {
        RequestDTO requestDTO = new RequestDTO();
        assert responseDTO != null;
        if (ObjectUtils.isEmpty(responseDTO.getValue())) {
            log.error("value值为空");
            return null;
        }
        for (SocketSession socketSession : WebsocketMessageHandler.AllSocket) {
            if (ctx.channel() == socketSession.getChannel()) {
                long key = socketSession.getAuthenticationKey();
                boolean verify = MyEncrypt.verify(key, responseDTO.getValue());
                if (verify) {
                    log.info("认证成功，返回给客户端");
                    requestDTO.setRequest("authenticationResult")
                              .setResult("OK");
                    return JSONObject.toJSONString(requestDTO);
                }
            }
        }
        log.info("认证失败，返回给客户端");
        requestDTO.setRequest("authenticationResult")
                  .setResult("认证失败");
        return JSONObject.toJSONString(requestDTO);
    }

    /**
     * 上报采集站信息
     * @param responseDTO
     * @return
     */
    private String getCollectionInfo(ResponseDTO responseDTO, ChannelHandlerContext ctx) {
        log.info("收到登录请求，装备柜信息：{}", responseDTO);
        RequestDTO requestDTO = new RequestDTO();
        //  工作站
        CollectionDTO collectionDTO = new CollectionDTO();
        if (ObjectUtils.isEmpty(responseDTO) || ObjectUtils.isEmpty(
                responseDTO.getId()) || ObjectUtils.isEmpty(responseDTO.getLockStatus())) {
            log.info("由于请求内容是空的 或者 装备柜ID 或者 锁状态 是空的---处理请求结束");
            return null;
        }
        //  将各柜门状态缓存下来
        getStatus(responseDTO, ctx);

        //  先根据 ID 查询采集站是否 存在
        //  如果 采集站 存在 ，则 更新采集站信息，否则 添加采集站
        //  工作站ID
        collectionDTO.setCollectionId(responseDTO.getId().toString());
        //  查询到采集站信息
        List<Collection> collectionList = collectionMapper.getCollection(
                new Collection().setCollectionId(responseDTO.getId()));
        //  先将收到的信息set 进去
        collectionDTO.setCollectionIp(responseDTO.getIp())
                     .setCollectionVersion(responseDTO.getVersion());
        if (collectionList.size() > 0) {
            //  存在采集站，则更新
            log.info("list:{}", collectionList);
            CommonResult commonResult = collectionService.updateCollection(collectionDTO);
            if (commonResult.getCode() == 200) {
                //  更新成功
                if (!ObjectUtils.isEmpty(collectionList.get(0).getDepartment())) {
                    //  如果采集站对应单位信息不为空
                    requestDTO.setDepartmentId(collectionList.get(0).getDepartment().getDepartmentId())
                              .setDepartmentName(collectionList.get(0).getDepartment().getDepartmentName());
                }
                requestDTO.setResponse("login")
                          .setStatus(200);
                return JSONObject.toJSONString(requestDTO);
            }
        }
        //  不存在采集站，则添加
        CommonResult commonResult = null;
        try {
            collectionDTO.setCollectionDepartmentId("0");
            commonResult = collectionService.addCollection(collectionDTO);
        } catch (ParseException e) {
            throw new RuntimeException(e);
        }
        if (commonResult.getCode() == 200) {
            requestDTO.setResponse("login")
                      .setStatus(200);
            return JSONObject.toJSONString(requestDTO);
        }
        requestDTO.setResponse("login")
                  .setStatus(-1);
        return JSONObject.toJSONString(requestDTO);
    }

    /**
     * 心跳请求
     * @return
     */
    private String getHeartbeat(ChannelHandlerContext ctx) {
        log.info("收到心跳请求：{}", ctx.channel().id());
        HeartCache.getInstance().putValue(ctx.channel(), System.currentTimeMillis(), 2 * 60);
        RequestDTO requestDTO = new RequestDTO();
        requestDTO.setResponse("heartbeat")
                  .setStatus(200);
        return JSONObject.toJSONString(requestDTO);
    }

    /**
     * 获取各柜门状态
     * @param responseDTO
     */
    private void getLockStatus(ResponseDTO responseDTO, ChannelHandlerContext ctx) {
        //  获取各柜门状态
        getStatus(responseDTO, ctx);
    }

    private Boolean strToBool(String status) {
        if ("1".equals(status)) {
            return true;
        }
        return false;
    }

    /**
     * 获取各柜门状态
     * @param responseDTO
     * @param ctx
     */
    private void getStatus(ResponseDTO responseDTO, ChannelHandlerContext ctx) {
        log.info("将 装备柜信息 缓存下来");
        if (ObjectUtils.isEmpty(responseDTO.getLockStatus()) ||
                ObjectUtils.isEmpty(responseDTO.getBoxName())) {
            log.info("由于 锁状态 或者 柜内物品名称 是空的---则只将 工作站ID 记录到 内存中");
            for (SocketSession socketSession : WebsocketMessageHandler.AllSocket) {
                if (socketSession.getChannel() == ctx.channel()) {
                    socketSession.setCabinetId(responseDTO.getId());
                }
                break;
            }
            return;
        }
        //  状态数组
        String[] status = responseDTO.getLockStatus().split(",", -1);
        log.info("锁状态数组长度:{}", status.length);
        //  柜内物品名称
        String[] name = responseDTO.getBoxName().split(",", -1);
        log.info("柜内物品名称数组长度:{}", name.length);
        //  先找到 此通道 对应的socket
        for (SocketSession socketSession : WebsocketMessageHandler.AllSocket) {
            if (socketSession.getChannel() == ctx.channel()) {
                //  锁状态集合
                Map<Integer, Boolean> statusMap = new HashMap<>();
                //  物品名称集合
                Map<Integer, String> boxMap = new HashMap<>();
                for (int i = 0; i < status.length; i++) {
                    statusMap.put(i + 1, strToBool(status[i]));
                    boxMap.put(i + 1, name[i]);
                }
                if (!ObjectUtils.isEmpty(responseDTO.getId())) {
                    socketSession.setCabinetId(responseDTO.getId());
                }
                socketSession.setRows(responseDTO.getRows())
                             .setCols(responseDTO.getCols())
                             .setLockStatusMap(statusMap)
                             .setBoxNameMap(boxMap);
                break;
            }
        }
    }

    /**
     * 获取人员信息
     * @param responseDTO
     * @return
     */
    private String getPersonInfo(ResponseDTO responseDTO) {
        RequestDTO requestDTO = new RequestDTO();
        List<Person> allPerson = personMapper.getAllPerson();
        requestDTO.setResponse("personInfo")
                  .setStatus(200)
                  .setPersons(allPerson);
        log.info("人员对象：{}", requestDTO);
        log.info("人员对象转JSON：{}", JSONObject.toJSONString(requestDTO));
        return JSONObject.toJSONString(requestDTO);
    }

    /**
     * 开锁日志
     * @param responseDTO
     * @return
     */
    private String addLockLog(ResponseDTO responseDTO) {
        RequestDTO requestDTO = new RequestDTO();
        if (!ObjectUtils.isEmpty(responseDTO) &&
                !ObjectUtils.isEmpty(responseDTO.getHandlerType()) &&
                !ObjectUtils.isEmpty(responseDTO.getHandler())
                && !ObjectUtils.isEmpty(responseDTO.getContent())) {
            LocklogDTO locklogDTO = new LocklogDTO();
            locklogDTO.setLocklogHandlerType(responseDTO.getHandlerType().toString())
                      .setLocklogHandler(responseDTO.getHandler())
                      .setLocklogContent(responseDTO.getContent());
            CommonResult commonResult = locklogService.addLockLog(locklogDTO);
            if (commonResult.getCode() == 200) {
                requestDTO.setResponse("unlockLog")
                          .setStatus(200);
                return JSONObject.toJSONString(requestDTO);
            }
        }
        log.info("开锁日志为空 或者 操作类型为空 或者 操作人员为空 或者 操作内容为空 -- 处理结束");
        requestDTO.setResponse("unlockLog")
                  .setStatus(-1);
        return JSONObject.toJSONString(requestDTO);
    }

    /**
     * 人员开门查询
     * @param responseDTO
     * @return
     */
    private String getDoorTask(ResponseDTO responseDTO) {
        if (ObjectUtils.isEmpty(responseDTO.getPersonId())) {
            log.info("人员编号为空---开门任务处理结束");
            return null;
        }
        RequestDTO requestDTO = new RequestDTO();
        Command command = new Command();
        command.setCommandPersonId(responseDTO.getPersonId());
        List<Command> commandList = commandMapper.getCommandByPersonId(responseDTO.getPersonId(), new Date());
        if (commandList.size() > 0) {
            requestDTO.setResponse("getOpenDoorCommand")
                      .setStatus(200)
                      .setCommand(commandList);
            return JSONObject.toJSONString(requestDTO);
        }
        requestDTO.setResponse("getOpenDoorCommand")
                  .setStatus(200);
        return JSONObject.toJSONString(requestDTO);
    }

    private String reciveDoor(ResponseDTO responseDTO) {
        if (ObjectUtils.isEmpty(responseDTO.getCommandId())) {
            log.info("命令主键编号为空---结束处理");
            return null;
        }
        RequestDTO requestDTO = new RequestDTO();
        Command command = new Command();
        command.setCommandId(responseDTO.getCommandId())
               .setCommandComplete(true)
               .setCommandCompleteTime(new Date());
        Integer updateCommand = commandMapper.updateCommand(command);
        if (updateCommand > 0) {
            requestDTO.setRequest("completeOpenDoorCommand")
                      .setStatus(200);
            return JSONObject.toJSONString(requestDTO);
        }
        requestDTO.setRequest("completeOpenDoorCommand")
                  .setStatus(-1);
        return JSONObject.toJSONString(requestDTO);
    }
}

心跳

public class CacheEntity implements Serializable {
    private static final long serialVersionUID = 3055325810872798183L;
    private Object value;

    /**
     * 保存的时间戳
     */
    private long gmtModify;
    /**
     * 过期时间
     */
    private int expire;

    public Object getValue() {
        if (ObjectUtils.isEmpty(value)) {
            return null;
        }
        return value;
    }

    public void setValue(Object value) {
        this.value = value;
    }

    public long getGmtModify() {
        return gmtModify;
    }

    public void setGmtModify(long gmtModify) {
        this.gmtModify = gmtModify;
    }

    public int getExpire() {
        return expire;
    }

    public void setExpire(int expire) {
        this.expire = expire;
    }

    public CacheEntity(Object value, long gmtModify, int expire) {
        super();
        this.value = value;
        this.gmtModify = gmtModify;
        this.expire = expire;
    }
}

@Slf4j
public class HeartCache {

    private static final int DEFAULT_CAPACITY = 512;
    /**  * 最大容量  */
    private static final int MAX_CAPACITY = 100000;
    /**  * 刷新缓存的频率  */
    private static final int MONITOR_DURATION = 2;

    // 启动监控线程
    static {
        new Thread(new TimeoutTimerThread()).start();
    }

    // 内部类方式实现单例
    private static class HeartCacheInstance {
        private static final HeartCache INSTANCE = new HeartCache();
    }

    public static HeartCache getInstance() {
        return HeartCache.HeartCacheInstance.INSTANCE;
    }

    private HeartCache() {
    }

    /**  * 使用默认容量创建一个Map  */
    private static Map<Channel, CacheEntity> heartExpire = new ConcurrentHashMap<>(DEFAULT_CAPACITY);

    /**
     * 将key-value保存到本地缓存并制定该缓存的过期时间
     * @param key
     * @param value
     * @param expireTime 过期时间，如果是-1 则表示永不过期
     * @return
     * @param <T>
     */
    public <T> boolean putValue(Channel key, T value, int expireTime) {
        return putCloneValue(key, value, expireTime);
    }

    /**
     * 将值通过序列化clone 处理后保存到缓存中，可以解决值引用的问题
     * @param key
     * @param value
     * @param expireTime
     * @return
     * @param <T>
     */
    private <T> boolean putCloneValue(Channel key, T value, int expireTime) {
        try {
            if (heartExpire.size() >= MAX_CAPACITY) {
                return false;
            }
            // 序列化赋值
            CacheEntity entityClone = clone(new CacheEntity(value, System.nanoTime(), expireTime));
            heartExpire.put(key, entityClone);
            return true;
        } catch (Exception e) {
            log.error("添加缓存失败：{}", e.getMessage());
        }
        return false;
    }

    /**
     * 序列化 克隆处理
     * @param object
     * @return
     * @param <E>
     */
    private <E extends Serializable> E clone(E object) {
        E cloneObject = null;
        try {
            ByteArrayOutputStream baos = new ByteArrayOutputStream();
            ObjectOutputStream oos = new ObjectOutputStream(baos);
            oos.writeObject(object);
            oos.close();
            ByteArrayInputStream bais = new ByteArrayInputStream(baos.toByteArray());
            ObjectInputStream ois = new ObjectInputStream(bais);
            cloneObject = (E) ois.readObject();
            ois.close();
        } catch (Exception e) {
            log.error("缓存序列化失败：{}", e.getMessage());
        }
        return cloneObject;
    }

    /**
     * 从本地缓存中获取key对应的值，如果该值不存则则返回null
     * @param key
     * @return
     */
    public Object getValue(Channel key) {
        if (CollectionUtils.isEmpty(heartExpire)) {
            return null;
        }
        CacheEntity cacheEntity = heartExpire.get(key);
        if (ObjectUtils.isEmpty(cacheEntity)) {
            return null;
        }
        return cacheEntity.getValue();
    }

    public void remove(Channel key) {
        if (CollectionUtils.isEmpty(heartExpire)) {
            return;
        }
        CacheEntity cacheEntity = heartExpire.get(key);
        if (ObjectUtils.isEmpty(cacheEntity)) {
            return;
        }
        heartExpire.remove(key);
    }

    public Integer count() {
        return heartExpire.size();
    }

    /**  * 清空所有  */
    public void clear() {
        heartExpire.clear();
    }

    /**
     * 过期处理线程  */
    static class TimeoutTimerThread implements Runnable {
        @Override
        public void run() {
            while (true) {
                try {
                    TimeUnit.SECONDS.sleep(MONITOR_DURATION);
                    checkTime();
                } catch (Exception e) {
                    log.error("过期缓存清理失败：{}", e.getMessage());
                }
            }
        }

        /**  * 过期缓存的具体处理方法  *  * @throws Exception  */
        private void checkTime() throws Exception {
            // 开始处理过期
            for (Channel key : heartExpire.keySet()) {
                CacheEntity tce = heartExpire.get(key);
                long timoutTime = TimeUnit.NANOSECONDS.toSeconds(System.nanoTime() - tce.getGmtModify());
                // 过期时间 : timoutTime
                if (tce.getExpire() > timoutTime) {
                    continue;
                }
                log.info(" 清除过期缓存 ：{}", key);
                //清除过期缓存和删除对应的缓存队列
                heartExpire.remove(key);
                log.info("断开客户端连接：{}", key.id());
                key.disconnect();
            }
        }
    }
}

消息处理类：

/**
 * 消息处理,单例启动
 *
 * @author qiding
 */
@Slf4j
@Component
@ChannelHandler.Sharable
@RequiredArgsConstructor
public class MessageHandler extends SimpleChannelInboundHandler<Object> {

    private final WebsocketMessageHandler websocketHandler;


    @Override
    protected void channelRead0(ChannelHandlerContext ctx, Object msg) throws Exception {
        if (msg instanceof FullHttpRequest) {
            log.info("FullHttpRequest");
            FullHttpRequest request = (FullHttpRequest) msg;
            //处理握手数据
            // 首次握手进行校验
            isFullHttpRequest(ctx, request);
            // 获取请求uri
            String uri = request.uri();
            // 参数分别是 (ws地址,子协议,是否扩展,最大frame长度)
            WebSocketServerHandshakerFactory factory = new WebSocketServerHandshakerFactory(
                    getWebSocketLocation(request), null, true, 5 * 1024 * 1024);
            WebSocketServerHandshaker handShaker = factory.newHandshaker(request);
            if (handShaker == null) {
                WebSocketServerHandshakerFactory.sendUnsupportedVersionResponse(ctx.channel());
            } else {
                handShaker.handshake(ctx.channel(), request);
            }
            WebSocketSession.setChannelShaker(ctx.channel().id(), handShaker);

            //握手成功 连接建立完成
            websocketHandler.online(ctx);
        } else if (msg instanceof PingWebSocketFrame) {
            log.info("PingWebSocketFrame");
            // 处理握手PING/PONG
            PingWebSocketFrame pingWebSocketFrame = (PingWebSocketFrame) msg;
            ctx.writeAndFlush(new PongWebSocketFrame(pingWebSocketFrame.content().retain()));
        } else if (msg instanceof TextWebSocketFrame) {
            log.info("TextWebSocketFrame");
            //处理websocket数据（字符串）
            websocketHandler.receivedMessage(ctx, (TextWebSocketFrame) msg);
        }
    }


    //客户端掉线
    @Override
    public void channelInactive(ChannelHandlerContext ctx) {
        log.info("断开连接");
        /*
        // 释放缓存
        ChannelStore.closeAndClean(ctx);
        //  断开连接，删除 map
        GlobalUtil.SESSIONMAP.remove(ctx.channel().id());
        WebSocketSession.clear(ctx.channel().id());
         */

        websocketHandler.offline(ctx);
    }


    //新的客户端
    @Override
    public void channelActive(ChannelHandlerContext ctx) throws Exception {
        log.info("成功建立连接,channelId：{}", ctx.channel().id());
        super.channelActive(ctx);
    }

    //以下是工具类方法 不做具体数据处理

    /**
     * 判断是否是正确的websocket 握手协议
     */
    private static void isFullHttpRequest(ChannelHandlerContext ctx, FullHttpRequest request) {
        if (!request.decoderResult().isSuccess()) {
            log.error("非webSocket请求");
            sendResponse(ctx, request,
                    new DefaultFullHttpResponse(request.protocolVersion(), HttpResponseStatus.BAD_REQUEST,
                            ctx.alloc().buffer()));
            ctx.close();
            return;
        }
        if (!HttpMethod.GET.equals(request.method())) {
            log.error("非GET请求");
            sendResponse(ctx, request,
                    new DefaultFullHttpResponse(request.protocolVersion(), HttpResponseStatus.FORBIDDEN,
                            ctx.alloc().buffer()));
            ctx.close();
        }
    }

    /**
     * SSL支持采用wss:
     */
    private static String getWebSocketLocation(FullHttpRequest request) {
        return "ws://" + request.headers().get(HttpHeaderNames.HOST) + "/ws";
    }

    private static void sendResponse(ChannelHandlerContext ctx, FullHttpRequest req, FullHttpResponse resp) {
        HttpResponseStatus status = resp.status();
        if (status != HttpResponseStatus.OK) {
            ByteBufUtil.writeUtf8(resp.content(), status.toString());
            HttpUtil.setContentLength(req, resp.content().readableBytes());
        }
        boolean keepAlive = HttpUtil.isKeepAlive(req) && status == HttpResponseStatus.OK;
        HttpUtil.setKeepAlive(req, keepAlive);
        ChannelFuture future = ctx.write(resp);
        if (!keepAlive) {
            future.addListener(ChannelFutureListener.CLOSE);
        }
    }
}

/**
 * Websocket 消息处理器
 *
 * @author qiding
 */
@Slf4j
@Component
public class WebsocketMessageHandler {

    private final OperateUtil operateUtil;

    public WebsocketMessageHandler(OperateUtil operateUtil) {
        this.operateUtil = operateUtil;
    }

    /**
     * 存储所有在线的连接
     */
    public static final List<SocketSession> AllSocket = new ArrayList<>();

    public void online(ChannelHandlerContext ctx) {
        //1. 立马发送验证请求 告知终端需要验证
        long key = System.currentTimeMillis();
        String jsonRequest = "{\"request\":\"authenticate\",\"key\":\"" + key + "\"}";
        //new一个缓存对象 保存该连接的信息
        SocketSession socketSession = new SocketSession();
        socketSession.setAuthenticationKey(key)
                     .setLastHeartbeatTime(System.currentTimeMillis())
                     .setChannel(ctx.channel());
        AllSocket.add(socketSession);

        //  有socket连接，将连接存入 redis
        HeartCache.getInstance().putValue(ctx.channel(), System.currentTimeMillis(), 2 * 60);
        log.info("心跳总共连接数：{}", HeartCache.getInstance().count());
        //send
        TextWebSocketFrame frame = new TextWebSocketFrame(jsonRequest);
        ctx.writeAndFlush(frame);
    }

    public void offline(ChannelHandlerContext ctx) {
        //  从心跳集合中移除 该连接
        HeartCache.getInstance().remove(ctx.channel());
        log.info("剩余心跳连接数：{}", HeartCache.getInstance().count());
        //1. 从在线列表中移除该连接
        for (int i = 0; i < AllSocket.size(); i++) {
            SocketSession ca = AllSocket.get(i);
            if (ca.getChannel() == ctx.channel()) {
                AllSocket.remove(i);
                break;
            }
        }
    }

    public void receivedMessage(ChannelHandlerContext ctx, TextWebSocketFrame msg) {
        //1. 将websocket的字符串消息转换成Json对象
        JSONObject jsonObject = JSONObject.parseObject(msg.text());
        if (jsonObject.isEmpty()) {
            return;
        }
        if (msg.text().equals("1") || msg.text().equals("2")) {
            ctx.writeAndFlush(new TextWebSocketFrame(String.valueOf(HeartCache.getInstance().count())));
        }
        log.info("接收到的消息:{}", msg.text());
        ResponseDTO responseDTO = JSON.parseObject(msg.text(), ResponseDTO.class);
        String operateMsg = operateUtil.ManyOperate(responseDTO, ctx);
        if (!ObjectUtils.isEmpty(operateMsg)) {
            TextWebSocketFrame frame = new TextWebSocketFrame(operateMsg);
            ctx.writeAndFlush(frame);
        }
    }

    /**
     * 向某一个socket连接推送消息
     */
    public static void sendMsgToClient(long cabinetId, String msg) {
        //在AllSocket中找到cabinetId对应的连接，将该json消息推送出去
        for (int i = 0; i < AllSocket.size(); i++) {
            SocketSession ca = AllSocket.get(i);
            if (ca.getCabinetId() == cabinetId) {
                ca.getChannel().writeAndFlush(new TextWebSocketFrame(msg));
                break;
            }
        }
    }
}

Netty频道初始化：

/**
 * Netty 通道初始化
 *
 * @author qiding
 */
@Component
@RequiredArgsConstructor
public class ChannelInit extends ChannelInitializer<SocketChannel> {

    private final MessageHandler messageHandler;

    @Override
    protected void initChannel(SocketChannel channel) {
        channel.pipeline()
               // 心跳时间
               // 对http协议的支持.
               .addLast(new HttpServerCodec())
               // 对大数据流的支持
               .addLast(new ChunkedWriteHandler())
               // 聚合 Http 将多个requestLine、requestHeader、messageBody信息转化成单一的request或者response对象
               .addLast(new HttpObjectAggregator(8192))
               // 聚合 websocket 的数据帧，因为客户端可能分段向服务器端发送数据
               .addLast(new WebSocketFrameAggregator(1024 * 62))
               // 添加消息处理器
               .addLast("messageHandler", messageHandler);
    }
}

TCPServer

public interface ITcpServer {
    /**
     * 主启动程序，初始化参数
     *
     * @throws Exception 初始化异常
     */
    void start() throws Exception;


    /**
     * 优雅的结束服务器
     *
     * @throws InterruptedException 提前中断异常
     */
    @PreDestroy
    void destroy() throws InterruptedException;
}

@Component
@Slf4j
@RequiredArgsConstructor
public class TcpServer implements ITcpServer {

    private final ChannelInit channelInit;

    private final ServerProperties serverProperties;

    private EventLoopGroup bossGroup;

    private EventLoopGroup workerGroup;

    @Override
    public void start() throws Exception {
        log.info("初始化 TCP server ...");
        bossGroup = serverProperties.isUseEpoll() ? new EpollEventLoopGroup() : new NioEventLoopGroup();
        workerGroup = serverProperties.isUseEpoll() ? new EpollEventLoopGroup() : new NioEventLoopGroup();
        this.tcpServer();
    }

    /**
     * 初始化
     */
    private void tcpServer() {
        try {
            new ServerBootstrap()
                    .group(bossGroup, workerGroup)
                    .channel(
                            serverProperties.isUseEpoll() ? EpollServerSocketChannel.class :
                                    NioServerSocketChannel.class)
                    .localAddress(new InetSocketAddress(serverProperties.getPort()))
                    // 配置 编码器、解码器、业务处理
                    .childHandler(channelInit)
                    // tcp缓冲区
                    .option(ChannelOption.SO_BACKLOG, 128)
                    // 将网络数据积累到一定的数量后,服务器端才发送出去,会造成一定的延迟。希望服务是低延迟的,建议将TCP_NODELAY设置为true
                    .childOption(ChannelOption.TCP_NODELAY, false)
                    // 保持长连接
                    .childOption(ChannelOption.SO_KEEPALIVE, true)
                    // 绑定端口，开始接收进来的连接
                    .bind().sync();
            log.info("websocket server启动成功！开始监听端口：{}", serverProperties.getPort());
        } catch (Exception e) {
            e.printStackTrace();
            bossGroup.shutdownGracefully();
            workerGroup.shutdownGracefully();
        }
    }

    /**
     * 销毁
     * @throws InterruptedException
     */
    @PreDestroy
    @Override
    public void destroy() throws InterruptedException {
        bossGroup.shutdownGracefully();
        workerGroup.shutdownGracefully();
    }
}

启动项中调用启动：

 @Override
    public void run(String... args) throws Exception {
        tcpServer.start();
    }
