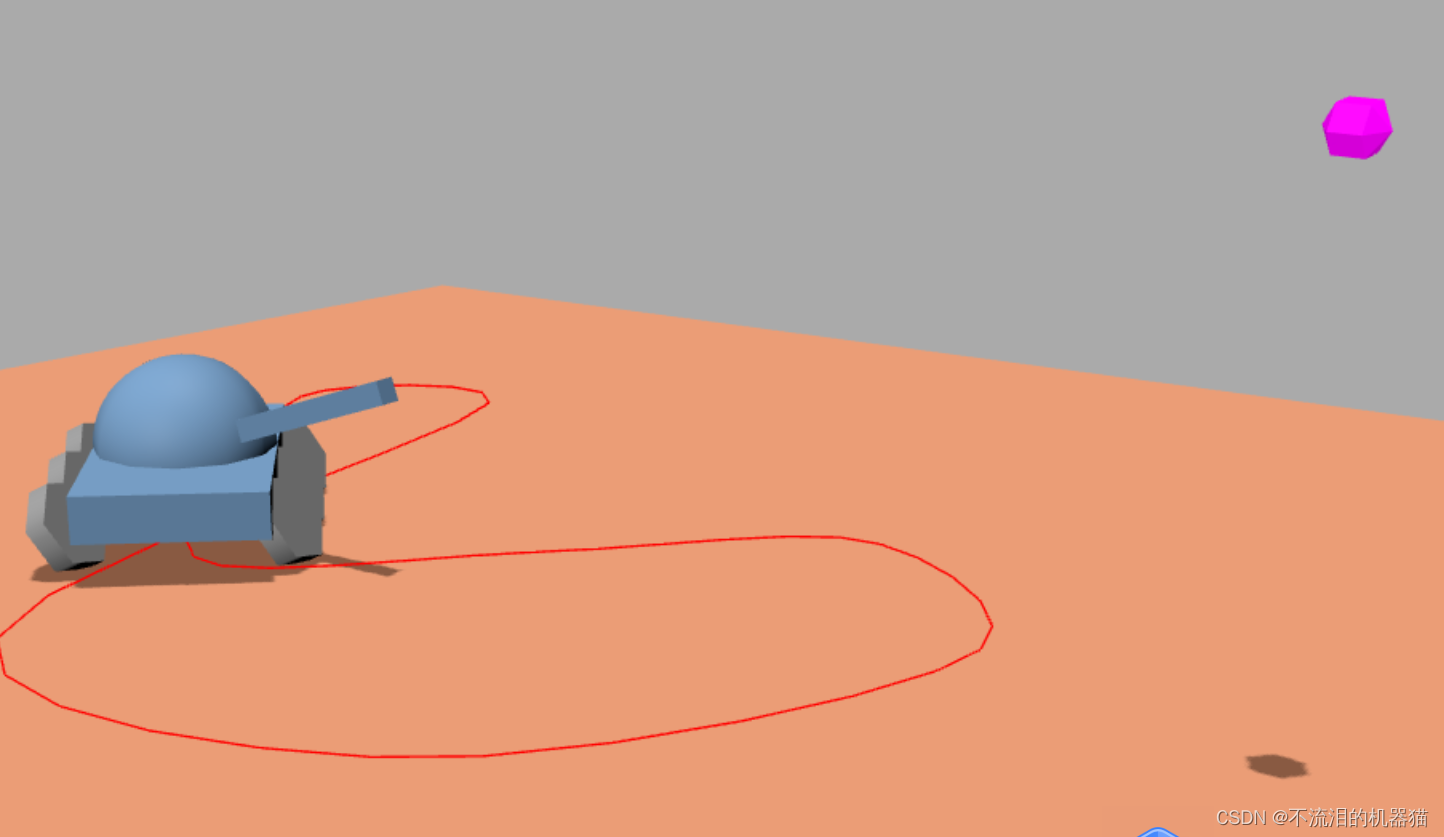

该代码示例展示了如何利用three.js库构建一个3D坦克模型，包括车身、车轮、炮塔和目标物体。场景中包含多个光源，坦克能跟随预设路径移动，并有动态阴影效果。此外，还有从不同视角（坦克内部、炮塔、目标）进行渲染的相机设置。
<html>
<head>
<meta charset="utf-8">
<title>My first three.js app</title>
<style>
body {
margin: 0;
}
#c {
width: 100%;
height: 100%;
}
</style>
<canvas id="c"></canvas>
<canvas id="info"></canvas>
</head>
<body>
<script type="module">
import * as THREE from 'https://unpkg.com/three/build/three.module.js';
function main() {
const canvas = document.querySelector('#c');
const renderer = new THREE.WebGLRenderer({ antialias: true, canvas: canvas });
renderer.setClearColor(0xAAAAAA);
renderer.shadowMap.enabled = true;
function makeCamera(fov = 40) {
const aspect = 2; // the canvas default
const zNear = 0.1;
const zFar = 1000;
return new THREE.PerspectiveCamera(fov, aspect, zNear, zFar);
}
const camera = makeCamera();
camera.position.set(8, 4, 10).multiplyScalar(3);
camera.lookAt(0, 0, 0);
const scene = new THREE.Scene();
{
const light = new THREE.DirectionalLight(0xffffff, 3);
light.position.set(0, 20, 0);
scene.add(light);
light.castShadow = true; //开启投影
light.shadow.mapSize.width = 2048;
light.shadow.mapSize.height = 2048;
const d = 50;
light.shadow.camera.left = - d;
light.shadow.camera.right = d;
light.shadow.camera.top = d;
light.shadow.camera.bottom = - d;
light.shadow.camera.near = 1;
light.shadow.camera.far = 50;
light.shadow.bias = 0.001;
}
{
const light = new THREE.DirectionalLight(0xffffff, 3);
light.position.set(1, 2, 4);
scene.add(light);
}
const groundGeometry = new THREE.PlaneGeometry(50, 50);
const groundMaterial = new THREE.MeshPhongMaterial({ color: 0xCC8866 });
const groundMesh = new THREE.Mesh(groundGeometry, groundMaterial);
groundMesh.rotation.x = Math.PI * - .5;
groundMesh.receiveShadow = true;
scene.add(groundMesh);
//车
const carWidth = 4;
const carHeight = 1;
const carLength = 8;
const tank = new THREE.Object3D();//空3D节点
scene.add(tank);
const bodyGeometry = new THREE.BoxGeometry(carWidth, carHeight, carLength);
const bodyMaterial = new THREE.MeshPhongMaterial({ color: 0x6688AA });
const bodyMesh = new THREE.Mesh(bodyGeometry, bodyMaterial);
bodyMesh.position.y = 1.4;
bodyMesh.castShadow = true;
tank.add(bodyMesh);
const tankCameraFov = 75;
const tankCamera = makeCamera(tankCameraFov);
tankCamera.position.y = 3;
tankCamera.position.z = - 6;
tankCamera.rotation.y = Math.PI;
bodyMesh.add(tankCamera);
//轮子
const wheelRadius = 1;
const wheelThickness = .5;
const wheelSegments = 6;
const wheelGeometry = new THREE.CylinderGeometry(
wheelRadius, // top radius
wheelRadius, // bottom radius
wheelThickness, // height of cylinder
wheelSegments);
const wheelMaterial = new THREE.MeshPhongMaterial({ color: 0x888888 });
const wheelPositions = [
[- carWidth / 2 - wheelThickness / 2, - carHeight / 2, carLength / 3],
[carWidth / 2 + wheelThickness / 2, - carHeight / 2, carLength / 3],
[- carWidth / 2 - wheelThickness / 2, - carHeight / 2, 0],
[carWidth / 2 + wheelThickness / 2, - carHeight / 2, 0],
[- carWidth / 2 - wheelThickness / 2, - carHeight / 2, - carLength / 3],
[carWidth / 2 + wheelThickness / 2, - carHeight / 2, - carLength / 3],
];
const wheelMeshes = wheelPositions.map((position) => {
const mesh = new THREE.Mesh(wheelGeometry, wheelMaterial);
mesh.position.set(...position);
mesh.rotation.z = Math.PI * .3;
mesh.castShadow = true;
bodyMesh.add(mesh);
return mesh;
});
//坦克圆屋顶，半个球体
const domeRadius = 2;
const domeWidthSubdivisions = 12;
const domeHeightSubdivisions = 12;
const domePhiStart = 0;
const domePhiEnd = Math.PI * 2;
const domeThetaStart = 0;
const domeThetaEnd = Math.PI * .5;
const domeGeometry = new THREE.SphereGeometry(
domeRadius, domeWidthSubdivisions, domeHeightSubdivisions,
domePhiStart, domePhiEnd, domeThetaStart, domeThetaEnd);
const domeMesh = new THREE.Mesh(domeGeometry, bodyMaterial);
domeMesh.castShadow = true;
bodyMesh.add(domeMesh);
domeMesh.position.y = 0.5;//是因为坐标轴内部在坦克主体中心，所以轮子y轴-0.5，坦克屋顶+0.5
//炮塔
const turretWidth = .1;
const turretHeight = .1;
const turretLength = carLength * .75 * .2;
const turretGeometry = new THREE.BoxGeometry(
turretWidth, turretHeight, turretLength);
const turretMesh = new THREE.Mesh(turretGeometry, bodyMaterial);
const turretPivot = new THREE.Object3D();
turretMesh.castShadow = true;
turretPivot.scale.set(5, 5, 5);
turretPivot.position.y = .5;
turretMesh.position.z = turretLength * .5;
turretPivot.add(turretMesh);
bodyMesh.add(turretPivot);
const turretCamera = makeCamera();
turretCamera.position.y = .75 * .2;
turretMesh.add(turretCamera);
//目标物体
const targetGeometry = new THREE.SphereGeometry(.5, 6, 3);
const targetMaterial = new THREE.MeshPhongMaterial({ color: 0x00FF00, flatShading: true });
const targetMesh = new THREE.Mesh(targetGeometry, targetMaterial);
const targetOrbit = new THREE.Object3D();
const targetElevation = new THREE.Object3D();
const targetBob = new THREE.Object3D();
targetMesh.castShadow = true;
scene.add(targetOrbit);
targetOrbit.add(targetElevation);
targetElevation.position.z = carLength * 2;
targetElevation.position.y = 8;
targetElevation.add(targetBob);
targetBob.add(targetMesh);
const targetCamera = makeCamera();
const targetCameraPivot = new THREE.Object3D();
targetCamera.position.y = 1;
targetCamera.position.z = - 2;
targetCamera.rotation.y = Math.PI;
targetBob.add(targetCameraPivot);
targetCameraPivot.add(targetCamera);
// Create a sine-like wave 坦克地上线
const curve = new THREE.SplineCurve([
new THREE.Vector2(- 10, 0),
new THREE.Vector2(- 5, 5),
new THREE.Vector2(0, 0),
new THREE.Vector2(5, - 5),
new THREE.Vector2(10, 0),
new THREE.Vector2(5, 10),
new THREE.Vector2(- 5, 10),
new THREE.Vector2(- 10, - 10),
new THREE.Vector2(- 15, - 8),
new THREE.Vector2(- 10, 0),
]);
const points = curve.getPoints(50);
const geometry = new THREE.BufferGeometry().setFromPoints(points);
const material = new THREE.LineBasicMaterial({ color: 0xff0000 });
const splineObject = new THREE.Line(geometry, material);
splineObject.rotation.x = Math.PI * .5;
splineObject.position.y = 0.05;
scene.add(splineObject);
function resizeRendererToDisplaySize(renderer) {
const canvas = renderer.domElement;
const width = canvas.clientWidth;
const height = canvas.clientHeight;
const needResize = canvas.width !== width || canvas.height !== height;
if (needResize) {
renderer.setSize(width, height, false);
}
return needResize;
}
const targetPosition = new THREE.Vector3();//目标位置
const tankPosition = new THREE.Vector2();//坦克位置
const tankTarget = new THREE.Vector2();
const cameras = [
{ cam: camera, desc: 'detached camera', },
{ cam: turretCamera, desc: 'on turret looking at target', },//炮塔相机
{ cam: targetCamera, desc: 'near target looking at tank', },
{ cam: tankCamera, desc: 'above back of tank', },
];
const infoElem = document.querySelector('#info');
function render(time) {
time *= 0.001;
if (resizeRendererToDisplaySize(renderer)) {
const canvas = renderer.domElement;
cameras.forEach((cameraInfo) => {
const camera = cameraInfo.cam;
camera.aspect = canvas.clientWidth / canvas.clientHeight;
camera.updateProjectionMatrix();
});
}
// move target
targetOrbit.rotation.y = time * .27;
targetBob.position.y = Math.sin(time * 2) * 4;
targetMesh.rotation.x = time * 7;
targetMesh.rotation.y = time * 13;
targetMaterial.emissive.setHSL(time * 10 % 1, 1, .25);
targetMaterial.color.setHSL(time * 10 % 1, 1, .25);
// move tank
const tankTime = time * .05;
curve.getPointAt(tankTime % 1, tankPosition);
//通过时间不断的%1取0-1的小数，轨道是0-1，不断的取轨道上的点来设置坦克位置，相当于坦克车身中间位置
curve.getPointAt((tankTime + 0.01) % 1, tankTarget);
//上面的位置靠后一点，相当于车头的位置
tank.position.set(tankPosition.x, 0, tankPosition.y);
tank.lookAt(tankTarget.x, 0, tankTarget.y);//将坦克指向车头位置
// face turret at target
targetMesh.getWorldPosition(targetPosition);//获得目标小球的坐标
turretPivot.lookAt(targetPosition);//炮筒指向目标小球
// make the turretCamera look at target
turretCamera.lookAt(targetPosition);//泡桐相机指向小球
// make the targetCameraPivot look at the at the tank
tank.getWorldPosition(targetPosition);//坦克坐标
targetCameraPivot.lookAt(targetPosition);//坦克相机指向坦克
wheelMeshes.forEach((obj) => {//轮子转动
obj.rotation.x = time * 3;
});
const camera = cameras[time * .25 % cameras.length | 0];
infoElem.textContent = camera.desc;
renderer.render(scene, camera.cam);//四个相机轮换
requestAnimationFrame(render);
}
requestAnimationFrame(render);
}
main();
</script>
</body>
</html
