归并排序，动图演示

归并排序

#include<stdio.h>
#include<algorithm>
using namespace std;

#define BL for(int i=0;i<n;i++)
int n;
int a[10000], t[10000];
void Bsort(int a[], int L, int mid ,int R, int t[])
{
    int Z = 0;
    int aa = L;
    int bb = mid + 1;
    while (aa <= mid&&bb <= R)
    {
        if (a[aa] <= a[bb])
        {
            t[Z++] = a[aa++];
        }
        else
        {
            t[Z++] = a[bb++];
        }
    }while (aa <= mid)
    {
        t[Z++] = a[aa++];
    }
    while (bb <= R)
    {
        t[Z++] = a[bb++];
    }
    for (int i = 0; i < Z; i++)
    {
        a[i+L] = t[i];
    }
}
void Msort(int a[], int L, int R, int t[])
{
    if (L < R)
    {
        int mid;
        mid = L + (R - L) / 2;
        Msort(a, L, mid, t);
        Msort(a, mid + 1, R, t);
        Bsort(a, L, mid, R, t);
    }
}
int main()
{
    scanf_s("%d", &n);
    BL
        scanf_s("%d", &a[i]);
    int  L = 0;
    int R = n - 1;
    Msort(a, L, R, t);
    BL
        printf("%d ", a[i]);
}

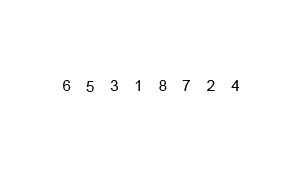

动图演示递归法：

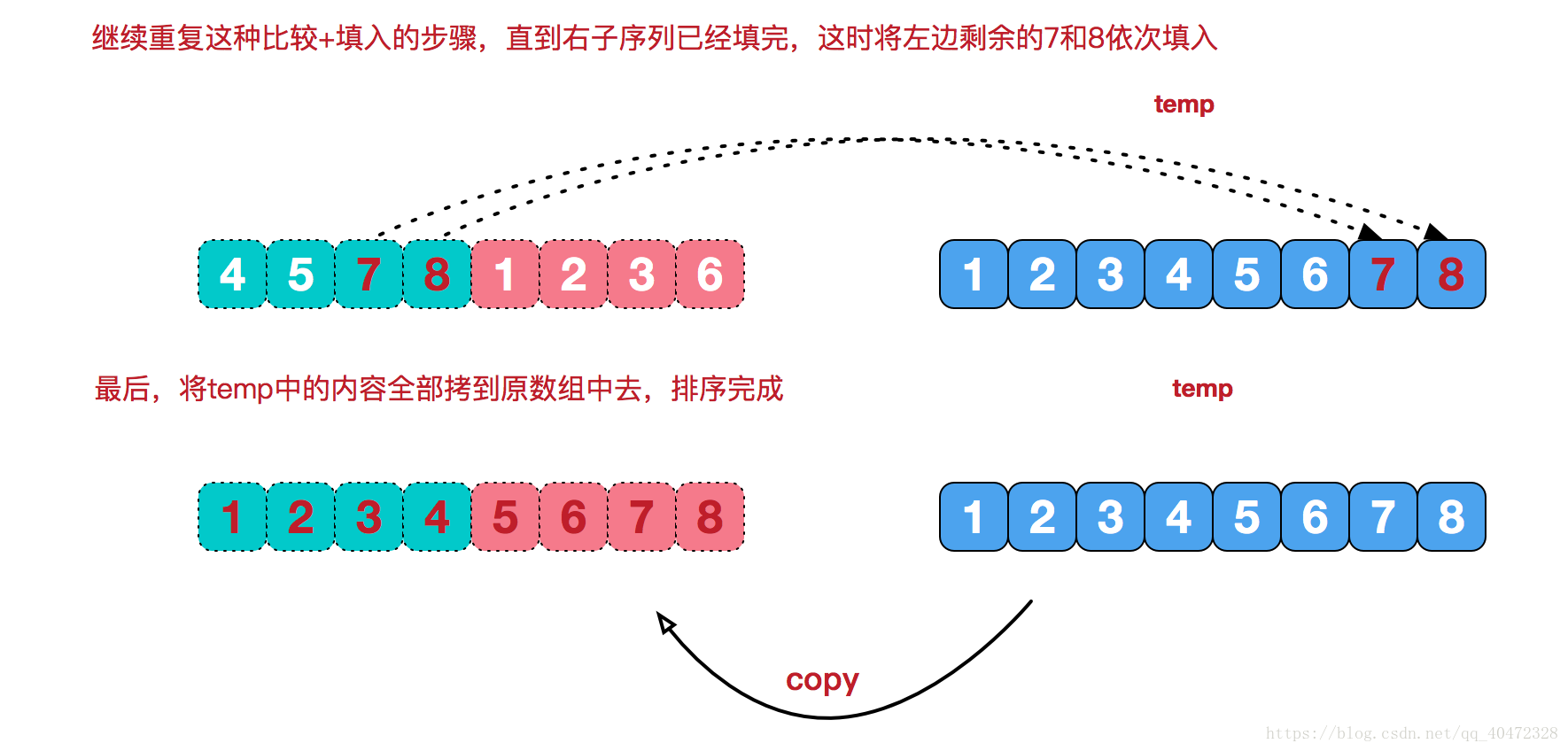

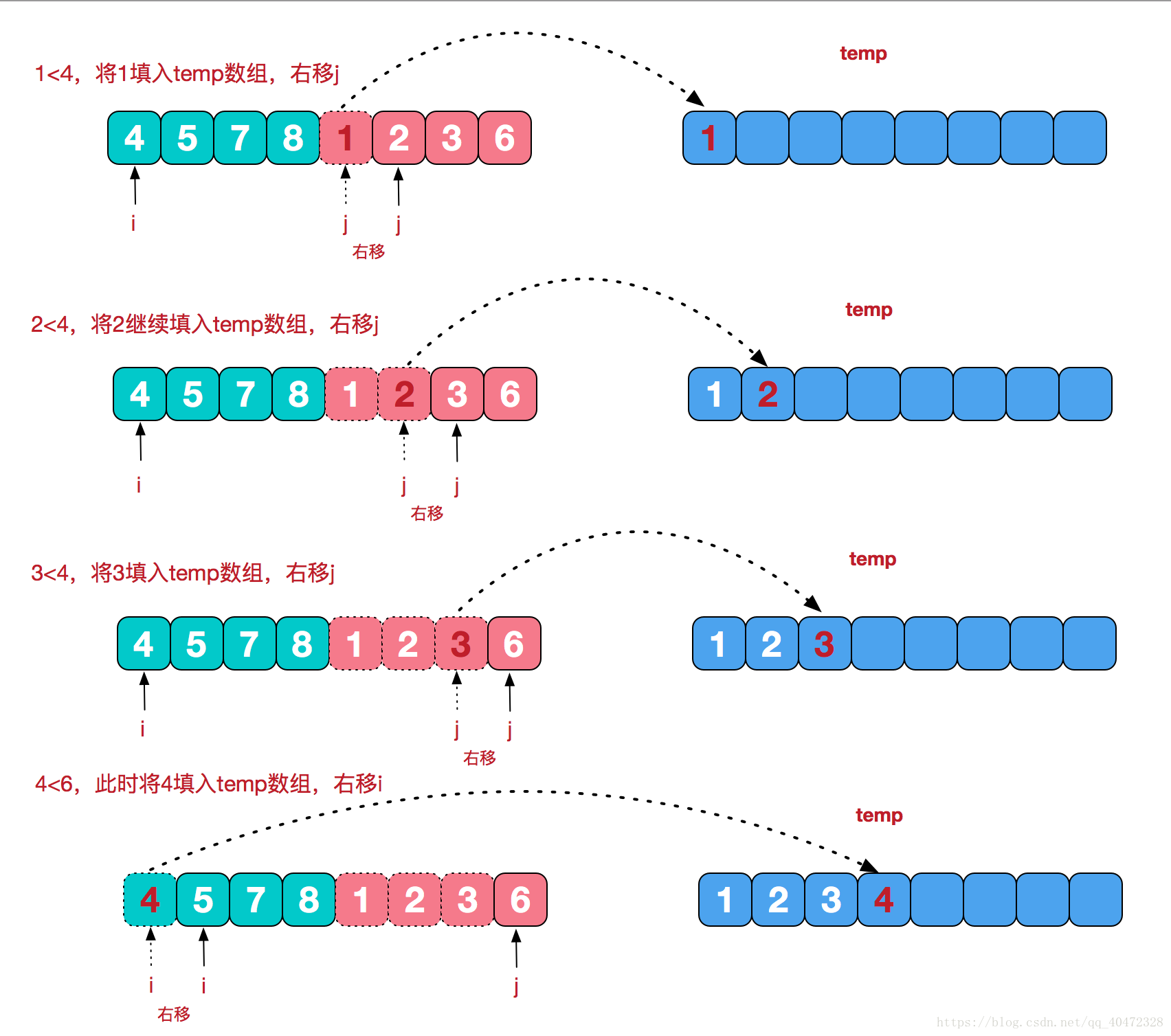

合并排序步骤图：

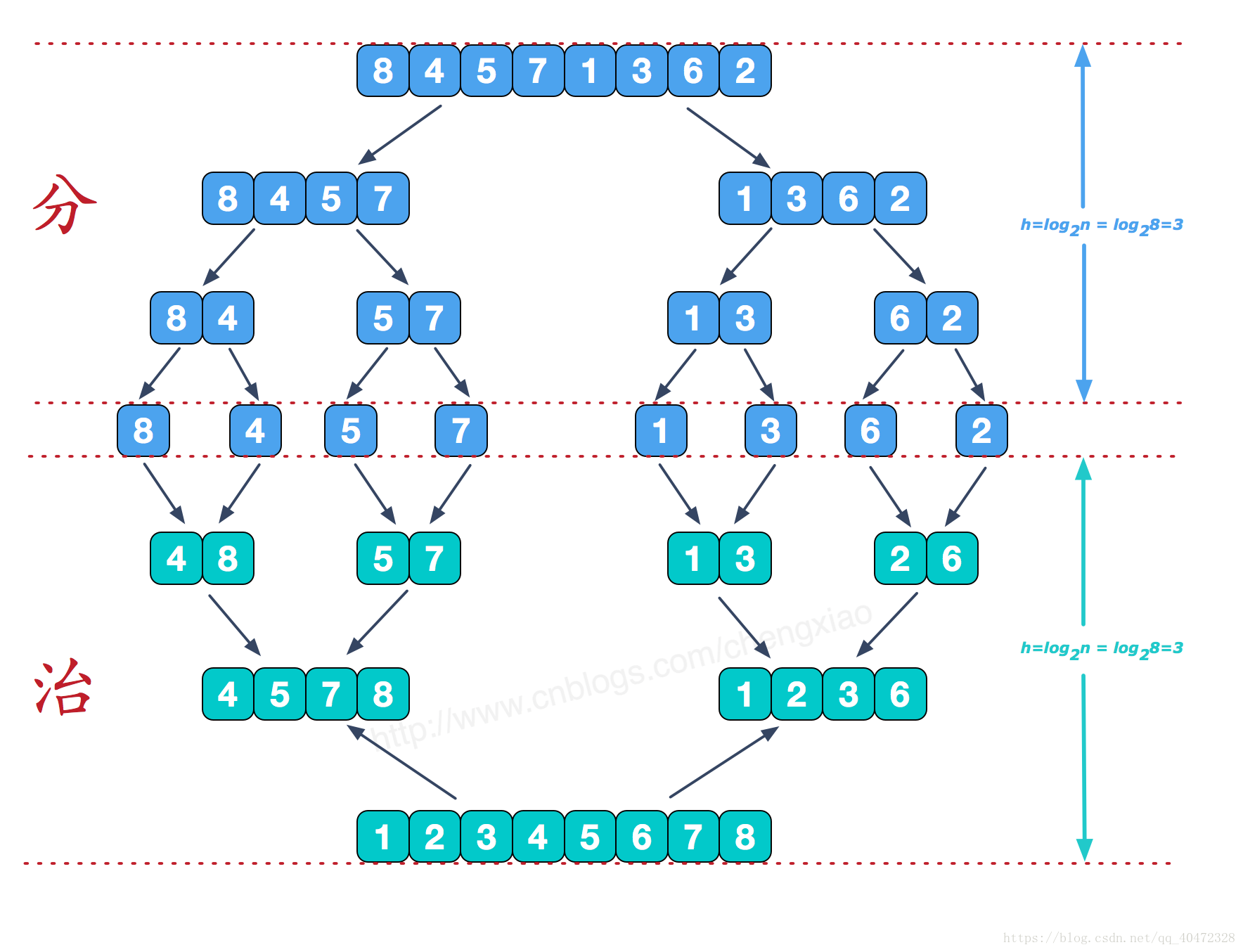

总体的步骤图：
