CAD 开发 渐变填充

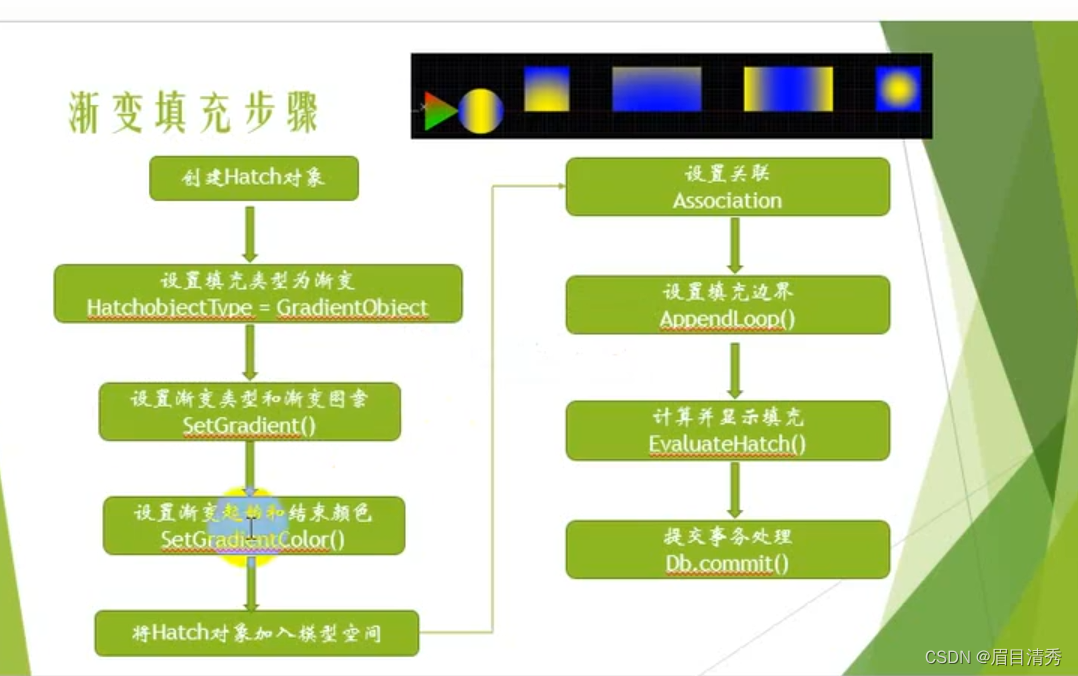

步骤：

方法实现

//渐变填充
        /// <summary>
        /// 渐变填充
        /// </summary>
        /// <param name="db">图形数据库</param>
        /// <param name="gradientName">渐变的名称</param>
        /// <param name="colorIndex1">渐变的颜色1</param>
        /// <param name="colorIndex2">渐变的颜色2</param>
        /// <param name="entIds">实体ObjectIds</param>
        /// <returns>ObjectId</returns>
        public static ObjectId HatchGradient(this Database db,string gradientName,short colorIndex1,short colorIndex2,params ObjectId[] entIds)
        {
            ObjectId obId= ObjectId.Null;

            using(Transaction trans = db.TransactionManager.StartTransaction())
            {
                //声明图案填充对象
                Hatch hatch = new Hatch();
                //设置填充的类型是渐变填充
                hatch.HatchObjectType = HatchObjectType.GradientObject;
                //设置渐变填充的类型和渐变填充的图案名称
                hatch.SetGradient(GradientPatternType.PreDefinedGradient, gradientName);
                //渐变的两个颜色
                Color color1 = Color.FromColorIndex(ColorMethod.ByColor, colorIndex1);
                Color color2= Color.FromColorIndex(ColorMethod.ByColor, colorIndex2);
                GradientColor gColor1=new GradientColor(color1,0);
                GradientColor gColor2 = new GradientColor(color2, 1);
                //设置填充颜色
                hatch.SetGradientColors(new GradientColor[] { gColor1, gColor2 });
                //加入图形数据库
                BlockTable bt=trans.GetObject(db.BlockTableId,OpenMode.ForRead)as BlockTable;
                BlockTableRecord btr= trans.GetObject(bt[BlockTableRecord.ModelSpace],OpenMode.ForWrite) as BlockTableRecord;
                obId=btr.AppendEntity(hatch);
                trans.AddNewlyCreatedDBObject(hatch, true);
                ObjectIdCollection obIds = new ObjectIdCollection();
                //添加关联
                hatch.Associative = true;
                for(int i=0;i<entIds.Length;i++)
                {
                    obIds.Clear();
                    obIds.Add(entIds[i]);
                    //设置填充图形和填充方式
                    hatch.AppendLoop(HatchLoopTypes.Outermost, obIds);
                }

                //计算并显示填充
                hatch.EvaluateHatch(true);
                //提交事务处理
                trans.Commit();
            }


            return obId;
        }
