Oc 动画MermaidSwimming(美人鱼游泳)~demo

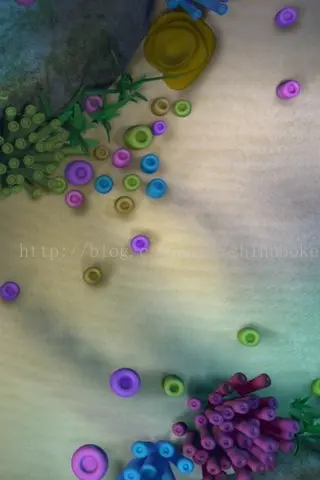

项目图片:

实现代码:

=========================

=============
控制器1: ViewController.m

#import "ViewController.h"

@interface ViewController ()
{
    CALayer *fishLayer;
    CALayer *fishLayer1;
    NSInteger fishFrame;
    NSTimer *timer;
    // 定义NSMutableArray装鱼的10个动画帧
    NSMutableArray *fishFrameArray;
}
@end

@implementation ViewController



- (void)viewDidLoad
{
    [super viewDidLoad];

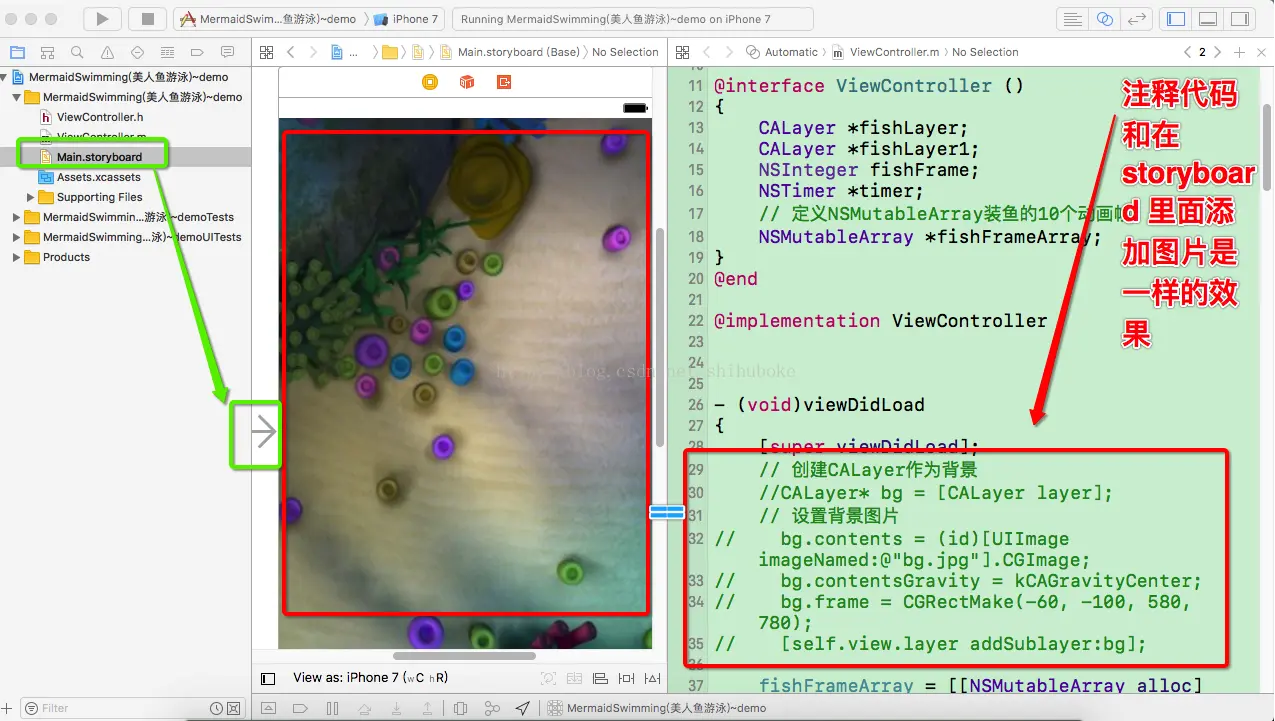

    // 创建CALayer作为背景
    //CALayer* bg = [CALayer layer];
    // 设置背景图片
//    bg.contents = (id)[UIImage imageNamed:@"bg.jpg"].CGImage;
//    bg.contentsGravity = kCAGravityCenter;
//    bg.frame = CGRectMake(-60, -100, 580, 780);
//    [self.view.layer addSublayer:bg];

    fishFrameArray = [[NSMutableArray alloc] init];

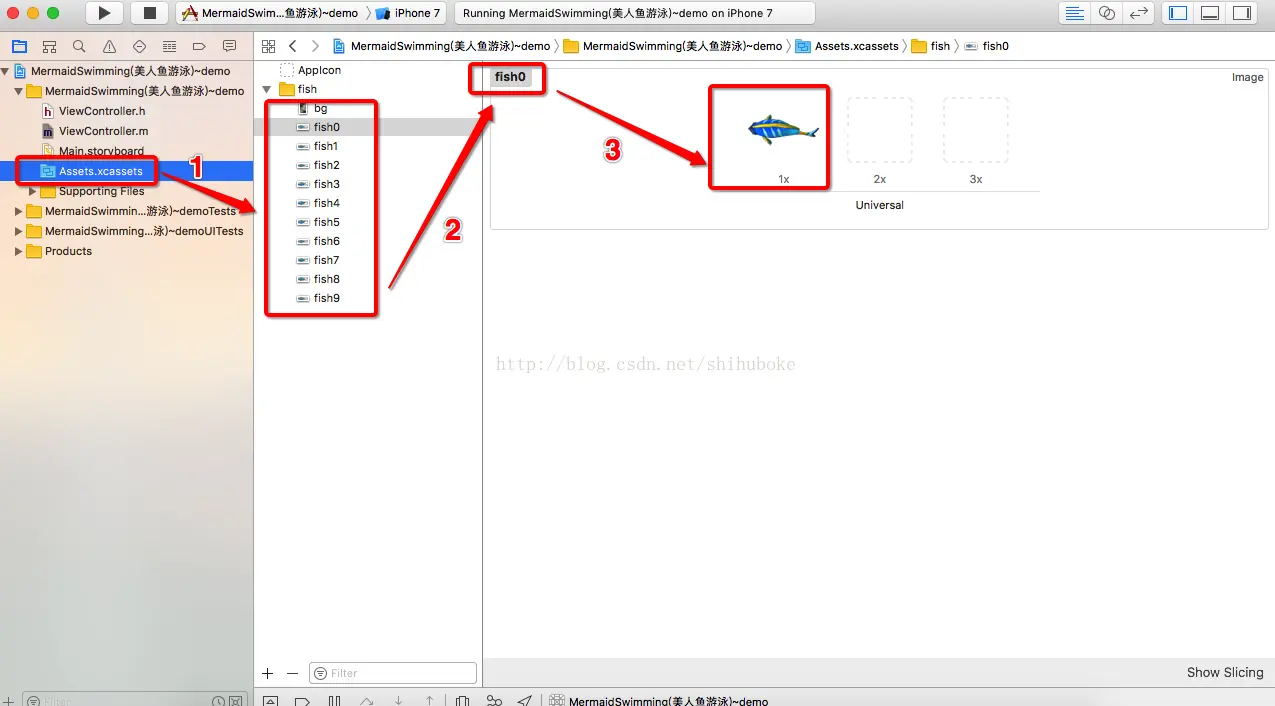

    // 初始化鱼的10个动画帧，并添加到fishFrameArray集合中
    for(int i = 0 ; i < 10 ; i++)
    {
        [fishFrameArray addObject:[UIImage imageNamed:
                                   [NSString stringWithFormat:@"fish%d.png" , i]]];
    }
    // 创建定时器控制小鱼的动画帧的改变。
    timer = [NSTimer scheduledTimerWithTimeInterval:0.1 target:self
                                           selector:@selector(change) userInfo:nil repeats:YES];
    // 创建CALayer
    fishLayer = [CALayer layer];
    // 设置CALayer显示内容的对齐、缩放模式（不缩放，直接显示在中间）
    fishLayer.contentsGravity = kCAGravityCenter;
    // 设置fishLayer的大小
    fishLayer.frame = CGRectMake(128, 206, 90, 40);

    [self.view.layer addSublayer:fishLayer];

    // 创建一个按钮，通过该按钮触发小鱼的游动
    UIButton* bn = [UIButton buttonWithType:UIButtonTypeRoundedRect];
    bn.frame = CGRectMake(10 , 10 , 60 , 35);
    [bn setTitle:@"开始" forState:UIControlStateNormal];
    [self.view addSubview:bn];
    // 用户点击按钮时，激发start:方法
    [bn addTarget:self action:@selector(start:)forControlEvents:UIControlEventTouchUpInside];

}


-(void) start:(id)sender
{
    // 创建对CALayer的position属性执行控制的属性动画
    CAKeyframeAnimation* anim = [CAKeyframeAnimation
                                 animationWithKeyPath:@"position"];
    // 创建路径
    CGMutablePathRef movePath = CGPathCreateMutable();
    // 添加一条圆形的路径
    CGPathAddArc(movePath, nil, 170, 175, 450, -M_PI / 2, M_PI * 3 / 2, YES);
    // 设置anim动画的移动路径
    anim.path = movePath;
    // 创建对CALayer的transform属性执行控制的属性动画
    CAKeyframeAnimation* anim2 = [CAKeyframeAnimation
                                  animationWithKeyPath:@"transform"];
    // 指定关键帧动画的3个关键值：分别是不旋转，旋转180度，旋转360度
    //    anim2.values = [NSArray arrayWithObjects:
    //                    [NSValue valueWithCATransform3D:CATransform3DIdentity],
    //                    [NSValue valueWithCATransform3D:
    //                     CATransform3DMakeRotation( M_PI , 0, 0, 1)],
    //                    [NSValue valueWithCATransform3D:
    //                     CATransform3DMakeRotation( 2 * M_PI , 0, 0, 1)]
    //                    , nil];

    anim2.values = [NSArray arrayWithObjects:
                    [NSValue valueWithCATransform3D:CATransform3DIdentity],
                    [NSValue valueWithCATransform3D:
                     CATransform3DMakeScale( 10.1, 10.1, 10.1)],//放大缩小的
                    [NSValue valueWithCATransform3D:
                     CATransform3DMakeRotation( 2 * M_PI , 0, 0, 1)]
                    , nil];


#if 1
    CGMutablePathRef
    path = CGPathCreateMutable();
    //将路径的起点定位到

    CGPathMoveToPoint(path,NULL,50.0,120.0);
    //下面5行添加5条直线的路径到path中
    CGPathAddLineToPoint(path,
                         NULL, 60, 130);
    CGPathAddLineToPoint(path,
                         NULL, 70, 140);
    CGPathAddLineToPoint(path,
                         NULL, 80, 150);
    CGPathAddLineToPoint(path,
                         NULL, 90, 160);
    CGPathAddLineToPoint(path,
                         NULL, 100, 170);
    //下面四行添加四条曲线路径到path
    CGPathAddCurveToPoint(path,NULL,50.0,275.0,150.0,275.0,70.0,120.0);
    CGPathAddCurveToPoint(path,NULL,150.0,275.0,250.0,275.0,90.0,120.0);
    CGPathAddCurveToPoint(path,NULL,250.0,275.0,350.0,275.0,110.0,120.0);
    CGPathAddCurveToPoint(path,NULL,350.0,275.0,450.0,275.0,130.0,120.0);
    //以“position”为关键字


    [anim
     setPath:path];
    [anim
     setDuration:3.0];

#endif

    //    anim2.path = (__bridge CGPathRef _Nullable)([NSArray arrayWithObjects:
    //                                                 [NSValue valueWithCATransform3D:CATransform3DIdentity],
    //                                                 [NSValue valueWithCATransform3D:
    //                                                  CATransform3DMakeScale( 0.1, 0.1, 0.1)],//放大缩小的
    //                                                 [NSValue valueWithCATransform3D:
    //                                                  CATransform3DMakeRotation( 2 * M_PI , 0, 0, 1)]
    //                                                 , nil]);

    // 使用动画组来组合2个动画
    CAAnimationGroup *animGroup = [CAAnimationGroup animation];
    animGroup.animations = [NSArray arrayWithObjects:anim, anim2, nil];
    // 指定动画重复10次
    animGroup.repeatCount = 10;
    animGroup.duration = 24;
    // 为fishLayer添加动画
    [fishLayer addAnimation:animGroup forKey:@"move"];
}
// 该方法由定时器触发，不断更改fishLayer显示的动画帧
- (void) change
{
    fishLayer.contents = (id)[[fishFrameArray
                               objectAtIndex:fishFrame++ % 10] CGImage];

    NSLog(@"-----%ld",fishFrame++ % 10);
}



@end
