思路解析

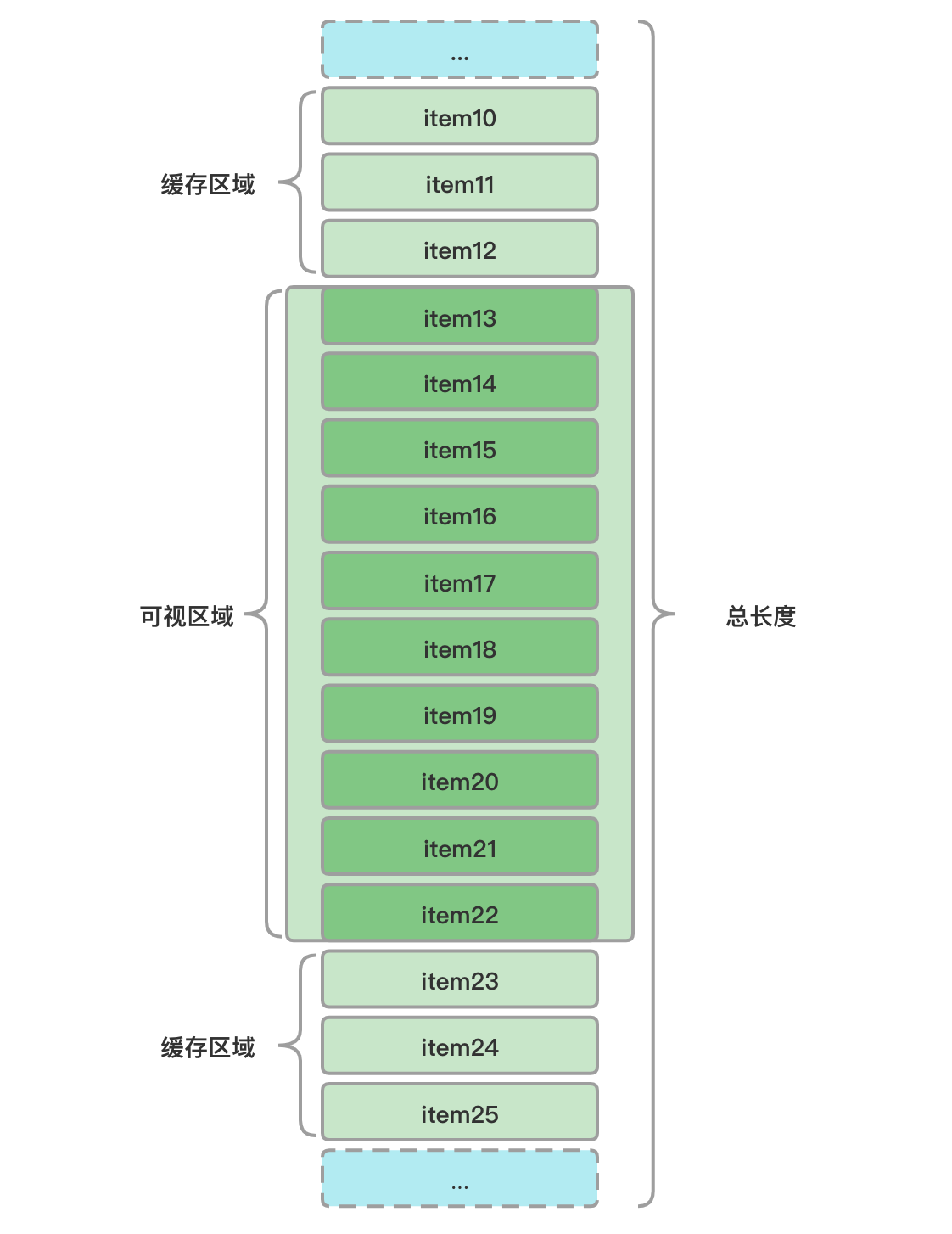

一次只渲染部分可见的数据：根据可滚动元素滚动的距离scrollTop来计算当前应该渲染哪些数据。
[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-BdyVoC1I-1639377901921)(image/%E6%9C%AA%E5%91%BD%E5%90%8D%E6%96%87%E4%BB%B6.png)]

代码实现

原生HTML实现

🪶 index.html

<!DOCTYPE html>
<html lang="zh-cn">
  <head>
    <meta charset="UTF-8" />
    <meta http-equiv="X-UA-Compatible" content="IE=edge" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <title>Document</title>
    <link rel="stylesheet" type="text/css" href="./index.css" />
  </head>
  <body>
    <div class="wrapper" onscroll="handleScroll(this)">
      <div id="infinite-wrapper"></div>
      <ul id="list"></ul>
    </div>

    <script src="./index.js"></script>
  </body>
</html>

外层容器wrapper作为可视窗口，并监听处理滚动事件
infinite-wrapper作为影子元素，作为真实可滚动的元素，其高度等同于所有元素高度之和，用于撑开容器形成滚动条
list作为元素渲染区域

🌷 index.css

* {
  margin: 0;
  padding: 0;
}
.wrapper {
  position: relative;
  margin: 200px auto;
  height: 300px;
  width: 500px;
  border: 1px solid #eee;
  overflow-y: scroll;
}
#infinite-wrapper {
  position: absolute;
  top: 0;
  left: 0;
  z-index: -1;
  width: 100%;
}
#list {
  position: absolute;
  left: 0;
  list-style: none;
  padding: 0;
  width: 100%;
}
#list > li {
  height: 30px;
  width: 100%;
}
#list > li.green-item {
  background-color: #c5ffc5;
}
#list > li.red-item {
  background-color: #ffd5d5;
}

🍬 index.js

// 模拟数据构造
const arr = [];
const nameArr = ['Alice', 'July', 'Roman', 'David', 'Sara', 'Lisa', 'Mike'];
for (let i = 0; i < 10000; i++) {
  arr.push({
    number: i + 1,
    name: `${nameArr[i % nameArr.length]}`,
  });
}

const wrapper = document.getElementById('infinite-wrapper'); //滚动监听容器
const container = document.getElementById('list'); //可视数据容器
const itemSize = 30, //每个元素的高度
  itemCount = 10, //可视窗口展示的条数
  bufferCount = 3, //缓存元素数量
  bufferSize = bufferCount * itemSize; //缓存区大小

// 根据数据量设置容器总高度
wrapper.style.height = `${arr.length * itemSize}px`;

/**
 * @method handleScroll
 * @description: 滚动事件监听：获取scrollTop，根据它获取数据，偏移可视窗口容器
 * @param {HTMLBodyElement} element scrollTop的元素
 */
const handleScroll = (element) => {
  const { scrollTop } = element;
  // 计算当前数据起止index
  const _startIndex = Math.floor(scrollTop / itemSize) - bufferCount;
  const _endIndex = _startIndex + itemCount + bufferCount * 2;

  // 起止index映射到数据中
  const startIndex = Math.max(_startIndex, 0);
  const endIndex = Math.min(_endIndex, arr.length);

  renderList(arr.slice(startIndex, endIndex));

  // 可视窗口容器偏移
  container.style.transform = `translateY(${
    _startIndex < 0 ? 0 : scrollTop - bufferSize - (scrollTop % itemSize)
  }px)`;
};
/**
 * @method renderList
 * @description: 渲染可视数据
 * @param {Array} data 筛选后的数据，可直接加载显示的数据
 */
const renderList = (data) => {
  //文档片段
  const fragment = document.createDocumentFragment();
  data.forEach((item) => {
    const li = document.createElement('li');
    li.className = item.number % 2 === 0 ? 'green-item' : 'red-item'; //奇偶行元素不同色
    const text = document.createTextNode(
      `${`${item.number}`.padStart(7, '0')}-${item.name}`
    );
    li.appendChild(text);
    fragment.appendChild(li);
  });
  // 移除所有节点
  Array.from(container.children).forEach((item) => container.removeChild(item));
  //重新添加子节点
  container.appendChild(fragment);
};

// 可视数据初始化
renderList(arr.slice(0, itemCount + bufferCount));

迁移到React

🌴 store/data.ts

/**
 * @description: 模拟数据构造
 * @param {number} total
 * @return {Array<IDataItem>}
 */
export const getData = (
  total: number = 1000
): Array<any> => {
  const arr = [];
  const nameArr = ['Alice', 'July', 'Roman', 'David', 'Sara', 'Lisa', 'Mike'];
  for (let i = 0; i < total; i++) {
    arr.push({
      number: i + 1,
      name: `${nameArr[i % nameArr.length]}`
    });
  }
  return arr;
};

🎄 VirtualizedList.tsx

/*
 * @Description: 虚拟滚动列表 - 元素高度固定
 * @Author: leewentao
 * @Date: 2021-12-07 15:20:58
 * @LastEditors: leewentao
 * @LastEditTime: 2021-12-13 11:18:44
 */
import React, {
  FC,
  useCallback,
  useEffect,
  useReducer,
  useRef,
  useMemo,
} from 'react';

import { IDataItem, IStyleState } from './interface';

import { getData } from '../store/data';
import styles from './index.module.css';

export type IProps = {
  itemSize?: number;
  itemCount?: number;
  bufferCount?: number;
  listData: Array<IDataItem>;
};

const FixedHeightList: FC<IProps> = ({
  itemSize = 30,
  itemCount = 10,
  bufferCount = 3,
  listData = [],
}: IProps) => {
  const allDataRef: any = useRef([]); // 汇总数据
  const scrollRef: any = useRef(null); // 滚动元素：用来获取scrollTop
  // 缓存区大小
  const bufferSize = useMemo(
    () => bufferCount * itemSize,
    [bufferCount, itemSize]
  );

  const [styleState, dispatchStyle] = useReducer(
    (state: Object, action: any): IStyleState => {
      return { ...state, ...action.payload };
    },
    {
      scrollHeight: 0,
      visibleHeight: itemCount * itemSize,
      offset: 0,
      listData: [],
    }
  );
  /**
   * @description: 监听滚动
   * @param {*}
   * @return {*}
   */
  const handleScroll = useCallback(() => {
    const { scrollTop } = scrollRef.current;

    // 优化：滚动超过一条元素大小时再重新调整数据(bufferSize区域无效)
    if (Math.abs(scrollTop - styleState.offset - bufferSize) > itemSize) {
      console.log(scrollTop - styleState.offset - bufferSize);

      const { current: data } = allDataRef;

      // 计算当前数据起止index
      const _startIndex = Math.floor(scrollTop / itemSize) - bufferCount;
      const _endIndex = _startIndex + itemCount + bufferCount * 2;

      // 起止index映射到数据中
      const startIndex = Math.max(_startIndex, 0);
      const endIndex = Math.min(_endIndex, data.length);

      console.log('rendering');
      dispatchStyle({
        payload: {
          listData: data.slice(startIndex, endIndex),
          offset:
            _startIndex < 0
              ? 0
              : scrollTop - bufferSize - (scrollTop % itemSize), //设置可视窗口偏移量
        },
      });
    }
  }, [bufferCount, bufferSize, itemCount, itemSize, styleState.offset]);

  useEffect(() => {
    allDataRef.current = listData.length ? listData : getData();
    const { current: data } = allDataRef;
    dispatchStyle({
      payload: {
        listData: data.slice(0, itemCount + 1),
        scrollHeight: data.length * itemSize,
      },
    });
  }, [itemCount, itemSize, listData]);
  return (
    <div
      className={styles['wrapper']}
      style={{ height: styleState.visibleHeight }}
      onScroll={handleScroll}
      ref={scrollRef}
    >
      <div
        className={styles[`list-phantom`]}
        style={{ height: styleState.scrollHeight }}
      ></div>
      <ul
        style={{
          transform: `translateY(${styleState.offset}px)`,
        }}
        className={styles[`list`]}
      >
        {styleState.listData.map(({ number, name }) => (
          <li
            key={number}
            style={{ height: itemSize, lineHeight: `${itemSize}px` }}
            className={
              number % 2 === 0 ? styles[`green-item`] : styles[`red-item`]
            }
          >
            {number} - {name}
          </li>
        ))}
      </ul>
    </div>
  );
};

export default FixedHeightList;

🌾 interface.ts

interface IDataItem {
  number: number;
  name: string;
}

interface IStyleState {
  scrollHeight: number;
  visibleHeight: number;
  offset: number;
  listData: Array<IDataItem>;
}

export type { IDataItem, IStyleState };

🌷 index.module.css

* {
  margin: 0;
  padding: 0;
}
.wrapper {
  position: relative;
  margin: 200px auto;
  width: 500px;
  border: 1px solid #eee;
  overflow-y: scroll;
  scroll-behavior: smooth;
  transition: all ease-in-out 3ms;
}
/* 用来撑开容器，形成滚动条 */
.list-phantom {
  position: absolute;
  top: 0;
  left: 0;
  z-index: -1;
  width: 100%;
}
.list {
  position: absolute;
  left: 0;
  list-style: none;
  padding: 0;
  width: 100%;
}
.list > li {
  width: 100%;
}
.list > li.green-item {
  background-color: #d9fdd9;
}
.list > li.red-item {
  background-color: #ffebeb;
}
