一个简单的跑马灯APP
最近突然想写点东西,因为前段时间课程实验要求,写了挺多的安卓的App,所以想试试看。都是些很基础的东西,希望能帮助到有缘人。写的不好请谅解。
基本原理
android中可以直接设置显示跑马灯,如下所示。但是使用这种方法有个致命缺陷,就是文字过长时无法实现跑马灯效果。
//设置为跑马灯显示
android:ellipsize="marquee"
因此我自定义TextView,每次run偏移时textview控件的位置,并创建线程每几毫秒便执行一次,以达到跑马灯的效果。
APP的布局
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="fill_parent"
android:layout_height="fill_parent"
android:orientation="vertical">
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="fill_parent"
android:layout_height="150px"
android:orientation="horizontal">
<Button
android:id="@+id/start"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_weight="1"
android:onClick="start"
android:text="开始" />
<Button
android:id="@+id/jiasu"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_weight="1"
android:onClick="jiasu"
android:text="加速" />
<Button
android:id="@+id/jianSu"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_weight="1"
android:onClick="jianSu"
android:text="减速" />
</LinearLayout>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="fill_parent"
android:layout_height="150px"
android:orientation="horizontal">
<Button
android:id="@+id/stop"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_weight="1"
android:onClick="stop"
android:text="停止" />
<Button
android:id="@+id/fx"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:onClick="fx"
android:layout_weight="1"
android:text="改变方向" />
<Button
android:id="@+id/startfor0"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:onClick="startFromHead"
android:layout_weight="1"
android:text="重置" />//这六个按钮是操作用的按钮
</LinearLayout>
<com.example.a.myapplication.MarqueeText
android:id="@+id/test"
android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:background="#A4D3EE"
android:ellipsize="marquee"
android:singleLine="true"
android:text="加油,努力"
android:textColor="#000000"
android:textSize="20dp" />
<com.example.a.myapplication.MarqueeText
android:id="@+id/test2"
android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:background="#B4EEB4"
android:ellipsize="marquee"
android:singleLine="true"
android:text="努力,奋斗,拼搏"
android:textColor="#FF0000"
android:textSize="20dp" />//这两个是跑马灯中的文字
自定义TextView
因为我的代码注释的挺详细的了,所以不再赘述,看代码注释就ok了。
public class MarqueeText extends android.support.v7.widget.AppCompatTextView implements Runnable {
private int currentScrollX; // 当前滚动的位置
private boolean isStop = false;//是否已停止
private int textWidth;
private boolean isMeasure = false;//获取文字宽度
private float speed=2;//速度
private int fx=0;//运行的方向
public MarqueeText(Context context) {
super(context);
}
public MarqueeText(Context context, AttributeSet attrs) {
super(context, attrs);
}
public MarqueeText(Context context, AttributeSet attrs, int defStyle) {
super(context, attrs, defStyle);
}
@Override
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
// TODO Auto-generated method stub
super.onMeasure(widthMeasureSpec, heightMeasureSpec);
currentScrollX = this.getWidth();
}
protected void onDraw(Canvas canvas) {
super.onDraw(canvas);
if (!isMeasure) {
getTextWidth();// 文字宽度只需要获取一次就可以了
isMeasure = true;
}
}
private void getTextWidth() {
Paint paint = this.getPaint();
String str = this.getText().toString();
textWidth = (int) paint.measureText(str);
}
@Override
/*
* public void run() { currentScrollX-=2;//滚动速度.+号表示往左边-
* scrollTo(currentScrollX,0); if(isStop){ return; }
* if(getScrollX()<=-(this.getWidth())){ scrollTo(textWidth,0);
* currentScrollX=textWidth; } postDelayed(this, 5); }
*/
public void run() {
if(fx==0) {
currentScrollX -= speed;// 滚动速度.+号表示往左边-
scrollTo(currentScrollX, 0);
if (isStop) {
return;
}
if (getScrollX() <= - (this.getWidth())) {
currentScrollX = (this.getWidth());// 当前出现的位置
}
postDelayed(this, 1);//创建线程每jimiao跑一次
}
else
{
currentScrollX += speed;// 滚动速度.+号表示往左边-
scrollTo(currentScrollX, 0);
if (isStop) {
return;
}
if (getScrollX() >= (this.getWidth())) {
currentScrollX = -(this.getWidth());// 当前出现的位置
}
postDelayed(this, 1);//创建线程每一秒运行一次
}
}
/*
public void run() {
currentScrollX += 1;// 滚动速度.+号表示往左边-
scrollTo(currentScrollX, 0);
if (isStop) {
return;
}
if (getScrollX() >= (textWidth)) {
currentScrollX = -(this.getWidth());// 当前出现的位置
}
postDelayed(this, 1);//创建线程每jimiao
}
*/
/*public void run() {
// currentScrollX += 3;// 滚动速度.+号表示往左边-
// scrollTo(currentScrollX, 0);
if (textWidth>this.getWidth()) {
currentScrollX += 3;// 滚动速度.+号表示往左边-
scrollTo(currentScrollX, 0);
}
if (getScrollX() >= (textWidth)) {
// scrollTo(this.getWidth(),0);
currentScrollX = -(this.getWidth());// 当前出现的位置
}
postDelayed(this, 5);
}*//*这里面实现的是没有省略号的效果。文字没有超出框的长度就不滚,超出就滚*/
// 开始滚动
public void startScroll() {
isStop = false;
this.removeCallbacks(this);
post(this);
}
//加速
public void jiasu(){
speed+=0.2;
}
//减速
public void jianSu(){
if(speed>1){
speed-=0.1;
}
else{
speed=1;
}
}
// 停止滚动
public void stopScroll() {
isStop = true;
}
//改变方向
public void fx(){
if(fx==0){
fx=1;
}
else{
fx=0;
}
}
// 从头开始滚动
public void startFromHead() {
currentScrollX = 0;
speed=1;
startScroll();
}
}
在MainActivity调用
public class MainActivity extends Activity {
private MarqueeText test;
private MarqueeText test2;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
test=(MarqueeText) findViewById(R.id.test);
test2=(MarqueeText) findViewById(R.id.test2);
}
//加速
public void jiasu(View v){
test.jiasu();
test2.jiasu();
}
//改变方向
public void fx(View v){
test.fx();
test2.fx();
}
//减速
public void jianSu(View v){
test.jianSu();
test2.jianSu();
}
//开始
public void start(View v){
test.startScroll();
test2.startScroll();
}
//停止
public void stop(View v){
test.stopScroll();
test2.stopScroll();
}
//重置
public void startFromHead(View v){
test.startFromHead();
test2.startFromHead();
}
}

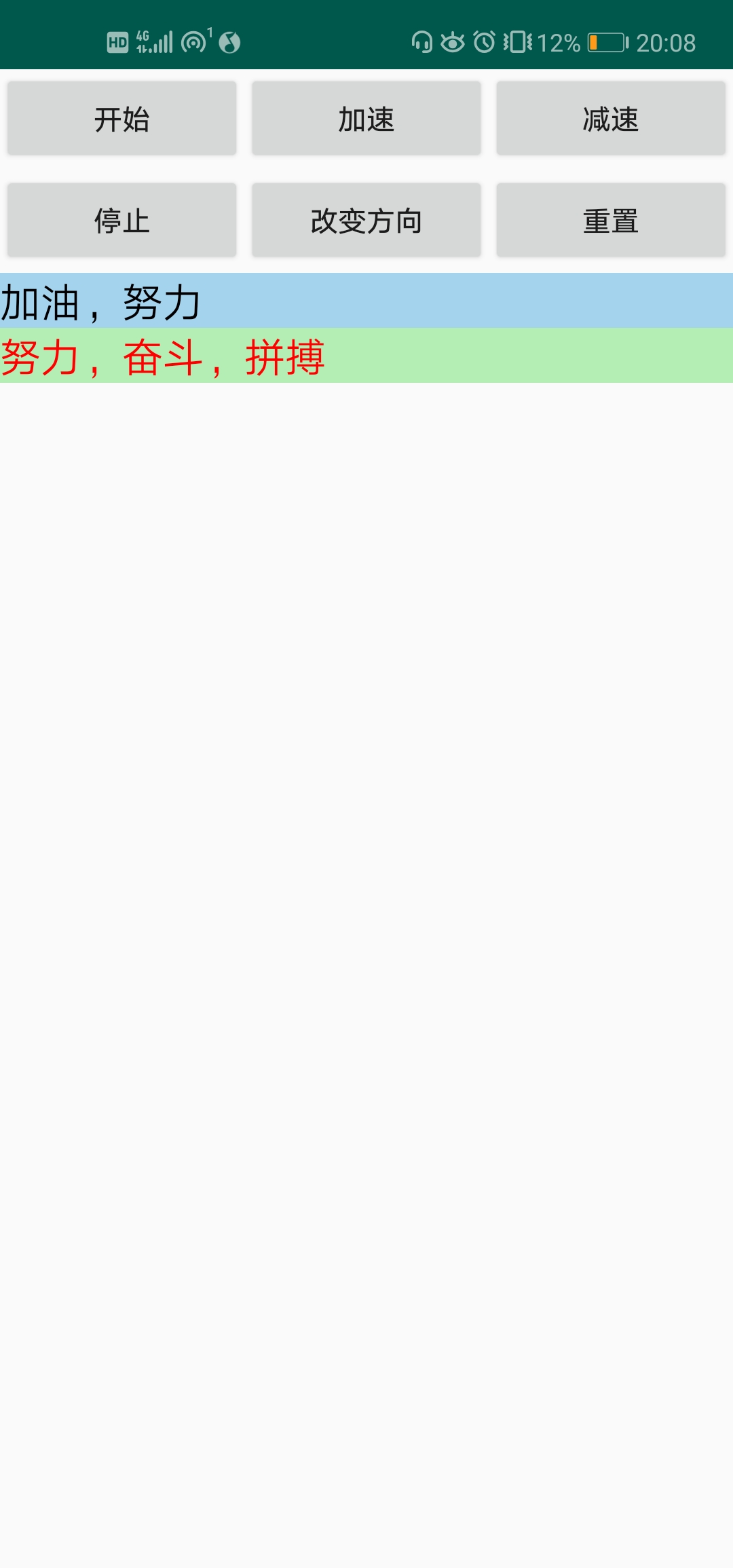

截图
希望以上能给你带来帮助,我知道第一次写肯定不好,所以请见谅。
