java操作hugegraph图数据库

记录使用java调用hugegraph图数据库过程中出现的一些问题及整体流程。(代码示例贴在最下边)
官方网址:https://hugegraph.apache.org/docs/clients/restful-api/propertykey/
java可以通过两种方式调用
1、一种是官方提供的API接口,可以直接调用restful接口;
在这里插入图片描述

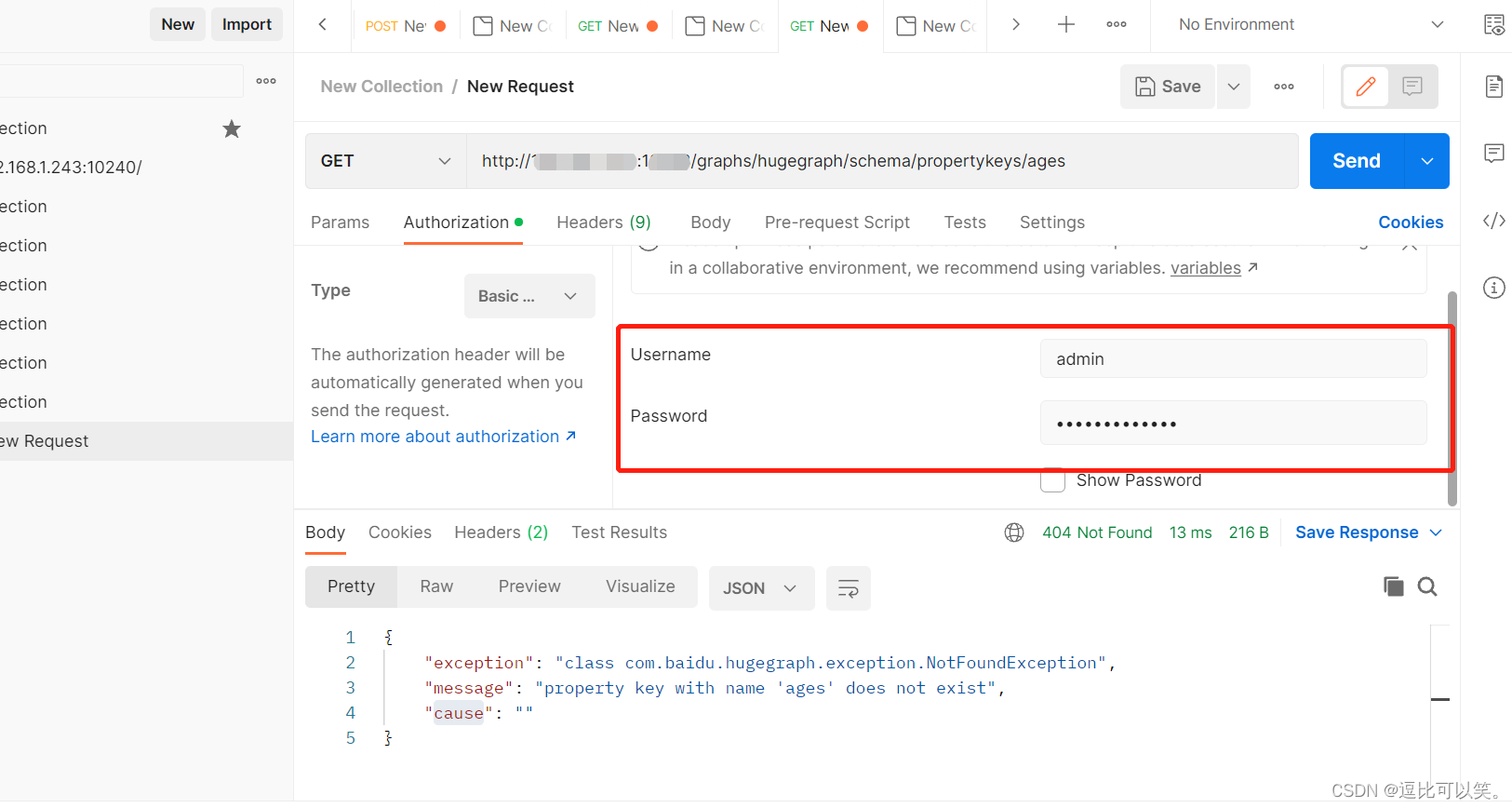

下面是postman调用示例:注意需要验证图数据库(hugegraph)账号密码;
在这里插入图片描述

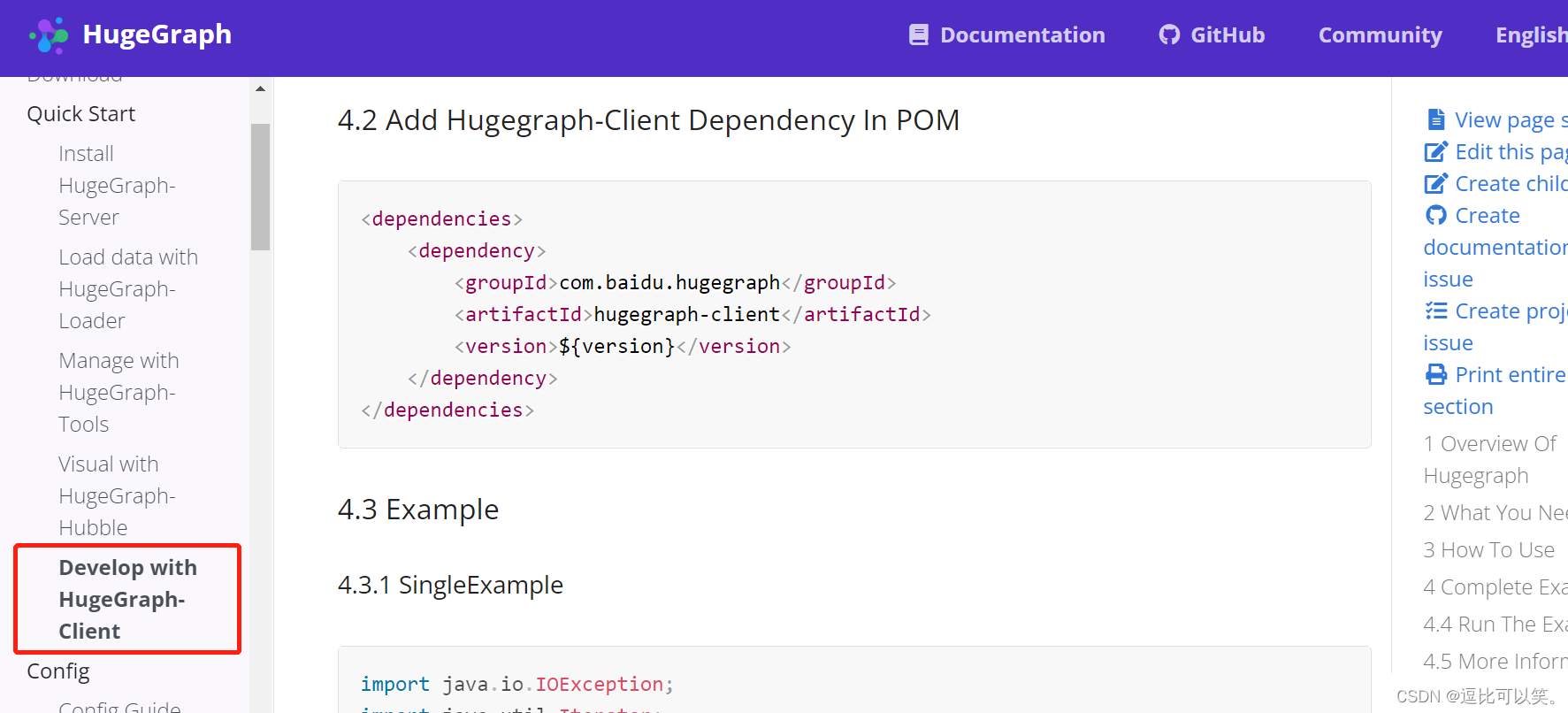

2、可以通过hugegraph提供的java客户端工具调用:并且官网提供了调用示例;
在这里插入图片描述
过程中遇到的问题:
1、hugegraph引用的jar包与fastJSon jar包冲突问题,可以降低fastJSon版本到1.1.x处理;如果不想修改jar包版本可以加入代码,将autoDiscover 设置为false:
private static final com.alibaba.fastjson.support.jaxrs.FastJsonAutoDiscoverable FastJsonAutoDiscoverable = null;
static {
FastJsonAutoDiscoverable.autoDiscover = false;
}
2、 hugegraph很多情况会返回异常信息字符串,无法解析返回的信息。
解决方法:自定义异常信息类ReturnErrorJsonHandler,重新message信息。

整体代码demo贴在下边:

1、HugeGraphUtils(图数据库接口API)

package net.beidousky.web.app.utils;

import com.alibaba.fastjson.JSON;
import com.alibaba.fastjson.JSONObject;
import com.alibaba.fastjson.JSONPath;
import net.beidousky.web.app.domain.Result;
import net.beidousky.web.app.entity.HugeClientVo;
import org.springframework.core.io.ClassPathResource;
import java.io.IOException;
import java.nio.charset.StandardCharsets;
import java.util.Properties;

/**
 * 图数据库接口API(hugegraph)
 */
public class HugeGraphUtils {

    //解决fastJSon与Jersey冲突问题
    private static final com.alibaba.fastjson.support.jaxrs.FastJsonAutoDiscoverable FastJsonAutoDiscoverable = null;
    static {
        FastJsonAutoDiscoverable.autoDiscover = false;
    }

    /**
     * 获取hugeGraph客户端操作对象
     * @param key
     * @return
     * @throws IOException
     */
    private static HugeClientVo getHugeGraph(String key) throws IOException {
        //读取配置文件hugeGraph连接信息
        ClassPathResource classPathResource = new ClassPathResource("hugeGraph.properties");
        Properties properties = new Properties();
        properties.load(classPathResource.getInputStream());
        //读取配置文件中key对应的value值
        String json = new String (properties.getProperty(key).getBytes(StandardCharsets.UTF_8), StandardCharsets.UTF_8) ;
        HugeClientVo hugeClientVo =JSON.parseObject(json,HugeClientVo.class);
        return hugeClientVo;
    }

    /**
     * 属性操作--创建属性
     * @param falg
     * @return
     * @throws IOException
     */
    public static Result createPropertyKey(String falg,String json) throws IOException{
         HugeClientVo hugeClientVo = getHugeGraph(falg);
         String ip = hugeClientVo.getIp();
         String userName =hugeClientVo.getUserName();
         String password =hugeClientVo.getPassword();
         String url = ip+ "/graphs/hugegraph/schema/propertykeys" ;
        String res = "";
         try{
              res =  RestTemplateUtil.hugeGraphRest(json,url,userName,password);
         }catch(Exception e){
             String message = JSONPath.read(e.getMessage(),"$.message",String.class);
             Result result =  Result.success(message);
             return result;
         }
         int id = JSONPath.read(res,"$.id",int.class);
         JSONObject jsonObject = new JSONObject();
         jsonObject.put("id",id);
         Result result = new Result(10000,"属性创建成功",jsonObject);
         return result;
    }


    /**
     * 属性操作--检查属性信息是否存在
     * @param falg
     * @return
     * @throws IOException
     */
    public static Result getPropertyKey(String falg,String name) throws IOException{
        HugeClientVo hugeClientVo = getHugeGraph(falg);
        String ip = hugeClientVo.getIp();
        String userName =hugeClientVo.getUserName();
        String password =hugeClientVo.getPassword();
        String url = ip+ "/graphs/hugegraph/schema/propertykeys/"+name;
        String res =  RestTemplateUtil.hugeGraphGet(url,userName,password);
        int id = JSONPath.read(res,"$.id",int.class);
        JSONObject jsonObject = new JSONObject();
        jsonObject.put("id",id);
        Result result = new Result(10000,"属性创建成功",jsonObject);
        return result;
    }



    /**
     * 获取所有顶点标签
     * @param falg
     * @return
     * @throws IOException
     */
 /*   public static String getAllLabel(String falg) throws IOException, SQLException, JSONException {
        HugeClient hugeClient = getHugeClient(falg);
        GremlinManager gremlin = hugeClient.gremlin();
        ResultSet resultSet = gremlin.gremlin("g.V()").execute();
        List<Object> list = resultSet.data();
        System.out.print(resultSet);
        JSONArray jsonarray = JSONArray.fromObject(list);
        return jsonarray.toString();
    }
*/


}

2、HugeClientUtils(java操作图数据库客户端)

package net.beidousky.web.app.utils;

import com.alibaba.fastjson.JSON;
import com.baidu.hugegraph.driver.GremlinManager;
import com.baidu.hugegraph.driver.HugeClient;
import com.baidu.hugegraph.driver.SchemaManager;
import com.baidu.hugegraph.structure.gremlin.ResultSet;
import com.baidu.hugegraph.structure.schema.PropertyKey;
import net.beidousky.web.app.entity.HugeClientVo;
import net.beidousky.web.app.entity.hugegraph.Property;
import net.sf.json.JSONArray;
import org.json.JSONException;
import org.springframework.core.io.ClassPathResource;
import java.io.IOException;
import java.nio.charset.StandardCharsets;
import java.sql.SQLException;
import java.util.List;
import java.util.Properties;

/**
 * java操作图数据库(hugeGraph)
 */
public class HugeClientUtils {

    //解决fastJSon与Jersey冲突问题
    private static final com.alibaba.fastjson.support.jaxrs.FastJsonAutoDiscoverable FastJsonAutoDiscoverable = null;
    static {
        FastJsonAutoDiscoverable.autoDiscover = false;
    }

    /**
     * 获取hugeGraph客户端操作对象
     * @param key
     * @return
     * @throws IOException
     */
    private static HugeClient getHugeClient(String key) throws IOException {
        //读取配置文件hugeGraph连接信息
        ClassPathResource classPathResource = new ClassPathResource("hugeGraph.properties");
        Properties properties = new Properties();
        properties.load(classPathResource.getInputStream());
        //读取配置文件中key对应的value值
        String json = new String (properties.getProperty(key).getBytes(StandardCharsets.UTF_8), StandardCharsets.UTF_8) ;
        HugeClientVo hugeClientVo =JSON.parseObject(json,HugeClientVo.class);
        HugeClient hugeClient = null;
        if(hugeClientVo!=null){
            //获取操作客户端
            System.out.print("ip:"+hugeClientVo.getIp()+",name:"+hugeClientVo.getHugegraphGraphName()+",username:"+hugeClientVo.getUserName()+",password:"+hugeClientVo.getPassword());
            hugeClient = HugeClient.builder(hugeClientVo.getIp(),hugeClientVo.getHugegraphGraphName())
                    .configUser(hugeClientVo.getUserName(),hugeClientVo.getPassword())
                    .build();
        }
        return hugeClient;
    }

    /**
     * 属性操作--创建属性
     * @param falg
     * @return
     * @throws IOException
     */
    public static String createPropertyKey(String falg, Property property) throws IOException, SQLException, JSONException {
        HugeClient hugeClient = getHugeClient(falg);
        SchemaManager schema = hugeClient.schema();
        PropertyKey res = null;
        switch (property.getData_type()){
            case "STRING" :
                switch (property.getCardinality()){
                    case "SINGLE" :
                        res =  schema.propertyKey(property.getName()).asText().valueSingle().ifNotExist().create();
                    case "LIST" :
                        res =  schema.propertyKey(property.getName()).asText().valueList().ifNotExist().create();
                    case "SET" :
                        res =  schema.propertyKey(property.getName()).asText().valueSet().ifNotExist().create();
                }
                break;
            case "INT" :
                switch (property.getCardinality()){
                    case "SINGLE" :
                        res =  schema.propertyKey(property.getName()).asInt().valueSingle().ifNotExist().create();
                    case "LIST" :
                        res =  schema.propertyKey(property.getName()).asInt().valueList().ifNotExist().create();
                    case "SET" :
                        res =  schema.propertyKey(property.getName()).asInt().valueSet().ifNotExist().create();
                }
                break;
            case "FLOAT" :
                switch (property.getCardinality()){
                    case "SINGLE" :
                        res =  schema.propertyKey(property.getName()).asFloat().valueSingle().ifNotExist().create();
                    case "LIST" :
                        res =  schema.propertyKey(property.getName()).asFloat().valueList().ifNotExist().create();
                    case "SET" :
                        res =  schema.propertyKey(property.getName()).asFloat().valueSet().ifNotExist().create();
                }
                break;
            case "DATE" :
                switch (property.getCardinality()){
                    case "SINGLE" :
                        res =  schema.propertyKey(property.getName()).asDate().valueSingle().ifNotExist().create();
                    case "LIST" :
                        res =  schema.propertyKey(property.getName()).asDate().valueList().ifNotExist().create();
                    case "SET" :
                        res =  schema.propertyKey(property.getName()).asDate().valueSet().ifNotExist().create();
                }
                break;
            case "BOOLEAN" :
                switch (property.getCardinality()){
                    case "SINGLE" :
                        res =  schema.propertyKey(property.getName()).asBoolean().valueSingle().ifNotExist().create();
                    case "LIST" :
                        res =  schema.propertyKey(property.getName()).asBoolean().valueList().ifNotExist().create();
                    case "SET" :
                        res =  schema.propertyKey(property.getName()).asBoolean().valueSet().ifNotExist().create();
                }
                break;
            case "BLOB" :
                switch (property.getCardinality()){
                    case "SINGLE" :
                        res =  schema.propertyKey(property.getName()).asBlob().valueSingle().ifNotExist().create();
                    case "LIST" :
                        res =  schema.propertyKey(property.getName()).asBlob().valueList().ifNotExist().create();
                    case "SET" :
                        res =  schema.propertyKey(property.getName()).asBlob().valueSet().ifNotExist().create();
                }
            case "Double" :
                switch (property.getCardinality()){
                    case "SINGLE" :
                        res =  schema.propertyKey(property.getName()).asDouble().valueSingle().ifNotExist().create();
                    case "LIST" :
                        res =  schema.propertyKey(property.getName()).asDouble().valueList().ifNotExist().create();
                    case "SET" :
                        res =  schema.propertyKey(property.getName()).asDouble().valueSet().ifNotExist().create();
                }
                break;
        }
         return res.toString();
    }

    /**
     * 获取所有顶点标签
     * @param falg
     * @return
     * @throws IOException
     */
    public static String getAllLabel(String falg) throws IOException{
        HugeClient hugeClient = getHugeClient(falg);
        GremlinManager gremlin = hugeClient.gremlin();
        ResultSet resultSet = gremlin.gremlin("g.V()").execute();
        List<Object> list = resultSet.data();
        System.out.print(resultSet);
        JSONArray jsonarray = JSONArray.fromObject(list);
        return jsonarray.toString();
    }



}

3、RestTemplateUtil (接口调用工具类)

package net.beidousky.web.app.utils;
import net.beidousky.web.app.component.ReturnErrorJsonHandler;
import org.springframework.http.HttpEntity;
import org.springframework.http.HttpHeaders;
import org.springframework.http.MediaType;
import org.springframework.web.client.RestTemplate;
import java.util.*;

/**
 * 接口工具类
 *
 * @author jwb
 */
public class RestTemplateUtil {



    /**
     * 图数据库调用post方法
     * @param json
     * @param url
     * @return
     */
    public static String hugeGraphRest(String json, String url, String userName, String password) {
        RestTemplate template =new RestTemplate();
        //自定义异常处理用于解决调用hugeGraph返回异常结果读取message信息
        template.setErrorHandler(new ReturnErrorJsonHandler());
        HttpHeaders headers = new HttpHeaders();
        MediaType type = MediaType.parseMediaType("application/json; charset=UTF-8");
        headers.setContentType(type);
        //添加账号密码验证
        headers.add("Authorization", "Basic " + Base64.getUrlEncoder().encodeToString((userName + ":" + password).getBytes()));
        headers.add("Accept", MediaType.APPLICATION_JSON.toString());
        HttpEntity<String> formEntity = new HttpEntity<String>(json, headers);
        String  result= template.postForEntity(url,formEntity,String.class).getBody();
        return result;
    }

    /**
     * 图数据库调用get方法
     * @param
     * @param url
     * @return
     */
    public static String hugeGraphGet(String url, String userName, String password) {
        RestTemplate template =new RestTemplate();
        //自定义异常处理用于解决调用hugeGraph返回异常结果读取message信息
        template.setErrorHandler(new ReturnErrorJsonHandler());
        HttpHeaders headers = new HttpHeaders();
        MediaType type = MediaType.parseMediaType("application/json; charset=UTF-8");
        headers.setContentType(type);
        //添加账号密码验证
        headers.add("Authorization", "Basic " + Base64.getUrlEncoder().encodeToString((userName + ":" + password).getBytes()));
        headers.add("Accept", MediaType.APPLICATION_JSON.toString());
        String  result= template.getForEntity(url,String.class,headers).getBody();
        return result;
    }

}


4、ReturnErrorJsonHandler(自定义异常处理用于解决调用hugeGraph返回异常结果读取message信息)

package net.beidousky.web.app.component;

import org.apache.commons.lang3.ObjectUtils;
import org.springframework.http.HttpHeaders;
import org.springframework.http.HttpStatus;
import org.springframework.http.client.ClientHttpResponse;
import org.springframework.lang.Nullable;
import org.springframework.web.client.DefaultResponseErrorHandler;
import org.springframework.web.client.HttpClientErrorException;
import org.springframework.web.client.HttpServerErrorException;
import org.springframework.web.client.UnknownHttpStatusCodeException;

import java.io.ByteArrayInputStream;
import java.io.IOException;
import java.io.InputStreamReader;
import java.io.Reader;
import java.nio.CharBuffer;
import java.nio.charset.Charset;
import java.nio.charset.StandardCharsets;
import java.util.regex.Matcher;
import java.util.regex.Pattern;

/**
 * 自定义异常处理用于解决调用hugeGraph返回异常结果读取message信息
 */
public class ReturnErrorJsonHandler extends DefaultResponseErrorHandler {

    //调用父类方法就行
    public boolean hasError(ClientHttpResponse response) throws IOException {
        return super.hasError(response);
    }

    //重写该方法调用重写的getErrorMessage方法
    public void handleError(ClientHttpResponse response) throws IOException {
        HttpStatus statusCode = HttpStatus.resolve(response.getRawStatusCode());
        if (statusCode == null) {
            byte[] body = this.getResponseBody(response);
            String message = this.getErrorMessage( body, this.getCharset(response));
            throw new UnknownHttpStatusCodeException(message, response.getRawStatusCode(), response.getStatusText(), response.getHeaders(), body, this.getCharset(response));
        } else {
            this.handleError(response, statusCode);
        }
    }

    //重写该方法,让它返回我们要的格式
    private String getErrorMessage(@Nullable byte[] responseBody, @Nullable Charset charset) {
        if (ObjectUtils.isEmpty(responseBody)) {
            return "[no body]";
        } else {
            charset = charset == null ? StandardCharsets.UTF_8 : charset;
            int maxChars = 200;
            if (responseBody.length < maxChars * 2) {
                //主要是这里
                String message=  new String(responseBody, charset);
                //Unicode 转换为汉字
                return UnicodeToString(message);
            } else {
                try {
                    Reader reader = new InputStreamReader(new ByteArrayInputStream(responseBody), charset);
                    CharBuffer buffer = CharBuffer.allocate(maxChars);
                    reader.read(buffer);
                    reader.close();
                    buffer.flip();
                    return buffer.toString() + "... (" + responseBody.length + " bytes)";
                } catch (IOException var9) {
                    throw new IllegalStateException(var9);
                }
            }
        }
    }
    /**
     * 将 Unicode 转换为汉字
     * */
    public String UnicodeToString(String str) {
        Pattern pattern = Pattern.compile("(\\\\u(\\p{XDigit}{4}))");
        Matcher matcher = pattern.matcher(str);
        char ch;
        while (matcher.find()) {
            ch = (char) Integer.parseInt(matcher.group(2), 16);
            str = str.replace(matcher.group(1), ch + "");
        }
        return str;
    }
    //重写该方法调用重写的getErrorMessage方法
    protected void handleError(ClientHttpResponse response, HttpStatus statusCode) throws IOException {
        String statusText = response.getStatusText();
        HttpHeaders headers = response.getHeaders();
        byte[] body = this.getResponseBody(response);
        Charset charset = this.getCharset(response);
        String message = this.getErrorMessage(body, charset);
        switch(statusCode.series()) {
            case CLIENT_ERROR:
                throw HttpClientErrorException.create(message, statusCode, statusText, headers, body, charset);
            case SERVER_ERROR:
                throw HttpServerErrorException.create(message, statusCode, statusText, headers, body, charset);
            default:
                throw new UnknownHttpStatusCodeException(message, statusCode.value(), statusText, headers, body, charset);
        }
    }
}

5、hugeGraph.properties(配置文件,由于业务需要,配置的是多个图数据库,所以配置文件中会有多个配置图数据库连接信息,动态读取)

NINTH = {"ip":"http://ip:端口","hugegraph_graph_name":"图数据库名称","userName":"账号","password":"密码"}
SECOND = {"ip":"http://ip:端口2","hugegraph_graph_name":"图数据库名称","userName":"账号","password":"密码"}

6、HugegraphTest(测试类)

package net.beidousky.web.app.controller;
import com.alibaba.fastjson.JSON;
import net.beidousky.web.app.domain.Result;
import net.beidousky.web.app.entity.hugegraph.Property;
import net.beidousky.web.app.utils.HugeGraphUtils;
import java.io.IOException;

public class HugegraphTest {

    /**
     * 属性操作--创建属性
     * @throws IOException
     */
        @org.junit.jupiter.api.Test
        public void createPropertyKey() throws IOException{
            Property property = new Property();
            property.setName("测试7");
            property.setData_type("TEXT");
            property.setCardinality("SINGLE");
            String json = JSON.toJSONString(property);
            Result resultSet =  HugeGraphUtils.createPropertyKey("NINTH",json);
            String jsons = JSON.toJSONString(resultSet);
            System.out.print(jsons);
        }
}


7、HugeClientVo(图数据库连接实体)

package net.beidousky.web.app.entity;
import lombok.Data;

/**
 * hugegraph连接实体
 */
@Data
public class HugeClientVo {

    //hugegraph连接地址
    private String ip;
    //hugegraph名称
    private String hugegraphGraphName;
    //hugegraph用户名
    private String userName;
    //hugegraph密码
    private String password;


}

8、Property (属性参数实体)
package net.beidousky.web.app.entity.hugegraph;

import lombok.Data;

@Data
public class Property {

//属性名称
private String name;
//属性类型只支持–STRING|INT|FLOAT|DATE|BOOLEAN|BLOB
private String data_type;
//属性基数
private String cardinality;

}

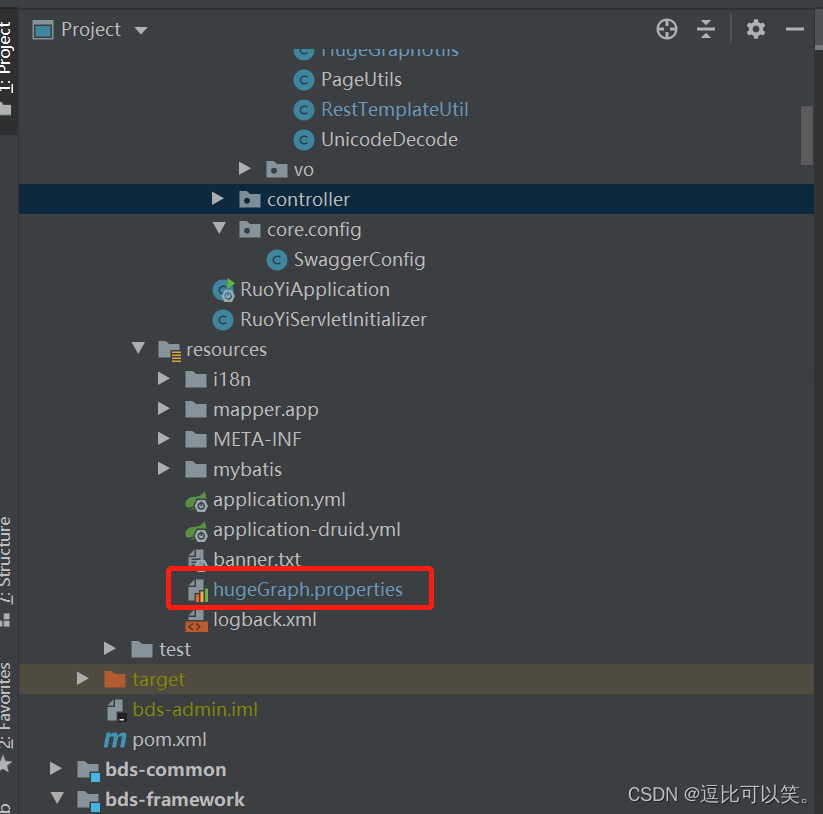

最后贴一下代码目录
在这里插入图片描述
在这里插入图片描述
创作不易,大家帮忙关注一下公众号,感谢。
在这里插入图片描述

  • 3
    点赞
  • 8
    收藏
    觉得还不错? 一键收藏
  • 0
    评论

“相关推荐”对你有帮助么?

  • 非常没帮助
  • 没帮助
  • 一般
  • 有帮助
  • 非常有帮助
提交
评论
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
