Cesium实现雷达扫描效果

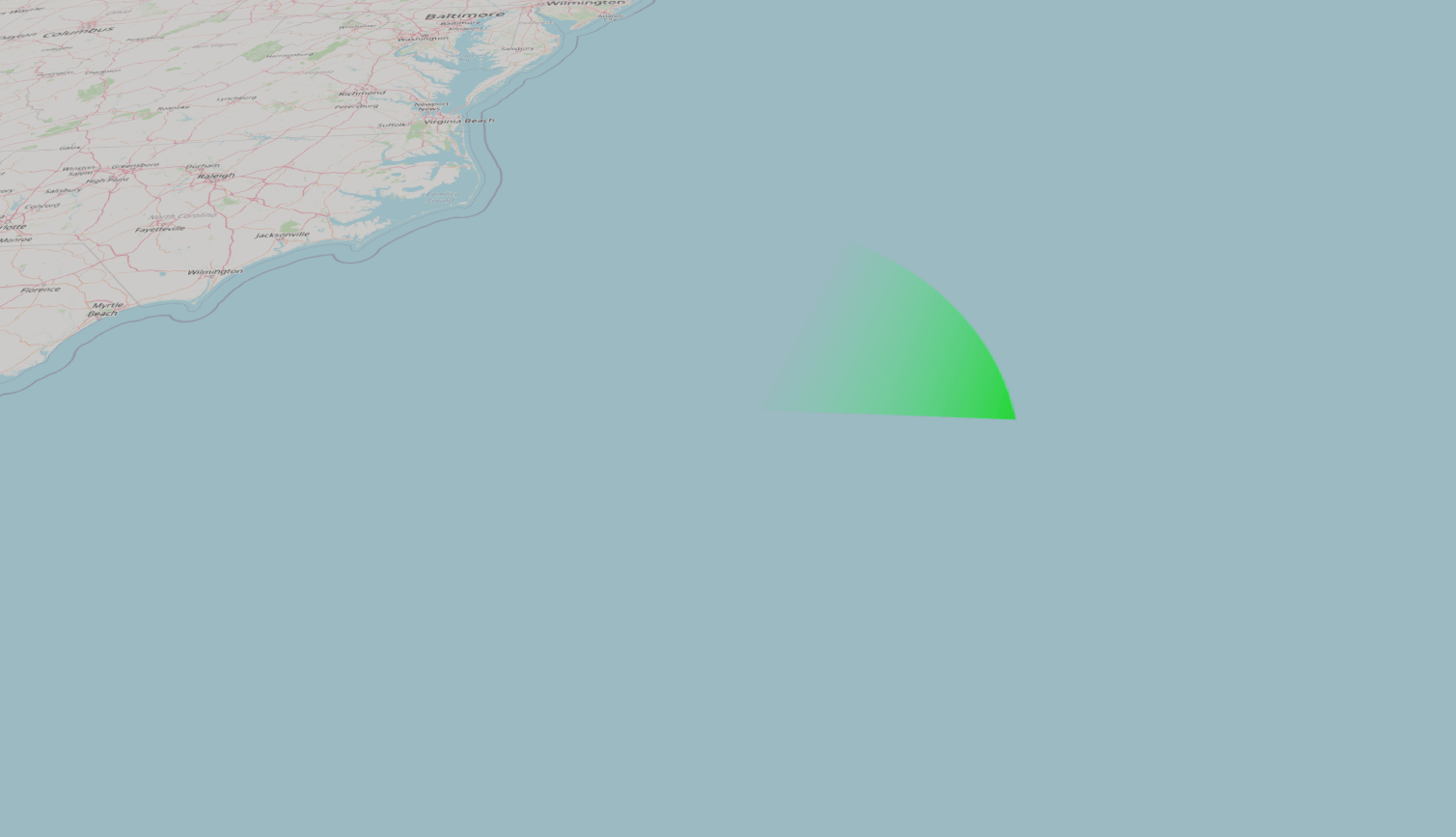

效果:
html:
<div id="cesiumContainer"></div>
<canvas id="canvas-a" class="canvas" width="300" height="300"></canvas>
js:
viewer.entities.add({
name: 'Rotating rectangle with rotating texture coordinate',
rectangle: {
coordinates: Cesium.Rectangle.fromDegrees(-75.0, 30.0, -70.0, 35.0),
material: new Cesium.ImageMaterialProperty({
image: drawCanvas(),
transparent: true
}),
rotation: new Cesium.CallbackProperty(getRotationValue, false),
stRotation: new Cesium.CallbackProperty(getRotationValue, false)
}
});
let rotation = Cesium.Math.toRadians(90);
functiongetRotationValue() {
rotation -= 0.02;
return rotation;
}
function drawCanvas() {
let canvas = document.getElementById("canvas-a");
let context = canvas.getContext('2d');
let grd = context.createLinearGradient(175, 100, canvas.width, 150);
grd.addColorStop(0, "rgba(0,255,0,0)");
grd.addColorStop(1, "rgba(0,255,0,1)");
context.fillStyle = grd;
context.beginPath();
context.moveTo(150, 150);
context.arc(150, 150, 140, -90 / 180 * Math.PI, 0 / 180 * Math.PI);
context.fill();
return canvas;
}
