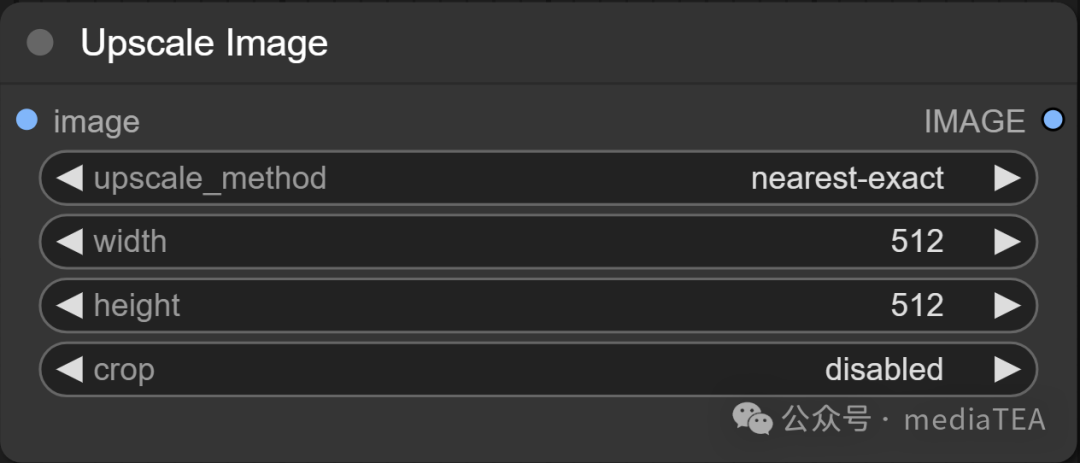

ComfyUI 节点:Upscale Image

Upscale Image 节点主要用于在 ComfyUI 中将图像按指定尺寸进行缩放(重采样)。

常见使用流程示例:

VAE Decode        │        ▼  Upscale Image(放大)        │        ▼    Save Image

📌 端口与参数

📌 输入端口

🔵 image

图像

用于接收输入图像,通常来自 VAE DecodeLoad Image 等图像处理节点。

📌 参数

upscale_method

放大方法

指定对图像进行缩放时采用的插值方法(interpolation method)。

--nearest-exact

默认选项。最近邻法,快速但像素感明显。

--bilinear

双线性插值,速度快,细节平滑但可能模糊。

--area

区域平均,适用于缩放保持一致性。

--bicubic

三次样条插值,较为自然,推荐用于通用图像。

--lanczos

高质量插值,锐度较高,适合需要保持细节的图片。

width

宽度

height

高度

指定目标尺寸的宽度与高度,以像素为单位。

可连接 PrimitiveInt 节点作为输入。

可手动设置任意正整数,如 768、1024、2048 等,图像将被强制拉伸或压缩到此尺寸。

建议设置为 64 的倍数,便于后续处理兼容模型尺寸限制。

crop

裁剪

当原图比例与目标尺寸不一致时,是否进行裁剪。

--disabled

默认选项。表示不进行裁剪,直接拉伸至指定的尺寸,可能会导致图像变形。

--center

居中裁剪多余部分。

📌 输出端口

🔵 IMAGE

图像

输出放大后的图像,可连接至 Preview ImageSave Image以及 Stylize、ControlNet、Inpaint 等图像处理节点。

💡 使用建议与说明

使用目的

推荐设置

常规放大 2 倍

method = bicubic,手动设置宽高为原图 ×2

图像裁剪重构

crop = center,适合用作 inpaint 前处理

做 ControlNet 缩略图

width = 512, height = 512

动漫图锐化插值

method = lanczos 或 nearest-exact(视风格)
